Peugeot 207 CC Dag (2010 year). Instruction - part 5

COMFORT

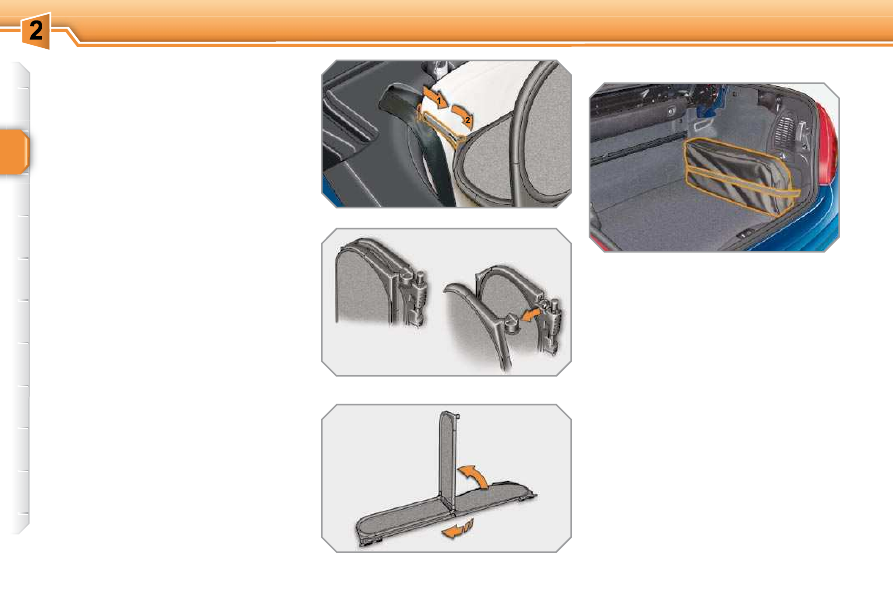

 Pull the windstop forwards to re-

lease the guides from the points lo-
cated behind the rear seat belts.

 Fold the windstop frame guides.

 Fold the windstop closing the

two large parts on themselves.

 Unclip each end individually.

 Fold each of the two parts on them-

selves.

Storing

 Store the windstop folded in its pro-

tective case.

 Use the strap intended to secure the

case on the right-hand side of the boot

(refer to the "Boot ﬁ ttings" section).

ACCESS

Deadlocking  renders  the  exterior
and  interior  door  controls  inopera-
tive.
It also deactivates the manual cen-
tralised control button.
Therefore,  do  not  leave  anyone
inside the vehicle when it is dead-
locked.

If one of the doors or the boot is still
open, the central locking does not
take place.

REMOTE CONTROL KEY

System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.

Unfolding the key
 First press button A to unfold the

key.

Unlocking the vehicle

Unlocking is conﬁ rmed by rapid ﬂ ashing

of  the  direction  indicators  for  approxi-
mately two seconds.
According  to  version,  the  door  mirrors
unfold at the same time.

Locking the vehicle

Deadlocking using the remote
control
 Press the closed padlock to lock the

vehicle.

 Press the closed padlock again

within ﬁ ve seconds to deadlock the

vehicle.

 Press the open padlock to

unlock the vehicle.

Unlocking using the key
 Turn the key to the left in the driver's

door lock to unlock the vehicle.

 Press the closed padlock

to lock the vehicle.

Normal locking using the key
 Turn the key to the right in the driv-

er's door lock to lock the vehicle.

Locking is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.

Unlocking using the remote control

Deadlocking using the key
 Turn the key to the right in the driv-

er's door lock to lock the vehicle.

 Turn the key to the right again within

ﬁ ve seconds to deadlock the vehicle.

Deadlocking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.

Normal locking using the remote
control

ACCESS

The  vehicle  will  relock  automati-
cally  after  thirty  seconds  unless
a  door  is  opened.  This  system
prevents unintentional unlocking.
The  folding  and  unfolding  of  the
door mirrors can be deactivated by
a PEUGEOT dealer.

Folding the key
 First press button A to fold the key.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the cour-

tesy lamp and ﬂ ashing of the direction

indicators for a few seconds.

  Electronic engine immobiliser
The  key  contains  an  electronic  chip
which  has  a  special  code.  When  the
ignition  is  switched  on,  this  code  must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the  engine  management  system  a  few
minutes after the ignition is switched off
and  prevents  starting  of  the  engine  by
anyone who does not have the key.

Anti-theft protection

In  the  event  of  a  malfunction,
you  are  informed  by  lighting  of
this  warning  lamp,  an  audible
signal  and  a  message  on  the
multifunction screen.

In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

 Press the boot unlocking but-

ton on the remote control for
more than 2 seconds. The
boot opens slightly.

Unlocking and partially opening
the boot

ACCESS

Starting the vehicle

 Insert the key in the ignition switch.

The system recognises the starting
code.

 Turn the key fully towards the dash-

board to position 3 (Starting) .

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to po-

sition 1 (Stop) .

 Remove the key from the ignition

switch.

Remote control problem

Following  disconnection  of  the  vehicle
battery, replacement of the remote con-
trol  battery  or  in  the  event  of  a  remote
control  malfunction,  you  can  no  longer
unlock, lock or locate your vehicle.
      First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.

Changing the battery

Battery ref.: CR1620/3 volts.

  Reinitialisation
      Switch off the ignition.
     Turn the key to position  2 (Ignition) .
     Press  the  closed  padlock  immedi-

ately for a few seconds.

 Switch off the ignition and remove

the key from the ignition switch.

The remote control is fully operational
again.

 Unclip the casing using a coin at the

notch.



Slide the ﬂ at battery out of its location.

 Slide the new battery into its loca-

tion observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

This replacement battery is available
from PEUGEOT dealers.

If the battery is ﬂ at, you are

informed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.

Key in ignition

If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.

ACCESS

Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your

personal identiﬁ cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transpon-
der code required to order a replacement key.

Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.

Remote control

The  high  frequency  remote  control  is  a  sensitive  system;  do  not  operate  it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The  remote  control  does  not  operate  when  the  key  is  in  the  ignition,  even
when the ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more difﬁ cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the electronic engine immobiliser system;

this could cause malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

ACCESS

Folding the key
 First press button A to fold the key.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the cour-

tesy lamp and ﬂ ashing of the direction

indicators for a few seconds.

Anti-theft protection

In  the  event  of  a  malfunction,
you  are  informed  by  lighting  of
this  warning  lamp,  an  audible
signal  and  a  message  on  the
multifunction screen.

In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

 Press the boot unlocking but-

ton on the remote control for
more than 2 seconds. The
boot opens slightly.

Unlocking and partially opening
the boot

ACCESS

Starting the vehicle

 Insert the key in the ignition switch.

The system recognises the starting
code.

 Turn the key fully towards the dash-

board to position 3 (Starting) .

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to po-

sition 1 (Stop) .

 Remove the key from the ignition

switch.

Remote control problem

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.

Changing the battery

Battery ref.: CR1620/3 volts.

  Reinitialisation
      Switch off the ignition.
     Turn the key to position  2 (Ignition) .
     Press  the  closed  padlock  immedi-

ately for a few seconds.

 Switch off the ignition and remove

the key from the ignition switch.

The remote control is fully operational
again.

 Unclip the casing using a coin at the

notch.



Slide the ﬂ at battery out of its location.

 Slide the new battery into its loca-

tion observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

This replacement battery is available
from PEUGEOT dealers.

If the battery is ﬂ at, you are

informed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.

Key in ignition

If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.

ACCESS

ALARM

System  which  protects  and  dissuades
against the theft of your vehicle. It pro-
vides  two  types  of  protection,  exterior
and  interior,  as  well  as  an  anti-tamper
function.

Locking the vehicle with full
alarm

Do not make any modiﬁ cations to

the alarm system, this could cause
malfunctions.

In  order  to  be  taken  into  account,
this  deactivation  must  be  car-
ried  out  each  time  the  ignition  is
switched off.
In the "cabriolet" conﬁ guration, the

interior protection is deactivated
automatically.

Locking the vehicle with
perimiter protection only

Activation
 Switch off the ignition and get out of

the vehicle.

 Lock or deadlock the vehicle using

the locking button on the remote
control.

The alarm is activate; the indicator lamp
on button A

ﬂ ashes once per second.

The  perimiter  protection  is  activated
5  seconds  after  pressing  the  locking
button on the remote control.
The  volumetric  protection  is  activated
45  seconds  after  pressing  the  locking
button on the remote control.
If a door or the boot is open or not proper-
ly closed, the vehicle is not locked, but
the perimiter protection will be activated
after  45  seconds  at  the  same  time  as
the volumetric protection.

Exterior perimeter protection

The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.

Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.

Anti-tamper function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.

Deactivation
 Unlock the vehicle using the unlock-

ing button on the remote control.

The alarm is deactivated; the indicator
lamp on button A switches off.

  Deactivation of the interior
volumetric protection
      Switch off the ignition.
     Within ten seconds, press button  A

until the indicator lamp is lit continu-
ously.

 Get out of the vehicle.
 Quickly lock or deadlock the vehicle

using the locking button on the re-
mote control.

The exterior perimeter protection alone
remains activated; the indicator lamp on
button A

ﬂ ashes once per second.

ACCESS

Triggering of the alarm

This is indicated by sounding of the si-

ren and ﬂ ashing of the direction indica-

tors for approximately thirty seconds.
After it has been triggered, protection is
again operational.

If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A

ﬂ ashes rapidly, this indicates that

the alarm was triggered during
your absence. When the ignition is

switched on, this ﬂ ashing stops im-

mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.

Failure of the remote control

 Unlock the vehicle using the key in

the driver's door lock.

 Open the door; the alarm is trig-

gered.

 Switch on the ignition; the alarm

stops.

* According to country.

Malfunction

When the ignition is switched on, light-
ing of the indicator lamp on button A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.

Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using

the key in the driver's door lock.

Automatic operation *

Depending on the legislation in force in
your country, one of these cases may
occur:
-

45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.

2 minutes after the last door or the
boot is closed, the alarm is activated.

 To avoid triggering the alarm on en-

tering the vehicle, ﬁ rst press the un-

locking button on the remote control.

Reactivation of the interior
protection
 Unlock the vehicle using the unlock-

ing button on the remote control.

 Lock the vehicle again using the re-

mote control.

The  alarm  is  activate  again  with  both
types  of  protection;  the  indicator  lamp
on button  A

ﬂ ashes once per second.

ACCESS

WINDOW CONTROLS

System which opens or closes a win-

dow manually or automatically. It is ﬁ t-

ted with a system which controls all four
windows on all models.

1. Driver's electric windows switch.
2.

Passenger's electric windows switch.

Each window switch controls, on its
own side, the front window and the rear
quarter light.

One-touch electric windows

You have two options:

The  windows  (except  the  driver's
window) do not have an automatic
mode  or  safety  anti-pinch  function
for closing.
For  your  safety,  the  windows  rise
in several stages; however, always
be vigilant.

The  window  control  switches  re-
main  operational  for  approximate-
ly  45  seconds  after  the  ignition
is  switched  off  or  until  a  door  is
opened.

 Press or pull switch 1 . The

window stops as soon as the
switch is released.

The rear quarter light only opens once the
front window has opened completely.

Electric windows

manual mode

 Press or pull switch 1 gently. The

window stops as soon as the switch
is released.

The rear quarter light only opens once the
front window has opened completely.
-

automatic mode

 Press switch 1 fully. The window

opens or closes completely when
the switch is released.

 Pressing the switch again stops the

movement of the window.

 If you continue to press the switch,

the rear quarter light will open or
close.

ACCESS

Switch for all four windows

This switch opens or closes all of the
windows.

Reinitialisation

Following reconnection of the battery or
in  the  event  of  a  malfunction  you  must
reinitialise  the  operation  of  the  electric
windows:
      release  the  switch  and  pull  it  again

until it closes completely,

 hold the switch for approximately

one second after closing,

 press the switch to lower the win-

dow automatically,

 when the window has reached the

low position, press the switch again
for approximately one second.

Always  remove  the  key  from  the
ignition  when  leaving  the  vehicle,
even for a short time.
In  the  event  of  contact  during
operation of the windows, you must
reverse  the  movement  of  the  win-
dow.  To  do  this,  press  the  switch
concerned.
When the driver operates the pas-
senger  electric  window  switches,
they  must  ensure  that  no  one  is
preventing  correct  closing  of  the
windows.
The  driver  must  ensure  that  the
passengers  use  the  electric  win-
dows correctly.
Be aware of children when operat-
ing the windows.

 Press switch 3 and release it. The

windows open completely.

 Pressing the switch again stops the

movement of the windows.

or
 Pull switch 3 and hold it in this posi-

tion. The windows close completely.

 If you release the switch before the

windows have closed completely,
the windows stop.

This switch is operated under the
full responsibility of the driver.

This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows

ACCESS

DOORS

 After unlocking the vehicle using the

remote control or the key, pull the
door handle.

The window lowers automatically by
a few millimetres when the door is
opened.

From inside

 Pull the door control to open the

door; this unlocks the doors only.

The window lowers automatically by
a few millimetres when the door is
opened.

The  interior  door  controls  do  not
operate  when  the  vehicle  is  dead-
locked.

Closing

The window rises automatically after a
few seconds and adjusts to ensure per-
fect sealing on closing.
If a door is not closed correctly:

- when the engine is running ,

this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

when the vehicle is moving  (speed
above 6 mph (10 km/h)), this warn-
ing  lamp  comes  on,  accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.

If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.

The boot does not unlock at the
same time as the doors (refer to
the "Boot" section).

When washing your vehicle, avoid
spraying the upper part of the windows.

Opening

From outside

ACCESS

If the vehicle is locked or dead-
locked from the outside, the red

indicator lamp ﬂ ashes and button A

is inactive.
 In this case, use the remote

control or the key to unlock the
vehicle.

Manual centralised control

System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.

  Locking
      Press button  A  to lock the vehicle.
The  red  indicator  lamp  on  the  button
comes on.

If one of the doors is open, the cen-
tral locking from the inside does not
take place.

Unlocking
 With the key in the ignition, press

button A again to unlock the vehicle.

The red indicator lamp on the button
switches off.

ACCESS

Emergency control

System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.

 Insert the key in the lock, located on

the edge of the door, then turn it one
eighth of a turn .

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the passenger door

Unlocking the passenger door
 Pull the interior door opening control.

If one of the doors is open, the au-
tomatic  central  locking  does  not
take place.
If  the  boot  is  open,  the   automatic
central  locking  of  the  doors  is
active.

Central automatic control

System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this function.

Activation

 Press button A for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen.

Unlocking
 Above 6 mph (10 km/h), press but-

ton A to unlock the doors and boot
temporarily.

Locking
When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.

Deactivation
 Press button A again for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen.

ACCESS

BOOT

Opening

 After unlocking the boot or the ve-

hicle using the remote control or the
key, pull the handle and raise the
boot lid.

Unlocking and partially opening
the boot

 Press the boot unlocking

button on the remote control
for more than two seconds.
The boot opens slightly.

If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer.

Boot anti-theft protection

The boot is designed to remain secure,

even in the "cabriolet" conﬁ guration.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
-

by means of the interior door open-
ing control, when the key is not in
the ignition switch,

by  pressing  the  manual  centralised
control  A , when the key is not in the
ignition switch.

- when the engine is running ,

this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

when the vehicle is moving  (speed
above 6 mph (10 km/h)), this warn-
ing  lamp  comes  on,  accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.

Closing

 Lower the boot lid using the interior

grab handle.

If the boot lid is not closed correctly:

Automatic locking of the boot
In the "cabriolet" conﬁ guration, with

the vehicle locked, if you unlock the
boot  by  pressing  the  boot  unlock-
ing  button  on  the  remote  control,
it  will  lock  automatically  when  you
close it again.
In  this  case,  if  you  inadvertently
leave the key in the boot, press the
manual  centralised  control   A   im-
mediately  to  unlock  the  boot  and
retrieve the key.

ACCESS

The key cannot be removed from

the lock until the cap is reﬁ tted.

FUEL TANK

Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).

Opening the ﬁ ller cap may create a

noise a caused by an inrush of air. This
vacuum  is  entirely  normal,  resulting
from the sealing of the fuel system.
To ﬁ ll the tank in complete safety:
       the engine must be switched off,
  

open the fuel ﬁ ller ﬂ ap,

 insert the key in the cap, then turn it

to the left,

When you have ﬁ lled the tank:
 put the cap back in place,
 turn the key to the right, then remove

it from the cap,



close the ﬂ ap.

 remove the cap and hook it onto

the clip located on the inside of the

ﬂ ap,



ﬁ ll the tank, but do not continue

after the 3rd cut-off of the pump ;
this could cause malfunctions.

Low fuel level

  When  the  fuel  tank  minimum
level  is  reached  this  warning
lamp  comes  on  on  the  instru-

ment panel. When it ﬁ rst comes

on there remains approximate-
ly 5 litres of fuel in the tank.

You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.

Filling

A label afﬁ xed to the inside of the ﬂ ap

reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.

Content .. 3 4 5 6 ..
