COMFORT

When the engine is cold, to prevent
too great a distribution of cold air,

the air ﬂ ow will only reach its opti-

mum level gradually.
In  cold  weather,  it  favours  the  dis-
tribution  of  warm  air  to  the  wind-
screen,  the  side  windows  and  the
footwells only.

On  entering  the  vehicle,  if  the  in-
terior  temperature  is  much  colder
or  warmer  than  the  comfort  value,
there  is  no  need  to  alter  the  value
displayed in order to obtain the re-
quired level of comfort. The system
corrects  the  temperature  differ-
ence  automatically  and  as  quickly
as possible.

The air conditioning can only operate
with the engine running.

The driver and his front passen-
ger can each set the tempera-
ture to suit their requirements.

 Turn dial 2 or 3 to the left to reduce

the value or to the right to increase it.

A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.

4. Automatic visibility programme

The automatic comfort pro-

gramme may not be sufﬁ cient

to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice...).

 In this case, select the automatic

visibility programme.

The system automatically controls the

air conditioning, the air ﬂ ow and the air

intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

Automatic operation

 Press the "AUTO" button.

The "AUTO" symbol is
displayed.

2. Driver's side adjustment

DUAL-ZONE DIGITAL AIR CONDITIONING

We recommend that you use this mode:
it provides optimised automatic control of
all of the functions, passenger compart-

ment temperature, air ﬂ ow, air distribu-

tion and air recirculation, in accordance
with the comfort value that you have se-
lected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed.

The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

1. Automatic comfort programme

3. Passenger's side adjustment

COMFORT

 To exit this programme, press the "vis-

ibility" button again or the "AUTO"
button, the indicator lamp on the button
switches off and "AUTO" is displayed.

 Press this button to switch

the air conditioning off.

6. Air distribution adjustment

 Press this button several

times in succession to di-

rect the air ﬂ ow in turn to-

wards:

7. Air ﬂ ow adjustment

 Press the "small fan" but-

ton to reduce the air ﬂ ow.

8. Air intake/Air recirculation

Deactivation of the system

 Press the "small fan" button until

the fan symbol disappears.

This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,

a slight ﬂ ow of air, due to the movement

of the vehicle, can still be felt.
 Press the "large fan" button again

or  the   "AUTO"   button  to  reactivate
the  system  with  the  values  which
were set before it was deactivated.

 Press this button to recir-

culate  the  interior  air.  The
air  recirculation  symbol  is
displayed.

5. Air conditioning On/Off

Avoid driving for too long with the
air conditioning deactivated.

Avoid  prolonged  operation  in  inte-
rior  air  recirculation  mode  (risk  of
condensation  and  of  deterioration
of the air quality).

- the windscreen, the side windows

and the footwells,

- the windscreen and side windows

(demisting or defrosting),

- the central and side vents,
- the central vents, the side vents

and the footwells,

- the footwells.

 Press the "large fan"

button to increase the air

ﬂ ow.

The air ﬂ ow symbol, the fan, is ﬁ lled in

progressively in relation to the value re-
quired.

Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.
 As soon as possible, press this but-

ton again to permit the intake of ex-
terior air and prevent misting.

For maximum cooling or heating of
the  passenger  compartment,  you
can  exceed  the  minimum  value  of
14 or the maximum value of 28.
      Turn  dial   2   or   3   to  the  left  until

"LO" is displayed or to the right
until "HI" is displayed.

Resuming manual control

Depending  on  your  requirements,  you
can make a different selection from that
offered  by  the  system  by  changing  a
setting.  The  other  functions  will  still  be
controlled automatically.
        Press  the   "AUTO"   button  to  return

to fully automatic operation.

Switching the system off may result in
discomfort (humidity, condensation).
 Press the button again to return to

automatic operation of the air con-

ditioning. The symbol " A/C " is dis-

played.

COMFORT

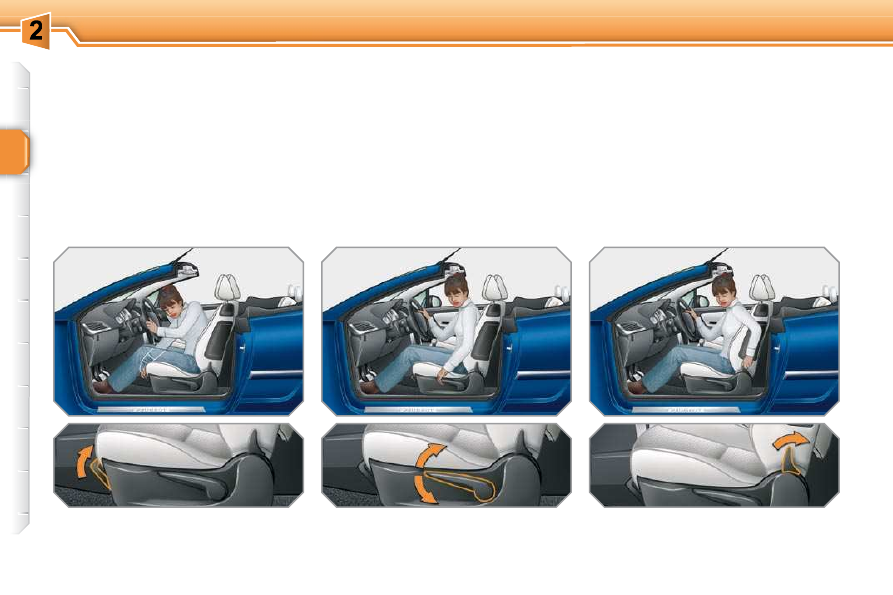

FRONT SEATS

Seat consisting of a seat cushion, seat
back  and  head  restraint  which  can  all
be  adjusted  to  adapt  your  position  for
maximum ease of driving and comfort.

1. Forwards-backwards adjustment
 Lift the control and slide the seat for-

wards or backwards.

2. Driver's or passenger's seat

height adjustment

 Full the lever upwards or push it

downwards as many times as neces-
sary to obtain the required position.

3. Seat back angle adjustment
 Push the lever towards the rear.

COMFORT

No  person  or  object  must  prevent
the  seat  slide  from  returning  to  its
initial  position;  return  to  this  posi-
tion  is  necessary  for  the  seat  to
lock in place.

4. Access to rear seats
 Pull the lever to fold the seat back

and move the seat forwards.

On repositioning, the seat returns to
its initial position.

5. Head restraint height adjustment

 To raise the head restraint, pull it up-

wards.

 To remove the head restraint, press

the lug A and pull the head restraint
upwards.

 To put the head restraint back in po-

sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.

 To lower the head restraint, press

the lug A and the head restraint at
the same time.

The head restraint has a frame with
a  notch  which  prevents  the  head
restraint  from  lowering;  this  is  a
safety  device  which  provides  pro-
tection in the event of an impact.

The adjustment is correct when the

upper edge of the head restraint is

level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

COMFORT

REAR SEATS

Fixed two-seat bench ﬁ tted with roll-

over bars to ensure your protection
should the vehicle roll over.

Following

accident,

have

the roll-over bars checked by a
PEUGEOT dealer.

The  command  for  activation  of
heating  of  the  seat(s)  remains
memorised  for  two  minutes  after
the ignition has been switched off.

6. Heated seats switch
With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on

the side of each front seat, to switch
on and select the level of heating re-
quired:

  0 : Off.
  1 : Low.
  2 : Medium.
  3 : High

STEERING WHEEL ADJUSTMENT



When stationary , pull the control

lever to release the steering wheel.

 Adjust the height and reach to suit

your driving position.

 Push the control lever to lock the

steering wheel.

As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.

COMFORT

REAR SEATS

Fixed two-seat bench ﬁ tted with roll-

over bars to ensure your protection
should the vehicle roll over.

Following

accident,

have

the roll-over bars checked by a
PEUGEOT dealer.

The  command  for  activation  of
heating  of  the  seat(s)  remains
memorised  for  two  minutes  after
the ignition has been switched off.

6. Heated seats switch
With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on

the side of each front seat, to switch
on and select the level of heating re-
quired:

  0 : Off.
  1 : Low.
  2 : Medium.
  3 : High

STEERING WHEEL ADJUSTMENT



When stationary , pull the control

lever to release the steering wheel.

 Adjust the height and reach to suit

your driving position.

 Push the control lever to lock the

steering wheel.

As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.

COMFORT

MIRRORS

Door mirrors

Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking.

Adjustment
 Slide switch A to the right or to the

left to select the corresponding mirror.

 Move knob B in all four directions to

adjust.

 Return switch A to the centre posi-

tion.

The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.

Folding
 From outside: lock the vehicle using

the remote control or the key.

 From inside: with the ignition on, pull

switch A rearwards.

Unfolding
 From outside: unlock the vehicle us-

ing the remote control or the key.

 From inside: with the ignition on, pull

switch A rearwards.

The  objects  observed  are,  in  real-
ity, closer than they appear.
Take  this  into  account  to  correctly
judge  the  distance  of  vehicles  ap-
proaching from behind.

COMFORT

Rear view mirror

Adjustable  mirror  providing  a  central
rearward view.
Equipped  with  an  anti-dazzle  system,
useful in poor light.

Adjustment
 Adjust the mirror so that the glass is di-

rected correctly in the "day" position.

As a safety precaution, the mirrors
must be adjusted to reduce the

"blind spot".

  In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror  lightens  automatically  when
reverse gear is engaged.

Automatic day/night model

Manual day/night model

Day/night position


Pull the lever to change to the "night"

anti-dazzle position.

 Push the lever to change to the nor-

mal "day" position.

By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes  between  the  day  and  night
uses.
It has an anti-dazzle system which dark-
ens  the  mirror  glass:  this  reduces  any
driver  discomfort  caused  by  the  light
beam of following vehicles, the sun...

COMFORT

SUN VISOR

Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the con-

cealing ﬂ ap; the mirror is lit automati-

cally.

This sun visor is also equipped with a
ticket holder.

To avoid any risk of jamming of the
pedals:
-

only use mats which are suited

to the ﬁ xings already present in

the vehicle; it is imperative that
these are used,

- never ﬁ t one mat on top of an-

other.

Removable carpet protection.

Refitting

To reﬁ t the mat on the driver's side:
 position the mat correctly,


reﬁ t the ﬁ xings by pressing,

 check that the mat is secured cor-

rectly.

Fitting

When ﬁ tting the mat for the ﬁ rst time,

on the driver's side use only the ﬁ xings

provided in the wallet attached.
The other mats are simply placed on
the carpet.

Removal

To remove the mat on the driver's side:
 move the seat as far back as possible,


unclip the ﬁ xings,

 remove the mat.

COMFORT

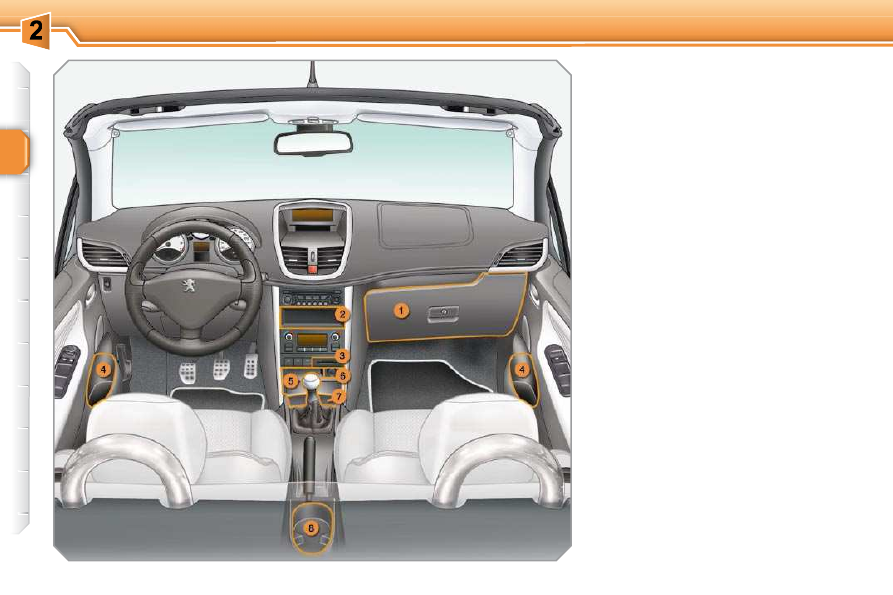

INTERIOR FITTINGS

1. Illuminated glove box

(see details on following page)

2. Storage compartment

with

non-slip mat

3. Card /ticket

holder

4. Door tray

Storage compartment with

non-slip mat

6. USB port

(see details on following page)

7. 12 V accessories socket

(see details on following page)

Cup holder

COMFORT

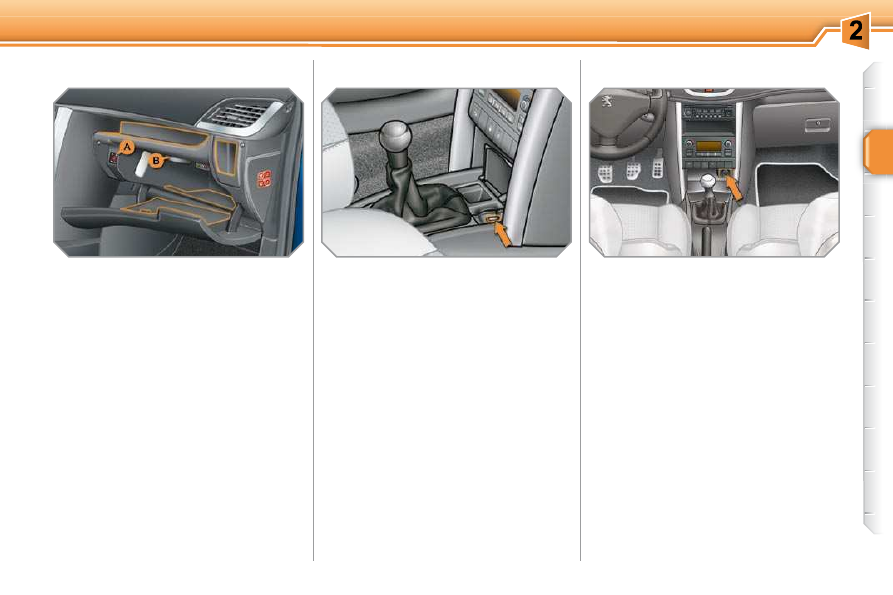

Illuminated glove box

This has an upper open storage com-
partment, a recess and locations for

storing a bottle of water, the vehicle's

handbook, ...
Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...
It is ﬁ tted with a lock.
 To open the glove box, raise the

handle.

It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
If the vehicle is ﬁ tted with air condi-

tioning,  it  provides  access  to  the  ven-
tilation nozzle  B , which can be opened
or  closed,  distributing  the  same  condi-
tioned air as the vents in the passenger
compartment.

12 V accessories socket

 To connect a 12 V accessory (max

power: 120 Watts), lift the cover and
connect a suitable adaptor.

PEUGEOT CONNECT USB

This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod

or USB memory stick type.

It reads the audio ﬁ le formats (mp3,

ogg, wma, wav...) which are transmitted
to your audio equipment and played via

the vehicle's speakers.

You can manage these ﬁ les using the

steering  wheel  controls  or  the  audio
equipment  control  panel  and  display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of this
equipment, refer to the Peugeot Con-

nect Sound part of the "Audio and Tele-

matics" section.

COMFORT

Illuminated glove box

This has an upper open storage com-
partment, a recess and locations for

storing a bottle of water, the vehicle's

handbook, ...
Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...
It is ﬁ tted with a lock.
 To open the glove box, raise the

handle.

It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
If the vehicle is ﬁ tted with air condi-

tioning,  it  provides  access  to  the  ven-
tilation nozzle  B , which can be opened
or  closed,  distributing  the  same  condi-
tioned air as the vents in the passenger
compartment.

12 V accessories socket

 To connect a 12 V accessory (max

power: 120 Watts), lift the cover and
connect a suitable adaptor.

PEUGEOT CONNECT USB

or USB memory stick type.

It reads the audio ﬁ le formats (mp3,

ogg, wma, wav...) which are transmitted
to your audio equipment and played via

the vehicle's speakers.

You can manage these ﬁ les using the

steering  wheel  controls  or  the  audio
equipment  control  panel  and  display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of this
equipment, refer to the Peugeot Con-

nect Sound part of the "Audio and Tele-

matics" section.

COMFORT

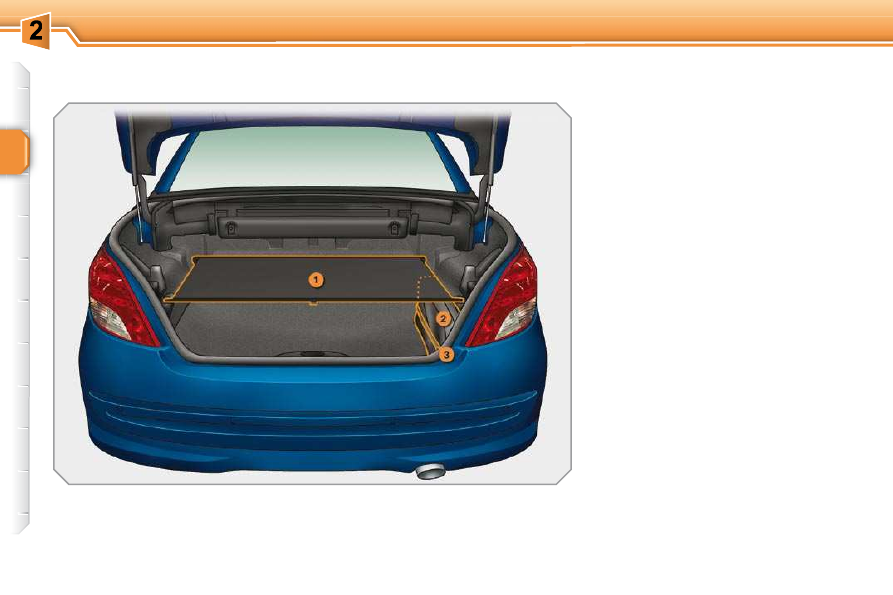

BOOT FITTINGS

1. Load space cover net

(see details on following page)

2. Windstop storage case

(see details on following page)

3. Luggage retaining strap

COMFORT

In the "cabriolet" conﬁ guration, this de-

ﬁ nes the luggage space in the boot.

Load space cover net

When it has been removed and folded,
the windstop should be stored in its pro-
tective case.
This case can be stored by means of a
strap on the right-hand side of the boot.

Windstop storage case

When the load space cover net is

in place, the following conditions

must be observed:
-

the luggage must not raise the

cover net,

luggage must not be placed on

top of the cover net.

The  load  space  cover  net  must
always  be  in  place  before  a  roof
opening  operation  is  started  (refer

to the "Familiarisation - § Opening"

section).

For installation of the windstop, re-

fer to the following pages "Fitting/

removing the windstop".

COMFORT

Windstop folded

FITTING/REMOVING THE
WINDSTOP

In the "cabriolet" conﬁ guration, the

windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve visibility when
reversing.
It is supplied folded in four in its protec-
tive case.

Windstop unfolded

Fitting

 Clip the ends of the assembly until a

click is heard.

 Unfold the windstop by opening

the two parts to 90° until a click is
heard.

 Unfold the windstop frame guides.
 Engage the guides in the points lo-

cated behind the rear seat belts.

 Unfold each of the two parts fully.

COMFORT

 Engage the shafts of the windstop

frame in the openings in the rear
side trim.

When installing the windstop for the ﬁ rst

time:
 position a 10 mm open-ended spanner

on the hexagonal part of the shaft,

 tighten or slacken without forcing on

each side to adjust the depth setting.

 Lastly, always check that the wind-

stop is retained securely before us-

ing it in the "cabriolet" conﬁ guration.

Removal

 Press and pull on the shaft supports

to release the shafts from the open-
ings in the rear side trim.

It is not necessary to remove the
windstop when changing to the

"coupé" conﬁ guration.

Content .. 2 3 4 5 ..
