Peugeot 207 CC Dag (2010 year). Instruction

INSTRUMENTS and CONTROLS

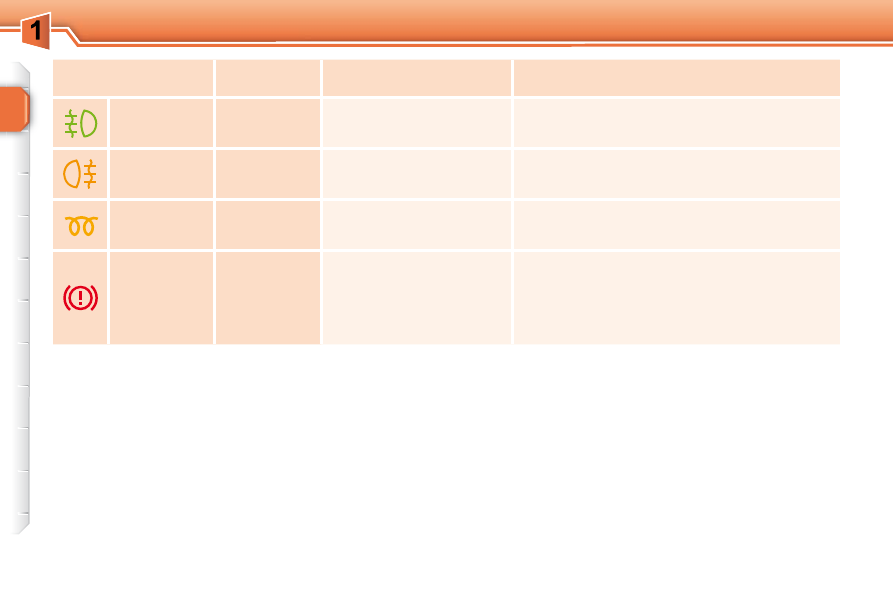

Warning lamp

is on

Cause

Action/Observations

Front

foglamps

ﬁ xed.

The front foglamps are
switched on.

Turn the ring on the stalk rearwards twice to
switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are
switched on.

Turn the ring on the stalk rearwards to switch off
the rear foglamps.

Diesel engine
pre-heating

ﬁ xed.

The ignition switch is at the
2nd position (ignition on).

Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.

Parking brake

ﬁ xed.

The parking brake is
applied or not properly
released.

Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.

INSTRUMENTS and CONTROLS

Deactivation warning lamps
If one of the following warning lamps comes on, this conﬁ rms that the corresponding system has been switched off intentionally.

Warning lamp

is on

Cause

Action/Observations

Passenger's

airbag

system

ﬁ xed.

The control, located in the
glove box, is set to the OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat.

Set the control to the ON position to activate the

passenger's front airbag. In this case, do not ﬁ t a

child seat in the rear-facing position.
The passenger's airbag system is put into service
automatically when the vehicle is started ( ON
position).

ESP/ASR

ﬁ xed.

The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.

The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation.

Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.

INSTRUMENTS and CONTROLS

Warning lamps
When the engine is running or the vehicle is
being driven, the switching on of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver.

Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed, associated

with another

warning lamp and

accompanied by

an audible signal.

It is associated with the
braking system or the
engine coolant temperature.

Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer.

Service

temporarily.

A minor fault has occurred
for which there is no

speciﬁ c warning lamp.

Identify the fault by reading the message shown
on the screen, such as, for example:
-

the engine oil level,

the screenwash level,

the remote control battery,

- saturation of the particle emission ﬁ lter

(Diesel).

For any other faults, contact a PEUGEOT dealer.

ﬁ xed.

A major fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message shown
on the screen and contact a PEUGEOT dealer.

Braking

ﬁ xed.

The braking system

ﬂ uid level has dropped

signiﬁ cantly.

Top up with brake ﬂ uid recommended by

PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer.

ﬁ xed, associated

with the ABS

warning lamp.

The electronic brake force
distribution (EBFD) system
has a fault.

Have it checked by a PEUGEOT dealer.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action/Observations

Anti-lock

Braking

System

(ABS)

ﬁ xed.

The anti-lock braking
system has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer without delay.

Dynamic

stability

control

(ESP/ASR)

ﬂ ashing.

The ESP/ASR regulation is
active.

The system optimises traction and improves the
directional stability of the vehicle.

ﬁ xed.

Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty.

Have it checked by a PEUGEOT dealer.

Engine

autodiagnosis

system

ﬁ xed.

The emission control
system has a fault.

This lamp should switch off when the engine is started.
If it does not switch off, contact a PEUGEOT dealer
urgently.

ﬂ ashing.

The engine management
system has a fault.

Risk of destruction of the catalytic convertor.
Have it checked by a PEUGEOT dealer.

Low fuel level

ﬁ xed.

When it ﬁ rst comes on there

remains approximately
5 litres of fuel in the tank.

You must refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every time the

ignition is switched on, until a sufﬁ cient addition

of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel).
Never continue to drive until you run out of fuel
as this could damage the emission control and
injection systems.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action/Observations

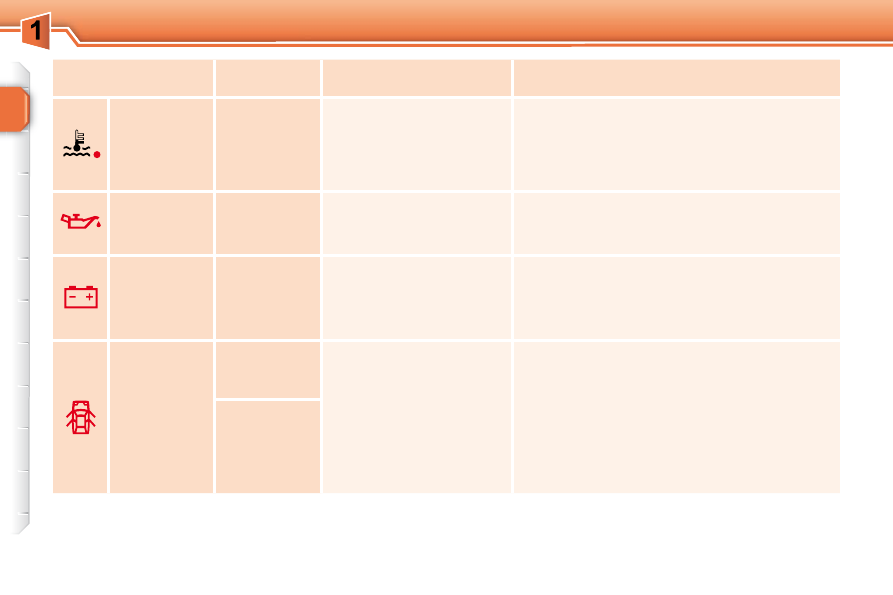

Maximum

coolant

temperature

ﬁ xed red.

The temperature of the
cooling system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer.

Engine oil

pressure

ﬁ xed.

There is a fault with the
engine lubrication system.

Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer.

Battery

charge

ﬁ xed.

The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...).

This lamp should switch off when the engine is
started.
If it does not switch off, contact a PEUGEOT
dealer.

Door(s) open

ﬁ xed if the

speed is

below 6 mph

(10 km/h).

A door, the boot or the rear
screen is still open.

Close the door or boot.

ﬁ xed and

accompanied
by an audible

signal if the

speed is

above 6 mph

(10 km/h).

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action/Observations

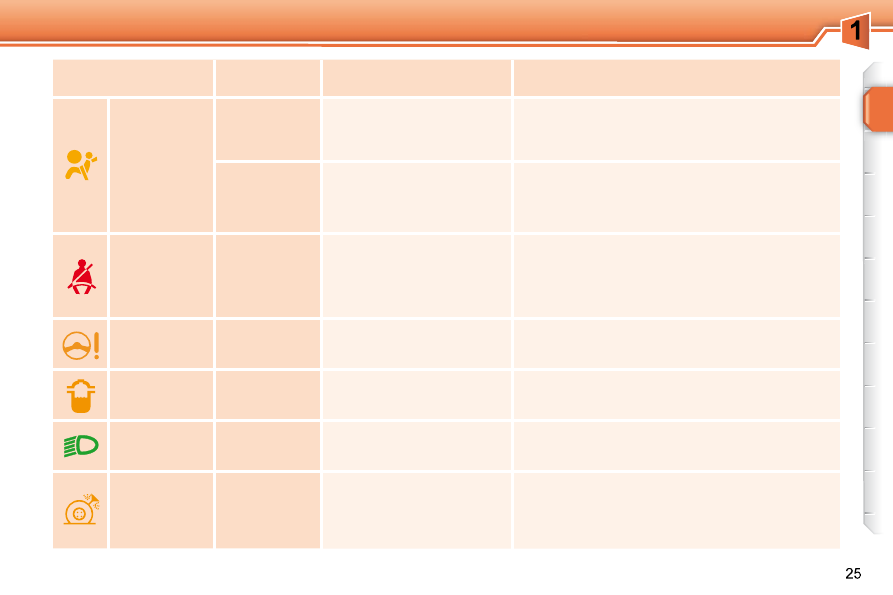

Airbags

temporarily.

This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off.

This lamp should switch off when the engine is
started.
If it does not switch off, contact a PEUGEOT
dealer.

ﬁ xed.

One of the airbag or seat
belt pretensioner systems
has a fault.

Have it checked by a PEUGEOT dealer.

Seat belt not

fastened/

unfastened

ﬁ xed then

ﬂ ashing

accompanied

by an

increasing

audible signal.

The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.

Pull the strap then insert the tongue in the
buckle.

Power

steering

ﬁ xed.

The power steering has a
fault.

Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer.

Water in

Diesel

ﬁ xed.

The diesel ﬁ lter contains

water.

Risk of damage to the injection system on Diesel
engines.
Contact a PEUGEOT dealer without delay.

Directional

headlamps

ﬂ ashing.

The directional headlamps
system is faulty.

Have it checked by a PEUGEOT dealer.

Punctured

wheel

ﬁ xed.

One or more wheels are
punctured or seriously

deﬂ ated.

Stop immediately avoiding any sharp action on
the steering wheel or the brakes.
Repair or change the damaged wheel and have
the pressure of the tyres checked as soon as
possible.

INSTRUMENTS and CONTROLS

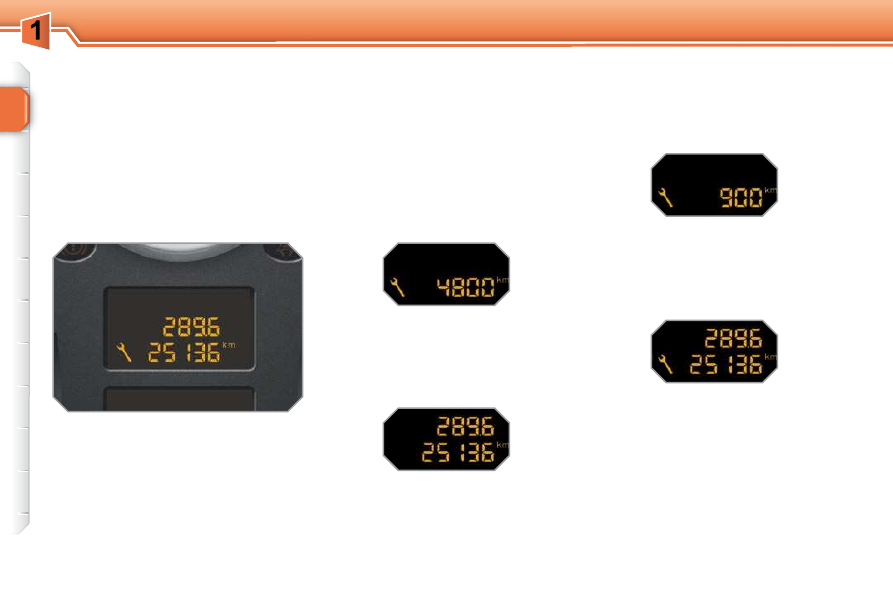

Service indicator

System which informs the driver when
the next service is due, in accordance
with

the

manufacturer's

servicing

schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
-

the distance travelled,

the time elapsed since the last service.

  More than 620 miles (1 000 km) remain
before the next service is due
For  5  seconds  after  the  ignition  is
switched  on,  the  spanner  symbolising
the  service  operations  comes  on.  The
distance recorder display line indicates
the  distance  remaining  before  the  next
service is due.
  Example:   4  800  miles/km  remain  be-
fore the next service is due.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

5 seconds after the ignition is switched
on,   the  spanner  is  switched  off ;  the
distance  recorder  resumes  its  normal
operation.  The  display  then  indicates
the total and trip distances.

  Less than 620 miles (1 000 km)
remain before the next service is due
  Examples:  900 miles/km remain before
the next service is due.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

5 seconds after the ignition is switched
on,  the  distance  recorder  resumes  its
normal  operation.   The  spanner  re-
mains  on   to  indicate  that  a  service
must be carried out soon.

INSTRUMENTS and CONTROLS

Following this operation, if you wish
to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into ac-
count.

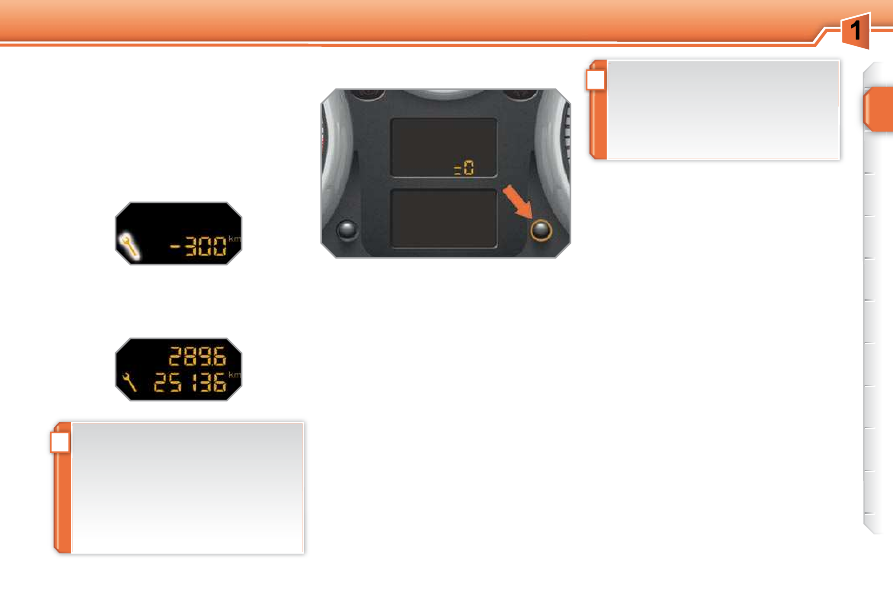

Service indicator zero reset

After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
 switch off the ignition,
 press and hold the trip distance re-

corder zero reset button,

 switch on the ignition; the distance re-

corder display begins a countdown,

 when the display indicates "=0" , re-

lease the button; the spanner disap-
pears.

The  distance  remaining  may  be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore,  the  spanner  may  also
come on if you have exceeded the
two year service interval.

  Service overdue
For  5  seconds  after  the  ignition  is
switched  on,

the spanner ﬂ ashes to

indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:

5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
lit .

INSTRUMENTS and CONTROLS

The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

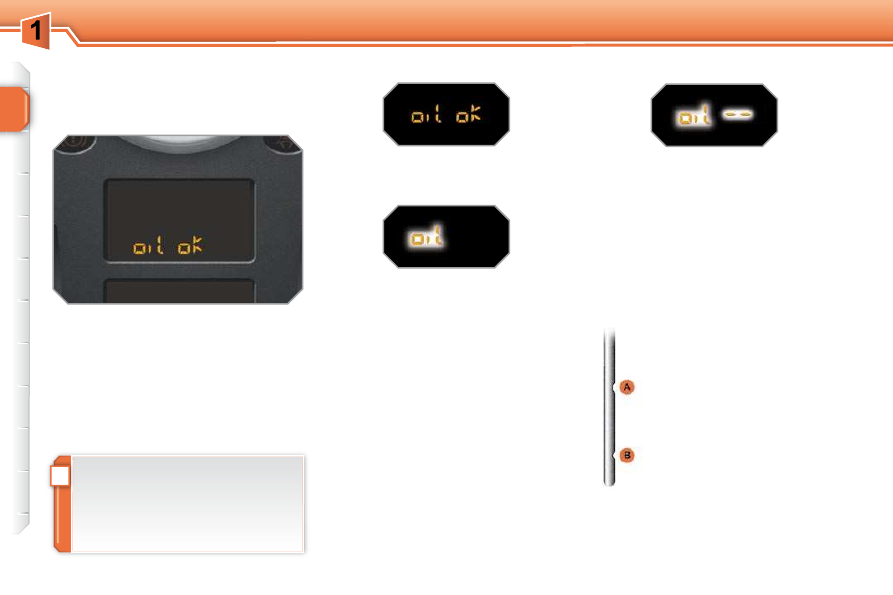

Engine oil level indicator

System which informs the driver whether
the engine oil level is correct or not.

This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Lack of oil

Oil level indicator fault

Dipstick

This is indicated by the ﬂ ashing of

"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
If the lack of oil is conﬁ rmed by a check

using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.

This is indicated by the ﬂ ashing of

"OIL --" . Consult a PEUGEOT dealer.

Refer to the "Checks" section to locate

the dipstick and the oil ﬁ ller cap on your

engine.

There are 2 marks on the
dipstick:
-

A = max; never exceed
this level (risk of dam-
age to the engine),

B = min; top up the level

via the oil ﬁ ller cap, us-

ing the grade of oil suit-
ed to your engine.

INSTRUMENTS and CONTROLS

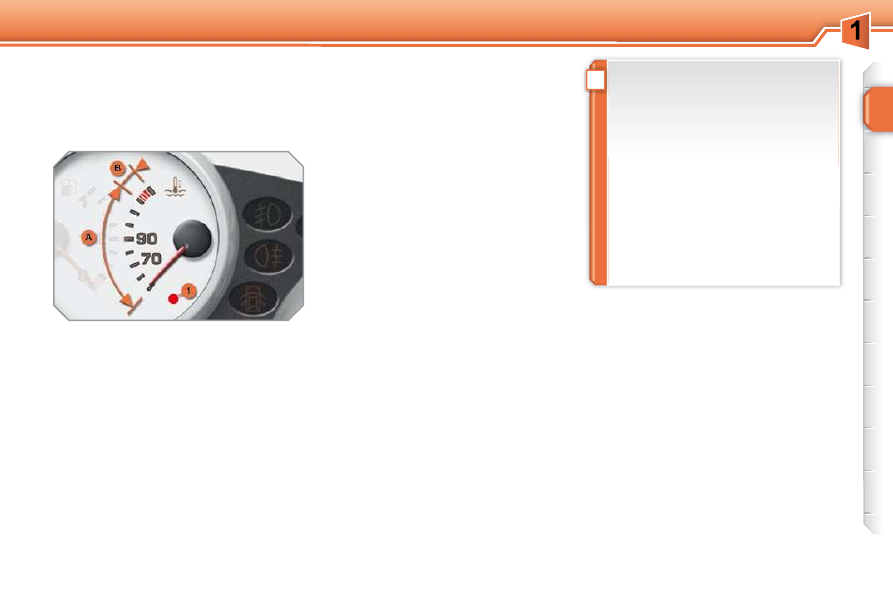

Coolant temperature indicator

System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.

With the engine running, when the nee-
dle is:
-

in zone A , the temperature is correct,

in  zone   B ,  the  temperature  is  too
high;  the  max  temperature  warning
lamp  1  and the central  STOP  warn-
ing lamp come on, accompanied by
an audible signal and a message on
the multifunction screen.

You MUST stop as soon as it is safe
to do so.
Consult a PEUGEOT dealer.

After driving for a few minutes, the tem-
perature  and  pressure  in  the  cooling
system increase.
To top up the level:
      wait for the engine to cool,
     unscrew the cap by two turns to al-

low the pressure to drop,

 when the pressure has dropped, re-

move the cap,

 top up the level to the "MAX" mark

(circular line).

On petrol engines, the cooling of the
engine is managed electronically to
reduce  fuel  consumption.  Conse-
quently,  the  coolant  temperature
levels  are  no  longer  simply  linked
with the external ambient conditions
and the use of the vehicle.
For  example,  in  town,  it  is  normal
for  the  coolant  temperature  to  be
slightly higher in cold weather than
in hot weather.

INSTRUMENTS and CONTROLS

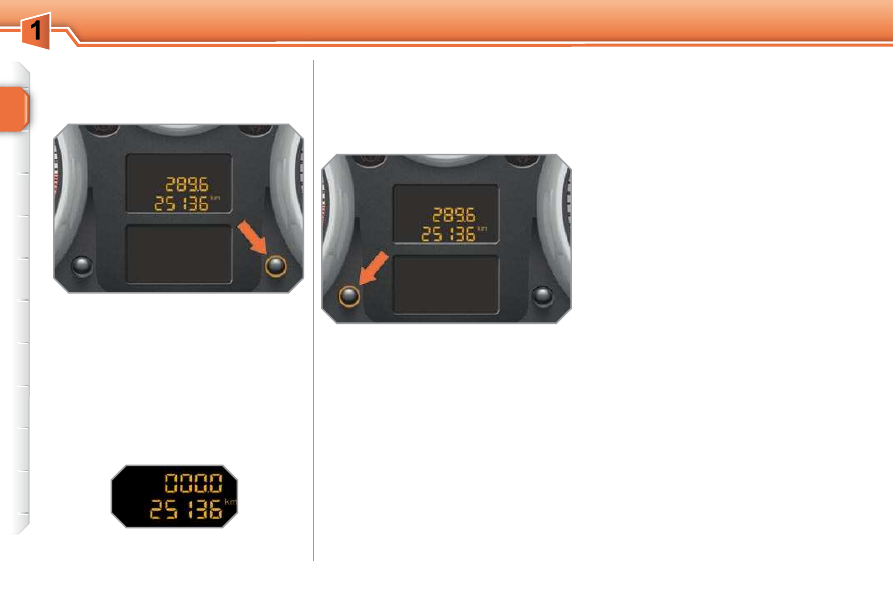

Total distance recorder

System which measures the total distance
travelled by the vehicle during its life.

Lighting rheostat

Permits manual adjustment of the bright-
ness of the instruments and controls in
relation to the exterior brightness. Only
operates when the vehicle lighting is on,
with the exception of the daytime run-
ning lamps.

The  total  and  trip  distances  are  dis-
played  for  thirty  seconds  when  the  ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.

Trip distance recorder

System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

 With the ignition on, press the button

until zeros appear.

Activation
 Press the button to change the

brightness of the instruments and
controls.

 When the lighting reaches the mini-

mum setting, release the button,
then press again to increase it.

or
 When the lighting reaches the maxi-

mum setting, release the button,
then press again to reduce it.

 When the lighting reaches the level

of brightness required, release the
button.

Deactivation
When the vehicle lighting is off, or in

day mode on vehicles ﬁ tted with day-

time running lamps, pressing the button
does not have any effect.

INSTRUMENTS and CONTROLS

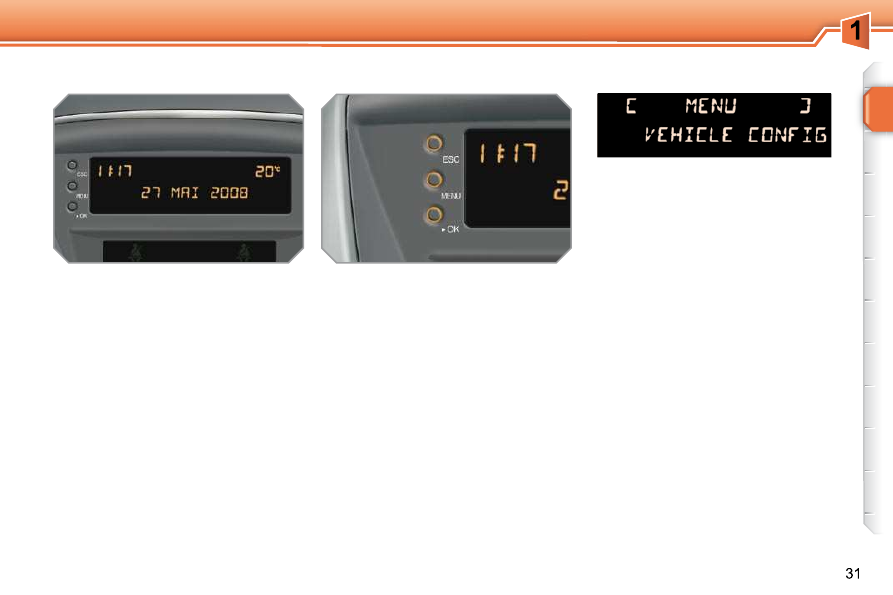

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)

Controls

Main menu

There are three display control buttons:
-

"ESC" to abandon the operation in
progress,

"MENU" to scroll through the menus
or sub-menus,

"OK" to select the menu or sub-
menu required.

 Press the "MENU" button to scroll

through the various menus of the
main menu :

   -   vehicle conﬁ guration,
  -   options,
  -   display settings,
  -   language,
  -   units.

 Press the "OK" button to select the

menu required.

* With air conditioning only.

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors, boot...),

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Boot  open")  may  ap-
pear temporarily. These can be cleared
by pressing the  "ESC"  button.

INSTRUMENTS and CONTROLS

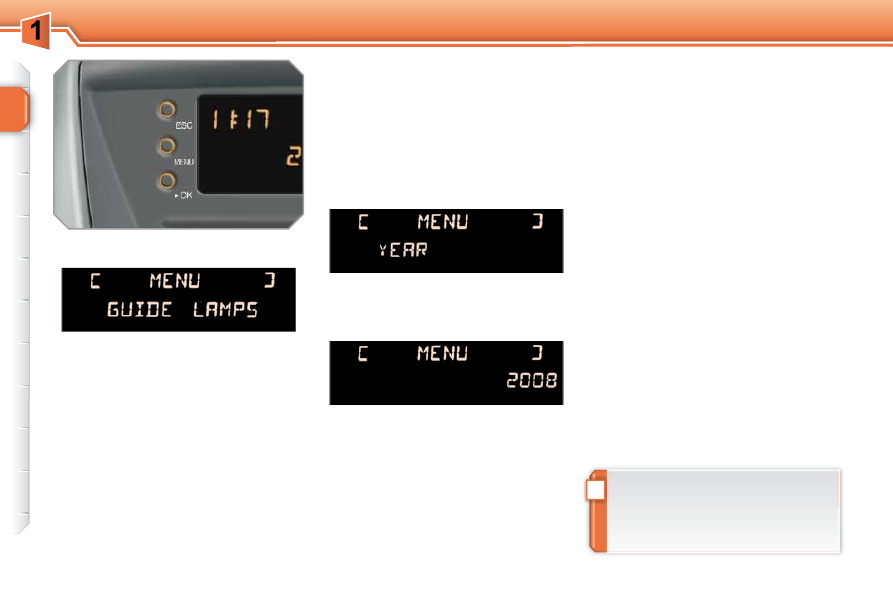

Vehicle conﬁ guration

Options
Once the "Options" menu has been select-
ed, you can start diagnostics of the status of
the equipment (active, not active, faulty).

  Language
Once  the  "Language"  menu  has  been
selected,  you  can  change  the  language
used  by  the  display  (Français,  Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).

  Display settings
Once  the  "Display  settings"  menu  has
been selected, you  can  gain  access  to
the following settings:
   -

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

  Units
Once  the  "Units"  menu  has  been  se-
lected, you can change the units of the
following parameters:
   -

temperature (°C or °F),

fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,

press the "OK" button to change its
value.

 Wait for approximately ten seconds

without any action to allow the changed
data to be recorded or press the "ESC"
button to cancel.

The screen then returns to the normal
display.

Once the "Vehicle conﬁ guration" menu

has been selected, you can activate or
deactivate the following equipment:
-

directional headlamps (refer to the
"Visibility" section),

"guide-me-home" lighting (refer to
the "Visibility" section),

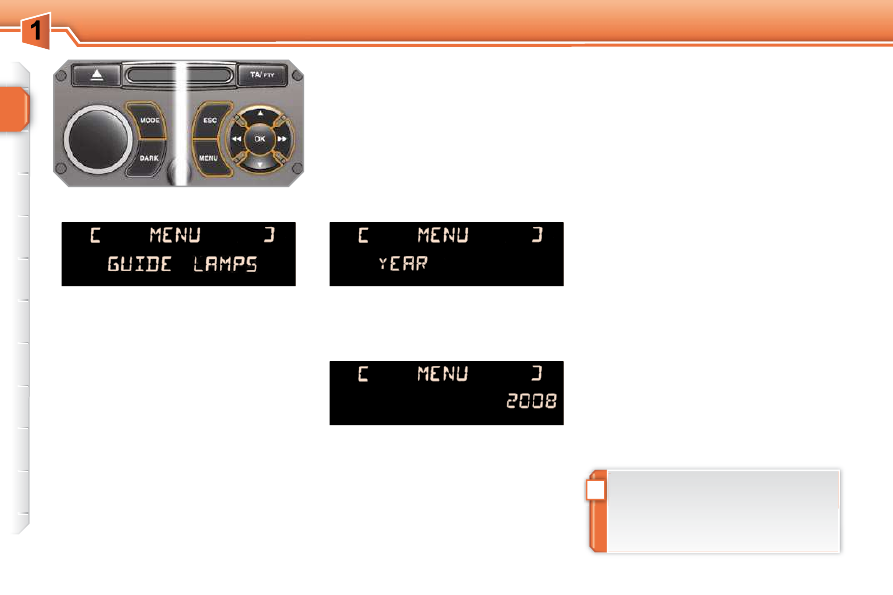

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

INSTRUMENTS and CONTROLS

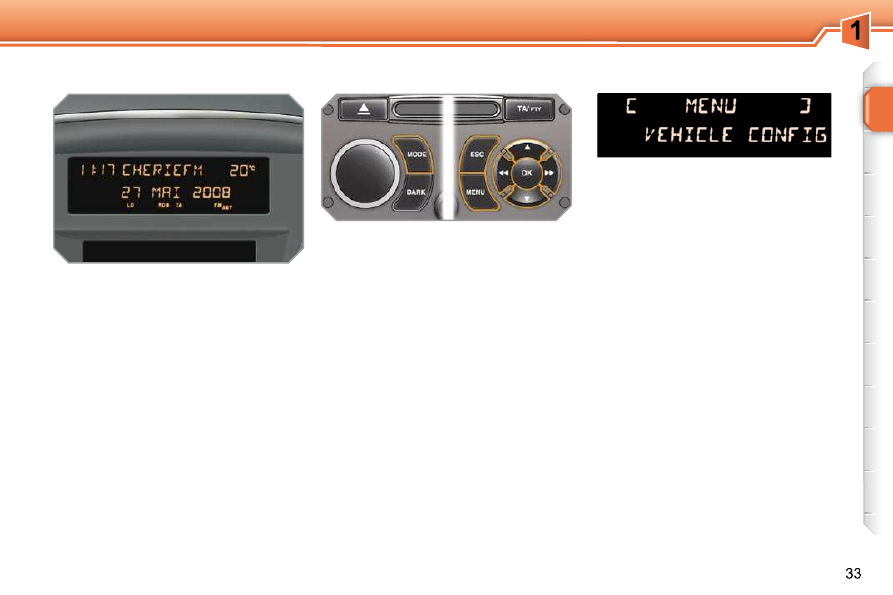

MONOCHROME SCREEN A

Controls

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors,
boot...),

audio sources (radio, CD...),

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Boot  open")  may  ap-
pear temporarily. These can be cleared
by pressing the  "ESC"  button.

Main menu

 Press the "MENU" button to gain

access to the main menu , then
press the "  " or "  " buttons to
scroll through the various menus:

   -   radio-CD,
  -   vehicle conﬁ guration,
  -   options,
  -   display settings,
  -   language,
  -   units.

 Press the "OK" button to select the

menu required.

From your PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain

access to the main menu,

 press the "  " or "  " buttons to scroll

through the items on the screen,

 press the "MODE" button to change

the permanent application (trip com-
puter, audio source...),

 press the "  " or "  " buttons to

change a setting value,

 press the "OK"

button to conﬁ rm,

or
 press the "ESC" button to abandon

the operation in progress.

  Radio-CD
With  the  Peugeot  Connect  Sound
switched  on,  once  the  "Radio-CD"
menu  has  been  selected  you  can  acti-
vate  or  deactivate  the  functions  linked
with use of the radio (RDS, REG) or the

CD (introscan, shufﬂ e, CD repeat).
For  more  information  on  the  "Radio-
CD"  application,  refer  to  the  Peugeot
Connect  Sound  part  of  the  "Audio  and
Telematics" section.

* With air conditioning only.

INSTRUMENTS and CONTROLS

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

  Display settings
Once  the  "Display  settings"  menu  has
been selected, you  can  gain  access  to
the following settings:
   -

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
-

temperature (°C or °F),

fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,

press the "  " or "  " buttons to
change its value.

 Press the "  " or "  " buttons to

switch respectively to the previous
or next setting.

 Press the "OK" button to record

the change and return to the normal
display or press the "ESC" button to
cancel.

Vehicle conﬁ guration

Options
Once the "Options" menu has been select-
ed, you can start diagnostics of the status of
the equipment (active, not active, faulty).

Once the "Vehicle Conﬁ guration" menu

has been selected, you can activate or
deactivate the following equipment:
-

directional headlamps (refer to the
"Visibility" section),

"guide-me-home" lighting (refer to
the "Visibility" section).

INSTRUMENTS and CONTROLS

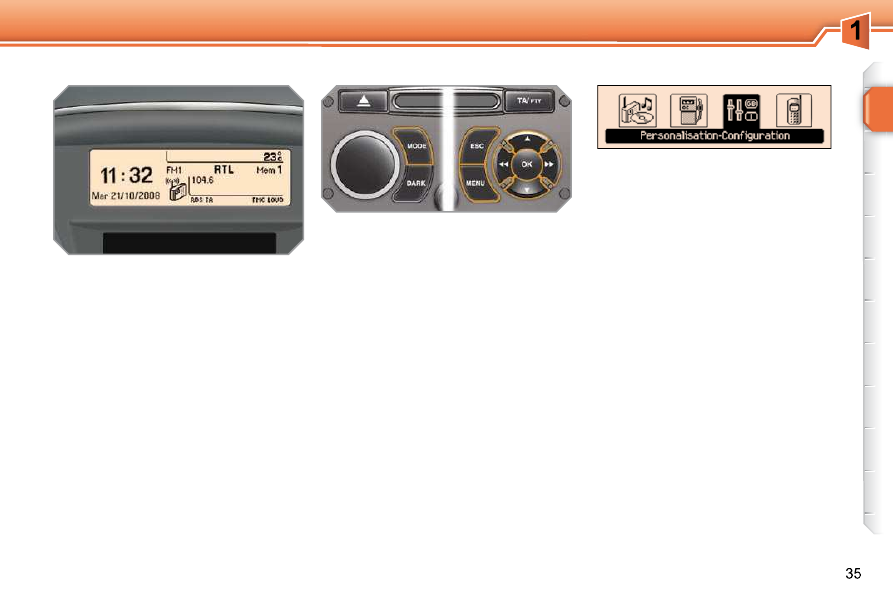

MONOCHROME SCREEN C

Main menu

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors, boot...),

audio sources (radio, CD...),

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Automatic  headlamp
lighting  activated")  may  appear  tempo-
rarily. These can be cleared by pressing
the  "ESC"  button.

"Audio functions" menu

With  the  Peugeot  Connect  Sound
switched on, once this menu has been
selected you can activate or deactivate
the  functions  linked  with  use  of  the  ra-
dio  (RDS,  REG,  RadioText)  or  the  CD

(introscan, shufﬂ e, CD repeat).
For more information on the "Audio func-
tions"  application,  refer  to  the  Peugeot
Connect  Sound  part  of  the  "Audio  and
Telematics" section.

Controls

From your PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain

access to the main menu ,

 press the "  " or "  " buttons to scroll

through the items on the screen,

 press the "MODE" button to change

the permanent application (trip com-
puter, audio source...),

 press the "  " or "  " buttons to

change a setting value,

 press the "OK"

button to conﬁ rm,

 press the "ESC" button to abandon

the operation in progress.

 Press the "MENU" button to gain

access to the main menu :

   -   audio functions,
  -   trip computer
  -   personalisation-conﬁ guration,
  -   telephone (hands-free kit).

 Press the "  " or "  " buttons to select

the menu required, then conﬁ rm by

pressing the "OK" button.

* With air conditioning only.

Peugeot 207 CC Dag (2010 year). Instruction - part 2
