Peugeot 206 SW Dag (2008 year). Instruction

COMFORT -

position the seat belt under the
belt holder 2,

pull the controls 3 to unlock the
seat back 4,

remove or lower the head
restraints,

tilt the seat back 4.

Always start with the seat, never

the seat back (risk of damage).

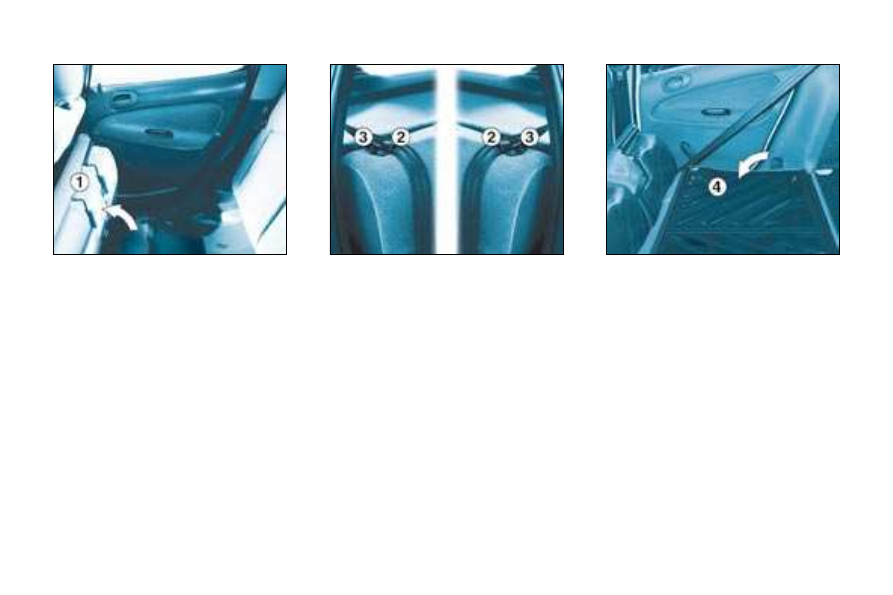

BENCH SEAT

To fold the bench seat:
-

lift the front of the seat cushion 1,

tilt the seat cushion 1 against the
front seats,

When repositioning:
-

return the seat back to the
upright position,

fold back the seat cushion,

reposition the buckles before
locking the front of the seat
cushion.

Take care not to trap the seat
belts.

COMFORT

50 -

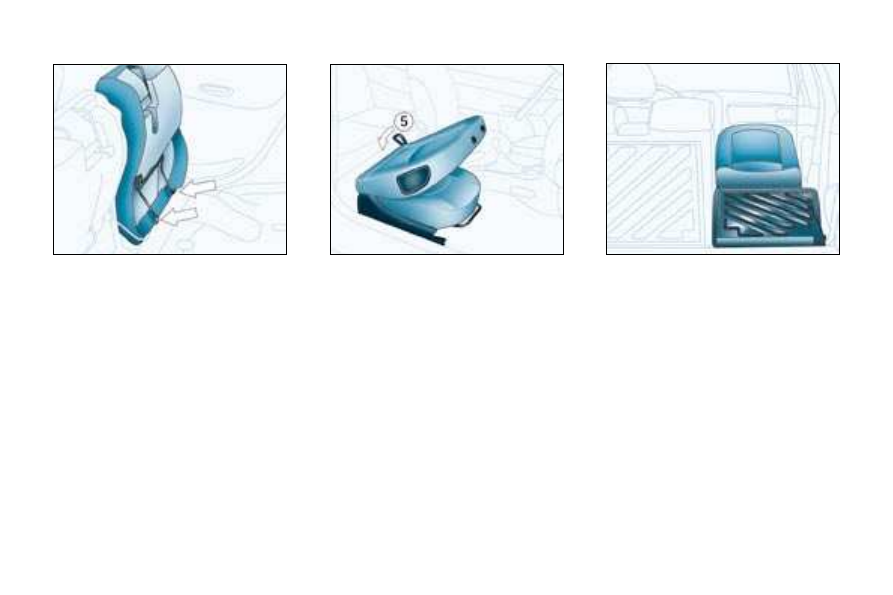

TRANSPORTING LONG
OBJECTS

Front seat:
-

Fold the seat back towards the
front using the control 5
(see corresponding paragraph).

Removing the rear seat

Tilt the seat cushion against the
front seats.

- Squeeze the seat fasteners

to release them from their
attachments.

Remove the seat cushion.

Folding seat back

Remove the head restraint for
complete folding of the seat
back.

Push handle 5 towards the rear
to tilt the seat back.

Rear seat:
-

Remove the seat cushion.

Tilt the seat back.

COMFORT -

position the seat belt under the
belt holder 2,

pull the controls 3 to unlock the
seat back 4,

remove or lower the head
restraints,

tilt the seat back 4.

Always start with the seat, never

the seat back (risk of damage).

BENCH SEAT

To fold the bench seat:
-

lift the front of the seat cushion 1,

tilt the seat cushion 1 against the
front seats,

When repositioning:
-

return the seat back to the
upright position,

fold back the seat cushion,

reposition the buckles before
locking the front of the seat
cushion.

Take care not to trap the seat
belts.

COMFORT -

"Forwards-facing"

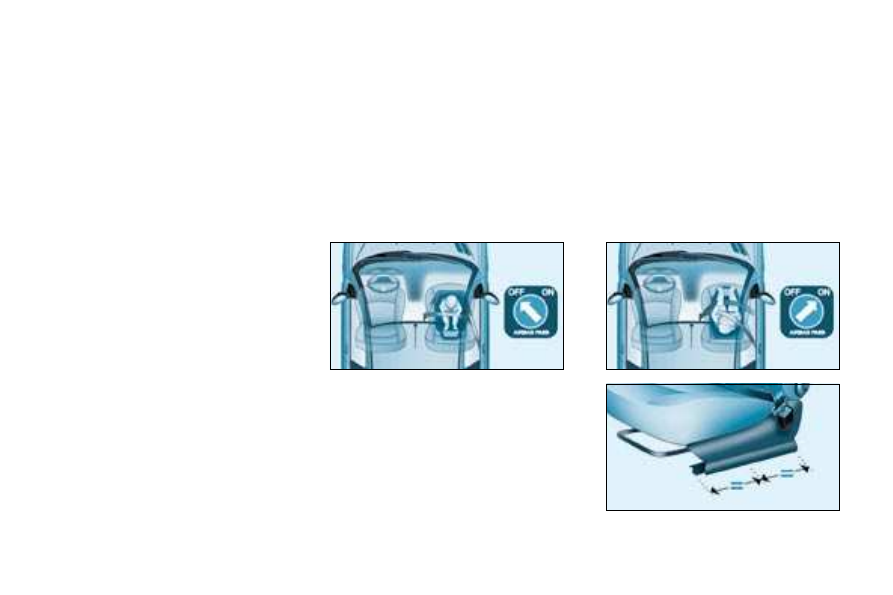

When a "forwards-facing" child seat
is installed on the front passenger
seat, adjust the vehicle's seat to the
intermediate

longitudinal

position

with the seat back upright and leave
the passenger air bag armed.

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

GENERAL POINTS RELATING
TO CHILD SEATS

The rules for transporting

children are speciic to each

country. Consult the current
legislation in your country.

Intermediate longitudinal

position

Although  one  of  PEUGEOT's  main
criteria when designing your vehicle,
the  safety  of  your  children  also  de-
pends on you.
For  maximum  safety,  please  follow
these precautions:
-

in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre

ifty tall must travel in approved

child seats suited to their

weight, on seats itted with a seat

belt or ISOFIX mountings *,

statistically, the safest
seats in your vehicle for the
transportation of children are
the rear seats,

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the
front and in the rear.

PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
-

"rearwards-facing" up to the

age of 2,

"forwards-facing" over the age

of 2.

"Rearwards-facing"
When a "rearwards-facing" child seat
is  installed  on  the  front  passenger
seat,  it  is  essential  that  the  passen-
ger  air  bag  is  disarmed.  Otherwise,

the child would risk being seri-

ously injured or killed if the air bag

were to inlate.

COMFORT

52 -

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''.

"KLIPPAN

Optima"

From the age

of 6 years

(approximately

22 kg), the

booster is used

on its own.

PEUGEOT CHILD SEATS RECOMMENDED BY

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt:

COMFORT

56 -

ADVICE ON CHILD
SEATS

The  incorrect  installation  of  a  child
seat  in  a  vehicle  compromises  the
child's  protection  in  the  event  of  an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For  optimum  installation  of  the  "for-
ward  facing"  child  seat,  ensure  that
the back of the child seat is in contact
with  the  back  of  the  vehicle's  seat
and that the head restraint does not
cause any discomfort.
If  the  head  restraint  has  to  be  re-
moved,  ensure  that  it  is  stored  or
attached  securely  to  prevent  it  from
being  thrown  around  the  vehicle  in
the event of sharp braking.

Children under the age of 10 must not
travel in the "forward facing" position
on  the  front  passenger  seat,  unless
the  rear  seats  are  already  occupied
by other children, cannot be used or
are absent.
Disarm  the  passenger  air  bag  when
a  "rear  facing"  child  seat  is  installed
on the front seat. Otherwise, the child
would  risk  being  seriously  injured  or

killed if the air bag were to inlate.

Installing a booster seat
The  chest  part  of  the  seat  belt  must
be positioned on the child's shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt passes correctly over the child's
thighs.
PEUGEOT  recommends  the  use  of

a booster seat which has a back, it-

ted with a seat belt guide at shoulder
level.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the

rays of the sun, it side blinds on the

rear windows.

COMFORT

52 -

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''.

"KLIPPAN

Optima"

From the age

of 6 years

(approximately

22 kg), the

booster is used

on its own.

PEUGEOT CHILD SEATS RECOMMENDED BY

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt:

COMFORT -

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a), in relation to the weight of the child and the seat in the vehicle.

Seat

Weight of the child / indicative age

Less than 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

From 15 to 25 kg

(group 2)

From 3 to 6 years approx

From 22 to 36 kg

(group 3)

From 6 to 10 years approx

Front passenger
seat (c)
Fixed seat, Height
adjustable seat

Rear side
seat

Rear centre
seat
3-point seat belt

Rear centre
seat (d)
2-point seat belt

(a) Universal child seat: child seat

which can be installed in all vehicles
using the seat belt.

(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in

your country before installing your
child on this seat.

(d) The "RECARO Start" (L3) and

"KLIPPAN Optima" (L4) child seats
must not be installed on the rear

centre seat if it is itted with a

two-point seat belt.

U : Seat suitable for the installation of

a child seat secured using the seat
belt and "universally" approved.

"Rear facing" and "Forward facing"
child seats.

UF : Seat suitable for the installation of

a child seat secured using the seat
belt and "universally" approved.

"Forward facing" child seats only.

X : Seat not suitable for the installation

of a child seat of the weight group
indicated.

COMFORT

54 -

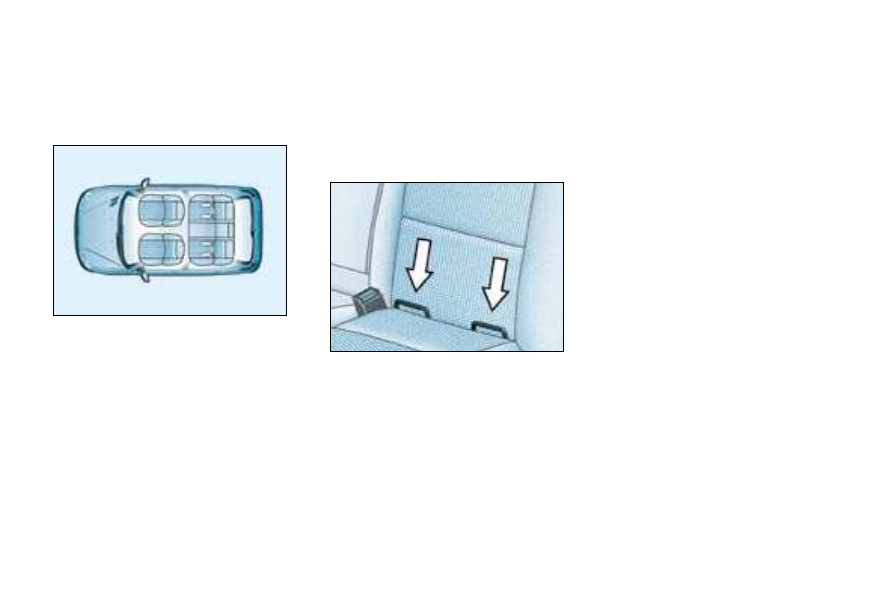

These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats

are itted

with two locks which are secured
easily on these rings.

"ISOFIX" MOUNTINGS

This ISOFIX mounting system gua-

rantees reliable, safe and fast itting

of the child seat in your vehicle.

These seats are itted with ISOFIX

mountings.

COMFORT -

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

RÖMER Duo

Plus Isoix (size category B1)

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured on the ISOFIX upper ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

This child seat can also be used

on seats which are not itted with

ISOFIX mountings.

In this case, it must be attached to
the vehicle seat using the three point
seat belt.

Follow the instructions for itting

the child seat given in the seat
manufacturer's installation guide.

ACCESS -

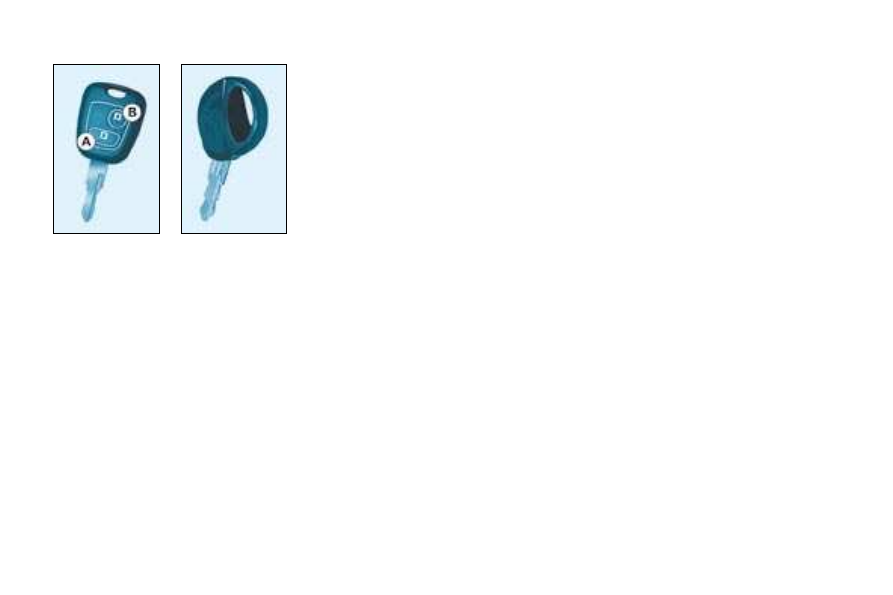

KEYS

The keys allow you to switch on the
ignition and independently operate
the passenger air bag disarming
switch and the steering lock.

Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:

F press button A, the courtesy

lights come on and the direction

indicators lash for a few

seconds.

Changing the remote control
battery

Battery ref.: CR2016 / 3 volts.

Warning that the battery is lat is

given by an audible signal accompa-
nied by the message "Remote con-
trol battery low" on the multifunction
display.
To  replace  the  battery,  remove  the
screw then unclip the casing using a
coin at the ring.
If  the  remote  control  does  not  work
after  the  battery  has  been  changed,
reprogramme the remote control.

Key in ignition

A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition.

Programming the remote
control

F  Switch off the ignition.
F  Switch the ignition on again.
F  Press button A immediately for a

few seconds.

F Switch off the ignition and

remove the remote control
key from the ignition lock. The
remote control is now working
again.

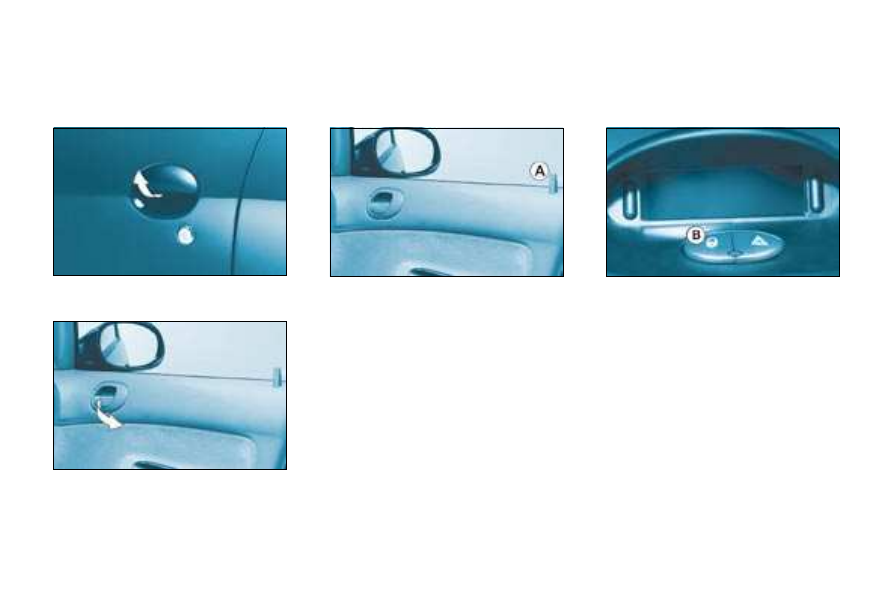

Without central
locking / unlocking by
hand

The keys also allow you to unlock/
lock the front doors, the boot and the

fuel iller cap.

With central locking /
unlocking

The keys allow you to lock or unlock
all of the doors and the tailgate, from
the front doors.
If one of the doors or the tailgate is
open, the central locking does not
work.

With central locking /
unlocking via the remote
control

Press button A to lock the vehicle.

This is conirmed by ixed lighting of

the direction indicators for approxi-

mately two seconds.

Press button B to unlock the vehicle.

This is conirmed by the rapid lash-

ing of the direction indicators.

Avoid  pressing  the  buttons  of  your
remote  control  out  of  range  of  your
vehicle.  You  risk  causing  it  not  to
work  and  the  remote  control  would
then have to be reprogrammed (see
corresponding section).

ACCESS

58 -

ELECTRONIC ENGINE
IMMOBILISER

This  locks  the  engine  control  sys-
tem as soon as the ignition has been
switched  off  and  therefore  prevents
starting of the vehicle by anyone who
does not have the key.
The  ignition  key  has  an  electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.

Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.

The  high  frequency  remote  control
is a sensitive system; do not oper-
ate  it  while  it  is  in  your  pocket  as
there is a possibility that it may un-
lock  the  vehicle,  without  you  being
aware of it.

The  remote  control  does  not  oper-
ate  when  the  key  is  in  the  ignition,
even  when  the  ignition  is  switched

off, except for reprogramming.

Driving  with  the  doors  locked  may
make  access  to  the  passenger
compartment  by  the  emergency

services more dificult in an emer-

gency.

As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.

Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.

You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.

When  purchasing  a  second-hand
vehicle,  have  the  key  codes  mem-
orised  by  a  PEUGEOT  dealer,  to
ensure  that  the  keys  in  your  pos-
session  are  the  only  ones  which
can start the vehicle.

Do not make any modiications to

the electronic engine immobiliser
system.

If  the  system  does  not  function
correctly,  the  central  locking  button
indicator  light,  situated  in  the  centre

of the fascia, lashes rapidly when the

ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible.

If the keys are lost
Visit a PEUGEOT dealer with the ve-

hicle's V5 registration certiicate and

your personal identiication docu-

ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.

ACCESS

58 -

ELECTRONIC ENGINE
IMMOBILISER

Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.

The  remote  control  does  not  oper-
ate  when  the  key  is  in  the  ignition,
even  when  the  ignition  is  switched

off, except for reprogramming.

Driving  with  the  doors  locked  may
make  access  to  the  passenger
compartment  by  the  emergency

services more dificult in an emer-

gency.

As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.

Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.

You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.

Do not make any modiications to

the electronic engine immobiliser
system.

If  the  system  does  not  function
correctly,  the  central  locking  button
indicator  light,  situated  in  the  centre

of the fascia, lashes rapidly when the

ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible.

If the keys are lost
Visit a PEUGEOT dealer with the ve-

hicle's V5 registration certiicate and

your personal identiication docu-

ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.

ACCESS -

DOORS

Opening the doors from
inside

Locking / Unlocking from
inside

"Door open" warning
With  the  engine  running,  you  are
warned if a door is not shut properly
by an audible signal and a message
or  graphic  on  the  multifunction  dis-
play, indicating the door in question.
When the vehicle is moving, if the
courtesy  light  button  is  in  the  "light-
ing  on  opening  a  door"  position,  the

courtesy light lashes.

Without central locking
To lock, press button A. The button
locks the door in question.
The button on the driver's door locks
the door and the tailgate.

To unlock, pull button A or operate
the handle.

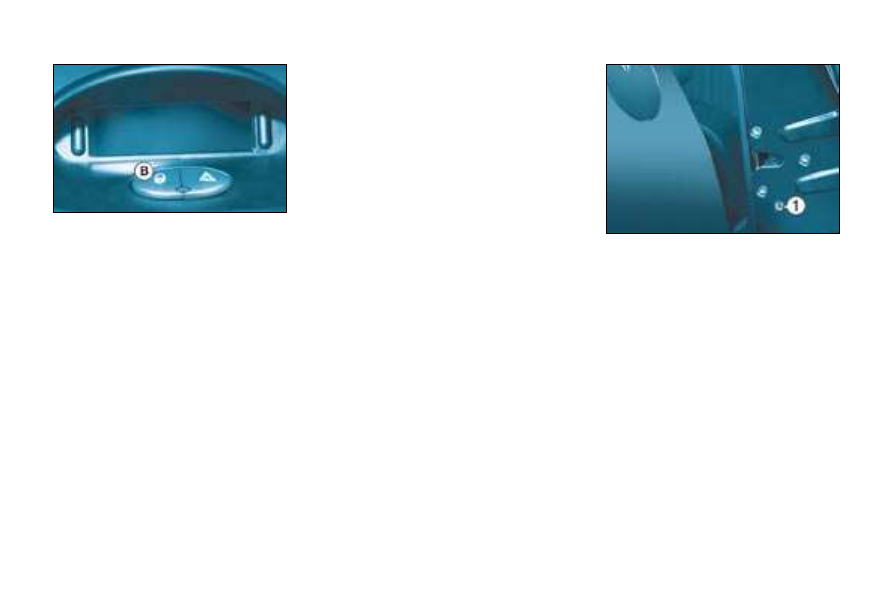

With central locking
Press button B to lock/unlock.

Opening the doors from
outside

ACCESS

60 -

CHILD SAFETY LOCK

On each rear door this prevents
opening of the door from the inside.
Turn switch 1 an eighth turn (45 de-
grees) using the ignition key.

Automatic central locking of the
doors
The doors can lock automatically
when you are driving (at a speed of
more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press button
B

briely to unlock the doors tempo-

rarily.
You can activate or deactivate this
function.

To switch off
Press and hold button B.

Notes: if one of the doors is open,
locking from the inside and automatic
central locking are not possible.
If the boot is open, automatic central
locking of the doors is possible.

To switch on
Press and hold button B.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
The message is displayed each time
the vehicle is started.

ACCESS -

LOCKING / UNLOCKING THE
TAILGATE

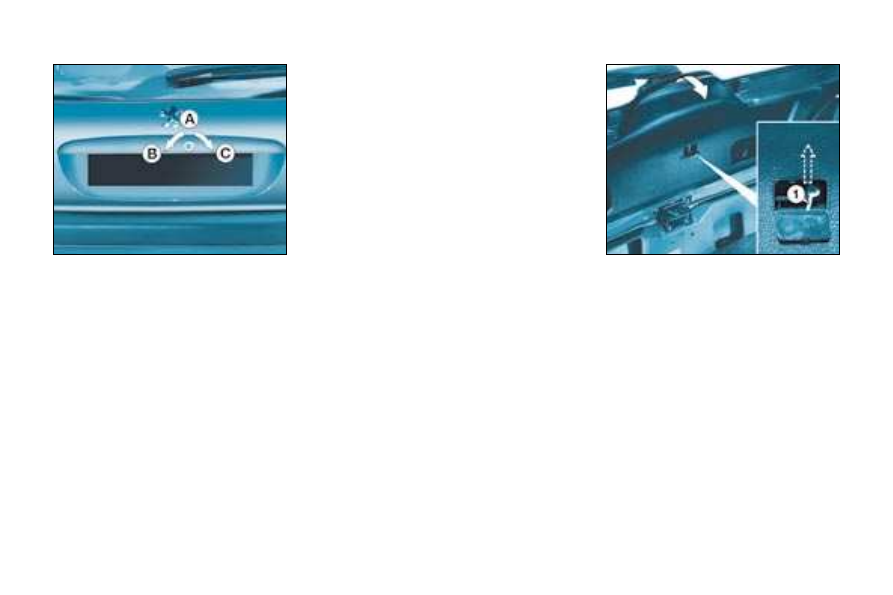

Without central locking
To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tail-
gate.

TAILGATE RELEASE

This enables the tailgate to be un-
locked in the event of a central lock-
ing fault:
-

Fold back the rear seats to gain
access to the boot from inside
the vehicle,

Pull the tailgate trim to release it,

Pull the opening catch 1 upwards.

"Boot open" warning
If the tailgate is not shut properly:
-

with the engine running, you
are warned by an audible signal
and a message or graphic on the
multifunction display,

when the vehicle is moving,

the courtesy light lashes if the

courtesy light button is in this
position.

With central locking
Locking and unlocking of the tailgate
is simultaneous with the doors.

The lighting is activated on open-
ing the tailgate.

Peugeot 206 SW Dag (2008 year). Instruction - part 4
