INSTRUMENTS and CONTROLS

20 -

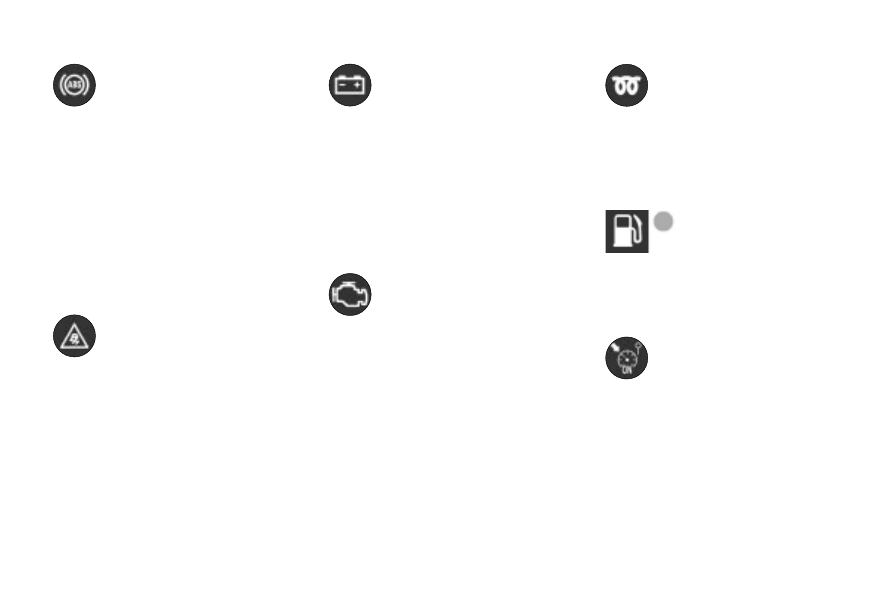

Battery charge warning

light

This indicates one of the fol-
lowing:

faulty operation of the charging
circuit,

slack battery or starter terminals,

a cut or slack alternator belt,

an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning light

(according to model)

This comes on for a few seconds each
time the ignition is switched on.
If it comes on with the engine running,
this indicates incorrect operation of
the injection, ignition or emission
control system.
If the warning light lashes, there is a

risk of damage to the catalytic con-
verter on petrol engines.
Consult a PEUGEOT dealer.

Diesel engine pre-heat

warning light

Wait until the warning light

goes out before starting the engine.
If  the  temperature  is  high  enough,
the  warning  light  comes  on  for  less
than  one  second.  You  can  start  the
engine without waiting.

Low fuel level

warning light

When this light irst

comes on, you have enough fuel to
drive at least 30 miles (50 km). The tank
capacity is approximately 50 litres.

Speed limiter/cruise

control indicator light

This comes on when the
speed limiter or cruise con-
trol is activated.

Dynamic stability

control system (ESP/

ASR) warning light

This comes on for a few seconds each
time the ignition is switched on.
With  the  engine  running  and  when
the vehicle is moving, it comes on if
the system is activated.
It lights permanently accompanied by
a  message  on  the  multifunction  dis-
play when the system is disarmed.
If  the  warning  light  remains  lit  with
the engine running and when the ve-
hicle is moving, consult a PEUGEOT
dealer.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each
time the ignition is switched on.
If  the  warning  light  remains  on  or
comes  on  above  8  mph  (12  km/h),
this indicates an ABS malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination  of  this  warning  light,
accompanied  by  an  audible  signal
and  a  message  on  the  multifunction
display,  indicates  a  fault  in  the ABS
system.
Consult a PEUGEOT dealer.

INSTRUMENTS and CONTROLS -

Seat belt not fastened

warning light

When the ignition is switched on, this
indicator light comes on if the driver
has not fastened his seat belt.
Above 12 mph (20 km/h), the warning

light lashes for about two minutes

accompanied by an increasingly au-
dible signal and a message on the
multifunction display. This warning
light remains lit until the driver's seat
belt is fastened.

Passenger air bag

disarmed warning

light

Illumination  of  this  warning  light  ac-
companied  by  a  message  on  the
multifunction  display,  indicates  that
the passenger air bag is disarmed.
The warning light remains lit as long
as  the  passenger  air  bag  is  dis-
armed.
Always consult a PEUGEOT dealer if

the warning light lashes.

Air bags warning light

The light will come on for a few seconds
when the ignition is switched on.
With the engine running, illumination
of this warning light, accompanied by
an audible signal and a message on
the multifunction display, indicates a
fault in the air bags.
Consult a PEUGEOT dealer.

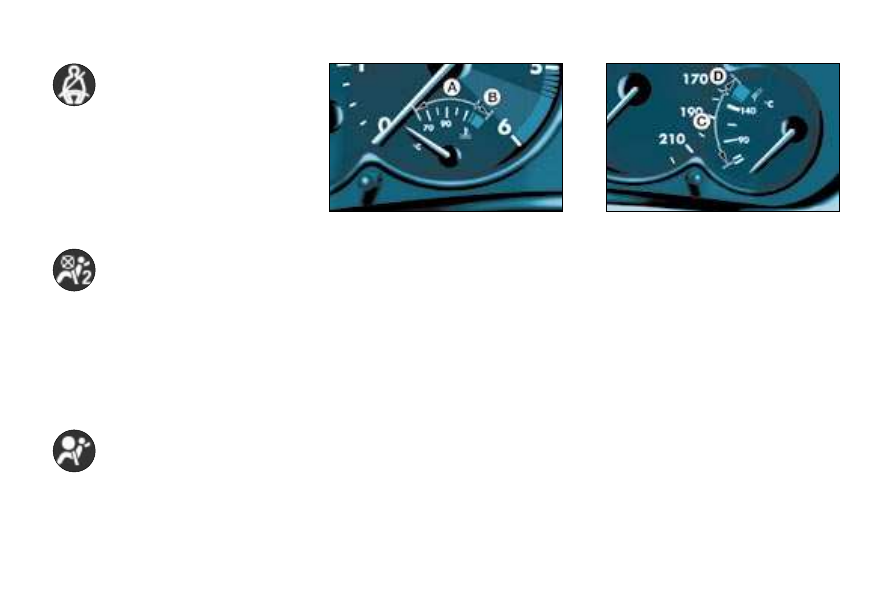

Coolant temperature

indicator

needle in zone (A), the
temperature is correct,

needle in zone (B), the
temperature is too high. The
central STOP warning light

lashes.

You must stop.
Consult a PEUGEOT dealer.

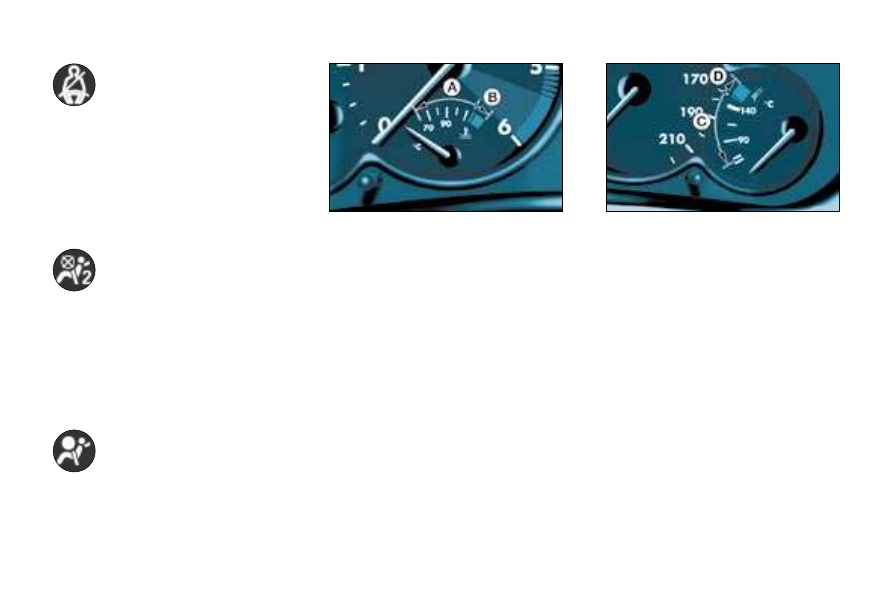

Engine oil temperature

indicator

With the engine running, this indi-
cates the oil temperature:
-

needle in zone (C), the
temperature is correct,

needle in zone (D), the
temperature is too high. To lower
the oil temperature, reduce your
speed.

INSTRUMENTS and CONTROLS -

Seat belt not fastened

warning light

When the ignition is switched on, this
indicator light comes on if the driver
has not fastened his seat belt.
Above 12 mph (20 km/h), the warning

light lashes for about two minutes

accompanied by an increasingly au-
dible signal and a message on the
multifunction display. This warning
light remains lit until the driver's seat
belt is fastened.

Passenger air bag

disarmed warning

light

the warning light lashes.

Air bags warning light

Coolant temperature

indicator

needle in zone (A), the
temperature is correct,

needle in zone (B), the
temperature is too high. The
central STOP warning light

lashes.

You must stop.
Consult a PEUGEOT dealer.

Engine oil temperature

indicator

With the engine running, this indi-
cates the oil temperature:
-

needle in zone (C), the
temperature is correct,

needle in zone (D), the
temperature is too high. To lower
the oil temperature, reduce your
speed.

INSTRUMENTS and CONTROLS

22 -

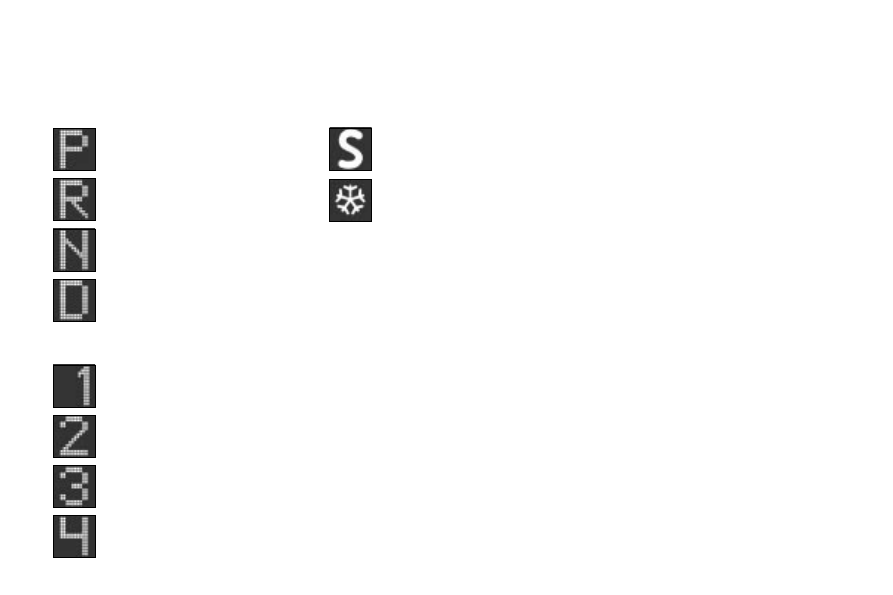

Display screen showing the

positions of the automatic

gearbox selector lever

Automatic gearbox indicator

lights

Park

Reverse

Neutral

Drive

Manual mode:

1st gear engaged

2nd gear engaged

3rd gear engaged

4th gear engaged

"SPORT" Indicator light
This comes on when the "SPORT"
programme is selected.

"SNOW" Indicator light
This comes on when the "SNOW"
programme is selected.

Operating abnormality
If the Sport and Snow indicator lights

lash, accompanied by an audible

signal and a message on the multi-
function display, consult a PEUGEOT
dealer.

INSTRUMENTS and CONTROLS -

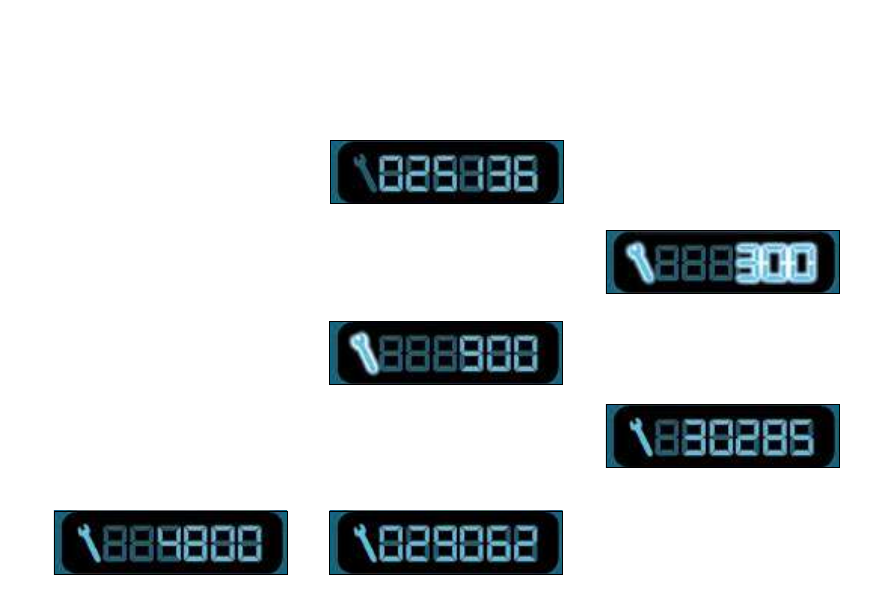

Service indicator

This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule.

5  seconds  after  the  ignition  is
switched  on,  the  total  distance  re-
corder  resumes  normal  operation
and the display shows the total or trip
distances.

The distance remaining before

the next service is less than

500 miles (1,000 km).

Example: 400 miles (900 km) remain

before the next service is due.
When switching on the ignition and
for 5 seconds, the display shows:

5  seconds  after  the  ignition  is
switched  on,  the  total  distance  re-
corder  resumes  normal  operation
and the spanner remains lit.
This  indicates  that  a  service  should
be  carried  out  shortly.  The  display
shows the total or trip distances.

The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the spanner and

the excess distance lash.

Example: the service is overdue by

300 miles/km. The service should be
carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:

INSTRUMENT PANEL
DISPLAY

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator,

total distance recorder, it remains
displayed for 30 seconds after
the ignition is switched off.

It also displays the speed limiter/
cruise control information, when one
of these systems is active (see cor-
responding section).

5  seconds  after  the  ignition  is
switched  on,  the  total  distance  re-
corder resumes normal operation and
the  spanner  remains  lit. The  display
shows the total or trip distances.

Operation
As  soon  as  the  ignition  is  switched
on  and  for  5  seconds,  the  spanner
symbolising  service  operations  is  lit.
The  trip  recorder  display  shows  the

distance remaining (in round igures)

before the next service.
Example: 4,800 miles/km remain be-

fore the next service is due. When the
ignition comes on and for 5 seconds
the display shows:

INSTRUMENTS and CONTROLS

24 -

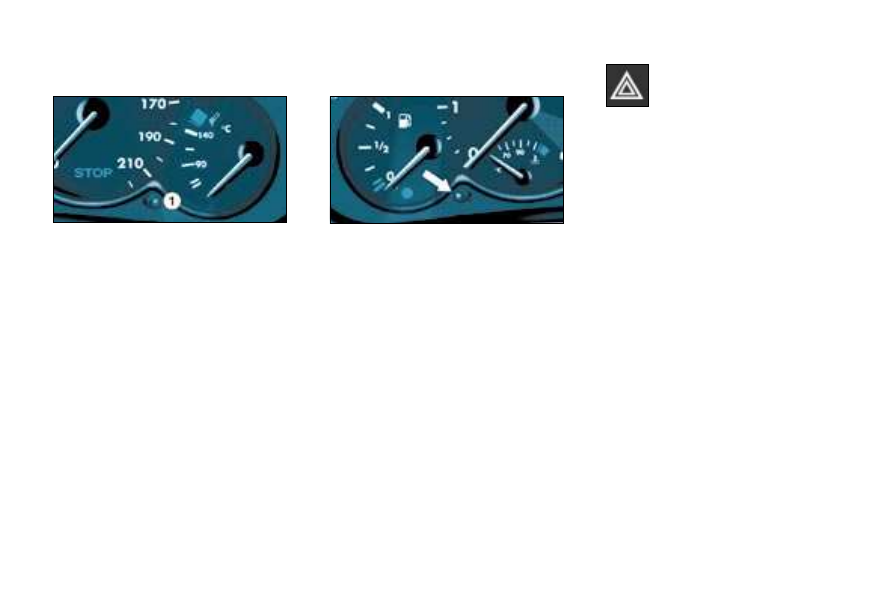

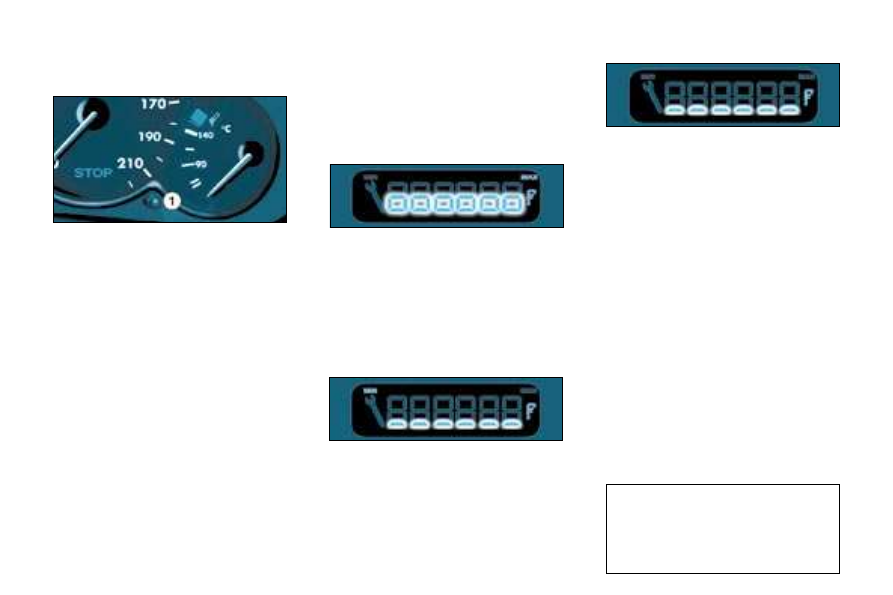

Resetting the service indicator

Your PEUGEOT dealer carries out
this operation after each service.
The reset procedure is as follows:
-

Switch off the ignition.

Press and hold button 1.

Switch on the ignition.

The display begins a 10 second
countdown.
-

Keep button 1 pressed for
10 seconds.

The display shows [=0] and the span-
ner disappears.

Engine oil level indicator

When  the  ignition  is  switched  on,
the  engine  oil  level  is  indicated  for
approximately  10  seconds,  after  the
service information.

Oil level gauge fault
Flashing of the six segments indi-
cates a malfunction of the oil level
gauge.
There is a risk of damage to the en-
gine.
Consult a PEUGEOT dealer.

Surplus of oil
Flashing of the six squares and dis-
playing of "max" indicate a surplus of
oil which could damage the engine.
If the surplus of oil is conirmed by

a check using the dipstick, contact a
PEUGEOT dealer without delay.

Lack of oil
Flashing of the six segments and dis-
playing of "min" indicate a lack of oil
which could damage the engine.
If the lack of oil is conirmed by a

check using the dipstick, it is essen-
tial that the level is topped up.

The level read on the gauge will

only be correct if the vehicle

is on level ground and the en-

gine has been off for more than

15 minutes.

INSTRUMENTS and CONTROLS -

TOTAL DISTANCE
RECORDER

Pressing button 1 alternates bet-
ween:
-

the total distance display,

the trip distance display,

the speed limiter or cruise
control display when one of
these systems is selected with
the engine running.

To reset the trip recorder to zero,
when it is displayed press button
1 until zeros appear.

LIGHTING RHEOSTAT

With  the  lights  on,  press  the  button
to vary the intensity of the lighting of
the  instruments  and  controls.  When
the lighting reaches the minimum (or
maximum)  setting,  release  the  but-
ton then press it again to increase (or
reduce) the brightness.
As  soon  as  the  lighting  is  of  the  re-
quired brightness, release the button.

HAZARD WARNING
LIGHTS

Press the button, the direction indica-

tors lash.
They can operate with the ignition
off.

Automatic lighting of hazard

warning lights

When  braking  in  an  emergency,
depending  on  the  deceleration,  the
hazard warning lights come on auto-
matically.  They  switch  off  automati-

cally the irst time you accelerate.
It is also possible to switch them off
by pressing the button.

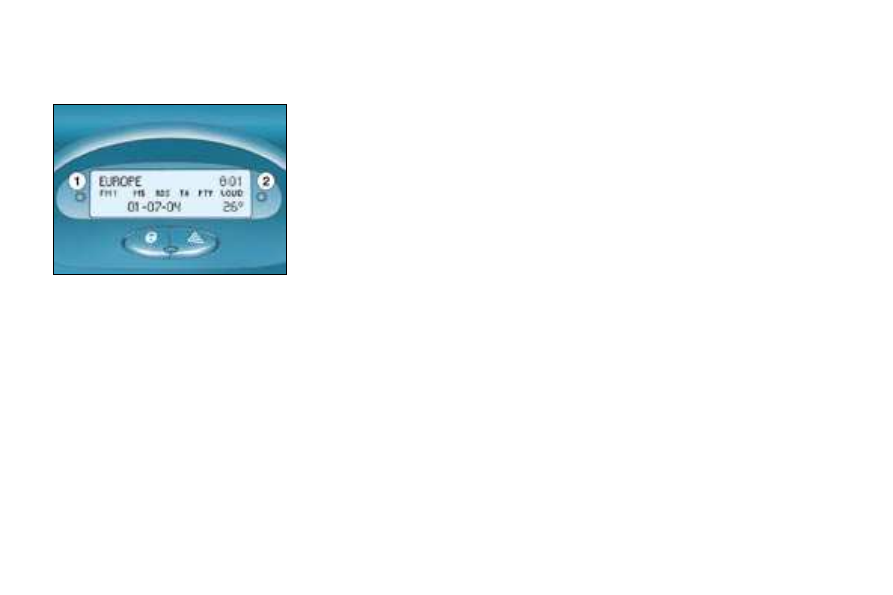

MULTIFUNCTION DISPLAYS

26 -

CLOCK

Adjusting the parameters
Press and hold button 1 for two sec-
onds to access the settings; the data

lashes, indicating it is ready to be

modiied.

Then, each press of button 1 scrolls

through the various data in the fol-
lowing order:
-

language of information

displayed,

-  hours (12 then 24 hour mode),
-  minutes,
-  year,
-  month,
-  day,
-  unit of temperature

(degrees Celsius or Fahrenheit).

Pressing button 2

allows modiication

of the data selected. Press and hold

for rapid advance (return to start after

the last possible value).

After 7 seconds with no action, the

main display returns; the modiied

data are now recorded.

Note: Pressing button 2

briely dis-

plays the outside temperature for a

few seconds.

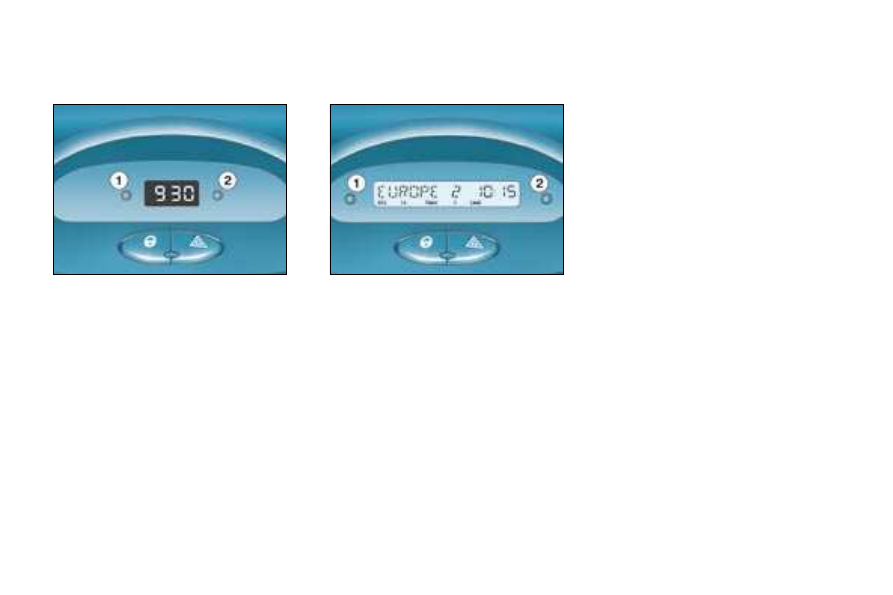

Button 1 : hour adjustment
Button 2 : minute adjustment

Press and hold the button for rapid

advance.

DISPLAY A

This displays the following

information:

-  the time,
-  the date,
-  the outside temperature (this

lashes if there is a risk of ice),

- the audio system displays,
- a door check

(e.g.: ''left front door open''),

warning messages

(e.g. ''remote control battery

lat'') or information messages

(e.g. ''economy mode active''),

displayed temporarily.

MULTIFUNCTION DISPLAYS -

Setting the parameters
Press button 1 for two seconds to

access the settings. The informa-

tion lashes to show it is ready to be

modiied.

Then, individual presses on button

allow you to scroll through the vari-

ous data in the following sequence:
-

language in which the

information is displayed,

- unit of distance (kms or miles),
- unit of temperature (degrees

Celsius or Fahrenheit),

time format (12 then 24 hour

mode),

-  hour,
-  minutes,
-  year,
-  month,
-  day.
Pressing button 2

allows you to change

the information selected. Maintain the

pressure for rapid scrolling.

After 7 seconds without operation,

the screen returns to the normal

display and the modiied data is

recorded.

MONOCHROME DISPLAY B

This enables the following informa-

tion to be displayed:

-  the time,
-  the date,
-  the outside temperature (this

lashes when there is a risk of ice),

- the radio displays,
- the status of the doors. The

display shows you, by means

of a graphic, whether a door is

open,

the warning messages

(e.g. ''battery charge fault'') or

information messages (e.g.

"fuel level low''), displayed

temporarily, can be cleared by

pressing button 1 or 2,

- the trip computer.

AUDIO EQUIPMENT

28 -

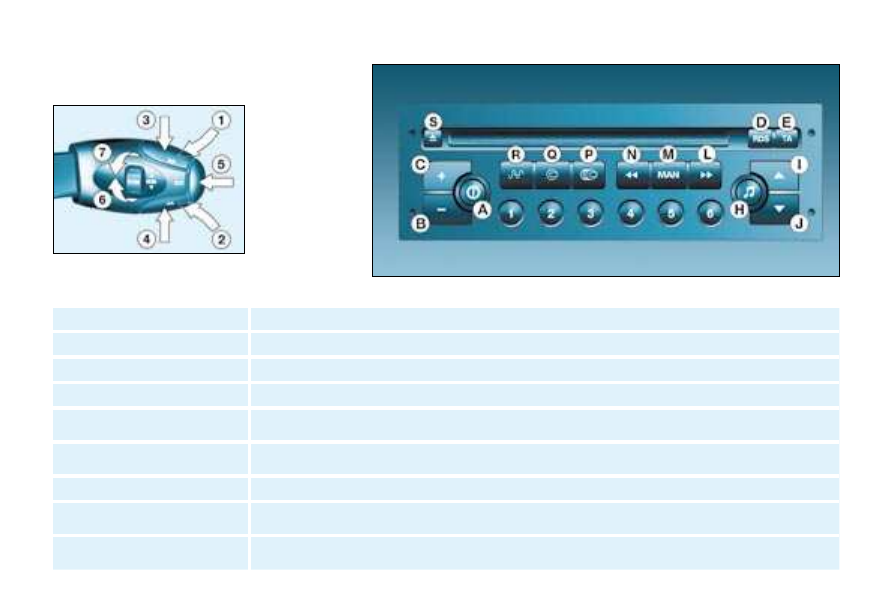

AUDIO RD3

Stalk movement

Function

1 - Press (behind)

Increase volume.

2 - Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Sound cut-off (mute); restoring of the sound by pressing any button.

3 - Press

Automatic search of higher frequencies (radio) - Selection of the next track (CD).

4 - Press

Automatic search of lower frequencies (radio) - Selection of the previous track (CD).

5 - Press the end

Change of source (radio/CD/CD changer).

6 - Rotation (clockwise)

Selection of next station stored in the memory (radio) - Selection of following CD.

7 - Rotation

(anti-clockwise)

Selection of previous station stored in the memory (radio) - Selection of previous CD.

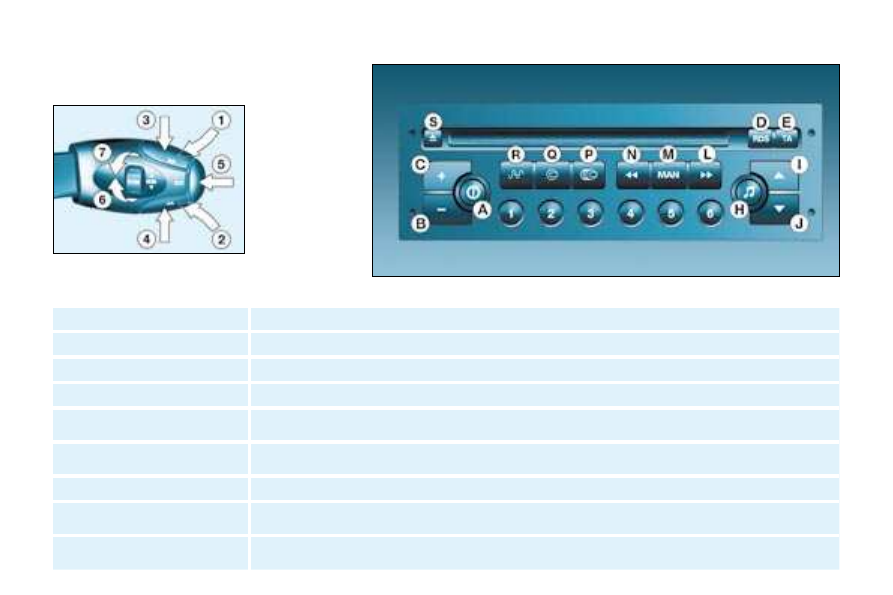

AUDIO EQUIPMENT -

Button

Function

Radio on/off.

Decrease volume.

Increase volume.

RDS

RDS function on / off.
Press for more than 2 seconds : regional following mode on/off.

Trafic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

Selection of bass, treble, loudness, sound distribution and automatic volume correction.

Increase setting of functions associated with button H.

Decrease setting of functions associated with button H.

Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).

MAN

Manual/automatic operation of buttons L and N.

Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).

CH.CD

Selection of the CD changer.

Press for more than 2 seconds: shufle.

Selection of the CD.

Press for more than 2 seconds: shufle.

Radio

Selection of the radio. Selection of FM1, FM2, FMast, AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

Ejection of the CD.

1 to 6

1 2 3 4 5 6

Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.

1 to 5

1 2 3 4 5

Selection of a CD changer disc.

AUDIO EQUIPMENT

30 -

GENERAL FUNCTIONS

AUDIO SETTINGS

Adjusting the loudness
This function automatically empha-
sises bass and treble tones. Press
button I or J to switch the function on
or off.

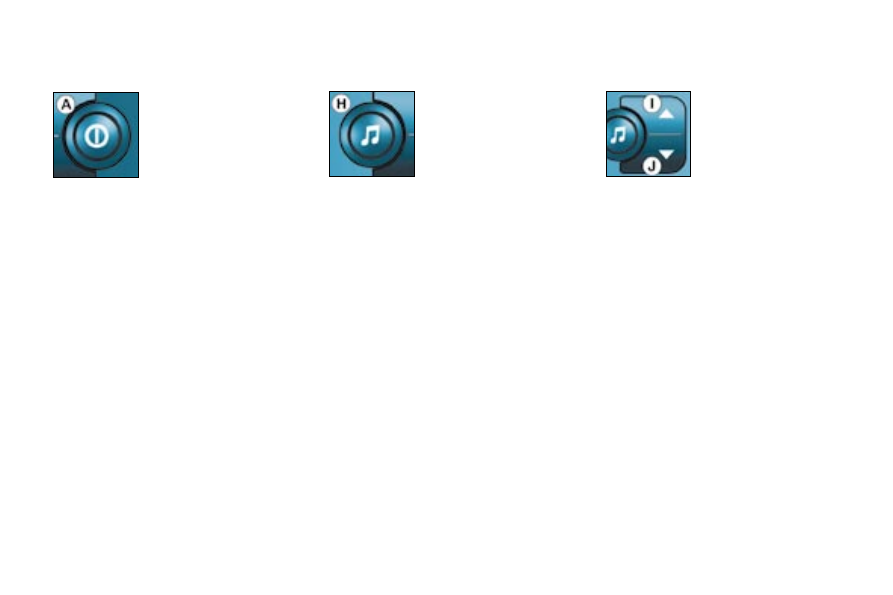

On/off
With  the  ignition  key
in  the  accessories  or
ignition position, press
button A to switch the
set on or off.
The  set  can  ope-
rate  for  30  minutes

without the vehicle ignition being
switched on.

Anti-theft system
The audio system is coded in such a
way that it can operate only on your

vehicle. It would not function if itted

to another vehicle.
The anti-theft system is automatic
and requires no action on your part.

ADJUSTING THE
VOLUME

Press button C to increase the vol-
ume, or button B to decrease it.
Continuous pressure on buttons C
and B allows a gradual adjustment of
the volume.

Adjusting the bass

Adjusting the treble
When "TREB" is displayed, press
button I or J to vary the setting.
-

"TREB -9" for a minimum treble
setting,

"TREB 0" for a normal setting,

"TREB +9" for a maximum
treble setting.

Press  button  H  sev-
eral  times  in  succes-
sion to access the bass
(BASS), treble (TREB),
loudness (LOUD), fader
(FAD),  balance  (BAL)
and  automatic  volume
correction settings.

Exit from audio mode is automatic
after a few seconds without pressing
any button, or by pressing button H

after coniguration of the automatic

volume correction.
Note : bass, treble and loudness set-

tings are speciic to each source. It

is possible to set them differently for
radio, CD and CD changer.

When "BASS" is dis-
played,  press  button
I  or  J  to  vary  the  set-
ting.
-  "BASS -9" for a

minimum bass
setting,

"BASS 0" for a normal setting,

"BASS +9" for a maximum bass
setting.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

Adjusting the front/rear sound
distribution (Fader)
When "FAD" is displayed, press but-
ton I or J.
Button I increases the volume in the
front.
Button J increases the volume in the
rear.

Adjusting the right/left sound
distribution (Balance)
When "BAL" is displayed, press but-
ton I or J.
Button I increases the volume on the
right-hand side.
Button J increases the volume on the
left-hand side.

Automatic volume
correction
This  function  enables  the  volume  to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press  buttons  I  or  J  to  switch  the
function on or off.

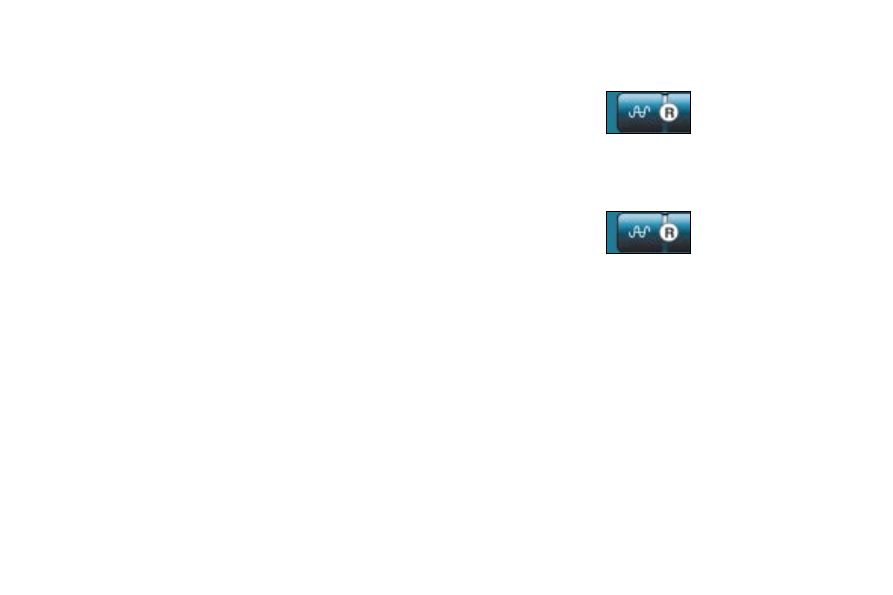

Press button R.

Briely press button

R to select the FM1,
FM2 FMast and AM
wavebands.

Notes on radio reception
Your  car  radio  is  subject  to  phenom-
ena  which  do  not  affect  domestic  ra-
dio  sets.  Both  AM  (MW/LW)  and  FM
reception are subject to various forms

of interference. This is no relection on

the quality of the equipment, but is due
to the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the result
of increasing distance from the trans-

mitter, delection of the signals by

obstacles (mountains, hills, buildings,
etc.), or of being in an area which is
not covered by a transmitter.

AUDIO EQUIPMENT -

RADIO

Selecting radio mode

Selecting a waveband

Adjusting the front/rear sound
distribution (Fader)
When "FAD" is displayed, press but-
ton I or J.
Button I increases the volume in the
front.
Button J increases the volume in the
rear.

Press button R.

Briely press button

R to select the FM1,
FM2 FMast and AM
wavebands.

Notes on radio reception
Your  car  radio  is  subject  to  phenom-
ena  which  do  not  affect  domestic  ra-
dio  sets.  Both  AM  (MW/LW)  and  FM
reception are subject to various forms

of interference. This is no relection on

mitter, delection of the signals by

obstacles (mountains, hills, buildings,
etc.), or of being in an area which is
not covered by a transmitter.

AUDIO EQUIPMENT

32 -

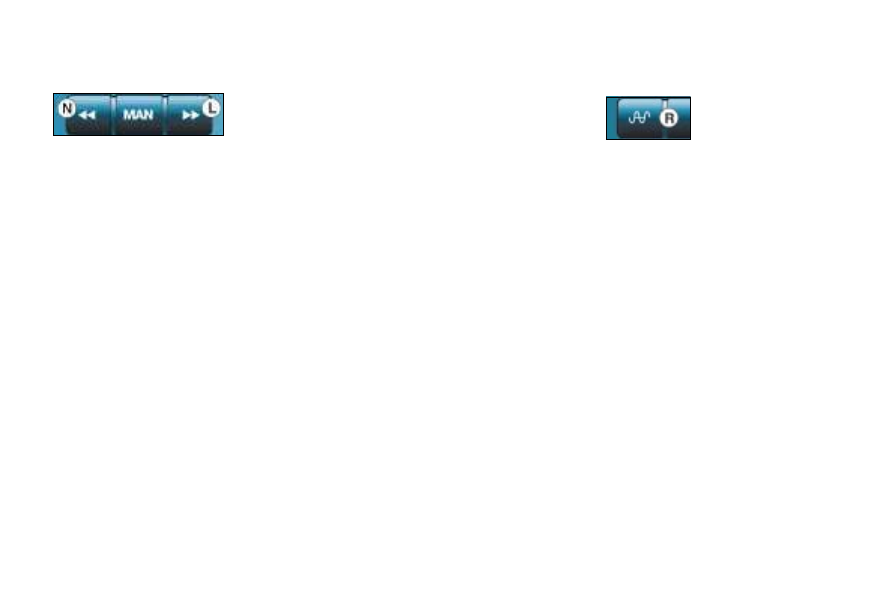

Manual station search
Press the "MAN" button.

Briely press button L or N to in-

crease  or  decrease  the  frequency
displayed.
By  continuing  to  press  the  button  in
the direction selected, you will obtain
continuous scrolling of the frequency.
The  scrolling  stops  as  soon  as  the
button is released.
Pressing  the  "MAN"  button  again
returns  you  to  automatic  station
search.

Automatic storing of FM stations
in the memory (autostore)

Your radio automatically stores the
6 stations with the strongest signal in
FM. These stations are stored in the
FMast waveband.

If it is not possible to ind 6 stations,

the remaining memories are empty.

Automatic station search

Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"
for more than two seconds.
The sound stops then becomes audi-

ble again, conirming that the station

has been stored in the memory.

Press and hold button
R for more than two
seconds.

Recalling stations stored in the
memory
For each waveband, briely press

buttons "1" to "6" to recall the cor-
responding station.

Briely press button L or N to search

for  the  station  immediately  above  or
below.  By  continuing  to  press  the
button  in  the  direction  selected,  you
will obtain continuous scrolling of the
frequency.

The scrolling stops at the irst sta-

tion found as soon as the button is
released.
If the TA

trafic programme is select-

ed, only stations broadcasting this
type of programme are selected.

Searching for a station occurs irst in

"LO" sensitivity (selection of the most
powerful  transmitters)  during  scan-
ning  of  the  waveband,  then  in  "DX"
sensitivity  (selection  of  the  weakest
and most distant transmitters).
To make a direct search in "DX" sen-
sitivity, press button L or N twice.

AUDIO EQUIPMENT -

RDS

Trafic information programme

(TA)

Regional following mode
When they are part of a network, cer-
tain  stations  broadcast  regional  pro-
grammes  in  the  various  areas  they
serve.  With  regional  following  mode
you  can  keep  listening  to  the  same
programme.
Press  the  "RDS"  button  for  more
than two seconds to switch the func-
tion on or off.

RDS station following
The display indicates the name of the
station selected. The radio is conti-
nually searching for the station which
has the best reception and which is
transmitting the same programme.

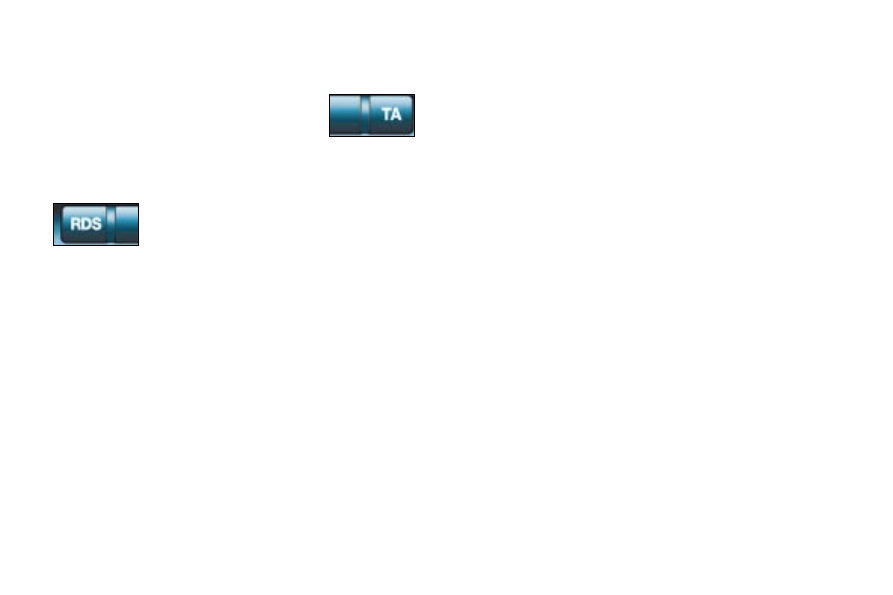

Press the "TA" button
to switch the function
on or off.
The multifunction dis-
play will show:

"TA" if the function is selected,

"(TA)" if the function is selected
but not available.

Any trafic information lash will be

given  priority,  whatever  source  you
are  listening  to  (radio,  CD  or  CD
changer).
If  you  wish  to  interrupt  a  message,
press the "TA" button; this switches
the function off.

Note : the volume of trafic infor-

mation is independent of the vol-
ume of normal radio listening. You
can adjust it using the volume but-
ton. The setting will be stored and
will be used when the next mes-
sages are broadcast.

Briely press the "RDS"

button to switch the
function on or off.
The multifunction dis-
play will show:

"RDS" if the function is selected.

"(RDS)" if the function is
selected but not available.

Using the RDS (Radio Data
System) function on FM
Radio  Data  System  allows  you  to
continue  listening  to  the  same  sta-
tion,  whatever  frequency  it  is  using
for the region you are going through.

Peugeot 206 SW Dag (2008 year). Instruction - part 2
