Peugeot 206 S Dag (2008 year). Instruction - part 1

FAMILIARISATION

4 -

FAMILIARISATION -

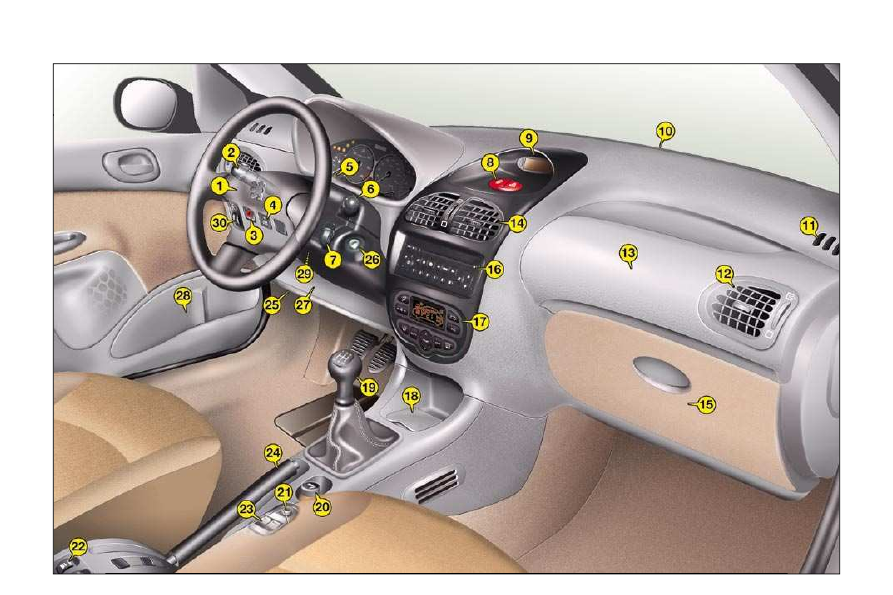

1. Driver's air bag

Horn

2. Lights and direction indicators

stalk

3. Passenger air bag disarming

switch

4. Rear electric windows disarming

switch

5. Lighting rheostat for instrument

panel

6. Windscreen wiper/windscreen

wash stalk

7. Audio equipment remote control

8. Hazard warning lights switch/

central locking button

9. Multifunction display

10. Windscreen demisting vents

11. Side window demisting vents

12. Adjustable side vent

13. Passenger air bag

14. Adjustable centre vents

15. Glove box

16. Audio equipment

17. Control for heating, ventilation,

air conditioning and heated rear
screen and mirrors

18. Front ashtray

19. Gear lever

20. Lighter

21. Electric mirror controls

22. Rear electric window controls

23. Front electric window controls

24. Handbrake

25. Bonnet release

26. Steering lock

27. Fuse box

28. Storage compartment

29. Steering wheel height

adjustment control

30. Headlamp height adjustment

FAMILIARISATION

6 -

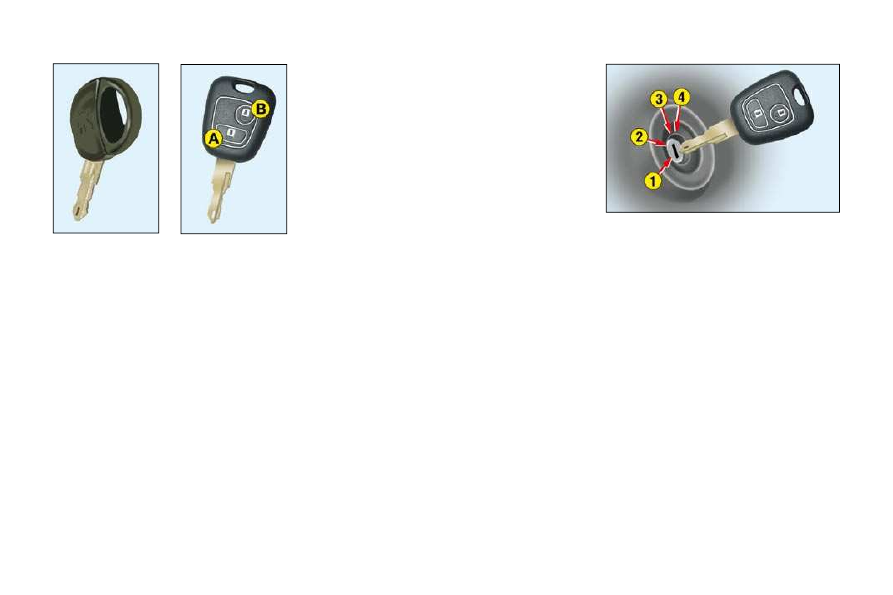

KEYS

The keys allow you to independently
operate the locks on the front doors,
the boot, the passenger air bag dis-

arming switch, the fuel ﬁ ller cap, and

the steering lock and to switch on the
ignition.

STARTING

  The  4  positions  of  the  key  in  the
ignition:
   1.    STOP position:

the ignition is off.

2. 1st notch, Accessories position:

the ignition is off but the acces-
sories can be used.

3. 2nd notch, Running position:

the ignition is on.

4. Starting position:

operates the starter.

Remote control

Pressing button A remotely locks the
vehicle.
This is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approxi-
mately two seconds.
Pressing button B remotely unlocks
the vehicle.
This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators for approxi-
mately two seconds.

 55

Central locking and unlocking
From the driver's door, you can lock
and unlock the doors and the boot. If
one of the doors or the boot is open,
the central locking does not work.

  Leaving the ignition key in
If  you  leave  the  key  in  the  ignition,
a  buzzer  reminds  you  of  this  when
opening the driver's door.

  Locating the vehicle
To  locate  your  vehicle,  when  you
have left it locked in a car park:
      press button  A , the courtesy

lights will come on and the

indicator lights ﬂ ash for a few

seconds.

  Steering lock
Before  starting,  unlock  the  steering
if  necessary,  by  gently  turning  the
steering  wheel  at  the  same  time  as
you turn the key.
It  is  advisable  to  press  the  clutch
pedal  while  operating  the  starter,  to
make starting easier.

FAMILIARISATION -

Precautions regarding the
passenger air bag
For a vehicle ﬁ tted with a disarming

switch:

Starting a petrol engine
Do not press the accelerator.
Operate the starter, without releasing
the key, until the engine turns.

Never race a cold engine.
Never run the engine in a

conﬁ ned space.

Do not make any modiﬁ ca-

tions to the steering lock.

With the ignition on (2nd notch),
illumination  of  this  warning
light,  accompanied  by  a  mes-
sage  on  the  multifunction  dis-

play,  indicates  that  the  passenger  air
bag  is  disarmed  (switch  in  the   "OFF"
position).
The warning light remains on through-
out the period of disarming.

FRONT AIR BAGS

For a vehicle not ﬁ tted with a disarm-

ing switch:

- do not install a rear-

facing child seat on
the front passenger
seat.

In no circumstances should you
place your feet or any other object on
the fascia.

 72

- disarm the air

bag if you install
a rear-facing
child seat,

- arm the air bag

for an adult
passenger.

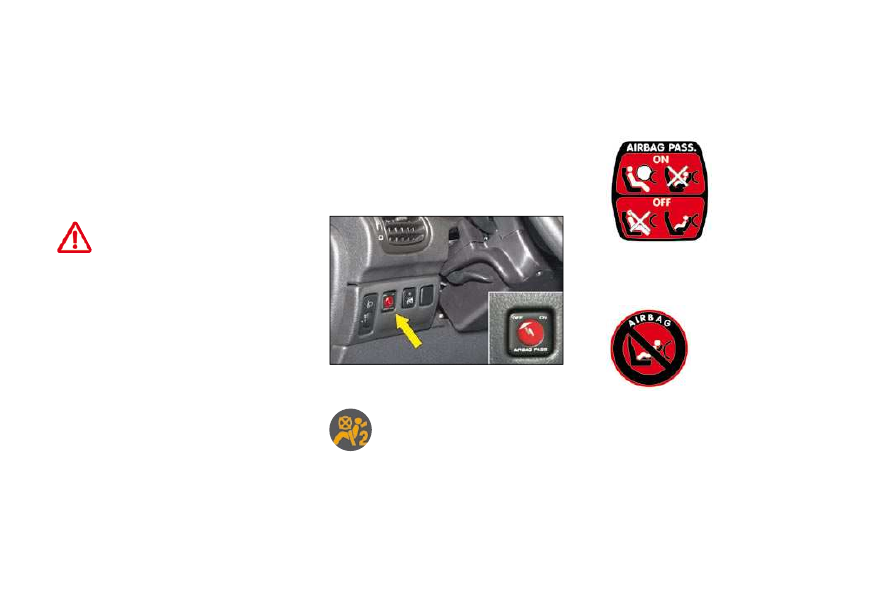

  Disarming the passenger air bag
Insert the ignition key in the switch  1
and turn it to:
   -

the ''ON'' position, the passen-
ger air bag is armed,

the ''OFF'' position, the passen-
ger air bag is disarmed.

Operating check

FAMILIARISATION

8 -

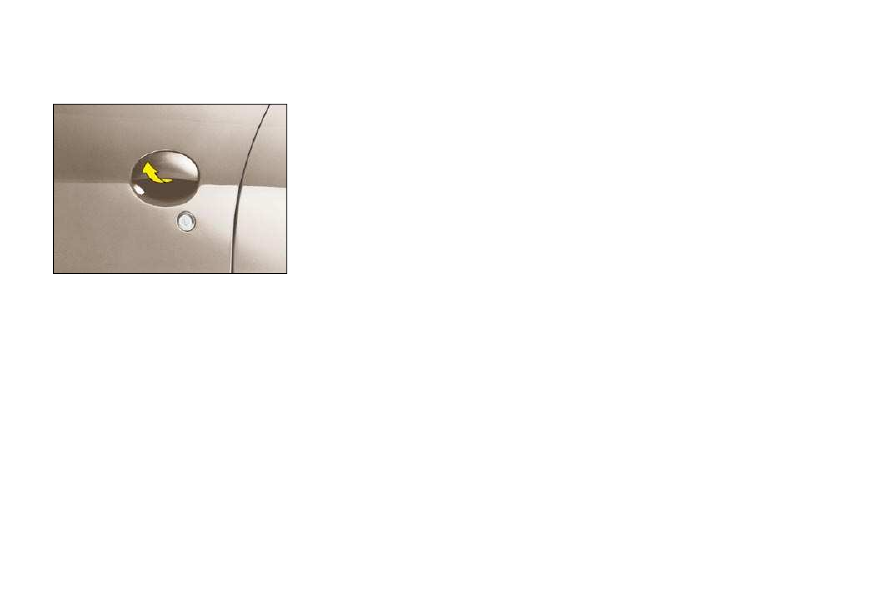

DOORS

Front doors

 57

LOCKING/UNLOCKING THE
TAILGATE

With central locking:
The tailgate is locked and unlocked
at the same time as the doors.

"Tailgate open" warning
When the engine is running , if the
tailgate has not been closed correctly
you are warned by an audible signal.

 59

When the vehicle is moving , if the
tailgate has not been closed correctly

the courtesy light ﬂ ashes if its button

is in this position.

The lighting comes on when the
tailgate is opened.

FAMILIARISATION -

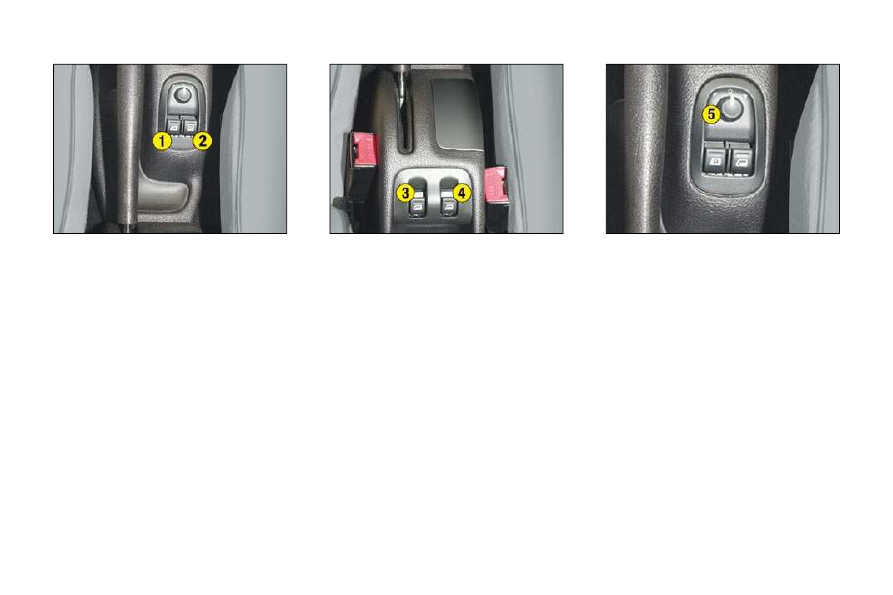

ELECTRIC WINDOWS

3. Rear left electric window

ELECTRIC MIRRORS

Turn knob 5 to the right or to the left
to select the corresponding mirror.
Move knob 5 in all four directions to
adjust.

 64

  1. Driver's electric window
  Manual operation : press or pull the
switch  gently.  The  window  stops  as
soon as the switch is released.

2. Passenger's electric window

4. Rear right electric window

 63

Automatic operation : press or pull

the switch ﬁ rmly. One touch com-

pletely opens or closes the window.
Automatic opening and closing only
operate when the engine is running.

FAMILIARISATION

10 -

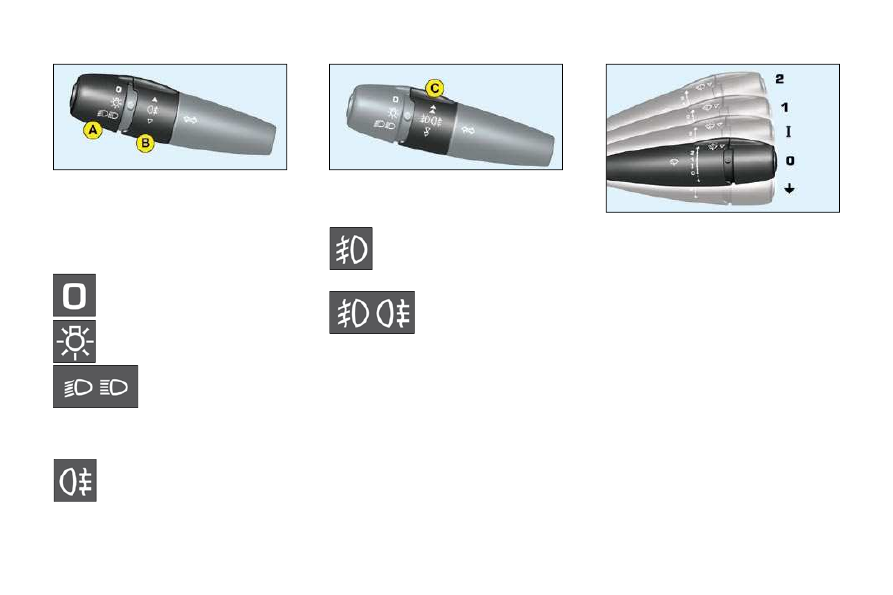

STEERING WHEEL
CONTROLS

Rear fog lamp (ring B)

Windscreen wipers

  2    Fast wipe
  1   Normal wipe
  I   Intermittent wipe
  0   Off
     Single wipe
Windscreen  wash:  pull  the  stalk  to-
wards you.

Lights off

Side lights

Dipped/main

beam

headlamps

Front fog lamps/Rear fog lamp
(ring C)

Rear fog lamp (rotation of
the ring forwards)

Front fog lamps (1st rotation
of the ring forwards)

Front fog lamps and
rear fog lamp (2nd
rotation of the ring for-
wards)

 61

 62

Lights

Front and rear lights (ring A)

FAMILIARISATION -

Never travel with the head
restraints removed.

3. Driver's seat height adjustment.
4. Seat back angle adjustment.

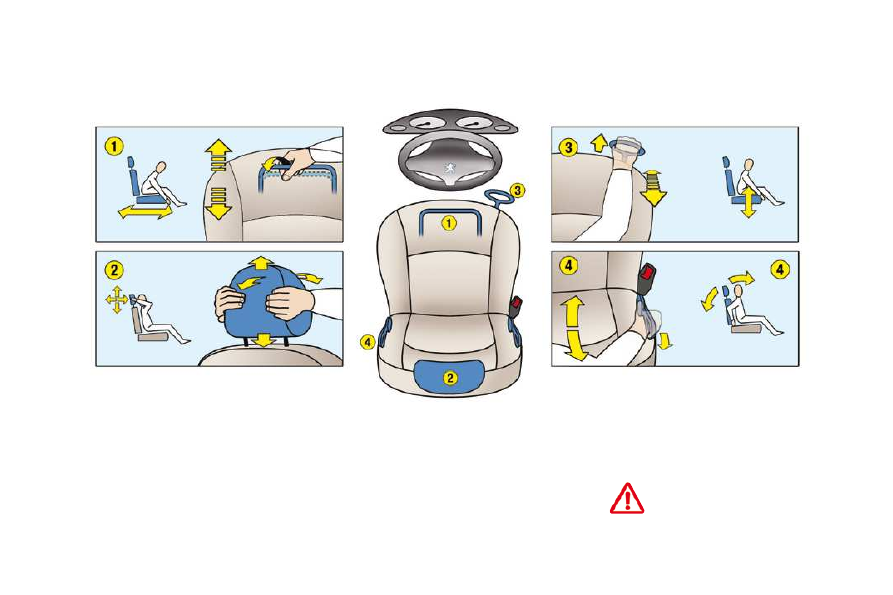

FRONT SEATS

 44

1. Forwards/backwards adjustment.
2. Head restraint height and angle

adjustment.

FAMILIARISATION

12 -

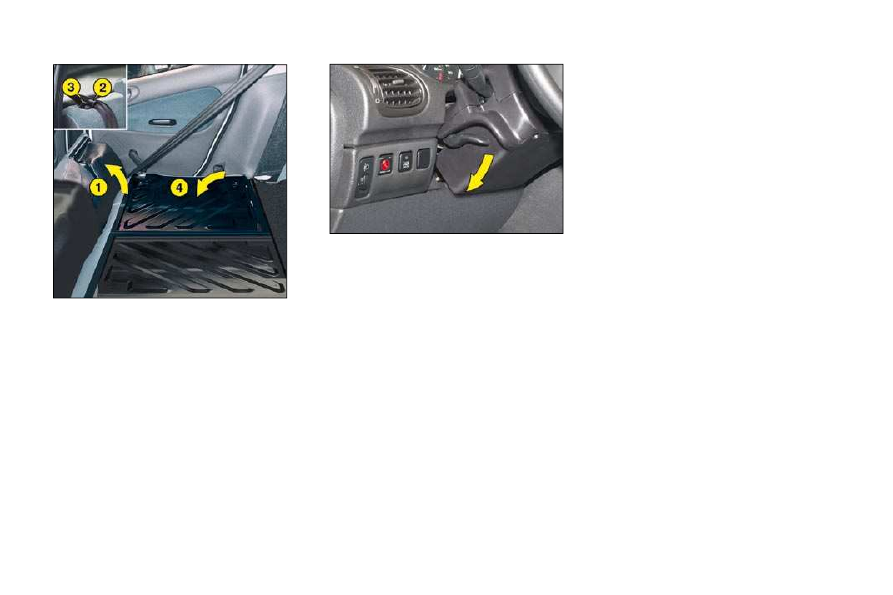

REAR BENCH SEAT

To fold down the rear bench seat:
-

Lift the front of the seat 1 ,

Tilt the seat 1 against the front
seats,

Position the seat belt under the
belt holder 2 ,

Pull control 3 to unlock the seat
back 4 ,

Remove or lower the head re-
straint,

Tilt the seat back 4 .

When reﬁ tting, take care not to trap

the seat belts.

 46

STEERING WHEEL HEIGHT
ADJUSTMENT

When stationary, lower the handle to
release the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.

 65

FAMILIARISATION -

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX

The  four-speed   automatic   gearbox
offers  a  choice  between  the  comfort
of  integral automatic  operation, en-
hanced by a  sport  and a  snow  pro-
gramme, or  manual  gear changing.

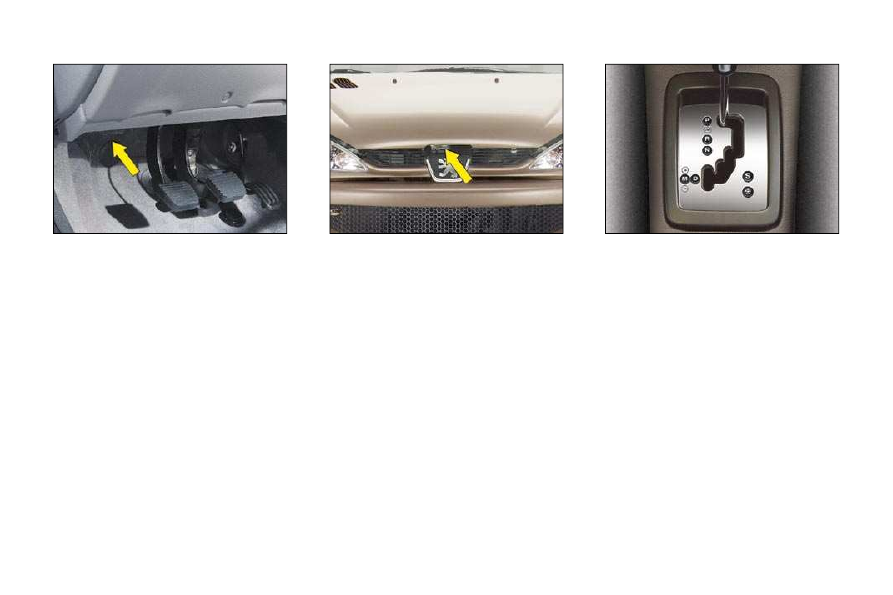

OPENING THE BONNET

From inside the vehicle : pull the
handle.

From outside : lift the catch and raise
the bonnet. Secure the strut to hold
the bonnet open.

 68

 60

Gear selection gate
 Move the lever in the gate to

select a position.

The indicator light for the position se-
lected illuminates on the instrument
panel display.

FAMILIARISATION

14 -

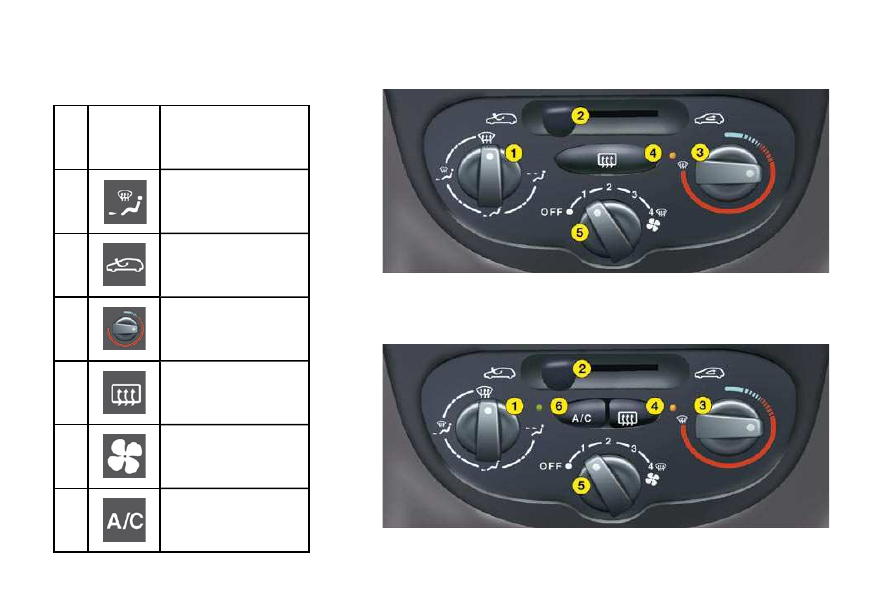

HEATING/AIR CONDITIONING

N°

Symbol

Function

Setting the air
distribution.

Air intake control.

Temperature
adjustment.

Demisting the rear
screen and mirrors.

Air ﬂ ow adjustment.

Air conditioning
control.

 36

 40

FAMILIARISATION -

 42

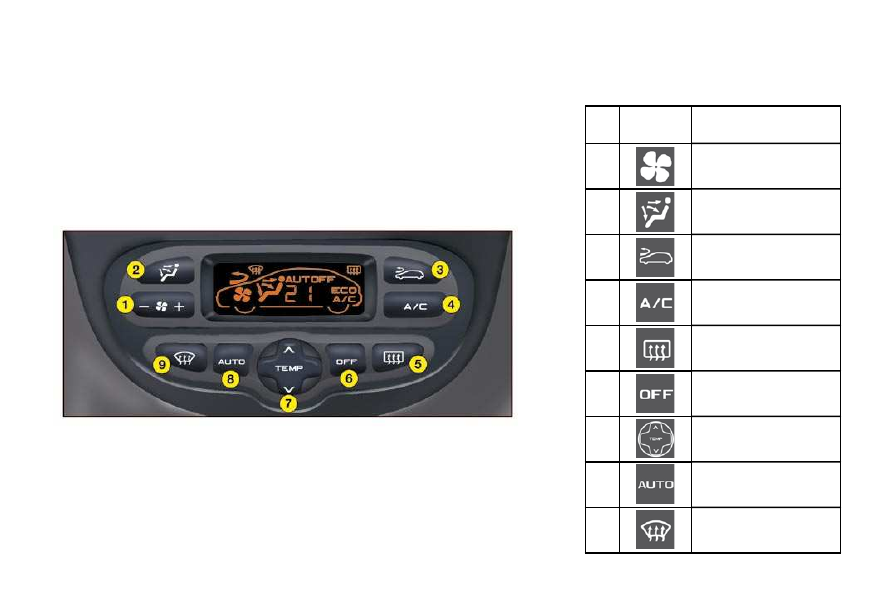

AUTOMATIC AIR CONDITIONING

N°

Symbol

Function

Air ﬂ ow adjustment.

Setting the air
distribution.

Air intake control.

Air conditioning
control.

Demisting the rear
screen and mirrors.

Switching off.

Temperature
adjustment.

Automatic comfort
programme.

Automatic visibility
programme.

–

FAMILIARISATION

16 -

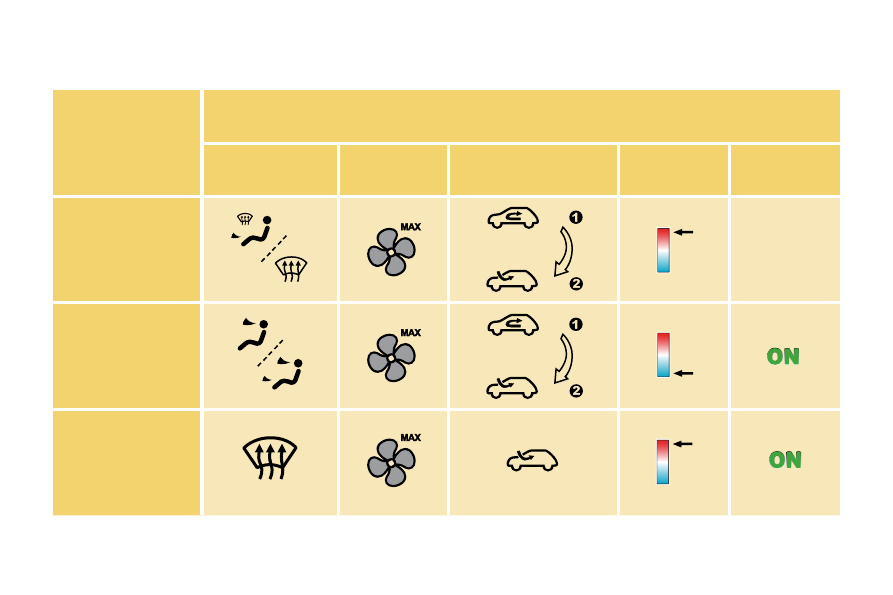

RECOMMENDED INTERIOR SETTINGS

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂ ow

Air recirculation/Intake

of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

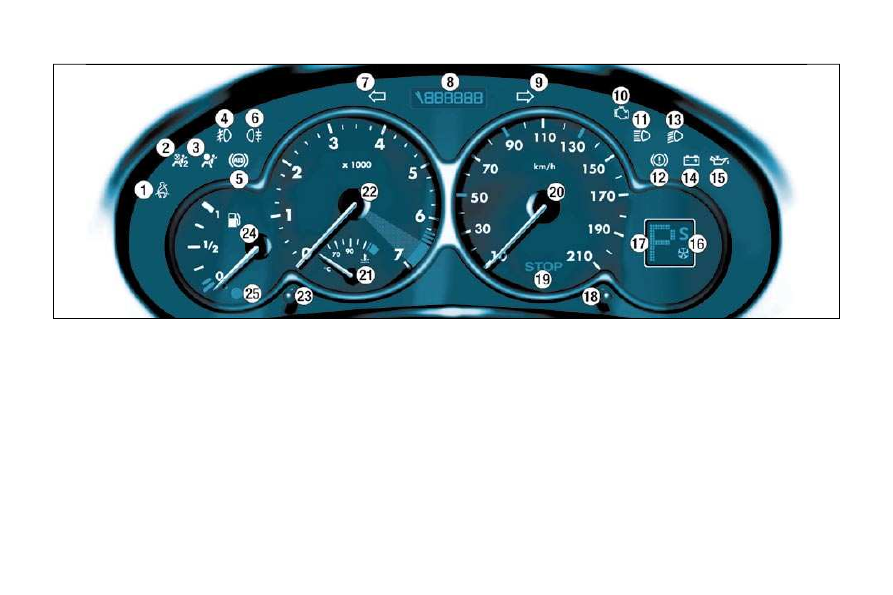

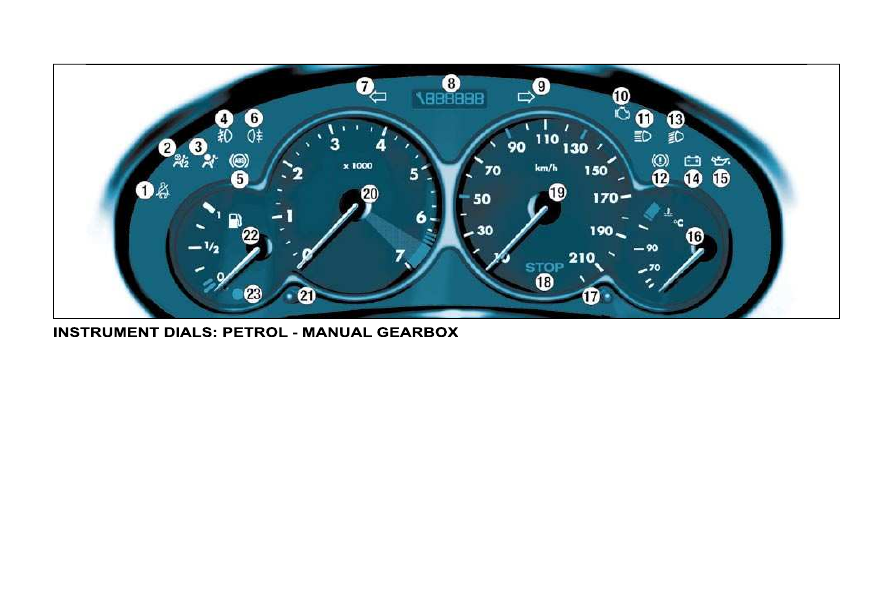

INSTRUMENTS and CONTROLS -

1. Seat belt not fastened warning light
2. Passenger air bag disarmed

warning light

  3.   Air bags warning light
  4.   Front fog lamps indicator light
  5.   Anti-lock braking system (ABS)

warning light

  6.   Rear fog lamp indicator light
  7.   Left hand direction indicator
  8.   Total distance recorder, service

indicator and engine oil level
indicator

9. Right hand direction indicator
10. Emission control system warning

light

11. Main beam headlamps indicator

light

12.

Handbrake, low brake ﬂ uid

level and electronic brake force

distribution fault warning light

13. Dipped beam headlamps

indicator light

14. Battery charge warning light
15.

Engine oil pressure and

temperature warning light

16.

Coolant temperature indicator

17.

Total distance recorder button

  18.  Central (STOP) warning light
  19.  Speedometer
  20.

Rev counter

21.

Lighting rheostat button

22.

Fuel level indicator

23.

Low fuel level warning light

INSTRUMENTS and CONTROLS

18 -

1. Seat belt not fastened warning light
2. Passenger air bag disarmed

warning light

  3.   Air bags warning light
  4.   Front fog lamps indicator light
  5.   Anti-lock braking system (ABS)

warning light

  6.   Rear fog lamp indicator light
  7.   Left hand direction indicator
  8.   Total distance recorder, service

indicator and engine oil level
indicator

9. Right hand direction indicator
10. Emission control system warning

light

11. Main beam headlamps indicator

light

12.

Handbrake, low brake ﬂ uid

level and electronic brake force

distribution fault warning light

13. Dipped beam headlamps

indicator light

14. Battery charge warning light
15.

Engine oil pressure and

temperature warning light

16. Operating programmes
17. Gear indicator

18.

Total distance recorder button

  19.  Central (STOP) warning light
  20.  Speedometer
  21.

Coolant temperature indicator

22.

Rev counter

23.

Lighting rheostat button

24.

Fuel level indicator

25.

Low fuel level warning light

INSTRUMENT DIALS: PETROL - AUTOMATIC GEARBOX

INSTRUMENTS and CONTROLS -

Central (STOP)
warning light

Linked to the warning lights:
- engine oil pressure and

temperature,

low coolant level,

handbrake,

- low brake ﬂ uid level,

- electronic brake force distribution

system fault.

Linked to the coolant temperature

indicator.

You must stop if the light ﬂ ashes

with the engine running.
Consult a PEUGEOT dealer.

Engine oil pressure
and temperature
warning light

Linked to the central (STOP) warning

light.
  You must stop.
This  warning  light  indicates  one  of
the following:
   -   insufﬁ cient oil pressure,

- a lack of oil in the lubrication

circuit. Top up the level.

- an oil temperature which

is too high. The warning

light is accompanied by an

audible signal. To lower the oil

temperature, reduce your speed.

Consult a PEUGEOT dealer.

Anti-lock braking
system (ABS) warning
light

This comes on for a few seconds
each time the ignition is switched

on.
If the warning light remains on or
comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.
However,

the

vehicle

retains

conventional servo-assisted braking.

Illumination of this warning light,

accompanied by an audible signal

and a message on the multifunction

display, indicates a fault in the ABS.

Consult a PEUGEOT dealer.

Handbrake, low
brake fluid level and
Electronic Brake Force
Distribution fault
warning light

Linked to the central (STOP) warning

light.
This indicates one of the following:
-

that the handbrake is still applied

or is not fully released (vehicle

moving),

- an excessive drop in brake ﬂ uid

level (if the warning light remains
on even when the handbrake is

released).

a fault in the Electronic Brake

Force Distribution, if lit at the same

time as the ABS warning light.

You must stop.
Consult a PEUGEOT dealer.

WARNING LIGHTS

A permanently lit warning light

or one ﬂ ashing, with the engine

running,  indicates  an  operating
fault of the unit concerned.
  The illumination of certain warning
lights may be accompanied by an
audible  signal.  Do  not  ignore  this
warning:  consult  a   PEUGEOT
dealer as soon as possible.
  If  the  central  STOP  warning  light
comes  on  when  you  are  driving,
stop  your  vehicle  immediately,
where it is safe to do so.

Content .. 1 2 3 ..
