Peugeot 107 (2012 year). Instruction - part 6

Practical information

Fitting audio

equipment

Your vehicle is equipped with certain factory-
fitted audio equipment:
- roof

aerial,

coaxial aerial cable,

basic interference suppression,

- wiring for front speakers,
- two

8-way connectors.

Fitting speakers

The factory-fitted equipment allows the fitting of
100 mm diameter speakers on the dashboard.
As accessories, you can fit 165 mm diameter
speakers on the rear shelf.

Making the connections

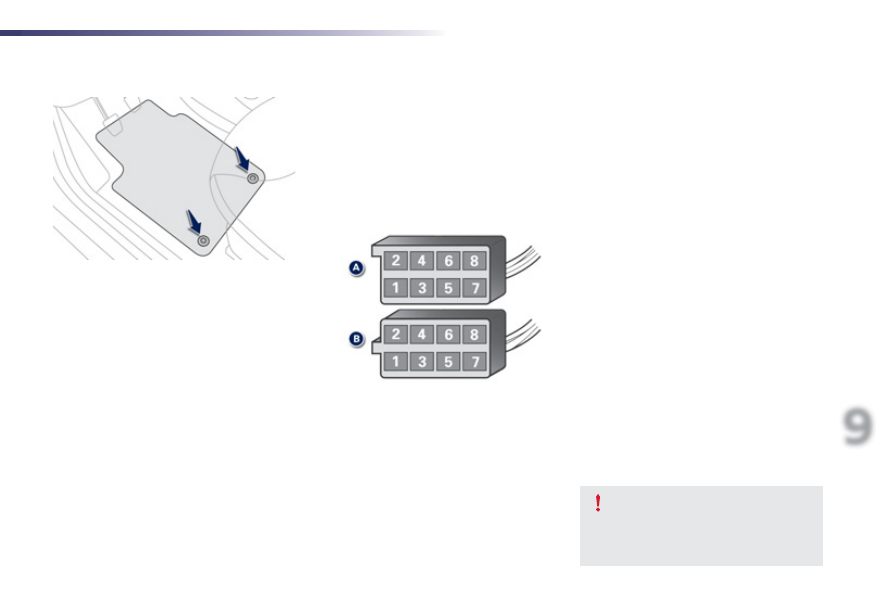

A1:  -
A2:  -
A3: -
A4: (+) Accessories
A5: -
A6:  (+ve) Sidelamps
A7:  (+ve) Permanent
A8: Earth

When removing the mat on the driver's side,
push the seat as far back as possible and
remove the two fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured correctly.
To prevent the mat from becoming caught
under the pedals:
-

only use mats suited to the fixings already
present in the vehicle. It is imperative that
these fixings be used.

never fit one mat on top of another.

* According to version.

B1:
B2:
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6: (-) Front left speaker
B7:
B8:

Mat *

Consult a PEUGEOT dealer or a
qualified workshop before installing
audio equipment or speakers in your
vehicle.

Practical information

Towing the vehicle

)

Install the towing bar.

)

Put

the

gear lever into neutral (position N

for the 2 Tronic gearbox).

)

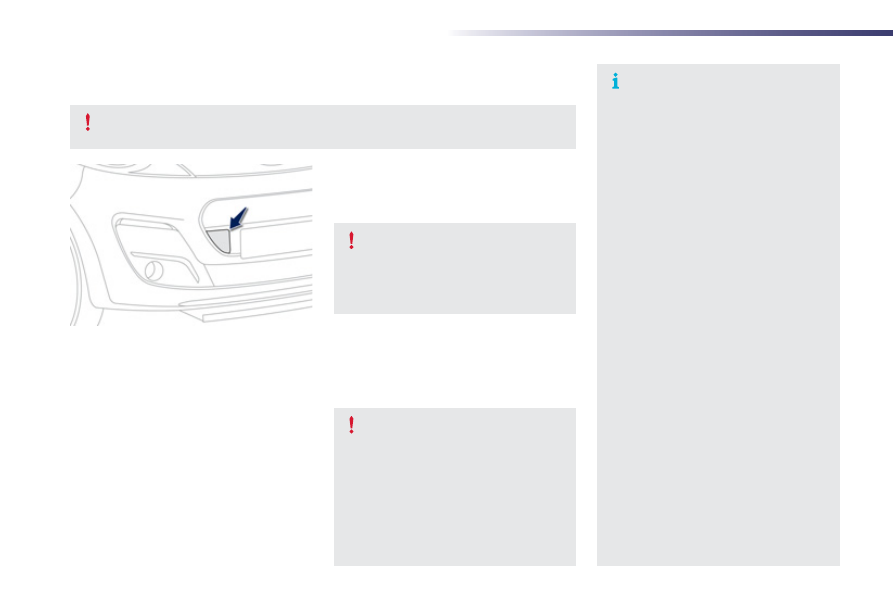

Take the removable towing eye stowed in
the spare wheel, under the boot carpet.

)

Unclip the plastic cover.

)

Fully screw in the towing eye.

General

recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and
straps are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
- vehicle broken down on a motorway

or fast road,

when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

- towing with only two wheels on the

ground,

where there is no approved towing
bar available...

Your vehicle can only be towed at the front.

Never use the radiator crossmember.
Towing with fours wheels on the
road must be carried out at very low
speed over a very short distance (in
accordance with the legislation in force).
In all other cases, your vehicle must be
transported on a trailer.

Failure to observe this instruction may
lead to damage to certain components
(braking, transmission, ...) and the
absence of braking assistance when the
engine is started.

)

Unlock the steering by turning the key to

the first position and release the parking
brake.

)

Switch on the hazard warning lamps on

both vehicles.

Practical information

Fitting roof bars

Please refer to national legislation in order
to comply with the regulations concerning
the transportation of objects which are
longer than the vehicle.

When fitting transverse roof bars, use the
accessories recommended by PEUGEOT and
follow the manufacturer's fitting instructions.
For more information, contact a PEUGEOT
dealer or a qualified workshop.
Maximum weight authorised on the bars,
for a loading height not exceeding 40 cm
(except bicycle carrier): 50 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars.

Practical information

Accessories

A wide range of accessories and genuine parts
is available from the PEUGEOT dealer network.
These accessories and parts have been tested
and approved for reliability and safety.
They are all adapted to your vehicle and
benefit from PEUGEOT's recommendation and
warranty.

Installation of radio

communication transmitters

Before installing any after-market radio
communication transmitter, you can contact
a PEUGEOT dealer for the specification of
transmitters which can be fitted (frequency,
maximum power, aerial position, specific
installation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).

* France only.

"Comfort": front and rear parking sensors,
portable ashtray, glove box lid, insulated
module, centre armrest, portable reading lamp,
door deflectors, sun blinds, ...

"Transport solutions": boot liner, transverse
roof bars, bicycle carrier, ski carrier, rigid and
soft roof boxes, boot carpet, boot dividers, boot
net, ...
You can obtain "Van" conversion kits to convert
a private vehicle to a van * .

"Styling": 14 inch wheel trims, 14 and 15 inch
alloy wheels, spoiler, "aluminium" interior
styling kit, aluminium look and carbon fibre look
mirror shells, aluminium look and carbon fibre
look sill finishers chromed exhaust tailpipe,
leather steering wheel, aluminium look and
carbon fibre look rear diffuser, styling stickers,
door sill protectors, aluminium gear knob,
"Cristal" rear lamps...

"Security and safety": anti-theft alarm,
security wheel bolts, snow chains and wheel
non-skid covers, high visibility vest, warning
triangle, breathalyzer, child seats, first aid kit,
fire extinguisher, foglamp kit, seat belt for an
animal, cage for an animal...

"Protection": mats, seat covers, front and rear
mudflaps, protective side rubbing strips, boot
sill protector, car cover, translucent front and
rear bumper protectors, rear seat cover, boot
cover...
To prevent the mat from becoming caught
under the pedals:
-

ensure that the mat is positioned and
secured correctly,

never fit one mat on top of another.

"Multimedia": semi-integrated navigation
systems, USB Box, audio systems, speakers,
rear parcel shelf with speakers, Bluetooth
hands-free system, hands free kit for smart
phone, speed camera detector, video pack
(DVD player + 2 screens) auxiliary cable for
audio equipment, iPod dock, Hi-Fi module,
mobile phone charger compatible with iPhone,
head-up display, rear mulit-media support,
Wi-Fi on board, ...

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.

Checks

PEUGEOT & TOTAL

Checks

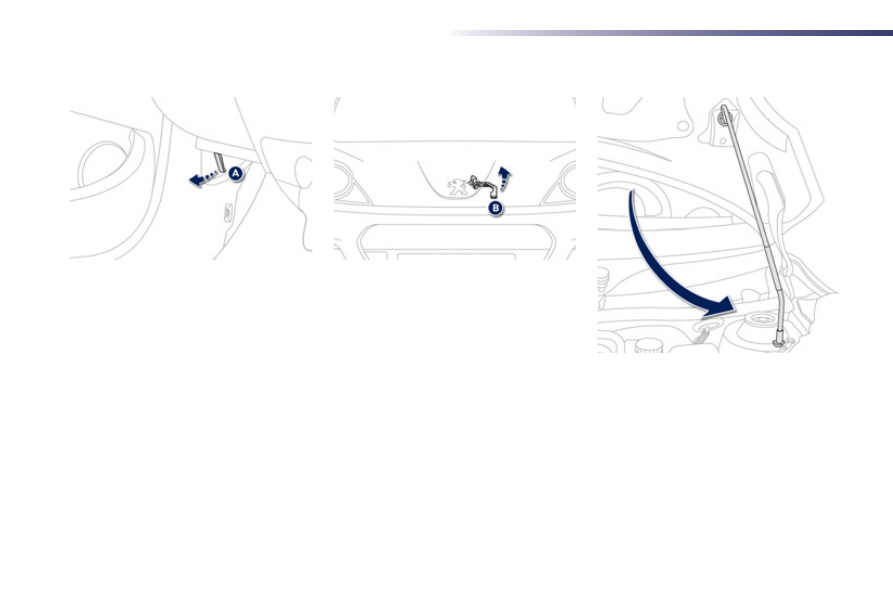

Opening the bonnet

On the outside : lift the safety
catch B and raise the bonnet.

Bonnet stay

Secure the stay to hold the bonnet open.

To close

Before closing the bonnet, return the stay to its
housing.
Lower the bonnet and release it at the end of its
travel. Check that the bonnet is fully closed.

On the inside : pull the release
lever A , located under the dashboard.

Checks

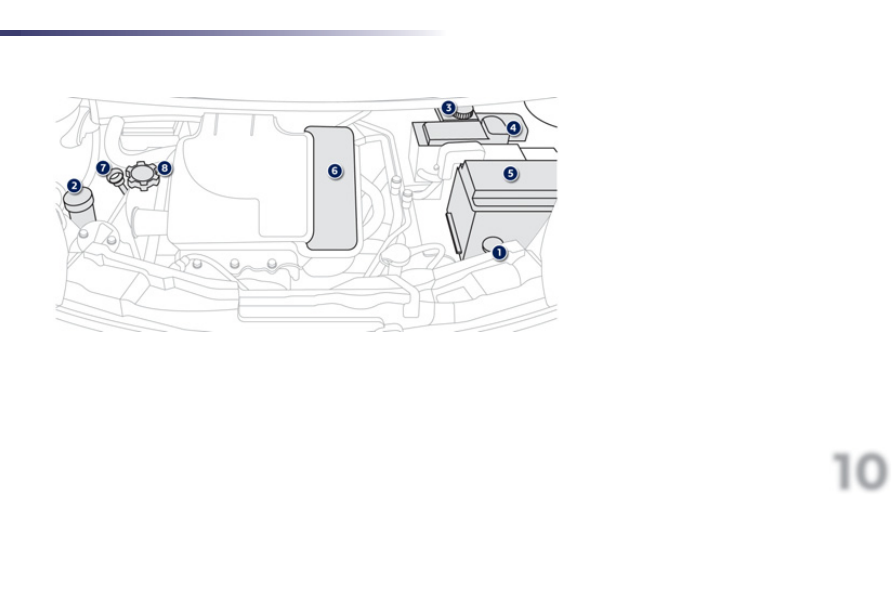

1. Coolant header tank
2. Screenwash fluid reservoir
3. Brake fluid reservoir
4. Fusebox
5. Battery
6. Air

filter

Engine oil dipstick

8. Engine

oil

filler cap

Engine

Checks

Checking levels

There are two marks on the
dipstick:
A = maximum
If you fill past this mark,
contact a PEUGEOT dealer
or a qualified workshop.
B = minimum
Never allow the level to fall
below this mark.

Dipstick

Brake fluid level

The brake fluid level should be close to the
"MAX" mark. If it is not, check the brake pad
wear.

If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a
qualified workshop.
Check all of these levels regularly and top them up if necessary, unless otherwise indicated.

Take care when working under the bonnet, as certain areas of the engine may be extremely
hot (risk of burns).

Oil level

The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or using the
dipstick.
This manual check will only be correct if the
vehicle is on level ground and the engine has
been off for more than 30 minutes.

It is normal to top up the oil level
between two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
After topping up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping up.

Engine oil change

Refer to the servicing booklet for details of the
interval for this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.

Changing the fl uid

Refer to the servicing booklet for details of the
interval for this operation.

Checks

Screenwash fluid level

Top up the level when necessary.

Coolant level

Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.

Fluid specifi cation

The brake fluid must conform to the
manufacturer's recommendations and meet the
DOT4 standard.

The coolant level should be close to the "MAX"
mark but should never exceed it.
When the engine is warm, the temperature of
the coolant is regulated by the fan. This can
operate with the ignition off.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.

Changing the coolant

The coolant does not have to be changed.

Fluid specifi cation

The coolant must conform to the
manufacturer's recommendations.

Used products

Avoid prolonged contact of used oil or fluids
with the skin.
Most of these fluids are harmful to health or
indeed very corrosive.

Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.

Checks

2 Tronic gearbox

Brake pads

Unless otherwise indicated, check these
components in accordance with the servicing
booklet and according to your engine.
Otherwise, have them checked by a PEUGEOT
dealer or a qualified workshop.

12 V battery

Oil filter

Manual gearbox

Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and offers
very specific products.
To avoid damaging the electrical units,
the use of a high pressure washer
in the engine compartment is strictly
prohibited.

Air filter and passenger compartment filter

Brake disc wear

Parking brake

The battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.

When carrying out work on the battery, refer to the
"Practical information" section for details of the precautions
to be taken before disconnecting the battery and following
its reconnection.

Refer to the servicing booklet for
details of the replacement intervals
for these components.
Depending on the environment (e.g.

dusty atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary.

A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.

Replace the oil filter each time the
engine oil is changed.
Refer to the servicing booklet for
details of the replacement interval for
this component.

The gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for the
details of the level checking interval
for this component.

The 2 Tronic gearbox does not require
any maintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this unit.

Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to

have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.

For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.

If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.

Checking this system must be done by a
PEUGEOT dealer or a qualified workshop.

Technical data

Engine

Engine

1.0 litre (≈ 68 hp)

Manual gearbox

(5-speed)

2 Tronic gearbox

(5-speed)

Model codes PM, PN

CFB0 / CFB4

CFB0/P

Cubic capacity (cc)

998

Bore x stroke (mm)

71 x 84

EU standard maximum power (kW)

Max power engine speed (rpm)

6 000

EU standard max torque (Nm)

Max torque engine speed (rpm)

3 600

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (with filter replacement)

3.2

Technical data

Weights (in kg)

The design of your vehicle does not permit the fitting of a towbar.

Engine

1.0 litre

Manual gearbox

(5-speed)

2 Tronic gearbox

(5-speed)

Versions

3-door

5-door

3-door

5-door

Model codes

PMCFB0 /

PMCFB4

PNCFB0 /

PNCFB4

PMCFB0/P

PNCFB0/P

Kerb weight

800

805

830

840

Gross vehicle weight (GVW)

1 180

1 190

1 180

1 190

Technical data

Dimensions (in mm)

Technical data

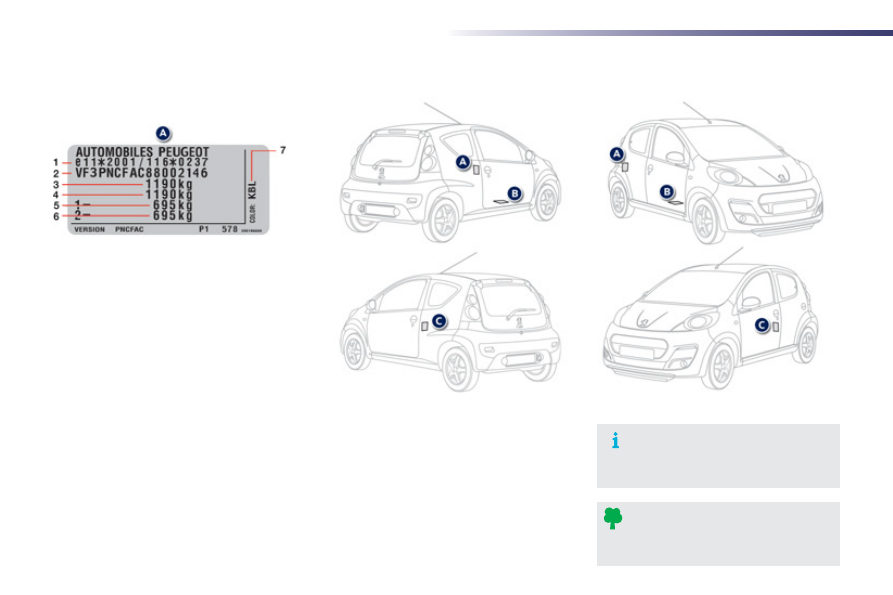

Identifi cation markings

B. Vehicle Identifi cation Number.

This is engraved on the crossmember, under
the front right seat.

A. Manufacturer's plate.

1. EU

approval number.

2. Vehicle

Identification Number (VIN).

3.   Gross vehicle weight.
4.   Gross train weight.
5.  Maximum

weight on front axle.

6. Maximum weight on rear axle.
7. Paint colour reference.

5-door

3-door

C. Tyres.

The label C affixed to the pillar, near the left
door striker, indicates:
- the

tyre sizes,

- the

tyre pressures.

The tyre pressures must be checked
when cold, at least once a month.

If the tyre pressures are too low, this
increases fuel consumption.

VOL

SRC/

LIST

ESC

SEEK

MP3

AUDIO SYSTEM / BLUETOOTH

01 First steps

For safety reasons, the driver must only carry out

operations which require prolonged attention while the

vehicle is stationary.

CONTENTS

  02 Radio
  03 Audio
  04 Using the telephone
  05 Audio settings
  06 Configuration
  07 Screen menu map
  Frequently asked questions

p.
p.
p.
p.
p.
p.
p.
p.

94
95
98
104
110
111
112
113

VOL

SRC/

LIST

ESC

SEEK

MP3

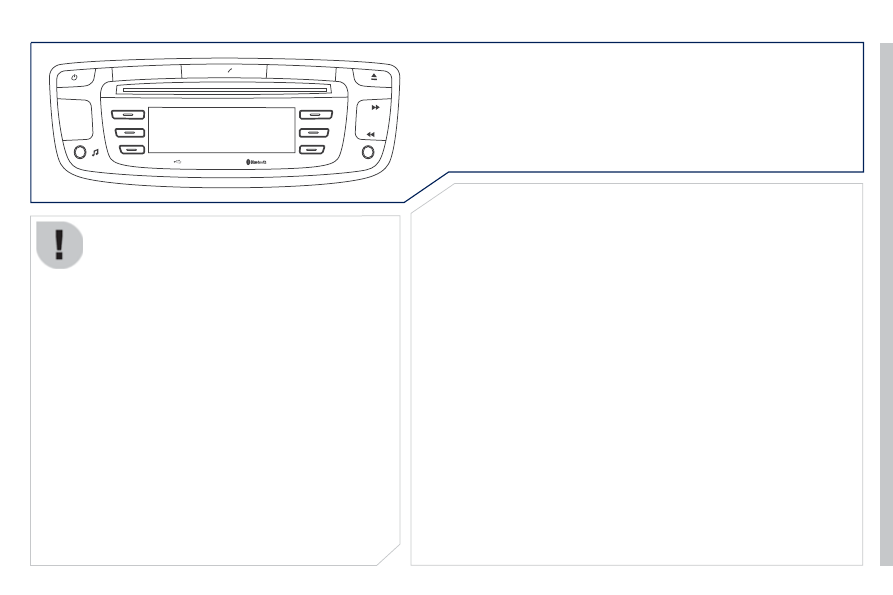

FIRST STEPS

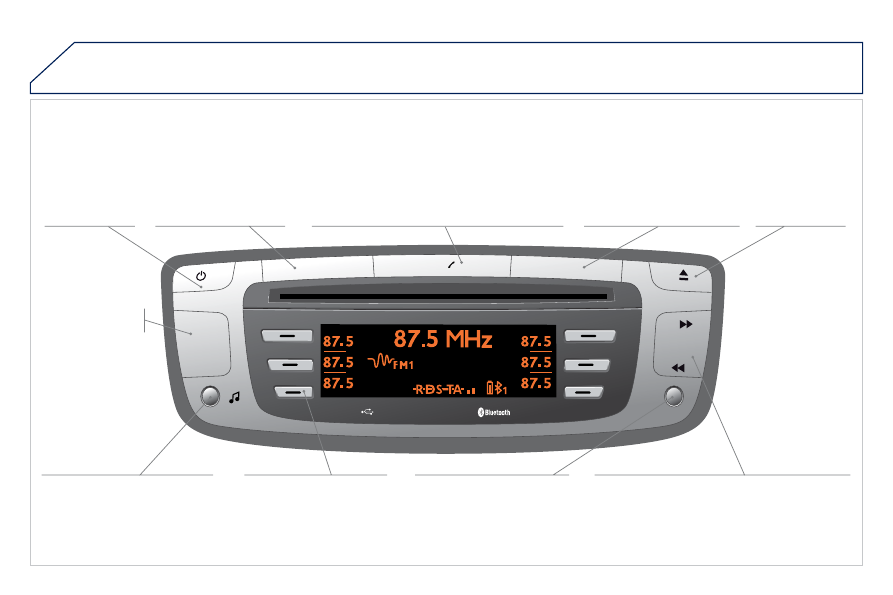

Select the source:
-

FM1, FM2, AM, CD, USB, AUX, Streaming.

- accept

incoming call.

Long press:
-

open the calls log for the telephone

connected.

or end a call if in progress.

Adjust audio settings:

sound ambience, treble, bass,

loudness, left/right balance.

On / Off.

Abandon the current

operation.
Go up one level (menu or

folder).

Eject CD.

Select a preset radio station.
Radio: long press: preset a

radio station.
Other than radio: see the

corresponding sections.

Automatic search for a lower / higher radio

frequency.
Select previous / next CD, USB track.
Navigation in a list.
Press and hold: fast forwards or backwards.

Open the main menu.

Display the list of stations

received, the CD/USB tracks

or folders.
Long press: update the list of

stations received.

Volume

adjustment.

Content .. 4 5 6 7 ..
