Child safety

ISOFIX child seats recommended by PEUGEOT and approved for your vehicle

FAIR Bimbofix ISOFIX (size category: C or A)

Group 0/1: up to 18 kg

Can be installed facing forward or rearward using an ISOFIX base which

is attached to the rings A and includes a stay which extends down to the

floor of the vehicle.

6 seat body angle positions.

Can be installed facing forward, attached to the seat using a three-point

seat belt.

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg

Is installed in the forward-facing position.

Is attached to the rings A and the upper ring B, referred to as the Top

Tether, using an upper strap.

Three seat body angles: sitting, reclining, lying down.

Can be installed facing forward, attached to the seat using a three-point

seat belt.

Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.

Child safety

Locations for ISOFIX child seats

IUF: seat approved for a Universal Isofix seat,
"Forward facing" with the "Top Tether" upper
strap.
IL-SU : seat suitable for the installation of a
semi-universal ISOFIX seat, that is:
- "rear

facing" fitted with an upper strap or a

support

- "forward

facing" fitted with a support

an infant carrier fitted with an upper strap
or a support.

X : seat not suitable for the installation of
an ISOFIX child seat of the size category
indicated.

In accordance with the European regulation,
this table indicates the options for the
installation of ISOFIX child seats on the vehicle
seats fitted with ISOFIX mountings.

In the case of the universal and semi-universal
ISOFIX child seats, the child seat's ISOFIX size
category, determined by a letter A, B , B1, C , D,
E , F,

F G, is indicated on the child seat next to the

ISOFIX logo.

Weight of the child / indicative age

Less than 10 kg

(group 0)

Up to 6 months

approx

Less than 10 kg (group 0)

Less than 13 kg (group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1-3 years approx

Type of ISOFIX child seat

Infant carrier *

"rear facing"

"forward facing"

ISOFIX size category

Universal ISOFIX child seats which
can be installed on the rear seats

IUF

IL-SU

* The ISOFIX infant car seat is fixed to the

lower rings of an ISOFIX seat and occupies
the two rear seats.

Practical information

)

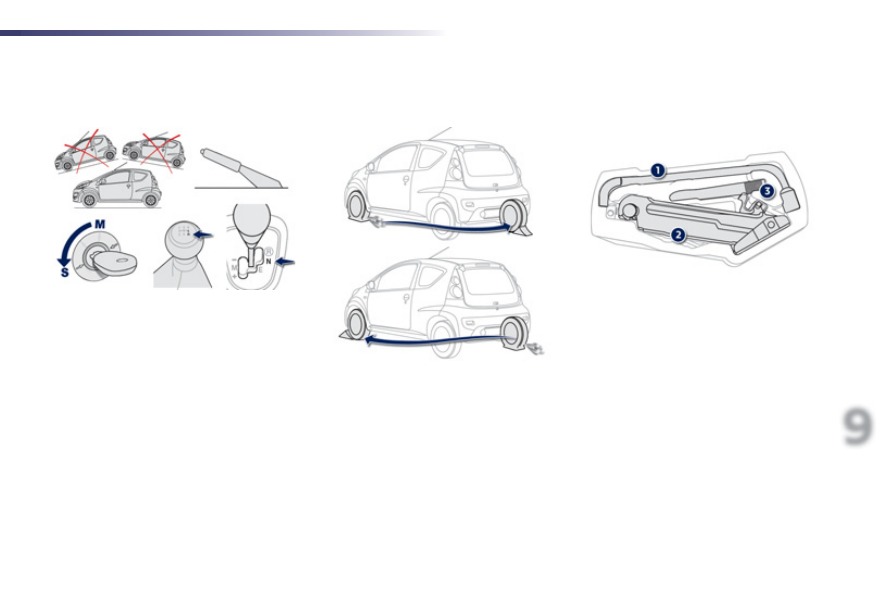

As far as possible, immobilise the vehicle
on level, stable, non-slippery ground.

)

Apply the parking brake, switch off the
ignition and engage first gear or reverse
for the manual gearbox, position N for the
2 Tronic gearbox.

The following tools are installed in a carrier,
located in the centre of the spare wheel:
1. Wheelbrace
2. Jack with handle
3. Removable towing eye

Access to the spare wheel and

the jack in the boot

)

Remove the carpet then the plastic cover

using the handle.

Tyre pressures

These are indicated on the label positioned
on the inner pillar of the left door, see
"Identification markings".

Changing a wheel

)

If necessary, chock the wheel diagonally

opposite the wheel to be changed.

)

You must ensure that the occupants leave

the vehicle and wait in a safe location.

Parking the vehicle

Tools

Practical information

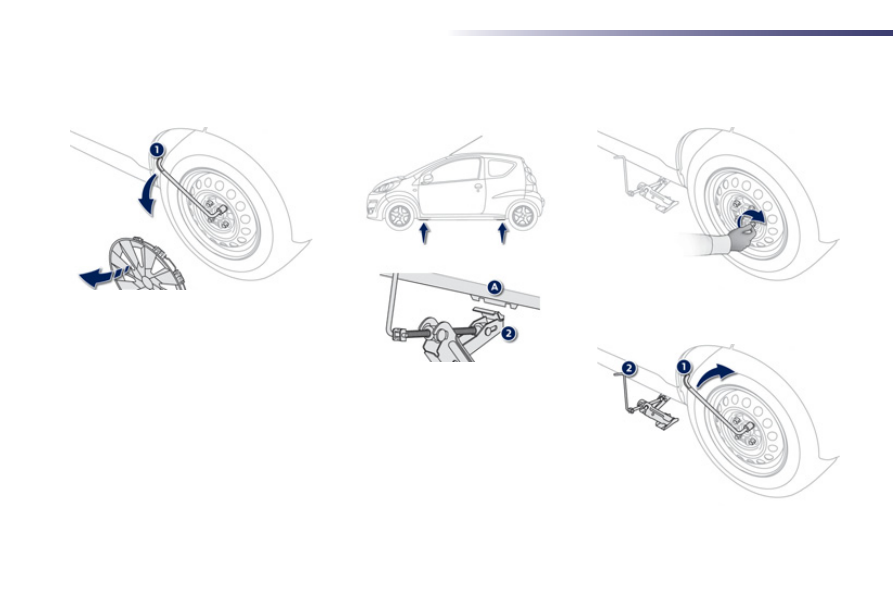

1. Position the wheel.
2. Screw in the bolts fully by hand.

1. Remove the trim.
2. Slacken the wheel bolts using the

wheelbrace 1.

3. Place the jack 2 in contact with one of

the four locations A provided on the
underbody, the one closest to the wheel to
be changed.

4. Extend the jack 2 until its base is in contact

with the ground. Ensure that the centreline
of the jack base is directly below the
location A used.

5. Lift the vehicle.
6. Remove the bolts and detach the wheel.

3. Pre-tighten the bolts * using the wheelbrace 1.
4. Fold

the

jack 2 and detach it.

* If your vehicle is fitted with alloy wheels, when tightening the bolts it is normal to notice that the

washers do not come into contact with the spare wheel. It is still fixed securely.

Removing the wheel

Refi tting the wheel

Practical information

Changing a bulb

)

Turn the bulb holder A one quarter of a turn

and remove it.

)

Remove the bulb and change it.

5. Tighten the wheel bolts using the wheelbrace 1.
6. Refit the trim.
7. Store the tools and the wheel in the boot.

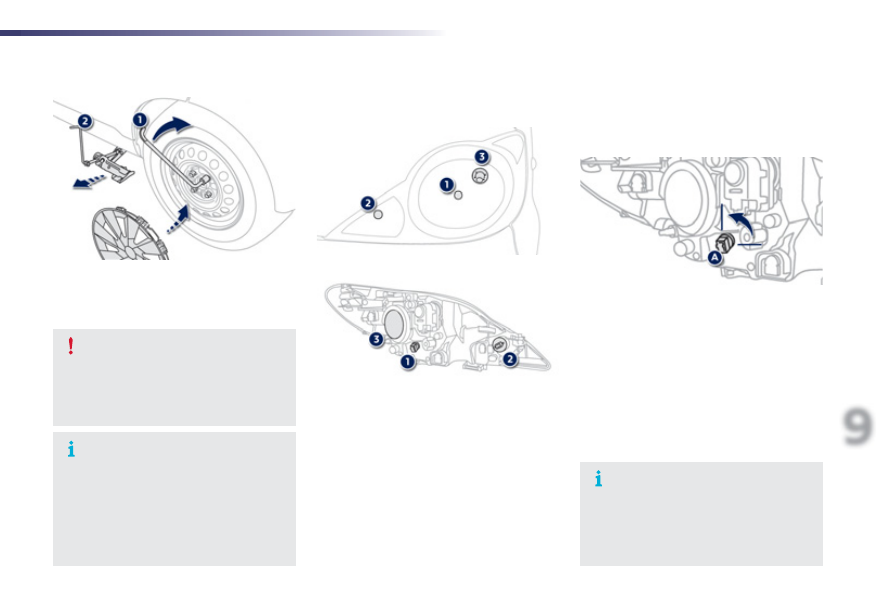

1. Sidelamps
2. Direction indicators
3. Dipped beam / Main beam headlamps

Never go underneath a vehicle supported
only by a jack (use an axle stand).
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

In certain climatic conditions (low
temperatures, humidity), the presence
of condensation on the internal
surface of the headlamps is normal ;
it disappears a few minutes after the
lighting is switched on.

Front lamps

1. Sidelamps (W5 W)

After changing a wheel:
-

have the tightness of the bolts and
the pressure of the spare wheel
checked as soon as possible,

have the punctured wheel repaired and
refit it on the vehicle as soon as possible.

Contact a PEUGEOT dealer or a
qualified workshop.

Practical information

)

Disconnect the connector.

)

Remove the rubber cap C.

)

Push the side of the tongue D.

)

Remove the bulb holder and change the

bulb.

)

Refit the bulb holder, the tongue then the

rubber cap.

If you encounter any difficulties, contact a
PEUGEOT dealer or a qualified workshop.

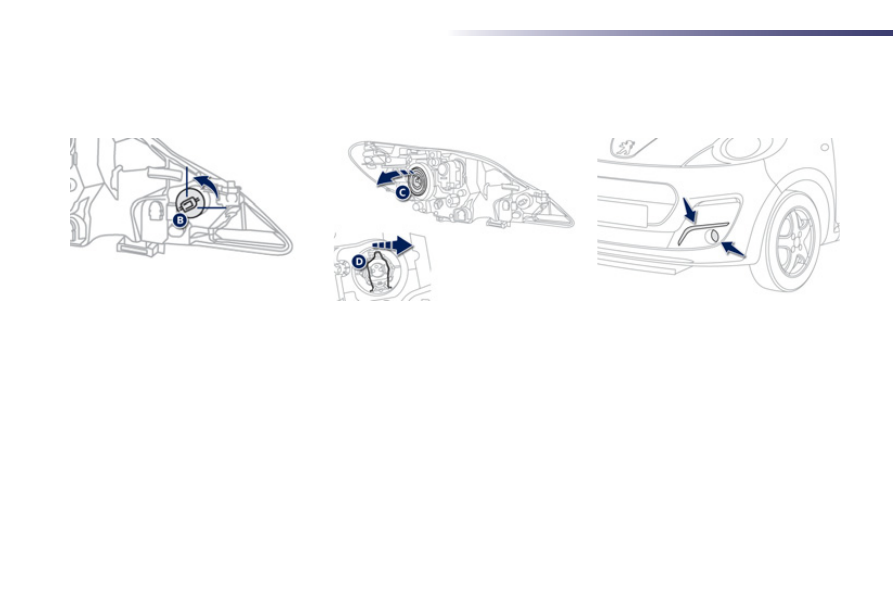

LED daytime running lamps

For the replacement of these lamps, contact a
PEUGEOT dealer or qualified workshop.

Front foglamps

For replacement of these bulbs, contact a
PEUGEOT dealer or a qualified workshop.

)

Turn the bulb holder B one quarter of a turn
and remove it.

)

Turn the bulb one quarter of a turn.

)

Remove the bulb and change it.

If you encounter any difficulties, contact a
PEUGEOT dealer or a qualified workshop.

2. Direction indicators

(PY 21 W amber)

3. Dipped / Main beam headlamps

(H4 - 60/55W)

Practical information

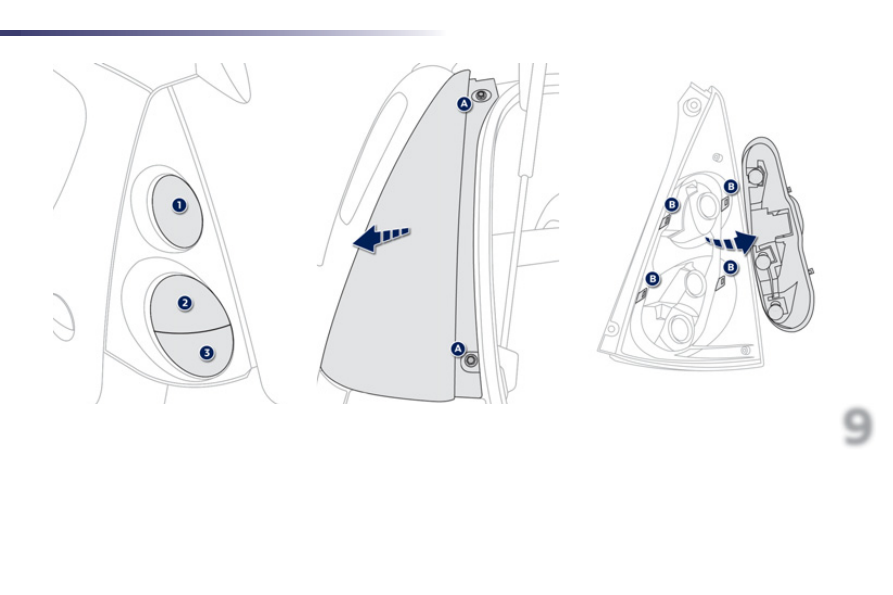

Rear lamps

1. Brake lamps / sidelamps (P 21/5 W)
2. Direction indicators (P 21 W)
3. Reversing lamp (P 21 W, near side

Foglamp (P 21 W), offside

These 3 bulbs are changed by removing the
lamp unit:
)

open the boot,

)

unscrew the two lamp fixing nuts A ,

)

remove the lamp unit by pulling outwards,

)

unclip the harness,

When refitting, proceed in the reverse order
and take care to position the bulb holder, the
tongues and the lamp unit correctly.

)

remove

the bulb holder by spreading the

four tongues B ,

)

remove the bulb and change it.

Practical information

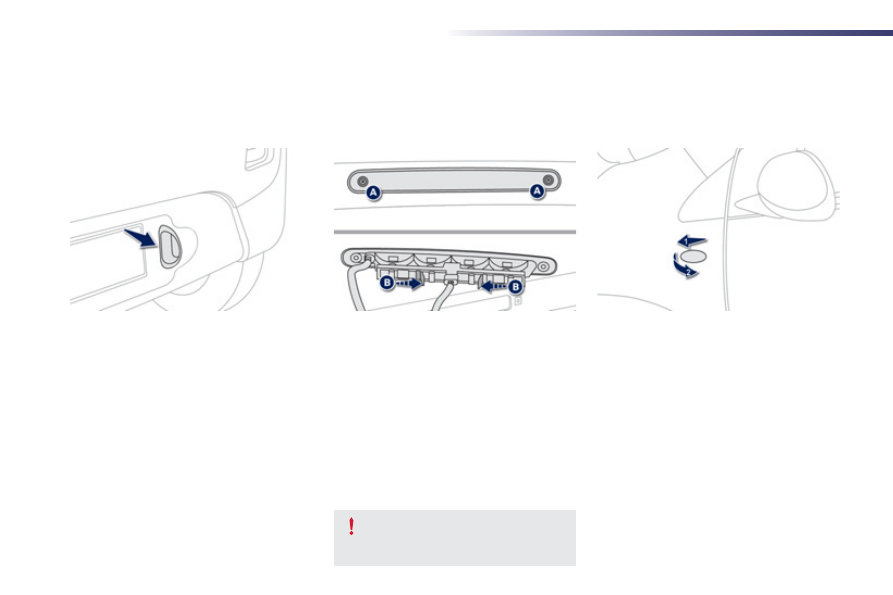

Direction indicator side

repeaters (WY 5 W amber)

Third brake lamp

(Four W 5 W bulbs)

Number plate lamps

(W 5 W)

Do not tighten the screws more than is
necessary, to avoid the risk of breaking
the lamp.

)

Pass your hand under the bumper.

)

Remove the bulb holder turning it one
quarter of a turn.

)

Remove the bulb and change it.

)

Unscrew the 2 fixing screws A.

)

Release the lamp unit by pushing the two

tabs B inwards.

)

Disconnect the connector and the rear

screen wash pipe.

)

Remove the bulb holder.

)

Remove the bulb and change it.

When refitting, proceed in the reverse order
and ensure that the lamp unit seal and the rear
screen wash pipe have been put back in place
correctly.

)

Push the repeater forwards or rearwards
and detach it by pulling towards you.

)

Disconnect the bulb holder and change it.

Practical information

Changing a fuse

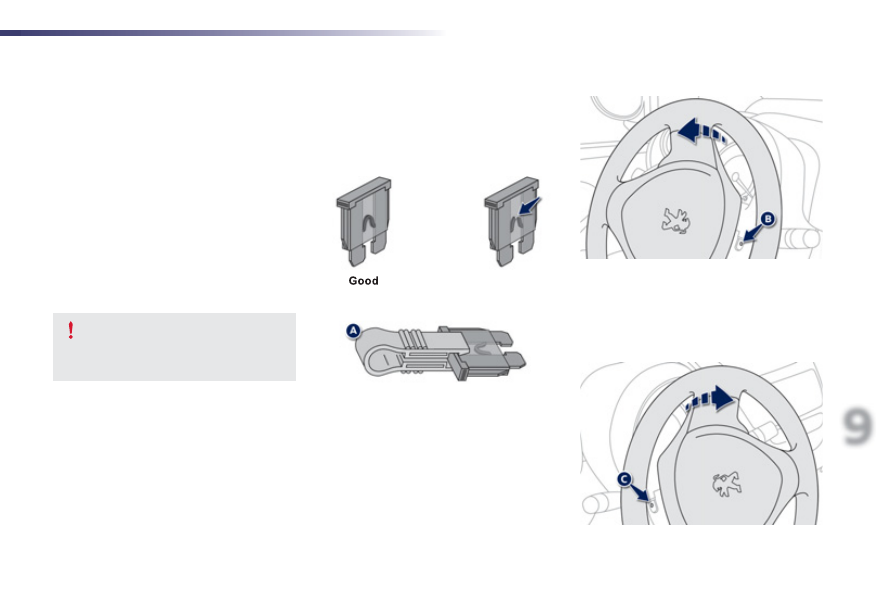

Removing and fitting a fuse

Failed

Tweezer A

These are located on each side of the
instrument panel under the trim.
)

necessary, unlock the steering using the

key.

)

Turn the steering wheel to the left, remove

bolt B.

)

Turn the steering wheel to the right, remove

bolt C.

Always replace a failed fuse with a fuse
of the same rating (same colour).

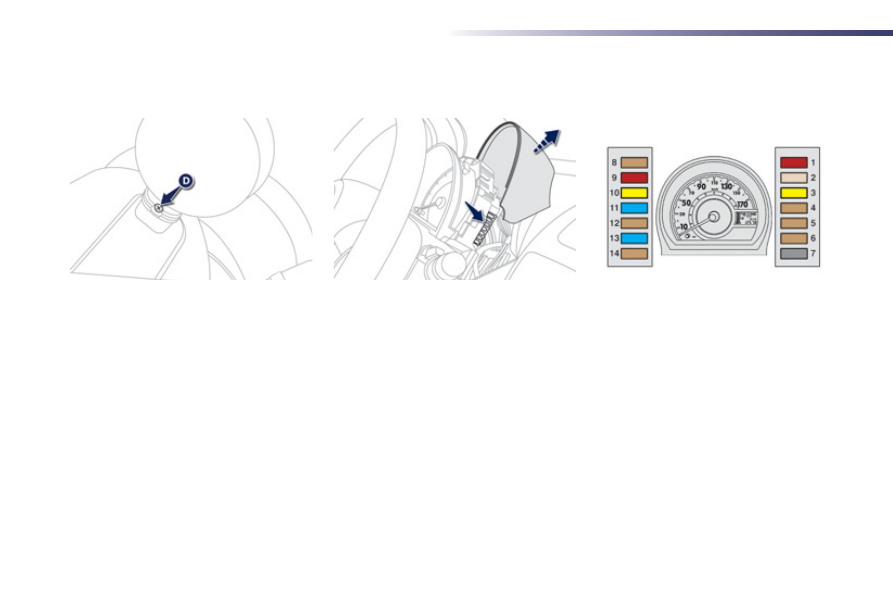

Instrument panel fuseboxes

The fuseboxes are located under the instrument panel trim and next to the battery in the engine
compartment.

Before changing a fuse, the cause of the
incident must be found and rectified.
)

Use the tweezer A located in the fusebox
under the bonnet.

Practical information

* Fuses located behind the instrument panel. To change them, contact a PEUGEOT dealer or a qualified workshop.

Fuse N°

Rating (A)

Functions

Brake lamps - ABS - 2 Tronic gearbox

Central locking/unlocking - Remote control

Rear screen demisting

7.5

Rear lamps - Number plate lamps - Instrument panel - Screen - headlamp adjustment - LED daytime running
lamps - Sidelamps

7.5

Diagnostic socket

7.5

2 Tronic gearbox - Rear foglamp - ESP - LED daytime running lamps - Instrument panel - Rev counter

Not used

7.5

ABS/ESP - Power steering - Fan assembly

Reversing lamps - Central locking/unlocking - Electric windows - Rear screen demisting - Speedometer - Air
conditioning - Heating - Rev counter - Remote control

Front and rear wipers and screenwash

Audio equipment - 12 V socket (120 W max)

7.5

Heated rear screen - ABS - Fan assembly - Front and rear wipers and screenwash - Power steering - Central locking/
unlocking - Air conditioning - Heating - Electric windows - Speedometer - Rev counter - Remote control - Reversing lamp

Airbag - Fuel injection system - 2 Tronic gearbox - Instrument panel - Rev counter - LED daytime running lamps

7.5

Air conditioning - Heating

15 *

Audio system - 12 V socket - Front and rear wipers - Power steering - ABS/ESP - Cooling fan assembly

16 *

Electric windows

17 *

Air conditioning - Heating

Practical information

)

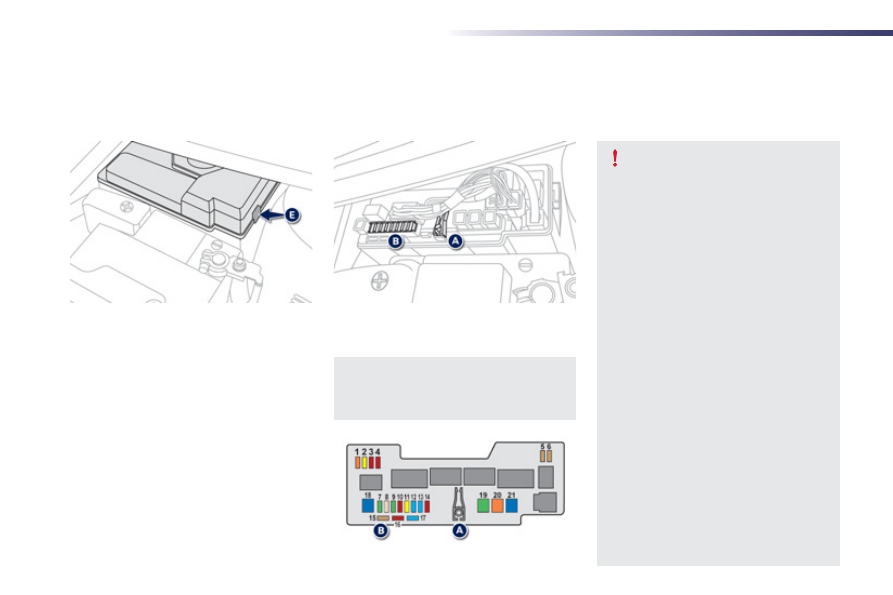

Unclip the cover, pressing on the right on
lug E, to gain access to the fuses.

The tweezer A and the replacement fuses B
are fixed at the front of the box.

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.

Some electrical accessories or the way
in which they are fitted may have an
adverse effect on the operation of your
vehicle (audio circuits, control circuit
and electrical charging circuit).

PEUGEOT will not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of auxiliary accessories
which were not supplied or
recommended by PEUGEOT and which
were not installed in accordance with
its instructions, in particular in the case
of any equipment the consumption of
which exceeds 10 milliamps.

Engine compartment

fusebox

When you have finished, close the
cover very carefully.

Practical information

Fuse

N°

Rating

(A)

Functions

LED daytime running lamps

Front foglamps

Left hand front lamp

Right hand front lamp

7.5

2 Tronic gearbox - Fuel injection system

7.5

2 Tronic gearbox - Fuel injection system

LED daytime running lamps - Front foglamps

ABS

ABS/ESP (with VSC)

Starter motor - Heated rear screen - ABS -
Cooling fan assembly - Front and rear wipers
and screenwash - Power steering - Central
locking/unlocking - Air conditioning -
Heating - Electric windows - Speedometer -
Rev counter - Remote control - Reversing
lamp - Airbag - Fuel injection system -
2 Tronic gearbox - Instrument panel - LED
daytime running lamps

Fuse

N°

Rating

(A)

Functions

Hazard warning lamps - Instrument panel -
Rev counter - Direction indicators

Left hand front lamp - Right hand front lamp

Courtesy lamp - Speedometer - Audio
system- Instrument panel - Rev counter

Fuel injection system - Cooling fan assembly

Horn

7.5

Replacement fuse

2 Tronic gearbox

30 /40

Cooling fan assembly

ABS

ABS/ESP (with VSC)

Power steering

Practical information

Connect the red cable to the positive

terminal (+) of the flat battery A, then to the
positive terminal (+) of the slave battery B.

)

Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B.

Starting using another battery

)

Connect the other end of the green or black
cable to the earth point C on your vehicle
(engine mounting).

)

Operate the starter, let the engine run.

)

Wait until the engine returns to idle and
disconnect the cables.

Battery

Procedure for charging your battery when it
is flat or for starting the engine using another
battery.

The battery is located under the bonnet.
To gain access to it:
)

open the bonnet using the interior release
lever, then the exterior safety catch,

)

secure the bonnet stay,

)

remove the plastic cover on the (+)
terminal.

Access to the battery

Practical information

Charging the battery using

a battery charger

)

Disconnect the battery from the vehicle.

)

Follow the instructions for use provided by
the manufacturer of the charger.

)

Connect the battery starting with the
negative terminal (-).

)

Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

The batteries contain harmful
substances such as sulphuric acid
and lead. They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Do not push the vehicle to start the
engine if you have a 2 Tronic gearbox.

It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.

Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.

Practical information

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the

battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:
-

the remote control key,

the audio system.

Peugeot 107 (2012 year). Instruction - part 5
