Access

Quality of the fuel used

for petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing
10 % or 24 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol
(E100 type).

Access

Comfort

Ventilation

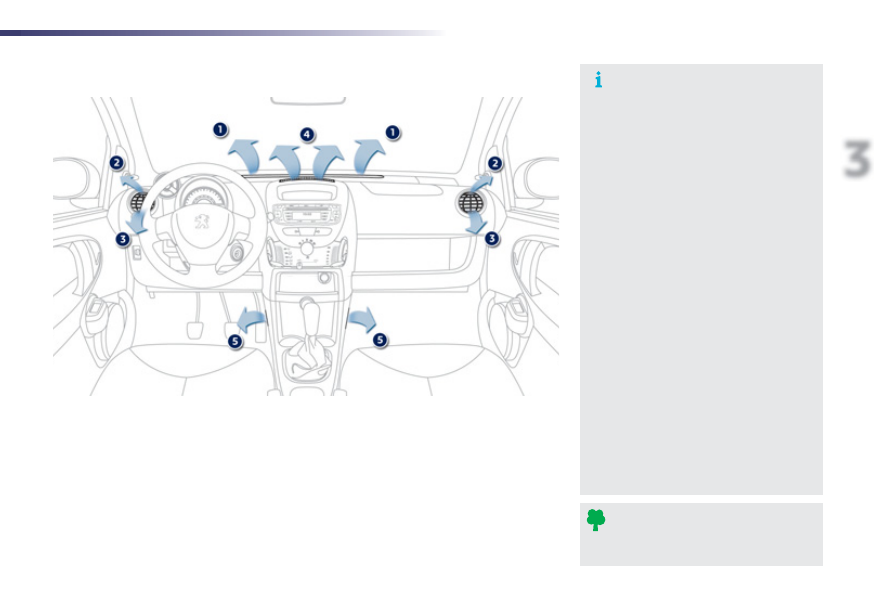

3. Side vents.
4. Diffusion

grille.

5. Air

outlets to the footwells.

1. Windscreen

demisting/defrosting vent.

2. Side window demisting/defrosting vents.

The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

Recommendations for use

If the interior temperature remains very high
after a prolonged period parked in the sun, first
ventilate the passenger compartment for a few
minutes.
For an even air distribution, make sure that
you do not block the outside air inlet grille, the
vents, the air passages and the air outlets to
the footwells.
Ensure that the passenger compartment filter,
located below the windscreen, in the engine
compartment, is in good condition. Have the
filter elements replaced regularly. If you drive in
dusty conditions, change them twice as often.
Operate the air conditioning system for 5 to
10 minutes, once or twice a month, to keep it in
perfect working order.
In order to ensure that your air conditioning
system continues to operate correctly, you are
advised to have it checked regularly.
The condensation created by the air
conditioning results in a flow of water under
the vehicle when stationary which is perfectly
normal.
If the system does not produce cold air, do not
use it and contact a PEUGEOT dealer or a
qualified workshop.

Comfort

Heating

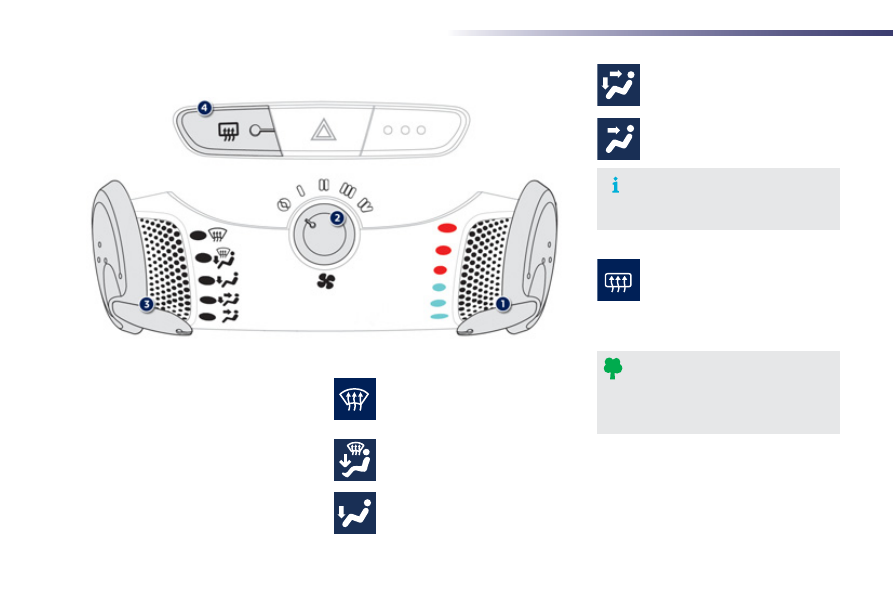

1. Temperature adjustment

Turn the control from blue (cold) to red
(hot) to adjust the temperature to suit your
requirements.

2. Air fl ow adjustment

When the ignition is switched on, turn the
control to obtain a flow of air which is sufficient
to ensure your comfort.
To maintain a certain level of comfort in the
passenger compartment, avoid position 0
whenever possible.
In position 0, a slight flow of air, due to the
movement of the vehicle, can still be felt.

Windscreen and side windows.

4. Rear screen demisting

With the engine running, press
button 4 , the indicator lamp comes on.
The system demists the rear screen.
It is switched off by pressing control 4.

3. Air distribution adjustment

Footwells, diffusion grille and side
vents.

Diffusion grille and side vents.

Demisting and defrosting

To quickly demist or defrost the windscreen and
side windows:
-

set the air distribution to "Windscreen and
side windows",

place the temperature control 1 and the air
flow control 2 at maximum,

close the side vents.

The air distribution can be adjusted by
placing the control in an intermediate
position.

Switch the system off as soon as you
consider this necessary as a lower
consumption of current reduces fuel
consumption.

Windscreen, side windows and
footwells.

Footwells.

Comfort

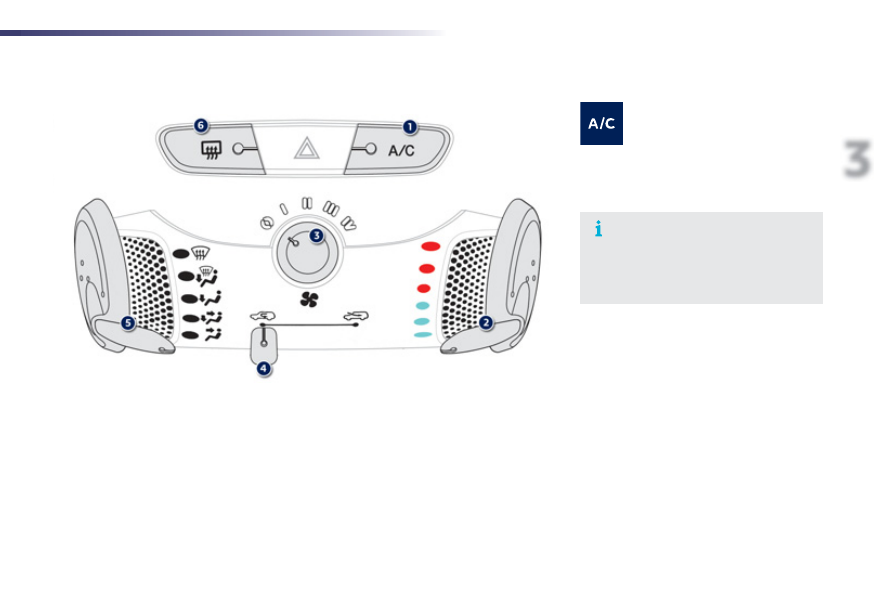

1. Air conditioning On/Off

With the engine running, press the
button, the indicator lamp comes on.

1. Air

conditioning On/Off

2. Temperature adjustment
3. Air flow adjustment

Air conditioning

2. Temperature adjustment

Turn the control from blue (cold) to red
(hot) to adjust the temperature to suit your
requirements.

4. Air

recirculation

/ Air intake

5. Air distribution adjustment
6. Rear screen demisting

3. Air fl ow adjustment

When the ignition is switched on, turn the
control to obtain a flow of air which is sufficient
to ensure your comfort.
To maintain a certain level of comfort in the
passenger compartment, avoid position  0
whenever possible.
In position  0 , a slight flow of air, due to the
movement of the vehicle, can still be felt.

The air conditioning will not operate if the air
flow adjustment control 3 is in position 0.

To quickly obtain cooled air, you can
use air recirculation for a few moments.
Then return to exterior air intake.

Comfort

Footwells.

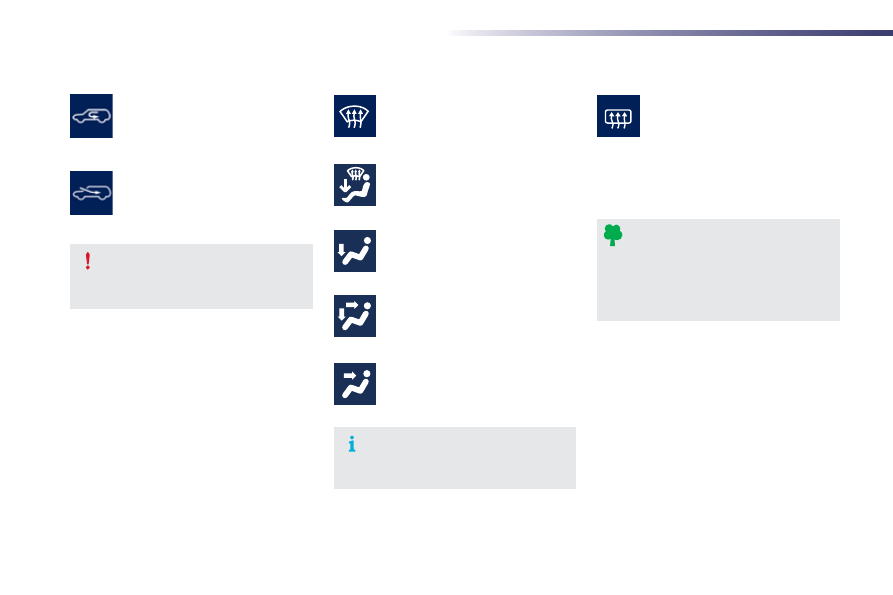

4. Air recirculation / Air intake

The recirculation of interior air
(control 4 to the left) enables you to
isolate the passenger compartment
from exterior odours and smoke.

5. Air distribution adjustment

Windscreen and side windows.

Windscreen, side windows and
footwells.

Footwells, diffusion grille and side
vents.

Diffusion grille and side vents.

6. Rear screen demisting

As soon as possible, move control 4 to the right
to the "Intake of exterior air" position to avoid
the risks of deterioration of the air quality and
misting of the windscreen and side windows.

The intake of exterior air (control 4 to
the right) enables you to prevent and
eliminate misting of the windscreen
and side windows.

With the engine running, press
button 6, the indicator lamp comes
on.
The system demists the rear screen.
It is switched off by pressing button
6 again.

Demisting and defrosting

To quickly demist or defrost the windscreen and
side windows:
-

set the air distribution to "Windscreen and
side windows",

place the temperature control 2 and the air
flow control 3 at maximum,

- close

the

side

vents,

place the air intake control 4 in the "Air
intake" position,

- switch on the air conditioning by pressing

button 1.

Switch the system off as soon as you
consider this necessary as a lower
consumption of current reduces fuel
consumption.

The air distribution can be adjusted by
placing the control in an intermediate
position.

In a humid climate, use of the air
recirculation may cause misting of the
windows.

Comfort

Mirrors

Steering wheel

adjustment

(with power steering)

Folding/Unfolding

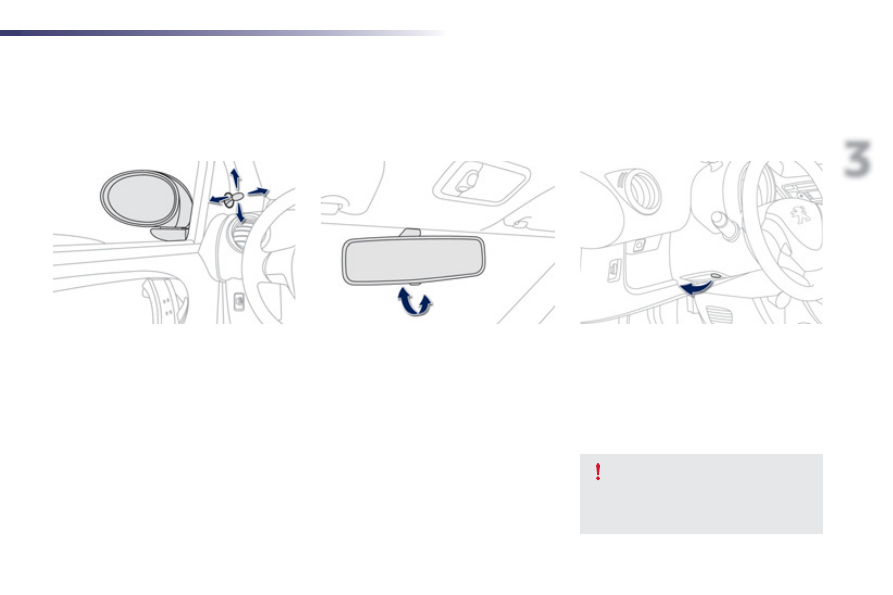

When the vehicle is parked, the door mirrors
can be folded back and unfolded manually.

The rear view mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push or pull
the lever on the lower edge of the mirror.

Move the lever in all four directions to adjust
the mirror.

When stationary, lower the lever to release

the steering wheel adjustment mechanism.
Adjust to the desired height and lift the lever to
lock the steering wheel adjustment mechanism.

For safety reasons, these operations
must not be carried out while driving.

Door mirrors

Manual rear view mirror

Comfort

Front seats

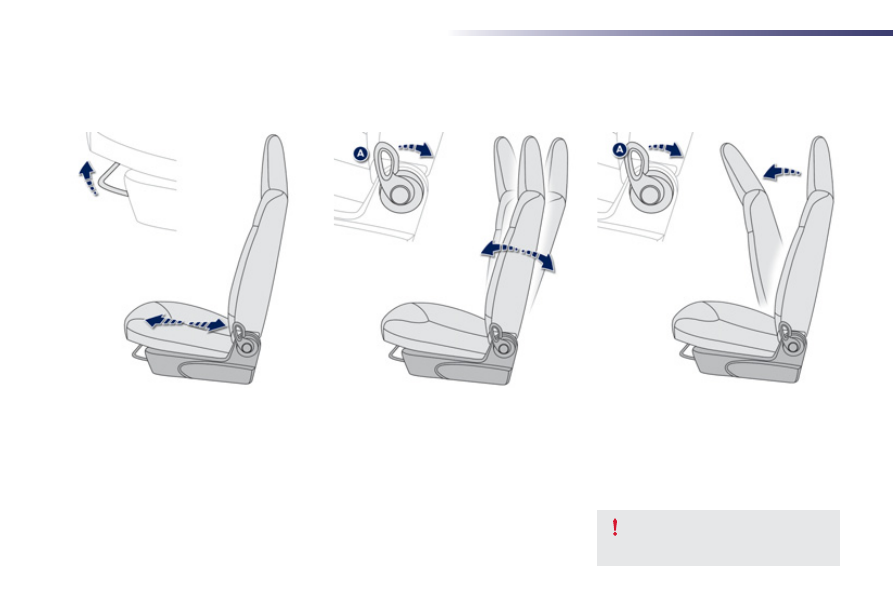

Push control A rearwards while adjusting the
angle of the seat back.

Raise the control and slide the seat forwards or
backwards.

Position the seat belt along the door pillar.
Push control A rearwards to fold the seat back
and move the seat forwards.
To put the seat back in place, push the seat
back until the seat locks.
Reset the forwards-backwards adjustment of
the seat and the seat back angle.

No person or object must prevent the
seat from returning to the required
position.

1. Forwards-backwards

adjustment

2. Seat back angle adjustment

3. Access to the rear seats

(3-door)

Comfort

Rear seats

it on mounting B .
Take care not to trap the seat belts, in
particular between the seat back and the
mounting B.
Check that the backrest has engaged correctly.

  The rear head restraints can be removed and
have two positions:
   -  high, position for use.
  -

low, storage position.

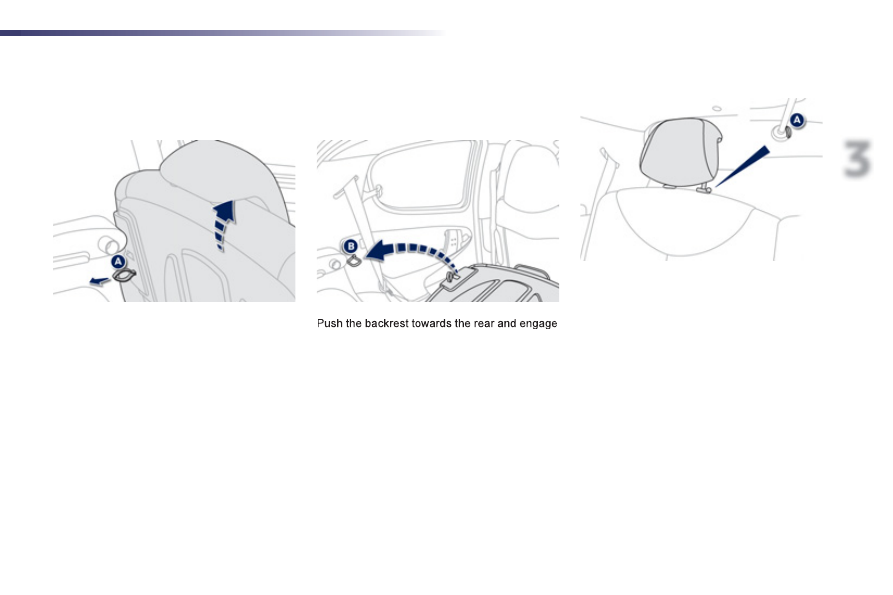

The seat backrest is folded from the rear of the
vehicle, with the boot open:
-

check that the seat belt is positioned
correctly on the side of the seat back to
avoid damaging it,

place the head restraints in the low position
(see "rear head restraints"),

- while

folding the seat backrest, pull the

strap(s) A , located behind the seat back.

Rear head restraints *

  To raise the head restraint, pull it upwards.
To lower it, press lug  A then the head restraint.
To remove it:
   -

tilt the seat back slightly,

move the head restraint to the high
position,

- press

lug A pulling the head restraint

upwards at the same time.

To refit it:
-

tilt the seat back slightly,

engage the rods of the head restraint in the
openings.

* Depending on version.

To reach the low position, press lug A.

Folding the backrest of the

bench seat

Returning the backrest of the

bench seat to its initial position

Fittings

Interior fi ttings

3-door

5-door

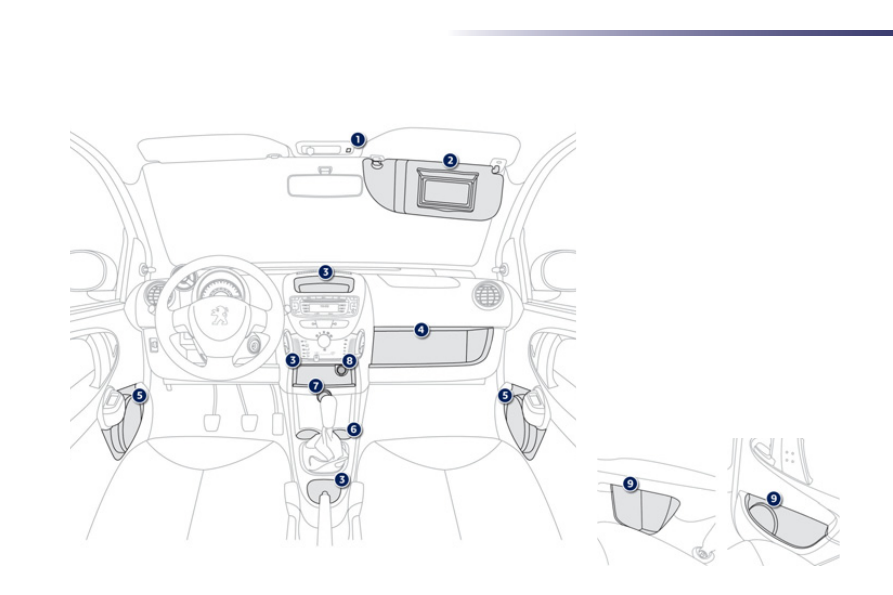

1. Microphone for Bluetooth telephone
2. Sun

visor

Each sun visor has a courtesy mirror
with a concealing flap and a card
holder.

3.   Storage compartments
4.   Storage box
5.   Front door pockets and speakers

Before opening the door, check that there
are no objects protruding from the door
pockets.

6. Cup holder
7. 12 volt accessories socket

(120 W max)

This is supplied from the accessories
position (1

position of the ignition switch).

8. Auxiliary socket (JACK and USB) for

portable equipment

9. Storage compartments in the rear doors

Fittings

In order to obtain additional space,
the spare wheel can be removed
temporarily (boot tray available as an
accessory).

Boot fi ttings

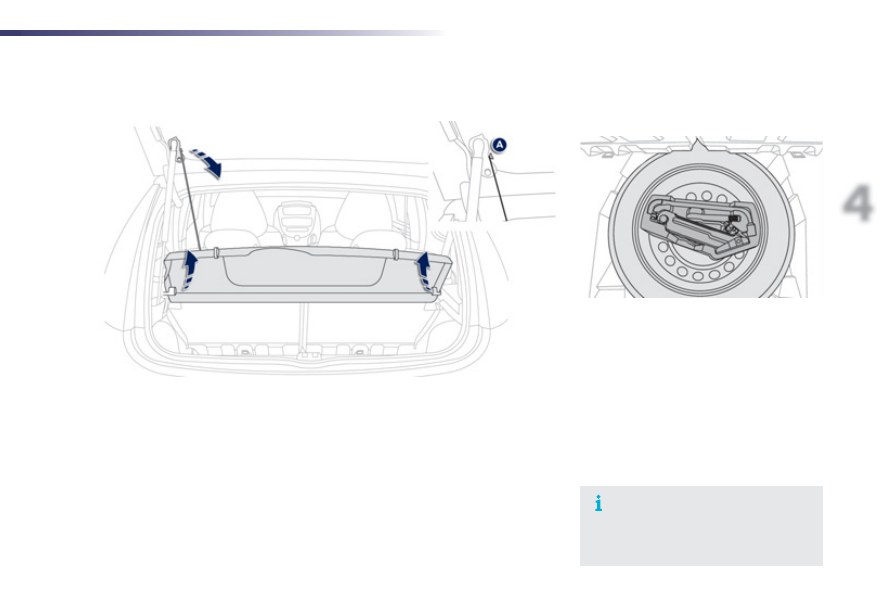

1. Rear parcel shelf

To remove the shelf:
-

unhook the shelf from its fixing A,

pull upwards on each side to detach it from
its fixings,

raise then tilt the shelf slightly to remove it.

There are two shelf storage options:
-

either behind the rear seats,

or flat in the boot.

Located under the carpet and a plastic cover,
this contains the tools for wheel changing and
towing.

2. Spare wheel / Additional

storage compartments

Driving

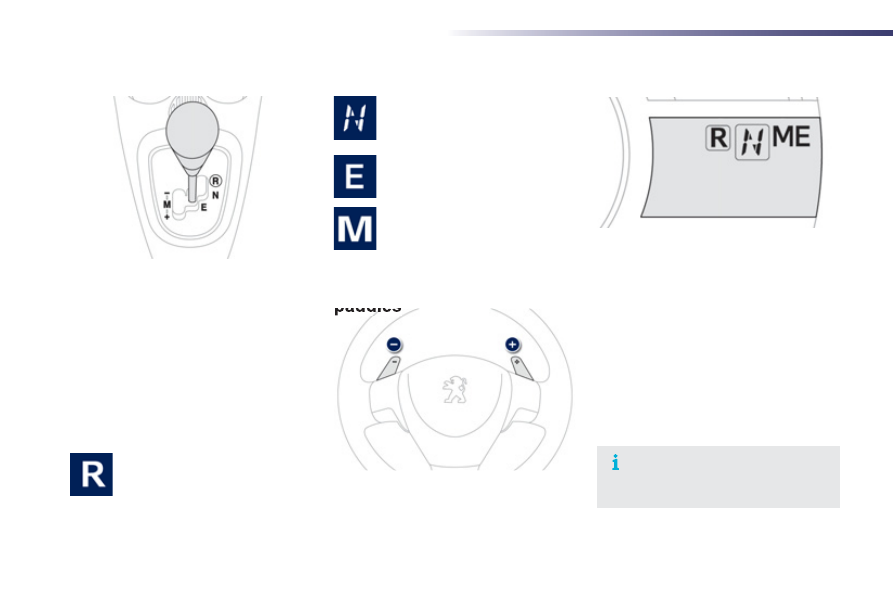

The position of the gear lever ( R , N , E or M )
and the gear engaged (1 to 5 ) are displayed in
the instrument panel screen.

2 Tronic gearbox

Reverse "R". This gear will be
engaged when stationary or at a
speed below approximately 4 mph
(6 km/h).

Engagement of reverse gear is accompanied
by an audible signal.

Moving off

With the parking brake applied, press the brake
pedal then select position N to start the engine.
With your foot on the brake, select position R ,
E or M.
Release the parking brake, take your foot off
the brake pedal, then accelerate.

The five-speed 2 Tronic gearbox gearbox offers
a choice between the ease of automated
operation or the driving pleasure of manual
gear changing.

You can change from position E to position M
and vice versa at any time.

Gear lever positions

Select the driving mode by moving the gear
lever.

N eutral "N".
Position the lever to the right in
position N, to start the engine.

E asy "E": automatic gear changing.

M anual (+ / -) "M": manual gear
changing.

Steering mounted control

paddles

Press behind the + steering mounted control
paddle to change up.
Press behind the - steering mounted control
paddle to change down.

With the engine running, in these three
positions, an audible signal is heard
when the driver's door is opened.

Display in the instrument panel

Driving

EASY mode (automatic

mode)

Select position E using the gear lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects the most
suitable gear.

Manual mode

Place the gear lever in position M, then change
up or down using:
-

the gear lever, pushing:
- rearwards, "+" to change up,
- forwards, "-" to change down.

or the steering mounted controls paddles.

The gear engaged is displayed on the
instrument panel screen.
If the engine speed is too low, the gearbox
automatically changes down to prevent stalling.
In the event of overheating of the clutch,
position N  is selected automatically and the
symbol N  flashes accompanied by an audible
signal.

Operating fault

Stopping the engine

Before switching off the engine, you can
change to position N to be in neutral.
In all cases, it is essential that you apply the
parking brake to immobilise the vehicle.

With the ignition on, illumination
of this warning lamp indicates a
gearbox fault.

Contact a PEUGEOT dealer or a qualified
workshop.

Stopping - Moving off on a

slope

The gearbox is an electronically controlled
manual gearbox without a clutch pedal.
To hold the vehicle on a slope, it is necessary
to use the brake pedal or the parking brake and
not the accelerator pedal.
When moving off on a slope, accelerate
progressively while releasing the parking brake.

Always press the brake pedal while
starting the engine.

Never select neutral N while the vehicle
is moving.
In all cases, it is essential to apply the
parking brake to immobilise the vehicle.

On a slope, use the brake to immobilise
the vehicle and place the gear lever in
position N , E or R.
Do not keep the vehicle immobilised
using the accelerator.

If you press the accelerator pedal
beyond the point of resistance, the
2 Tronic gearbox gearbox changes
down for sharper acceleration.

Temporarily taking control of

gear changes

You can temporarily take control of gear
changes using the "+" and "-" steering
mounted controls; if the engine speed allows,
the gear change command is acted on.
This function allows you to anticipate certain
situations such as overtaking a vehicle or
approaching a corner.
After a few moments with no action on the
controls, the gearbox returns to automatic
control of the gears.

OFF

Visibility

Lighting control stalk

Lamps off

2. Sidelamps

3. Dipped beam / Main beam

headlamps

Dipped beam / Main beam

headlamps

Dipped beam headlamps: pull the stalk.
Main beam headlamps: push the stalk.

Lighting on audible warning

When the driver's door is opened with the
ignition off, a continuous audible signal is heard
if you have left your lighting on.

Headlamp flash

Pull the stalk fully towards you.

Selection is by rotation of ring A.

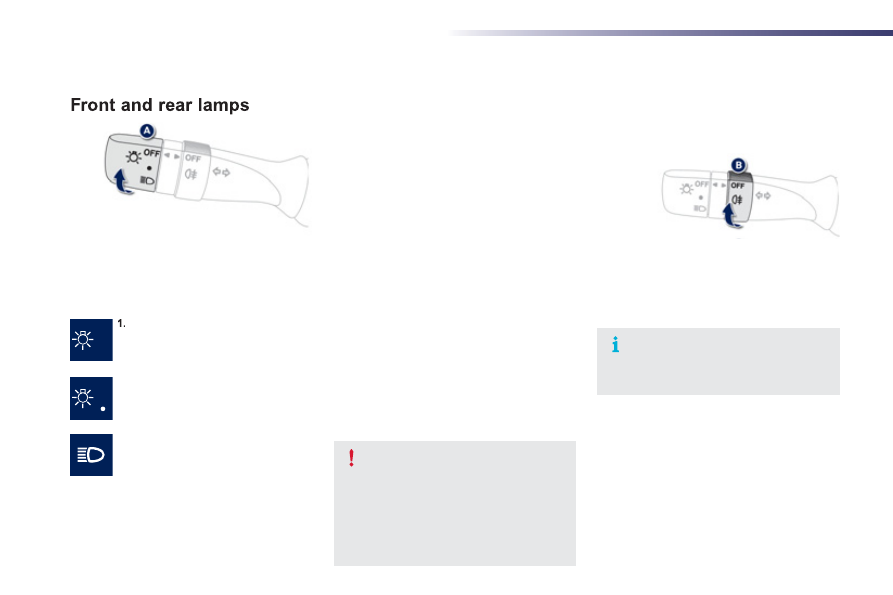

Front foglamps and rear

foglamp

)

Turn the ring B forwards to turn it on.

)

Turn the ring B rearwards to switch it off.

Vehicles fi tted with a rear

foglamp only (ring B)

In clear weather or in rain, both day and
night, the front foglamps and the rear
foglamp are dazzling and their use is
prohibited.
Do not forget to switch them off when
they are no longer needed.

The rear foglamp only operates if the
dipped beam / main beam headlamps
are on.

Visibility

LED daytime running lamps *

On starting the vehicle, the LED daytime running lamps come on automatically, if the lighting stalk is in the
OFF position.
If the sidelamps and headlamps are switched on manually or automatically, the LED lamps switch off.

Deactivation/activation

Vehicles fi tted with front

foglamps and a rear foglamp

(ring C)

Turn the ring C :
)

forwards a 1

time to switch on the front

foglamps,

)

forwards a 2

time to switch on the rear

foglamp,

)

rearwards a 1

time to switch off the rear

foglamp,

)

rearwards a 2

time to switch of the front

foglamps.

Direction indicators

Left: stalk downwards.
Right: stalk upwards.

The front foglamps only operate if the
sidelamps or dipped beam / main beam
headlamps are on.
The rear foglamp only operates if the
front foglamps are on.

In countries where exterior lighting by day is not
a legal requirement, it is possible to deactivate
the function in the following way.
- Engine stopped, lighting off and parking

brake applied, switch on the ignition (key in
the Running position (2

notch)).

Within a period of 5 seconds, turn the
lighting control stalk ring  A from the  OFF
position to the Sidelamps  position then
return to the OFF  position three times.

An audible signal confirms the deactivation of
the daytime running lamps.

* LED: light-emitting diodes.

In countries where daytime running
lamps are required by law, this "Daytime
running lamps" function is always
activated by default and must not de
deactivated.

To reactivate the daytime running
lamps, repeat this procedure.
An audible signal confirms the
reactivation of the daytime running
lamps.

Visibility

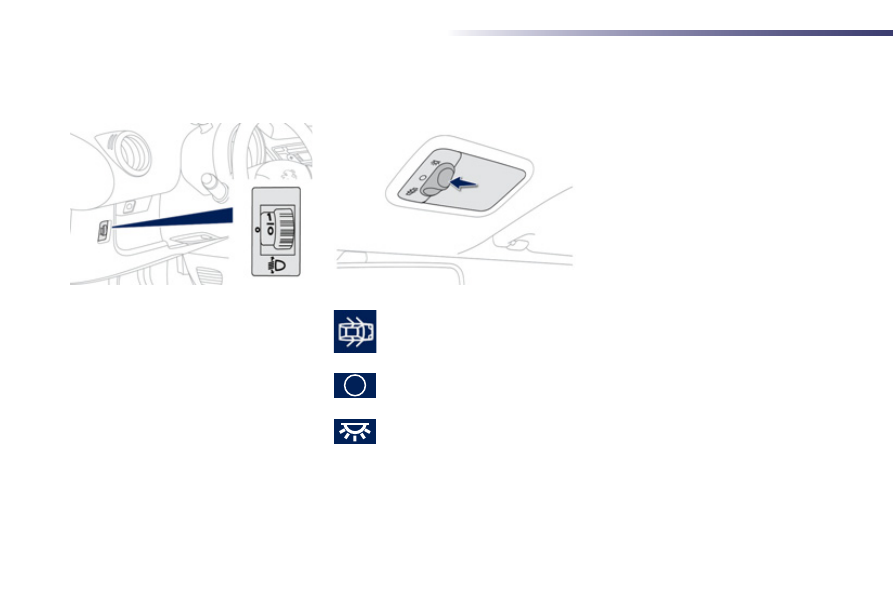

Headlamp

adjustment

In this position, it comes on on
opening the driver's door.

The courtesy lamp is deactivated and
is permanently off.

Courtesy lamp

Permanently on.

To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0.

1 or 2 people in the front seats.

-. 3

people.

4 people.

4 people + maximum authorised load.

Driver + maximum authorised load.

The initial setting is position "0" .

Content .. 1 2 3 4 ..
