WELCOME

Key

Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.

Information:

this symbol draws your attention
to additional information for better
use of your vehicle.

Protection of

the environment:

this symbol accompanies
advice relating to protection of
the environment.

Page reference:

this symbol invites you to refer to
the pages which provide details of
the function.

Thank you for choosing a 107.

All of the details specifi c to your 107,
comfort, safety, driving, are then
presented in this handbook, to enhance
your appreciation of your vehicle and
help you make the best use of it.

This handbook has been designed to
enable you to make the most of your 107
in all circumstances.

On the fi rst few pages you will fi nd a
detailed summary followed by a quick
reference guide intended to help you
become familiar with your vehicle.

Your vehicle may be fi tted with only
some of the equipment shown in this
document, depending on version, trim
level and the specifi cations for the
country of sale.

Contents

Horn

Hazard warning lamps

Parking brake

Emergency braking assistance

ABS, EBFD, CSC systems 49
ASR and ESP systems

Seat belts

Airbags 54

Safety

Rev counter

Instrument panel

Warning lamps

Distance recorder

Indicators

Setting the time

Instruments and controls

Familiarisation

Keys / Remote control

Doors

Electric windows

Rear windows

Boot

Fuel tank

Access

Ventilation

Heating

Air conditioning

Mirrors

Steering wheel adjustment

Front seats

Rear seats

Comfort

Eco-driving

Interior fi ttings 40
Boot fi ttings 41

Fittings

2 Tronic gearbox 42

Driving

Lighting control stalk

LED daytime running lamps

Headlamp adjustment 46
Courtesy lamp

Windscreen wiper stalk

Visibility

Contents

Child seats

ISOFIX mountings 62

Child safety

Changing a wheel

Changing a bulb

Changing a fuse

Battery

Mat

Fitting audio equipment/speakers

Towing the vehicle

Fitting roof bars

Accessories

Practical information

Audio system / Bluetooth

Audio system 116

Audio equipment

Alphabetical index

Visual search

Opening the bonnet

Engine

Checking levels

Checks

Engine

Weights

Dimensions

Identifi cation markings

Technical data

Familiarisation

Opening

C. Press/Pull the button on the driver's

door to lock/unlock the doors and boot

simultaneously.

1. Stop

position.

2. Accessories position (1

notch).

3. Running position (2

notch).

4. Starting position.

A. Locking the vehicle.
B. Unlocking the vehicle.

Remote control key

Central locking / unlocking

of the vehicle (from inside)

Starting

Familiarisation

When this bar flashes,
accompanied by an audible signal,
you have around 5 litres of fuel
remaining.

1. Interior release lever.
2. Exterior safety catch.
3. Bonnet stay.

Low fuel level

Unscrew the cap using the key.
After filling the fuel tank, screw the cap back on
fully to the right until it clicks and close the flap.
Fuel tank capacity: approximately 35 litres.

After opening the flap, insert the key in the filler
cap, then turn it slightly to the left then return to
the right.
The key returns to its initial position and the cap
is unlocked.

Opening

Fuel tank

Bonnet

Familiarisation

Manual air conditioning

This air conditioning system optimises the
distribution of the air and its temperature
inside the passenger compartment.

2 Tronic gearbox

This five-speed electronic gearbox offers a
choice between the comfort of automated
operation or the pleasure of manual gear
changing.

Auxiliary socket for portable

equipment

Compatible with many MP3 players, this
socket allows you to listen to your favourite
tracks while travelling. Refer to the
conditions of use in the "Audio" section.

Interior

102

Familiarisation

1. Bonnet release
2. Headlamp adjustment
3. Passenger's airbag deactivation
4. Adjustable side air vent
5. Lighting and direction indicator stalk
6. Driver's

front airbag

Horn

Dashboard fusebox (under the instrument
panel trim, on the right and on the left)

8. Rev counter
9. Passenger's door mirror control
10. Steering mounted controls for the 2 Tronic

gearbox

11.   Passenger's electric window control
12.   Gear lever
13. Cup holder
14.   Steering wheel height adjustment

Instruments and controls

Familiarisation

1.  Driver's door mirror control
2. Instrument panel
3. Wiper stalk
4.  Steering lock and ignition
5.   Hazard warning lamps
6. Storage compartments
7.  Diffusion grille
8. Windscreen demisting and defrosting vent
9.  Passenger's front airbag
10. Adjustable side air vent
11.  Storage box
12.  Audio system
13. Ventilation, heating or air conditioning

controls

14. Auxiliary socket for portable equipment
15. Storage compartments
16. 12 V socket (120 W max)
17. Parking brake
18. Driver's electric window control

Instruments and controls

Familiarisation

1. Forwards-backwards

adjustment.

2. Seat

back

angle adjustment.

3. Access to rear seats (3-door).

Sitting comfortably

Front seats

Familiarisation

A. Opening and closing control.

Push or pull control A .

B. Door mirrors adjustment control.
When the vehicle is parked, the mirrors can be
folded and unfolded manually.

C. Steering wheel height adjustment release

and locking control.

1. Control

released.

2. Control locked.

Sitting comfortably

Front electric windows

Mirrors

Steering wheel adjustment

(with power steering)

OFF

Familiarisation

Lighting stalk

Front and rear lamps

Ring A

Lighting off.

Sidelamps.

Dipped / Main beam headlamps.

Rear foglamp

Ring B

Front foglamps and rear foglamp

Ring C

Wiper control stalk

Windscreen wipers

MIST   Single wipe.
OFF   Off.
INT

Intermittent wipe.

Normal wipe (moderate rain).

Rapid wipe (heavy rain).

Rear wiper and rear screenwash

Ring C

Seeing clearly

Familiarisation

Temperature

adjustment

Air flow adjustment

Air distribution

adjustment

Rear screen

demisting

Air conditioning

Temperature

adjustment

Air recirculation / Air

intake

Air distribution

adjustment

Air conditioning On / Off

Air flow adjustment

Rear screen

demisting

Heating

Ventilation

▬

Familiarisation

I require...

Heating or Manual air conditioning

Air distribution

Air flow

Air recirculation/Intake of

exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DEFROSTING

Ventilation

Recommended interior settings

Familiarisation

When the ignition is on, the orange and red
warning lamps come on.
When the engine is running, these warning
lamps should go off.
If warning lamps remain on, refer to the
information on the warning lamp in question.

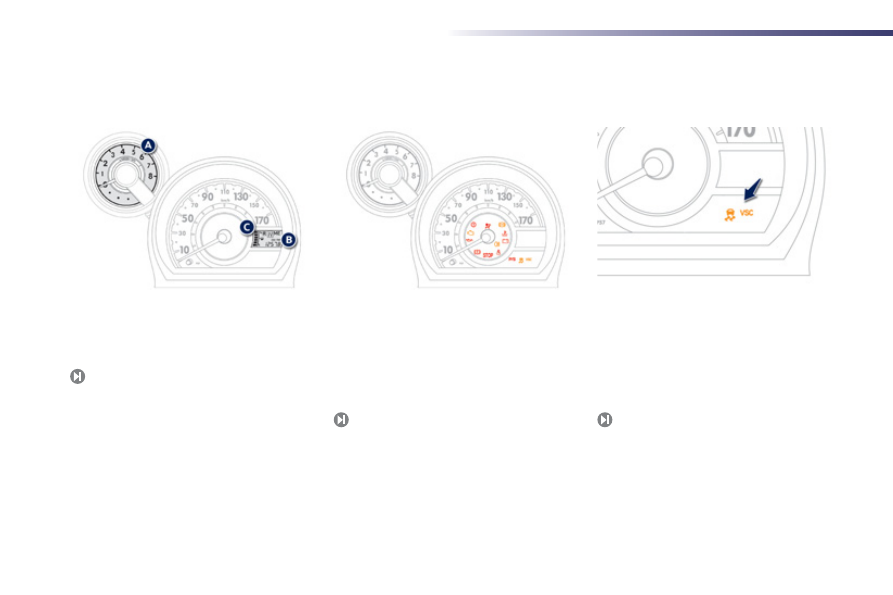

A. Rev counter
B. Screen
C. Fuel gauge

The dynamic stability control system (ASR/
ESP) optimises the vehicle's road holding.
For correct operation of the system, refer to the
relevant page.

Monitoring

Instrument panel

Warning lamps

ASR/ESP option
