Peugeot 107 (2012 year). Instruction

Familiarisation

Your vehicle has been approved in accordance
with the new ISOFIX regulation.

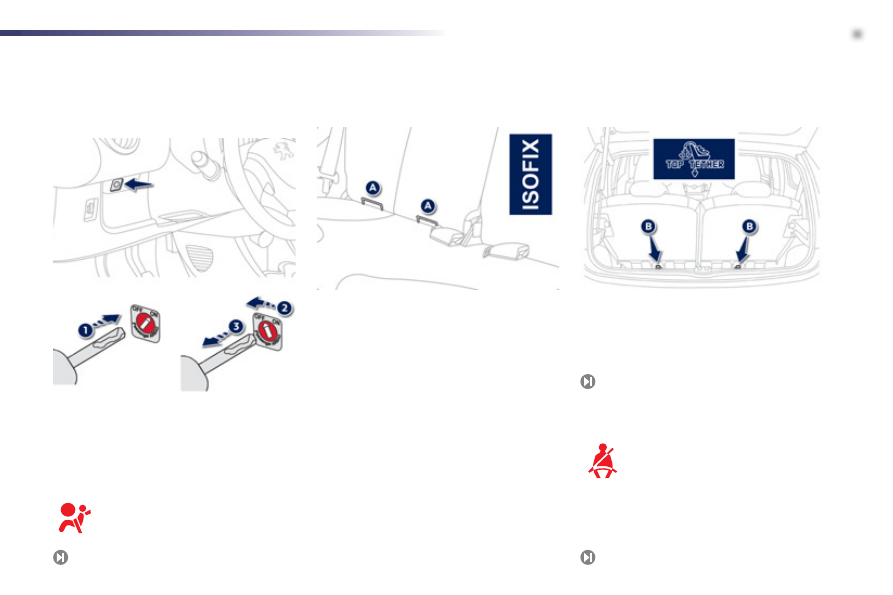

The rear seats are fitted with regulation ISOFIX
mountings.
These are three rings for each seat:
-

two lower rings A , located between the
vehicle's seat back and cushion,

an upper ring B , referred to as the TOP
TETHER, located at the rear of the seat
back at the bottom.

The ISOFIX child seats are fitted with two
latches and/or a strap which are secured easily
on these rings, indicated by labels or a mark on
the rear seat back panel.

Passenger's airbag deactivated

If the passenger's airbag is deactivated,
this warning lamp remains on until the
passenger's airbag is reactivated.

Front seat belt(s) not fastened /

unfastened warning lamp

1. Insert the key.
2. Select the "OFF" position
3. Remove the key in the OFF position.

When the ignition is switched on, the
warning lamp flashes if the driver
and/or front passenger has not
fastened their seat belt.

The warning lamp flashes when the driver
and/or front passenger unfastens their seat belt
with the engine running.

Safety

Passenger's airbag

deactivation

"ISOFIX" mountings

Moving off

With the parking brake applied, press the brake
pedal then select position  N  to start the engine.
With your foot on the brake, select position  R ,
E or M.
Release the parking brake, take your foot off
the brake pedal, then accelerate.

Select position E using the gear lever.
The gear engaged is displayed in the
instrument panel screen.
The gearbox continuously selects the most
suitable gear.

Manual mode

Press the clutch pedal fully when changing
gear.

Reverse

To engage reverse gear, push the gear lever
fully to the right then towards the rear.
Reverse gear can only be engaged when the
vehicle is stationary, engine at idle.

Driving safely

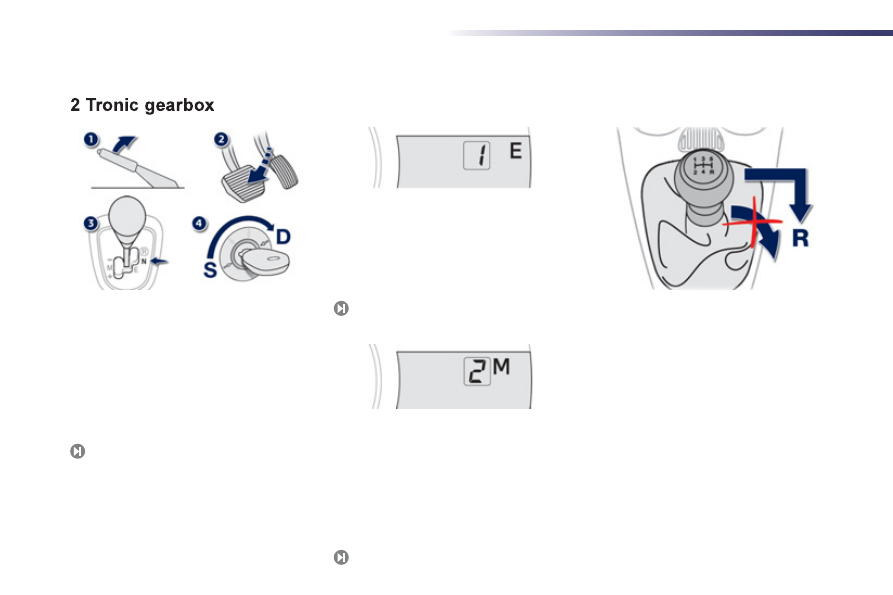

EASY mode (automatic mode)

Manual gearbox

Place the gear lever in position  M , then change
up or down through the gears by pressing the
lever:
   -  rearwards, "+" to change up,
  -

forwards, "-" to change down.

You can also use the steering mounted control
paddles.
The gear engaged is displayed in the
instrument panel screen.

Familiarisation

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon.

With the 2 Tronic gearbox stay in Easy "E"
without pressing the accelerator pedal heavily
or suddenly.

Drive smoothly

Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO

emissions and also helps reduce the

background traffic noise.

Control the use of your electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before using
the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sun blinds, ...).
Switch off the air conditioning as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.

Switch off the headlamps and the foglamp
when the level of light does not require their
use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

Limit the causes of excess

consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, ...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter...) and observe the
schedule of operations recommended by the
manufacturer.

When refuelling, do not continue after the 3

cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only
after the first 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

Instruments and controls

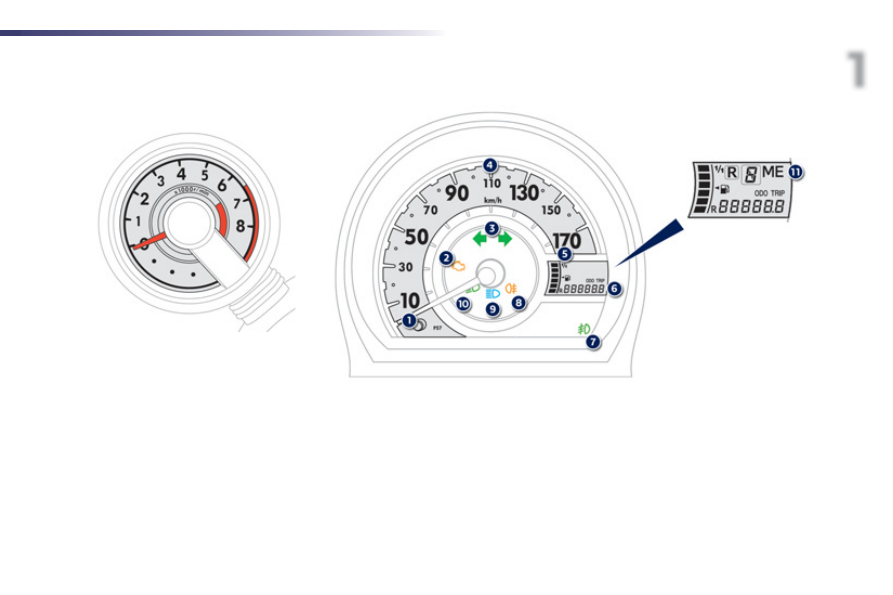

Instrument panel

1. Total or trip distance recorder display

button,
trip zero reset button

2.  Display of warning lamps
3.  Direction indicators
4.  Speedometer
5.  Fuel

gauge

6. Total

/ trip distance recorder

Front foglamp warning lamp

8. Rear

foglamp warning lamp

9. Main beam headlamp warning lamp
10. Dipped beam headlamp warning lamp

Rev counter

Approaching the maximum engine speed, when
the rev counter needle crosses into the red
zone, you must change up.

11. Indicator of gear engaged or position of the

gear lever for the 2 Tronic gearbox.

Instruments and controls

Warning lamps

Warning lamp

is on

Cause

Action/Observations

Parking brake

fixed.

The parking brake is applied or
not properly released.

With your foot on the brake pedal, release the parking brake
to switch off the warning lamp.
Observe the safety recommendations.
For more information, refer to the "Parking brake" section.

STOP

fixed, associated

with another

warning lamp.

It is associated with the engine
oil pressure or the engine
coolant temperature.

Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT dealer or
qualified workshop.

Engine oil

pressure

fixed, associated

with the STOP

warning lamp.

The engine oil
pressure is too low.

Stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT dealer
or a qualified workshop.

Braking

fixed.

The braking system fluid level
has dropped significantly.

Top up with brake fluid recommended by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed, associated

with the ABS

warning lamp.

The braking system
has a fault.

Stop as soon as it is safe to do so. Park, switch off the ignition
and contact a PEUGEOT dealer or a qualified workshop.

VSC

Instruments and controls

Anti-lock Braking

System (ABS)

fixed.

The anti-lock braking system
has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a PEUGEOT
dealer or a qualified workshop without delay.

Electronic

stability

programme

(ASR/ESP)

fixed.

The ASR/ESP system is in
action.

The system optimises traction and improves
the directional stability of the vehicle.

fixed.

The ASR/ESP system has a
fault.

Have it checked by a PEUGEOT dealer or
a qualified workshop.

Coolant

temperature

fixed.

The temperature of the engine
coolant is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before checking up the
level; top up if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.

Airbags

temporarily.

This lamp comes on for a few
seconds when you turn on the
ignition, then goes off.

This lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified
workshop.

flashing.

At least one of the airbags has
a fault.

The airbags may not be deployed in the event of a serious
impact. Have it checked by a PEUGEOT dealer or a qualified
workshop.

Warning lamp

is on

Cause

Action/Observations

P/S

Instruments and controls

Deactivating

the passenger's

airbag

fixed.

The passenger's airbag control
is set to the OFF position.
The passenger's front airbag is
deactivated.
In this case you can install a
"rear facing"
child seat.

Set the control to the ON position to activate the passenger's
front airbag. In this case, do not fit a child seat in the
rear-facing position.

Battery charge

fixed.

The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt, ...).

The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified
workshop.

Electric power

steering

fixed.

The electric power steering has
a fault.

Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or qualified workshop.

Front seat belt

not fastened /

unfastened

(depending on version)

flashing, then above

12 mph (20 km/h),

accompanied by an

audible signal.

The driver and/or front
passenger has not fastened or
has unfastened their seat belt.

Pull the strap then insert the tongue in the buckle.

Emission control

system

fixed.

The emission control system
has a fault.

This lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified
workshop without delay.

2 Tronic gearbox

fixed.

The 2 Tronic gearbox has a
fault.

Contact a PEUGEOT dealer or a qualified workshop without
delay.

Warning lamp

is on

Cause

Action/Observations

Instruments and controls

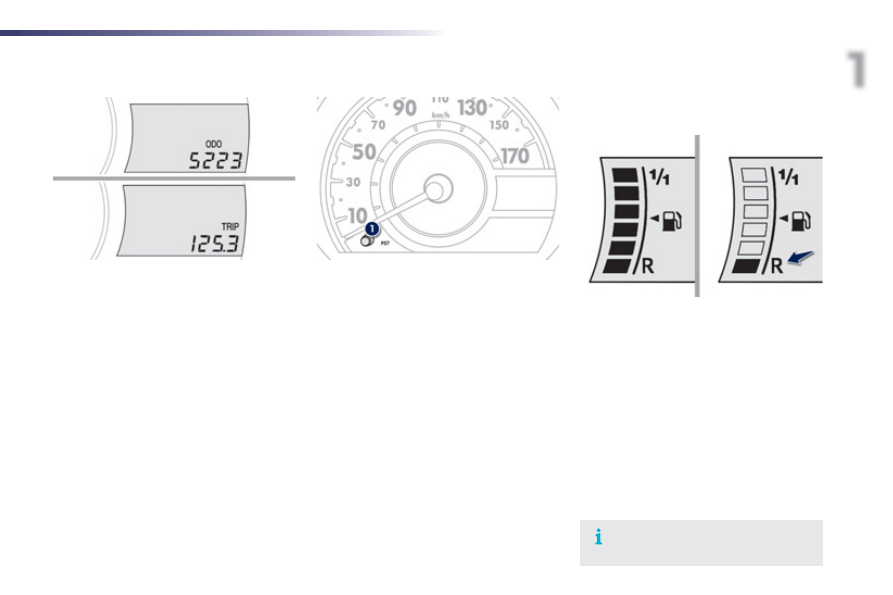

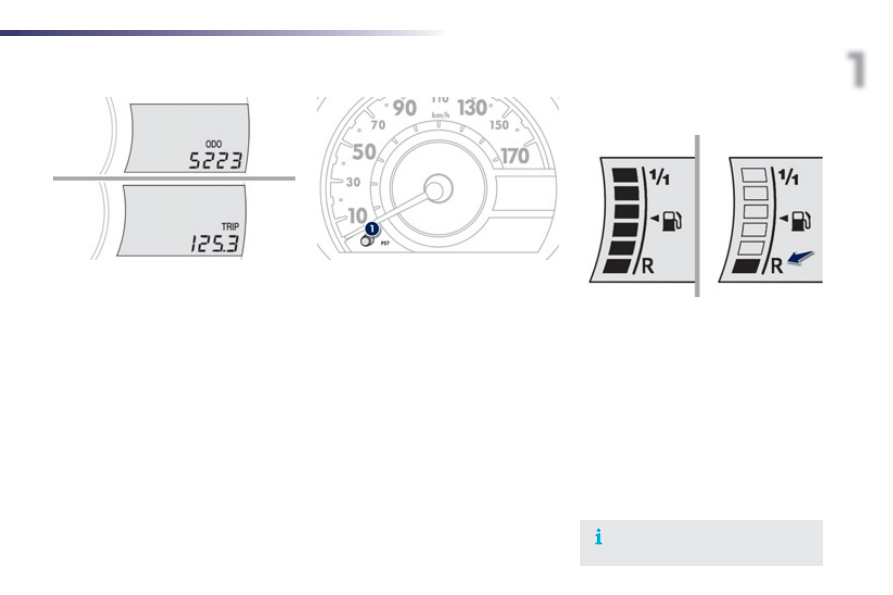

Total/trip distance recorder

Indicators

This indicates the quantity of fuel available:
-

1/1 and six bars, the fuel tank is full.

R and one bar flashing, the fuel tank is on
the reserve.

When the ignition is switched on, the distance
recorder selected when the engine was
switched off is displayed.
Press button 1 to alternate the distance display:
-

total with "ODO" displayed,

- trip

with

"TRIP" displayed.

To reset the trip recorder to zero, when it is
displayed, press and hold button 1.

Low fuel level

When the minimum level in the fuel tank is reached,
the last bar flashes accompanied by an audible
signal.
In certain driving conditions and depending on the
engine, the distance which can be travelled with the
fuel remaining may be less than 30 miles (50 km).
You have approximately 5 litres remaining.
When the frequency of the flashing increases, you
have approximately 3 litres remaining .

At least 5 litres must be added after
running out of fuel.

Fuel gauge

Instruments and controls

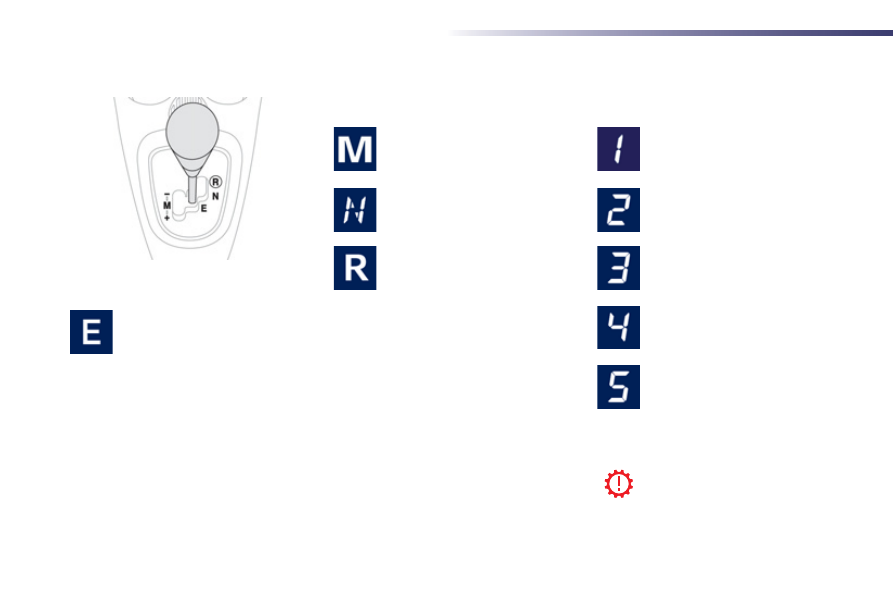

2 Tronic gearbox indicator

Lever on EASY mode (automatic

mode)

Lever in manual mode

"Neutral"

"Reverse"

gear

If this warning lamp comes on with
the engine running, this indicates
a fault with the 2 Tronic gearbox
gearbox.

Contact a PEUGEOT dealer or a qualified
workshop.

"!" warning lamp

"M" is displayed when this operating
mode is selected.
It is switched off on switching to
EASY mode.

"E" is displayed when this operating
mode is selected.
It goes off on switching to manual
mode.

Instruments and controls

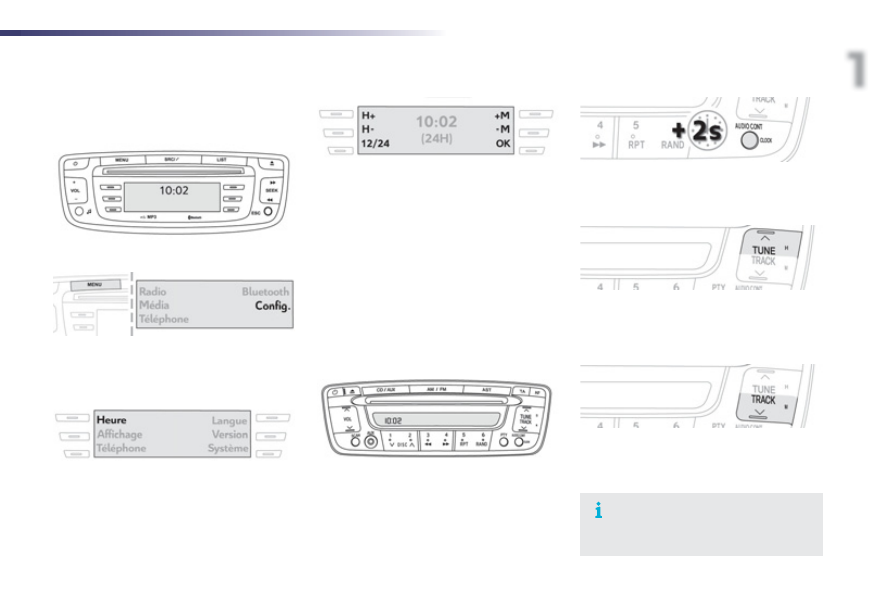

Setting the time

Radio

Press this button for more than 2 seconds, the
clock display flashes.

Press this button (the value increases
continuously) to adjust the hours.

Press this button (the value increases
continuously) to adjust the minutes.

Audio system / Bluetooth

Press MENU then "Config.".

Select "Hours" to adjust the hours.

Select:
-

"H+" to increase the hours,

"H-" to decrease the hours,

"+M" to increase the minutes,

"-M" to decrease the minutes,

"12/24" to select the display mode.

Confirm with "OK".

You exit from this mode automatically
after a few seconds without any action.

Access

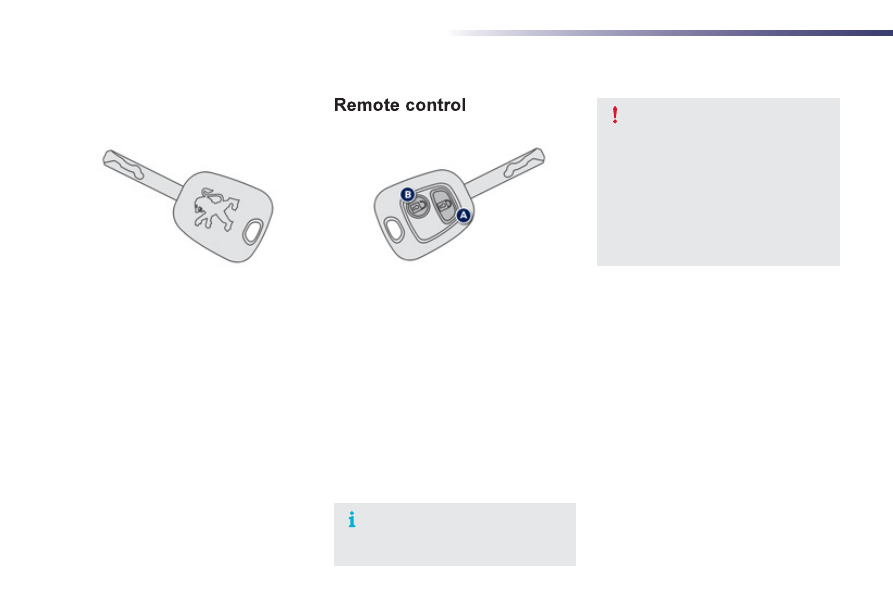

Keys / Remote control

Keys

Locking

Press button A to lock the vehicle from a
distance. This is confirmed by brief lighting of
the direction indicators.

Central locking and unlocking

From the driver's door, the keys allow you
to lock and unlock the doors and boot
simultaneously.

Unlocking

Press button B to unlock the vehicle.
This is confirmed by two successive flashes of
the direction indicators.

Locating the vehicle

To locate your vehicle in a car park, if you have
locked it:
)

press button A , the direction indicators
come on briefly.

The set of keys or remote controls,
supplied with your vehicle, enable you
to obtain a maximum of three new keys.
If all of the keys in your possession are
lost, a major operation will have to be
carried out on your vehicle.
Contact a PEUGEOT dealer or a
qualified workshop.

After locking, if you notice that a door
is not closed properly, close it then lock
the vehicle again.

The keys allow you to switch on the ignition and
operate the locks on the front doors, the boot,
the fuel filler cap, the steering lock and the
passenger's airbag deactivation switch.

This carries out the vehicle locking - unlocking
and locating functions at a distance.

Access

Electronic engine immobiliser

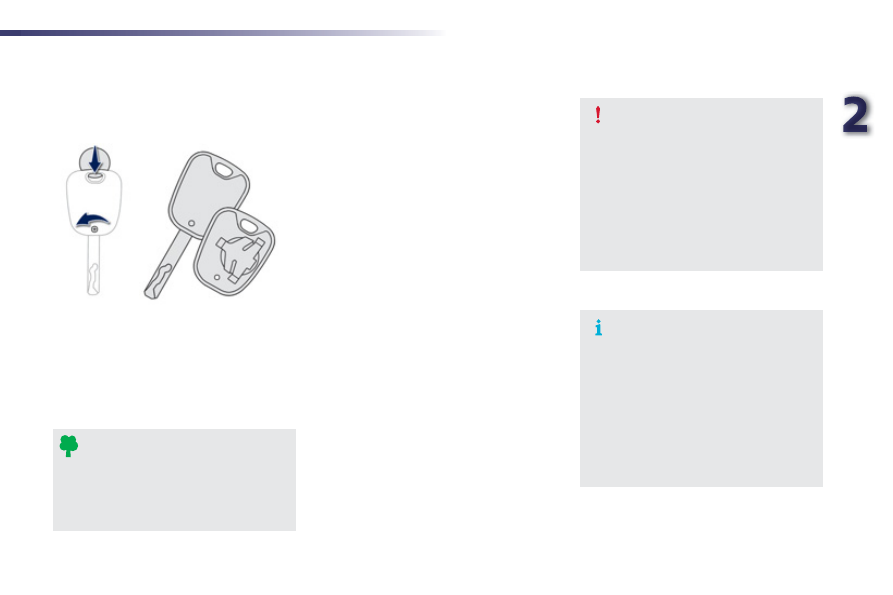

Changing the remote

control battery

Reinitialising the remote

control

Following replacement of the remote control
battery or in the event of a remote control fault,
it may be necessary to reinitialise the system.
)

Switch off the ignition.

)

Switch the ignition on again.

)

Press one of the remote control buttons

immediately for a few seconds.

)

Switch off the ignition and remove the key

from the ignition lock.

The remote control is now working again.
If the fault persists, contact a PEUGEOT
dealer or a qualified workshop.

Do not discard the remote control
batteries, they contain metals which are
harmful to the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point.

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
As a safety measure (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a
short time.
Do not make any modifications to the
electronic immobiliser system.

To change the battery, remove the screw then
unclip the housing using a coin inserted at
the ring.
Battery CR 2016/3 volts.
If the remote control does not work after the
battery has been changed, reinitialise it.

The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of
your vehicle, you risk rendering it
inoperative. It would then have to be
reinitialised.

This locks the engine management system as
soon as the ignition has been switched off and
therefore prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic chip which
has a special code. When the ignition is
switched on, the code must be recognised for
starting to be possible.
In the event of a malfunction, your vehicle will
not start.
Contact a PEUGEOT dealer or a qualified
workshop.

Access

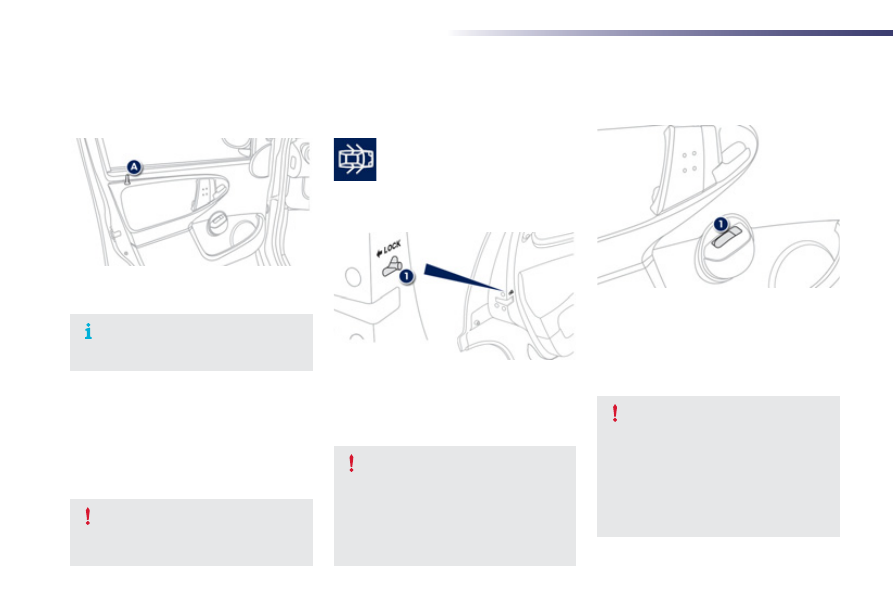

Electric windows *

Doors

Driver's door open

If the driver's door is open, the
courtesy lamp remains on if the button
is in this position.

To lock/unlock a door, press/pull button A.

With normal locking/unlocking: the doors are
locked/unlocked independently of each other.

This prevents the opening of either of the rear
doors from the inside.
Push control 1 towards the outside of the
vehicle.

Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
The driver must ensure that the front
passenger uses their electric window
correctly.
Be aware of children when operating
the windows.

Operating the door handle does not
unlock the door.

Check the status of this safety
device before switching on the
ignition.
This system is independent of the
central locking.
Always remove the key from the ignition
when leaving the vehicle.

Locking/unlocking from

the inside

This function operates only from the
driver's door.

  The driver and front passenger each have an
electric window.
After the ignition has been switched on, press
or pull control  1 . The window stops when you
release the control.

* Depending on version.

Child lock

With central locking/unlocking: the doors and
boot are locked/unlocked simultaneously.

Access

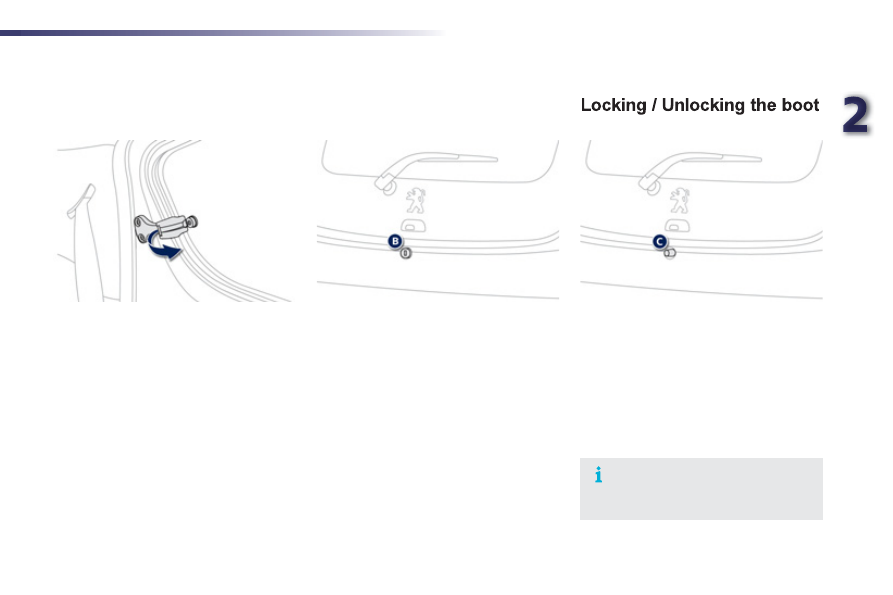

Boot

using the remote control *

Rear windows

(5-door)

* According to version.

The boot is locked/unlocked using the buttons
on the remote control.
Then, to open, press button C and raise the
tailgate.

Locking/unlocking using

the key *

To partially open the rear windows, pull the
lever then push the window.
To close the window, pull then press the lever
to lock the window.

The boot can be locked/unlocked using
button A on the driver's door.

* Depending on version.

To open, operate the lock B using the key and
raise the tailgate.

Access

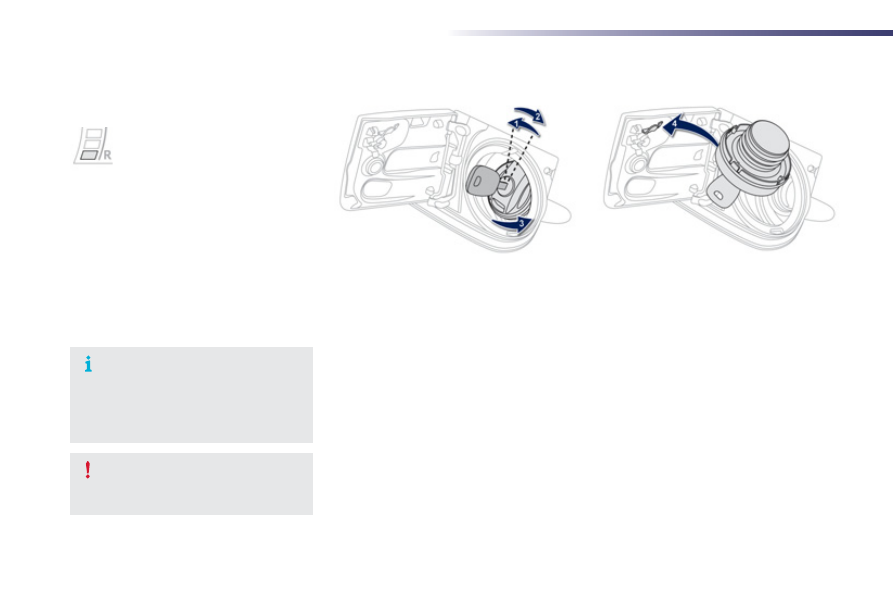

Fuel tank

)

Open the fuel filler flap.

)

Insert the key in the filler cap, turn it slightly

to the left and then return to the right.

The key returns to its initial position and the
filler cap is then unlocked.

Low fuel level

When the low fuel level is reached,
the last bar flashes, accompanied by
an audible signal.
You have approximately 5 litres
remaining.

In certain driving conditions and depending on
the engine, the distance which can be travelled
with the fuel remaining may be less than
30 miles (50 km).
When the frequency of the flashing increases,
you have approximately 3 litres remaining .

)

Unscrew the cap with the key.

)

Hang the filler cap on the bracket, located
on the inner face of the filler flap.

A label affixed on the inside of the flap reminds
you which type of fuel to use.
When you fill the fuel tank, do not continue after
the 3rd cut-off of the pump. This could cause
malfunctions.

The capacity of the fuel tank is
approximately 35 litres.
)

After filling the fuel tank, screw the cap
back on fully to the right until it clicks then
close the flap.

The fuel tank must be filled with the
engine switched off.

If you run out of fuel, the emission
control system warning lamp may come
on in the instrument panel. It will go off
automatically after the engine has been
started a few times.

Peugeot 107 (2012 year). Instruction - part 2
