that will maintain the rocking motion, without spinning
the wheels or racing the engine.

CAUTION!

Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.

NOTE:

To turn the ESC off, move the selector from the

Normal position to the Dynamic position and hold it for
a few moments. The Race configuration will be set when
the graph of the longitudinal and transversal G accelera-
tions is shown in the instrument panel. At this time the
ESC has been turned off. Once the vehicle has been freed,
The selector may be moved back to the desired mode.

CAUTION!

• When “rocking” a stuck vehicle by shifting be-

tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).

WHAT TO DO IN EMERGENCIES

239

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.

ENHANCED ACCIDENT RESPONSE SYSTEM

In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event the ORC will determine
whether to have the Enhanced Accident Response Sys-
tem perform the following functions:

• Cut off fuel to the engine.

• Flash hazard lights as long as the battery has power or

until the ignition key is turned off.

• Turn on the interior lights, which remain on as long as

the battery has power or until the ignition key is
removed.

• Unlock the doors automatically.

After the event occurs, when the system is active, in
addition to the message Fuel Cutoff See Handbook, a
specific soft telltale is displayed.

Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine.

System Reset Procedure

Depending on the nature of the event the left and right
turn signal lights, located in the instrument panel cluster,

240

WHAT TO DO IN EMERGENCIES

may both be blinking and will continue to blink until the
ignition switch is turned to the OFF position.

In order to move your vehicle to the side of the road you
must follow the system reset procedure.

Customer Action

Customer Will See

1. Turn ignition OFF.

(Turn Signal Switch Must

be placed in Neutral

State).

—

2. Turn ignition ON.

Left Turn Light is OFF.

Right Turn Light

BLINKS.

3. Turn Right Turn Signal

Switch ON.

Right Turn Light is ON
SOLID. Left Turn Light

BLINKS.

4. Turn Left Turn Signal

Switch ON.

Left Turn Light is ON

SOLID. Right Turn Light

BLINKS.

5. Turn Right Turn Signal

Switch ON.

Right Turn Light is ON
SOLID. Left Turn Light

BLINKS.

6. Turn Left Turn Signal

Switch ON.

Left Turn Light is ON

SOLID. Right Turn Light

is ON SOLID.

7. Turn Left Turn Signal

Switch OFF. (Turn Signal

Switch Must be placed in

Neutral State).

Left Turn Light is OFF.

Right Turn Light is OFF.

8. Turn ignition OFF.

System is now reset and

the engine may be

started.

9. Turn ignition ON.

—

WHAT TO DO IN EMERGENCIES

241

Turn Hazard Flashers OFF (Manually).

If a reset procedure step is not completed within 60
seconds, then the turn signal lights will turn off and the
reset procedure must be performed again in order to be
successful.

FRONT TOW EYE USAGE

Your vehicle is equipped with a tow eye that can be used
to tow a disabled vehicle.

The front tow eye receptacle is located on the lower right
side of the front fascia.

To install the tow eye, remove the rubber plug and thread
the tow eye into the receptacle.

NOTE:

The front tow eye is found stored inside the Tire

Service Kit storage bag.

Front Tow Eye Installed

242

WHAT TO DO IN EMERGENCIES

When using a tow eye be sure to follow the “Tow Eye
Usage Precautions” in this section.

Tow Eye Usage Precautions

NOTE:

• Ensure that the tow eye is properly seated and secure

in the mounting receptacle.

• The tow eye is recommended for use with an approved

tow bar and or rope.

• Do not use the tow eye to pull the vehicle onto a

flatbed truck.

• Do not use the tow eye to free a stuck vehicle. Refer to

“Freeing A Stuck Vehicle” in this section for further
information.

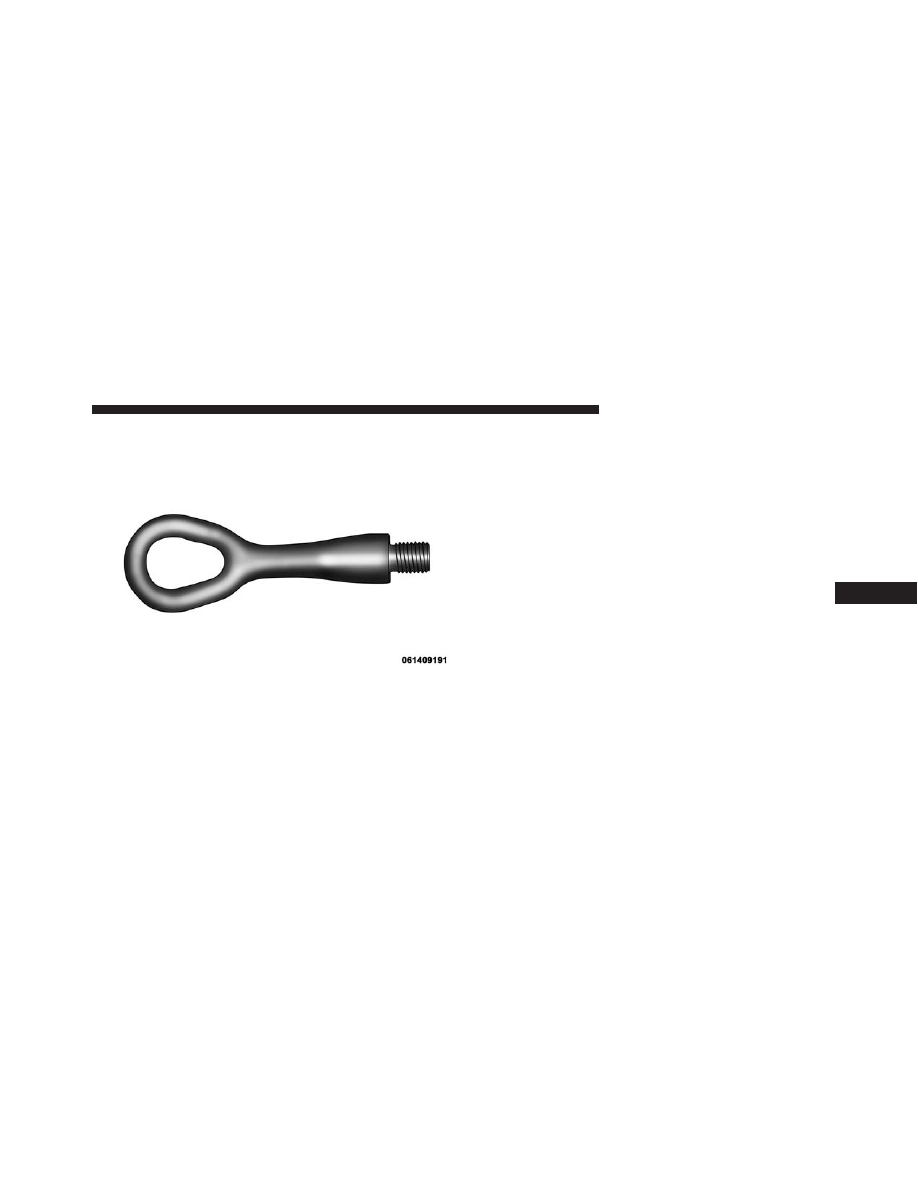

Tow Eye

WHAT TO DO IN EMERGENCIES

243

WARNING!

Stand clear of vehicles when pulling with tow eyes.
• Do not use a chain with a tow eye. Chains may

break, causing serious injury or death.

• Do not use a tow strap with a tow eye. Tow straps

may break or become disengaged, causing serious
injury or death.

• Failure to follow proper tow eye usage may cause

components to break resulting in serious injury or
death.

Tow Eye Warning Label

244

WHAT TO DO IN EMERGENCIES

CAUTION!

• The tow eye must be used exclusively for roadside

assistance operations. Only use the tow eye with an
appropriate device in accordance with the highway
code (a rigid bar or rope) to flat tow the vehicle for
a short distance to the nearest service location.

• Tow eyes MUST NOT be used to tow vehicles off

the road or where there are obstacles.

• In compliance with the above conditions, towing

with a tow eye must take place with two vehicles
(one towing, the other towed) aligned as much as
possible along the same center line. Damage to
your vehicle may occur if these guidelines are not
followed.

FIRE EXTINGUISHER — IF EQUIPPED

The fire extinguisher is located under the dashboard in
front of the passenger side seat.

Fire Extinguisher

WHAT TO DO IN EMERGENCIES

245

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and Alfa Twin
Clutch Transmission control systems. When these sys-
tems are operating properly, your vehicle will provide
excellent performance and fuel economy, as well as
engine emissions well within current government regu-
lations.

If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.

CAUTION!

• Prolonged driving with the MIL on could cause

further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.

• If the MIL is flashing while the engine is running,

severe catalytic converter damage and power loss
will soon occur. Immediate service is required.

REPLACEMENT PARTS

Use of genuine parts for normal/scheduled maintenance
and repairs is highly recommended to ensure the de-
signed performance. Damage or failures caused by the
use of parts which are not quality-equivalent to genuine
parts for maintenance and repairs will not be covered by
the manufacturer’s warranty.

250

MAINTAINING YOUR VEHICLE

DEALER SERVICE

Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.

NOTE:

Intentional tampering with emissions control

systems may void your warranty and could result in civil
penalties being assessed against you.

WARNING!

You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.

MAINTENANCE PROCEDURES

The pages that follow contain the required maintenance
services determined by the engineers who designed your
vehicle.

Besides those maintenance items specified in the fixed
maintenance schedule, there are other components which
may require servicing or replacement in the future.

CAUTION!

• Failure to properly maintain your vehicle or per-

form repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle perfor-
mance. Immediately have potential malfunctions
examined by an authorized dealer or qualified
repair center.

(Continued)

MAINTAINING YOUR VEHICLE

251

CAUTION! (Continued)

• Your vehicle has been built with improved fluids

that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, or air conditioning. Such damage is
not covered by the New Vehicle Limited Warranty.
If a flush is needed because of component malfunc-
tion, use only the specified fluid for the flushing
procedure.

Engine Oil

Checking Oil Level

To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at

regular intervals. The best time to check the engine oil
level is before starting the engine after it has sat over-
night.

Do not check oil level when the engine is warm. Check-
ing engine oil level when the engine is warm will give
you an incorrect reading.

Checking the oil while the vehicle is on level ground, and
has sat overnight, will improve the accuracy of the oil
level readings. Maintain the oil level between the range
markings on the dipstick. The safe range is indicated by
a crosshatch zone. Adding 1 quart of oil when the reading
is at the low end of the indicated range will result in the
oil level at the full end of the indicator range.

252

MAINTAINING YOUR VEHICLE

CAUTION!

Do not overfill the engine with oil. Overfilling the
engine with oil will cause oil aeration, which can
lead to loss of oil pressure and an increase in oil
temperature. This loss of oil pressure and increased
oil temperature could damage your engine.

Change Engine Oil

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to the “Maintenance Schedule” for further informa-
tion.

NOTE:

The actual interval for changing the oil and

replacing the engine oil filter depends on the vehicle
usage conditions and is signalled by the warning light or
message (if present) on the instrument panel or every 12
months.

Engine Oil Selection

For best performance and maximum protection for tur-
bocharged engines under all types of operating condi-
tions, the manufacturer recommends synthetic engine
oils that are API Certified and meet the requirements of
Chrysler Material Standard MS-12991.

Engine Oil Viscosity — 1.750 Turbo Engine (SAE
Grade)

SAE 5W-40 full synthetic engine oil is recommended for
all operating temperatures. This engine oil improves low
temperature starting and vehicle fuel economy.

Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.

The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on

MAINTAINING YOUR VEHICLE

253

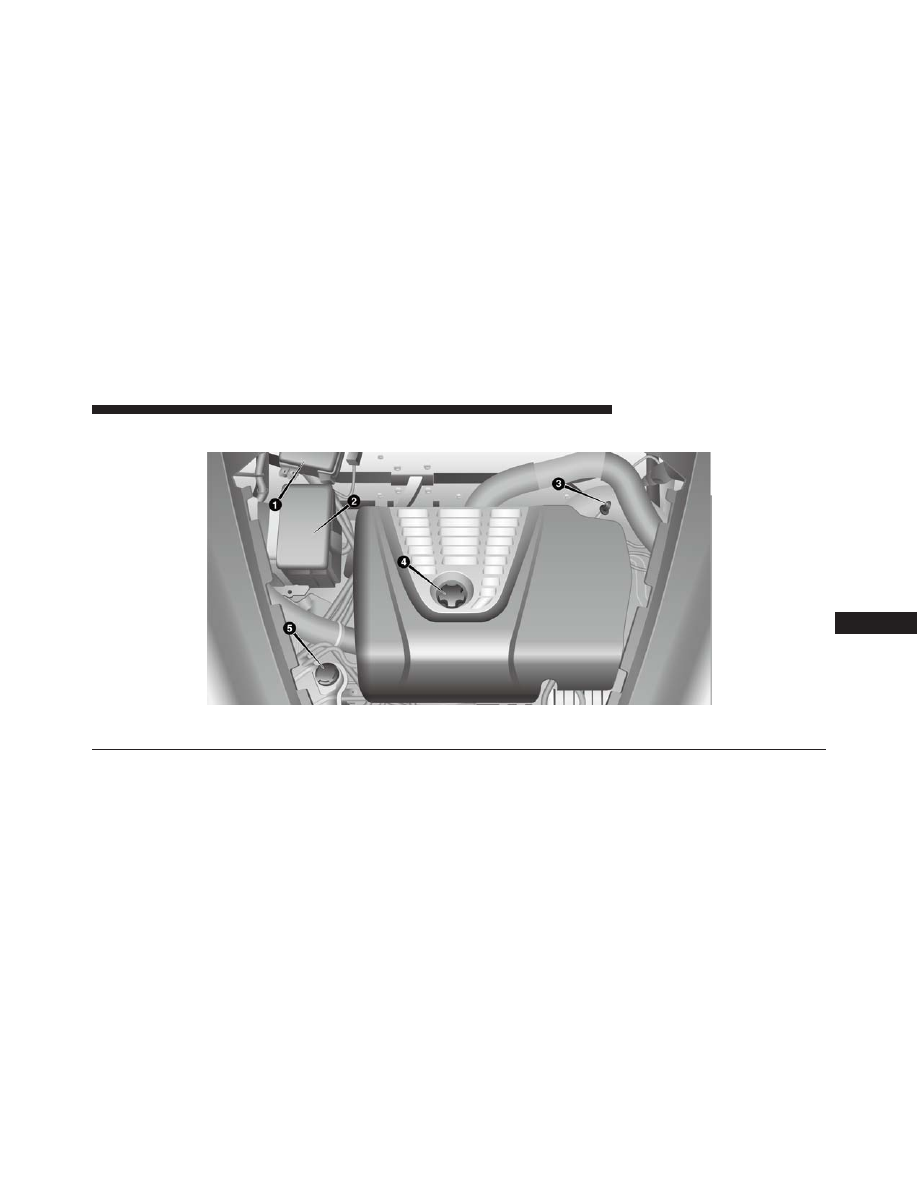

engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.

Materials Added To Engine Oil

The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental addi-
tives.

Disposing Of Used Engine Oil And Oil Filters

Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.

Engine Oil Filter

The engine oil filter should be replaced with a new filter
at every engine oil change.

Engine Oil Filter Selection

This manufacturer’s engines have a full-flow type dispos-
able oil filter. Use a filter of this type for replacement. The
quality of replacement filters varies considerably. Only
high quality filters should be used to assure most efficient
service. MOPAR® engine oil filters are high quality oil
filters and are recommended.

Engine Air Cleaner Filter

Refer to the “Maintenance Schedule” for the proper
maintenance intervals.

254

MAINTAINING YOUR VEHICLE

Peugeot 4C (2015 year). Instruction - part 16
