Peugeot 4C (2015 year). Instruction

main menu item. Push and hold the SET/BACK arrow
button to return to the main menu from an info screen or
sub-menu item.

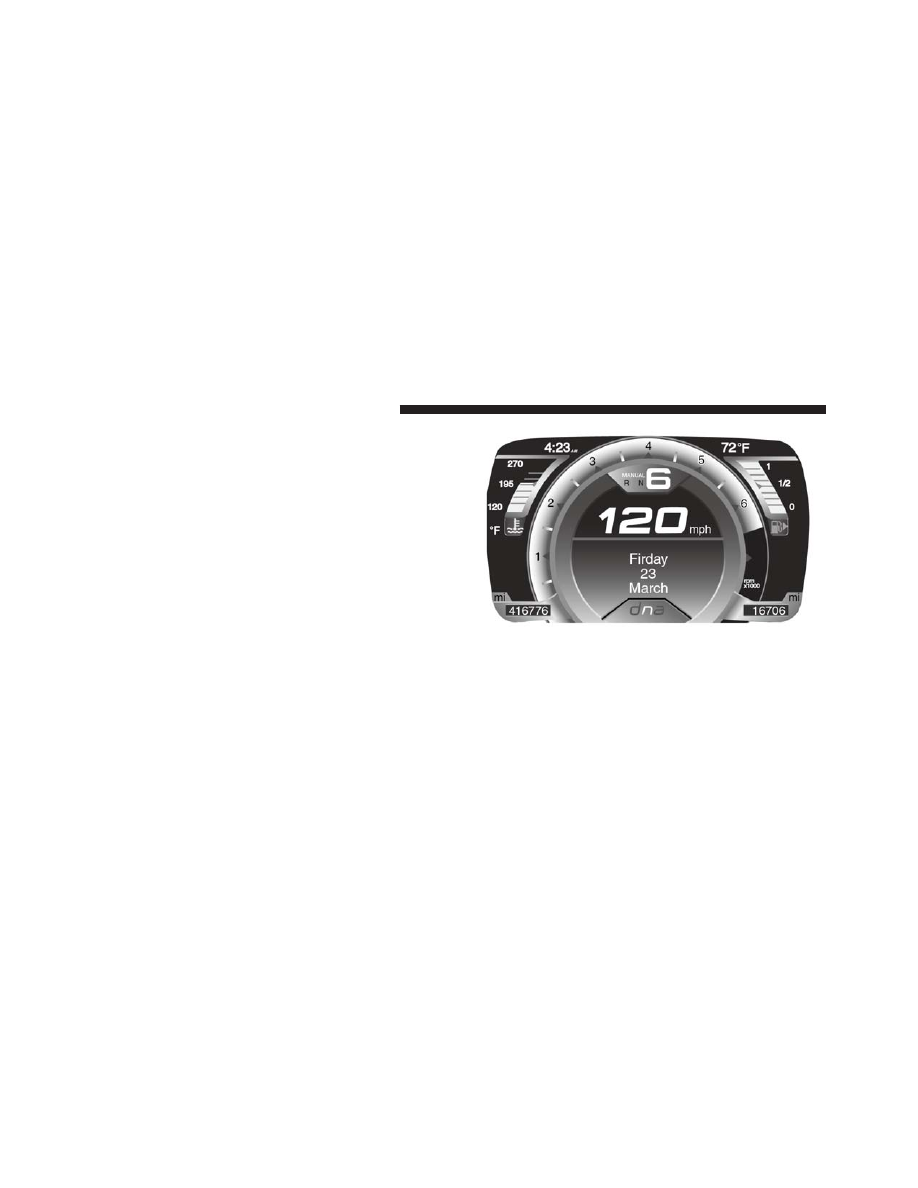

Electronic Vehicle Information Center (EVIC)
Setup Menu

The menu comprises a series of functions arranged in a
cycle. Push the UP

and DOWN

buttons to access

the different options and settings (setup).

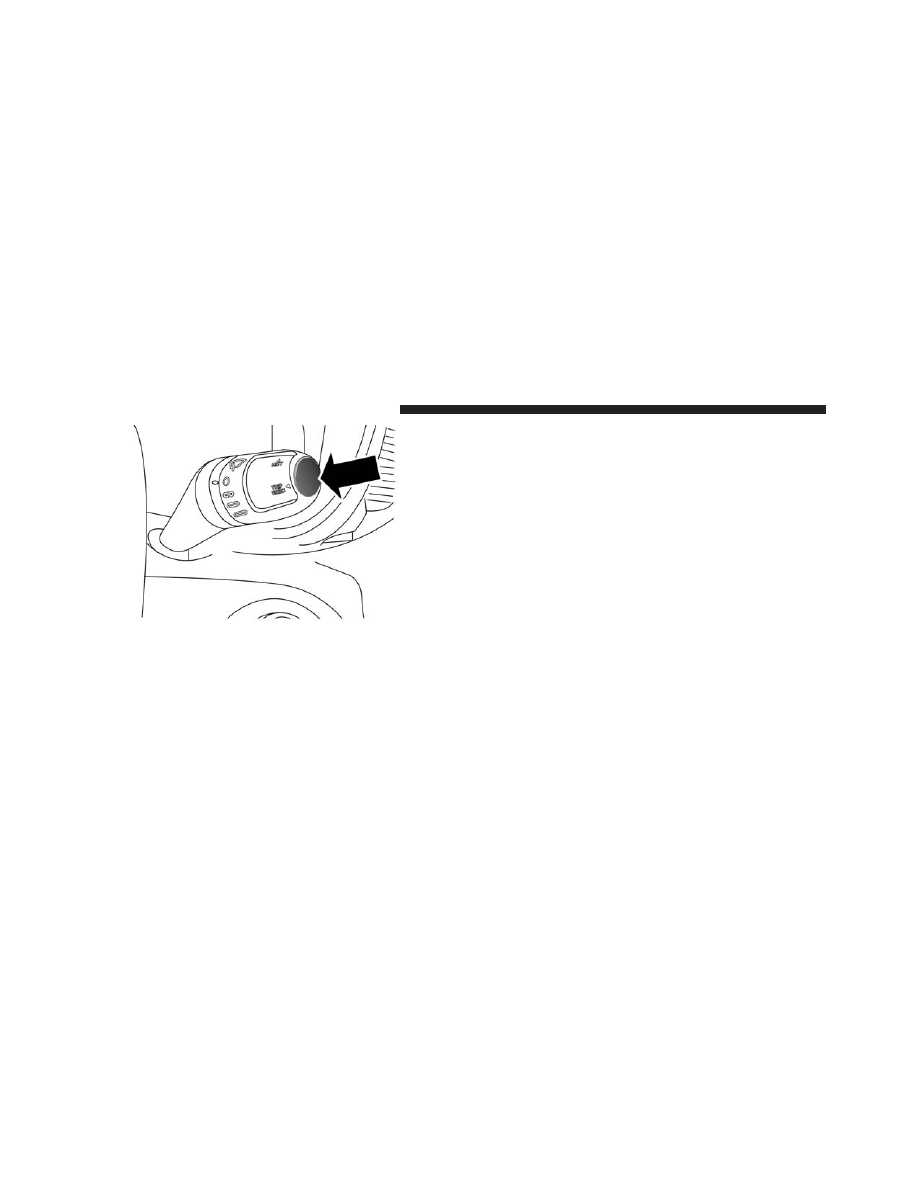

The setup menu can be activated by pushing the SET/
BACK

button. Single push on the UP

or DOWN

buttons will scroll through the setup menu op-

tions. The menu includes the following functions:

• Menu
• Speed Buzzer
• Trip B/Data
• Set Time

• Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Service
• Daylights (D.R.L.) – If Equipped
• Exit Menu
Selecting An Option Of The Main Menu Without
Submenu

1. Briefly push the SET/BACK button to select the main

menu option to set.

2. Push the UP

or DOWN

button (by a single

push) to select the new setting.

UNDERSTANDING YOUR INSTRUMENT PANEL

127

3. Briefly push the SET/BACK button to store the new

setting and go back to the main menu option previ-
ously selected.

Selecting An Option Of The Main Menu With Sub-
menu

1. Briefly push the SET/BACK button to display the first

submenu option.

2. Push the UP

or DOWN

button (by a single

push) to scroll through all the submenu options.

3. Briefly push the SET/BACK button to select the dis-

played submenu option and to open the relevant setup
menu.

4. Push the UP

or DOWN

button (by a single

push) to select the new setting for this submenu
option.

5. Briefly push the SET/BACK button to store the new

setting and go back to the previously selected sub-
menu option.

6. Push and hold the SET/BACK button to return to the

main menu (short hold) or the main screen (longer
hold).

Speed Buzzer (Speed Limit)

With this function, it is possible to set the car speed limit
(mph or km/h) to immediately alert the driver when the
set limit is exceeded.

To set the speed limit, proceed as follows:

1. Briefly push the SET/BACK button. The display will

show the message (Speed Buzzer).

2. Push and release the UP

or DOWN

button to

select speed limit activation (On) or deactivation
(Off).

128

UNDERSTANDING YOUR INSTRUMENT PANEL

3. When the function is activated (On), briefly push the

SET/BACK

button to display the previously set speed.

Pushing the UP

or DOWN

buttons selects the

speed limit. Push SET/BACK to confirm selection.

NOTE:

The setting can be increased or decreased by

5 mph or km/h each time the UP/DOWN button is
pushed for speed settings above 20 mph (32 km/h). To
increase or decrease the set speed rapidly, push and hold
the UP/DOWN button. Save the setting by briefly push-
ing the button when you approach the required setting.

• Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

To cancel the setting, proceed as follows:

1. Briefly push the SET/BACK button. “On” will display.

2. Push and release the DOWN

button. “Off” will

display.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

Trip B Activation

Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.

For further information see “Trip Computer.”

For activation / deactivation, proceed as follows:

1. Briefly push the SET/BACK button. “On” or “Off”

will display in the EVIC (according to previous set-
ting).

UNDERSTANDING YOUR INSTRUMENT PANEL

129

2. Push and release the UP

or DOWN

button to

select the setting and once selected a beep will
occur to signal the setting is saved.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

Set Time

This function may be used to set the clock through two
sub-menu items: “Time” and “Mode.”

Proceed as follows:

1. Briefly push the SET/BACK button. The display will

show the two sub-menu items “Time” and “Mode.”

2. Push and release the UP

or DOWN

button to

navigate the two sub-menu items.

3. Select the required option and then prush the SET/

BACK

button.

4. When accessing the “Time” sub-menu item, briefly

push the SET/BACK button and “hours” will flash on
the display.

5. Push and release the UP

or DOWN

button for

setting.

6. Briefly push the SET/BACK button and “minutes”

will flash on the display.

7. Push and release the UP

or DOWN

button for

setting.

130

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

• The setting will increase or decrease by one unit each

time the UP

or DOWN

button is pushed.

Push and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pushing
the button when you approach the required set-
ting.

• Briefly push the SET/BACK button to return to the

“Time” sub-function.

• When accessing the “Mode” submenu, briefly push

the SET/BACK button. The previously set display
format will flash on the display.

• Push and release the UP

or DOWN

button to

select “24h” or “12h.”

When you have selected the required settings, briefly
push the SET/BACK button to go back to the Time, Mode

sub-menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.

Set Date

This function may be used to set the date (day - month -
year).

To change the date proceed as follows:

1. Briefly push the SET/BACK button and “year” will

flash on the display.

2. Push and release the UP

or DOWN

button for

setting.

3. Briefly push the SET/BACK button and “month” will

flash on the display.

4. Push and release the UP

or DOWN

button for

setting.

UNDERSTANDING YOUR INSTRUMENT PANEL

131

5. Briefly push the SET/BACK button and “day” will

flash on the display.

6. Push and release the UP

or DOWN

button for

setting.

NOTE:

The setting will increase or decrease by one unit

each time the UP

or DOWN

button is pushed.

Push and hold the UP

or DOWN

button to

increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting.

• Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

Autoclose

With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 12 mph
(20 km/h).

To change the setting proceed as follows:

1. Briefly push the SET/BACK button “On” or “Off” will

flash on the display (according to the previous set-
ting).

2. Push and release the UP

or DOWN

button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

132

UNDERSTANDING YOUR INSTRUMENT PANEL

Units (Set Units)

This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy.”

To set the required unit, proceed as follows:

1. Briefly push the SET/BACK button to display the

three sub-menus.

2. Push and release the UP

or DOWN

button to

navigate the three sub-menus.

3. Select the required sub-menu and then briefly push

the SET/BACK button.

4. When accessing the “Distance” submenu: briefly push

the SET/BACK button. Either “mi” or “km” will
appear on the display (according to the previous
setting).

5. Push and release the UP

or DOWN

button for

setting.

6. Briefly push the SET/BACK button to return to the

sub-menu.

7. When accessing the “Fuel Economy” submenu, briefly

push the SET/BACK button. Either “mpg,” “km/l ” or
“l/100km” will appear on the display (according to
the previous setting).

If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”

If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km.

1. Push and release the UP

or DOWN

button for

setting.

2. Briefly push the SET/BACK button to return to the

sub-menu.

UNDERSTANDING YOUR INSTRUMENT PANEL

133

3. When accessing the “Temperature” submenu: briefly

push the SET/BACK button. Either “°F” or “°C” will
appear on the display (according to the previous
setting).

4. Push and release the UP

or DOWN

button for

setting.

5. Briefly push the SET/BACK button to return to the

sub-menu.

When you have made the required settings, briefly push
the SET/BACK button to go back to the sub-menu screen,
or push and hold the SET/BACK button (approximately
one second) to go back to the main screen without storing
the settings.

Language (Selecting The Language)

The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican.

To set the required language, proceed as follows:

1. Briefly push the SET/BACK button. The previously

set “language” will flash on the display.

2. Push and release the UP

or DOWN

button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)

With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.

134

UNDERSTANDING YOUR INSTRUMENT PANEL

To adjust the volume proceed as follows:

1. Briefly push the SET/BACK button. The previously

set volume “level” will flash on the display.

2. Push and release the UP

or DOWN

button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button
(approximately one second) to go back to the main
screen without storing the settings.

Service (Scheduled Servicing) — If Equipped

With this function it is possible to view information on

mileage intervals for servicing.

To obtain this information, proceed as follows:

Push the SET/BACK button briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see the

⬙Unit Of

Measurement

⬙ paragraph).

Briefly push the SET/BACK button to go back to the
menu screen or hold the button down to go back to the
standard screen.

UNDERSTANDING YOUR INSTRUMENT PANEL

135

NOTE:

The “Scheduled Servicing Plan” includes car

maintenance at fixed intervals, refer to the

⬙Maintenance⬙

chapter. This message is displayed automatically along
with the

warning light when the key is turned to

MAR-ON - 1242 miles (2,000 km) before these dead-
lines and reappears every 124 miles (200 km). Below
124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilo-
meters according to the

⬙Unit Of Measurement⬙ set-

tings. When the next scheduled service is approaching
and the key is turned to MAR-ON, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact a dedicated Alfa
Romeo Dealership. The operations in the “Scheduled
Servicing Plan” will be performed and the message
will be

reset.

Day Lights — If Equipped

This function may be used to activate / deactivate the
Daytime Running Lamps.

Proceed as follows to switch this function on or off:

1. Briefly push the SET/BACK button to display the

three submenus.

2. Briefly push the SET/BACK button. “On” or “Off”

will flash on the display (according to previous set-
ting).

3. Push and release the UP

or DOWN

button for

setting.

4. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.

136

UNDERSTANDING YOUR INSTRUMENT PANEL

Exit Menu

This function closes the initial menu screen.

Briefly push the SET/BACK button to go back to the
main screen.

Push and release the

button to return to the first

menu option (Speed Buzzer).

Push and releasethe

button to return to the last

menu option (Daylights).

Change Engine Oil Indicator System

Your vehicle is equipped with an engine oil

change indicator system. The “Change Engine Oil” mes-
sage will flash in the EVIC display for approximately 10
seconds and the Oil Pressure Warning Light will illumi-
nate. The “Change Engine Oil” message in the EVIC and
the Oil Pressure Warning Light will turn off after ap-
proximately 10 seconds.

NOTE:

The reset of the Oil Change message must be

performed by an authorized dealer.

Trip Computer

The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as trip information, range, fuel consumption,
average speed, and travel time).

Trip Button

The TRIP button, located on the right steering column
stalk, can be used to display and to reset the trip values.

UNDERSTANDING YOUR INSTRUMENT PANEL

137

• A short button push displays the different values.
• A long button push resets the system and then starts a

new trip.

Trip Functions

Both trip functions are resettable (reset — start of new
trip).

“Trip A” can be used to display the figures relating to:

• Range
• Average Fuel Consumption
• Travel Distance
• Current Fuel Consumption
• Average speed
• Travel time

“Trip B” can be used to display the figures relating to:

• Average Fuel Consumption
• Travel Distance

Trip Button

138

UNDERSTANDING YOUR INSTRUMENT PANEL

• Average speed
• Travel time

NOTE: “Trip B” functions may be excluded (see “Trip
B Data”). “Range” and “Instantaneous consumption”
cannot be reset.

New Trip

To reset:

• Push and hold the TRIP button to reset the system

manually.

• When the “Trip distance” reaches 9999.9 miles or

kilometers or when the “Travel time” reaches 999.59
(999 hours and 59 minutes), the system is reset auto-
matically.

• Disconnecting/Reconnecting the battery resets the

system.

NOTE:

If the reset operation occurs in the presence of

the screens concerning Trip A or Trip B, only the infor-
mation associated with Trip A or Trip B functions will be
reset.

Start Of Trip Procedure

With the ignition on, push and hold the TRIP button for
over one second to reset.

Exit Trip

To exit the Trip function, wait until all the values have
been displayed or hold the MENU button for longer than
one second.

Briefly push and release the MENU button to go back to
the menu screen or push and hold the MENU (approxi-
mately one second) to go back to the main screen without
storing settings.

UNDERSTANDING YOUR INSTRUMENT PANEL

139

Values Displayed

Indications On Display

Each time a value is selected, the following information is
shown in the EVIC:

• “Trip A” or “Trip B” location(s)
• Name, value and unit of measure of the selected value

(e.g.

⬙Range 520 mi⬙).

After a few seconds, the name of the selected value is
replaced by the corresponding icon.

Range

This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:

140

UNDERSTANDING YOUR INSTRUMENT PANEL

• Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine

running.

NOTE:

The range depends on several factors: driving

style, type of route (freeway, residential, mountain roads,
etc.), conditions of use of the car (load, tire pressure, etc.).
Trip planning must take into account the above notes.

Average Fuel Consumption

This value shows the approximate average consumption
since the last reset.

Travel Distance

This value shows the distance covered since the last reset.

Current Fuel Consumption

This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the car is parked with the engine running.

Average Speed

This value shows the vehicle’s average speed as a func-
tion of the overall time elapsed since the last reset.

Travel Time

This value shows the time elapsed since the last reset.

Tire Pressure Values

This screen will display OK at each Tire Pressure Moni-
toring sensor. Refer to “Tire Pressure Monitoring System”
in “Starting And Operating.”

RADIO SYSTEM

The radio system consists of:

• Supply cables for radio, speakers and aerial;
• Radio;
• Aerial on front bumper;

UNDERSTANDING YOUR INSTRUMENT PANEL

141

• No. 2 tweeter speakers with 38 mm diameter and No.

2 mid-woofer speakers with 130 mm diameter, fitted
on the doors.

For further information on radio functions and use, refer
to the dedicated Supplement attached to the On-Board
Documentation.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation.

General Information

This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

• Changes or modifications not expressly approved by

the party responsible for compliance could void the
user’s authority to operate the equipment.

• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired op-
eration.

142

UNDERSTANDING YOUR INSTRUMENT PANEL

Peugeot 4C (2015 year). Instruction - part 9
