Opel Grandland X (2020 year). Manual in english - page 2





26
Keys, doors and windows
Electronic key system operation
Unlocking
● All doors, load compartment and
fuel filler flap will be unlocked by
passing a hand behind the
passenger's door handle or by
pressing the tailgate button.
● Only the tailgate will be unlocked
by pressing the tailgate button.
Vehicle personalisation 3 108.
Locking
The electronic key must be outside
Pass a hand behind the door handle
the vehicle, within a range of approx.
of a front door to unlock the vehicle or
1 m of the relevant door side.
press the tailgate button.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● Only the driver's door and fuel
filler flap will be unlocked by
passing a hand behind the
Press marking of the front door
driver's door handle.
handles.
Entire vehicle will be locked.
Keys, doors and windows
27
If the vehicle is not closed properly,
Operation with buttons on the
Confirmation
the electronic key remains in the
electronic key
Operation of central locking system is
vehicle or the ignition is not off,
confirmed by the hazard warning
locking will not be permitted and a
flashers. A precondition is that the
warning chime sounds.
setting is activated in the vehicle
Keep the hand behind the door
personalisation 3 108.
handle or keep the tailgate button
Central locking button
pressed to close the windows.
Locks or unlocks all doors, the load
Unlocking and opening the tailgate
compartment and fuel filler flap from
The tailgate can be unlocked and
inside the passenger compartment.
opened hands-free by pushing the
touchpad under the tailgate moulding
when the electronic key is in range.
The doors remain locked.
The central locking system can also
Load compartment 3 30.
be operated with the buttons on the
electronic key.
Press O to unlock.
Press N to lock.
Press
P
longer to unlock and open
only the power tailgate.
Remote control operation 3 24.
Press Q to lock. The LED in the button
illuminates.
Press Q again to unlock. The LED in
the button extinguishes.
28
Keys, doors and windows
Operation with the key in case of
The other doors can be opened by
a central locking system fault
pulling the interior handle. The load
compartment and fuel filler flap will
In case of a fault, e.g. vehicle battery
possibly not be unlocked.
or remote control / electronic key
By switching on the ignition, the anti-
battery is discharged, the driver's
theft locking system is deactivated.
door can be locked or unlocked with
the mechanical key.
Manual locking
Manual unlocking
Electronic key: press and hold the
latch to extract the integral key.
To lock the other doors, remove the
black cover by using a key.
Insert key carefully and move to the
inner side of the door without turning
the key.
Remove key and attach black cover.
The fuel filler flap and tailgate are
possibly not locked.
Manually lock the driver's door by
inserting and turning the key in the
Automatic locking
lock cylinder.
Manually unlock the driver's door by
Automatic locking after driving off
inserting and turning the key in the
This system allows automatic locking
lock cylinder.
of the doors and tailgate as soon as
the speed of the vehicle exceeds a
certain speed.
Keys, doors and windows
29
If one of the doors or the tailgate is
Automatic relock after unlocking
Mechanical child locks
open, the automatic central locking
This feature automatically locks all
does not take place. This is signalled
doors, load compartment and fuel
by the sound of the locks rebounding,
filler flap a short time after unlocking
accompanied by illumination of h in
with the remote control or electronic
the instrument cluster, an audible
key, provided no door has been
signal and the display of an alert
opened.
message.
Child locks
9 Warning
Use the child locks whenever
children are occupying the rear
Turn the red child lock in the rear door
seats.
to the horizontal position by using a
key. The door cannot be opened from
the inside.
To deactivate, turn the child lock to
the vertical position.
This function can be activated or
deactivated at any time. With the
ignition on, press Q until an audible
signal starts and a corresponding
message is displayed.
The state of the system stays in
memory when switching off the
ignition.
30
Keys, doors and windows
Electric child locks
Closing
Doors
Load compartment
Tailgate
Opening
Remotely operated system to prevent
Use the interior handle.
opening of the rear doors via the
Do not push the touchpad whilst
interior door handles and the use of
closing as this will unlock the tailgate
the rear power windows.
again.
Central locking system 3 24.
Switching on
Press R. The indicator light in the
After unlocking, press the tailgate
button comes on, accompanied by a
button and open the tailgate.
confirmation message. This indicator
light remains on until the child lock is
switched off.
Switching off
Press R again. The indicator light on
button goes off, accompanied by a
confirmation message.
Keys, doors and windows
31
Power tailgate
The turn lights flash and a chime
Operation with the electronic key
sounds when the power tailgate is
operating.
9 Warning
Note
Take care when operating the
Operating the power tailgate does
power tailgate. Risk of injury,
not operate the central locking
particularly to children.
system. To open the tailgate with the
Keep a close watch on the
button on the electronic key, or with
movable tailgate when operating.
the tailgate button or via hands-free
Ensure that nothing becomes
operation, it is not necessary to
trapped during operating and no
unlock the vehicle. A precondition is
one is standing within the moving
that the electronic key is outside the
area.
vehicle, within a range of approx.
1 m of the tailgate.
Press
P
longer to open or close the
The power tailgate can be operated
Do not leave the electronic key in the
tailgate.
by:
load compartment.
● Pressing
P
longer on the
Lock the vehicle after closing if it was
electronic key.
unlocked previously.
● Hands-free operation with motion
Central locking system 3 24.
sensor below the rear bumper.
● The tailgate button and
T
in the
open tailgate.
On vehicles with automatic
transmission, the tailgate can only be
operated when the vehicle is
stationary and automatic
transmission in P.
32
Keys, doors and windows
Hands-free operation
Operation with the tailgate button
9 Danger
Do not touch any vehicle parts
below the vehicle during hands-
free operation. There is a risk of
injury from hot engine parts.
Automatic locking after hands-free
operation
To open or close the tailgate move the
To open the tailgate, press the
foot below the rear bumper back and
tailgate button until the tailgate starts
forth in the area below the number
to move. If the vehicle is locked, the
plate. Do not hold the foot longer or
electronic key must be outside the
move too slow below the bumper. The
vehicle, within a range of approx.
electronic key must be outside the
1 m of the tailgate.
vehicle, within a range of approx.
1 m of the tailgate.
Activation or deactivation of hands-
Press button S in the open tailgate,
free operation can be set in the menu
the whole vehicle will be locked after
Settings I Vehicle in the Info Display.
hands-free closing of the tailgate.
Info Display 3 103.
Vehicle personalisation 3 108.
Keys, doors and windows
33
Adjust reduced opening height
A chime sound indicates the new
1. Open power tailgate with any
setting and the turn lights will flash.
operation switch.
The reduced height can only set at an
opening angle of above 30°.
2. Stop movement at the desired
height by pressing
T. If
To delete reduced height position,
required, manually move the
open tailgate in half position and
stopped tailgate to the desired
press
T
for 3 seconds.
position.
The tailgate can only be held open if
a minimum height is exceeded
(minimum opening angle from 30°).
The opening height cannot be
programmed below that height.
To close, press
T
in the open
Safety function
tailgate until the tailgate starts to
move.
If the power tailgate encounters an
obstacle during opening or closing,
Stop or change direction of
the direction of movement will
movement
automatically be reversed slightly.
Stop movement of the tailgate
Multiple obstacles in one power cycle
immediately:
will deactivate the function. In this
case, close or open the tailgate
● press
P
longer on the
3. Press and hold the button
T
on
manually.
electronic key, or
the inside of the open tailgate for
The power tailgate has pinch sensors
● press the tailgate button, or
3 seconds.
on the side edges. If the sensors
● press
T
on the open tailgate
Note
detect obstacles between tailgate and
Pressing one of the switches again
Adjusting opening height should be
chassis, the tailgate will open, until it
will reverse the direction of
programmed at ground level.
is activated again or closed manually.
movement.
The safety function is indicated by a
warning chime.
34
Keys, doors and windows
Remove all obstacles before
Seek the assistance of a workshop if
Note
resuming normal power operation.
the problem is not solved.
The operation of the power tailgate
is disabled under low vehicle battery
If the vehicle is equipped with factory-
General hints for operating
conditions. In this case, the tailgate
fitted towing equipment and a trailer
tailgate
may not even by manually operable.
is electrically connected, the power
tailgate can only be opened with the
Note
tailgate button or closed with
T
in
9 Danger
With the power tailgate disabled and
the open tailgate. Ensure that there
all doors unlocked, the tailgate can
are no obstacles in the moving area.
Do not drive with the tailgate open
only be operated manually. In this
or ajar, e.g. when transporting
event, manually closing the tailgate
Overload
bulky objects, since toxic exhaust
requires significantly greater force.
If the power tailgate is repeatedly
gases, which cannot be seen or
operated at short intervals, the
smelled, could enter the vehicle.
Note
function is disabled for some time.
This can cause unconsciousness
At low outside temperatures the
Move tailgate manually into end
and even death.
tailgate may not open fully by itself.
In this case lift the tailgate manually
position to reset the system.
to its normal end position.
Initialising power tailgate
Caution
If the power tailgate cannot be
Before opening the tailgate, check
operated automatically (e.g. after
overhead obstructions, e.g. a
disconnecting the vehicle battery), a
garage door, to avoid damage to
warning message is displayed in the
the tailgate. Always check the
Driver Information Centre.
moving area above and behind the
Activate electronics as follows:
tailgate.
1. Open tailgate manually.
Note
2. Close tailgate manually.
The installation of certain heavy
3. Switch on ignition.
accessories onto the tailgate may
affect its ability to remain open.
Keys, doors and windows
35
Activating
● vehicle inclination, e.g. if it is
Vehicle security
raised
Anti-theft locking system
● ignition
Activation
9 Warning
All doors, the load compartment and
Do not use the system if there are
the engine compartment must be
people in the vehicle! The doors
closed and the electronic key must
cannot be unlocked from the
not remain in the vehicle.
inside.
● Radio remote control: activated
45 seconds after locking the
The system deadlocks all the doors.
vehicle by pressing e once.
All doors must be closed otherwise
● Electronic key system: activated
the system cannot be activated.
Press N on the radio remote control
45 seconds after locking the
Unlocking the vehicle disables the
twice within 5 seconds.
vehicle by pressing with a finger
mechanical anti-theft locking system.
or thumb on one of the front door
This is not possible with the central
handles at the markings.
locking button.
Anti-theft alarm system
If a door, the tailgate or the bonnet is
The anti-theft alarm system is
not properly closed, the vehicle is not
combined with the anti-theft locking
locked. However, the anti-theft alarm
system.
is self-activated after 45 seconds.
It monitors:
Note
● doors, tailgate, bonnet
Changes to the vehicle interior such
● passenger compartment
as the use of seat covers and open
including adjoining load
windows, could impair the function
compartment
of passenger compartment
monitoring.
36
Keys, doors and windows
Activation without monitoring of
3. Close doors.
Electronic key system: Unlocking the
passenger compartment and
4. Activate the anti-theft alarm
vehicle by pressing on one of the front
door handles at the markings
vehicle inclination
system.
deactivates the anti-theft alarm
Indication
system.
The electronic key must be outside
LED in the
o
button flashes if the
the vehicle, within a range of approx.
anti-theft alarm system is activated.
1 m of the relevant door side.
The hazard warning lights illuminates
for a few seconds.
The system is not deactivated by
unlocking the driver's door with the
Deactivation
key or with the central locking button
in the passenger compartment.
Radio remote control: Unlocking the
vehicle by pressing c deactivates the
The hazard warning lights flash for a
anti-theft alarm system.
few seconds.
Alarm
Switch off the monitoring of
passenger compartment and vehicle
When triggered, the alarm siren
inclination when animals are being
sounds and the hazard warning lights
left in the vehicle, because of high
flash simultaneously. The number
volume ultrasonic signals or
and duration of alarm signals are
movements triggering the alarm. Also
stipulated by legislation.
switch off when the vehicle is on a
The anti-theft alarm system can be
ferry or train.
deactivated by pressing c, by
1. Close tailgate, bonnet, windows.
pressing on one of the front door
handles at the markings with
2. Switch off ignition and press
o
electronic key system or switching on
within 10 seconds until the LED in
the ignition.
the button
o
illuminates.
Keys, doors and windows
37
A triggered alarm, which has not been
The immobiliser is activated
Exterior mirrors
interrupted by the driver, will be
automatically after the key has been
indicated by the LED in the button
removed from the ignition switch.
Convex shape
o. The LED will flash quickly the
Note
next time the vehicle is unlocked with
The shape of the mirror makes
Radio Frequency Identification
the radio remote control.
objects appear smaller, which will
(RFID) tags may cause interference
affect the ability to estimate
If the battery has been reconnected
with the key. Do not have it placed
distances.
(e.g. after maintenance work), wait for
near the key when starting the
10 minutes to restart the engine.
vehicle.
Side blind spot alert 3 185.
Fault
Note
Electric adjustment
The immobiliser does not lock the
If the LED in the button
o
doors. Always lock the vehicle after
illuminates permanently when
leaving it 3 24.
switching on the ignition, seek the
Switch on the anti-theft alarm
assistance of a workshop.
system 3 35.
Locking the vehicle without
Emergency operation of electronic
activation of the anti-theft alarm
key 3 136.
Lock the vehicle by locking the
driver's door with the integral key.
Immobiliser
The system is part of the ignition
switch and checks whether the
Select the relevant exterior mirror by
vehicle is allowed to be started with
pushing the mirror button to the left or
the key being used.
right.
Then swivel the control to adjust the
mirror.
38
Keys, doors and windows
Electric folding
To enable or disable automatic
Folding mirrors
folding of the exterior mirrors, consult
a workshop.
Heated mirrors
For pedestrian safety, the exterior
Pull mirror button rearwards. Both
mirrors will swing out of their normal
exterior mirrors will fold.
mounting position if they are struck
Pull mirror button rearwards again to
with sufficient force. Reposition the
return both exterior mirrors to their
mirror by applying slight pressure to
original position.
Operated by pressing b.
the mirror housing.
If an electrically folded mirror is
Heating works with the engine
manually extended, pulling mirror
running and is switched off
button rearwards will only electrically
automatically after a short time.
extend the other mirror.
Heated rear window 3 41.
Automatic folding
When the vehicle is unlocked, the
mirrors swing to their normal
mounting position. When the vehicle
is locked, the mirrors are folded down.
Keys, doors and windows
39
Interior mirrors
Automatic anti-dazzle
Windows
Manual anti-dazzle
Windscreen
Windscreen stickers
Dazzle from following vehicles is
automatically reduced, when driving
To reduce dazzle, adjust the lever on
in the dark.
the underside of the mirror housing.
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Keep the sensor free from
dust, dirt and ice. Otherwise the
detection zone of the rain sensor /
light sensor and the view area of the
camera in the mirror housing could be
restricted.
Sensors 3 81, 3 114
40
Keys, doors and windows
Windscreen replacement
function enabled. To stop movement,
Keep a close watch on the
operate the switch once more in the
windows when closing them.
same direction.
Caution
Ensure that nothing becomes
trapped in them as they move.
Safety function
If the vehicle has a front-looking
camera sensor for the driver
Switch on ignition to operate power
If the window glass encounters
assistance systems, it is very
windows.
resistance above the middle of the
important that any windscreen
window during automatic closing, it is
replacement is performed
immediately stopped and opened
accurately according to Opel
again.
specifications. Otherwise, these
systems may not work properly
Override safety function
and there is a risk of unexpected
In the event of closing difficulties due
behaviour and / or messages from
to frost or the like, switch on the
these systems.
ignition, then pull the switch to the first
detent and hold. The window moves
Power windows
up without safety function enabled.
To stop movement, release the
9 Warning
switch.
Take care when operating the
Operate the switch for the respective
power windows. Risk of injury,
window by pushing to open or pulling
particularly to children.
to close.
If there are children on the rear
Pushing or pulling gently to the first
seats, switch on the child safety
detent: window moves up or down as
system for the power windows.
long as the switch is operated.
Pushing or pulling firmly to the second
detent then releasing: window moves
up or down automatically with safety
Keys, doors and windows
41
Child safety system for rear
Initialising the power windows
windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message is displayed in the
Driver Information Centre.
Vehicle messages 3 107.
Activate the window electronics as
follows:
1. Close doors.
2. Switch on ignition.
Press and hold e to close windows.
3. Pull switch until the window is
Release button to stop window
closed and keep pulling for
movement.
additional 2 seconds.
Press V to deactivate rear door
power windows; the LED illuminates.
If the windows are fully closed, the
4. Push switch until the window is
To activate, press V again.
hazard warning lights will flash twice.
completely open and keep
pushing for additional 2 seconds.
Overload
Operating windows from outside
5. Repeat for each window.
The windows can be operated
If the windows are repeatedly
remotely from outside the vehicle.
operated within short intervals, the
Heated rear window
window operation is disabled for
some time.
Operated by pressing b together with
heated exterior mirrors.
Heating works with the engine
running and is switched off
automatically after a short time.
42
Keys, doors and windows
Depending on climate control system,
Vehicles with electronic climate
Vehicles with electronic climate
b is located at a different position.
control system
control system
Vehicles with heating and
ventilation system or air
conditioning system
Vehicles with air conditioning
Heated windscreen
system
Operated by pressing ,. LED in
button illuminates.
Heating works with the engine
running and is switched off
automatically after a short time.
Depending on climate control
system, , is located at a different
position.
Keys, doors and windows
43
Press N firmly to the second detent
Sun visors
Roof
and then release at the front: the
The sun visors can be folded down or
sunblind is closed as long as the
swivelled to the side to prevent

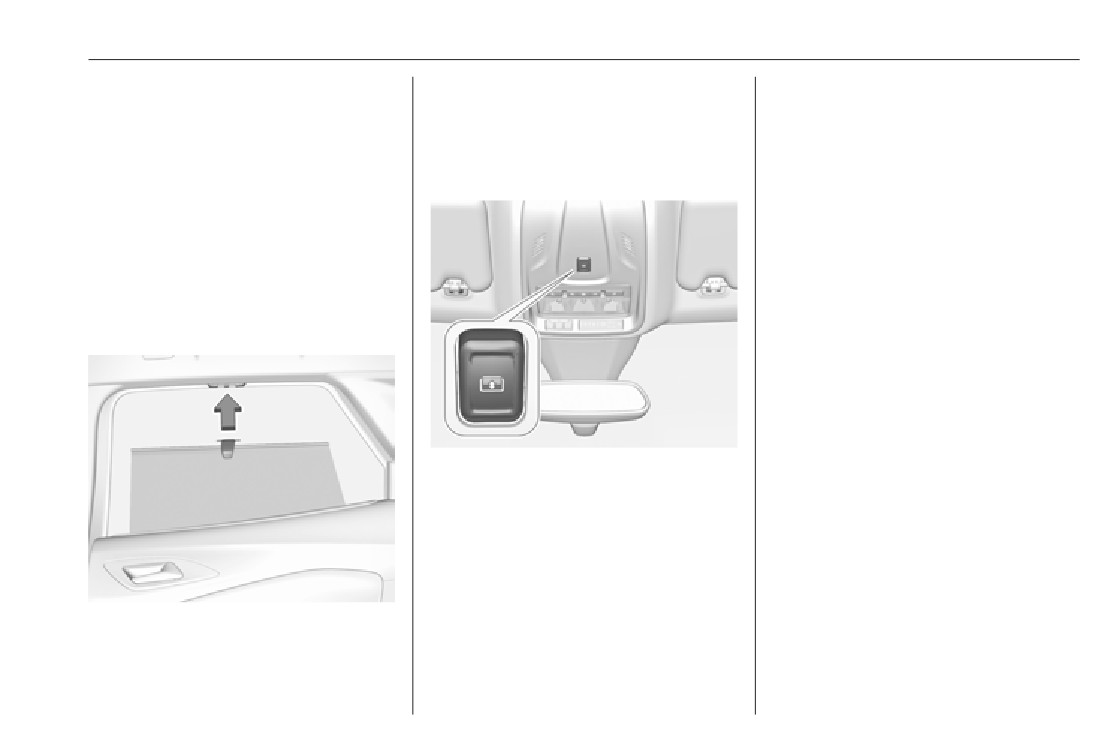

Glass panel
switch is operated.
dazzling.
Sunblind
If the sun visors have integral mirrors,
Safety function
the mirror covers should be closed
If the sunblind encounters resistance
when driving.
during automatic closing, it is
A ticket holder is located on the
immediately stopped and opened
backside of the sun visor.
again.
Function standby
Roller blinds
In ignition switch position 1 the
sunblind is operational 3 135.
Initialising after a power failure
After a power failure, it may only be
possible to operate the sunblind to a
Press N gently to the first detent at
limited extent. Initialise the system as
the rear: the sunblind is opened as
follows:
long as the switch is operated.
1. Turn key in ignition switch to
Press N firmly to the second detent
position 1.
and then release at the rear: the
sunblind is opened as long as the
2. Press N twice gently to the first
switch is operated.
detent at the rear, the sunblind
To reduce sunlight at the second row
opens slightly.
Press N gently to the first detent at
seats, pull the blind upwards using
the front: the sunblind is closed as
3. Immediately press N twice gently
the grip and engage it at the top of the
long as the switch is operated.
to the first detent at the front, the
door frame.
sunblind closes slightly.
44
Keys, doors and windows
After step 3 the sunblind is in
initialising mode without safety
function.
4. Press N gently to the first detent
at the rear until the sunblind is
completely opened.
5. Press N gently to the first detent
at the front until the sunblind is
completely closed.
After this procedure, the sunblind is
initialised with safety function
activated.
When N is pressed firmly to the
second detent during initialising, the
procedure is cancelled.
Seats, restraints
45
Adjustment
Seats, restraints
Head restraints
Head restraints on front seats
Position
Head restraints
45
9 Warning
Front seats
46
Seat position
46
Only drive with the head restraint
Manual seat adjustment
47
set to the proper position.
Power seat adjustment
49
Armrest
51
Heating
51
Ventilating
51
Rear seats
52
Armrest
52
Heating
52
Seat belts
52
Height adjustment
Three-point seat belt
53
Pull the head restraint upwards or
Airbag system
55
press the catch to release and push
Front airbag system
59
the head restraint downwards.
Side airbag system
59
Curtain airbag system
60
Airbag deactivation
60
The upper edge of the head restraint
Child restraints
62
should be at upper head level. If this
Child restraint systems
62
is not possible for extremely tall
Child restraint installation
people, set to highest position, and
locations
65
set to lowest position for small people.
46
Seats, restraints
Head restraints on rear seats
Front seats
Seat position
9 Warning
Only drive with the seat correctly
adjusted.
9 Warning
Never adjust seats while driving as
Sit with buttocks as far back
they could move uncontrollably.
against the backrest as possible.
Height adjustment
Adjust the distance between the
Pull the head restraint upwards or
seat and the pedals so that legs
9 Danger
press the catch to release and push
are slightly angled when pressing
the head restraint downwards.
the pedals. Slide the front
Do not sit closer than 25 cm to the
passenger seat as far back as
steering wheel, to permit safe
Removal
possible.
airbag deployment.
Press catch, pull the respective head
Set seat height high enough to
restraint upwards and remove.
have a clear field of vision on all
9 Warning
sides and of all display
instruments. There should be at
Never store any objects under the
least one hand of clearance
seats.
between head and the roof
frame. Your thighs should rest
lightly on the seat without
pressing into it.















Content      ..      1      2      3      ..
