Opel Grandland X (2020 year). Manual in english - page 1





6
In brief
Vehicle unlocking
Tailgate
In brief
Initial drive information
Press c to unlock the vehicle. Open
After unlocking, press the tailgate
the doors by pulling the handles.
button and open the tailgate.
Press
P
to unlock the tailgate only.
Radio remote control 3 22.
Central locking system 3 24.
Electronic key system 3 23.
Load compartment 3 30.
In brief
7
Seat adjustment
Backrests inclination
Seat height
Longitudinal adjustment
Turn handwheel. Do not lean on
Lever pumping motion
backrest when adjusting.
up
: seat higher
Pull handle, slide seat, release
Seat position 3 46.
down : seat lower
handle. Try to move the seat back and
Manual seat adjustment 3 47.
forth to ensure that the seat is locked
Seat position 3 46.
in place.
Manual seat adjustment 3 47.
Seat position 3 46.
Manual seat adjustment 3 47.
8
In brief
Seat inclination
Head restraint adjustment
Seat belt
Press switch
Press release button, adjust height,
Pull out the seat belt and fasten in
top
: front end higher
engage.
seat belt buckle. The seat belt must
bottom : front end lower
not be twisted and must fit close
Head restraints 3 45.
against the body. The backrest must
Seat position 3 46.
not be tilted back too far (maximum
Manual seat adjustment 3 47.
approx. 25°).
To unfasten seat belt, press red
button on seat belt buckle.
Seat position 3 46.
Seat belts 3 52.
Airbag system 3 55.
In brief
9
Mirror adjustment
Exterior mirrors
Steering wheel adjustment
Interior mirror
Select the relevant exterior mirror by
Unlock lever, adjust steering wheel,
pushing the mirror button to the left or
then engage lever and ensure it is
To adjust the mirror, move the mirror
right. Adjust respective mirror by the
fully locked. Do not adjust steering
housing in the desired direction.
four-way control.
wheel unless vehicle is stationary and
Manual anti-dazzle interior mirror
Convex mirrors 3 37.
steering wheel lock has been
3 39.
released.
Electric adjustment 3 37.
Automatic anti-dazzle interior mirror
Seat position 3 46.
Folding mirrors 3 38.
3 39.
Ignition positions 3 135.
Heated mirrors 3 38.
10
In brief

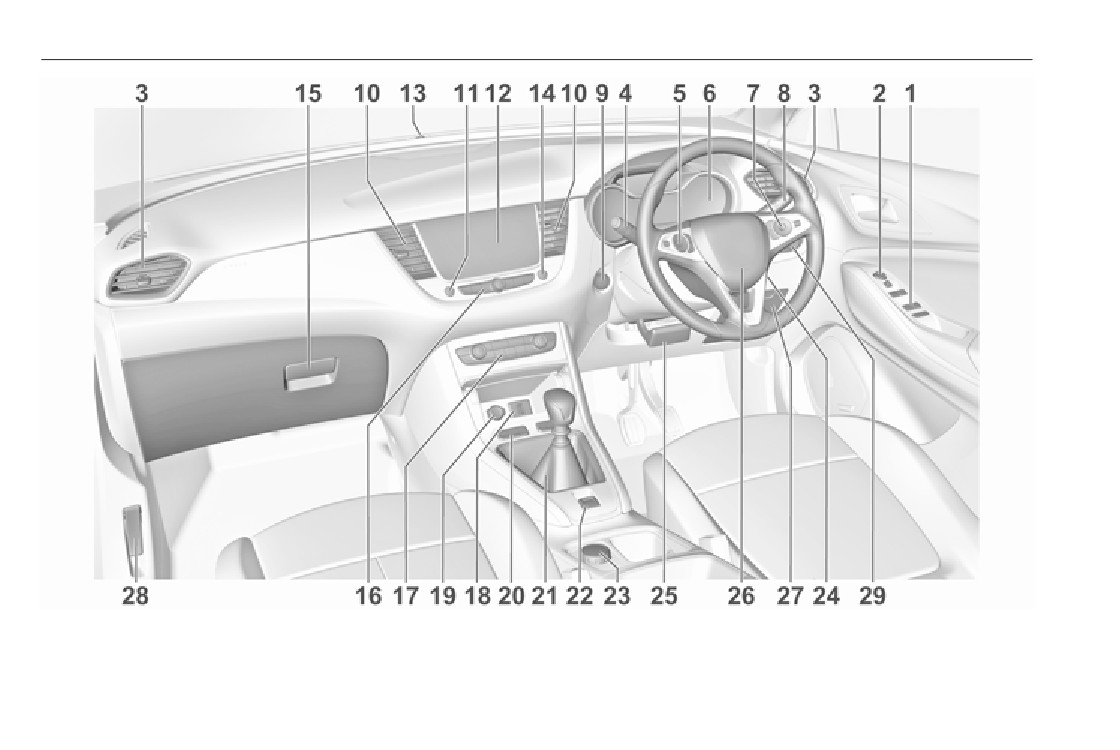

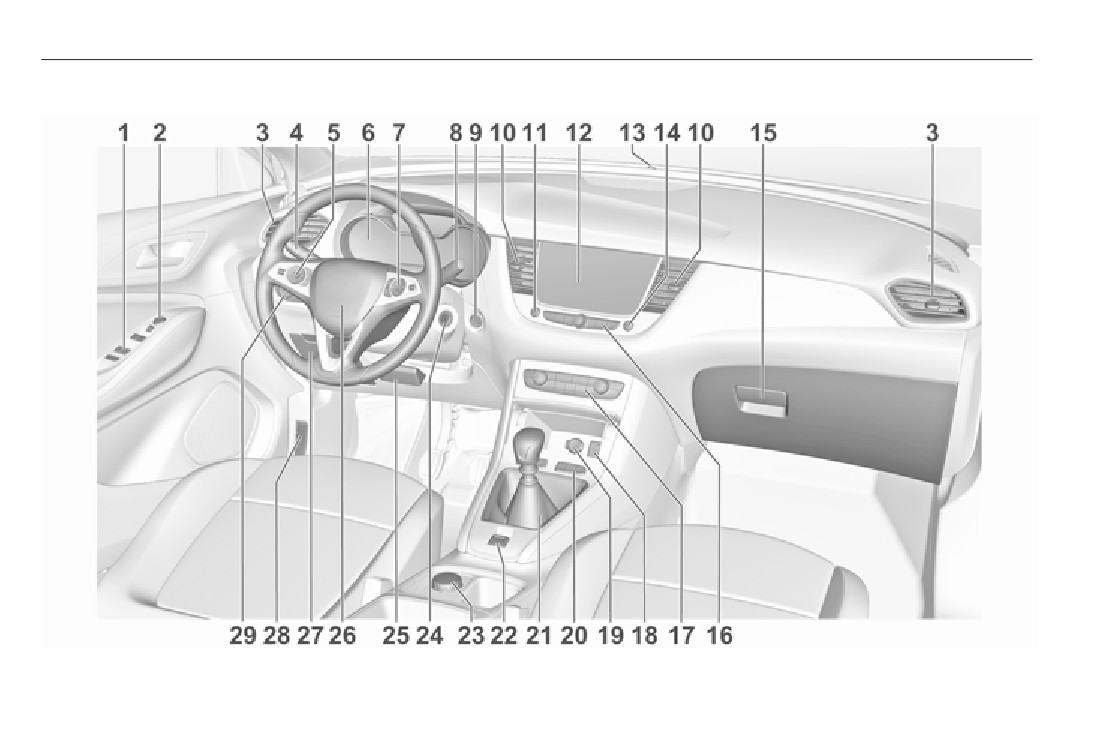

Instrument panel overview
In brief
11
1
Power windows
40
13
Light sensor
114
26
Horn
81
2
Exterior mirrors
37
27
Storage
69
Sun sensor
127
3
Side air vents
132
28
Bonnet release lever
214
14
Central locking system
24
4
Turn lights, headlight
29
Light switch
113
15
Glovebox
69
flash, low / high beam,
16
Controls for Info Display
Headlight range
high beam assist
118
operation
103
adjustment
115
Exit lighting
122
17
Climate control system
124
Front / rear fog lights
119
Parking lights
120
18
USB charging port
85
Instrument illumination
120
19
Power outlet
85
Buttons for Driver
Information Centre
101
20
Parking assist, advanced
parking assist
177
5
Cruise control
160
Lane departure warning
191
Speed limiter
163
Eco button for stop-start
Heated steering wheel
81
system
139
6
Instruments
90
Electronic Stability Control
Driver Information Centre
101
and Traction Control
157
7
Infotainment controls
Sport mode
159
8
Windscreen wiper and
21
Manual transmission
151
washer, rear wiper and
washer
81
Automatic transmission
148
9
Power button
136
22
Electric parking brake
154
10
Air vents
132
23
Selective ride control
158
11
Hazard warning flashers
118
24
Ignition switch
135
12
Info Display
103
25
Steering wheel adjustment . . 80
12
In brief
In brief
13
Exterior lighting
Headlight flash and high beam
Turn lights
AUTO : automatic light control
pull
: headlight flash
up
: right turn light
switches automatically
push : high beam
down : left turn light
between daytime running
High beam 3 114.
Turn lights 3 118.
light and headlight
8
: sidelights
High beam assist 3 115.
Parking lights 3 120.
9
: headlights
Headlight flash 3 114.
LED headlights 3 115.
Automatic light control 3 114.
Front fog lights 3 119.
Rear fog light 3 119.
14
In brief
Hazard warning flashers
Horn
Washer and wiper systems
Windscreen wiper
Operated by pressing ¨.
Press j.
Hazard warning flashers 3 118.
HI
: fast
LO
: slow
INT
: interval wiping
or
AUTO : automatic wiping with rain
sensor
OFF
: off
For single wipe when the wiper is off,
press down to position 1x.
Windscreen wiper 3 81.
In brief
15
Windscreen washer
Rear window wiper
Rear window washer
Pull.
OFF : off
Push.
INT
: intermittent operation
Windscreen washer system 3 81.
Washer fluid is sprayed on the rear
ON
: continuous operation
window and the wiper wipes a few
Washer fluid 3 216.
times.
Wiper blade replacement 3 219.
Rear window wiper / washer 3 83.
16
In brief

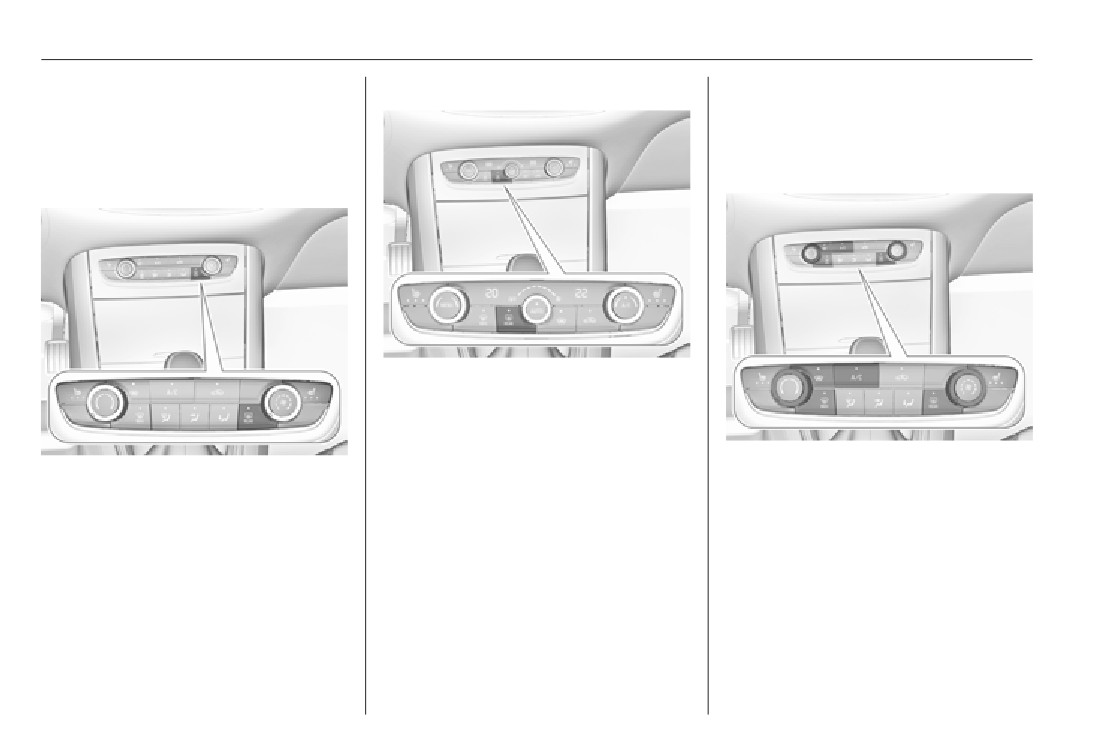

Electronic climate control system
Demisting and defrosting the
Climate control
windows
Heated rear window
Heating and ventilation system, air
Heating and ventilation system, air
conditioning system
conditioning system
The heating is operated by pressing
b.
Heated rear window 3 41.
● press à, the air distribution is
The heating is operated by pressing
Heated exterior mirrors
directed towards the windscreen
b.
Pressing b also activates the heated
● set temperature controller
£
to
exterior mirrors.
warmest level
Heated exterior mirrors 3 38.
● switch on air conditioning A/C, if
required
● set fan speed Z to highest level
● switch on heated rear window b
In brief
17
● switch on heated windscreen ,

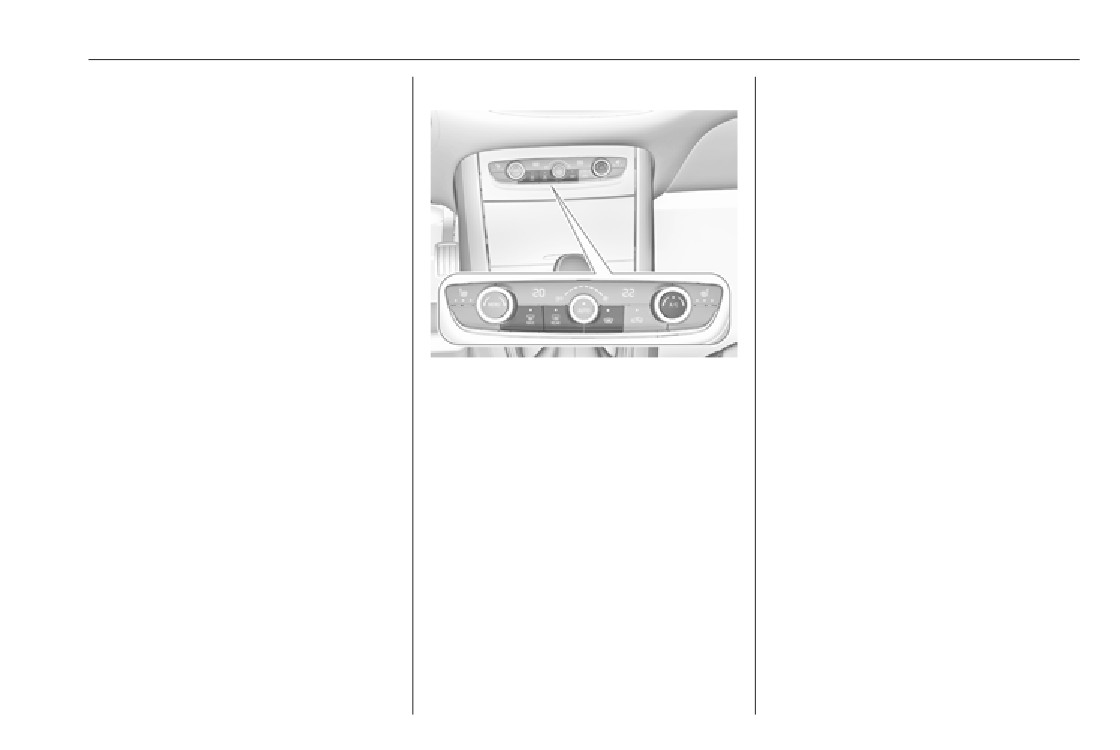

Electronic climate control system
Electronic climate control system
3 127.
● open side air vents as required
and direct them towards the door
windows
Heating and ventilation system
3 123.
Air conditioning system 3 124.
Heated windscreen 3 42.
● press à, the LED in the button
illuminates to indicate activation
● temperature and air distribution
are set automatically and the fan
runs at high speed
● switch on air conditioning by
pressing A/C, if required
● switch on heated rear window b
● switch on heated windscreen ,
● to return to previous mode, press
à again
● to return to automatic mode,
press AUTO
18
In brief

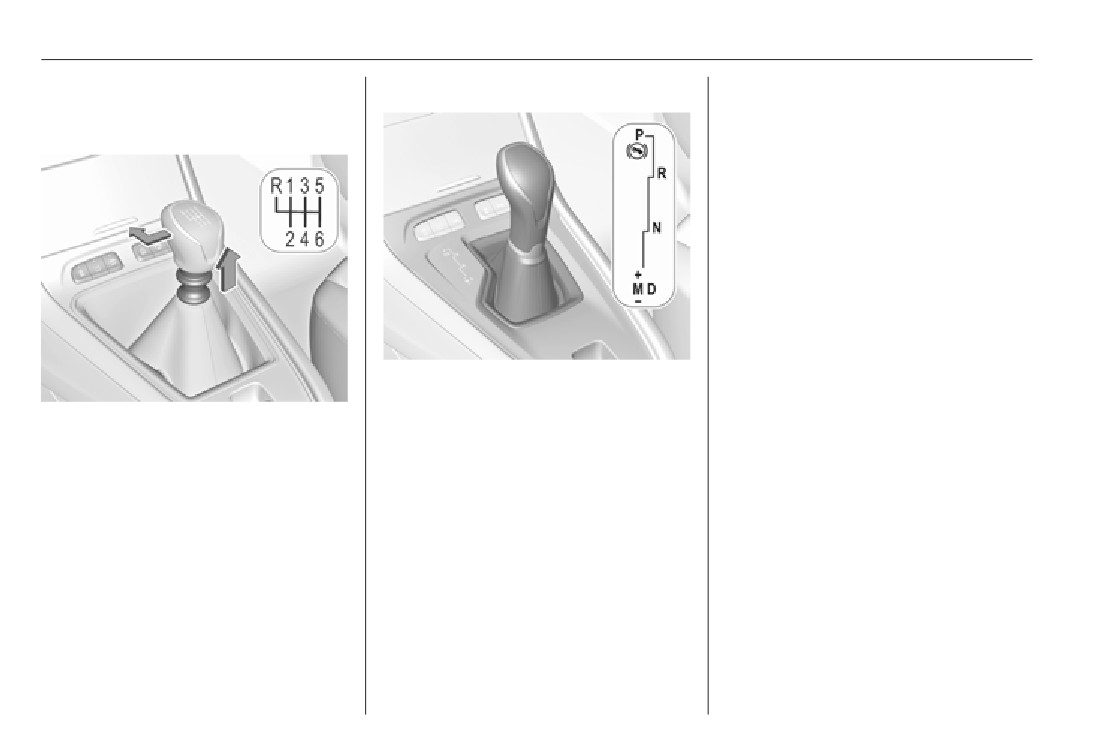

Transmission
Automatic transmission
Starting off
Manual transmission
Check before starting off
tyre pressure 3 232 and
condition 3 267
engine oil level and fluid levels
3 215
all windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational
proper position of mirrors 3 37,
seats 3 46 and seat belts
P : park position
3 53
R : reverse
brake function at low speed,
To engage reverse on 6-speed
N : neutral mode
particularly if the brakes are wet
transmission, depress the clutch
D : automatic mode
pedal, pull the ring under the selector
M : manual mode
lever and move the selector lever
< : upshift
quite to the left and front.
] : downshift
Manual transmission 3 151.
Automatic transmission 3 148.
In brief
19

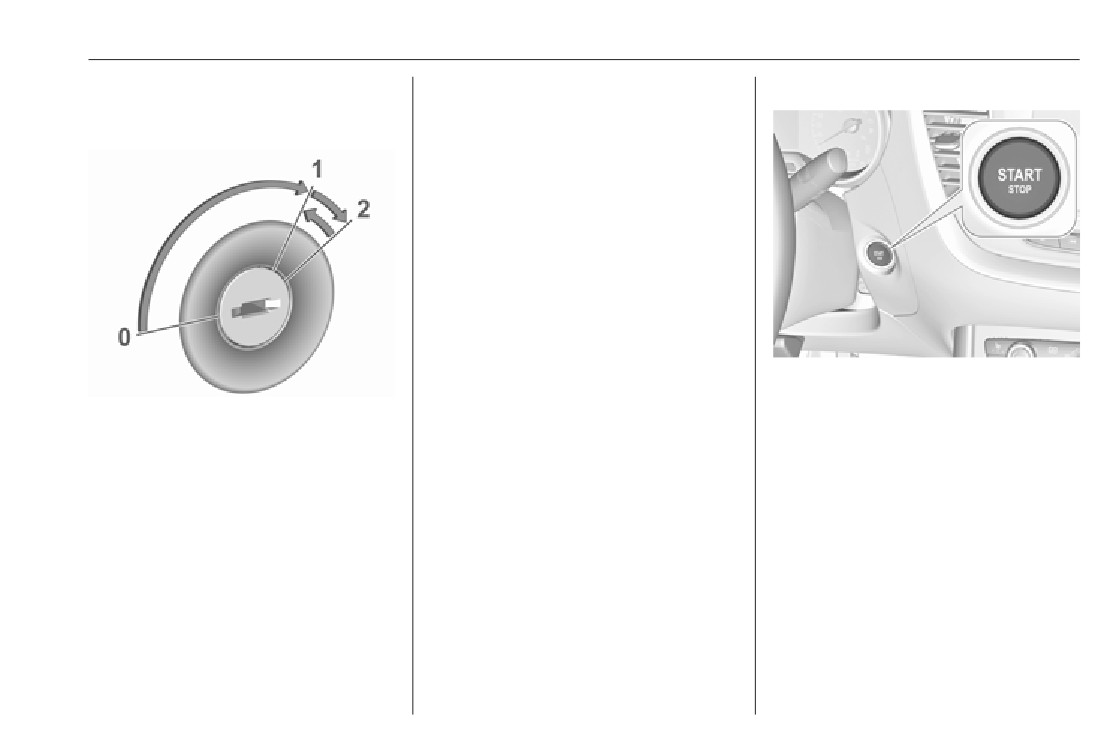

Starting the engine
● Diesel engine: wait until control
Start power button
indicator ! for preheating
Ignition switch
extinguishes
● turn key to position 2 and release
after engine has been started
Starting the engine 3 137.
● manual transmission: operate
clutch and brake pedal
● turn key to position 1
automatic transmission: operate
● move the steering wheel slightly
brake pedal and move selector
to release the steering wheel lock
lever to P or N
● manual transmission: operate
● do not operate accelerator pedal
clutch and brake pedal
● press Start/Stop button
automatic transmission: operate
● release button after starting
brake pedal and move selector
procedure begins
lever to P or N
● do not operate accelerator pedal
20
In brief
Stop-start system
Parking
button. Turn the steering wheel
until the steering wheel lock is
9 Warning
felt to engage.
Do not park the vehicle on an
● Lock the vehicle with e on the
easily ignitable surface. The
radio remote control.
high temperature of the
Activate the anti-theft alarm
exhaust system could ignite the
system 3 35.
If the vehicle is at a low speed or at a
surface.
● The engine cooling fans may run
standstill and certain conditions are
Always apply the parking
after the engine has been
fulfilled, an Autostop is activated.
brake.
switched off 3 214.
An Autostop is indicated by control
If the vehicle is on a level
indicator D.
surface or uphill slope, engage
Caution
Manual transmission: to restart the
first gear or set the selector
engine, depress the clutch pedal
lever to position P. On an uphill
After running at high engine
again. Control indicator D
slope, turn the front wheels
speeds or with high engine loads,
extinguishes.
away from the kerb.
operate the engine briefly at a low
If the vehicle is on a downhill
load or run in neutral for
Automatic transmission: to restart the
slope, engage reverse gear or
approx. 30 seconds before
engine, release the brake pedal.
set the selector lever to position
switching off, in order to protect
Control indicator D extinguishes.
P. Turn the front wheels
the turbocharger.
Stop-start system 3 139.
towards the kerb.
Keys, locks 3 21.
Close the windows.
Laying-up the vehicle for a long
Switch off the engine.
period of time 3 213.
Remove the ignition key from
the ignition switch or switch off
ignition on vehicles with power
Keys, doors and windows
21
Power windows
40
Keys, doors and
Keys, locks
Heated rear window
41
windows
Heated windscreen
42

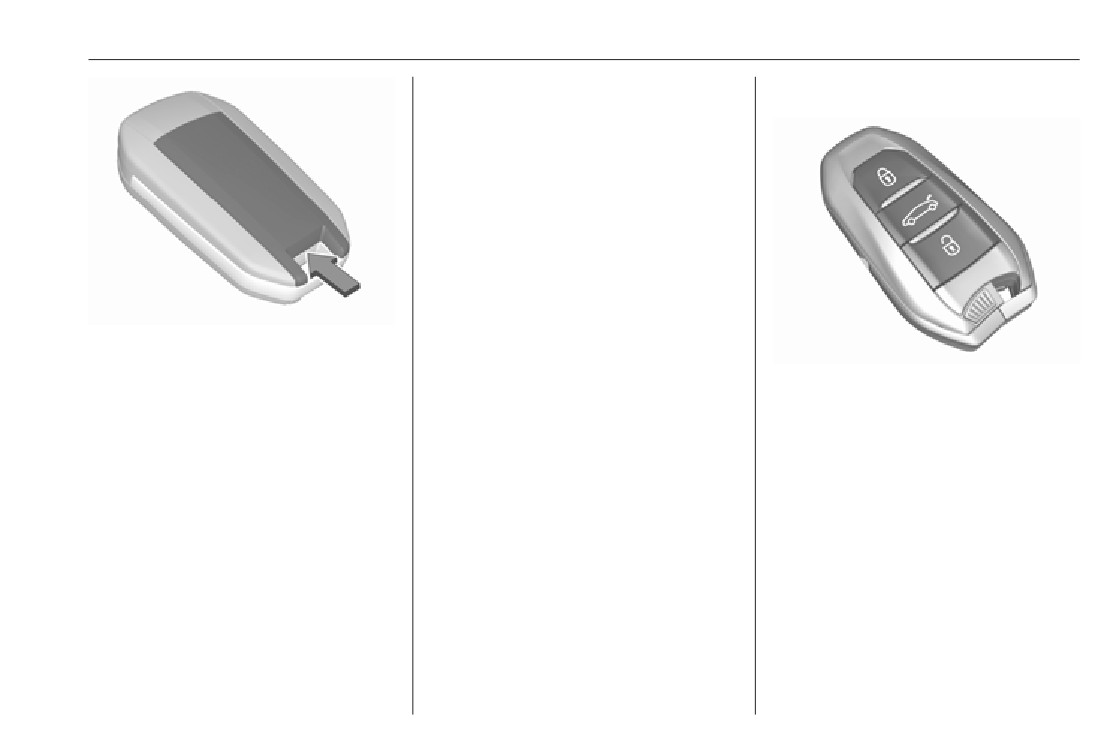

Keys
Sun visors
43
Roller blinds
43
Caution
Roof
43
Keys, locks
21
Glass panel
43
Do not attach heavy or bulky items
Keys
21
to the ignition key.

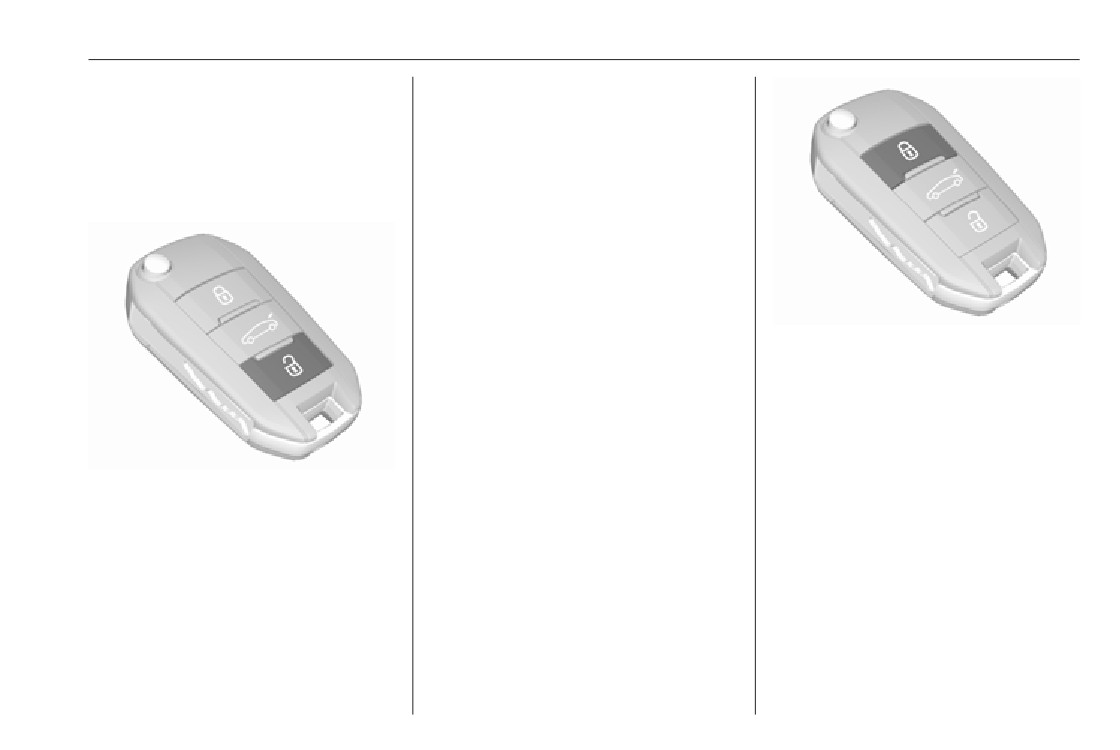

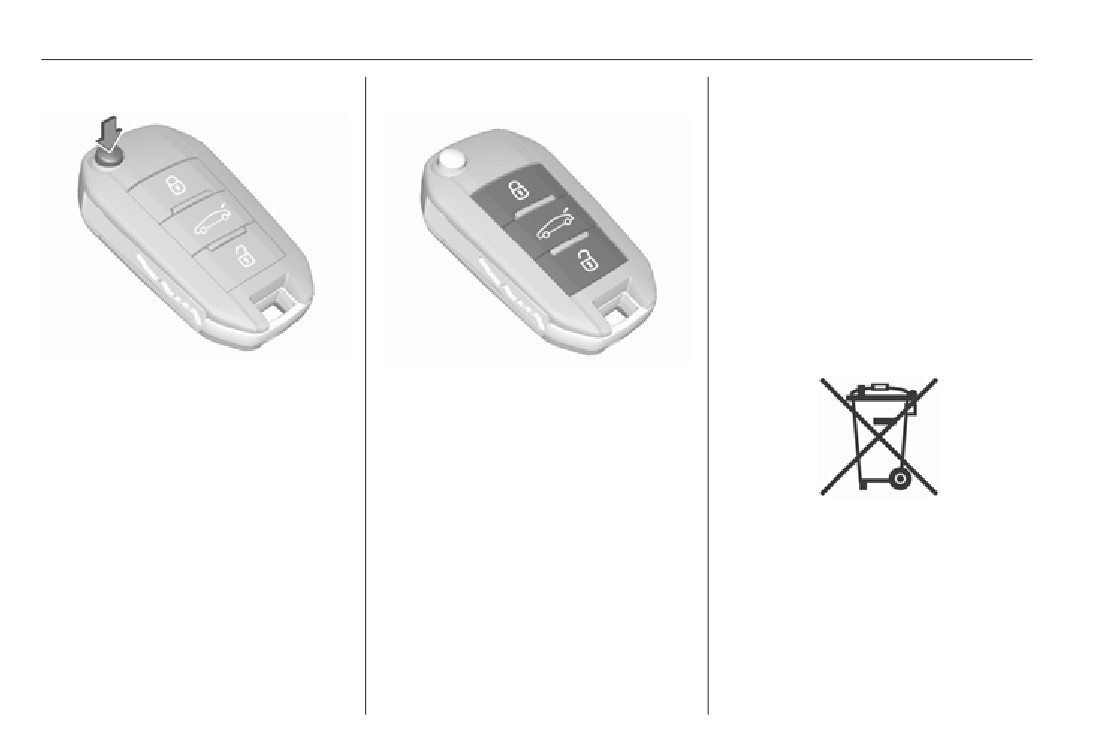

Radio remote control
22
Electronic key system
23
Central locking system
24
Replacement keys
Automatic locking
28
The key number is specified on a
Child locks
29
detachable tag.
Doors
30
The key number must be quoted
Load compartment
30
when ordering replacement keys as it
Vehicle security
35
is a component of the immobiliser
Anti-theft locking system
35
system.
Anti-theft alarm system
35
Locks 3 247.
Immobiliser
37
Central locking 3 24.
Exterior mirrors
37
Convex shape
37
Starting the engine 3 137.
Electric adjustment
37
Radio remote control 3 22.
Folding mirrors
38
Electronic key 3 23.
Heated mirrors
38
The code number of the adapter for
Interior mirrors
39
the locking wheel nuts is specified on
Manual anti-dazzle
39
a card. It must be quoted when
Automatic anti-dazzle
39
ordering a replacement adapter.
Windows
39
Wheel changing 3 239.
Windscreen
39
22
Keys, doors and windows
Key with foldaway key section
The remote control has a range of up
Radio remote control
to 100 m, but may also be much less
due to external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.
Press button to extend. To fold the
Enables operation of the following
key, first press the button.
functions via the use of the remote
control buttons:
● central locking system 3 24
● anti-theft locking system 3 35
● anti-theft alarm system 3 35
Batteries do not belong in household
● tailgate unlocking and opening
waste. They must be disposed of at
● power windows 3 40
an appropriate recycling collection
point.
● mirrors folding 3 38
Keys, doors and windows
23
Fault
Electronic key system
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.
● Electronic key is out of reception
range.
● The battery voltage is too low.
● Overload of the central locking
system by operating at frequent
1. Remove the back cover from the
intervals, the power supply is
remote control.
interrupted for a short time.
Enables a keyless operation of the
2. Extract the flat battery from its
● Interference from higher-power
following functions:
location.
radio waves from other sources.
● central locking system 3 24
3. Replace battery with a battery of
Manual unlocking 3 24.
the same type. Pay attention to
● power tailgate 3 30
the installation position.
● ignition switching on and starting
4. Clip the back cover in place.
the engine 3 137
The electronic key simply needs to be
on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
remote control 3 22.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
24
Keys, doors and windows
Note
● The battery voltage is too low.
To save battery power, the keyless
● Overload of the central locking
functions are set to stand-by after 21
system by operating at frequent
days of non-use. To reactivate the
intervals, the power supply is
functions, press a button on the
interrupted for a short time.
electronic key.
● Interference from higher-power

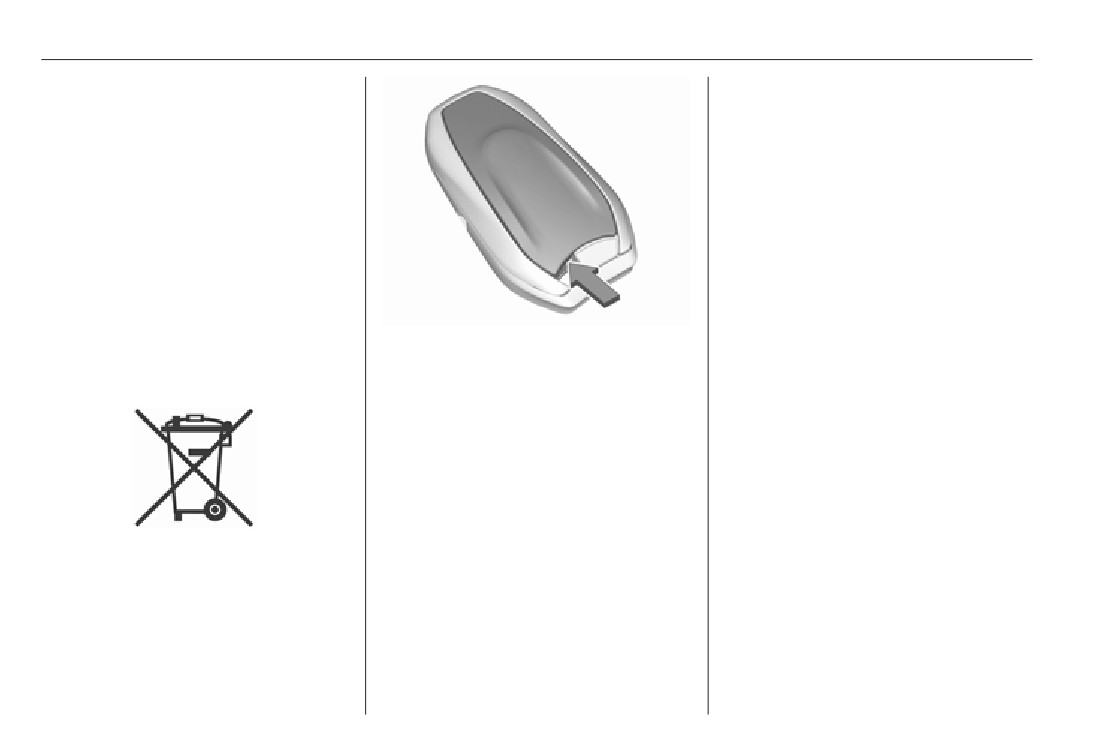

Replacing battery in electronic
radio waves from other sources.
key
To rectify the cause of the fault,
change the position of the electronic
Replace the battery as soon as the
key.
system no longer operates properly
or the range is reduced. The need for
Manual unlocking 3 24.
battery replacement is indicated by a
1. Remove the cover.
message in the Driver Information
2. Extract the flat battery from its
Central locking system
Centre 3 107.
location.
Unlocks and locks doors, load
3. Replace battery with a battery of
compartment and fuel filler flap.
the same type. Pay attention to
A pull on an interior door handle
the installation position.
unlocks the respective door. Pulling
4. Clip the cover in place.
the handle once more opens the door.
Note
Fault
In the event of an accident in which
Batteries do not belong in household
If the central locking cannot be
airbags or belt pretensioners are
waste. They must be disposed of at
operated or the engine cannot be
deployed, the vehicle is
an appropriate recycling collection
started, the cause may be one of the
automatically unlocked.
point.
following:
Note
● Fault in electronic key.
A short time after unlocking with the
● Electronic key is out of reception
remote control the doors are locked
range.
automatically if no door has been
Keys, doors and windows
25
opened. A precondition is that the
Unlocking mode can be set in the
setting is activated in the vehicle
vehicle personalisation menu in the
personalisation 3 108.
Info Display. Two settings are
selectable:
Remote control operation
● All doors, load compartment and
Unlocking
fuel filler flap will be unlocked by
pressing O once.
● Only the driver's door and fuel
filler flap will be unlocked by
pressing O once. To unlock all
doors, load compartment and
fuel filler flap, press O twice.
Press N.
Select the relevant setting in the
Vehicle personalisation.
If the vehicle is not closed properly,
the central locking system will not
Vehicle personalisation 3 108.
work.
Unlocking the tailgate
Confirmation
Press
P
longer to unlock the
Operation of the central locking
Press O.
tailgate only.
system is confirmed by the hazard
Unlocking and opening the tailgate
warning flashers. A precondition is
3 30.
that the setting is activated in the
vehicle personalisation 3 108.
Locking
Close doors, load compartment and
fuel filler flap.

















Content      ..      1       2         ..





///////////////////////////////////////
