Opel Zafira (2020 year). Manual in english - page 4





Seats, restraints
71
Zafira Life, Vivaro with third seat row
On front passenger seat
Single seat;
bench seat (outer seat)
bench seat (centre seat)
Weight class
activated airbag
deactivated airbag
Group 0, Group 0+: up to 13 kg
X
U1,2
X
Group I: 9 to 18 kg
UF
U1,2
X
Group II: 15 to 25 kg
UF
U1,2
X
Group III: 22 to 36 kg
UF
U1,2
X
Weight class
On rear seats (row 2 and 3)
Group 0, Group 0+: up to 13 kg
U3,5
Group I: 9 to 18 kg
U3,4,5
Group II: 15 to 25 kg
U3,4,5
Group III: 22 to 36 kg
U3,4,5
U
: universal suitability for forward-facing or rearward-facing child restraint systems in conjunction with three-point seat
belt
UF : universal suitability for forward-facing child restraint systems in conjunction with three-point seat belt
X
: no child restraint system permitted in this weight class
1
: move seat forwards as far as necessary and adjust seat backrest inclination as far as necessary to a vertical position
to ensure that the belt runs forwards from the upper anchorage point
72
Seats, restraints
2
: adjust seat backrest inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle
side
3
: move the respective seat ahead of the child restraint system forwards as far as necessary and adjust its backrest
inclination as far as necessary to a vertical position
4
: adjust the respective headrest as necessary or remove if required
5
: single seats: with a child seat installed on the centre seat, usage of outer seats is not allowed
6
: fixed seat bench; folding seat bench is in process of being approved
Seats, restraints
73
Permissible options for fitting an ISOFIX child restraint system with ISOFIX brackets
Vivaro
On seats in
On front
On seats in the second
On seats in the second
the second
passenger
row6 with passenger bench
row6 with single passenger
row (single
seat
in front
seat in front
seats)
Weight class
Size class
Outer seats centre seat Outer seats centre seat
Group 0: up to 10 kg F
X
X
X
IL3,4
X
X
G
X
X
X
IL3,4
X
IL2
Group 0+: up to
C
X
X
X
IL3,4
X
IL2
13 kg
D
X
X
X
IL3,4
X
IL2
E
X
X
X
IL3,4
X
IL
Group I: 9 to 18 kg C
X
X
X
IL3,4
X
IL2
D
X
X
X
IL3,4
X
IL2
A
X
IUF3,4
X
IUF3,4
X
IUF, IL
B
X
IUF3,4
X
IUF3,4
X
IUF, IL
B1
X
IUF3,4
X
IUF3,4
X
IUF, IL
74
Seats, restraints
On seats in the third row
Weight class
Size class
Fixed rear seat and bench seat
Fixed one-piece bench seat
Group 0: up to 10 kg
F
X
X
G
X
X
Group 0+: up to 13 kg
C
X
X
D
X
X
E
X
X
Group I: 9 to 18 kg
C
X
X
D
X
X
A
IUF, IL4,5
X
B
IUF, IL4,5
X
B1
IUF, IL4,5
X
Seats, restraints
75
Zafira Life
On front passenger
seat
On seats in the second row
1/3 - 2/3 bench
Weight class
Size class
fixed seats, bench seat seats on rails
Single seats on rails5
Group 0: up to 10 kg F
X
X
IL1,2,3
X
G
X
IL1,2
IL1,2,3
X
Group 0+: up to 13 kg C
X
IL2
IL
IL3
D
X
IL2
IL
IL
E
X
IL
IL
IL
Group I: 9 to 18 kg
C
X
IL2
IL
IL3
D
X
IL2
IL
IL
A
X
IUF, IL4
IUF, IL4
IUF, IL4
B
X
IUF, IL4
IUF, IL4
IUF, IL4
B1
X
IUF, IL4
IUF, IL4
IUF, IL4
76
Seats, restraints
On seats in the third row
Fixed rear seat and
Fixed one-piece
1/3 - 2/3 bench seats
Weight class
Size class
bench seat
bench seat
on rails
Single seats on rails5
Group 0: up to 10 kg F
X
X
IL1,2,3
X
G
X
X
IL1,2,3
X
Group 0+: up to 13 kg C
X
X
X
IL3
D
X
X
IL3
IL3
E
X
X
IL3
IL
Group I: 9 to 18 kg
C
X
X
X
IL3
D
X
X
IL3
IL3
A
IUF, IL4,5
X
IUF, IL4
IUF, IL4
B
IUF, IL4,5
X
IUF, IL4
IUF, IL4
B1
IUF, IL4,5
X
IUF, IL4
IUF, IL4
IL
: suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.
The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)
IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class
X
: no ISOFIX child restraint system approved in this weight class
1
: with a child seat installed usage of one or more seats in the same row may not be allowed
2
: installation possible only behind the driver's seat
3
: move the respective front seat ahead of the child restraint system forwards as far as necessary
Seats, restraints
77
4
: adjust the respective headrest as necessary or remove if required
5
: with a child seat installed on the centre seat, usage of outer seats is not allowed
6
: fixed seat bench; folding seat bench is in process of being approved
ISOFIX size class and seat device
A - ISO/F3
: forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg
B - ISO/F2
: forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
B1 - ISO/F2X
: forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
C - ISO/R3
: rear-facing child restraint system for children of maximum size in the weight class up to 18 kg
D - ISO/R2
: rear-facing child restraint system for smaller children in the weight class up to 18 kg
E - ISO/R1
: rear-facing child restraint system for young children in the weight class up to 13 kg
F- ISO/L1
: left lateral facing position child restraint system (carry-cot)
G - ISO/L2
: right lateral facing position child restraint system (carry-cot)
78
Storage
Some versions have a power outlet,
Storage
Storage compartments
AUX input and the switch for the front
passenger airbag deactivation in the
storage compartment.
9 Warning
Storage compartments
78
The glovebox should be closed whilst
Glovebox
78
Do not store heavy or sharp
driving.
Cupholders
78
objects in the storage
Front storage
79
compartments. Otherwise vehicle
Cupholders
Underseat storage
80
occupants could be injured by
objects being thrown around in the
Load compartment
81
Front cupholder
event of hard braking, a sudden
Load compartment cover
81
change in direction or an accident.
Lashing eyes
82
Cargo management system
82
Safety net
84
Glovebox
Additional storage features
86
Folding tray
86
Table
87
Roof rack system
90
Roof rack
90
Loading information
91
Cup holders are located at the sides
of the instrument panel.
To open the glovebox pull the handle.
Storage
79
Rear cupholder
Cupholders for the third row seats can
Front storage
be located in the sides of the load
compartment.
A cupholder for the second row seat
To open the storage compartment
can be located in the storage
press the button and open the cover.
compartment in the footwell.
Fold up the multifunctional table.
Some versions have a glovebox
Multifunctional table 3 87.
cooler in the storage compartment.
80
Storage
Underseat storage
Storage box
To open the storage compartment
There may be a storage box under the
press the button and open the cover.
centre and left bench seat. Lift up the
seat cushion.
Folding tray 3 86.
Depending on version the storage
There may be a storage box under the
box can be removed from the back to
centre bench seat next to the driver
accommodate long objects.
seat. Lift up the seat cushion by
pulling the handle.
Storage
81
● Seat in the second row in the
Load compartment
tilted position: respective seat in
the third row must not be
Depending on version, the load
occupied.
compartment area can be increased
by folding up or removing the seats in
Folding the passenger seat 3 51.
the second and third row.
Folding or removing the rear seats
Single bench seat in the second
3 53.
Vehicle version with seat benches
or third row in the tilted position:
in second and third row
the center seat must not be
Load compartment cover
occupied.
When loading the following has to be
Do not place any objects on the cover.
observed:
● Only store objects on seats of the
third row folded down to the table
position, when the seats in the
second row are also folded down
to the table position.
Seat in the second row folded
down to the table position:
respective seat in the third row
must not be occupied.
● Bench seat in the second or third
Raise the load compartment cover to
row in the tilted position: the outer
remove it.
seat must not be occupied.
To install the load compartment cover
insert it in the retainers on both sides.
82
Storage
1. Release the locking device, lower
Lashing eyes
Cargo management system
the flap and then remove it.
Flap behind the passenger seat
2. Stow the flap behind the driver’s
seat.
Depending on version, a partition
behind the front seats protects the
driver and front passengers against
the risk of load movement.
There may be a flap in the partition
behind the passenger seat which can
be removed to accommodate long
objects.
If the outer passenger seat is folded
and the flap is open, the centre seat
The lashing eyes are designed to
has to stay free.
secure items against slippage, e.g.
Removing the flap
using lashing straps or luggage net.
Turn the locking device upwards.
Lashing eyes may be located on the
Put the hinges of the flap in their
vehicle floor. The number and
housing, lift the flap and close the
location of the lashing eyes may vary
locking device.
depending on the vehicle.
Storage
83

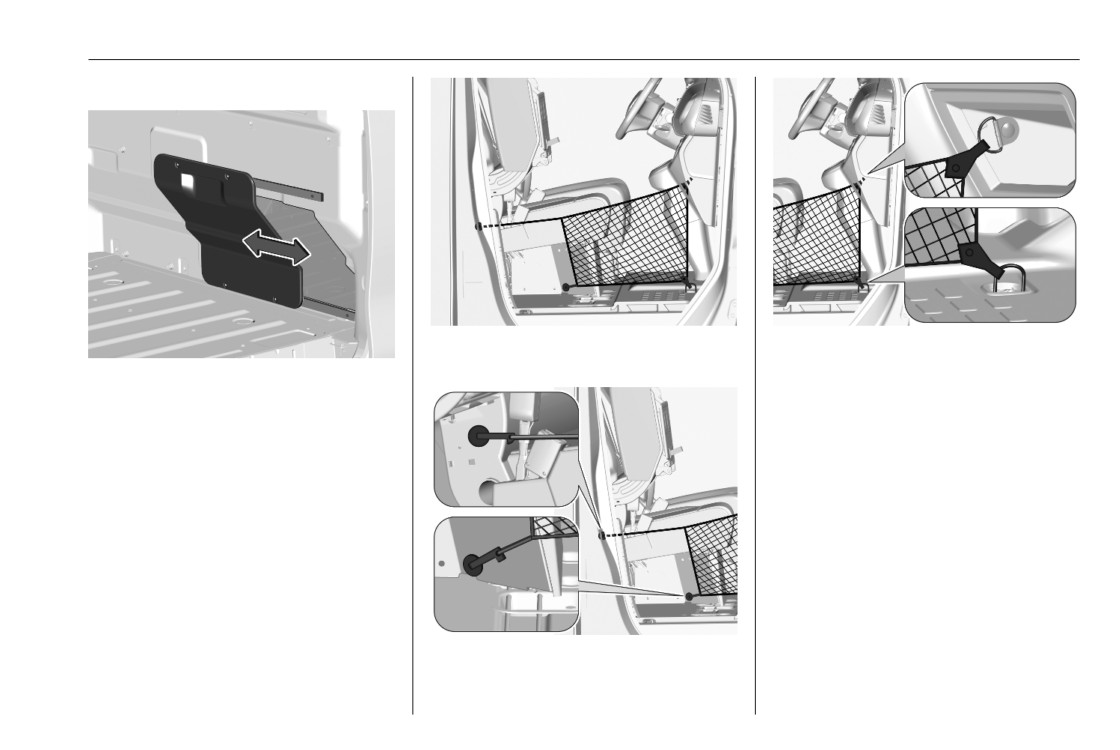

Sliding the flap
2. Fix the net like shown on the
4. Attach the hooks to the lashing
picture.
eyes in the glovebox and on the
Slide the flap to the side. It is kept in
floor.
position by magnets.
After transportation remove the

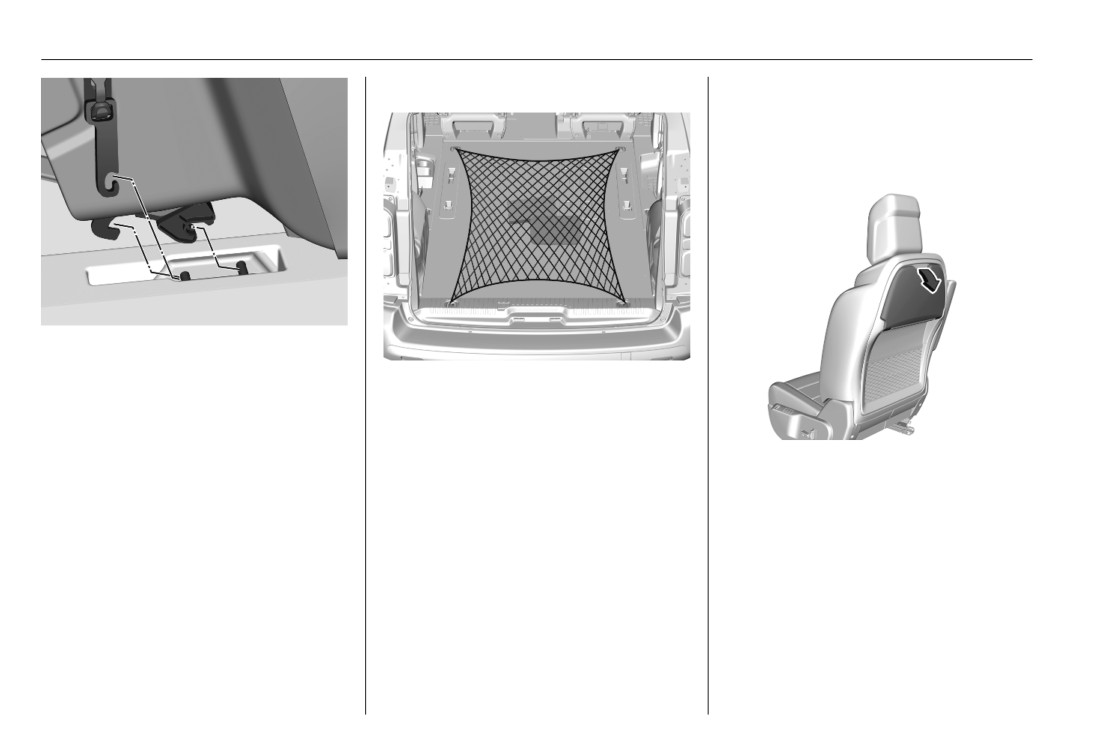

Fitting the protective net
protective net and fold down the seat.
The protective net must be installed
Second row bench seat in the
whenever the bench seat of the front
commercial vehicle
passenger side is folded and the
partition flap is open.
The bench seat in the second row can
1. Lift the seat cushion of the bench
be folded to increase the load
seat of the front passenger side.
compartment.
Seat folding 3 51.
3. Fit the attachment in the opening.
To lock the attachment turn it
clockwise a quarter turn.
84
Storage
Pull the loop upwards to unlock
Safety net
9 Warning
the bench seat.
2. Raise the bench seat taking the
Safety net behind the seats
When seats are being adjusted or
handle and fold the bench seat to
folded, keep hands and feet away
Depending on version, the safety net
the front until it is engaged.
from the moving area. Risk of
can be installed behind the second
injury.
row seats, the third row seats or
Unfolding
Ensure that there are no objects
behind the front seats.
on the anchor points or rails.
To increase the loading capacity the
Never adjust seats while driving as
seats behind the safety net can be
they could move uncontrollably.
folded or removed.
Drive only with engaged seats and
Rear seats 3 53.
backrests.
Seat backrests in front of the safety
net must be raised up.
Folding
Passengers must not be transported
behind the safety net.
1. To restore the bench seat to the
original position pull the loop to
unlock it.
2. Take the handle to fold the bench
seat to the back until it is engaged
in the original position.
Tilt up the head restraints.
1. Tilt the head restraints to the front.
Storage
85
Installation in the roof frame
Insert the fixings in the floor
anchorages on both sides. To lock
the fixings turn them clockwise a
quarter turn. Place them as close
as possible to the end of the rail.
c) Installation with fixed rear seats
Attach the hooks of safety net
straps in the lashing eyes.
1. There are installation openings on
both sides in the roof frame. If
Lashing eyes 3 82.
present, open the covers.
b) Installation with rear seats on
2. Suspend and engage the rod of
rails
net at one side, compress rod and
suspend and engage at the other
Insert the fixings in the floor
side.
anchorages on both sides.
Installation on the floor
1. a) Installation with lashing eyes
86
Storage
Safety net on the floor
Additional storage
features
Folding tray
It is possible to install the safety
net together with folded seats.
Folded seats 3 53.
Attached to the lashing eyes on the
rear floor, it allows objects to be held
2. Tension both straps by pulling at
down.
the loose end.
Lashing eyes 3 82.
Trays may be located on the
backrests of the front seats.
Fold down the tray. The tray contains
a cupholder and a strap to secure
objects.
Do not place any hard or heavy
objects on the tray.
Storage
87

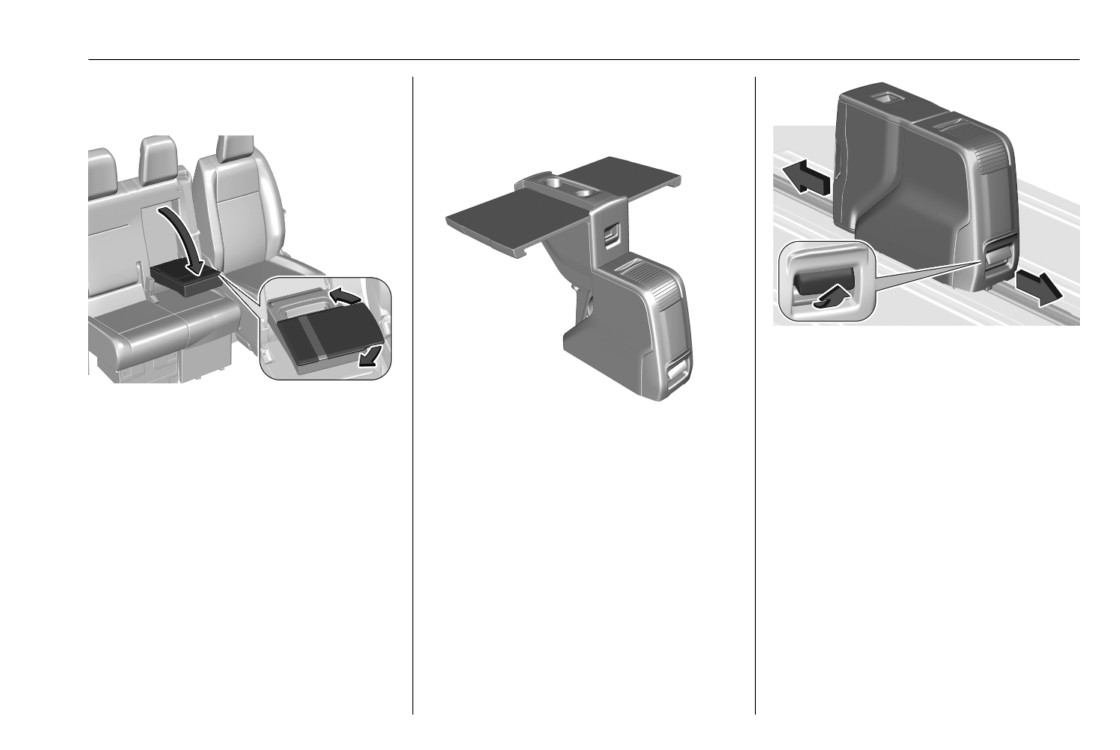

Document tray in the centre
Table
seatback
Multifunctional table
To move the multifunctional table pull
the handle in the front without going
beyond the point of resistance. Slide
The front centre passenger seat
the multifunctional table forwards or
backrest can contain a document
The multifunctional table can be
backwards. Release the handle when
tray.
positioned in second or third row.
it is in the desired position. Make sure
Fold down the tray. The document
that the multifunctional table is
tray contains a storage compartment
securely engaged.
and a swivelling shelf.
Return the swivelling shelf to its
original position before raising the
tray.
88
Storage
Storage compartment in the
Unfolding
multifunctional table
On the two sides there are tables
located. Pull the table fully up and
To unfold the multifunctional table pull
then move it into the horizontal
Press the cover to open the storage
the handle on the top. Pull the rear
position.
compartment.
part to the vertical position until it
engages.
Each table can bear a maximum load
The maximum permitted load is 3 kg.
of 10 kg.
Caution
To avoid damaging the table tops
never unfold the table when it is
between individual seats.
Storage
89

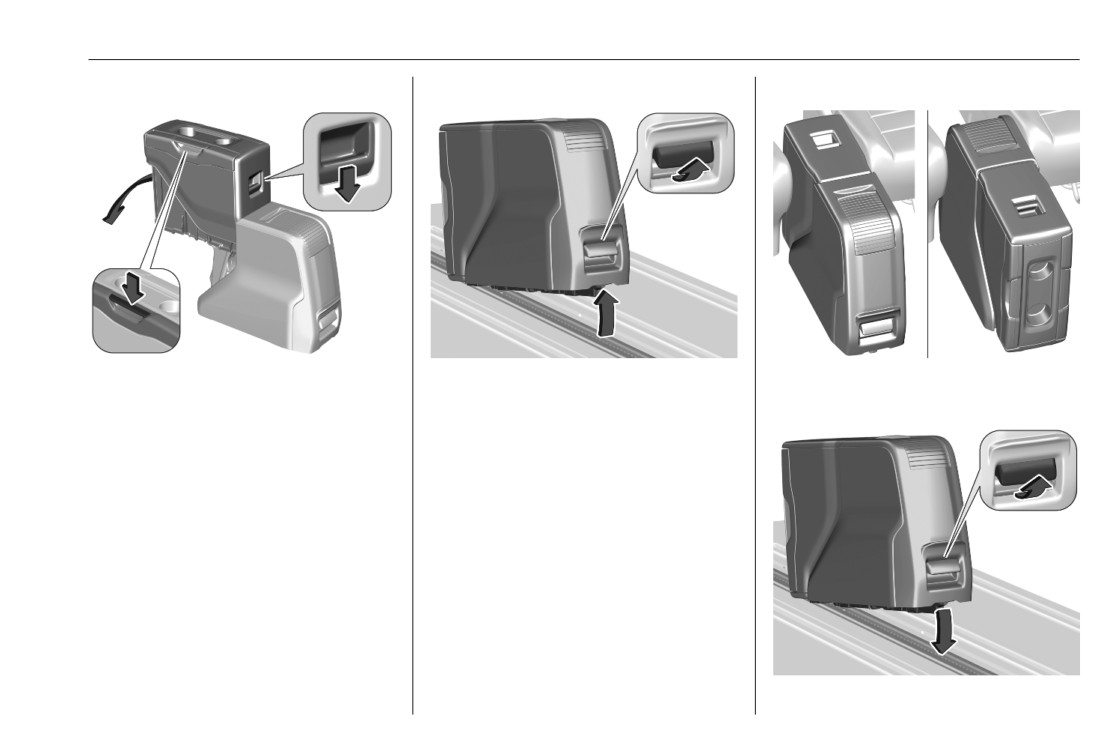

Folding
Removing
Refitting
To staw the table use the handle to
To remove the multifunctional table
The multifunctional table can be fitted
move it back in the folded position.
pull the handle in the front beyond the
in two positions.
point of resistance. Remove the
To fold the multifunctional table pull
multifunctional table.
the handle and move the rear part
downwards until it engages.
90
Storage
The handle in the front has to be in the
The number and location of the
Roof rack system
tightened position. Place the rear of
mounting points may vary depending
the multifunctional table on the rail
on the vehicle:
Roof rack
and tip the front down. Slide the
Vehicles with glass panel
multifunctional table until it engages.
For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
9 Warning
recommended. For further
information contact your workshop.
Never use the multifunctional table
in the unfolded position while the
Follow the installation instructions
vehicle is in motion. Any objects
and remove the roof rack when not in
on the table will turn into
use.
projectiles in the event of a sudden
The roof load is the combined weight
stop or collision.
of the roof rack and the load.
Ensure that the multifunctional
Loading information 3 91.
table is correctly folded before
moving or removing it.
Mounting
Never use the tables as seats or
Mount two roof bars using the
lean on them.
mounting points marked in the
picture.
Check that there is no object
obstructing the rail and preventing
Permissible roof load L1, L2, L3 max.
locking.
100 kg.
Fasten the roof rack according to the
installation instructions delivered with
the roof rack.
Storage
91

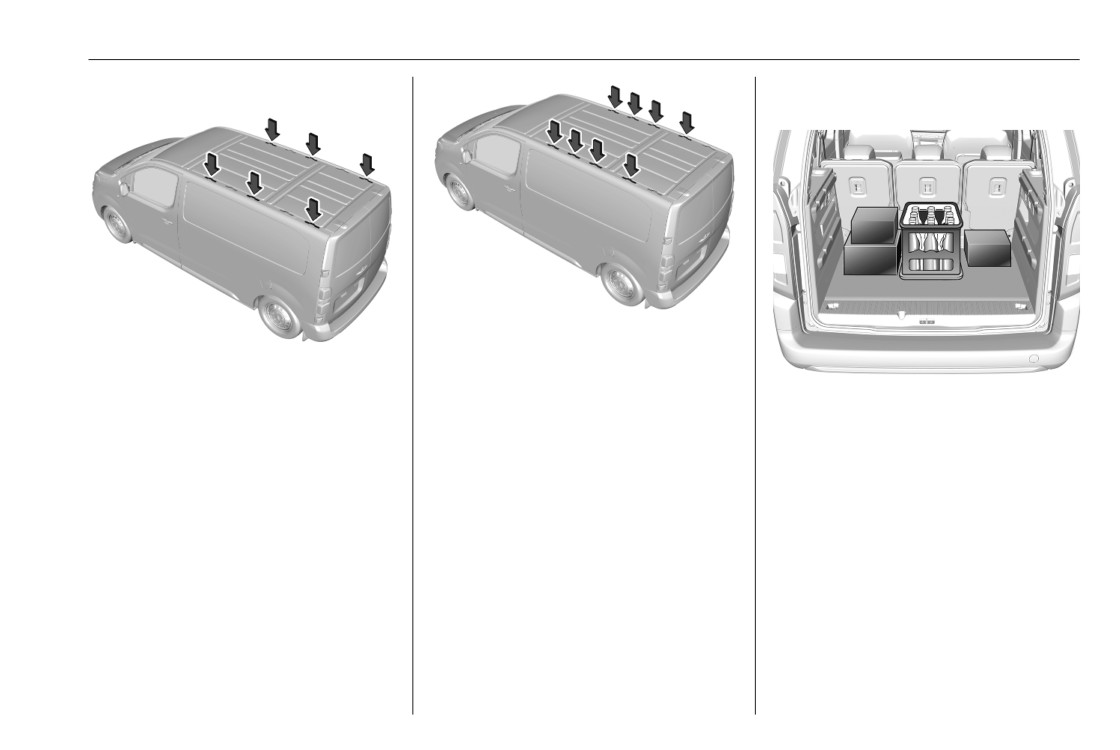

Vehicles without glass panel
Loading information
Mount the roof rack using the
mounting points marked in the
Mount three roof bars using the
picture.
mounting points marked in the
Heavy objects in the load
picture.
Permissible roof load L1 max.
compartment should be placed
140 kg.
against the seat backrests. Make
Permissible roof load L1, L2, L3 max.
sure that the backrests are
150 kg.
Permissible roof load L2, L3 max.
securely engaged. If objects can
170 kg.
be stacked, heavier objects
Vehicle dimensions 3 270
should be placed at the bottom.
Prevent sliding of loose objects
by securing them with straps
attached to the lashing eyes.
Lashing eyes 3 82.
Do not allow the load to protrude
above the upper edge of the
backrests.
92
Storage
Do not place any objects on the
To calculate the payload, enter
rear luggage cover or the
the data for your vehicle in the
instrument panel, and do not
weights table at the front of this
cover the sensor on top of the
manual.
instrument panel.
The EC kerb weight includes
The load must not obstruct the
weights for the driver (68 kg),
operation of the pedals, parking
luggage (7 kg) and all fluids (fuel
brake and gear selector, or
tank 90% full).
hinder the freedom of movement
Optional equipment and
of the driver. Do not place any
accessories increase the kerb
unsecured objects in the interior.
weight.
Do not drive with an open load
Driving with a roof load increases
compartment.
the sensitivity of the vehicle to
cross-winds and has a
9 Warning
detrimental effect on vehicle
handling due to the vehicle's
Always make sure that the load in
higher centre of gravity.
the vehicle is securely stowed.
Distribute the load evenly and
Otherwise objects can be thrown
secure it properly with retaining
around inside the vehicle and
straps. Adjust the tyre pressure
cause personal injury or damage
and vehicle speed according to
to the load or car.
the load conditions. Check and
retighten the straps frequently.
● The payload is the difference
Do not drive faster
between the permitted gross
than 120 km/h.
vehicle weight (see identification
plate) and the EC kerb weight.
Identification plate 3 264.















Content      ..     2      3      4      5     ..
