Keys, doors and windows
27
Confirmation
Unlocking
of the hinged doors. If the vehicle
Operation of the central locking
is equipped with a tailgate, press
system is confirmed by the hazard
the tailgate button.
warning flashers. A precondition is
● Only the front doors and the fuel
that the setting is activated in the
filler flap will be unlocked by
vehicle personalisation 3 124.
passing a hand behind one of
front door handles.
Electronic key system operation
Vehicle personalisation 3 124.
Unlocking the load compartment
Only the load compartment, i.e. the
hinged doors or the tailgate, will be
unlocked by passing a hand behind
the hinged doors handle or pressing

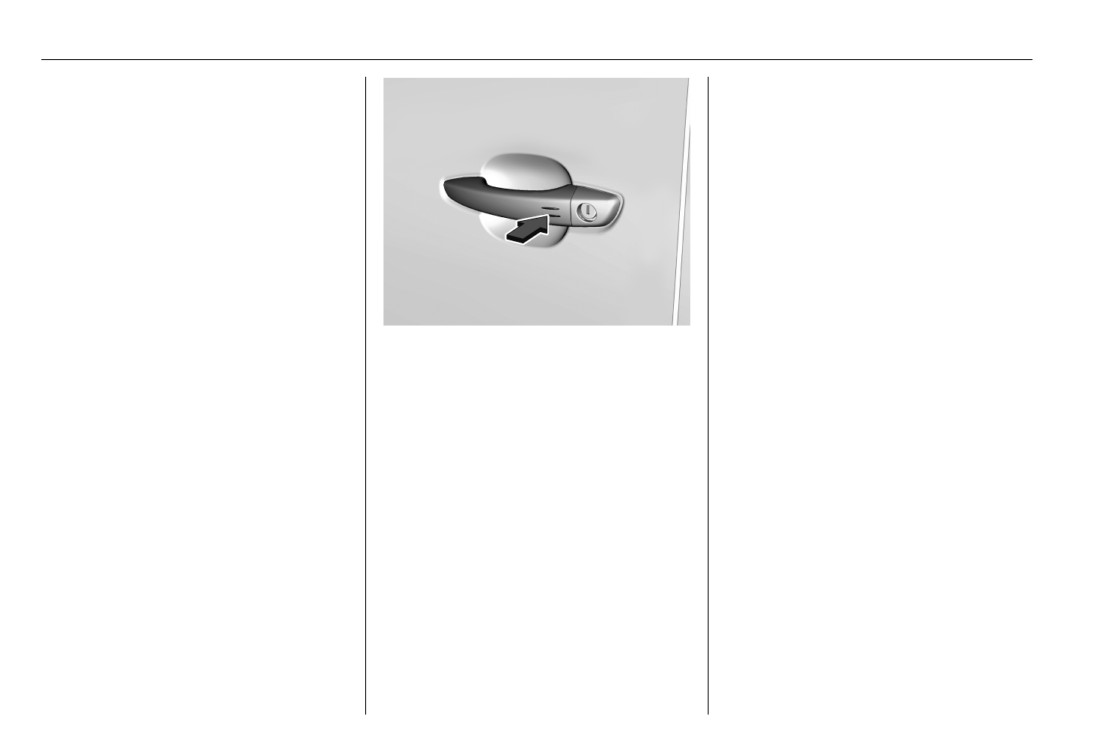

Pass a hand behind the door handle
the tailgate button.
of one of the front doors, the sliding
doors, the hinged doors or press the
Locking
tailgate button.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
The electronic key must be outside
selectable:
the vehicle, within a range of approx.
● All doors, the hinged doors / the
one metre of the relevant door side.
load compartment and the fuel
filler flap will be unlocked by
passing a hand behind one of the
front door handles, the handles of
the sliding doors or the handles
28
Keys, doors and windows
Press on one of the door handles or
press the tailgate button.
All doors, load compartment and fuel
filler flap will be locked.
If the vehicle is not closed properly,
the electronic key remains in the
vehicle or the ignition is not off,
locking will not be permitted.
Confirmation
Operation of central locking system is
confirmed by the hazard warning
flashers.

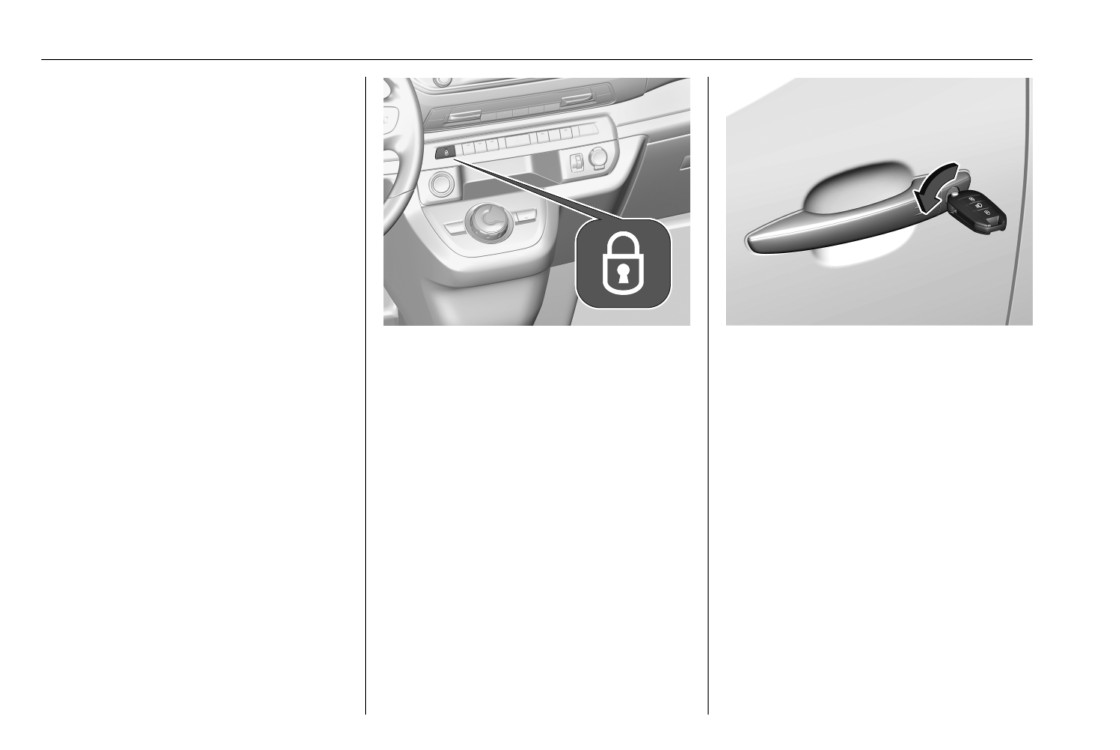

Press - to lock. The LED in the button
Manually unlock the driver's door by
illuminates.
inserting and turning the key in the
Central locking button
lock cylinder.
Press - again to unlock. The LED in
Locks or unlocks all doors and the
the button extinguishes.
The other doors can be opened by
load compartment from inside the
pulling the interior handle.
passenger compartment. If the
Operation with the key in case of
By switching on the ignition, the anti-
vehicle is equipped with electronic
a central locking system fault
theft locking system is deactivated.
key system, the fuel filler flap is locked
In case of a fault, e.g. vehicle battery
or unlocked, too.
or remote control / electronic key
battery is discharged, the driver's
door can be locked or unlocked with
the mechanical key.
Manual unlocking
Electronic key: press and hold the
latch to extract the integral key.
Keys, doors and windows
29
Manual locking
by the sound of the locks rebounding,
Automatic relock after unlocking
accompanied by illumination of N in
This feature automatically locks all
the instrument cluster, an audible
doors, load compartment and fuel
signal and the display of an alert
filler flap a short time after unlocking
message.
with the remote control or electronic
key, provided no door has been
opened.

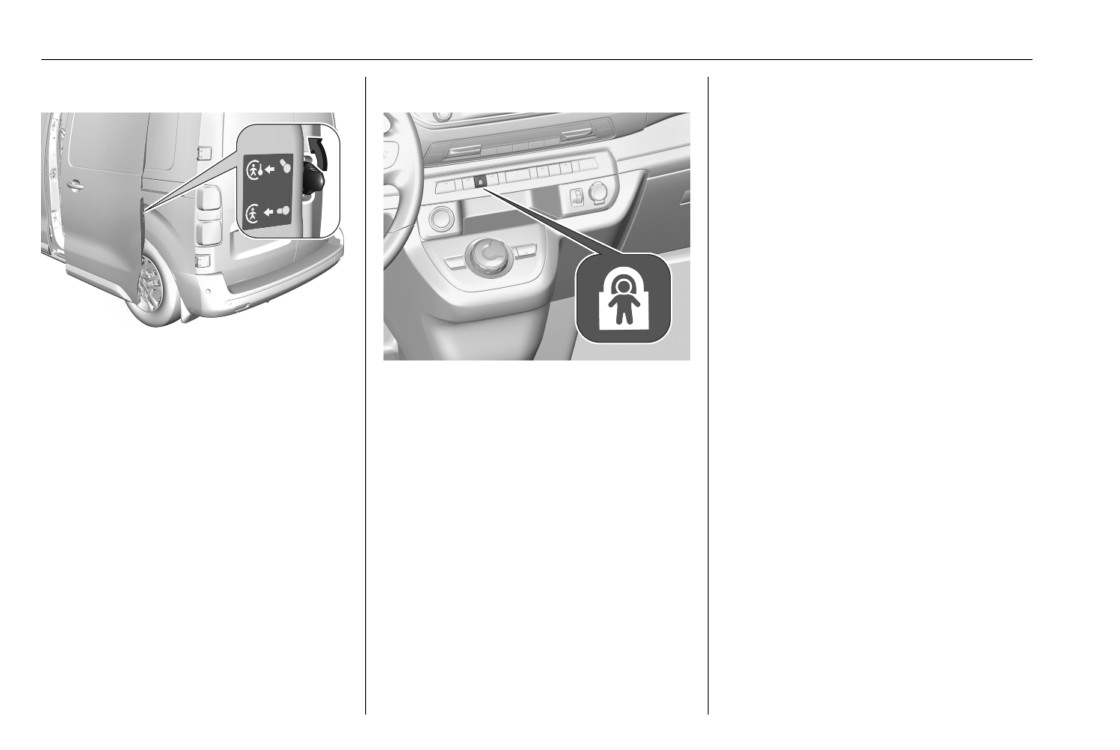

Child locks
9 Warning
Use the child locks whenever
Manually lock the doors, tailgate and
children are occupying the rear
fuel filler flap by inserting and turning
seats.
the key in the lock cylinder of the
driver's door.
This function can be activated or
deactivated at any time. With the
Automatic locking
ignition on, press - until an audible
Automatic locking after driving off
signal starts and a corresponding
message is displayed.
This system allows automatic locking
The state of the system stays in
of the doors and the tailgate as soon
memory when switching off the
as the speed of the vehicle exceeds
ignition.
10 km/h.
If one of the doors or the tailgate is
open, the automatic central locking
does not take place. This is signalled
30
Keys, doors and windows
Mechanical child locks
Electric child locks
Switching off
Press > again. The indicator lamp on
button goes off, accompanied by a
confirmation message. This indicator
lamp remains on while child lock is
switched on.
To activate, turn the child lock
Remotely operated system to prevent
upwards. The sliding door cannot be
opening of the sliding doors via the
opened from the inside.
interior door handles.
To deactivate, turn the child lock
Switching on
downwards. The sliding door can be
Press >. The indicator lamp in the
opened from the inside.
button comes on, accompanied by a
confirmation message. This indicator
lamp remains on until the child lock is
switched off.
Keys, doors and windows
31
To close from outside, pull the door
Doors
handle and slide the door towards the
front until it locks.
Sliding doors
Opening
To open from inside, push the handle
and slide the door towards the rear
beyond the point of resistance.
Closing
To close from inside, push the handle
and slide the door towards the front
until it locks.
After unlocking, pull the outside door
handle and slide the door towards the
rear beyond the point of resistance.
Caution
Ensure the sliding side door is fully
closed and secure before driving
the vehicle.
32
Keys, doors and windows
Operation with the electronic key
Take particular care when the
Caution
vehicle is parked on a slope: open
To avoid damage, do not attempt
or close the door fully until it
to operate the sliding side door
latches into its locking position.
when the fuel filler flap is open.
Keep a close watch on the moving
doors when operating. Ensure that
nothing becomes trapped during
9 Danger
operation and no-one is standing
within the moving area.
Do not drive with the sliding side
door open or ajar, e.g. when
The power sliding doors can be
transporting bulky objects, since
operated by:
toxic exhaust gases, which cannot
● pressing N or M on the radio
be seen or smelled, could enter
the vehicle. This can cause
remote control
Press N or M longer to open or close
unconsciousness and even death.
● pressing N or M on the electronic
the respective power sliding door.
key

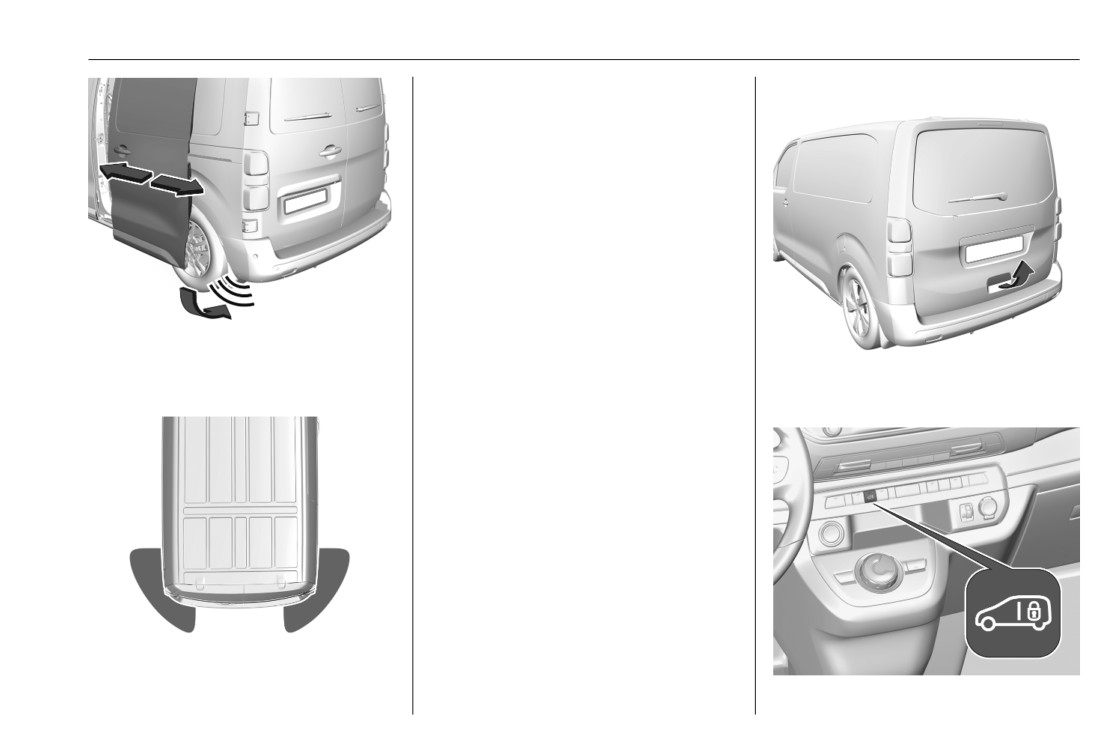

Hands-free operation
Refuelling 3 204.
● pressing P or O on the
Depending on the vehicle
instrument panel
Power sliding doors
configuration, the vehicle may have
● pressing P or O on the door
one or two hands-free operated
frame
sliding doors.
9 Warning
● hands-free operation with motion
Take care when operating the
sensors below the rear bumper
power sliding doors. Risk of injury,
● pulling the respective door
particularly to children.
handle.
Keys, doors and windows
33
The electronic key must be outside
Opening
the vehicle, within a range of approx.
1 m of the motion sensors. Depending
on the configuration of the vehicle, the
electronic key has to be located in the
respective area. Do not hold the foot
longer or move too slow below the
bumper.
Activation or deactivation of hands-
free operation can be set in the Info
Display 3 120.
To open or close a sliding door, move
Load compartment
the foot below the rear bumper on the
After unlocking, press the tailgate
respective side back and forth.
Tailgate
button and open the tailgate.
Tailgate window 3 43.
34
Keys, doors and windows
Depending on the version, press
smelled, could enter the vehicle.
'
to unlock the tailgate from the
This can cause unconsciousness
inside.
and even death.
Closing
Caution
Before opening the tailgate, check
overhead obstructions, e.g. a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.
With the electronic key outside the
vehicle and within a range of approx.
Note
1 m of the tailgate, press the right
The installation of certain heavy
tailgate button to lock the vehicle.
accessories onto the tailgate may
Central locking system 3 25.
affect its ability to remain open.
To lower the tailgate use the interior
Note
handle. Push the tailgate from above
General hints for operating
At low outside temperatures the
until it is fully closed.
tailgate
tailgate may not open fully by itself.
Do not push the tailgate button whilst
In this case lift the tailgate manually
closing as this will unlock the tailgate
9 Danger
to its normal end position.
again.
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which cannot be seen or
Keys, doors and windows
35
Emergency tailgate opening from
inside the vehicle
To open the hinged doors, pull the
To open the door from inside the
exterior handle.
vehicle, pull the interior handle.
An access hole between the door and
9 Warning
the floor enables the tailgate latch to
be released using a suitable tool.
The rear lights may be obscured if
Push lever to the left to unlock and
the rear doors are open and the
open the tailgate.
vehicle is parked on the roadside.
Hinged doors
Make other road users aware of
the vehicle, by using a warning
Unlock the hinged doors with the
triangle or other equipment
remote control or by turning the key in
specified in the road traffic
the rear door lock cylinder.
regulations.
Central locking 3 25.
To release the right hinged door, pull
the lever.
36
Keys, doors and windows
Central locking system 3 25.
Vehicle security
Anti-theft locking system
9 Warning
Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.
The system deadlocks all the doors.
The doors are retained in the 90º
All doors must be closed otherwise
position by locking stays. To open the
the system cannot be activated.
doors to 180º, push the latch and
Unlocking the vehicle disables the
swing open to the desired position.
mechanical anti-theft locking system.
Before closing the doors ensure that
This is not possible with the central
the locking stays are in the 90º
locking button.
position.
Activating
9 Warning
Simple key: Insert the key and turn it
clockwise twice within 5 seconds.
Ensure extended opening doors
are secured when fully opened.
Remote control: Press - on the radio
remote control twice within five
Opened doors may slam closed
seconds.
due to the force of the wind!
Electronic key: Press twice on one of
Always close the right hand door
the door handles within five seconds
before the left hand door.
Keys, doors and windows
37
Radio remote control: Monitoring
unlocked. However, the anti-theft
Anti-theft alarm system
of the doors, the tailgate and the
alarm system will be activated after
bonnet is activated 5 seconds
45 seconds.
9 Warning
after locking the vehicle by
Note
pressing e. Monitoring of the
Do not use the system if there are
Changes to the vehicle interior such
passenger compartment is
people in the vehicle! The doors
as the use of seat covers and open
activated 45 seconds after
cannot be unlocked from the
windows, could impair the function
locking the vehicle by pressing e.
inside.
of passenger compartment
Electronic key system:
monitoring.
The anti-theft alarm system has been
Monitoring of the doors, the
Activation without monitoring of
designed to protect the vehicle
tailgate and the bonnet is
against theft and break-ins.
activated 5 seconds after locking
passenger compartment
the vehicle by pressing with a
The anti-theft alarm system is
finger or thumb on one of the front
combined with the anti-theft locking
door handles at the markings.
system.
Monitoring of the passenger
The system monitors doors, tailgate,
compartment is activated
bonnet and the passenger
45 seconds after locking the
compartment.
vehicle by pressing with a finger
Depending on the version of the
or thumb on one of the front door
vehicle, it may not monitor the
handles at the markings.
adjoining load compartment.
Activation is confirmed by the flashing
of the status LED and coming on of
Activation
the turn lights for a short time.
Ignition must be switched off. All
If a door or the tailgate is not correctly
Switch off the monitoring of
doors must be closed and the
closed and the vehicle is locked via
passenger compartment when
electronic key must not remain in the
remote control or electronic key
animals are being left in the vehicle,
vehicle. Otherwise the system cannot
system, the vehicle remains
because of high volume ultrasonic
be activated.
38
Keys, doors and windows
signals or movements triggering the
Note
alarm. Also switch off when the
If the vehicle is unlocked and no door
vehicle is on a ferry or train.
is opened, the vehicle is
automatically relocked after 30
1. Switch of ignition.
seconds. In this case, the anti-theft
2. Press
!
within the next
alarm will be reactivated, too.
10 seconds until the LED of the
button illuminates constantly.
Alarm
3. Get out of the vehicle.
When triggered, the alarm horn
4. Lock the vehicle immediately by
sounds and the hazard warning lights
using the remote control, pressing
flash simultaneously. The number
one of the door handles or by
and duration of alarm signals are
pressing the tailgate button.
stipulated by legislation.
Electronic key system: Unlocking the
Activation is indicated by the flashing
The anti-theft alarm system can be
vehicle by pressing on one of the front
of the status LED.
deactivated by pressing <, by
door handles at the markings
deactivates the anti-theft alarm
pressing on one of the front door
Indication
handles at the markings with
system.
electronic key system. The LED of
LED in the central locking button
The electronic key must be outside
the
!
button will extinguish and the
flashes if the anti-theft alarm system
the vehicle, within a range of approx.
turn lights flash for a short time.
is activated.
one metre of the relevant door side.
A triggered alarm, which has not been
Seek the assistance of a workshop in
The system is not deactivated by
interrupted by the driver, will be
the event of faults.
unlocking the driver's door with the
indicated by the rapid flashing of the
key or with the central locking button
Deactivation
LED of the
!
button. If the ignition
in the passenger compartment.
is switched on, the flashing stops
Radio remote control: Unlocking the
immediately.
vehicle by pressing < deactivates the
If the vehicle's battery is to be
anti-theft alarm system.
disconnected (e.g. for maintenance
work), the alarm siren must be
Keys, doors and windows
39
deactivated as follows: switch the
Immobiliser
Exterior mirrors
ignition on then off, then disconnect
The system is part of the ignition
the vehicle's battery within
switch and checks whether the
Convex shape
15 seconds.
vehicle is allowed to be started with
The shape of the mirror makes
If the battery has been reconnected,
the key being used.
objects appear smaller, which will
wait for 10 minutes to restart the
The immobiliser is activated
affect the ability to estimate
engine.
automatically after the key has been
distances.
Locking the vehicle without
removed from the ignition switch.
Side blind spot alert 3 194.
activation of the anti-theft alarm
Note
Radio Frequency Identification
Electric adjustment
Lock the vehicle by inserting and
(RFID) tags may cause interference
turning the integrated key of the
with the key. Do not have it placed
remote control or the electronic key
near the key when starting the
system in the lock cylinder of the
vehicle.
driver's door.
Note
Malfunction of the remote control
The immobiliser does not lock the
doors. Always lock the vehicle after
Unlock the vehicle by inserting and
leaving it 3 25.
turning the integrated key of the
remote control or the electronic key
Switch on the anti-theft alarm
system in the lock cylinder of the
system 3 37.
driver's door.
Emergency operation of electronic
Open the driver's door.
key 3 154.
The horn of the anti-theft alarm will
Select the relevant exterior mirror by
sound.
pushing the mirror button
C
to the
Switch on ignition.
left or right.
The horn will stop sounding and the
Adjust the respective mirror with the
status LED extinguishes.
four-way control.
40
Keys, doors and windows
Electric folding
When the vehicle is being unlocked,
Folding mirrors
the mirrors return to their original
position.
The function can be deactivated in the
vehicle personalisation 3 124.
Heated mirrors
For pedestrian safety, the exterior
Pull the mirror button
C
rearwards.
mirrors will swing out of their normal
Both exterior mirrors will fold.
mounting position if they are struck
Pull the mirror button rearwards again
with sufficient force. Reposition the
to return both exterior mirrors to their
mirror by applying slight pressure to
original position.
the mirror housing.
If an electrically folded mirror is
manually extended, pulling mirror
Depending on the version, heating is
button rearwards will only electrically
operated by pressing è or
m
extend the other mirror.
Heating works with the engine
running and is switched off
Automatic folding
automatically after a short time.
When the vehicle is being locked,
Heated rear window 3 44.
both mirrors will fold.
Keys, doors and windows
41
Interior mirrors
Automatic anti-dazzle
Child surveillance mirror
Manual anti-dazzle
Dazzle from following vehicles is
A child surveillance mirror allows to
automatically reduced, when driving
observe the rear seats. The mirror
To reduce dazzle, adjust the lever on
in the dark.
can be adjusted.
the underside of the mirror housing.
42
Keys, doors and windows
Windows
Power windows
Windscreen
9 Warning
Windscreen stickers
Take care when operating the
power windows. Risk of injury,
Do not attach stickers such as toll
particularly to children.
road stickers or similar on the
windscreen in the area of the interior
If there are children on the rear
mirror. Otherwise the detection zone
seats, switch on the child safety
of the sensor and the view area of the
system for the power windows.
camera in the mirror housing could be
Keep a close watch on the
restricted.
windows when closing them.
Operate G for the respective window
Ensure that nothing becomes
Windscreen replacement
by pushing to open or pulling to close.
trapped in them as they move.
Pushing or pulling gently to the first
Caution
Switch on ignition to operate power
detent: window moves up or down as
windows.
long as the switch is operated.
If the vehicle has a front-looking
Pushing or pulling firmly to the second
camera sensor for the driver
detent then releasing: window moves
assistance systems, it is very
up or down automatically with safety
important that any windscreen
function enabled. To stop movement,
replacement is performed
operate the switch once more in the
accurately according to Opel
same direction.
specifications. Otherwise, these
systems may not work properly
and there is a risk of unexpected
behaviour and / or messages from
these systems.
Keys, doors and windows
43
Safety function
Overload
Rear windows
This function depends upon version.
If the windows are repeatedly
If the window glass encounters
operated within short intervals, the
resistance above the middle of the
window operation is disabled for
window during automatic closing, it is
some time.
immediately stopped and opened
again.
Initialising the power windows
If the windows cannot be closed
Override safety function
automatically (e.g. after
In the event of closing difficulties due
disconnecting the vehicle battery), a
to frost or the like, switch on the
warning message is displayed in the
ignition, then pull the switch to the first
Driver Information Centre.
detent and hold. The window moves
Vehicle messages 3 123.
up without safety function enabled.
Activate the window electronics as
To open and close the rear windows,
To stop movement, release the
follows:
push the lever and slide the windows
switch.
backwards or forwards.
1. Close doors.
Operating windows from outside
2. Switch on ignition.
The windows can be closed remotely
3. Push switch until the window is
from outside the vehicle.
completely open.
Press and hold - to close windows.
4. Pull switch until the window is
Release button to stop window
completely closed and keep
movement.
pulling for additional two seconds.
5. Repeat for each window.
44
Keys, doors and windows
Mechanical child lock for rear
Opening
Closing
windows
After unlocking, press the button and
Press on the centre of the window
To activate, turn the child lock with the
open the window until it is fully
until it is fully closed.
key upwards. The sliding window
opened.
cannot be opened from the inside.
Heated rear window
To deactivate, turn the child lock with
Operated by pressing è. Depending
the key downwards. The sliding
on the version, the heated rear
window can be opened from the
window is operated together with the
inside.
heated exterior mirrors.
Tailgate window
Heating works with the engine
running and is switched off
The tailgate window can be opened to
automatically after a short time.
give access to the load compartment
Depending on climate control system,
without opening the tailgate.
è is located at a different position.
The tailgate and the tailgate window
cannot be opened at the same time.
Keys, doors and windows
45
This function heats the windscreen
Pressing
9
again switches off the
along its bottom and along both sides
heating operation. LED in button is
of the windscreen.
extinguished.
Thus, the function allows a fast
detaching of the windscreen wiper
Sun visors
blades if they are frozen to the
The sun visors can be folded down or
windscreen. Additionally, an
swivelled to the side to prevent
accumulation of snow caused by the
dazzling.
operation of the windscreen wipers is
prevented.
The cover of the mirrors should be
closed when driving.
A ticket holder is located on the
backside of the sun visor.
Heated windscreen
Roller blinds
Heating is operated by pressing
9
LED in button illuminates.
Heating works with the engine
running and is switched off
automatically depending on the
ambient temperature.
46
Keys, doors and windows
To reduce sunlight at the second row
Roof
seats, pull the blind upwards using
the grip and engage it at the top of the
Glass panel
door frame.
Sunblinds
The sunblinds are operated manually.
Slide the respective sunblind to the
desired position.
Seats, restraints
47
Adjustment
Seats, restraints
Head restraints
Height adjustment
Position
Head restraints
47
9 Warning
Front seats
48
Seat position
48
Only drive with the head restraint
Manual seat adjustment
48
set to the proper position.
Power seat adjustment
50
Seat folding
51
Armrest
52
Heating
52
Massage
53
Rear seats
53
Seat belts
57
Three-point seat belt
58
Move the head restraint upwards or
downwards. If the head restraint is
Airbag system
61
engaged press the catch and move
Front airbag system
64
the head restraint.
Side airbag system
64
Curtain airbag system
65
Removal
Airbag deactivation
65
Move the head restraint upwards and
Child restraints
67
The upper edge of the head restraint
remove it. If the head restraint is
Child restraint systems
67
should be at upper head level. If this
engaged press the catch and move
Child restraint installation
is not possible for extremely tall
the head restraint.
locations
70
people, set to highest position, and
set to lowest position for small people.
Installation
Engage the head restraint rods in the
openings and push it downwards.
48
Seats, restraints
Sit with shoulders as far back
Front seats
against the backrest as possible.
Set the backrest rake so that it is
Seat position
possible to easily reach the
steering wheel with arms slightly
9 Warning
bent. Maintain contact between
shoulders and the backrest when
Only drive with the seat correctly
turning the steering wheel. Do
adjusted.
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
9 Warning
Adjust seat and steering wheel in
Never adjust seats while driving as
a way that the wrist rests on top
Sit with buttocks as far back
they could move uncontrollably.
of the steering wheel while the
against the backrest as possible.
arm is fully extended and
Adjust the distance between the
shoulders are on the backrest.
seat and the pedals so that legs
9 Danger
are slightly angled when pressing
Adjust the steering wheel 3 94.
the pedals. Slide the front
Do not sit closer than 25 cm to the
Adjust the head restraint 3 47.
passenger seat as far back as
steering wheel, to permit safe
Adjust the lumbar support so that
possible.
airbag deployment.
it supports the natural shape of
Set seat height high enough to
the spine.
have a clear field of vision on all
9 Warning
sides and of all display
instruments. There should be at
Manual seat adjustment
Never store any objects under the
least one hand of clearance
Drive only with engaged seats and
seats.
between head and the roof
backrests.
frame. Your thighs should rest
lightly on the seat without
pressing into it.















Content      ..      1      2      3      ..
