In brief
Vehicle unlocking
Tailgate
In brief
Initial drive information

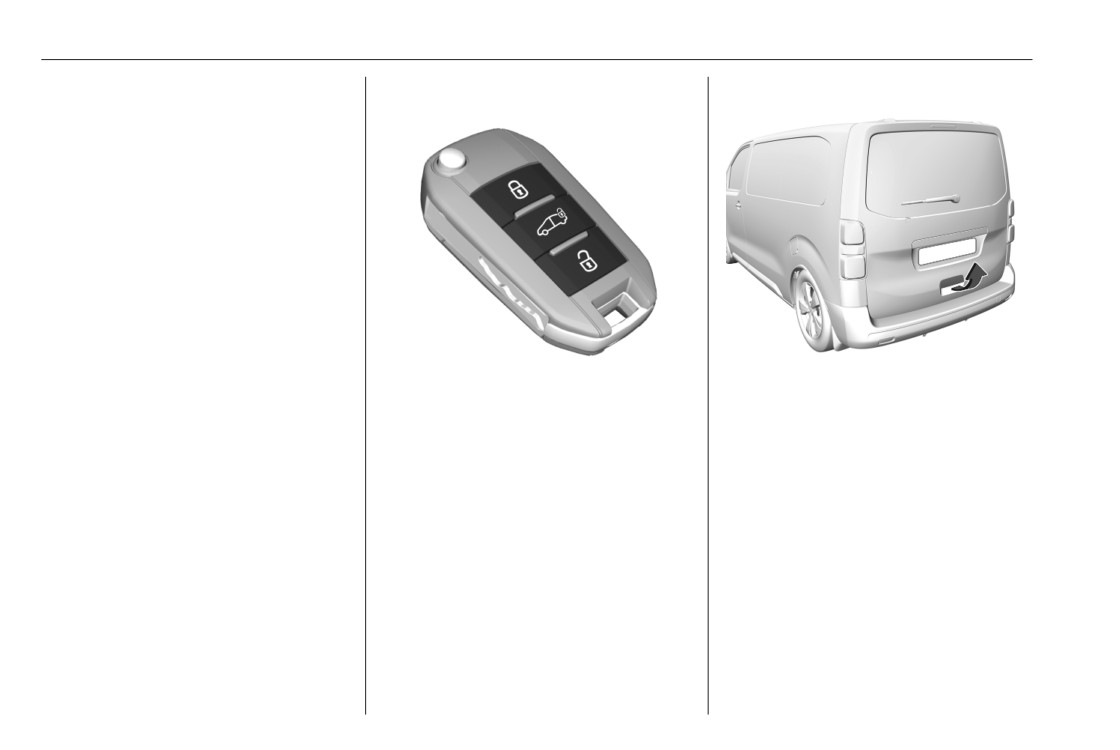

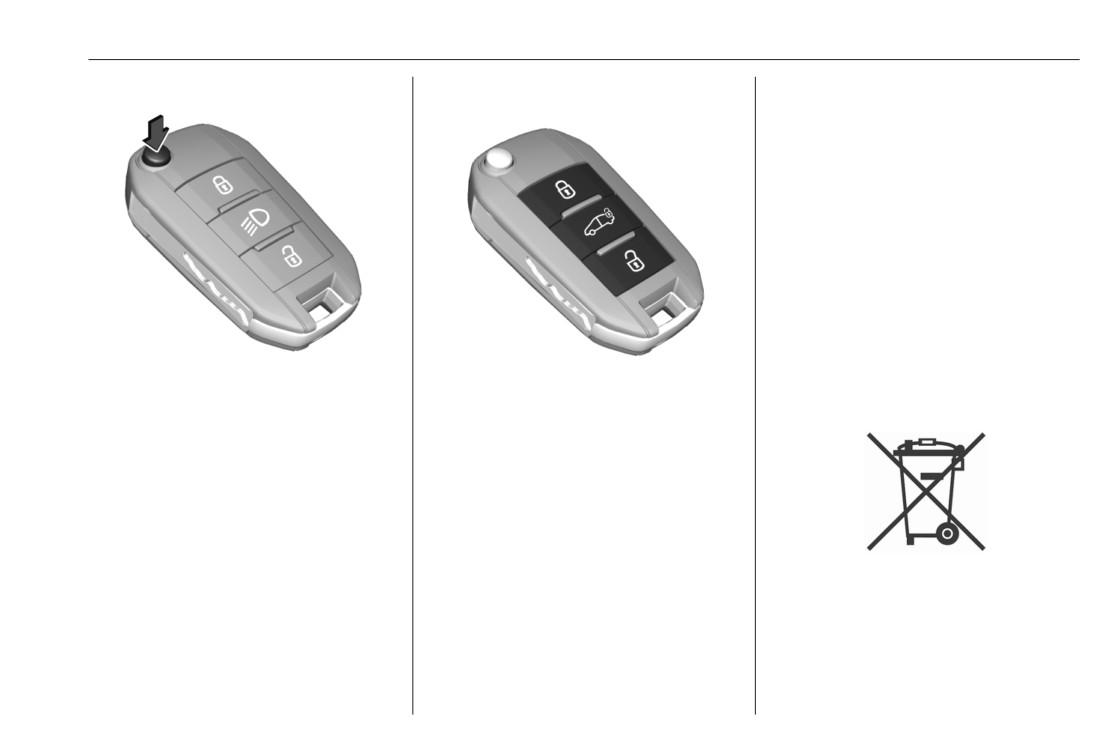

Press < to unlock the vehicle. Open
After unlocking, press the tailgate
button and open the tailgate.
the doors by pulling the handles.
Radio remote control 3 23.
Central locking system 3 25.
Electronic key system 3 24.
Load compartment 3 33.
Sliding door 3 31.
In brief
7
Seat adjustment

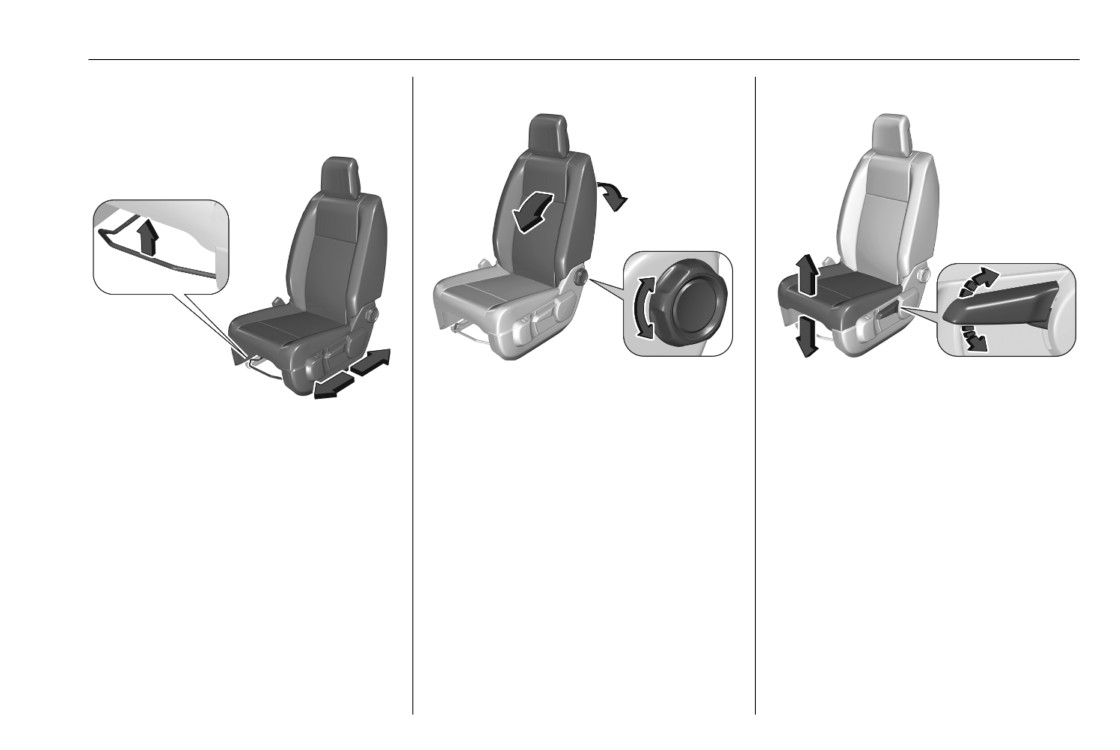

Backrest inclination
Seat height
Longitudinal adjustment
Turn handwheel to adjust inclination.
Lever pumping motion
Do not lean on the backrest while
up
: seat higher
Pull the handle, slide the seat, then
adjusting.
down : seat lower
release the handle. Try to move the
Seat position 3 48.
seat back and forth to ensure that the
Seat position 3 48.
Manual seat adjustment 3 48.
seat is locked in place.
Manual seat adjustment 3 48.
Seat position 3 48.
Manual seat adjustment 3 48.
8
In brief
Lumbar support

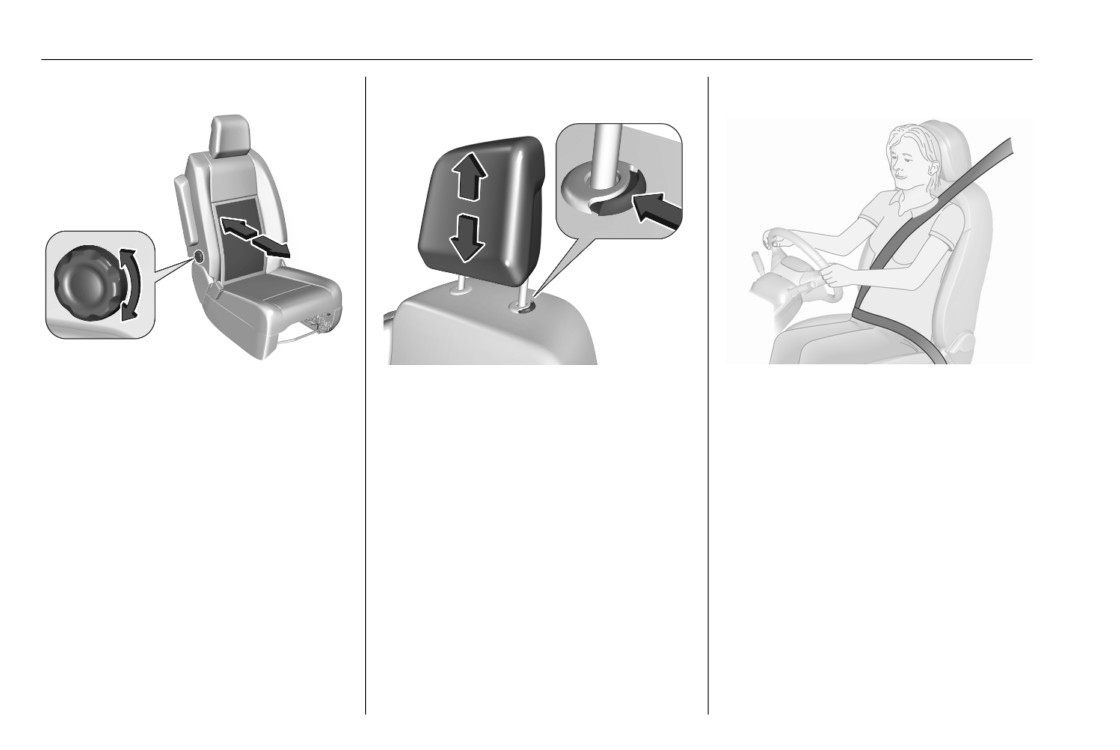

Head restraint adjustment
Seat belt
Turn the handwheel to suit personal
Move the head restraint upwards or
Pull out the seat belt and fasten in belt
requirements.
downwards. If the head restraint is
buckle. The seat belt must not be
engaged press the catch and move
twisted and must fit close against the
the head restraint.
body. The backrest must not be tilted
back too far (maximum approx. 25°).
Head restraints 3 47.
To unfasten belt, press red button on
belt buckle.
Seat position 3 48.
Seat belts 3 57.
Airbag system 3 61.
In brief
9
Mirror adjustment
Exterior mirrors
Steering wheel adjustment
Interior mirror

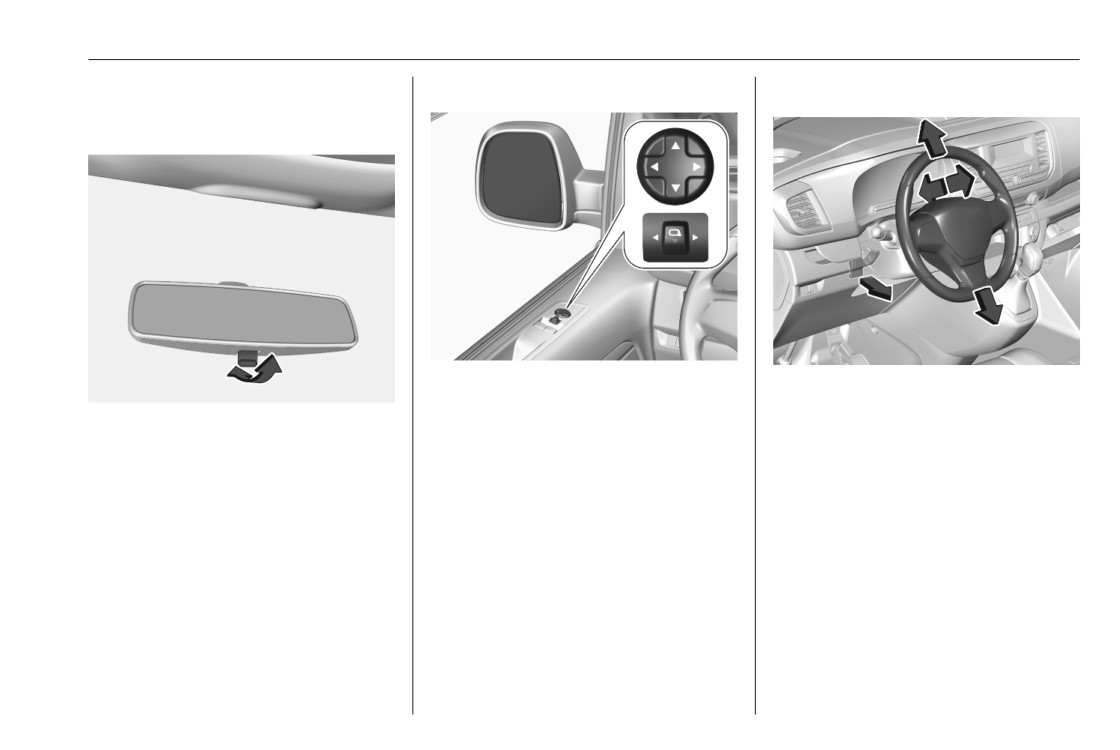

Select the relevant exterior mirror by
Unlock lever, adjust steering wheel,
pushing the mirror button
C
to the
then engage lever and ensure it is
To adjust the mirror, move the mirror
left or right.
fully locked. Do not adjust steering
housing in the desired direction.
wheel unless vehicle is stationary and
Adjust the respective mirror with the
Manual anti-dazzle interior mirror
four-way control.
steering wheel lock has been
3 41.
released.
Convex mirrors 3 39.
Automatic anti-dazzle interior mirror
Seat position 3 48.
Electric adjustment 3 39.
3 41.
Ignition positions 3 153.
Folding mirrors 3 40.
Heated mirrors 3 40.
10
In brief

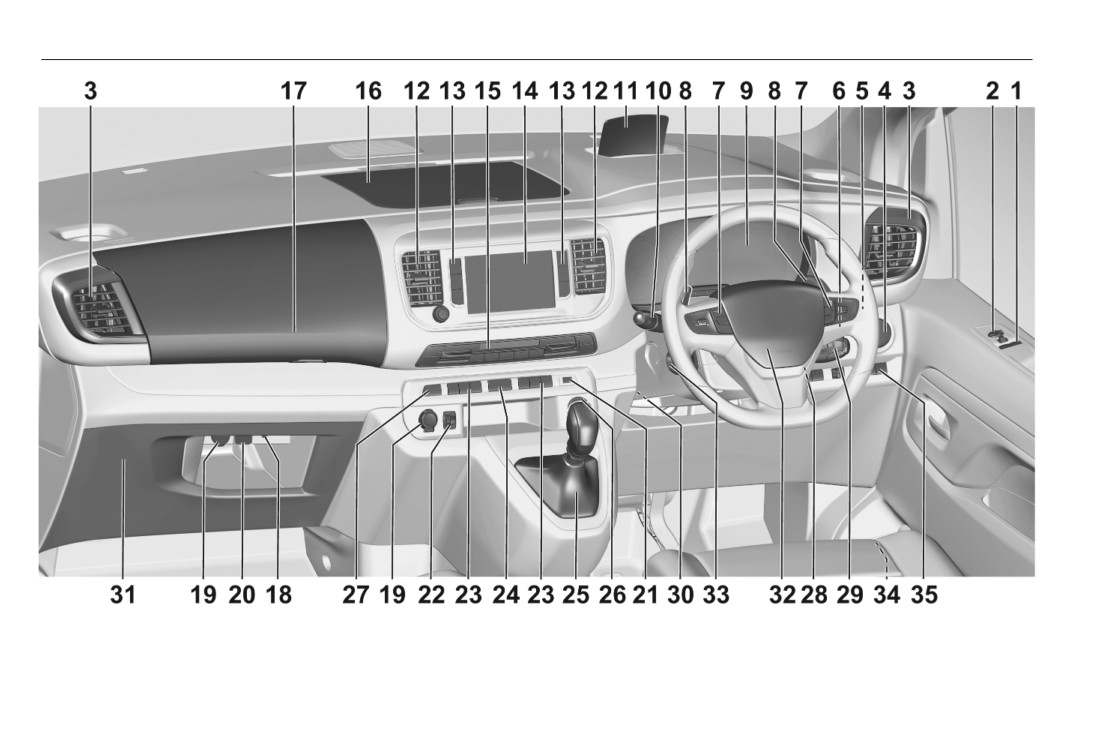

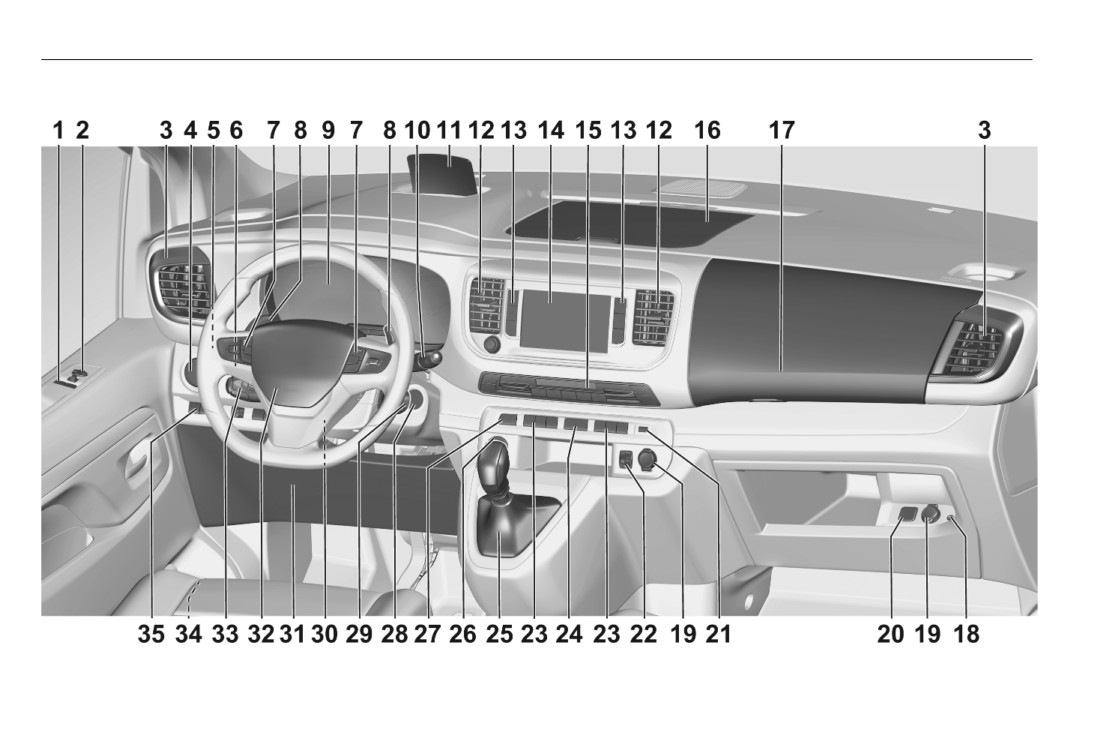

Instrument panel overview
In brief
11
1
Power windows
42
14
Info Display
120
28
Ignition switch
153
2
Exterior mirrors
39
15
Climate control system
141
29
Control elements for
Infotainment system
3
Side air vents
149
16
Storage compartment
79
30
Steering wheel adjustment . . . 94
4
Selective ride control
172
17
Storage compartment
79
31
Fuse box
231
5
Turn lights
134
18
AUX input
32
Horn
95
19
Power outlet
98
Headlight flash
132
33
Cruise control
174
20
Airbag deactivation
65
High beam
131
21
USB port
98
Speed limiter
177
Exit lighting
137
22
Seat heating
52
Adaptive cruise control
180
6
Head-up display controls
121
23
Electronic Stability Control
34
Bonnet release lever
214
7
Steering wheel controls
94
and Traction Control
171
35
Anti-theft alarm system
37
8
Steering wheel paddles
94
Tyre deflation detection
Lane departure warning
200
9
Instruments
105
system
238
Side blind spot alert
194
Driver Information Centre
116
Stop-start system
157
10
Button for Driver
Parking assist
192
Heated windscreen
45
Information Centre
116
Parking heater
147
Electric child locks
29
Windscreen wiper and
Headlight range adjustment 132
washer
95
Central locking system
25
24
Hazard warning flashers
133
High beam assist
131
Rear wiper and washer
97
25
Manual transmission
168
11
Head-up display
121
12
Air vents
149
Automatic transmission
165
13
Control elements for Info
26
Power button
154
Display
120
27
Automatic locking
29
12
In brief
In brief
13
Exterior lighting

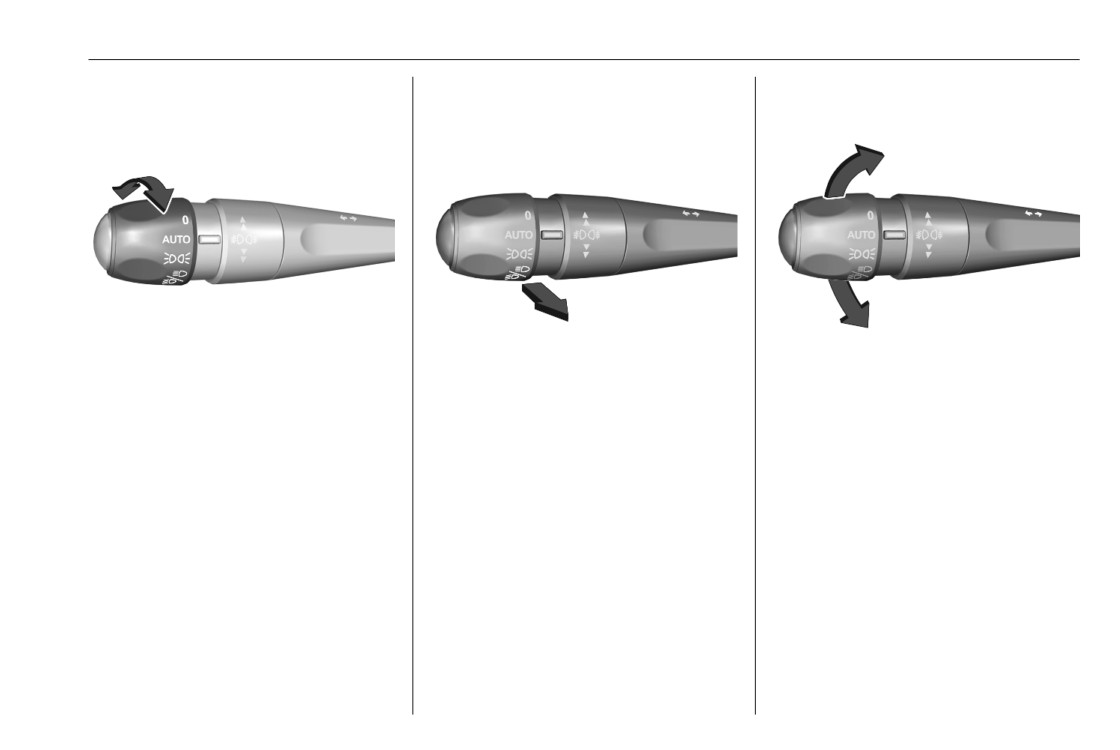

Headlight flash and high beam
Turn lights
AUTO : automatic light control
High beam 3 131.
up
: right turn lights
switches automatically
High beam assist 3 131.
down : left turn lights
between daytime running
Headlight flash 3 132.
Turn lights 3 134.
light and headlight
F
: sidelights
D
: headlight
Automatic light control 3 131.
Front fog lights 3 134.
Rear fog light 3 134.
14
In brief

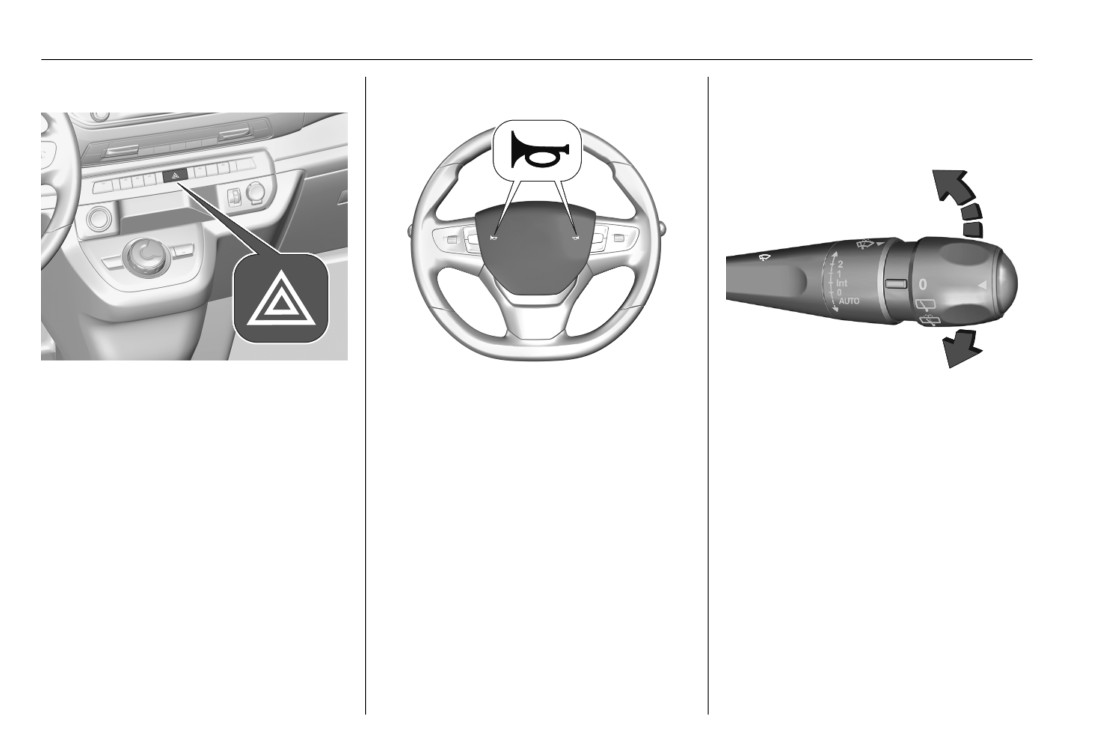

Hazard warning flashers
Horn
Washer and wiper systems
Windscreen wiper
Operated by pressing ç.
Press
d
Hazard warning flashers 3 133.
2
: fast
1
: slow
INT
: interval wiping
0
: off
AUTO : automatic wiping with rain
sensor
For a single wipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 95.
In brief
15

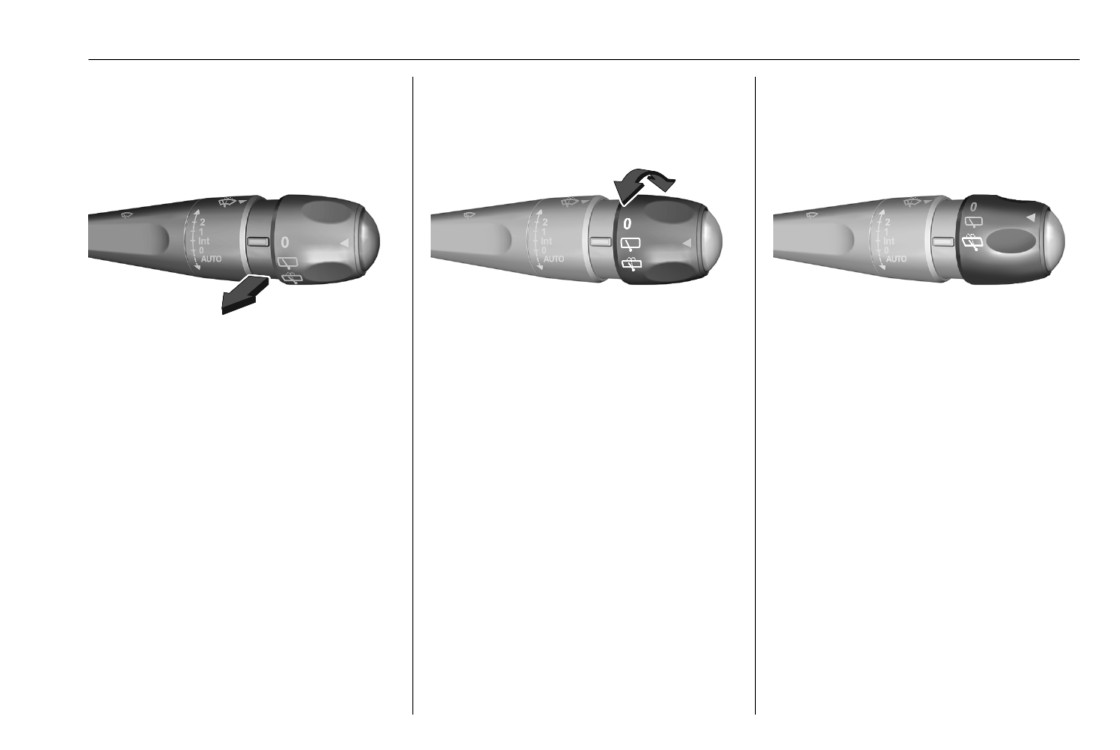

Windscreen washer
Rear window wiper
Rear window washer
Windscreen washer system 3 95.
0
: off
Set to R.
S : rear window wiper
Washer fluid 3 216.
Washer fluid is sprayed on the rear
R : rear window washer
window and the wiper wipes a few
Wiper blade replacement 3 219.
times.
Rear window wiper and washer
3 97.
16
In brief

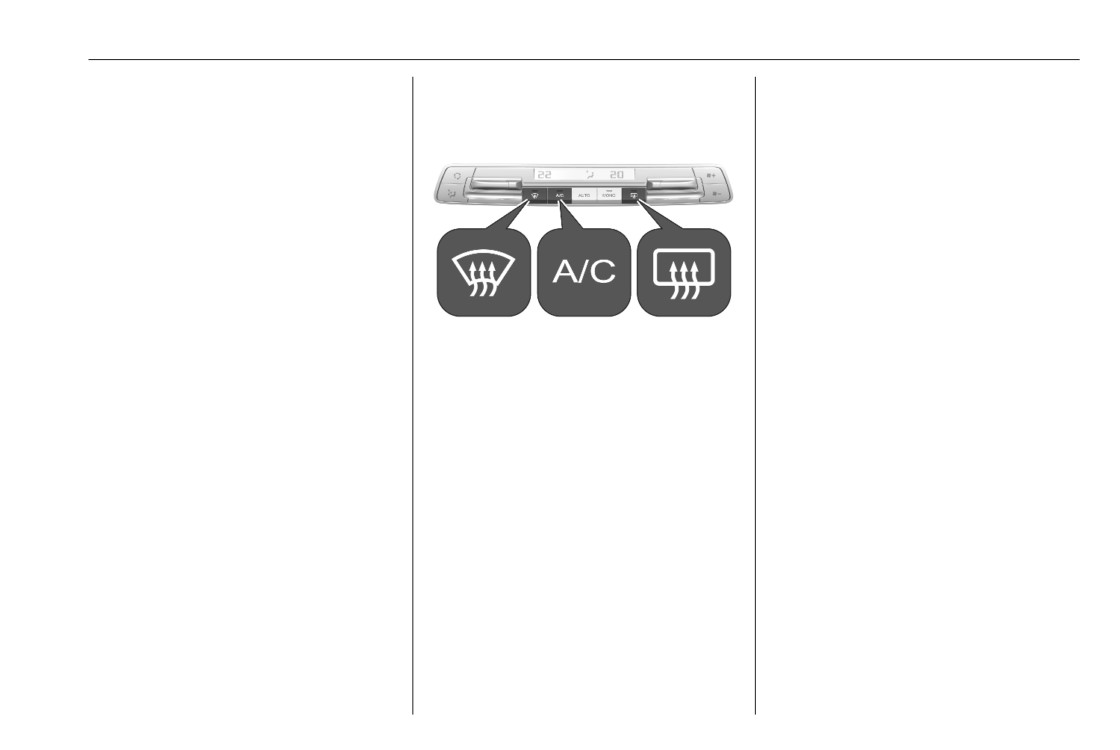

Climate control
Heated exterior mirrors
Demisting and defrosting the
windows

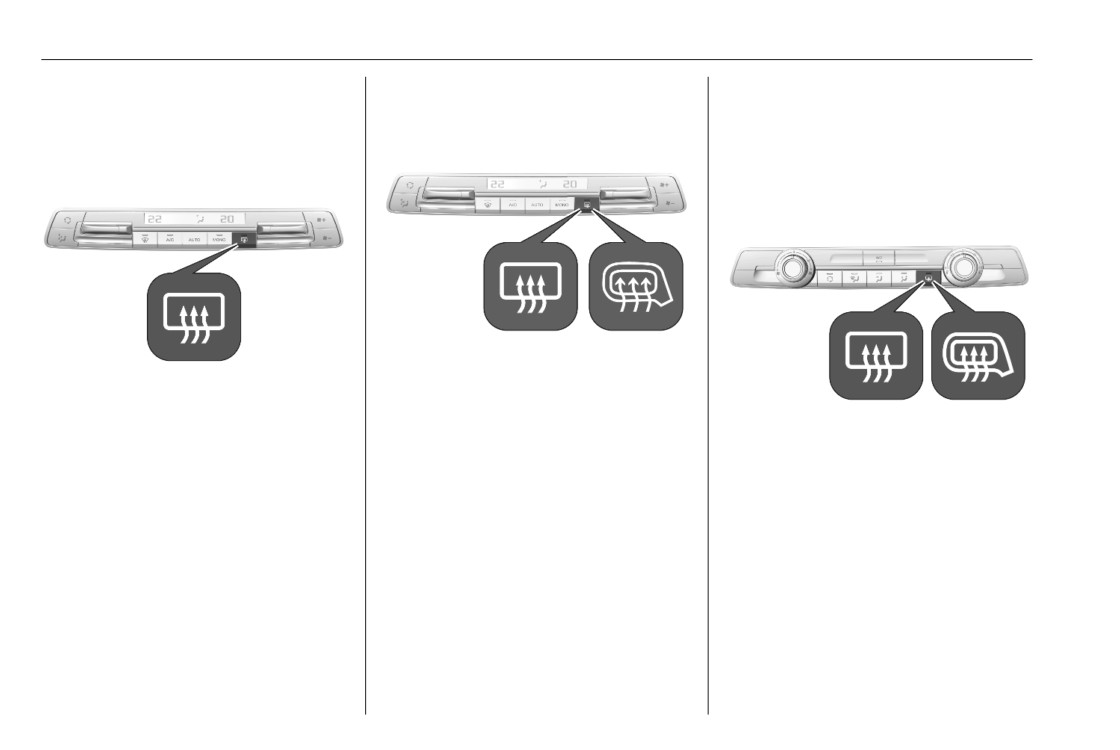

Heated rear window
Heating and ventilation system, air
conditioning system
Depending on the version, heating is
operated by pressing è or
m
The heating is operated by pressing
Heating works with the engine
è.
running and is switched off
● Set fan speed ý to highest level.
Heated rear window 3 44.
automatically after a short time.
● Set temperature controller ñ to
Heated windscreen 3 45.
Heated exterior mirrors 3 40.
warmest level.
● Switch on cooling A/C, if
required.
● Switch on heated rear window
è.
● Open side air vents as required
and direct them towards the door
windows.
In brief
17
Note
Electronic climate control system
● Switch on heated windscreen
If the settings for demisting and
9
defrosting are selected, an
● To return to previous mode,
Autostop may be inhibited.
press
h
again.
If the settings for demisting and
Note
defrosting are selected while the
If
h
is pressed while the engine is
engine is in an Autostop, the engine
running, an Autostop will be inhibited
will restart automatically.
until
h
is pressed again.
Stop-start system 3 157.
If
h
is pressed while the engine is
Heating and ventilation system
in an Autostop, the engine will restart
3 139.
automatically.
Air conditioning system 3 141.
Electronic climate control system
3 143.
Press
h. The LED in the button
illuminates to indicate activation.
Air conditioning and automatic
mode are automatically switched
on. The LED in the button A/C
illuminates, AUTO is shown in the
display.
Temperature and air distribution
are set automatically and the fan
runs at high speed.
Switch on heated rear window
è.
18
In brief
Transmission
Automatic transmission
Type A
Manual transmission

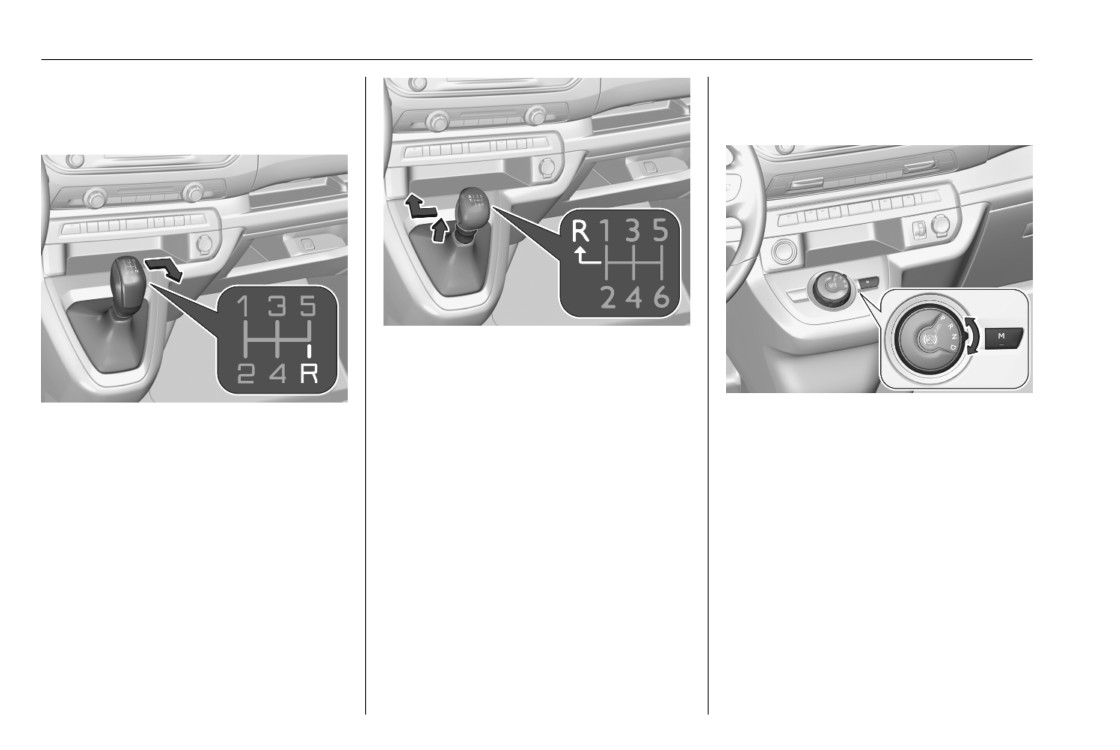

To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever
Turn the gear selector.
To engage reverse on 5-speed
quite to the left and front.
transmission, depress the clutch
P : park position, front wheels are
pedal and move the selector lever to
Manual transmission 3 168.
locked, engage only when the
the right and rear.
vehicle is stationary and the
parking brake is applied
R : reverse gear, engage only when
the vehicle is stationary
N : neutral
D : automatic mode
M : manual mode
In brief
19
Type B
Starting the engine
Starting off
Check before starting off

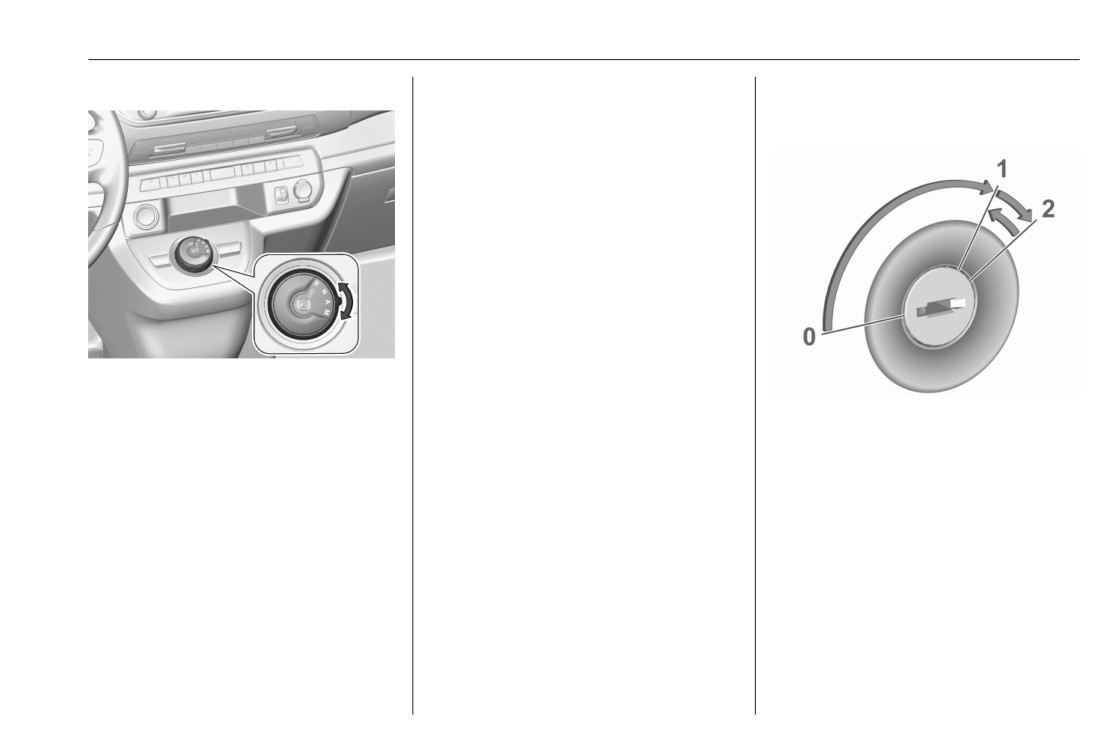

Ignition switch
tyre pressure 3 237 and
condition 3 271
engine oil level and fluid levels
3 214
all windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational
proper position of mirrors 3 39,
seats 3 48 and seat belts
Turn the gear selector.
3 58
R : reverse gear, engage only when
brake function at low speed,
turn key to position 1
the vehicle is stationary
particularly if the brakes are wet
N : neutral
move the steering wheel slightly
A : automatic mode
to release the steering wheel lock
M : manual mode
manual transmission: operate
clutch and brake pedal
Automatic transmission 3 165.
automatic transmission: operate
brake pedal and move selector
lever to P or N
do not operate accelerator pedal
20
In brief
● diesel engine: wait until control
Start power button
Stop-start system
indicator
z
for preheating
extinguishes
● turn key to position 2 and release
after engine has been started
Starting the engine 3 155.
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator ñ.
● manual transmission: operate
Manual transmission: to restart the
clutch and brake pedal
engine, depress the clutch pedal
again. Control indicator ñ
● automatic transmission: operate
extinguishes.
brake pedal and move selector
lever to P or N
Automatic transmission: to restart the
engine, release the brake pedal.
● do not operate accelerator pedal
Control indicator ñ extinguishes.

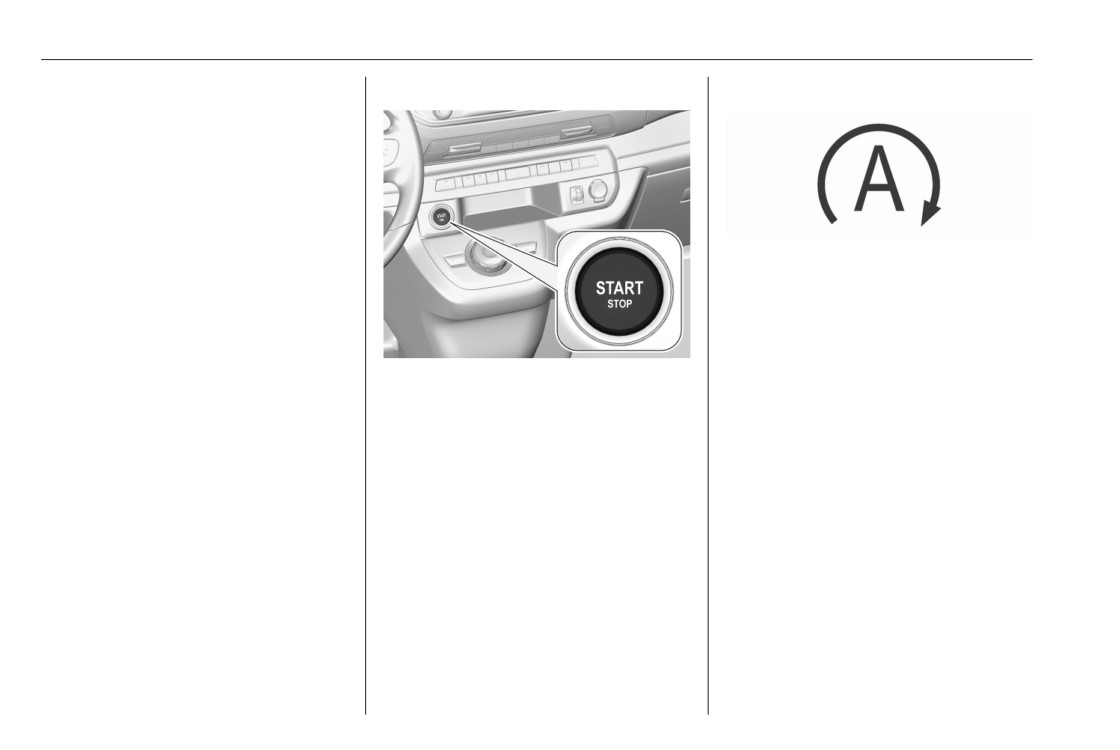

● press Start/Stop button
Stop-start system 3 157.
● release button after starting
procedure begins
In brief
21
Laying-up the vehicle for a long
Parking
Switch off the engine.
period of time 3 212.
Remove the ignition key from
9 Warning
the ignition switch or switch off
ignition on vehicles with power
Do not park the vehicle on an
button. Turn the steering wheel
easily ignitable surface. The
until the steering wheel lock is
high temperature of the
felt to engage.
exhaust system could ignite the
surface.
Lock the vehicle with - on the
Always apply the parking
radio remote control.
brake.
Activate the anti-theft alarm
If the vehicle is on a level
system 3 37.
surface or uphill slope, engage
The engine cooling fans may run
first gear or set the selector
after the engine has been
lever to position P (automatic
switched off 3 213.
transmission type A) / N
(automatic transmission type
Caution
B). On an uphill slope, turn the
front wheels away from the
After running at high engine
kerb.
speeds or with high engine loads,
If the vehicle is on a downhill
operate the engine briefly at a low
slope, engage reverse gear or
load or run in neutral for
set the selector lever to position
approx. 30 seconds before
P (automatic transmission type
switching off, in order to protect
A) / N (automatic transmission
the turbocharger.
type B). Turn the front wheels
towards the kerb.
Keys, locks 3 22.
Close the windows.
22
Keys, doors and windows
Windows
42
Keys, locks
Keys, doors and
Windscreen
42
windows
Power windows
42
Keys
Rear windows
43
Heated rear window
44
Caution
Heated windscreen
45
Keys, locks
22
Sun visors
45
Do not attach heavy or bulky items
Keys
22
Roller blinds
45
to the ignition key.
Radio remote control
23
Roof
46
Electronic key system
24
Glass panel
46
Replacement keys
Central locking system
25
Automatic locking
29
The key number is specified on a
Child locks
29
detachable tag.
Doors
31
The key number must be quoted
Sliding doors
31
when ordering replacement keys as it
Load compartment
33
is a component of the immobiliser
Vehicle security
36
system.
Anti-theft locking system
36
Locks 3 253.
Anti-theft alarm system
37
Immobiliser
39
Central locking 3 25.
Exterior mirrors
39
Starting the engine 3 155.
Convex shape
39
Radio remote control 3 23.
Electric adjustment
39
Electronic key 3 24.
Folding mirrors
40
Heated mirrors
40
The code number of the adapter for
the locking wheel nuts is specified on
Interior mirrors
41
a card. It must be quoted when
Manual anti-dazzle
41
ordering a replacement adapter.
Automatic anti-dazzle
41
Child surveillance mirror
41
Wheel changing 3 244.
Keys, doors and windows
23
Key with foldaway key section
● vehicle locator lighting 3 138
Radio remote control
● peripheral lighting 3 138
The remote control has a range of up
to several metres, but may also be
much less due to external influences.
The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Press button to extend. To fold the
Depending on the version, the radio
Replace the battery as soon as the
key, first press the button.
remote control enables the operation
range reduces.
of the following functions:
● central locking system 3 25
● selective unlocking 3 25
● anti-theft locking system 3 36
● anti-theft alarm system 3 37
● tailgate unlocking 3 25
Batteries do not belong in household
● power sliding doors 3 31
waste. They must be disposed of at
● power windows 3 42
an appropriate recycling collection
point.
● mirrors folding 3 40
24
Keys, doors and windows
● Overload of the central locking
Depending on the version, the
system by operating at frequent
electronic key system enables a
intervals, the power supply is
keyless operation of the following
interrupted for a short time.
functions:
● Interference from higher-power
● central locking system 3 25
radio waves from other sources.
● tailgate unlocking
Manual unlocking 3 25.
● headlight activation

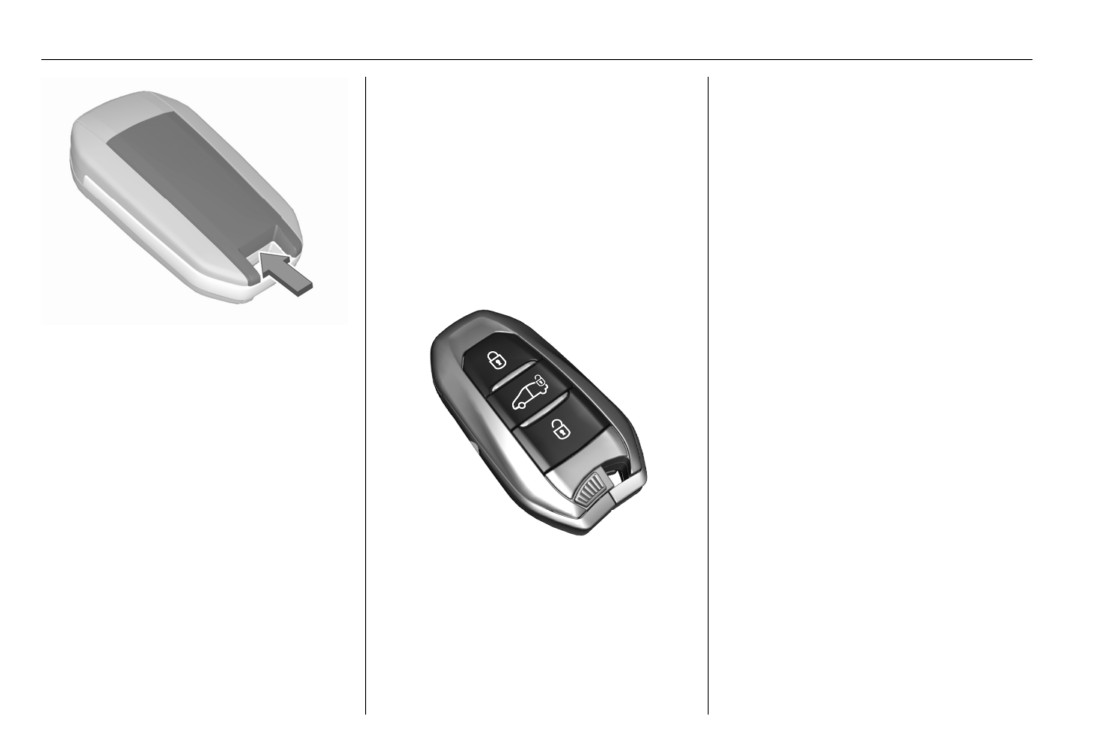

The electronic key simply needs to be
Electronic key system
on the driver's person.
Additionally, the electronic key
includes the functionality of the radio
1. Remove the back cover from the
remote control 3 23.
remote control.
Handle with care, protect from
2. Extract the flat battery from its
moisture and high temperatures and
location.
avoid unnecessary operation.
3. Replace battery with a battery of
Note
the same type. Pay attention to
To save battery power, the keyless
the installation position.
functions are set to stand-by after 21
4. Clip the back cover in place.
days of non-use. To reactivate the
functions, press a button on the
Fault
electronic key.
If the central locking system cannot
Replacing battery in electronic
be operated with the radio remote
key
control, the cause may be one of the
Replace the battery as soon as the
following:
system no longer operates properly
● Fault in radio remote control.
or the range is reduced.
● The battery voltage is too low.
Keys, doors and windows
25
3. Replace battery with a battery of
Central locking system
the same type. Pay attention to
Unlocks and locks doors, load
the installation position.
compartment and fuel filler flap.
4. Clip the cover in place.
A pull on an interior door handle
Fault
unlocks and opens the respective
door.

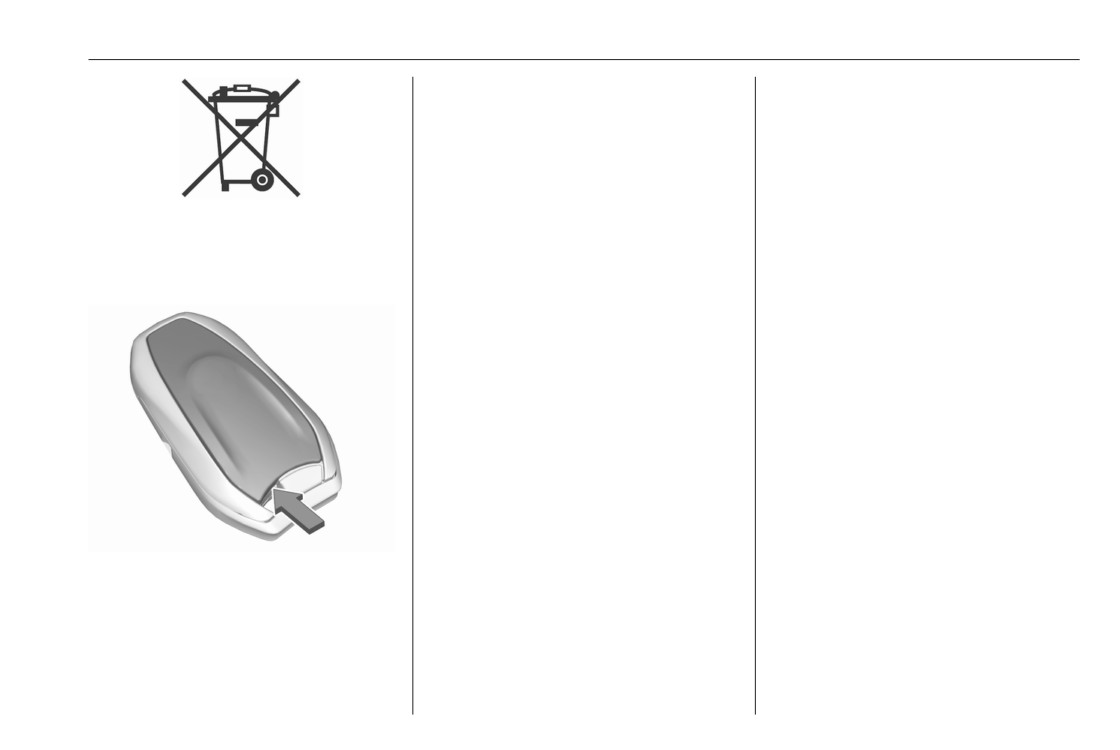

Batteries do not belong in household
If the central locking cannot be
waste. They must be disposed of at
operated or the engine cannot be
Note
an appropriate recycling collection
started, the cause may be one of the
In the event of an accident in which
point.
following:
airbags or belt pretensioners are
deployed, the vehicle is
● Fault in electronic key.
automatically unlocked.
● Electronic key is out of reception
Note
range.
A short time after unlocking with the
● The battery voltage is too low.
remote control the doors are locked
● Overload of the central locking
automatically if no door has been
system by operating at frequent
opened. A precondition is that the
intervals, the power supply is
setting is activated in the vehicle
interrupted for a short time.
personalisation 3 124.
● Interference from higher-power
Selective unlocking
radio waves from other sources.
Selective unlocking allows you to
To rectify the cause of the fault,
unlock either the front doors and the
1. Remove the cover.
change the position of the electronic
fuel filler flap or the sliding doors, the
2. Extract the flat battery from its
key.
rear doors / the tailgate. Selective
location.
Manual unlocking 3 25.
unlocking has to be configured.
26
Keys, doors and windows

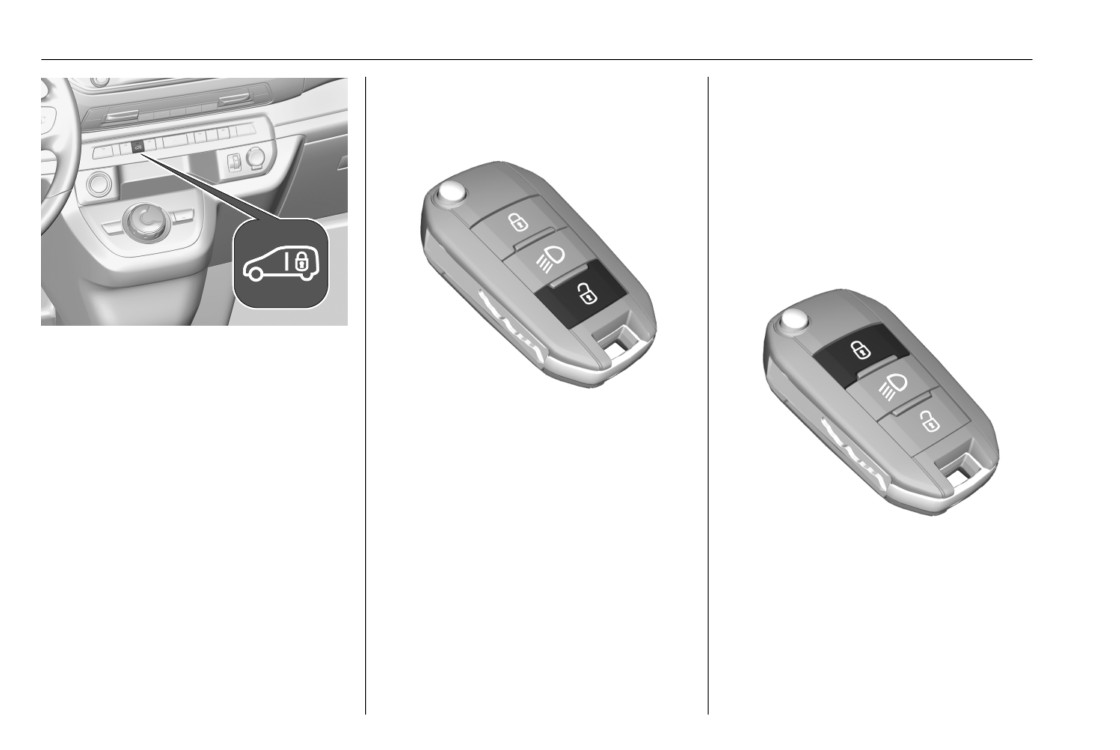

Remote control operation
Unlocking the load compartment
Press
or press < two times to
Unlocking
unlock the load compartment only,
i.e. sliding doors and rear doors or
tailgate.
Locking
Close doors and the load
compartment.
To activate, switch on the ignition and
then press
more than 2 seconds.
The LED illuminates. An audible
signal is given and depending on the
Press <.
configuration of the vehicle, a
message is displayed in Info Display.
Unlocking mode can be set. Two
settings are selectable:
To deactivate, switch on the ignition
and then press
for more than 2
● All doors and load compartment
seconds. The LED extinguishes.
will be unlocked by pressing <.
● Only the driver's door and the
Press -.
passenger door will be unlocked
If the vehicle is not closed properly,
by pressing <.
the central locking system will not
work.

















Content      ..      1       2         ..





///////////////////////////////////////
