Seats, restraints

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

9 Warning

Keep the area in which the airbag

inflates clear of obstructions.

Note

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

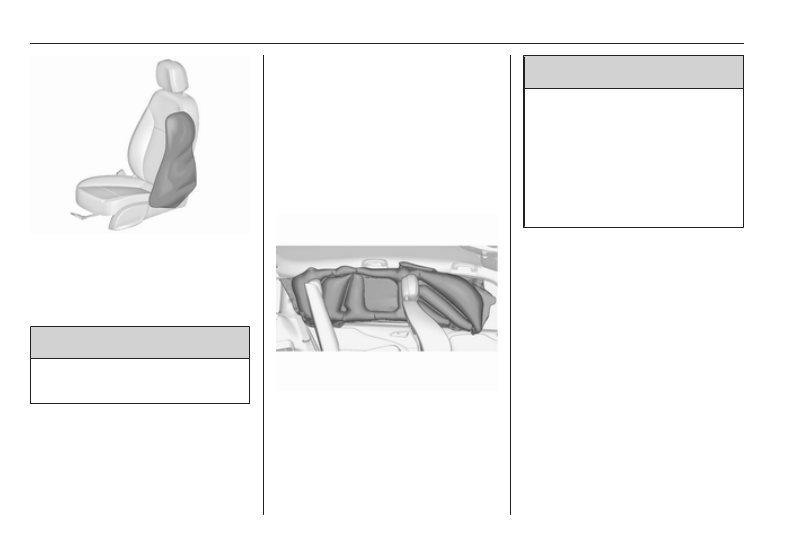

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.
The curtain airbag system does not

protect passengers on the third seat

row.

9

Warning

Keep the area in which the airbag

inflates clear of obstructions.
The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

has to be deactivated if a child

restraint system is to be fitted on this

seat. The side airbag and curtain

airbag systems, the belt

pretensioners and all driver airbag

systems will remain active.

Seats, restraints

55

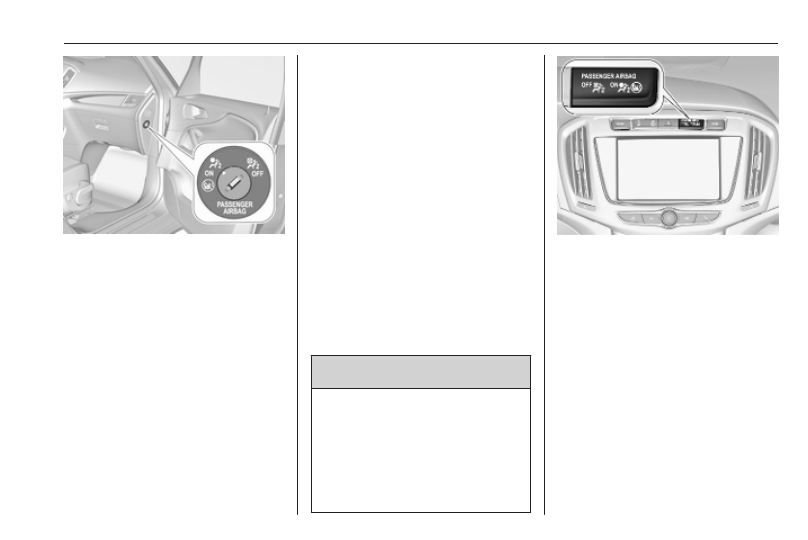

The front passenger airbag system

can be deactivated via a key-

operated switch on the passenger

side of the instrument panel.

Use the ignition key to choose the

position:
OFF* : front passenger airbag is

deactivated and will not

inflate in the event of a

collision. Control indicator

OFF* illuminates

continuously in the centre

console. A child restraint

system can be installed in

accordance with the chart

Child restraint installation

locations 3 59. No adult

person is allowed to occupy

the front passenger seat

ONV : front passenger airbag is

active. A child restraint

system must not be

installed

9 Danger

Risk of fatal injury for a child using

a child restraint system on a seat

with activated front passenger

airbag.
Risk of fatal injury for an adult

person on a seat with deactivated

front passenger airbag.

If the control indicator ONV

illuminates for approx. 60 seconds

after the ignition is switched on, the

front passenger airbag system will

inflate in the event of a collision.
If both control indicators are

illuminated at the same time, there is

a system failure. The status of the

system is not discernible, therefore

no person is allowed to occupy the

front passenger seat. Contact a

workshop immediately.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.

56

Seats, restraints

Control indicator for airbag

deactivation 3 96.

Child restraints

Child restraint systems

9 Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables 3 59.

Airbag deactivation 3 54, Airbag label

3

 49.

We recommend a child restraint

system which is tailored specifically to

the vehicle. For further information,

contact your workshop.
Before fastening a child seat adjust

the head restraint to use position

3

 36.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. Depending on the size of the

used child restraint systems, up to

two child restraint systems can be

attached to the outboard seats in the

second row and on the seats in the

third row. After fastening the child

restraint system the seat belt has to

be tightened 3 59.

Seats, restraints

57

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table 3 59.
ISOFIX brackets are indicated by a

label on the backrest.

When using ISOFIX fastened child

restraint systems on the second seat

row, we recommend to adjust the

accordant outer seat in third notch

from rear end position, regarding to

base seats. Lounge seat, if equipped,

must be in normal position 3 42.

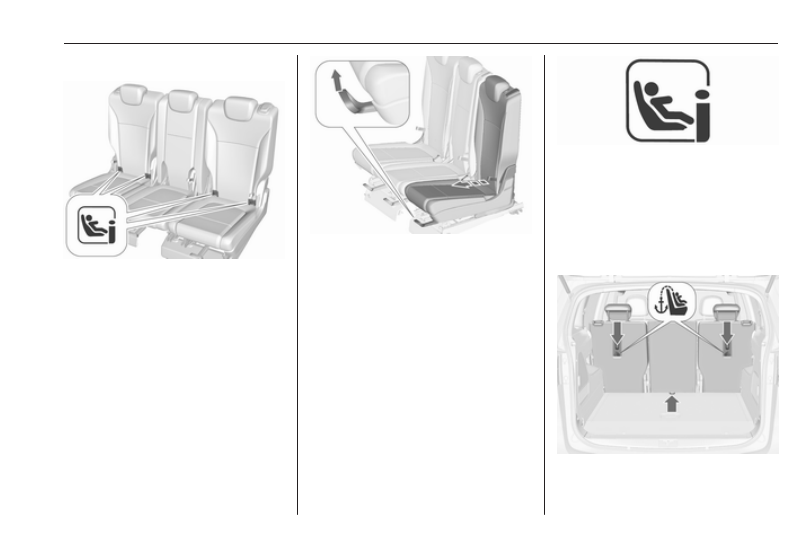

An i-size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-size child restraint systems can

be used on any vehicle seat suitable

for i-size, i-size table 3 59.
Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

i-size child seats and vehicle seats

with i-size approval are marked with

i-size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol : for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.

58

Seats, restraints

ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF 3 59.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.
The following child restraints are

recommended for the following

weight classes:
Maxi Cosi Cabriofix for children up to

13 kg for group 0, group 0+ and Duo

Plus for children from 13 kg to 18 kg

in group I.

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following

tables.
Allow children to enter and exit the

vehicle only on the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Note

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Seats, restraints

59

Child restraint installation locations

Permissible options for fastening a child restraint system with a three-point seat belt

Weight class

On front passenger seat

On outboard seats in

the second row

On centre seat

in the second

row

On seats in the

third row

activated airbag deactivated airbag

Group 0: up to 10 kg X

U

1,2

U/L

3

X

U/L

3

Group 0+: up to 13 kg X

U

1,2

U/L

3

X

U/L

3

Group I: 9 to 18 kg

X

U

1,2

U/L

3,4

X

U/L

3,4

Group II: 15 to 25 kg X

X

U/L

3,4

X

U/L

3,4

Group III: 22 to 36 kg X

X

U/L

3,4

X

U/L

3,4

U : universal suitability in conjunction with three-point seat belt

L : suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The

child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint

system)

X : no child restraint system permitted in this weight class

1

: move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure

that the belt runs forwards from the upper anchorage point

2

: move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure

that the belt is tight on the buckle side

3

: move the respective front seat ahead of the child restraint system forwards as far as necessary

4

: adjust the respective headrest as necessary or remove if required

60

Seats, restraints

Permissible options for fitting an ISOFIX child restraint system with ISOFIX brackets

This table relates to all ISOFIX child restraint systems

Weight class

Size class Fixture

On front passenger

seat

On outboard seats

in the second row

On centre seat in

the second row

On the seats in

the third row

Group 0: up to 10 kg G

F
E

ISO/L2
ISO/L1
ISO/R1

X
X
X

X
X
IL

3

X
X
X

X
X
X

Group 0+: up to 13 kg E

ISO/R1 X

IL

3

X

X

D

ISO/R2 X

IL

3

X

X

C

ISO/R3 X

IL

3

X

X

Group I: 9 to 18 kg

D

ISO/R2 X

IL

3,4

X

X

C

ISO/R3 X

IL

3,4

X

X

B

ISO/F2 X

IL, IUF

3,4

X

X

B1

ISO/F2X X

IL, IUF

3,4

X

X

A

ISO/F3 X

IL, IUF

3,4

X

X

Group II: 15 to 25 kg

X

IL

3,4

X

X

Group III: 22 to 36 kg

X

IL

3,4

X

X

Seats, restraints

61

IL : suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child

restraint system)

IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class

X

: no ISOFIX child restraint system approved in this weight class

1

: move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure

that the belt runs forwards from the upper anchorage point

2

: move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure

that the belt is tight on the buckle side

3

: move the respective front seat ahead of the child restraint system forwards as far as necessary

4

: adjust the respective headrest as necessary or remove if required

A – ISO//F3

: forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.

B – ISO//F2

: forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

B1 – ISO//F2X : forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

C – ISO//R3

: rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.

D – ISO//R2

: rear-facing child restraint system for smaller children in the weight class up to 18 kg.

E – ISO//R1

: rear-facing child restraint system for young children in the weight class up to 13 kg.

Permissible options for fitting an i-Size child restraint system with ISOFIX brackets

On front passenger seat

On outboard seats in

the second row

On centre seat in the

second row

On the seats in the

third row

activated airbag deactivated airbag

i-Size child

restraint

systems

X

X

i - U

X

X

i - U : suitable for i-Size 'universal' forward and rearward facing child restraint systems

X

: seating position not suitable for i-Size 'universal' child restraint systems

62

Storage

Storage

Storage compartments ................ 62

Glovebox ................................... 62

Cupholders ................................ 62

Front storage ............................. 64

Door panel storage .................... 64

Overhead console ..................... 64

Underseat storage ..................... 64

Armrest storage ......................... 65

Centre console storage ............. 65

Load compartment ....................... 66

Rear storage .............................. 68

Load compartment cover ........... 68

Rear floor storage cover ............ 70

Load rails and hooks ................. 75

Lashing eyes ............................. 75

Cargo management system ...... 75

Safety net .................................. 77

Folding tray ................................ 79

Warning triangle ........................ 79

First aid kit ................................. 79

Roof rack system ......................... 80

Roof rack ................................... 80

Loading information ..................... 81

Storage compartments

9 Warning

Do not store heavy or sharp

objects in the storage

compartments. Otherwise, the

storage compartment lid could

open and vehicle occupants could

be injured by objects being thrown

around in the event of hard

braking, a sudden change in

direction or an accident.

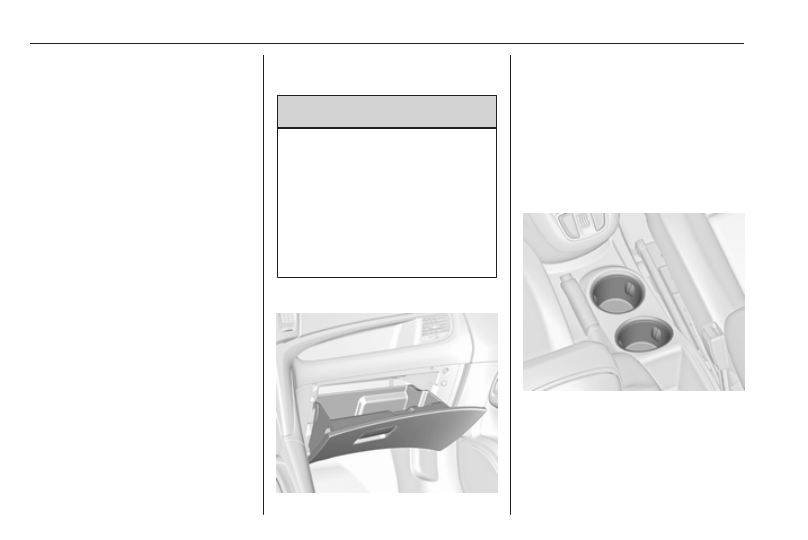

Glovebox

To open the glovebox pull the handle.
The glovebox features an adapter for

the locking wheel nuts.
The glovebox should be closed whilst

driving.

Cupholders

Front cupholder

Cupholders are located in the centre

console between the front seats.

Storage

63

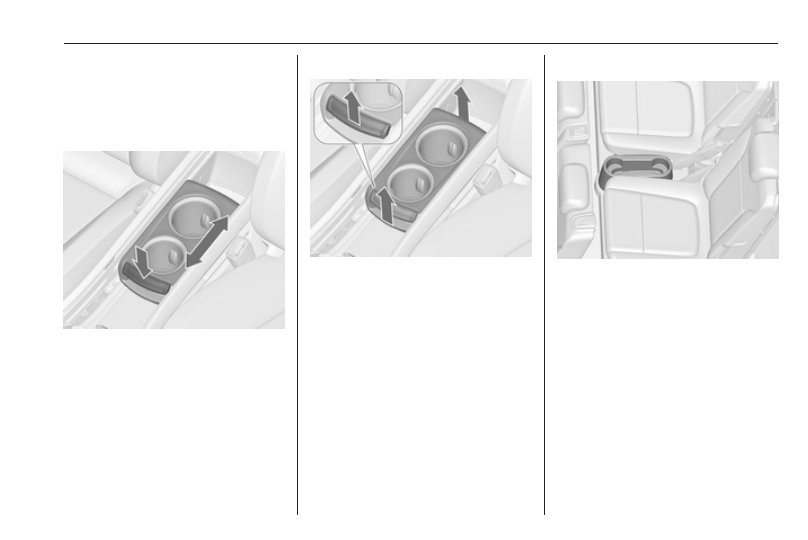

Slidable cupholder in

FlexConsole armrest

The cupholder can be moved in guide

rails in the FlexConsole armrest or

completely removed.

Push the handle in front of cupholder

to slide.
Armrest 3 41.

Remove cupholder

Pull the handle in front of cupholder

and remove it vertically out of the

console.
Installation in reverse order.

Note

Install the cupholder in the direction

as shown in the illustration.

Otherwise the cupholder may not

engage properly.

Rear cupholder

Additional cupholder are located

between the seats in the third row.

Bottleholder

The door pockets of front and rear

doors are designed to carry bottles.

64

Storage

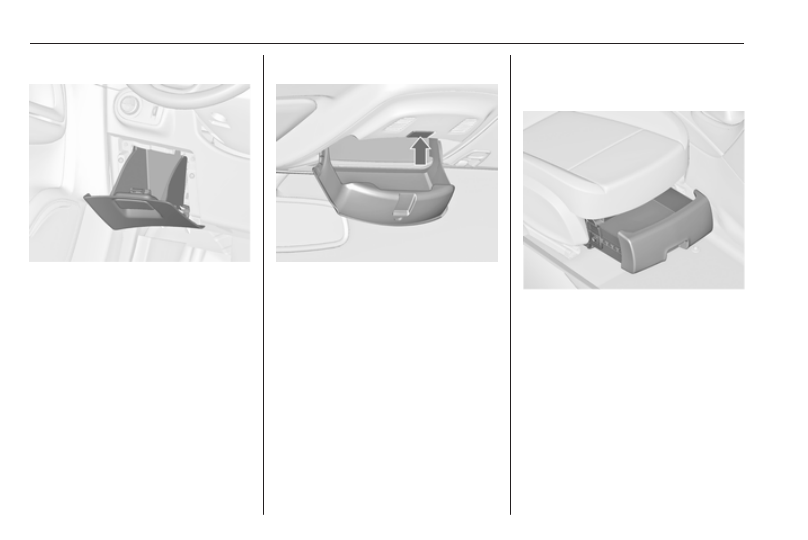

Front storage

A storage compartment is located

next to the steering wheel.

Door panel storage

On front door trim there are small

pockets for e. g. mobile phones.

Overhead console

Press button to open storage box.
The box may be loaded with max.

0.2 kg.

Underseat storage

Underseat drawer

Press button in the recess and pull out

drawer. Maximum load: 3 kg. To

close, push in and engage.

Storage

65

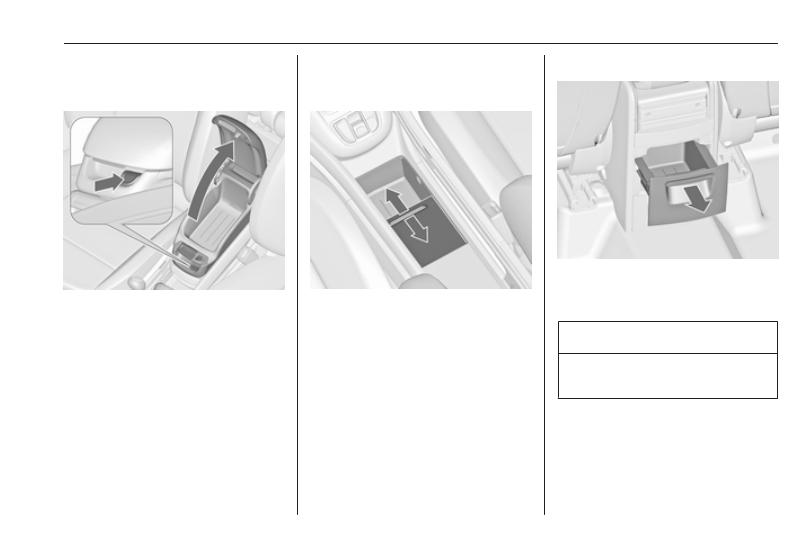

Armrest storage

Storage in FlexConsole armrest

Press button to open storage

compartment in the armrest.
Behind the armrest there is another

storage compartment. Slide the lid to

open.

Centre console storage

Centre console

The storage container can be used to

store small items.
Slide cover backwards to open.

Rear console

At the rear side of the FlexConsole

there is a storage drawer. Pull out to

open.

Caution

Do not use for ashes or for other

glowing items.

66

Storage

Load compartment

The seats in the third row can be

folded down separately into the

vehicle floor. The seat backrests of

the second row can be folded forward

separately.
Rear floor storage cover 3 70.

9 Warning

When seats or backrests are being

adjusted or folded, keep hands

and feet away from the moving

area.
Never store objects under the

seats.
Drive only with engaged seats and

backrests.

Caution

Before setting up or folding down

seats, all components must be

removed from the side rails and

from the lashing eyes.
Lashing eyes must be in stored

position.

Folding down the seats of the third

row

● Push down head restraint by

pressing the catch 3 36.

● Insert the latch plate of the seat

belt on each side into the pocket

that is mounted at the belt.

Storage

67

● Pull the lower loop and

simultaneously swing the

backrest forwards until the seat is

lowered into the vehicle floor.

● Install interior floor mat 3 70

and load compartment cover

3

 68 if necessary.

Setting up the seats

Pull up the seat by the upper loop, fold

out and allow seat to engage in

upright position.

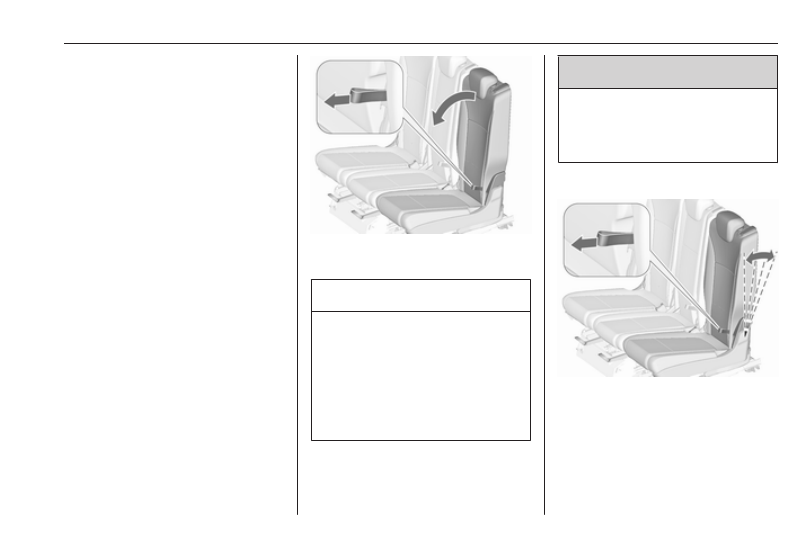

Folding the seat backrests of the

second row

● Remove the load compartment

cover if necessary 3 68.

● Push down head restraints by

pressing the catch 3 36.

● Move front passenger seat to a

position that avoids contact with

the head restraints of the folded

backrests.

● Pull the loop and fold down the

backrest onto the seat cushion.

Caution

● Do not fold the outer seatbacks

while the seats are in the

lounge seat position 3 42.

● Do not pull release lever of the

easy entry function when the

backrest is folded down.

The seats could be damaged.

● Alternatively pull the loop and

adjust backrest to vertical

position as cargo position.

9 Warning

Use vertical position of the

backrest only for increased

luggage volume and not as a

seating position.

Folding up backrest

Raise backrest to vertical position.

Adjust inclination by pulling the loop.
Ensure that all positions are engaged

correctly.

68

Storage

9 Warning

Only drive the vehicle if the

backrests are securely locked into

position. Otherwise there is a risk

of personal injury or damage to the

load or vehicle in the event of

heavy braking or a collision.

Rear storage

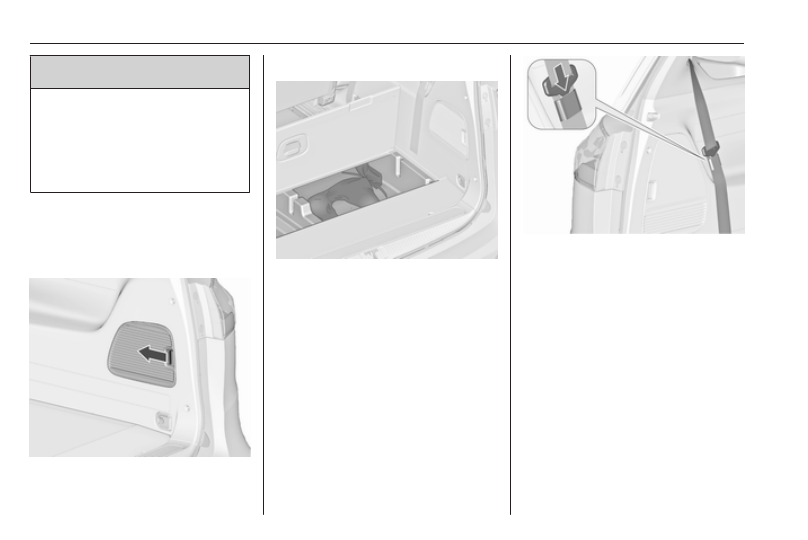

On both sides of the load

compartment there are storage

shelves.

To open, release cover in side trim

panel and remove.

Floor storage

On version without third seat row,

there are storage boxes under the

floor cover. Lift up the cover to open.

Load compartment cover

Do not place any heavy or sharp-

edged objects on the load

compartment cover.

Before operating the load

compartment cover, insert the latch

plate of the seat belt on each side into

the pocket that is mounted at the belt.

Storage

69

Closing

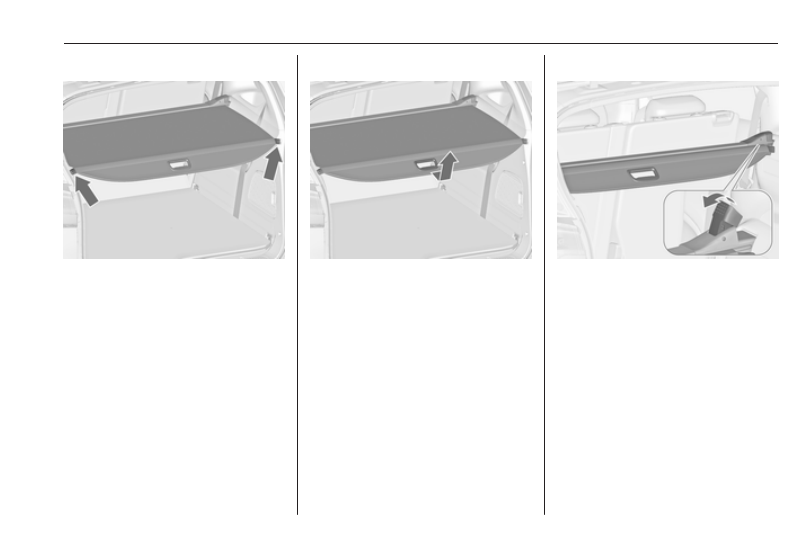

Pull the load compartment cover

towards the rear using the handle and

engage it in the retainers at the sides.

Opening

Remove load compartment cover

from side brackets. Hold the handle

and guide the load compartment

cover until it is fully rolled up.

Removing

Open the load compartment cover.
Pull the release lever up and hold. Lift

load compartment cover on right side

and remove from retainers.

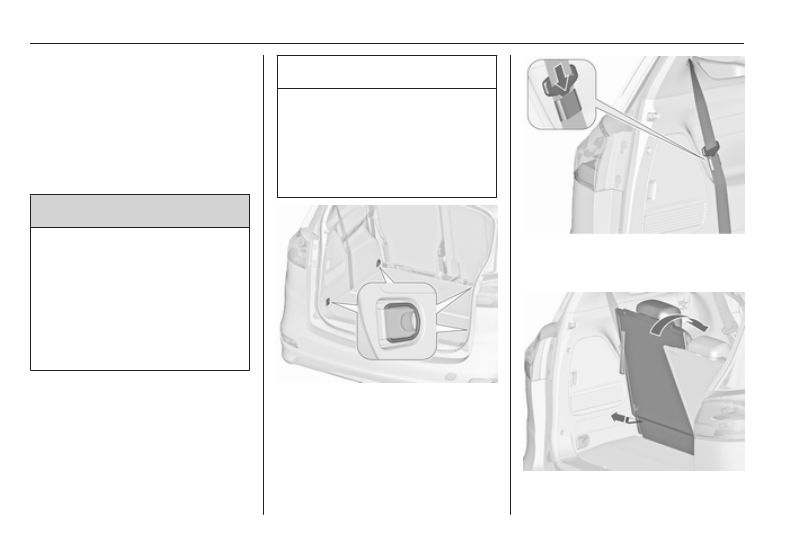

Stowing in the load compartment

If the load compartment cover is not

used, stow it in the storage in the

vehicle floor.
Open the cover of the storage in front

of the tailgate.
Remove the load compartment cover

and turn it so that the release lever is

directed to the left.
