Storage

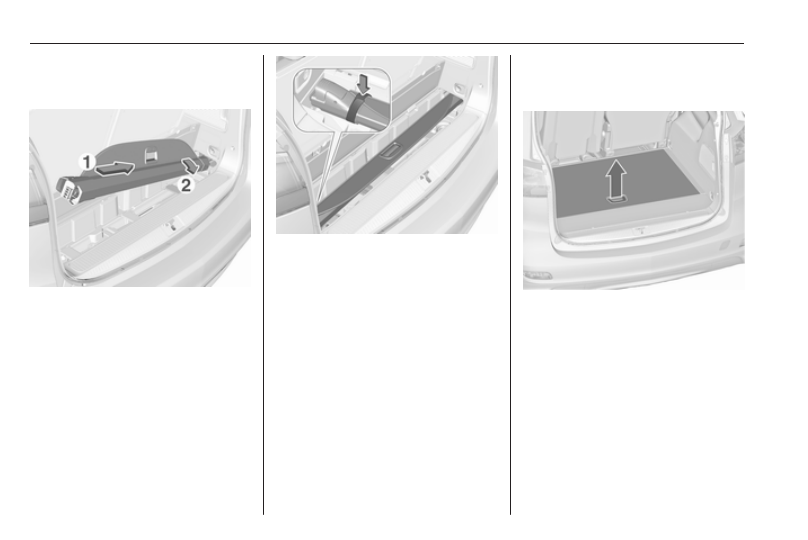

Place the housing so that the upper

side is facing to the front and the part

with the handle points upwards.

Insert the load compartment cover

into the opening on the right side of

the storage (1) and turn it until the

handle rests flat on the housing (2).

Fasten the load compartment cover in

the storage with the Velcro tape.

Installing

Insert the left side of the load

compartment cover into the recess,

pull the release lever up and hold,

insert the right side of the load

compartment cover and engage.

Rear floor storage cover

Floor cover

On versions without third seat row,

there are storage boxes under the

floor cover. To open lift up the cover

and fold it upright behind rear seats.

Interior protection mat

Interior protection mat is a covering

and protection feature for the load

compartment, to be used when all or

single seats/backrests are folded

down.

Storage

71

By folding and expanding the mat

there are a range of individual

applications possible.
The interior protection mat is

available in two versions:

● Standard protection mat covers

the area between tailgate and

second seat row, when third row

is complete or if one seat is folded

down.

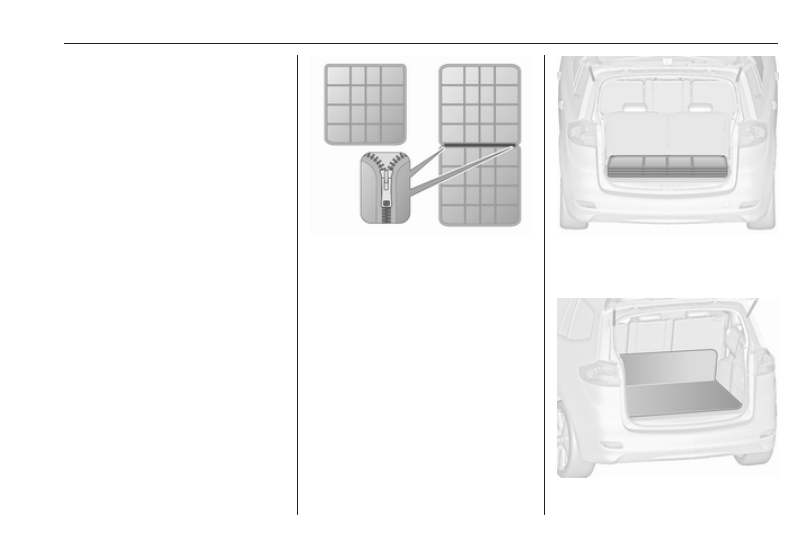

● Flex cover interior protection

mat is double size of standard

protection mat, connected by a

zipper. It covers the load

compartment fully, when all or

single seats of third and second

row are folded down.

Protection mat is foldable

longitudinally in 4 parts (standard) or

8 parts (Flex cover) with a central

zipper and transversely foldable in

4 parts.

Following only a few examples of

using the mats are described.
Before folding and expanding the

mat, all components must be

removed from the side rails and from

the lashing eyes. Lashing eyes must

be in stored position.

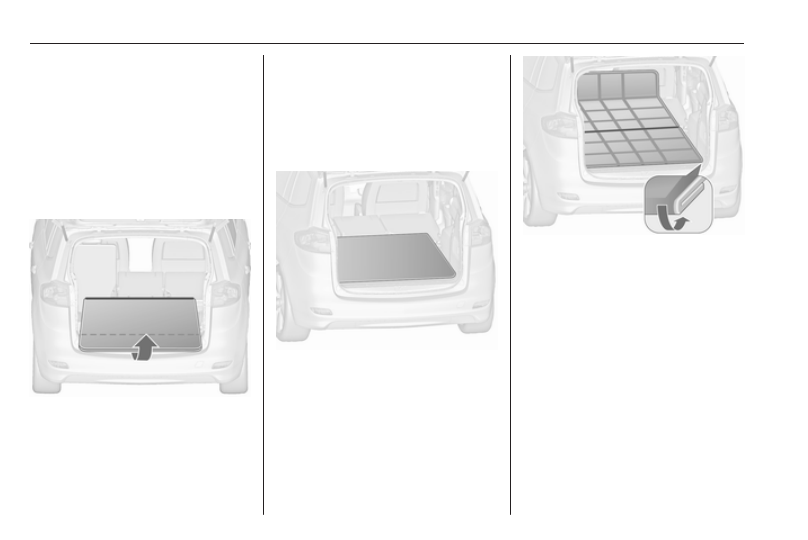

Covering the load compartment

between tailgate and second seat row

possible with both Standard

protection mat or Flex cover interior

protection mat being folded at the

zipper to half size (double layer).

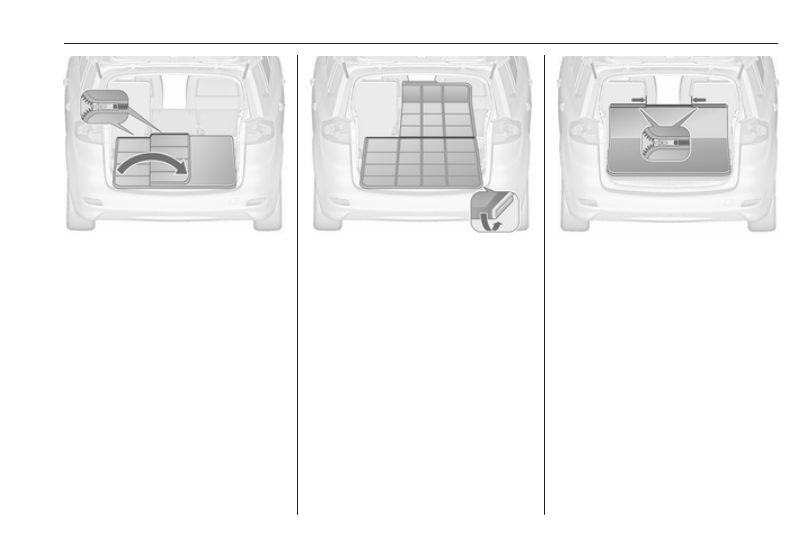

Mat is located fourfold flapped behind

the raised up seats of the third row.

● Fold down third row seats.

72

Storage

● Expand the parts of the folded

mat, so that first part is raised up

at second row backrest.

● When folding down second row

backrests, the mat expands

automatically and covers the

space between both seat rows.

● To allow one seat in the third row

to be raised up, fold mat in half

lengthways.

● Pull out the mat a little to protect

load compartment sill when

loading heavy objects. Raise up

the overlaying part of the mat

before closing the tailgate.

Covering the load compartment up to

the backrests of the front seats

Only possible with Flex cover interior

protection mat being folded at the

zipper to half size (double layer).
Mat is expanded up to the second row

seats, as described previously.

● Fold down second row backrests.
● Expand the upper parts of the

double layer mat, so that the load

compartment is fully covered.

The first part of the mat is now

raised up at the backrests of front

seats.

● Fold the overlaying rear part

under the mat before closing the

tailgate.

Covering the load compartment

partially

Only possible with Flex cover interior

protection mat being folded at the

zipper to half size (double layer).
Application example: left outer

backrest is not folded down

Mat is expanded up to the second row

seats, as described in first section.

● Fold down the backrests that

shall be covered.

Storage

73

● Open the zipper behind the

raised up backrest.

● Pull out the mat until the first part

is flat on the load compartment

floor.

● Raise up lengthways the part that

is opened by the zipper, and fold

it to the centre.

● Expand the upper part of double

layer mat over the folded

backrests.

● Fold the overlaying rear part

under the mat before closing the

tailgate.

Proceed in the same way when one

outer backrest and the centre

backrest are not folded down.
Application example: only centre

backrest is folded down

Mat is expanded up to the second row

seats, as described in first section.

● Fold down centre backrest to be

covered.

● Open the zipper from both sides

behind the left and right backrest.

● Pull out the mat until the first part

is flat on the load compartment

floor.

● Raise up lengthways both parts

that are opened by the zipper,

and fold them to the centre.

74

Storage

● Then expand the small upper

part of double layer mat over the

centre backrest.

● Fold the overlaying rear part

under the mat before closing the

tailgate.

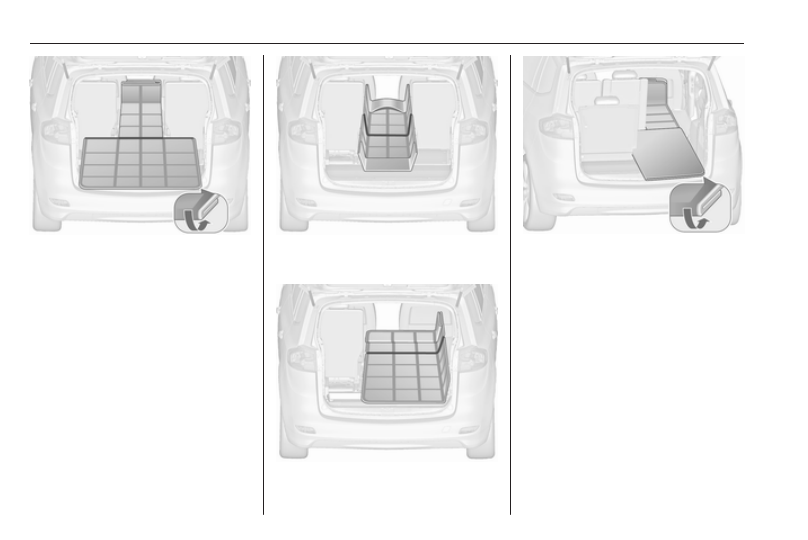

The following illustrations show some

further examples.

Example for long small objects, e.g.

skis.

Example for side cover protection.

Example for covering folded backrest

on second row and one folded seat on

third row.

Storage

75

Load rails and hooks

Install the hooks in the desired

position in the rails: insert the hook in

the upper groove on the rail and press

in the lower groove.

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

Cargo management system

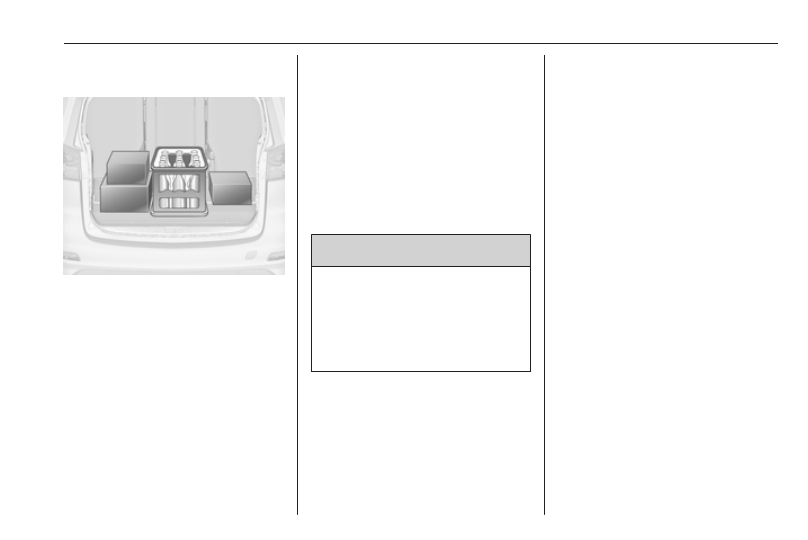

The FlexOrganizer is a flexible

system for dividing up the load

compartment.
The system consists of:

● adapters
● mesh pockets
● hooks
● variable partition net

The components are fitted in rails on

both side panels using adapters and

hooks.

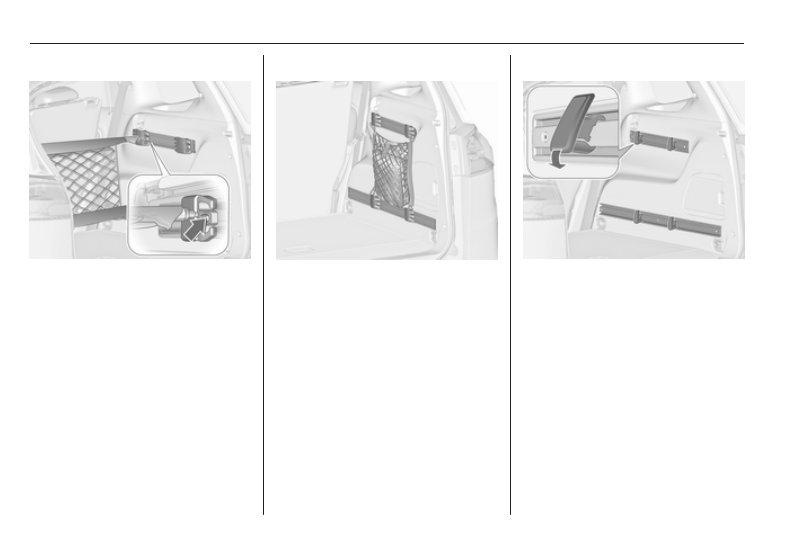

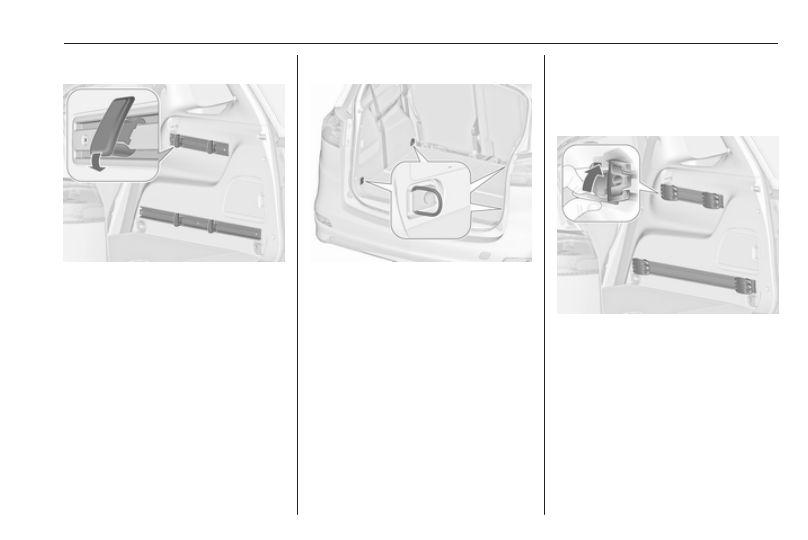

Installation of adapters in the rails

Fold open the handle plate, insert the

adapter into the upper and lower

groove of the rail and move to the

required position. Turn the handle

plate upwards to lock the adapter. To

remove, turn the handle plate down

and move out of the rail.

76

Storage

Variable partition net

Insert adapters into the required

position in the rails. Stick together the

halves of the net rods.
To install, push rods together a little

and insert into the relevant openings

in the adapters.
To remove, press the net rods

together and remove from the

adapters.

Net pocket

Insert adapters into the required

position in the rails. The net pocket

can be suspended from the adapters.

Installation of hooks in the rails

Insert the hook in the desired position

first in the upper groove of the rail and

then press in the lower groove. To

remove, first pull out of the upper

groove.

Storage

77

Partitioning net in front of tailgate

Install directly in front of the tailgate.
Before installation push in the four

end pieces of the net rod by rotating

each end piece anticlockwise.
To install, push the net rods together

and insert into the openings of the

tailgate frame. The longer rod must

be inserted at the top.
To remove, push the net rods

together and remove.

Safety net

The safety net can be installed behind

the seats of the second row or the

front seats.
Passengers must not be transported

behind the safety net.

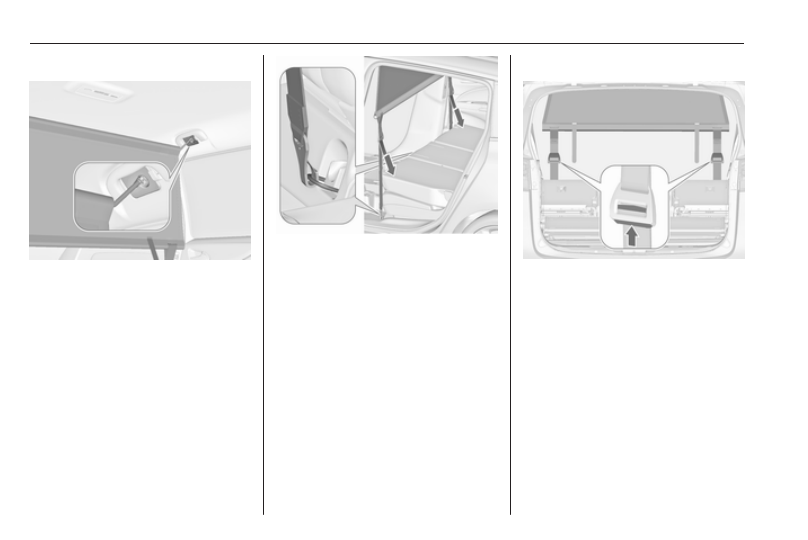

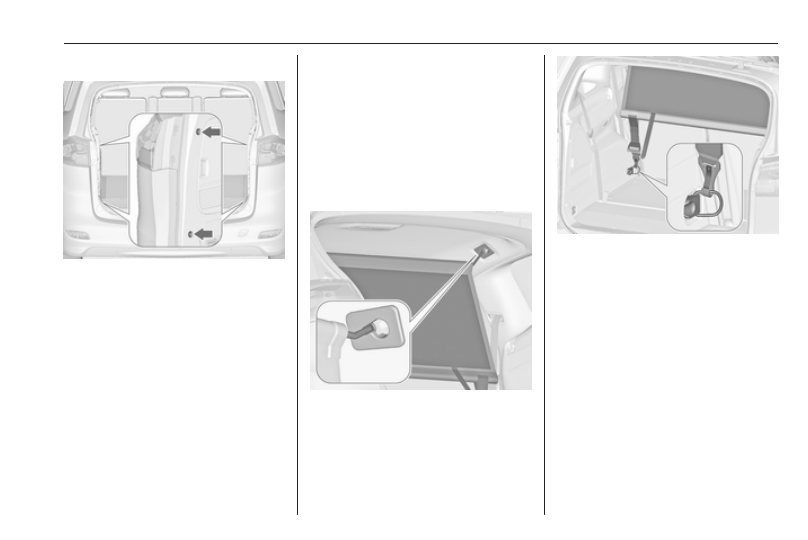

Installation behind second row

seats

● There are installation openings

on both sides in the roof frame

above second row seats:

suspend and engage rod of net at

one side, compress rod and

suspend and engage at the other

side.

● Attach hooks of safety net straps

to front lashing eyes on both

sides in the load compartment.

● Tension both straps by pulling at

the loose end.

78

Storage

Installation behind front seats

● There are installation openings

on both sides in the roof frame

above the front seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach hooks of safety net straps

to the lashing eyes on both sides

in the floor in front of the seats.

● Tension both straps by pulling at

the loose end.

Removal

Push button on the tightener to

release the strap on both sides.

Detach hooks from the eyes. Unhook

the safety net rods from the brackets

in the roof frame. Roll up the net and

secure with a strap.

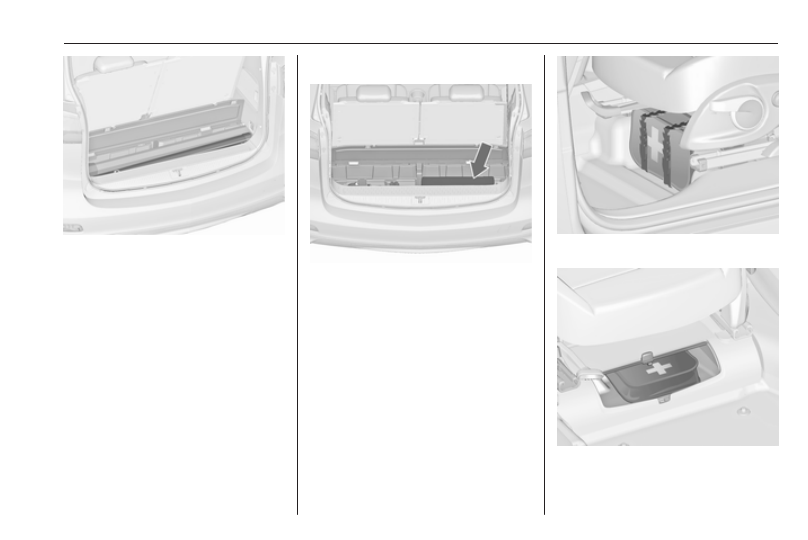

Stowing

Open the cover of the storage in the

load compartment floor in front of the

tailgate.

Storage

79

Insert the safety net in the storage

and close cover.

Folding tray

Located in the front seat backrests.
Open by pulling upwards until it

engages.
Fold away by pressing down past the

resistance point.
Do not place any heavy objects on the

folding tray.

Warning triangle

Stow the warning triangle in the

storage of the load compartment floor

in front of the tailgate.

First aid kit

Stow the first aid kit and the high

visibility vest under the driver's seat.

Use the straps to fix.

80

Storage

On another version, first aid kit is

located in a storage box under the

driver's seat. Slide the rollo to open or

close the box.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.
Follow the installation instructions

and remove the roof rack when not in

use.

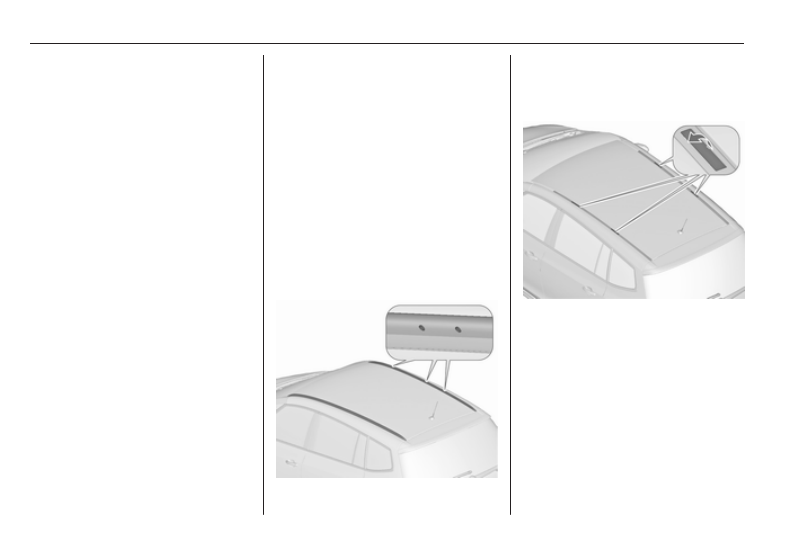

Mounting roof rack

Vehicles with roof railing

Fasten the roof rack in the area of the

holes.

Vehicles without roof railing

To fasten a roof rack, open the caps

in the roof strips. Insert the mounting

provisions, as instructed, in the

retainer indicated in the illustration.

Storage

81

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests.

Ensure the backrests are

securely engaged. If objects can

be stacked, the heavier objects

should be placed at the bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

3

 75.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector lever, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 287) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.
The permissible roof load is

75 kg for vehicles without roof

railing and 100 kg for vehicles

with roof railing. The roof load is

the combined weight of the roof

rack and the load.

82

Instruments and controls

Instruments and

controls

Controls ....................................... 83

Steering wheel adjustment ........ 83

Steering wheel controls ............. 83

Heated steering wheel ............... 83

Horn ........................................... 84

Windscreen wiper and washer . . 84

Rear window wiper and

washer ...................................... 85

Outside temperature .................. 86

Clock ......................................... 86

Power outlets ............................. 87

Cigarette lighter ......................... 88

Ashtrays .................................... 88

Warning lights, gauges and indi‐

cators ........................................... 89

Instrument cluster ...................... 89

Speedometer ............................. 89

Odometer .................................. 89

Trip odometer ............................ 89

Tachometer ............................... 90

Fuel gauge ................................ 90

Engine coolant temperature

gauge ....................................... 90

Service display .......................... 91

Control indicators ...................... 92

Turn lights .................................. 94

Seat belt reminder ..................... 95

Airbag and belt tensioners ......... 95

Airbag deactivation .................... 96

Charging system ....................... 96

Malfunction indicator light .......... 96

Brake and clutch system ........... 96

Operate pedal ............................ 97

Electric parking brake ................ 97

Electric parking brake fault ........ 97

Antilock brake system (ABS) ..... 97

Gear shifting .............................. 98

Power steering .......................... 98

Following distance ..................... 98

Lane departure warning ............ 98

Electronic Stability Control off ... 98

Electronic Stability Control and

Traction Control system ........... 98

Traction Control system off ....... 98

Preheating ................................. 99

Exhaust filter .............................. 99

AdBlue ....................................... 99

Tyre pressure monitoring

system ...................................... 99

Engine oil pressure .................... 99

Low fuel ................................... 100

Immobiliser .............................. 100

Exterior light ............................ 100

High beam ............................... 100

High beam assist ..................... 100

LED headlights ........................ 100

Front fog lights ......................... 100

Rear fog light ........................... 100

Cruise control .......................... 100

Adaptive cruise control ............ 101

Vehicle detected ahead ........... 101

Speed limiter ........................... 101

Traffic sign assistant ................ 101

Door open ................................ 101

Displays ..................................... 101

Driver Information Centre ........ 101

Info Display .............................. 105

Vehicle messages ...................... 106

Warning chimes ....................... 107

Battery voltage ........................ 107

Vehicle personalisation .............. 108
Telematics service ..................... 109

OnStar ..................................... 109

Instruments and controls

83

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The Infotainment system, some driver

assistance systems and a connected

mobile phone can be operated via the

controls on the steering wheel.
Further information is available in the

Infotainment manual.
Driver assistance systems 3 203.

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.

84

Instruments and controls

The recommended grip areas of the

steering wheel are heated quicker

and to a higher temperature than the

other areas.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system 3 185.

Horn

Press j.

Windscreen wiper and

washer

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping or automatic

wiping with rain sensor

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval

: turn adjuster

wheel upwards

long interval

: turn adjuster

wheel downwards

Instruments and controls

85

Adjustable sensitivity of the rain

sensor

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

sensitivity of the rain sensor.
The rain sensor detects the amount of

water on the windscreen and

automatically regulates the wiping

frequency and speed.
After 20 seconds without wiping

activity, the wiper arms move slightly

down to park position.

Keep the sensor free from dust, dirt

and ice.

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 244

Rear window wiper and

washer

Press the rocker switch to activate the

rear window wiper:
upper position : continuous

operation

lower position : intermittent

operation

middle position : off
