22

Keys, doors and windows

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

Key with foldaway key section

Extend the key and open the unit.

Replace the battery (battery type

CR 2032), paying attention to the

installation position. Close the unit

and synchronise.

Key with fixed key section

Have the battery replaced by a

workshop.

Memorised settings

Whenever the ignition is switched off,

some functions of the following

settings may be automatically

memorised by the remote control unit:

● lighting
● Infotainment system
● central locking system
● Sport mode settings
● comfort settings

The saved settings are automatically

used the next time the ignition is

switched on with the memorised key

of the remote control unit 3 182.
A precondition is that Personalisation

by Driver is activated in the personal

settings of the Info-Display. This must

be set for each remote control unit

which is used. The status change is

available only after locking and

unlocking the vehicle.
Vehicle personalisation 3 108.

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
A pull on an interior door handle

unlocks the respective door. Pulling

the handle once more opens the door.

Note

In the event of an accident in which

airbags or belt pretensioners are

deployed, the vehicle is

automatically unlocked.
Note

A short time after unlocking with the

remote control, the doors are

relocked automatically if no door has

been opened.

Keys, doors and windows

23

Unlocking

Press c.
Two settings are selectable:

● To unlock only the driver's door

and fuel filler flap, press c once.

To unlock all doors and load

compartment, press c twice.

● Press c once to unlock all doors,

load compartment and fuel filler

flap.

The setting can be changed in the

Settings menu in the Info Display.
Vehicle personalisation 3 108.
The setting can be saved for the key

being used.

Memorised settings 3 22.

Locking

Close doors, load compartment and

fuel filler flap.

Press e.
If the driver's door is not closed

properly, the central locking system

will not work.

Unlocking and opening the

tailgate

Press c when the ignition is off. The

tailgate is released to be unlocked

and opened by pushing the touchpad

switch below the handle.

Central locking buttons

Locks or unlocks all doors, the load

compartment and fuel filler flap from

the passenger compartment.

24

Keys, doors and windows

Press e to lock.
Press c to unlock.

Fault in radio remote control

system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. Switch on

the ignition and press c to unlock all

doors, load compartment and fuel

filler flap. By switching on the ignition,

the anti-theft locking system is

deactivated.

Locking

Manually lock the driver's door by

turning the key in the lock.

Fault in central locking system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. The other

doors can be opened by pulling the

interior handle twice. The load

compartment and fuel filler flap

cannot be opened. To deactivate the

anti-theft locking system, switch on

the ignition 3 26.

Locking

Push inside locking knob of all doors

except driver's door. Then close the

driver's door and lock it from the

outside with the key. The fuel filler flap

and tailgate cannot be locked.

Automatic locking

This security feature can be

configured to automatically lock all

doors, load compartment and fuel

filler flap as soon as a certain speed

is exceeded.
Settings can be changed in the

Settings menu in the Info-Display.

Vehicle personalisation 3 108.

Keys, doors and windows

25

The settings can be saved for the key

being used 3 22.

Child locks

9 Warning

Use the child locks whenever

children are occupying the rear

seats.

Using a key or suitable screwdriver,

turn the child lock in the rear door to

the horizontal position. The door

cannot be opened from the inside. For

deactivation turn the child lock to the

vertical position.

Doors

Load compartment

Tailgate

Opening

After unlocking, push the touchpad

switch under the tailgate moulding

and open the tailgate.
Central locking system 3 22.

Closing

Use the interior handle.
Do not push the touchpad switch

under the tailgate moulding whilst

closing as this will unlock the tailgate

again.
Central locking system 3 22.

26

Keys, doors and windows

General hints for operating

tailgate

9 Danger

Do not drive with the tailgate open

or ajar, e.g. when transporting

bulky objects, since toxic exhaust

gases, which cannot be seen or

smelled, could enter the vehicle.

This can cause unconsciousness

and even death.

Caution

Before opening the tailgate, check

overhead obstructions, e.g. a

garage door, to avoid damage to

the tailgate. Always check the

moving area above and behind the

tailgate.

Note

The installation of certain heavy

accessories onto the tailgate may

affect its ability to remain open.

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks all the doors.

All doors must be closed otherwise

the system cannot be activated.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

Activating

Press e on the radio remote control

twice within 5 seconds.

Anti-theft alarm system

The anti-theft alarm system is

combined with the anti-theft locking

system.
It monitors:

● doors, tailgate, bonnet
● passenger compartment

including adjoining load

compartment

Keys, doors and windows

27

● vehicle inclination, e.g. if it is

raised

● ignition

Activation

● Self-activated 30 seconds after

locking the vehicle (initialisation

of the system).

● Directly by pressing e on the

radio remote control once more

after locking.

Note

Changes to the vehicle interior such

as the use of seat covers, and open

windows or sunroof, could impair the

function of passenger compartment

monitoring.

Activation without monitoring of

passenger compartment and

vehicle inclination

Switch off the monitoring of

passenger compartment and vehicle

inclination when animals are being

left in the vehicle, because of high

volume ultrasonic signals or

movements triggering the alarm. Also

switch off when the vehicle is on a

ferry or train.

1. Close tailgate, bonnet and

windows.

2. Press o. LED in the button

illuminates for a maximum of ten

minutes.

3. Close doors.
4. Activate the anti-theft alarm

system.

Status message is displayed in the

Driver Information Centre.

Status LED

28

Keys, doors and windows

Status LED is integrated into the

sensor on top of the instrument panel.
Status during the first 30 seconds of

anti-theft alarm system activation:
LED illuminates : test, arming delay

LED flashes

quickly

: doors, tailgate or

bonnet not

completely closed,

or system fault

Status after system is armed:
LED flashes

slowly

: system is armed

Seek the assistance of a workshop in

the event of faults.

Deactivation

Unlocking the vehicle deactivates the

anti-theft alarm system.

Alarm

When triggered, the alarm horn

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.

The alarm can be silenced by

pressing any button on the radio

remote control or by switching on the

ignition.
The anti-theft alarm system can be

deactivated only by pressing c or by

switching on the ignition.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by the hazard warning

lights. They will flash quickly three

times when the vehicle is next

unlocked with the radio remote

control. Additionally, a warning

message is displayed in the Driver

Information Centre after switching on

the ignition.
Vehicle messages 3 106.
If the vehicle's battery is to be

disconnected (e.g. for maintenance

work), the alarm siren must be

deactivated as follows: switch the

ignition on then off, then disconnect

the vehicle's battery within

15 seconds.

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.
The immobiliser is activated

automatically after the key has been

removed from the ignition switch.
If the control indicator d flashes when

the ignition is on, there is a fault in the

system; the engine cannot be started.

Switch off the ignition and repeat the

start attempt.
If the control indicator continues

flashing, attempt to start the engine

using the spare key and seek the

assistance of a workshop.

Note

The immobiliser does not lock the

doors. You should always lock the

vehicle after leaving it and switch on

the anti-theft alarm system 3 22,

3

 26.

Control indicator d 3 100.

Keys, doors and windows

29

Exterior mirrors

Convex shape

The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.
Side blind spot alert 3 221.

Electric adjustment

Select the relevant exterior mirror by

turning the control to left (L) or right

(R). Adjust respective mirror by tilting

the four-way control.

In position 0 no mirror is selected.

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Electric folding

Turn control to 0, then push the

control down. Both exterior mirrors

will fold.
Push the control down again - both

exterior mirrors return to their original

position.
If an electrically folded mirror is

manually extended, pressing down

the control will only electrically extend

the other mirror.

30

Keys, doors and windows

Heated mirrors

Operated by pressing Ü.
Heating works with the engine

running and is switched off

automatically after a short time.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles is

automatically reduced, when driving

in the dark.

Keys, doors and windows

31

Windows

Windscreen

Heat-reflecting windscreen

The heat-reflecting windscreen has a

coating which reflects solar radiation.

Also data signals, e.g. from toll

stations, might be reflected.

The marked areas on the windscreen

are not covered with the coating.

Devices for electronic data recording

and fee payment must be attached in

these areas. Otherwise data

recording malfunctions may occur.

Windscreen stickers

Do not attach stickers such as toll

road stickers or similar on the

windscreen in the area of the interior

mirror. Otherwise the detection zone

of the sensor and the view area of the

camera in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Opel

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and/or messages from

these systems.

Manual windows

The door windows can be opened or

closed with the window cranks.

Power windows

9 Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.
If there are children on the rear

seats, switch on the child safety

system for the power windows.
Keep a close watch on the

windows when closing them.

Ensure that nothing becomes

trapped in them as they move.

Switch on ignition to operate power

windows. Retained power off 3 183.

32

Keys, doors and windows

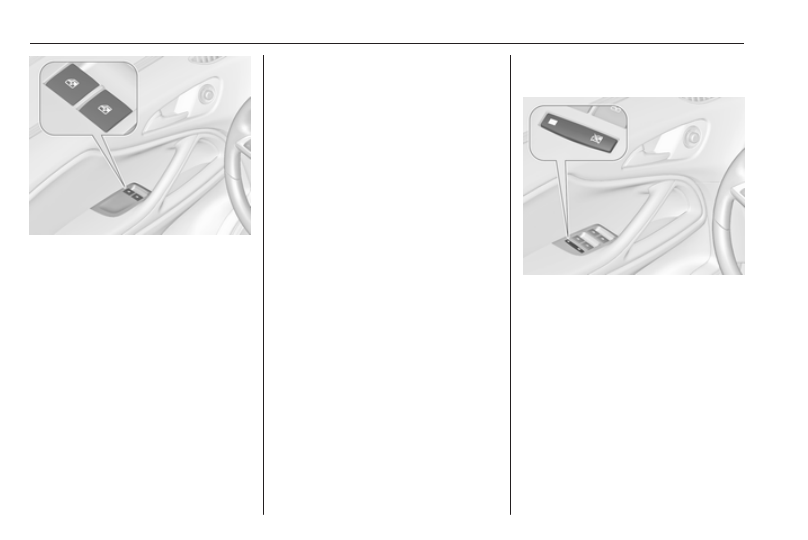

Operate the switch for the respective

window by pushing to open or pulling

to close.
Pushing or pulling gently to the first

detent: window moves up or down as

long as the switch is operated.
Pushing or pulling firmly to the second

detent and then releasing: window

moves up or down automatically with

safety function enabled. To stop

movement, operate the switch once

more in the same direction.

Safety function

If the window glass encounters

resistance above the middle of the

window during automatic closing, it is

immediately stopped and opened

again.

Override safety function

In the event of closing difficulties due

to frost or the like, switch on the

ignition, then pull the switch to the first

detent and hold. The window moves

up without safety function enabled.

To stop movement, release the

switch.

Child safety system for rear

windows

Press z to deactivate rear door

power windows, the LED illuminates.

To activate, press z again.

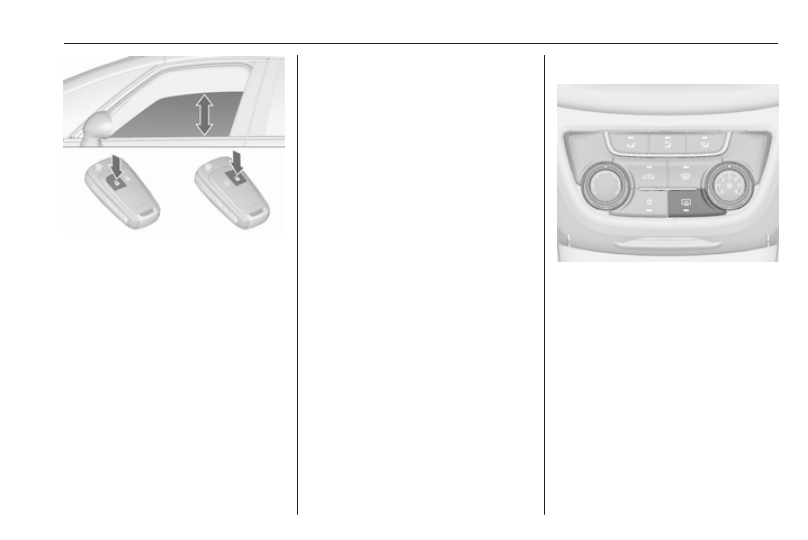

Operating windows from outside

The windows can be operated

remotely from outside the vehicle.

Keys, doors and windows

33

Press and hold c to open windows.
Press and hold e to close windows.
Release button to stop window

movement.
If the windows are fully opened or

closed, the hazard warning lights will

flash twice.

Overload

If the windows are repeatedly

operated within short intervals, the

window operation is disabled for

some time.

Initialising the power windows

If the windows cannot be closed

automatically (e.g. after

disconnecting the vehicle battery), a

warning message is displayed in the

Driver Information Centre.
Vehicle messages 3 106.
Activate the window electronics as

follows:

1. Close doors.
2. Switch on ignition.
3. Pull switch until the window is

closed and keep pulling for

additional two seconds.

4. Repeat for each window.

Heated rear window

Operated by pressing Ü.
Heating works with the engine

running and is switched off

automatically after a short time.
Depending on the engine type, the

heated rear window comes on

automatically when the exhaust filter

is being cleaned.

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.

34

Keys, doors and windows

The cover of the mirrors should be

closed when driving.
A ticket holder is located on the

backside of the sun visor.

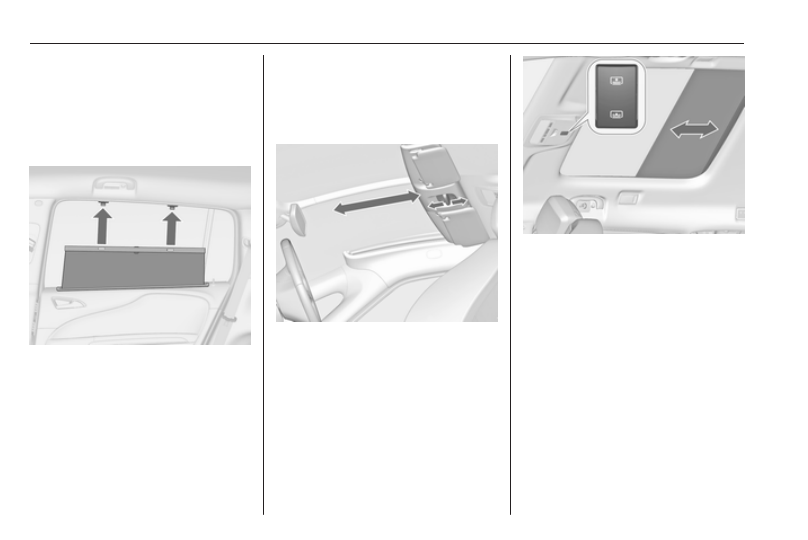

Roller blinds

To reduce sunlight at the second row

seats, pull the blind upwards using

the grip and engage it at the top of the

door frame.

Roof

Glass panel

Panorama roof

Pull the slider to open the cover of the

panorama roof.
Push the slider to cover the panorama

roof.

Sunblind

The sunblind above the rear seats is

electrically operated.

G

: open

H

: close

Press G or H gently to the first

detent: the sunblind is opened or

closed as long as the switch is

operated.
Press G or H firmly to the second

detent and then release: the sunblind

is opened or closed automatically. To

stop movement, operate the switch

once more.

Keys, doors and windows

35

Safety function

If the sunblind encounters resistance

during automatic closing, it is

immediately stopped and opened

again.

Function standby

In ignition switch position 1 the

sunblind is operational 3 182.

Initialising after a power failure

After a power failure, it may only be

possible to operate the sunblind to a

limited extent. Initialise the system as

follows:

1. Turn key in ignition switch to

position 1.

2. Press G (open) twice gently to the

first detent, the sunblind opens

slightly.

3. Immediately press H (close)

twice gently to the first detent, the

sunblind closes slightly.
After step 3 the sunblind is in

initialising mode without safety

function.

4. Press G (open) gently to the first

detent until the sunblind is

completely opened.

5. Press H (close) gently to the first

detent until the sunblind is

completely closed.

After this procedure, the sunblind is

initialised with safety function

activated.
When G or H is pressed firmly to the

second detent during initialising, the

procedure is cancelled.

36

Seats, restraints

Seats, restraints

Head restraints ............................ 36

Active head restraints ................ 37

Front seats ................................... 38

Seat position .............................. 38

Manual seat adjustment ............ 39

Armrest ...................................... 41

Heating ...................................... 42

Rear seats ................................... 42

Second row seats ...................... 42

Third row seats .......................... 44

Seat belts ..................................... 45

Three-point seat belt ................. 46

Airbag system .............................. 49

Front airbag system ................... 53

Side airbag system .................... 53

Curtain airbag system ............... 54

Airbag deactivation .................... 54

Child restraints ............................. 56

Child restraint systems .............. 56

Child restraint installation

locations ................................... 59

Head restraints

Position

9 Warning

Only drive with the head restraint

set to the proper position.

The upper edge of the head restraint

should be at upper head level. If this

is not possible for extremely tall

people, set to highest position, and

set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment

Press release button, adjust height,

engage.

Seats, restraints

37

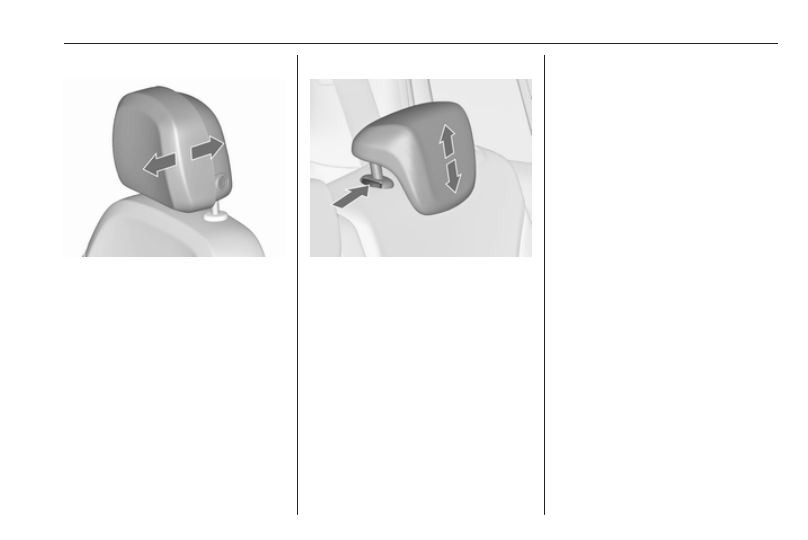

Horizontal adjustment

To adjust horizontally, pull the head

restraint forwards. It engages in

several positions.
To return to its rearmost position, pull

fully forwards and release.

Head restraints on rear seats

Height adjustment

Pull the head restraint upwards or

press the catch to release and push

the head restraint downwards.

Removal

Press both catches, pull the head

restraint upwards and remove.

Active head restraints

In the event of a rear-end impact, the

front parts of the active head

restraints are moved slightly

forwards. Thus the head is supported

so that the risk of whiplash injury is

reduced.

Note

Approved accessories may only be

attached if the seat is not in use.
