Driving and operating

167

Infotainment system display screen

In vehicles with Navigation system,

the rear view camera display is shown

on the Infotainment system display

screen.

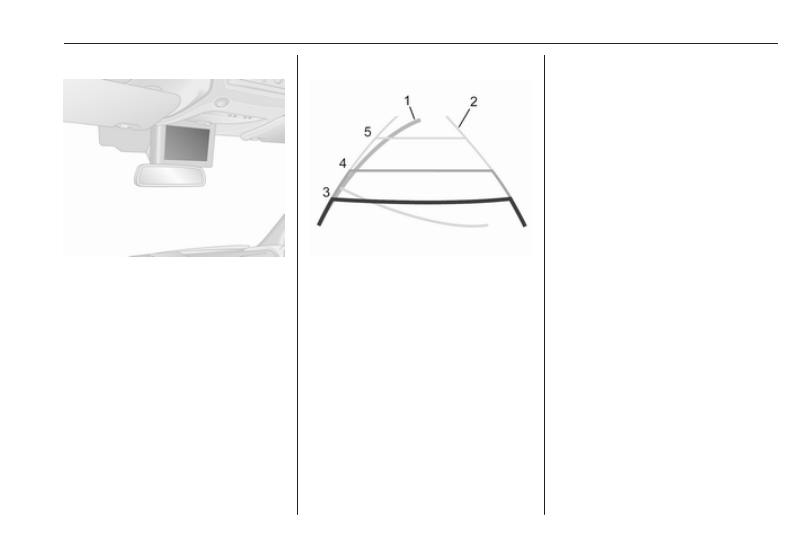

Trajectory lane display image (1)

Depending on version, the trajectory

lane (1) of the vehicle is shown in blue

on the Info-Display. It shows the path

of the vehicle in accordance with the

steering angle.
Fixed lane display image (2)

The fixed lane display (2) shows the

path of the vehicle if the wheels are

kept straight.
Guide lines (3, 4, 5) are used together

with the fixed lane display (2) and

indicate the distance behind the

vehicle.

The guide line intervals are as

follows:
3 (red)

: 30 cm

4 (yellow) : 70 cm

5 (green) : 150 cm
Settings

Settings, e.g. brightness, can be set

via the Infotainment system. Refer to

Infotainment manual for further

information.

Deactivation

The camera is deactivated after a

delay if reverse gear is not engaged.

Fault

The rear view camera may not

operate properly when:

● the surrounding is dark
● the sun or the beam of headlights

is shining directly into the camera

lens

● ice, snow, mud, or anything else

covers the camera lens. Clean

the lens, rinse it with water, and

wipe it with a soft cloth

168

Driving and operating

● the rear doors/tailgate are not

closed correctly

● the vehicle had a rear-end

accident

● there are extreme temperature

changes

Lane departure warning

The lane departure warning system

uses a front camera to observe the

lane markings between which the

vehicle is driving. The system detects

lane changes and warns the driver in

the event of an unintended lane

change via visual and acoustic

signals.
Criteria for the detection of an

unintended lane change are:

● no operation of turn and lane-

change signals

● no active steering

If the driver is performing these

actions, no warning will be issued.

Activation

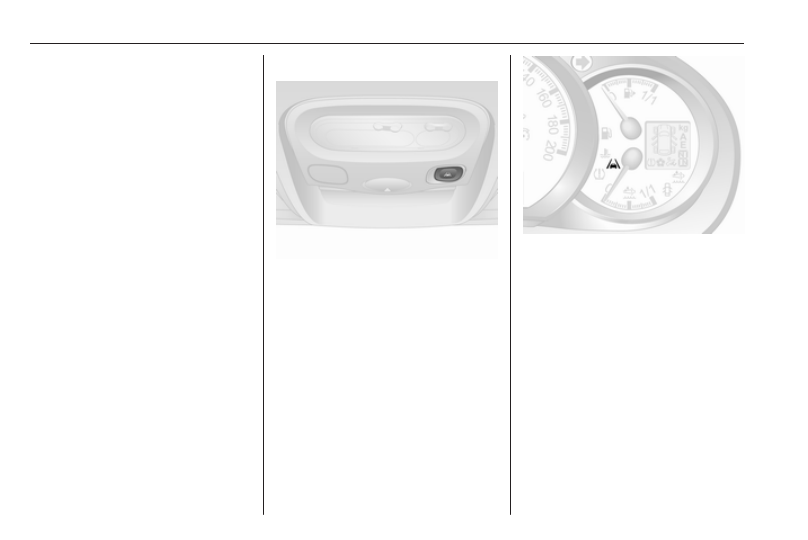

The lane departure warning system is

activated by pressing ì in the roof

console; LED in the button

extinguishes to indicate that the

system is switched on.

When control indicator ì 3 99

illuminates in the instrument cluster,

the system is ready to operate. A

corresponding message also

appears in the Driver Information

Centre 3 103.
Control indicator ì extinguishes

when the system is not ready to warn

the driver.
The system is only operable at

vehicle speeds above 60 km/h and if

lane markings are available and

detected.
If the turn and lane-change signals

are not operated when changing

lanes, i.e. an unintended lane change

Driving and operating

169

is detected, control indicator ì

flashes together with a warning chime

to alert the driver.

Deactivation

The system is deactivated by

pressing ì; LED in the button

illuminates. A corresponding

message also appears in the Driver

Information Centre.
At speeds below 60 km/h the system

is inoperable.

Operation hints

The lane departure warning system

may not operate properly when:

● The windscreen is not clean.
● There are adverse environmental

conditions like heavy rain, snow,

direct sunlight or shadows.

The system cannot operate when no

lane marking is detected.

Fault

In the event of a fault in the system, a

warning message appears in the

Driver Information Centre (possibly in

combination with control indicator

A

) and the LED in the button

illuminates.
Seek the assistance of a workshop.
Driver Information Centre 3 103.

Fuel

Fuel for diesel engines

Only use diesel fuel that complies

with EN 590. The fuel must have low

sulphur content (max. 10 ppm).

Equivalent standardised fuels with a

biodiesel (= FAME according to

EN14214) content of max. 7% by

volume (like DIN 51628 or equivalent

standards) may be used.
In countries outside the European

Union use Euro-Diesel fuel with a

sulphur concentration below 50 ppm.

Caution

Use of fuel that does not comply to

EN 590 or similar can lead to

engine powerloss, increased wear

or engine damage and may affect

your warranty.

Do not use marine diesel oils, heating

oils or entirely plant-based diesel

fuels, such as rape seed oil or bio

diesel, Aquazole and similar diesel-

170

Driving and operating

water emulsions. Diesel fuels must

not be diluted with fuels for petrol

engines.
The flow and filterability of diesel fuels

are temperature-dependent. When

temperatures are low, refuel with

diesel fuel with guaranteed winter

properties.
Diesel fuel filter 3 184, diesel fuel

system bleeding 3 184.

Low temperature operation

At temperatures below 0° C, some

diesel products with biodiesel blends

may clog, freeze or gel, which may

affect the fuel supply system. Starting

and engine operation may not work

properly. Make sure to fill winter

grade diesel fuel at ambient

temperatures below 0°C.
Arctic grade diesel fuel can be used

in extreme cold temperatures below

-20° C. Using this fuel grade in warm

or hot climates is not recommended

and may cause engine stalling, poor

starting or damage on the fuel

injection system.

Refuelling

9 Danger

Before refuelling, switch off engine

and any external heaters with

combustion chambers. Switch off

any mobile phones.
Follow the operating and safety

instructions of the filling station

when refuelling.

9 Danger

Fuel is flammable and explosive.

No smoking. No naked flames or

sparks.
If you can smell fuel in your

vehicle, have the cause of this

remedied immediately by a

workshop.

Caution

In case of misfuelling, do not

switch on ignition.

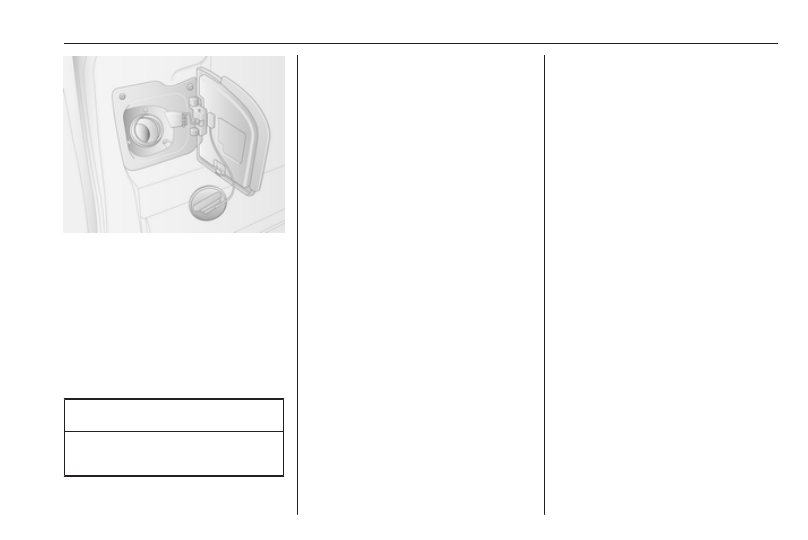

The fuel tank filler neck with bayonet

cap is located on the left front side of

the vehicle.
The fuel filler flap can only be opened

if the vehicle is unlocked and the door

is opened. Open the fuel filler flap by

hand.

9 Danger

Vehicles with stop-start system:

The engine must be switched off

and the ignition key removed, to

avoid risk of engine being

restarted automatically by the

system.

Capacities 3 246.

Driving and operating

171

Remove the fuel filler cap by turning

it anti-clockwise.
The fuel filler cap can be hung on the

lower hook of the fuel filler flap.
For refuelling, fully insert the pump

nozzle and switch it on.
After automatic cut-off, it can be

topped up by operating the pump

nozzle a maximum of two more times.

Caution

Wipe off any overflowing fuel

immediately.

When refuelling is complete, replace

the fuel filler cap and turn it clockwise.

Close the fuel filler flap.

Fuel filler cap

Only use genuine fuel filler caps.

Diesel-engined vehicles have special

fuel filler caps.

Fuel consumption - CO

2

-

Emissions

The fuel consumption (combined) of

the model Opel Movano is within a

range of approx. 9.5 to 6.6 l/100 km.
Depending on country, the fuel

consumption is displayed in km/l. In

this case, the fuel consumption

(combined) of the model Opel

Movano is within a range of approx.

10.5 to 15.2 km/l.
The CO

2

 emission (combined) is

within a range of approx. 173 to 248

g/km.
For the values specific to your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.

General information

The official fuel consumption and

specific CO

2

 emission figures quoted

relate to the EU base model with

standard equipment.
Fuel consumption data and CO

2

emission data are determined

according to regulation R (EC)

No. 715/2007 (in the latest applicable

version), taking into consideration the

vehicle weight in running order, as

specified by the regulation.
The figures are provided only for the

purpose of comparison between

different vehicle variants and must

not be taken as a guarantee for the

actual fuel consumption of a

particular vehicle.
Additional equipment may result in

slightly higher results than the stated

consumption and CO

2

 figures.

Furthermore, fuel consumption is

dependent on personal driving style

as well as road and traffic conditions.

172

Driving and operating

Trailer hitch

General information

Only use towing equipment that has

been approved for your vehicle.

Entrust fitting of towing equipment at

a later date to a workshop. It may be

necessary to make changes that

affect the cooling system, heat

shields or other equipment.

Driving characteristics and

towing tips

In the case of trailers with brakes,

attach the breakaway stopping cable.
Before attaching a trailer, lubricate

the coupling ball. However, do not do

so if a stabiliser, which acts on the

coupling ball, is being used to reduce

snaking movements. For trailers with

low driving stability the use of a

stabiliser is recommended.
A maximum speed of 80 km/h must

not be exceeded, even in countries

where higher speeds are permitted.

If the trailer starts snaking, drive more

slowly, do not attempt to correct the

steering and brake sharply if

necessary.
When driving downhill, drive in the

same gear as if driving uphill and

drive at a similar speed.
Adjust tyre pressure to the value

specified for full load 3 247.

Trailer towing

Trailer loads

The permissible trailer loads are

vehicle-dependent and engine-

dependent maximum values which

must not be exceeded. The actual

trailer load is the difference between

the actual gross weight of the trailer

and the actual coupling socket load

with the trailer coupled.
The permissible trailer loads are

specified in the vehicle documents. In

general, they are valid for gradients

up to max. 12%.
The permitted trailer load applies up

to the specified incline and up to an

altitude of 1000 metres above sea

level. Since engine power decreases

as altitude increases due to the air

becoming thinner, therefore reducing

climbing ability, the permissible gross

train weight also decreases by 10%

for every 1000 metres of additional

altitude. The gross train weight does

not have to be reduced when driving

on roads with slight inclines (less than

8%, e.g. motorways).
The permissible gross train weight

must not be exceeded. This weight is

specified on the identification plate

3

 226.

Vertical coupling load

The vertical coupling load is the load

exerted by the trailer on the coupling

ball. It can be varied by changing the

weight distribution when loading the

trailer.
The maximum permissible vertical

coupling load is specified on the

towing equipment identification plate

and in the vehicle documents. Always

aim for the maximum load, especially

in the case of heavy trailers. The

vertical coupling load should never

fall below 25 kg.

Driving and operating

173

In the case of trailer loads of

1200 kg or more, the vertical coupling

load should not be less than 50 kg.

Rear axle load

When the trailer is coupled and the

towing vehicle fully loaded (including

all occupants), the permissible rear

axle load (see identification plate or

vehicle documents) must not be

exceeded.

Towing equipment

Caution

When operating without a trailer,

remove the coupling ball bar.

Towing equipment audible

warning

For vehicles fitted with towing

equipment, when connected to a

trailer the pitch of the audible warning

changes upon operation of the turn

signals.

The pitch of the audible warning will

change if a turn signal light on the

trailer or the towing vehicle fails.

Trailer stability assist

If the system detects snaking

movements, engine power is reduced

and the vehicle/trailer combination is

selectively braked until the snaking

ceases. While the system is working,

keep steering wheel as still as

possible.
Trailer stability assist (TSA) is a

function of the Electronic Stability

Program (ESP) 3 158.

Auxiliary features

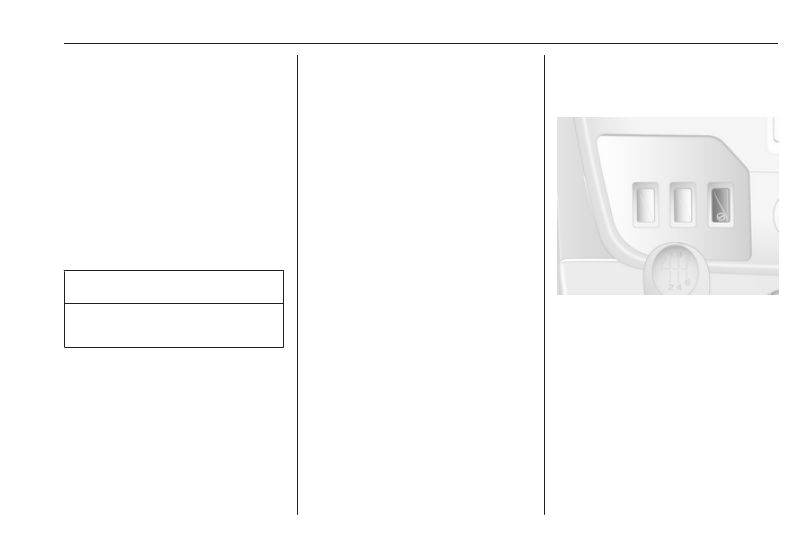

Power take-off

Activation

To activate the power take-off, with

the vehicle stationary and the engine

idling:

● Set the gearshift lever to neutral

(vehicles with manual

transmission automated:

selector lever in position N).

● Depress the clutch pedal.

174

Driving and operating

● Press switch on the instrument

panel; LED in switch illuminates

after approx. two seconds.

● Release the clutch pedal.

The engine idle speed increases to

1,200 rpm.

Caution

During operation of the power

take-off, never move the selector

lever out of neutral (vehicles with

manual transmission automated:

selector lever in position N), to

avoid damage to the transmission.
If a gear change becomes

necessary, i.e. to adjust the driving

speed, the power take-off must

always be deactivated first.

Deactivation

To deactivate the power take-off:

● Depress the clutch pedal.
● Press switch on the instrument

panel; LED in switch

extinguishes after approx.

two seconds.

● Release the clutch pedal.

Fault

If the LED in the switch does not

illuminate when attempting to activate

the power take-off and/or the system

does not operate:
Gradually release the clutch pedal.
- or -

● Set the gearshift lever to neutral

(vehicles with manual

transmission automated:

selector lever in position N).

● Depress the clutch pedal.
● Press switch on the instrument

panel; LED in switch illuminates

after approx. two seconds.

● Release the clutch pedal.

Then repeat the above procedure.

Note

The power take-off function is not

available when control indicator A

3

 98, C 3 99 or W 3 100 is

illuminated.

Vehicle care

175

Vehicle care

General Information ................... 176

Accessories and vehicle

modifications .......................... 176

Vehicle storage ........................ 176

End-of-life vehicle recovery ..... 177

Vehicle checks ........................... 177

Performing work ...................... 177

Bonnet ..................................... 177

Engine oil ................................. 178

Engine coolant ......................... 179

Power steering fluid ................. 180

Washer fluid ............................ 181

Brakes ..................................... 181

Brake fluid ............................... 181

Vehicle battery ......................... 182

Diesel fuel filter ........................ 184

Diesel fuel system bleeding ..... 184

Wiper blade replacement ........ 185

Bulb replacement ....................... 185

Headlights ............................... 186

Adaptive forward lighting ......... 188

Fog lights ................................. 188

Front turn signal lights ............. 189

Tail lights ................................. 189

Side turn signal lights .............. 191

Centre high-mounted brake

light ......................................... 192

Number plate light ................... 192

Interior lights ............................ 193

Instrument panel illumination ... 194

Electrical system ........................ 194

Fuses ....................................... 194

Engine compartment fuse box . 196

Instrument panel fuse box ....... 196

Load compartment fuse box .... 197

Vehicle tools .............................. 199

Tools ........................................ 199

Wheels and tyres ....................... 200

Tyres ....................................... 200

Winter tyres ............................. 200

Tyre designations .................... 200

Tyre pressure .......................... 201

Tyre pressure monitoring

system .................................... 202

Tread depth ............................. 204

Changing tyre and wheel size . 204

Wheel covers ........................... 204

Tyre chains .............................. 205

Tyre repair kit .......................... 205

Wheel changing ....................... 208

Spare wheel ............................ 210

Jump starting ............................. 213

Towing ....................................... 216

Towing the vehicle ................... 216

Towing another vehicle ........... 217

Appearance care ....................... 217

Exterior care ............................ 217

Interior care ............................. 219

176

Vehicle care

General Information

Accessories and vehicle

modifications

We recommend the use of genuine

parts and accessories and factory

approved parts specific for your

vehicle type. We cannot assess or

guarantee reliability of other products

- even if they have a regulatory or

otherwise granted approval.
Any modification, conversion or other

changes made to standard vehicle

specifications (including, without

limitation, software modifications,

modifications of the electronic control

units) may invalidate the warranty

offered by Opel. Furthermore, such

changes may impact fuel

consumption, CO

2

 emissions and

other emissions of the vehicle and

cause the vehicle to no longer

conform to the operating permit,

impacting the validity of your vehicle

registration.

Caution

When transporting the vehicle on

a train or on a recovery vehicle, the

mud flaps might be damaged.

Vehicle storage

Storage for a long period of time

If the vehicle is to be stored for several

months:

● Wash and wax the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve rubber seals.
● Change engine oil.
● Drain washer fluid reservoir.
● Check coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park vehicle in a dry, well

ventilated place. Engage first or

reverse gear. Prevent the vehicle

from rolling.

● Do not apply parking brake.
● Open bonnet, close all doors and

lock the vehicle.

● Disconnect the clamp from the

negative terminal of the vehicle

battery. Beware that all systems

are not functional, e.g. anti-theft

alarm system.

Putting back into operation

When the vehicle is to be put back into

operation:

● Connect the clamp to the

negative terminal of the vehicle

battery. Activate the electronics

of the power windows.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plate, if

necessary.

Vehicle care

177

End-of-life vehicle recovery

Information on end-of-life vehicle

recovery centres and the recycling of

end-of-life vehicles is available on our

website, where legally required. Only

entrust this work to an authorised

recycling centre.

Vehicle checks

Performing work

9 Warning

Only perform engine compartment

checks when the ignition is off.

The vehicle must not be in an

Autostop 3 137.
The cooling fan may start

operating even if the ignition is off.

9 Danger

The ignition system generates

extremely high voltages. Do not

touch.

The caps for topping up the engine oil,

the coolant, the washer fluid and the

oil dipstick handle are yellow for ease

of identification.

Bonnet

Opening

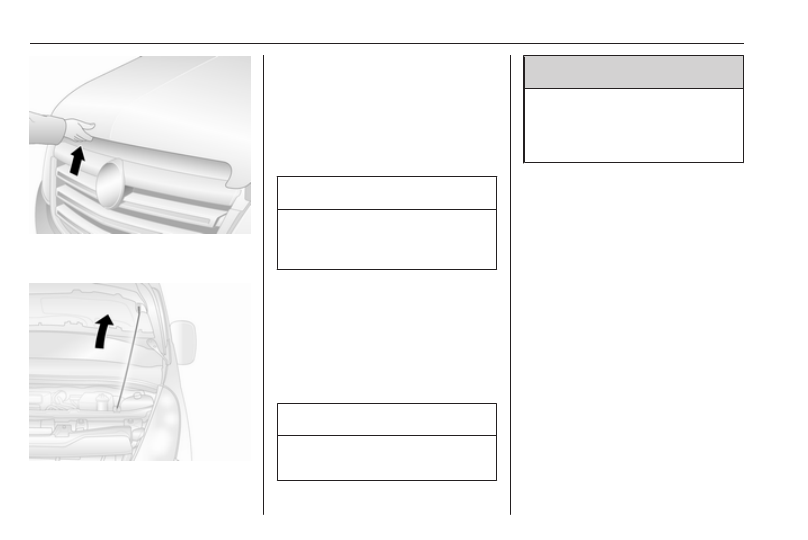

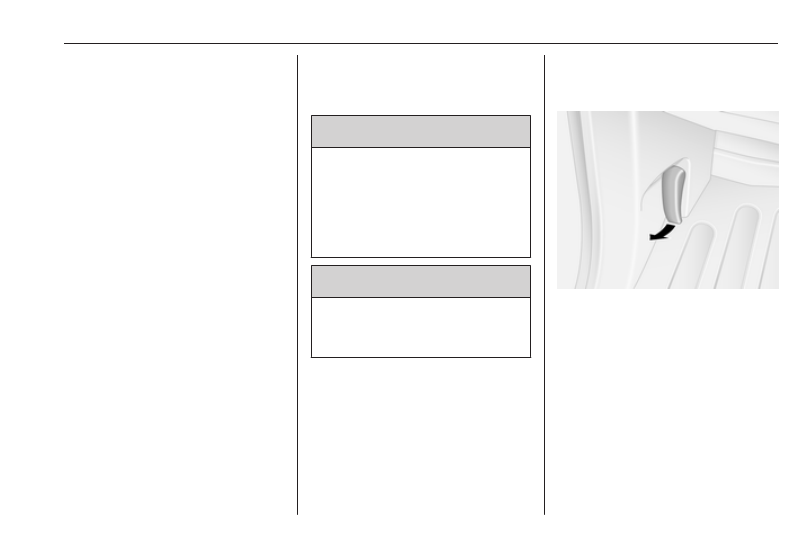

Pull the release lever and return it to

its original position.

178

Vehicle care

Pull the safety catch, located slightly

left of centre, and open the bonnet.

Pull up the support rod from its holder,

then secure it in the right side hook on

the underside of the bonnet.
If the bonnet is opened during an

Autostop, the engine will be restarted

automatically for safety reasons.
Stop-start system 3 137.

Caution

Ensure the windscreen wiper is

switched off before opening the

bonnet 3 86.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and allow it to drop

into the catch from a low height

(20-25 cm). Check that the bonnet is

engaged.

Caution

Do not press the bonnet into the

latch, to avoid dents.

9

Warning

In the event of even a minor head-

on collision, have the bonnet

safety catch checked by a

workshop.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine.
Ensure that the correct specification

of oil is used. Recommended fluids

and lubricants 3 223.
The maximum engine oil

consumption is 0.6 litres per

1000 km.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least ten minutes.

Vehicle care

179

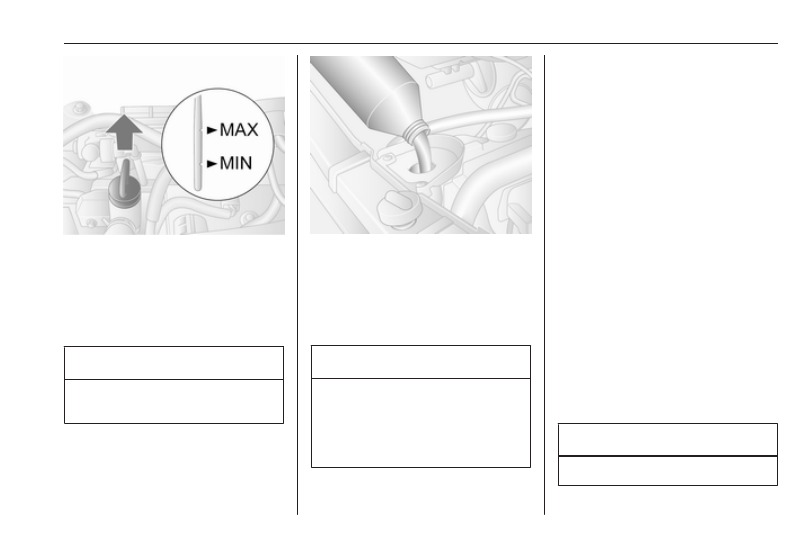

Pull out the dipstick, wipe it clean,

reinsert fully, pull out and read the

engine oil level.
When the engine oil level has

dropped to the MIN mark, top-up

engine oil.

Caution

Do not allow the engine oil level to

drop below the minimum level!

We recommend the use of the same

type of engine oil that was used at the

last change.
The engine oil level must not exceed

the maximum mark MAX on the

dipstick.

Caution

Overfilled engine oil must be

drained or suctioned out. If the

level exceeds the maximum level,

do not start the vehicle and contact

an authorised dealer.

To prevent spillage when

replenishing the engine oil, we

recommend using a funnel. Ensure

funnel is securely located onto the

filler pipe.
A stabilization of the engine oil

consumption will not take place until

the vehicle has been driven several

thousand kilometres. Only then can

the actual degree of consumption be

established.
If consumption exceeds more than

0.6 litres every 1000 km after this

running-in period, consult a

workshop.
Capacities 3 246, Engine oil level

monitor 3 93.
Fit the cap on straight and tighten it.

Engine coolant

The coolant provides freeze

protection down to approx. -28 °C.

Caution

Only use approved antifreeze.

180

Vehicle care

Coolant level

Caution

Too low a coolant level can cause

engine damage.

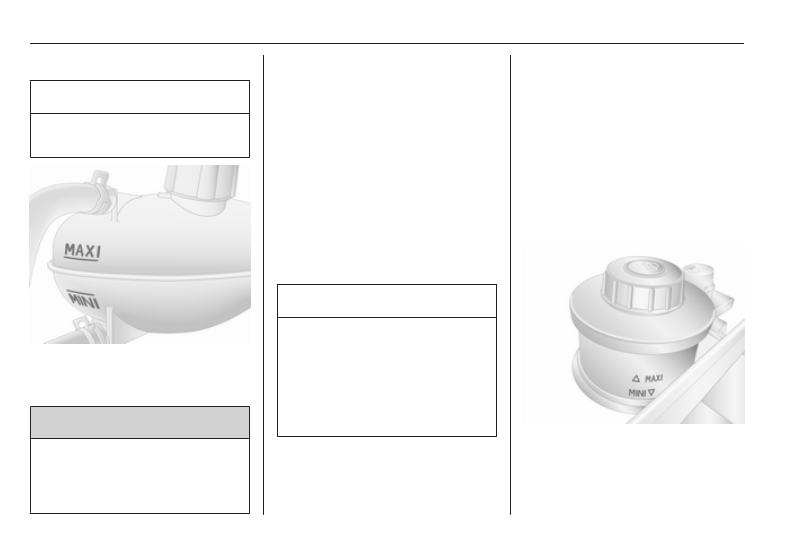

If the cooling system is cold, the

coolant level should be just above the

MINI mark. Top up if the level is low.

9 Warning

Allow the engine to cool before

opening the cap. Carefully open

the cap, relieving the pressure

slowly.

Top up with antifreeze. If no

antifreeze is available, use clean tap

water or distilled water. Install the cap

tightly. Have the antifreeze

concentration checked and have the

cause of the coolant loss remedied by

a workshop.
If a substantial amount of coolant is

required, it will be necessary to bleed

any trapped air from the cooling

system. Seek the assistance of a

workshop.

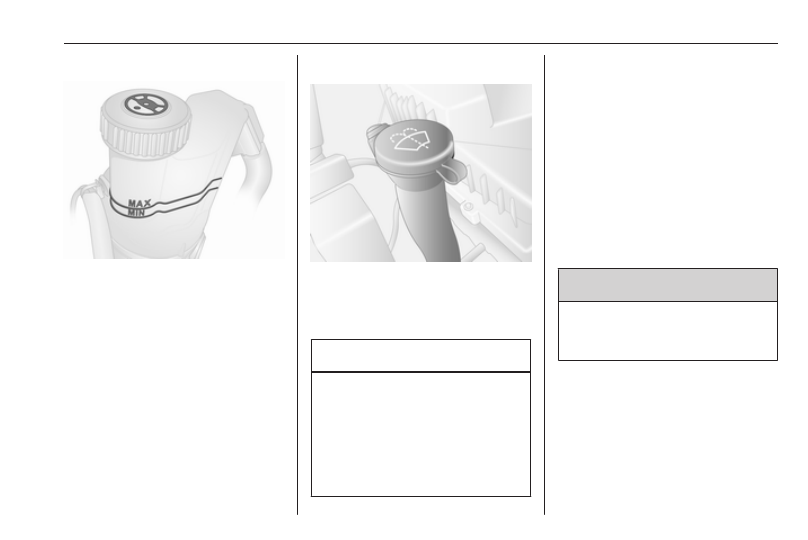

Power steering fluid

Caution

Extremely small amounts of

contamination can cause steering

system damage and cause it to not

work properly. Do not allow

contaminates to contact the fluid

side of the reservoir cap or from

entering the reservoir.

The fluid level normally does not need

to be checked. If an unusual noise is

heard during steering or if the power

steering reacts conspicuously, seek

the assistance of a workshop.
Depending on vehicle, the power

steering fluid reservoir may be

located in the engine compartment

(Type A) or below the front wheel

arch, behind a trim panel (Type B).

Type A

If the fluid level in the reservoir falls

below the MINI mark, consult a

workshop.

Vehicle care

181

Type B

If the fluid level in the reservoir falls

below the MIN mark, consult a

workshop.

Washer fluid

Fill with clean water mixed with a

suitable quantity of windscreen

washer fluid which contains

antifreeze.

Caution

Only washer fluid with a sufficient

antifreeze concentration provides

protection at low temperatures or

a sudden drop in temperature.
Use of washer fluid containing

isopropanol can damage exterior

lamps.

Brakes

In the event of minimum thickness of

the brake lining, a squealing noise

sounds during braking.
Continued driving is possible but

have the brake linings replaced as

soon as possible.
Once new brake linings are installed,

do not brake unnecessarily hard for

the first few journeys.

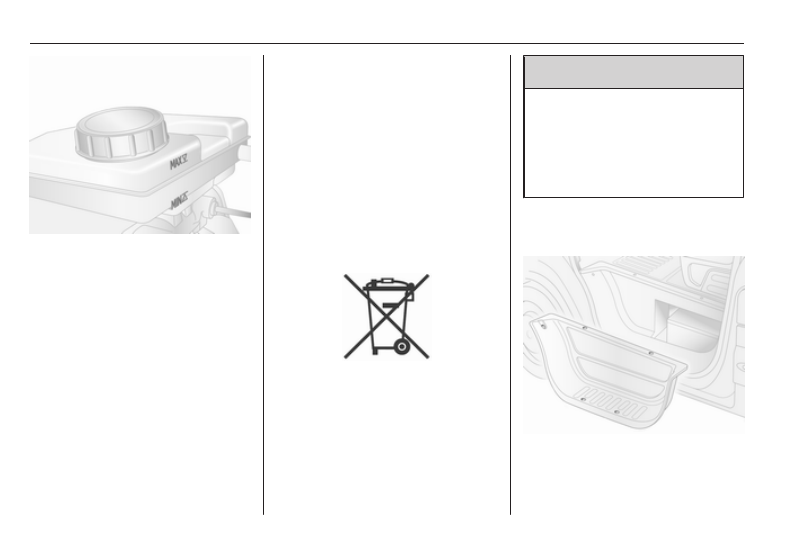

Brake fluid

9 Warning

Brake fluid is poisonous and

corrosive. Avoid contact with eyes,

skin, fabrics and painted surfaces.

182

Vehicle care

The brake fluid level must be between

the MIN and MAX marks.
When topping up, ensure maximum

cleanliness as contamination of the

brake fluid can lead to brake system

malfunctions. Have the cause of the

loss of brake fluid remedied by a

workshop.
Only use brake fluid approved for

your vehicle.
Brake and clutch fluid 3 223.

Vehicle battery

The jump start terminal is located in

the engine compartment.

Jump starting 3 213.
The vehicle battery is maintenance-

free provided that the driving profile

allows sufficient charging of the

battery. Short-distance-driving and

frequent engine starts can discharge

the battery. Avoid the use of

unnecessary electrical consumers.
Control indicator p illuminates if

there is a fault with the charging

system. Stop, switch off engine and

seek the assistance of a workshop.
Charging system 3 98.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
Laying up the vehicle for more than

four weeks can lead to battery

discharge. Disconnect the clamp from

the negative terminal of the vehicle

battery.

9 Danger

Ensure the ignition is switched off

completely (the vehicle must not

be in an Autostop) before

connecting or disconnecting the

vehicle battery.
Stop-start system 3 137.

Battery discharge protection 3 116.

Battery access

The battery is located behind a panel

in the front left-hand door step.

Remove the panel to access the

battery.
