Nissan Sentra (2024 year). Manual in english

AUTO (automatic) climate control but-
ton / temperature control dial (driver’s
side)

Display screen

Heated seat switches (if so

equipped)

SYNC button / temperature control dial
(passenger’s side)

A/C (air conditioner) button

Air recirculation button

Air flow control button

Fan speed control buttons

Heated steering wheel switch

(if so equipped)

10.

Rear window and outside mirror

(if so equipped) defroster switch

11.

Front defroster button

12.

ON-OFF button

WARNING

•

The air conditioner cooling function
operates only when the engine is
running.

•

Do not leave children or adults who
would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

•

Do not use the recirculation mode for
long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

Start the engine and operate the controls
to activate the air conditioner.

LHA5716

HEATER AND AIR CONDITIONER
(automatic) (if so equipped)

4-40

Monitor, climate, audio, phone and voice recognition systems

NOTE:
• Odors from inside and outside the ve-

hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.

• When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

AUTOMATIC OPERATION

Cooling and/or dehumidified
heating (AUTO)

This mode may be used all year round as
the system automatically works to keep a
constant temperature. Air flow distribution,
air intake control, and fan speed are also
controlled automatically.

1. Press the AUTO button on.

2. Turn the temperature control dial to

the left or right to set the desired
temperature.

• Adjust the temperature display to about

75°F (24°C) for normal operation.

• The temperature of the passenger com-

partment will be maintained automati-
cally. Air flow distribution, air intake con-
trol and fan speed are also controlled
automatically.

• A visible mist may be seen coming from

the vents in hot, humid conditions as the
air is cooled rapidly. This does not indicate
a malfunction.

3. You can individually set driver's and front

passenger's side temperature using
each temperature control dial. To syn-
chronize the driver’s and front passen-
ger’s temperature settings, press the
SYNC button.

Heating (A/C OFF)

The air conditioner does not activate. When
you need to heat only, use this mode.

1. Press the AUTO button.

2. Turn the temperature control dial to set

the desired temperature.

• The temperature of the passenger com-

partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.

• Do not set the temperature lower than

the outside air temperature. Otherwise,
the system may not work properly.

• Not recommended if windows fog up.

Dehumidified defrosting or
defogging

1. Press the

front defroster button on.

2. Turn the temperature control dial to set

the desired temperature.

• To quickly remove ice from the outside of

the windows, use the

fan speed con-

trol buttons to set the fan speed to
maximum.

• As soon as possible after the windshield

is clean, press the AUTO button to return
to the automatic mode.

• When the

front defroster button is

pressed, the air conditioner will automati-
cally be turned on at outside tempera-
tures above 36°F (2°C). The air recirculate
mode automatically turns off, allowing
outside air to be drawn into the passen-
ger compartment to further improve the
defogging performance.

Monitor, climate, audio, phone and voice recognition systems

4-41

Remote Engine Start with
Intelligent Climate Control (if so
equipped)

Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is acti-
vated depending on outside and cabin
temperatures. During this period, the cli-
mate control display and buttons will be
inoperable until the ignition switch is
placed in the ON position. In Remote
Engine Start defrosting mode, the rear
window defroster, heated seats (if so
equipped) and heated steering wheel (if so
equipped) may be activated automatically.

MANUAL OPERATION

Fan speed control buttons

Press the

fan speed control buttons

to manually control the fan speed.

Press the AUTO button to return to auto-
matic control of the fan speed.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be ad-
justed on the driver’s and passenger’s side.

Air recirculation

Press the

air recirculation button to

recirculate interior air inside the vehicle.
The

indicator light on the button will

come on.

The air recirculation cannot be activated
when the air conditioner is in the

front

defrosting mode.

When the outside temperature exceeds
70°F (21°C), the air conditioning system may
default to air recirculation mode automati-
cally to reduce overall power consumption.
To exit air recirculation mode, deselect the
air recirculation button (indicator light will
turn off) to enter fresh air mode.

Automatic intake air control

In the AUTO mode, the intake air will be
controlled automatically. To manually con-
trol the intake air, press the

air recir-

culation button. To return to the automatic
control mode, press and hold the

air

recirculation button for about 2 seconds.
The indicator light will flash twice, and then
the intake air will be controlled automati-
cally.

A/C (air conditioner) button

Start the engine, press the

fan speed

control buttons to the desired position and
press the

button to turn on the air

conditioner. To turn off the air conditioner,
press the

button again.

The air conditioner cooling function op-
erates only when the engine is running.

Air flow control

Pressing the

button manually con-

trols air flow and selects the air outlet:

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from the foot

outlets.

— Air flows from defroster and foot

outlets.

4-42

Monitor, climate, audio, phone and voice recognition systems

Synchronize climate settings

Press the SYNC button to synchronize cli-
mate settings. The sync indicator will turn
on.

Pressing SYNC will synchronize driver's and
front passenger's climate settings.

To change climate settings when SYNC is
active (the SYNC indicator is on):
• The driver's side temperature control dial

will control the driver and front passenger
temperatures.

• The fan speed control dial will control the

fan speeds.

To exit SYNC:
• To remove the front passenger from

SYNC, turn the passenger's side tem-
perature control dial.

• Pressing SYNC multiple times will re-

activate SYNC.

To turn system off

Press the ON-OFF button.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, see “Rear win-
dow and outside mirror (if so equipped)
defroster switch” (P. 2-57).

Heated seat switches (if so
equipped)

For additional information, see “Heated
seat switches” (P. 2-64).

Heated steering wheel switch (if
so equipped)

For additional information, see “Heated
steering wheel switch” (P. 2-65).

OPERATING TIPS

The sunload sensors, located on the top
right and top left of the instrument panel,
help the system maintain a constant tem-
perature. Do not put anything on or around
this sensor.

LHA5352

Monitor, climate, audio, phone and voice recognition systems

4-43

• When the climate system is in automatic

operation and the engine coolant tem-
perature and outside air temperature
are low, the air flow outlet may default to
defroster mode for a maximum of 2 min-
utes 30 seconds. This is not a malfunc-
tion. After the engine coolant tempera-
ture warms up, the air flow outlet will
return to foot mode and operation will
continue normally.

• When the outside and interior cabin tem-

peratures are moderate to high, the in-
take setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may no-
tice air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may occur
when the previous climate setting was
turned off. This is not a malfunction. After
the initial warm air is expelled, the intake
will return to automatic control, the air
flow outlet will return to previous settings,
and operation will continue normally. To
exit, press any climate control button.

• Keep the moonroof (if so equipped)

closed while the air conditioner is in
operation.

• If you feel that the air flow mode you have

selected and the outlets the air is coming
out do not match, select the

mode.

• When you change the air flow mode, you

may feel air flow from the foot outlets for
just a moment. This is not a malfunction.

The air conditioner system in your NISSAN
vehicle is charged with a refrigerant de-
signed with the environment in mind.

This refrigerant does not harm the
earth's ozone layer.

Special charging equipment and lubricant
is required when servicing your NISSAN air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to
your air conditioner system. For additional
information, see “Air conditioner system re-
frigerant and oil recommendations” (P. 10-7).

It is recommended that you visit a NISSAN
dealer to service your “environmentally
friendly” air conditioning system.

WARNING

The air conditioner system contains
refrigerant under high pressure. To
avoid personal injury, any air condi-
tioner service should be done only by
an experienced technician with proper
equipment.

SERVICING AIR CONDITIONER

4-44

Monitor, climate, audio, phone and voice recognition systems

RADIO

Place the ignition switch in the ACC or ON
position and press the PUSH

button to

turn the radio on. If you listen to the radio
with the engine not running, the ignition
switch should be placed in the ACC position.

Radio reception is affected by station sig-
nal strength, distance from radio transmit-
ter, buildings, bridges, mountains and other
external influences. Intermittent changes
in reception quality normally are caused by
these external influences.

Using a cellular phone in or near the vehicle
may influence radio reception quality.

Radio reception

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to en-
hance radio reception. These circuits are
designed to extend reception range, and to
enhance the quality of that reception.

However, there are some general charac-
teristics of both FM and AM radio signals
that can affect radio reception quality in a
moving vehicle, even when the finest
equipment is used. These characteristics
are completely normal in a given reception
area and do not indicate any malfunction
in your NISSAN radio system.

Reception

conditions

will

constantly

change because of vehicle movement.
Buildings, terrain, signal distance and inter-
ference from other vehicles can work
against ideal reception. Described below
are some of the factors that can affect your
radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.

FM RADIO RECEPTION

Range: FM range is normally limited to 25 –
30 mi (40 – 48 km), with monaural (single
channel) FM having slightly more range
than stereo FM. External influences may
sometimes interfere with FM station re-
ception even if the FM station is within 25
mi (40 km). The strength of the FM signal is
directly related to the distance between
the transmitter and receiver. FM signals fol-
low a line-of-sight path, exhibiting many of
the same characteristics as light. For ex-
ample, they will reflect off objects.

Fade and drift: As your vehicle moves away
from a station transmitter, the signals will
tend to fade and/or drift.

Static and flutter: During signal interfer-
ence from buildings, large hills or due to
antenna position (usually in conjunction
with increased distance from the station
transmitter), static or flutter can be heard.
This can be reduced by adjusting the treble
control to reduce treble response.

Multipath reception: Because of the reflec-
tive characteristics of FM signals, direct and
reflected signals reach the receiver at the
same time. The signals may cancel each
other, resulting in momentary flutter or loss
of sound.

AM RADIO RECEPTION

AM signals, because of their low frequency,
can bend around objects and skip along
the ground. In addition, the signals can be
bounced off the ionosphere and bent back
to earth. Because of these characteristics,
AM signals are also subject to interference
as they travel from transmitter to receiver.

Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas
with many tall buildings. It can also occur for
several seconds during ionospheric turbu-
lence even in areas where no obstacles exist.

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights.

AUDIO SYSTEM

Monitor, climate, audio, phone and voice recognition systems

4-45

SATELLITE RADIO ANTENNA (if so
equipped)

When the satellite radio is used for the first
time or the battery has been replaced, the
satellite radio may not work properly. This
is not a malfunction. Wait more than 10
minutes with satellite radio ON and the ve-
hicle outside of any metal or large building
for the satellite radio to receive all of the
necessary data.

The satellite radio mode requires an active
SiriusXM® Satellite Radio subscription. The
satellite radio is not available in Alaska,
Hawaii and Guam.

The satellite radio performance may be af-
fected if cargo carried on the roof blocks
the satellite radio signal.

If possible, do not put cargo near the satel-
lite antenna.

A build up of ice on the satellite radio an-
tenna can affect satellite radio perfor-
mance. Remove the ice to restore satellite
radio reception.

AUDIO OPERATION PRECAUTIONS

MP3 or WMA terms

• MP3 — MP3 is short for Moving Pictures

Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital au-
dio file format. This format allows for near
“CD quality” sound, but at a fraction of the
size of normal audio files. MP3 conversion
of an audio track from CD-ROM can re-
duce the file size by approximately a 10:1
ratio with virtually no perceptible loss in
quality. MP3 compression removes the
redundant and irrelevant parts of a
sound signal that the human ear doesn’t
hear.

• WMA — Windows Media Audio (WMA)* is a

compressed audio format created by Mi-
crosoft as an alternative to MP3. The WMA
codec offers greater file compression
than the MP3 codec, enabling storage of
more digital audio tracks in the same
amount of space when compared to
MP3s at the same level of quality.

• Bit rate — Bit rate denotes the number of

bits per second used by a digital music
file. The size and quality of a compressed
digital audio file is determined by the bit
rate used when encoding the file.

• Sampling frequency — Sampling fre-

quency is the rate at which the samples
of a signal are converted from analog to
digital (A/D conversion) per second.

• Multisession — Multisession is one of the

methods for writing data to media. Writ-
ing data once to the media is called a
single session, and writing more than
once is called a multisession.

• ID3/WMA Tag — The ID3/WMA tag is the

part of the encoded MP3 or WMA file that
contains information about the digital
music file such as song title, artist, encod-
ing bit rate, track time duration, etc. ID3
tag information is displayed on the Artist/
song title line on the display.

* Windows® and Windows Media® are reg-
istered trademarks and trademarks in the
United States of America and other coun-
tries of Microsoft Corporation of the USA.

4-46

Monitor, climate, audio, phone and voice recognition systems

USB (Universal Serial Bus)
Connection Port

WARNING

•

Do not connect, disconnect or oper-
ate the USB device while driving. Do-
ing so can be a distraction. If dis-
tracted you could lose control of your
vehicle and cause an accident or se-
rious injury.

CAUTION

•

Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected cor-
rectly into the USB port.

•

Do not grab the USB port cover (if so
equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

•

Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.

The vehicle is not equipped with a USB de-
vice. USB devices should be purchased
separately as necessary.

This system cannot be used to format USB
devices. To format a USB device, use a per-
sonal computer.

In some jurisdictions, the USB device for the
front seats plays only sound without im-
ages for regulatory reasons, even when the
vehicle is parked.

This

system

supports

various

USB

memory devices, USB hard drives and
iPod® players. Some USB devices may not
be supported by this system.
• Partitioned USB devices may not play

correctly.

• Some characters used in other lan-

guages (Chinese, Japanese, etc.) may not
appear properly in the display. Using Eng-
lish language characters with a USB de-
vice is recommended.

General notes for USB use:

• For additional information, refer to your

device manufacturer’s owner informa-
tion regarding the proper use and care of
the device.

Notes for iPod® use:

iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.
• Improperly plugging in the iPod® may

cause a checkmark to be displayed on
and off (flickering). Always make sure that
the iPod® is connected properly.

• Audiobooks may not play in the same

order as they appear on an iPod®.

• Large video files cause slow responses in

an iPod®. The vehicle center display may
momentarily black out, but will soon
recover.

• If an iPod® automatically selects large

video files while in the shuffle mode, the
vehicle center display may momentarily
black out, but will soon recover.

iPod®* player

• Some characters used in other lan-

guages (Chinese, Japanese, etc.) are not
displayed properly on the vehicle center
screen. We recommend using English or
Spanish language characters with an
iPod®.

• Large video podcast files cause slow re-

sponses in the iPod®. The vehicle center
display may momentarily black out, but it
will soon recover.

Monitor, climate, audio, phone and voice recognition systems

4-47

• If the iPod® automatically selects large

video podcast files while in the shuffle
mode, the vehicle center display may
momentarily black out, but it will soon
recover.

• Improperly plugging in the iPod® may

cause a checkmark to be displayed on
and off (flickering). Always make sure that
the iPod® is connected properly.

• Audiobooks may not play in the same

order as they appear on the iPod®.

• Be careful not to do the following, or the

cable could be damaged and a loss of
function may occur:

– Bend the cable excessively (1.6 in (40

mm) radius maximum).

– Twist the cable excessively (more than

180 degrees).

– Pull or drop the cable.
– Do not force the iPod® cable connector

into the device port.

– Close the center console lid on the

cable or connectors.

– Store objects with sharp edges in the

storage where the cable is stored.

– Spill liquids on the cable and connec-

tors.

• Do not connect the cable to the iPod® if

the cable and/or connectors are wet. It
may damage the iPod®.

• If the cable and connectors are exposed

to water, allow the cable and/or connec-
tors to dry completely before connecting
the cable to the iPod® (wait 24 hours for it
to dry).

• If the connector is exposed to fluids other

than water, evaporative residue may
cause a short between the connector
pins. In this case, replace the cable, other-
wise damage to the iPod® and a loss of
function may occur.

• If the cable is damaged (insulation cut,

connectors cracked, contamination such
as liquids, dust, dirt, etc. in the connec-
tors), do not use the cable. It is recom-
mended that you visit a NISSAN dealer to
replace the cable with a new one.

• When not in use for extended periods of

time, store the cable in a clean, dust free
environment at room temperature and
without direct sun exposure.

• Do not use the cable for any other pur-

poses other than its intended use in the
vehicle.

*iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Bluetooth® streaming audio

• Some Bluetooth® audio devices may not

be recognized by the in-vehicle audio
system.

• It is necessary to set up the wireless

connection

between

compatible

Bluetooth® audio device and the in-
vehicle Bluetooth® module before using
the Bluetooth® audio.

• Operating procedure of the Bluetooth®

audio will vary depending on the devices.
Make sure how to operate your audio de-
vice before using it with this system.

• The Bluetooth® audio may be stopped

under the following conditions:

– Receiving a call on the Bluetooth®

Hands-Free Phone System.

– Checking

the

connection

the

hands-free phone.

• Do not place the Bluetooth® audio device

in an area surrounded by metal or far
away from the in-vehicle Bluetooth®
module to prevent tone quality degrada-
tion and wireless connection disruption.

4-48

Monitor, climate, audio, phone and voice recognition systems

• While an audio device is connected

through the Bluetooth® wireless connec-
tion, the battery power of the device may
discharge quicker than usual.

• This system supports the Bluetooth®

Audio Distribution Profile (A2DP, AVRCP).

BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc. and
licensed to
Panasonic.

FM/AM RADIO

1. Display screen

2. PUSH SOUND button / TUNE·SCROLL knob

BACK button

MENU button

5. AUDIO button

(SEEK/TRACK) buttons

7. VOL (volume) knob / PUSH

(power)

button

For additional information, see “Audio op-
eration precautions” (P. 4-46).

LHA4963

Monitor, climate, audio, phone and voice recognition systems

4-49

Audio main operation

VOL (volume) knob / PUSH

(power) button

Place the ignition switch in the ON position
and press the PUSH

(power) button

while the system is off to call up the mode
(radio, AUX, Bluetooth® audio, USB or iPod®)
that was playing immediately before the
system was turned off.

To turn the system off, press the PUSH

(power) button.

Turn the VOL (volume) knob to adjust the
volume.

This vehicle may be equipped with Speed
Sensitive Volume. When this feature is ac-
tive, the audio volume changes as the driv-
ing speed changes.

MENU button

Press the

MENU button to show the

Menu screen. Touch the “Settings” key on
the display, then touch the “Sound” key.

Sound Settings

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right
speakers.

Fade

Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear
speakers.

Speed Sensitive Volume

Adjusts the speed sensitive volume function, which increases the volume of the audio system as
the speed of the vehicle increases. Set to “OFF” to disable the feature. The higher the setting, the
more the volume increases in relation to vehicle speed.

Bass, treble, balance, fade and Speed Sensitive Volume can be adjusted by touching “-”/“+” , “L”/”R”, or “R”/”F” keys.

Audio button

Press to display the audio screen. When
this button is pressed while the audio
screen is not displayed, the last audio
source played will play.

4-50

Monitor, climate, audio, phone and voice recognition systems

AM/FM radio screen

1. “AM Menu” / “FM Menu” key

Touch to display the radio menu screen.

2. “Direct Tune” (if so equipped)

Touch to manually enter a station.

3. Audio source indicator

Indicates the currently selected audio
source.

4. Reception information display

Reception information currently avail-
able such as frequency, station name,
etc. is displayed.

5. Preset list

To listen to a preset station, touch the
corresponding station from the preset
list. If displayed, touch the “

” or “

” keys

to scroll the preset list.

AM radio operation

Press the

MENU button and touch the

“AM” key or press the AUDIO button and
select AM on the bottom of the Launch Bar
to bring up the AM display screen.

If another audio source is playing when the
“AM” key is touched, the audio source play-
ing will automatically be turned off and the
last radio station played will begin playing.

AM Menu

Touch the “AM Menu” key to display the AM
Menu screen options:
• SCAN: To scan the stations, touch the “AM

Menu” key on the radio screen and then
touch the “SCAN” key. The stations will be
tuned from low to high frequencies and
stop at each broadcasting station for
several seconds. Touching the “SCAN” key
again during this period of several sec-
onds will stop tuning and the radio will
remain tuned to that station.

• Refresh: Touch the “Refresh” key to scan

and update the station list displayed on
the right side of the AM Menu screen.

(SEEK/TRACK) buttons

Press the

buttons to tune

from low to high or high to low frequencies
and to stop at the next broadcasting
station.

1 to 6 Station memory operations

Up to six stations can be registered in the
preset list.

1. Select the AM radio band.

2. Tune to the station you wish to store.

3. Touch and hold one of the preset num-

bers in the preset list.

The information such as frequency will be
displayed on the preset list.

To select and listen to the preset stations,
press

on the steering wheel

briefly or touch a preferred station on the
preset list on the radio screen.

LHA4708

Monitor, climate, audio, phone and voice recognition systems

4-51

FM radio operation

Press the

MENU button and touch the

“FM Menu” key or press the AUDIO button
and select FM on the bottom of the Launch
Bar to bring up the FM display screen.

If another audio source is playing when the
“FM” key is touched, the audio source play-
ing will automatically be turned off and the
last radio station played will begin playing.

The FM stereo indicator (STEREO) is shown
on the screen during FM stereo reception.
When the stereo broadcast signal is weak,
the radio automatically changes from ste-
reo to monaural reception.

FM Menu

Touch the “FM” Menu key to display the FM
Menu screen options:
• SCAN: To scan tune the stations, touch

the “FM Menu” key on the radio screen
and then touch the “SCAN” key. The sta-
tions will be tuned from low to high fre-
quencies and stop at each broadcasting
stations for several seconds. Touching
the “SCAN” key again during this period of
several seconds will stop tuning and the
radio will remain tuned to that station.

• Refresh: Touch the “Refresh” key to up-

date the station list displayed on the right
side of the FM Menu screen.

• RDS Info: Radio station and song informa-

tion can be displayed on the FM display
screen.

(SEEK/TRACK) buttons

Press the

buttons to tune

from low to high or high to low frequencies
and to stop at the next broadcasting
station.

1 to 12 Station memory operations

Up to 12 stations can be registered in the
preset list.

1. Select the FM radio band.

2. Tune to the station you wish to store.

3. Touch and hold one of the preset num-

bers in the preset list.

The information such as frequency will be
displayed on the preset list.

To select and listen to the preset stations,
press

on the steering wheel

briefly or touch a preferred station on the
preset list on the radio screen.

Auxiliary (AUX) devices operation

Connecting auxiliary devices

Connect an AUX device into the AUX input
jack located on the center console below
the heater and air conditioner controls.

The AUX input jack accepts any standard
analog audio input such as from a portable
cassette player, CD player, MP3 player or
phone.

Insert a 1/8 in (3.5 mm) stereo mini plug in
the audio input jack. If a cable with a mono
plug is used, the audio output may not
function normally.

Activation and playing

Turn on the AUX device. Connect an AUX
cable to the AUX device and the AUX input
jack. Select AUX mode from the audio
source menu screen or by pressing the
Source button on the steering wheel.

4-52

Monitor, climate, audio, phone and voice recognition systems

AUX screen

• Audio source indicator

Indicates that the AUX source is currently
playing.

• “Volume Setting” keys

Touch one of the keys to select the sound
output gain from Low, Medium and High.

• AUX from Launch Bar

Touch to change from another source to
AUX.

Additional features

For additional information, see “iPod®
player operation” (P. 4-56) regarding the
iPod® player available with this system.

For additional information, see “USB (Uni-
versal Serial Bus) Connection Port” (P. 4-53)
regarding the USB connection port avail-
able with this system.

For additional information, see “Bluetooth®
streaming

audio”

(P. 4-59)

about

the

Bluetooth® audio interface available with
this system.

Microsoft (WMA) Obligation of
Labeling

Additional Obligation of Labeling

This product is protected by certain intel-
lectual

property

rights

Microsoft

Corporation and third parties. Use or distri-
bution of such technology outside of this
product is prohibited without a license
from Microsoft or an authorized Microsoft
subsidiary and third parties.

USB (Universal Serial Bus)
CONNECTION PORT

1. Type-A.

Connecting a device to the USB
Connection Port

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA4709

LHA5698

Monitor, climate, audio, phone and voice recognition systems

4-53

CAUTION

•

To avoid damage and loss of function
when using a USB device, note the
following precautions.

•

Do not grab the USB port cover (if so
equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

•

Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.

NOTE:

For best results, it is recommended to
use manufacturer cables, which are sold
separately. A USB Type-C to USB Type-A
adapter (or vice versa) may be available;
however, results may vary.

For additional information, refer to your de-
vice manufacturer's owner information re-
garding the proper use and care of the
device.

The USB port is located beneath the heater
and air conditioner controls. Insert the USB
device into the connection port.

When a compatible storage device is
plugged into the connection port, compat-
ible audio files on the storage device can be
played through the vehicle's audio system.

USB connections screen

Press the

MENU button and touch the

“Connections” key or press the “Settings”
key and touch the “Connections” key to
change USB settings.
• Auto Change Source

Touch “ON” or “OFF” to change the audio
source settings for USB memory devices
or an iPod® connected through a USB
cable.

LHA4711

4-54

Monitor, climate, audio, phone and voice recognition systems

USB screen

1. “USB Menu” key

Touch to switch to the USB Menu screen.

2. Track information

Track information such as the song
name, artist name and album name are
displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. USB operation keys

Touch to control USB playback functions

5. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in playing
a track.

USB operation keys

Touch to control USB playback functions.

Keys

Description

Each time “

” key is

touched, the repeat mode
changes.

Touch to return to the begin-
ning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.

Touch to play the track.

Touch to pause the track.

Touch to select the next
track. Touch and hold to
fast-forward the track.

Each time “

” key is

touched, the random mode
changes.

USB memory device player
operation

Activation and playing

Connecting the USB memory device into
the port will start playing the USB memory.

USB memory device can also be played by
touching the “USB” key on the Menu screen
or by touching USB on the Launch Bar.

To pause playing the USB memory device
touch the “

” key. To resume playing,

touch the “

” key.

Skipping tracks

To skip the tracks, press the

buttons on the control panel or touch the
“

” or “

” keys on the screen repeat-

edly until the preferred track is selected.

NOTE:

Depending on the condition, skipping to
the previous track may require pressing
the button or touching the key twice.
Pressing the button or touching the key
once may only restart the current track
from the beginning.

LHA4710

Monitor, climate, audio, phone and voice recognition systems

4-55

Fast-forwarding/rewinding

To rewind or fast-forward the track, press
and hold the

buttons on the

control panel or touch and hold the “

”

or “

” keys on the screen.

Changing play mode
Repeat mode

Touch the “

” key on the USB screen to

change the repeat mode.
The following modes are available:

All: Repeat all

1 Folder: Repeat folder/sub-folder

1 Track: Repeat track

Random mode

Touch the “

” key on the screen to

change the random mode as follows:

“

” is not highlighted: Random off

“

” highlighted: Random on

USB menu

Touch the “USB Menu” key on the USB
screen to display the USB Menu screen.

“Now Playing” key Touch to display the USB

screen.

“Folder List” key

Touch to display the folder list.
Touch an item on the list to
select the folder. The sub-
folder or track list will be dis-
played. Select a sub-folder or
track from the list.

“Album Artwork”

Touch to run on/off the album
artwork display on the USB
screen.

iPod®* PLAYER OPERATION

1. Type-A.

Connecting iPod®

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

LHA5698

4-56

Monitor, climate, audio, phone and voice recognition systems

CAUTION

•

Do not grab the USB port cover (if so
equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.

•

Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.

NOTE:

For best results, it is recommended to
use manufacturer cables, which are sold
separately. A USB Type-C to USB Type-A
adapter (or vice versa) may be available;
however, results may vary.

For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.

To connect an iPod® to the vehicle so that
the iPod® can be controlled with the audio
system controls and display screen, use

the USB connection port located beneath
the heater and air conditioner controls.
Connect the iPod®-specific end of the
cable to the iPod® and the USB end of the
cable to the USB connection port on the
vehicle. If your iPod® supports charging via
a USB connection, its battery will be
charged while connected to the vehicle
with the ignition switch in the ON position.

While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.

To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.

* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.

Compatibility

The following models are compatible:
• iPhone® 11 Pro Max
• iPhone® 11 Pro
• iPhone® 11
• iPhone® XR
• iPhone® XS Max
• iPhone® XS
• iPhone® X

• iPhone® 8 Plus
• iPhone® 8
• iPhone® 7 Plus
• iPhone® 7
• iPhone® SE
• iPhone® 6s Plus
• iPhone® 6s
• iPhone® 6 Plus
• iPhone® 6
• iPhone® 5s
• iPhone® 5c
• iPhone® 5
• iPod touch® (6th generation)

* Some features of this iPod® may not be
fully functional.

Make sure that your iPod® firmware is up-
dated to the version indicated above. The
Lightning™ connector works with iPhone®
(5 through 11) and iPod touch® (6th genera-
tion). USB works with iPhone® (5 through 11)
and iPod touch® (6th generation).

All Android devices that have Android OS
5.0 or later are supported.

Monitor, climate, audio, phone and voice recognition systems

4-57

iPod screen

1. “iPod Menu” key

Touch to switch to the iPod Menu screen.

2. Track information

Track information such as the song
name, artist name and album name are
displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. Album artwork

An image of the album artwork is dis-
played when available if the setting is
turned on.

5. iPod® operation keys

Touch to control iPod® playback functions

6. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in playing
a track.

iPod® operation keys

Touch to control iPod® playback functions.

Keys

Description

Each time “

” key is

touched, the repeat mode
changes.

Touch to return to the begin-
ning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.

Touch to play the track.

Touch to pause the track.

Touch to select the next
track. Touch and hold to
fast-forward the track.

Each time “

” key is

touched, the random mode
changes.

iPod® memory device player
operation

Activation and playing

Connecting the iPod® to the vehicle via USB
cable will activate the iPod® mode.

The iPod® can also be played by touching
the “iPod” key on the Menu screen or by
touching iPod on the Launch Bar.

Skipping tracks

To skip the tracks, press the

buttons on the control panel or touch the
“

” or “

” keys on the screen repeat-

edly until the preferred track is selected.

NOTE:

Fast-forwarding/rewinding

To rewind or fast-forward the track, press
and hold the

buttons on the

control panel or touch and hold the “

”

or “

” keys on the screen,

LHA4724

4-58

Monitor, climate, audio, phone and voice recognition systems

Changing play mode
Repeat mode

Touch the “

” key on the iPod® screen

to change the repeat mode. The following
modes are available.

No text displayed: Repeat off

All: Repeat all

One: Repeat track

Random mode

Touch the “

” key on the screen to

change the random mode as follows.

“

” is not highlighted: Random off

“

” highlighted: Random on

iPod® Menu

Touch the “iPod Menu” key on the iPod®
screen to display the iPod® Menu screen.

“Now Playing” key Touch to display the USB

screen.

“Folder List” key
(if so equipped)

Touch to display the folder list.
Touch an item on the list to
select the folder. The sub-
folder or track list will be dis-
played. Select a sub-folder or
track from the list.

“Album Artwork”
key

Touch to run on/off the album
artwork display on the USB
screen.

“Playlists” key

Touch to display the list ac-
cording to the selected item.

“Artists” key

“Albums” key

“Songs” key

“Podcasts” key

“Genres” key

“Composers” key

“Audiobooks” key

“iTunes Radio”
key

BLUETOOTH® STREAMING AUDIO

If you have a compatible Bluetooth® device
with streaming audio (A2DP profile), you
can set up the wireless connection be-
tween your Bluetooth® device and your ve-
hicle’s audio system.

This connection allows you to listen to au-
dio from the Bluetooth® device using your
vehicle’s speakers.

To use Bluetooth® streaming audio touch
the

Bluetooth® Icon on the Launch

Bar, then touch the “BT Audio” key.

NOTE:

A cellular phone should not be used
while driving so full attention may be
given to vehicle operation. If the device
needs to be connected, see “Connecting
procedure” (P. 4-60).

Monitor, climate, audio, phone and voice recognition systems

4-59

Connecting procedure

NOTE:

The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.

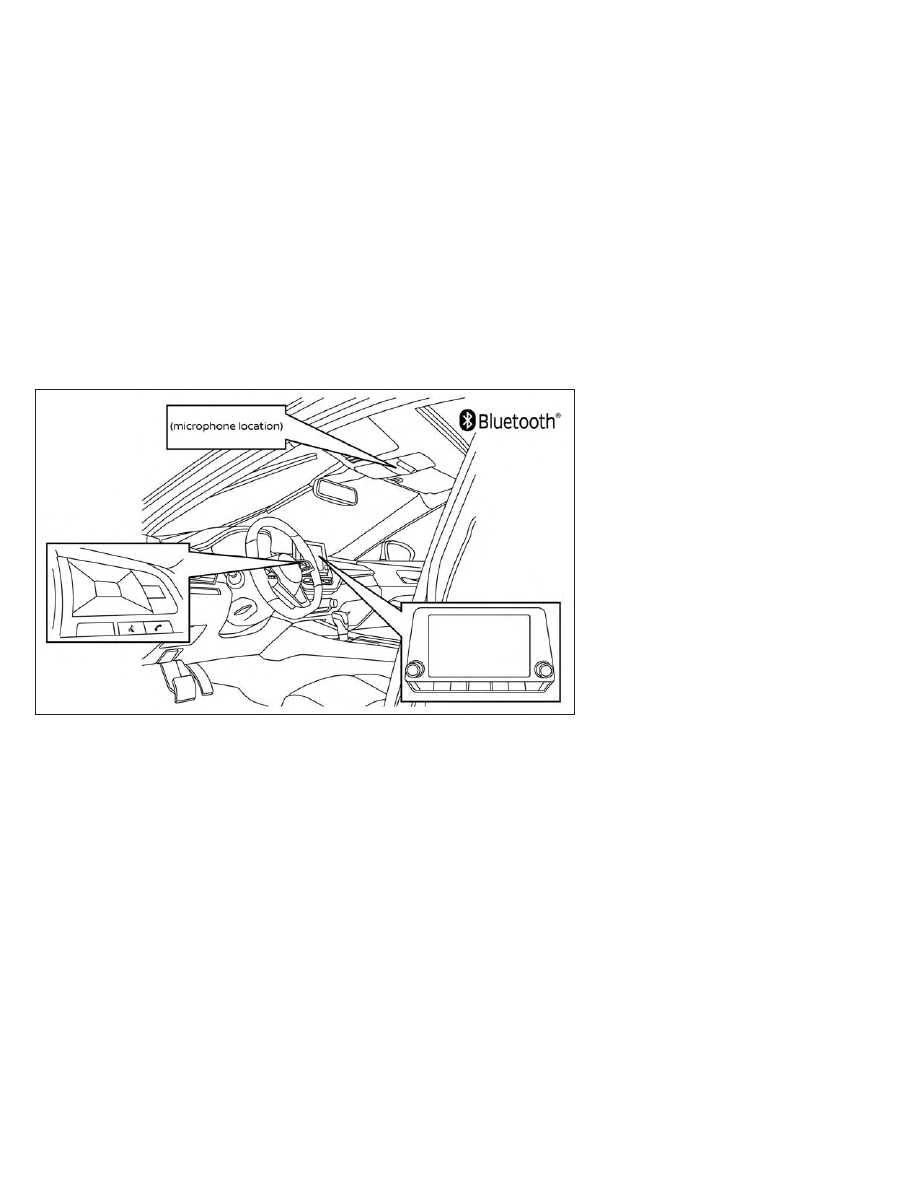

To connect a phone to the Bluetooth®
Hands-Free Phone System:

Manual Connecting Procedure

1. Select the “Settings” key on the Launch

Bar.

2. Touch the “Connections” key.

3. Touch the Bluetooth tab and touch the

“Add New” key.

4. Follow the instructions on the screen.

If a PIN appears on the screen, operate the
Bluetooth® device to enter/confirm the
PIN.

Menu Item

Result

Bluetooth

Allows user to switch Bluetooth® on and off. Bluetooth® must be turned on in order to connect a device.

Turns Bluetooth® functionality on. To turn off, touch the “ON” key again. The indicator light will go off.

Favorite (Connection first)

Allows user to toggle “Phone” and “Audio” favorite settings on and off.

Allows user to customize the PIN to a four digit number.

LHA4726

4-60

Monitor, climate, audio, phone and voice recognition systems

Automatic Connecting Procedure

If no phone is connected to the system,
press and hold the

button on the

steering wheel for less than 1.5 seconds.
After the prompt, speak “Add Phone”, the
system will announce “transferring to the
add phone settings menu”. The system will
start the pairing procedure. When a com-
patible phone is found, a message with a
PIN appears on the screen. Operate the
Bluetooth® phone to complete the con-
nection process. For additional informa-
tion, see “Bluetooth® connections screen”
(P. 4-81).

Bluetooth® screen

1. “BT Menu” key

Depending on the Bluetooth® version
supported by the connected device, ei-
ther the “BT Menu” key or “Connections”
key is displayed.

2. Track information

Track information such as the song
name, artist name and album name are
displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. Bluetooth® audio operation keys

Touch to control Bluetooth® audio play-
back functions

5. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in playing
a track.

Bluetooth® operation keys

Touch to control Bluetooth® playback
functions.

Keys

Description

Each time “

” key is

touched, the repeat mode
changes.

Touch to return to the begin-
ning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.

Touch to play the track.

Touch to pause the track.

Touch to select the next
track. Touch and hold to
fast-forward the track.

Each time “

” key is

touched, the random mode
changes.

LHA4727

Monitor, climate, audio, phone and voice recognition systems

4-61

Bluetooth® audio operation

The ability to pause, change tracks, fast
forward, rewind, randomize and repeat
music may be different between devices.
Some or all of these functions may not be
supported on each device.

NOTE:

Depending on the Bluetooth® audio de-
vice that is connected, it may not be pos-
sible to perform audio operations or a
delay may occur before music is played
back.

Activation and playing

A Bluetooth® audio device can be played by
touching the “Bluetooth” key on the Menu
screen or by touching Bluetooth on the
Launch Bar.

To pause playing the Bluetooth® audio,
touch the “

” key. Touch the “

” key

to resume playing.

Changing folders

To change folders, touch the “BT Menu” key.

Fast-forwarding/rewinding

To fast-forward or rewind the track, press
and hold the

buttons on the

control panel or touch the “

” or “

”

keys on the screen.

Changing play mode
Repeat mode

Touch the “

” key on the screen to

change the repeat mode.

Random mode

Touch the “

” key on the screen to

change the random mode.

NOTE:

Available repeat/random modes change
depending on the connected device.

BT Menu

Touch the “BT Menu” key on the Bluetooth®
audio screen to display the Bluetooth® au-
dio menu screen.

The following items are available.

“Now Playing” key

Touch to display the
Bluetooth® audio screen.

“Current List” key (if so
equipped)*

A list of tracks in the cur-
rently selected folder is
displayed.

“Connections” key

Touch to display the
connections screen.

“Folder List” key*

Touch to display the
folder list. Touch an item
on the list to select the
folder.

*: displayed only when available.

NOTE:

Depending on the connected device, the
“BT Menu” key may not be displayed.

4-62

Monitor, climate, audio, phone and voice recognition systems

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

Menu control switch/ OK

button

(back) switch

(SEEK/TRACK) buttons

4. Volume control switch

SEEK/TRACK buttons

For most audio sources, pushing the tun-
ing switches for more than 1.5 seconds
provides a different function than pushing
for less than 1.5 seconds.

AM and FM:

• Press the

buttons for less

than 1.5 seconds to increase or decrease
the preset station.

• Press the

buttons for more

than 1.5 seconds to seek up or down to
the next station.

iPod®:

• Press the

buttons for less

than 1.5 seconds to increase or decrease
the track number.

USB:

• Press the

buttons for less

than 1.5 seconds to increase or decrease
the track number.

• Press the

buttons for more

than 1.5 seconds to reverse or fast for-
ward the current song.

Bluetooth® Audio:

• Press the

buttons for less

than 1.5 seconds to skip ahead or back to
the next song.

• Press the

buttons for more

than 1.5 seconds to reverse or fast for-
ward the current song.

Menu control

switch/OK button

In the vehicle information display, navigate
to ”Customize Display”, “Main menu selec-
tion”, then “Audio”. Use the OK button to
change

the

mode

the

following

sequence:

→

USB/iPod®*

→

Bluetooth® Au-

dio*

→

AUX*

→

AM.

* These modes are only available when
compatible media storage is inserted into
the device or connected to the system.

Volume control switch

Push the volume control switch up or down
to increase or decrease the volume.

(back) switch

Push the

(back) switch to return to the

previous screen or cancel the current
selection.

LHA4122

Monitor, climate, audio, phone and voice recognition systems

4-63

RADIO ANTENNA

Window Antenna

The antenna pattern is printed inside the
rear window.

CAUTION

•

Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause poor
reception or noise.

•

When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.

•

Do not damage the antenna pattern
with luggage

Satellite radio antenna

The antenna is located on the rear part of
the vehicle roof.

CAUTION

•

A build up of ice on the satellite an-
tenna can affect radio performance.
Remove the ice to restore radio
reception.

•

When removing snow from the roof,
do not apply strong force to the sat-
ellite antenna. That may cause bro-
ken satellite antenna and roof panel
dent.

•

When using a high pressure car wash,
keep the high pressure nozzle away
from the satellite antenna. The seal
may be deformed or damaged.

•

The radio performance may be af-
fected if cargo carried on the roof
blocks the radio signal. If possible, do
not put cargo near the satellite
antenna.

LHA6518

4-64

Monitor, climate, audio, phone and voice recognition systems

Apple Siri® Eyes Free personal assistant
can be accessed from the vehicle. Siri Eyes
Free can be accessed in Siri Eyes Free
mode to reduce user distraction. In this
mode, Siri Eyes Free is available for interac-
tion by voice control. After connecting a
compatible

Apple

device

using

Bluetooth®, Siri Eyes Free can be activated
from the

button on the steering

wheel.

Siri® is a trademark of Apple Inc., registered
in the U.S. and other countries.
• Some Siri Eyes Free functions, such as

displaying pictures or opening apps, may
not be available while driving.

• For getting best results, always update

your device to the latest software version.

• Keep the interior of the vehicle as quiet as

possible. Close the windows to eliminate
the surrounding noises (traffic noises, vi-
bration sounds, etc.), which may prevent
the system from recognizing the voice
commands correctly.

• For functions that can be used in Siri Eyes

Free, please refer to the Apple website.

REQUIREMENTS

Siri® is only available on the iPhone® 4S or
later. Devices released before iPhone® 4S
are not supported by the Siri® Eyes Free
system. Visit www.apple.com/ios/siri for
details about device compatibility.

Siri must be enabled on the phone. Please
check phone settings.

If the device has a lock screen, Siri must be
accessible from the lock screen. Please
check phone settings.

For best results, always update your device
to the latest software version.

OPERATING SIRI® EYES FREE

1. Press

button for more than 1.5

seconds.

2. Speak your command and then listen to

the Siri® Eyes Free reply.

After starting Siri Eyes Free, press the
button again within 5 seconds of the end of
the Siri Eyes Free announcement to extend
the session.

LHA4965

SIRI® EYES FREE

Monitor, climate, audio, phone and voice recognition systems

4-65

Example 1 – Playing music

1. Press

button for more than 1.5

seconds.

2. Say “Play (artist name, song name, etc.)”.

3. Your vehicle will automatically change to

Bluetooth® Audio or iPod® mode* when
the music starts playing. Mode selection
is determined by the phone.

* If the iPhone® is also connected with the
USB cable.

If the audio track does not start playing
automatically after Siri Eyes Free ends, try
changing the track or audio source to re-
sume playback.

NOTE:

For best results, use the native music
app. Performance of music control func-
tion while using Podcasts, Audiobook or
other 3rd party music apps may vary and
is controlled by the iPhone®.

Example 2 – Replying to text messages

1. If a compatible iPhone® is connected

and “Show Notifications” of the iPhone®
settings is enabled, the vehicle will dis-
play a notification for new incoming text
messages.

2. After reading the message, press or

press and hold the

button to reply

using Siri Eyes Free.

3. After a beep sounds, say “Text message”

or a similar command to reply using Siri
Eyes Free.

4-66

Monitor, climate, audio, phone and voice recognition systems

TROUBLESHOOTING GUIDE

Symptom

Cause and Countermeasure

Cannot access Siri Eyes
Free from switch on the
steering wheel

Check if a Bluetooth® connection is established between the iPhone® and the system.

Check if Siri is enabled on the device. On your phone, go to Siri setting.

Check that Siri can be accessed from the device lock screen. This can be set in the settings menu of your phone.

Audio Source does not
change automatically to
iPod® or Bluetooth® Au-
dio mode

For best results, use the native Music app. Performance of music control function while using Podcasts, Audiobook or other 3rd party
music apps may vary.

For best results, play media already stored on your device. Streaming music or playback from cloud storage may degrade perfor-
mance.

Switch the source manually by pressing the AUX or MEDIA button on the vehicle audio system or the SOURCE select switch on the
steering wheel.

Play, pause, next track,
previous track or play
timer does not work

For best results, use the native Music app. Performance of music control function while using Podcasts, Audiobook or other 3rd party
music apps may vary and is controlled by the device.

Cannot hear any music/
audio being played back
from a connected
iPhone®

Check that the audio source is set to Bluetooth® Audio or iPod® mode. A USB connection is required for iPod® mode.

Cannot receive text mes-
sage notifications on the
vehicle audio system

Check if “Send Notifications” is enabled on your phone. On the phone, go to Bluetooth® settings. Find the device name, like “My Car”.
Press the INFO button. Turn on “Show Notifications”.

Cannot reply to text mes-
sage notifications by Siri
Eyes Free

After receiving an incoming text message, follow on-screen guidance. Press the

button for more than 1.5 seconds on the steer-

ing wheel for Siri Eyes Free. After Siri Eyes Free starts, say “Text Message”.

Monitor, climate, audio, phone and voice recognition systems

4-67

When installing a CB, ham radio or car
phone in your vehicle, be sure to observe
the following precautions; otherwise, the
new equipment may adversely affect the
engine control system and other electronic
parts.

WARNING

•

A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while
driving.

•

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so

equipped)

highly

recom-

mended. Exercise extreme caution at
all times so full attention may be
given to vehicle operation.

•

If you are unable to devote full atten-
tion to vehicle operation while talk-
ing on the phone, pull off the road to
a safe location and stop your vehicle.

CAUTION

•

Keep the antenna as far away as pos-
sible from the electronic control
modules.

•

Keep the antenna wire more than 8 in
(20 cm) away from the electronic
control system harnesses. Do not
route the antenna wire next to any
harness.

•

Adjust the antenna standing-wave
ratio

recommended

the

manufacturer.

•

Connect the ground wire from the CB
radio chassis to the body.

•

For additional information, it is rec-
ommended that you visit a NISSAN
dealer for this service.

WARNING

•

Use a phone after stopping your ve-
hicle in a safe location. If you have to
use a phone while driving, exercise
extreme caution at all times so full
attention may be given to vehicle
operation.

•

If you are unable to devote full atten-
tion to vehicle operation while talk-
ing on the phone, pull off the road to
a safe location and stop your vehicle.

CAUTION

To avoid discharging the vehicle bat-
tery, use a phone after starting the
engine.

CAR PHONE OR CB RADIO

BLUETOOTH® HANDS-FREE PHONE
SYSTEM

4-68

Monitor, climate, audio, phone and voice recognition systems

Your

NISSAN

equipped

with

the

Bluetooth® Hands-Free Phone System. If
you have a compatible Bluetooth® enabled
cellular phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth® wireless technology, you can

make or receive a hands-free telephone
call with your cellular phone in the vehicle.

Once your cellular phone is connected to
the in-vehicle phone module, no other
phone connecting procedure is required.
Your phone is automatically connected
with the in-vehicle phone module when

the ignition switch is placed in the ACC or
ON position with the previously connected
cellular phone turned on and carried in the
vehicle.

NOTE:

Some devices require the user to accept
connections to other Bluetooth® de-
vices. If your phone does not connect au-
tomatically to the system, consult the
phone's owner's manual for details on
device operation.

You can connect up to six different
Bluetooth® cellular phones to the in-
vehicle phone module. However, you can
talk on only one cellular phone at a time.

Before using the Bluetooth® Hands-Free
Phone System, refer to the following notes.
• Set up the wireless connection between

a compatible cellular phone and the in-
vehicle phone module before using the
hands-free phone system.

• Some Bluetooth® enabled cellular phones

may not be recognized or work properly.
Please

visit

www.nissanusa.com/

bluetooth or www.nissan.ca/bluetooth
for a recommended phone list and con-
necting instructions.

LHA4953

Monitor, climate, audio, phone and voice recognition systems

4-69

Nissan Sentra (2024 year). Manual in english - page 8
