Connecting procedure

NOTE:

The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.

To connect a phone to the Bluetooth®
Hands-Free Phone System:

Manual Connecting Procedure

1. Press the

MENU button on the

control panel.

2. Touch the “Connections” key on the

screen.

3. In the Bluetooth tab, touch the “Add

New” key to connect a phone.

4. When a compatible phone is found a

message with a PIN appears on the
screen.

5. Verify the PIN is correct and accept the

connection.

Menu Item

Result

Bluetooth

Allows user to switch Bluetooth® on and off. Bluetooth® must be turned on in order to connect a device.

Turns Bluetooth® functionality on. To turn off, touch the “ON” key again. The indicator light will go off.

Favorite (Connection first)

Allows user to toggle “Phone” and “Audio” favorite settings on and off.

Allows user to customize the PIN to a four digit number.

LHA4726

4-38

Monitor, climate, audio, phone and voice recognition systems

Automatic Connecting Procedure

If no phone is connected to the system,
press and hold the

button on the

steering wheel for less than 1.5 seconds.
After the prompt, speak “Add Phone”, the
system will announce “transferring to the
add phone settings menu”. The system will
start the pairing procedure. When a com-
patible phone is found, a message with a
PIN appears on the screen. Operate the
Bluetooth® phone to complete the con-
nection process. For additional informa-
tion, refer to “Bluetooth® connections
screen” in this section.

Bluetooth® screen

1. “BT Menu” key

Depending on the Bluetooth® version
supported by the connected device, ei-
ther the “BT Menu” key or “Connections”
key is displayed.

2. Track information

Track information such as the song
name, artist name and album name
are displayed.

3. Audio source indicator

Indicates the currently selected audio
source.

4. Bluetooth® audio operation keys

Touch to control Bluetooth® audio
playback functions

5. Play time and progress bar

The play time of the track is displayed.
The bar indicates the progress in play-
ing a track.

Bluetooth® operation keys

Touch to control Bluetooth® playback
functions.

Keys

Description

Each time “

” key is touched, the

repeat mode changes.

Touch to return to the beginning of the
current track. Touch again to select the
previous track. Touch and hold to rewind
the current track.

Touch to play the track.

Touch to pause the track.

Touch to select the next track. Touch
and hold to fast-forward the track.

Each time “

” key is touched, the

random mode changes.

LHA4727

Monitor, climate, audio, phone and voice recognition systems

4-39

Bluetooth® audio operation

The ability to pause, change tracks, fast
forward, rewind, randomize and repeat
music may be different between devices.
Some or all of these functions may not be
supported on each device.

NOTE:

Depending on the Bluetooth® audio de-
vice that is connected, it may not be pos-
sible to perform audio operations or a
delay may occur before music is played
back.

Activation and playing

A Bluetooth® audio device can be played by
touching the “Bluetooth” key on the Menu
screen or by touching Bluetooth on the
Launch Bar.

To pause playing the Bluetooth® audio,

touch the “

” key. Touch the “

” key

to resume playing.

Changing folders
To change folders, touch the “BT Menu” key.

Fast-forwarding/rewinding

To fast-forward or rewind the track, push

and hold the

buttons on the

control panel or touch the “

” or “

”

keys on the screen.

Changing play mode
Repeat mode

Touch the “

” key on the screen to

change the repeat mode.
Random mode

Touch the “

” key on the screen to

change the random mode.

NOTE:

Available repeat/random modes change
depending on the connected device.

BT Menu

Touch the “BT Menu” key on the Bluetooth®
audio screen to display the Bluetooth® au-
dio menu screen.

The following items are available.

“Now Playing” key

Touch to display the
Bluetooth® audio screen.

“Current List” key*

A list of track in the cur-
rently selected folder is
displayed.

“Connections” key

Touch to display the
connections screen.

“Folder List” key*

Touch to display the
folder list. Touch an item
on the list to select the
folder.

*: displayed only when available.

NOTE:

Depending on the connected device, the
“BT Menu” key may not be displayed.

4-40

Monitor, climate, audio, phone and voice recognition systems

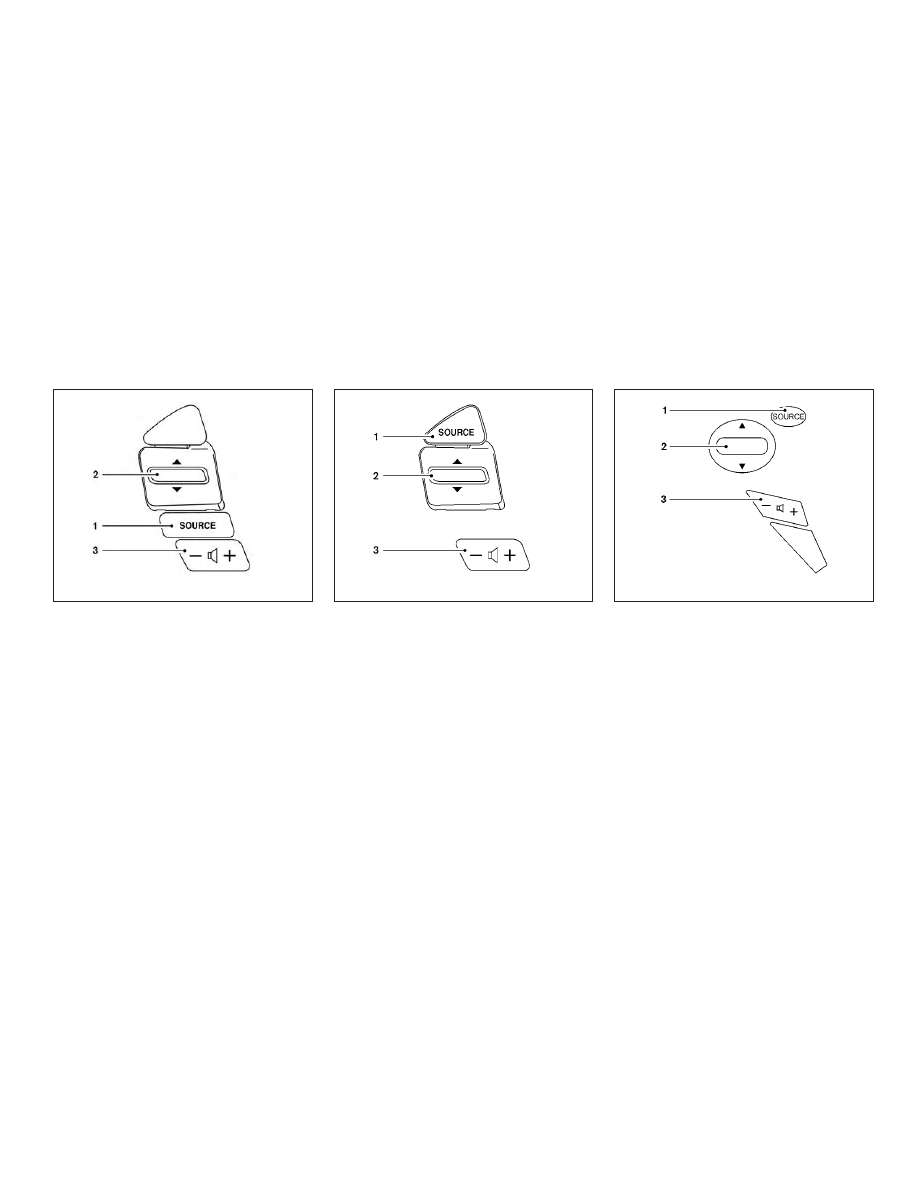

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

1. SOURCE switch

2. Tuning switch

3. Volume control switch

SOURCE switch

Push the SOURCE switch to change the
mode in the following sequence:

→ FM → USB/iPod®* → Bluetooth® Au-

dio*

→ AUX* → AM.

* These modes are only available when
compatible media storage is inserted into
the device or connected to the system.

Volume control switches

Push the volume control switch to increase
or decrease the volume.

Type A (if so equipped)

LHA3636

Type B (if so equipped)

LHA2054

Type C (if so equipped)

LHA1144

Monitor, climate, audio, phone and voice recognition systems

4-41

Tuning switch

For most audio sources, pressing the
switches for more than 1.5 seconds pro-
vides a different function than pressing for
less than 1.5 seconds.

AM and FM:

∙ Push the

switch for less than

1.5 seconds to increase or decrease the
preset station.

∙ Push the

switch for more than

1.5 seconds to seek up or down to the
next station.

iPod®:

∙ Push the

switch for less than

1.5 seconds to increase or decrease the
track number.

∙ Hold the

switch for 1.5 seconds to

fast forward or rewind the track being
played.

USB:

∙ Push the

switch for less than

1.5 seconds to increase or decrease the
track number.

∙ Hold the

switch for 1.5 seconds to

fast forward or rewind the track being
played.

Bluetooth® Audio:

∙ Push the

switch for less than

1.5 seconds to skip ahead or back to the
next song.

∙ Hold the

switch for 1.5 seconds to

fast forward or rewind the track being
played.

ANTENNA

The antenna cannot be shortened, but can
be removed. When you need to remove the
antenna, turn the antenna rod counter-
clockwise.

To install the antenna rod, turn the antenna
rod clockwise and hand tighten.

CAUTION

∙ Always properly tighten the antenna

rod during installation or the antenna
rod

may

break

during

vehicle

operation.

∙ Be sure that the antenna is removed

before the vehicle enters an auto-
matic car wash.

Apple Siri® Eyes Free personal assistant
can be accessed from the vehicle. Siri Eyes
Free can be accessed in Siri Eyes Free
mode to reduce user distraction. In this
mode, Siri Eyes Free is available for interac-
tion by voice control. After connecting a
compatible

Apple

device

using

Bluetooth®, Siri Eyes Free can be activated
from the

button on the steering

wheel.
Siri® is a trademark of Apple Inc., registered
in the U.S. and other countries.

∙ Some Siri Eyes Free functions, such as

displaying pictures or opening apps,
may not be available while driving.

∙ For getting best results, always update

your device to the latest software ver-
sion.

∙ Keep the interior of the vehicle as quiet

as possible. Close the windows to elimi-
nate the surrounding noises (traffic
noises, vibration sounds, etc.), which
may prevent the system from recogniz-
ing the voice commands correctly.

∙ For functions that can be used in Siri

Eyes Free, please refer to the Apple
website.

SIRI® EYES FREE

4-42

Monitor, climate, audio, phone and voice recognition systems

REQUIREMENTS

Siri® is only available on the iPhone® 4S or
later. Devices released before iPhone® 4S
are not supported by the Siri® Eyes Free
system. Visit www.apple.com/ios/siri for
details about device compatibility.

Siri must be enabled on the phone. Please
check phone settings.

If the device has a lock screen, Siri must be
accessible from the lock screen. Please
check phone settings.

For best results, always update your device
to the latest software version.

OPERATING SIRI® EYES FREE

1. Push

button

for

than

1.5 seconds.

2. Speak your command and then listen

to the Siri® Eyes Free reply.

After starting Siri Eyes Free, push the
button again within 5 seconds of the end of
the Siri Eyes Free announcement to extend
the session.
Example 1 – Playing music

1. Push

button

for

than

1.5 seconds.

2. Say “Play (artist name, song name,

etc.)”.

3. Your vehicle will automatically change

to Bluetooth® Audio or iPod® mode*
when the music starts playing. Mode
selection is determined by the phone.

* If the iPhone® is also connected with the
USB cable.

If the audio track does not start playing
automatically after Siri Eyes Free ends, try
changing the track or audio source to re-
sume playback.

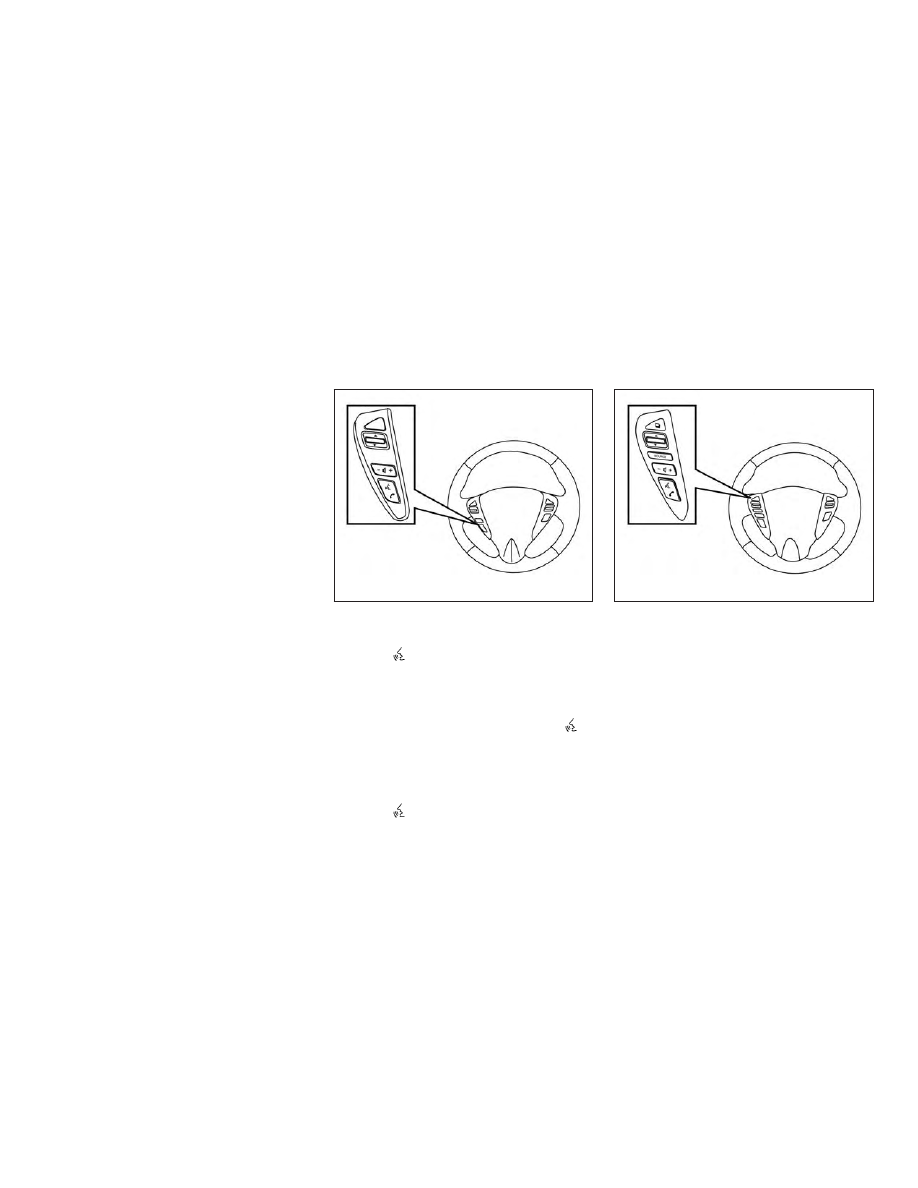

Type A (if so equipped)

LHA4747

Type B (if so equipped)

LHA4810

Monitor, climate, audio, phone and voice recognition systems

4-43

NOTE:

For best results, use the native music
app. Performance of music control func-
tion while using Podcasts, Audiobook or
other 3rd party music apps may vary and
is controlled by the iPhone®.

Example 2 – Replying to text messages

1. If a compatible iPhone® is connected

and “Show Notifications” of the iPhone®
settings is enabled, the vehicle will dis-
play a notification for new incoming
text messages.

2. After reading the message, push or

push and hold the

button to reply

using Siri Eyes Free.

3. After a beep sounds, say “Text mes-

sage” or a similar command to reply
using Siri Eyes Free.

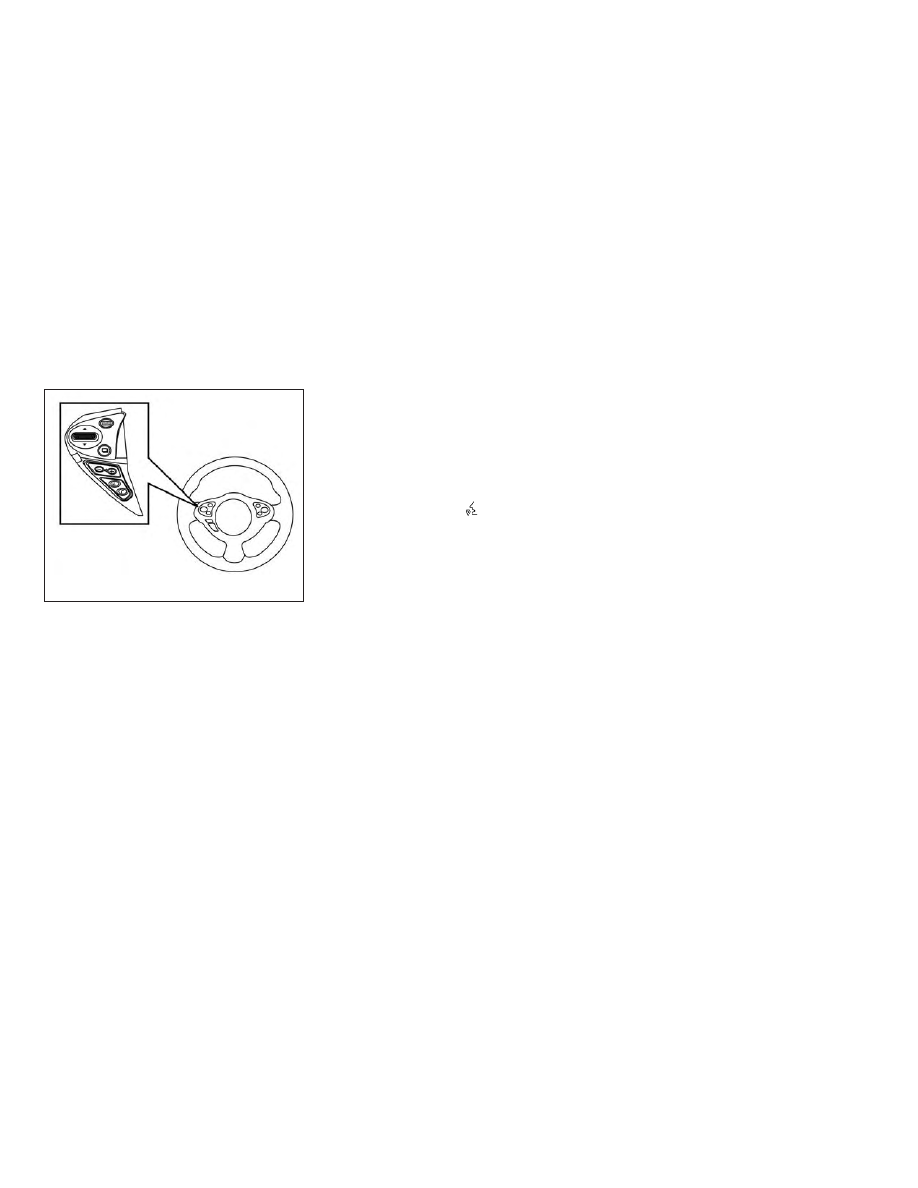

Type C (if so equipped)

LHA4309

4-44

Monitor, climate, audio, phone and voice recognition systems

TROUBLESHOOTING GUIDE

Symptom

Cause and Countermeasure

Cannot access Siri® Eyes
Free from switch on the
steering wheel

Check if a Bluetooth® connection is established between the iPhone® and the system.

Check if Siri® is enabled on the device. On your phone, go to Siri® setting.

Check that Siri can be accessed from the device lock screen. This can be set in the settings menu of your phone.

Audio Source does not
change automatically to
iPod® or Bluetooth® Au-
dio mode

For best results, use the native Music app. Performance of music control function while using Podcasts, Audiobook or other 3rd party
music apps may vary.

For best results, play media already stored on your device. Streaming music or playback from cloud storage may degrade
performance.

Switch the source manually by pressing the AUX or MEDIA button on the vehicle audio system or the SOURCE select switch on the
steering wheel.

Play, pause, next track,
previous track or play
timer does not work

For best results, use the native Music app. Performance of music control function while using Podcasts, Audiobook or other 3rd party
music apps may vary and is controlled by the device.

Cannot hear any music/
audio being played back
from a connected
iPhone®

Check that the audio source is set to Bluetooth® Audio or iPod® mode. A USB connection is required for iPod® mode.

Cannot receive text mes-
sage notifications on the
vehicle audio system

Check if “Send Notifications” is enabled on your phone. On the phone, go to Bluetooth® settings. Find the device name, like “My Car”.
Press the INFO button. Turn on “Show Notifications”.

Cannot reply to text
message notifications by
Siri Eyes Free

After receiving an incoming text message, follow on-screen guidance. Push the

button for more than 1.5 seconds on the steer-

ing wheel for Siri Eyes Free. After Siri Eyes Free starts, say “Text Message”.

Monitor, climate, audio, phone and voice recognition systems

4-45

When installing a CB, ham radio or car
phone in your vehicle, be sure to observe
the following precautions; otherwise, the
new equipment may adversely affect the
engine control system and other electronic
parts.

WARNING

∙ A cellular phone should not be used

for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while
driving.

∙ If you must make a call while your ve-

hicle is in motion, the hands free cellu-
lar phone operational mode is highly
recommended. Exercise extreme cau-
tion at all times so full attention may
be given to vehicle operation.

∙ If you are unable to devote full atten-

tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.

CAUTION

∙ Keep the antenna as far away as pos-

sible

from

the

electronic

control

modules.

∙ Keep the antenna wire more than 8 in

(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

∙ Adjust the antenna standing-wave

ratio

recommended

the

manufacturer.

∙ Connect the ground wire from the CB

radio chassis to the body.

∙ For additional information, it is rec-

ommended that you visit a NISSAN
dealer for servicing.

WARNING

∙ Use a phone after stopping your ve-

hicle in a safe location. If you have to
use a phone while driving, exercise ex-
treme caution at all times so full at-
tention may be given to vehicle
operation.

∙ If you are unable to devote full atten-

tion to vehicle operation while talking
on the phone, pull off the road to a
safe location and stop your vehicle.

CAUTION

To avoid discharging the vehicle bat-
tery, use a phone after starting the
engine.

CAR PHONE OR CB RADIO

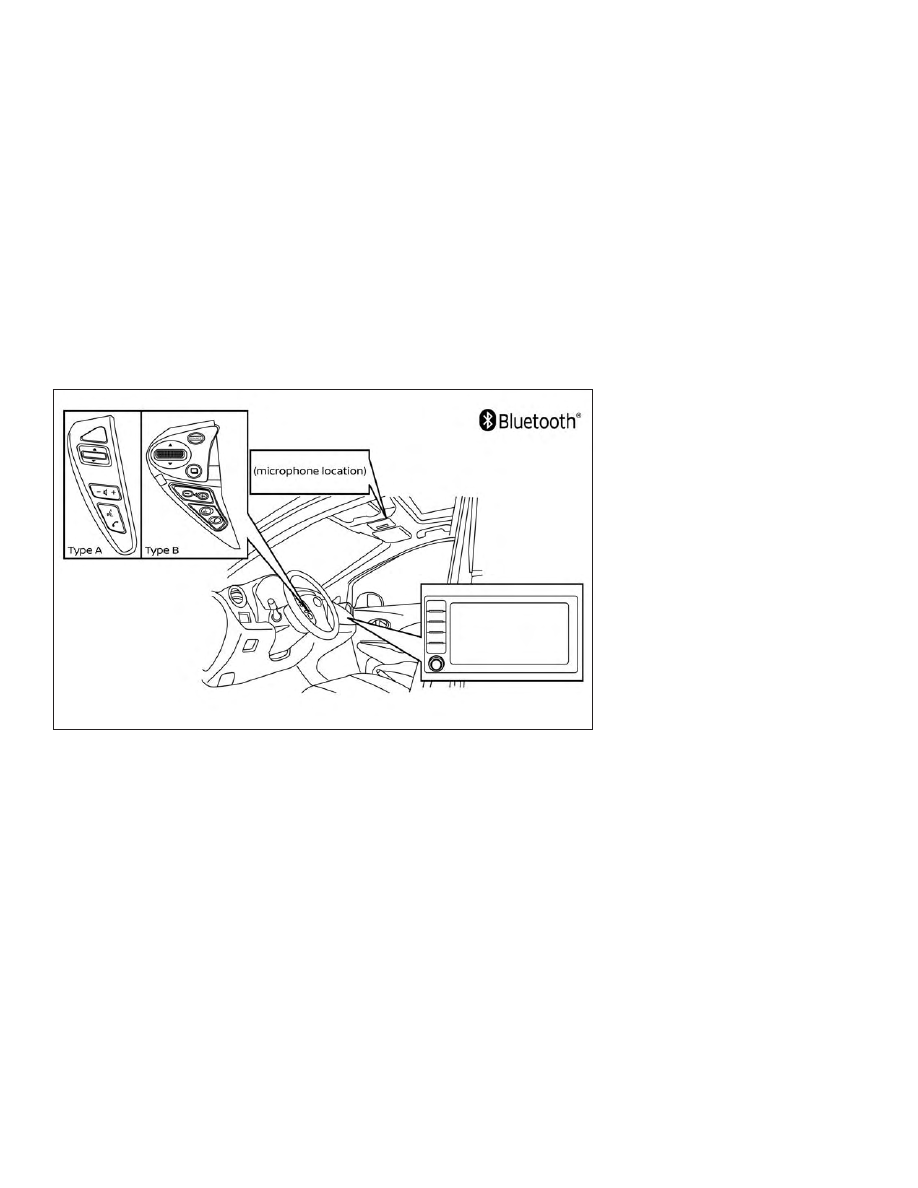

BLUETOOTH® HANDS-FREE PHONE
SYSTEM

4-46

Monitor, climate, audio, phone and voice recognition systems

Your

NISSAN

equipped

with

the

Bluetooth® Hands-Free Phone System. If
you have a compatible Bluetooth® enabled
cellular phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth® wireless technology, you can

make or receive a hands-free telephone
call with your cellular phone in the vehicle.

Once your cellular phone is connected to
the in-vehicle phone module, no other
phone connecting procedure is required.
Your phone is automatically connected

with the in-vehicle phone module when
the ignition switch is placed in the ACC or
ON position with the previously connected
cellular phone turned on and carried in the
vehicle.

NOTE:

Some devices require the user to accept
connections to other Bluetooth® de-
vices. If your phone does not connect au-
tomatically to the system, consult the
phone’s Owner’s Manual for details on
device operation.

You can connect up to six different
Bluetooth® cellular phones to the in-
vehicle phone module. However, you can
talk on only one cellular phone at a time.

Before using the Bluetooth® Hands-Free
Phone System, refer to the following notes.

∙ Set up the wireless connection be-

tween a compatible cellular phone and
the in-vehicle phone module before us-
ing the hands-free phone system.

LHA4794

Monitor, climate, audio, phone and voice recognition systems

4-47

∙ Some

Bluetooth®

enabled

cellular

phones may not be recognized or work
properly.

Please

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for a recom-
mended phone list and connecting in-
structions.

∙ You will not be able to use a hands-free

phone under the following conditions:

– Your vehicle is outside of the cellular

service area.

– Your vehicle is in an area where it is

difficult to receive a cellular signal;
such as in a tunnel, in an under-
ground parking garage, near a tall
building or in a mountainous area.

– Your cellular phone is locked to pre-

vent it from being dialed.

∙ When the radio wave condition is not

ideal or ambient sound is too loud, it
may be difficult to hear the other per-
son’s voice during a call.

∙ Do not place the cellular phone in an

area surrounded by metal or far away
from the in-vehicle phone module to
prevent tone quality degradation and
wireless connection disruption.

∙ While a cellular phone is connected

through the Bluetooth® wireless con-
nection, the battery power of the cellu-
lar phone may discharge quicker than
usual.

The

Bluetooth®

Hands-Free

Phone System cannot charge cellular
phones.

∙ Some cellular phones or other devices

may cause interference or a buzzing
noise to come from the audio system
speakers. Storing the device in a differ-
ent location may reduce or eliminate
the noise.

∙ For additional information, refer to the

cellular phone Owner’s Manual regard-
ing the telephone charges, cellular
phone antenna and body, etc.

REGULATORY INFORMATION

FCC Regulatory information

– CAUTION: Changes or modifications not

expressly approved by the party respon-
sible for compliance could void the user’s
authority to operate the equipment.
This transmitter must not be co-located
or operated in conjunction with any
other antenna or transmitter.

– NOTE: This device complies with part 15

of the FCC Rules. Operation is subject to
the following two conditions:

1. This device may not cause interference

and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.

– WARNING: This equipment complies with

FCC radiation exposure limits set forth
for an uncontrolled environment and
meets the FCC radio frequency (RF) Ex-
posure Guidelines. This equipment has
very low levels of RF energy that is
deemed to comply without maximum
permissive exposure evaluation (MPE).
But it is desirable that it should be in-
stalled and operated keeping the radia-
tor at least 20cm or more away from
person’s body.

IC Regulatory information

– NOTE: This device complies with Industry

Canada’s license-exempt RSSs. Opera-
tion is subject to the following two con-
ditions:

1. This device may not cause interference;

and

4-48

Monitor, climate, audio, phone and voice recognition systems

2. This device must accept any interfer-

ence, including interference that may
cause undesired operation of the de-
vice.

– REMARQUE: Le présent appareil est con-

forme aux CNR d’Industrie Canada appli-
cables aux appareils radio exempts de
licence. L’exploitation est autorisée aux
deux conditions suivantes:

1. l’appareil ne doit pas produire de brouil-

lage;

2. l’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi,
même si le brouillage est susceptible
d’en compromettre le fonctionnement.

– WARNING: This equipment complies with

IC radiation exposure limits set forth for
an uncontrolled environment and meets
RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very
low levels of RF energy that is deemed to
comply without maximum permissive
exposure evaluation (MPE).
But it is desirable that it should be in-
stalled and operated keeping the radia-
tor at least 20cm or more away from
person’s body.

– ATTENTION: Cet équipement est con-

forme aux limites d’exposition aux rayon-
nements énoncées pour un environne-
ment non contrôlé et respecte les règles
d’exposition aux fréquences radioélec-
triques (RF) CNR-102 de l’IC. Cet équipe-
ment émet une énergie RF très faible qui
est considérée comme conforme sans
évaluation de l’exposition maximale au-
torisée (MPE).
Cependant, il est souhaitable qu’il devrait
être installé et utilisé en gardant une dis-
tance de 20 cm ou plus entre le radiateur
et le corps humain.

BLUETOOTH® is a
trademark owned
by Bluetooth SIG,
Inc. and licensed
to Panasonic.

USING THE SYSTEM

The system allows hands-free operation of
the Bluetooth® Hands-Free Phone System.

If the vehicle is in motion, some commands
may not be available so full attention may
be given to vehicle operation.

Initialization

When the ignition switch is placed in the ON
position, NISSAN Voice Recognition is initial-
ized, which takes a few seconds. If the
button is pressed before the initialization
completes, the system will announce
“There is no phone connected” and will not
react to voice commands.

Operating tips

To get the best performance out of the
NISSAN Voice Recognition System, observe
the following:

∙ Keep the interior of the vehicle as quiet

as possible. Keep all vents pointed away
from the microphone and close the
windows

eliminate

surrounding

noises (traffic noises, vibration sounds,
etc.), which may prevent the system
from recognizing voice commands cor-
rectly.

∙ Wait until the tone sounds before

speaking a command. Otherwise, the
command will not be received properly.

∙ Start speaking a command within

5 seconds after the tone sounds.

∙ Speak in a natural voice without paus-

ing between words.

Monitor, climate, audio, phone and voice recognition systems

4-49

∙ For calling contacts by name, please

say both the first and last name of the
contact for better recognition.

.Giving voice commands

To operate NISSAN Voice Recognition,
press the

button located on the

steering wheel for less than 1.5 seconds.
After the tone sounds, speak a command.
The command given is picked up by the
microphone, and voice feedback is given
when the command is accepted.

∙ If a command is not recognized, the

system announces, “Please say or se-
lect a command from the displayed list.”
Make sure the command is said exactly
as prompted by the system and repeat
the command in a clear voice.

∙ If you want to go back to the previous

command, you can say “Go back” or
“Correction” any time the system is
waiting for a response.

∙ You can cancel a command when the

system is waiting for a response by say-
ing, “Cancel” or “Quit.” The system an-
nounces “Exit” and ends the Voice Rec-
ognition session. You can also press
and hold the

button on the steer-

ing wheel for 1.5 seconds at any time to
end the Voice Recognition session.
Whenever the Voice Recognition ses-
sion is canceled, a double beep is
played to indicate you have exited the
system.

∙ If you want to adjust the volume of the

voice feedback, push the (+ or -) volume
control switches on the steering wheel
while being provided with feedback. You
can also use the radio volume control
knob.

Voice Prompt Interrupt
In most cases you can interrupt the voice
feedback to speak the next command by
pressing the

button on the steering

wheel. After interrupting the system, wait
for a beep before speaking your command.

INDICATORS

When a cellular phone is connected through
the Bluetooth® wireless connection, indica-
tors

䊊

for the phone and text messaging

are displayed on the top of the screen.

Indicator

Description

Indicates there are unread received
messages.

Indicates the Bluetooth® device that
is currently connected.

Indicates the strength of the signal
the Bluetooth® device is receiving.

Indicates the amount of remaining
Bluetooth® device battery.

LHA4723

4-50

Monitor, climate, audio, phone and voice recognition systems

CONTROL BUTTONS

The control buttons for the Bluetooth®
Hands-Free Phone System are located on
the steering wheel.

VOICE COMMAND BUTTON

Press and hold the

button for

less than 1.5 seconds to initiate the
Voice Recognition session. To exit
the Voice Recognition session
press and hold the

for less

than 1.5 seconds. For additional
information, refer to “Voice prompt
interrupt” in this section.

You can use the

button to in-

terrupt the system feedback and
give a command at once.

If an iPhone® is connected, Siri® can

be accessed by pressing the
button for more than 1.5 seconds.
For additional information, refer to
“Siri® Eyes Free” in this section.

PHONE BUTTON
To answer an incoming call or to

end a call press the

button.

To reject a call press and hold

the

button.

Type A (if so equipped)

LHA4747

Type B (if so equipped)

LHA4309

Monitor, climate, audio, phone and voice recognition systems

4-51

CONNECTING PROCEDURE

NOTE:

The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.

To connect a phone to the Bluetooth®
Hands-Free Phone System:

Manual Connecting Procedure

1. Press the

MENU button on the

control panel.

2. Touch the “Connections” key on the

screen.

3. In the Bluetooth tab, touch the “Add

New” key to connect a phone.

4. When a compatible phone is found a

message with a PIN appears on the
screen.

5. Verify the PIN is correct and accept the

connection.

6. To access the Bluetooth® settings

menu touch the “

” key on the Con-

nections screen. The following options
are available:

Menu Item

Result

Bluetooth

Allows user to switch Bluetooth® on and off. Bluetooth® must be turned on in order to connect a device.

Turns Bluetooth® functionality on. To turn off, touch the “ON” key again. The indicator light will go off.

Favorite (Connection first)

Allows user to toggle “Phone” and “Audio” favorite settings on and off.

Allows user to customize the PIN to a four digit number.

LHA4726

4-52

Monitor, climate, audio, phone and voice recognition systems

NOTE:

Some cellular phones may require you to
accept certain permissions in order to
enable features on your Bluetooth® sys-
tem. During the Bluetooth® pairing pro-
cess, please check your cellular phone’s
display for a pop-up with the request to
grant phonebook access.
Granting phonebook access permission
will allow your contacts to be down-
loaded to the vehicle’s Bluetooth® sys-
tem. A pop-up may display on your cellu-
lar phone stating that the Bluetooth®
system would like to access your con-
tacts and call history. Please select “Al-
low” or Yes” to grant this permission.
Automatic Connecting Procedure

If no phone is connected to the system,
press and hold the

button on the

VOICE COMMANDS

Voice commands can be used to operate
the Bluetooth® Hands-Free Phone System.
Press and hold the

button for less

than 1.5 seconds to bring up the phone
command menu. The commands avail-
able are:

∙ Call <name>

∙ Dial <number>

∙ Recent Calls

∙ Read/Send Text (if so equipped)

∙ Siri® (if so equipped)

∙ Voice Assistant (if so equipped)

∙ Phonebook

∙ Quick Dial

∙ Redial

∙ Select Phone

∙ Add Phone

∙ Call <name> Mobile

∙ Call <name> Home

∙ Call <name> Office

∙ Call <name> Main

∙ Call <name> Other

∙ Settings

“Call <name>”

Speak this command to make a call to a
contact that is stored in the phonebook.
Say “Call” followed by a phonebook name to
initiate a call. If the system does not recog-
nize the name it will display a list of similar
names. After the prompt, speak or touch
an item number from the displayed list to
place the call.

“Dial <number>”

Speak this command to make a call with a
spoken phone number. After the prompt,
say “Dial” followed by a 7 to 10 digit phone
number. The system will repeat the num-
ber back. Say “Dial” to initiate the call or
“Correction” to re-enter the phone number.

Monitor, climate, audio, phone and voice recognition systems

4-53

Nissan Versa Note (2019 year). Instruction - part 13
