Nissan Versa Note (2019 year). Instruction - part 11

Menu item

Result

Settings

Touch to change the following steps.

Connections

Touch this key to select either Bluetooth® phone, Bluetooth® audio or USB audio options. For additional
information, refer to “USB connections screen” and “Bluetooth® connections screen” in this section.

Phone

For additional information, refer to “Bluetooth® Hands-Free Phone System” in this section.

Sound

For additional information, refer to “Audio system” in this section.

Volume & Beeps

For additional information, refer to “Volume & beeps” in this section.

Clock

Touch this key to adjust clock settings.

On-screen Clock

Touch to toggle ON or OFF the clock display on the upper right corner of the display screen.

Clock Format

Touch to set the clock to 12 hours or 24 hours formats.

Daylight Savings Time

Touch to adjusts the daylight saving time to ON or OFF.

Set Clock Manually

Touch to adjust the clock manually; then touch to change between AM and PM, the hour and the
minutes.

System Voice

For additional information, refer to “Settings” in this section.

Camera

Touch this key to change the camera settings.

Others

Touch this key to select and/or adjust various functions of this system. A screen with additional options
will appear.

Display

Touch this key to adjust the appearance of the display. For additional information, refer to “Adjusting the
screen” in this section.

Language

Touch this key to change the language on the display.

OSS Licenses

Touch this key to display software licensing information.

Return All Settings To Default

Touch this key to return all settings to default and to clear the memory.

4-6

Monitor, climate, audio, phone and voice recognition systems

(brightness control) BUTTON

To change the display brightness, press
the

button. Pressing the button again

will change the display to the day or the
night display.

Press and hold the

button for more

than 2 seconds to turn the display off. Press
and hold the button again to turn the dis-
play on.

HOW TO USE THE VOL (volume)
KNOB / PUSH

(power)

BUTTON

Press the PUSH

(power) button to

turn audio function on and off. Turn the VOL
(volume) knob to adjust audio volume.

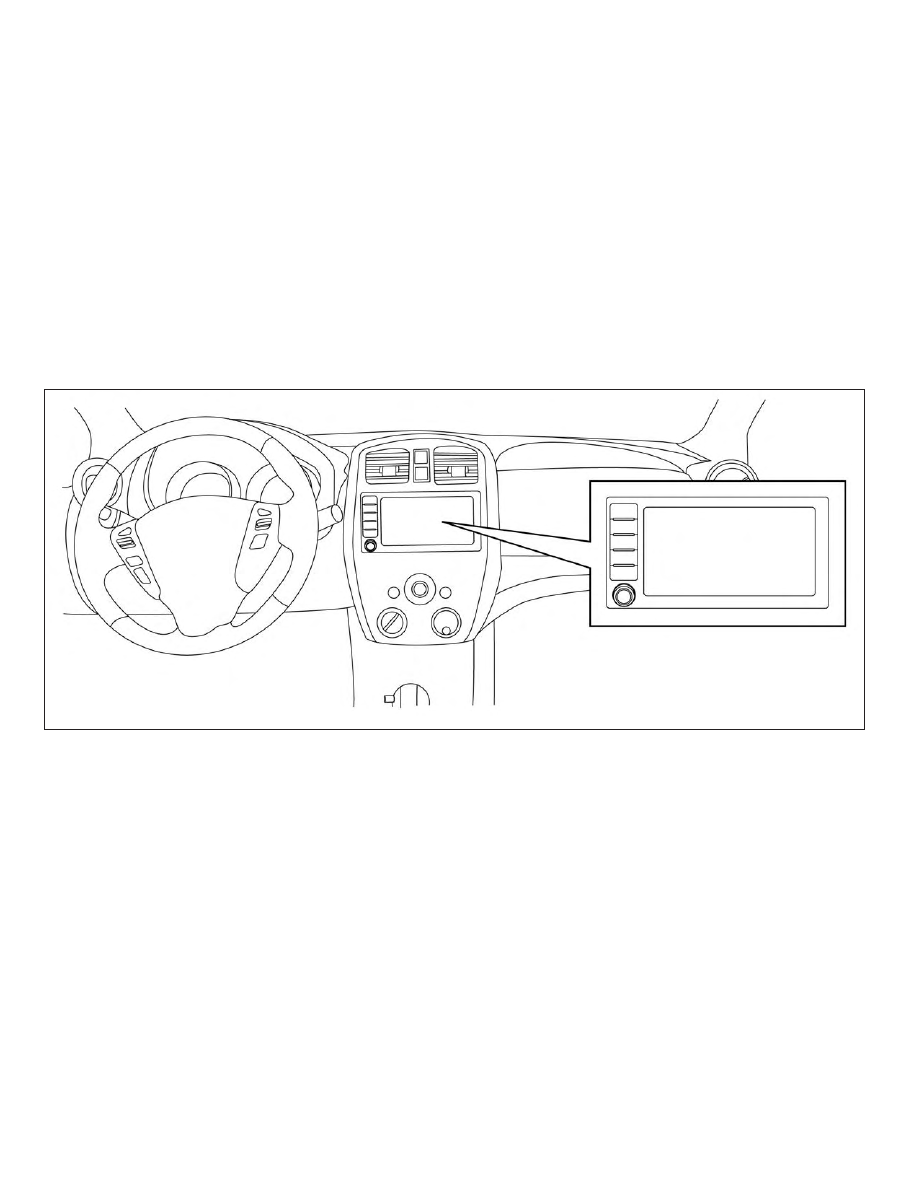

SELECTING MENU FROM LAUNCH
BAR

Various system functions can be accessed
by touching the items on the Launch Bar

䊊

which is displayed on most of the main

menu screens (the Launch Bar does not
appear on some screens such as settings
screens, camera screens, etc.)

Touch the keys on the Launch Bar to dis-
play the corresponding menu screens.

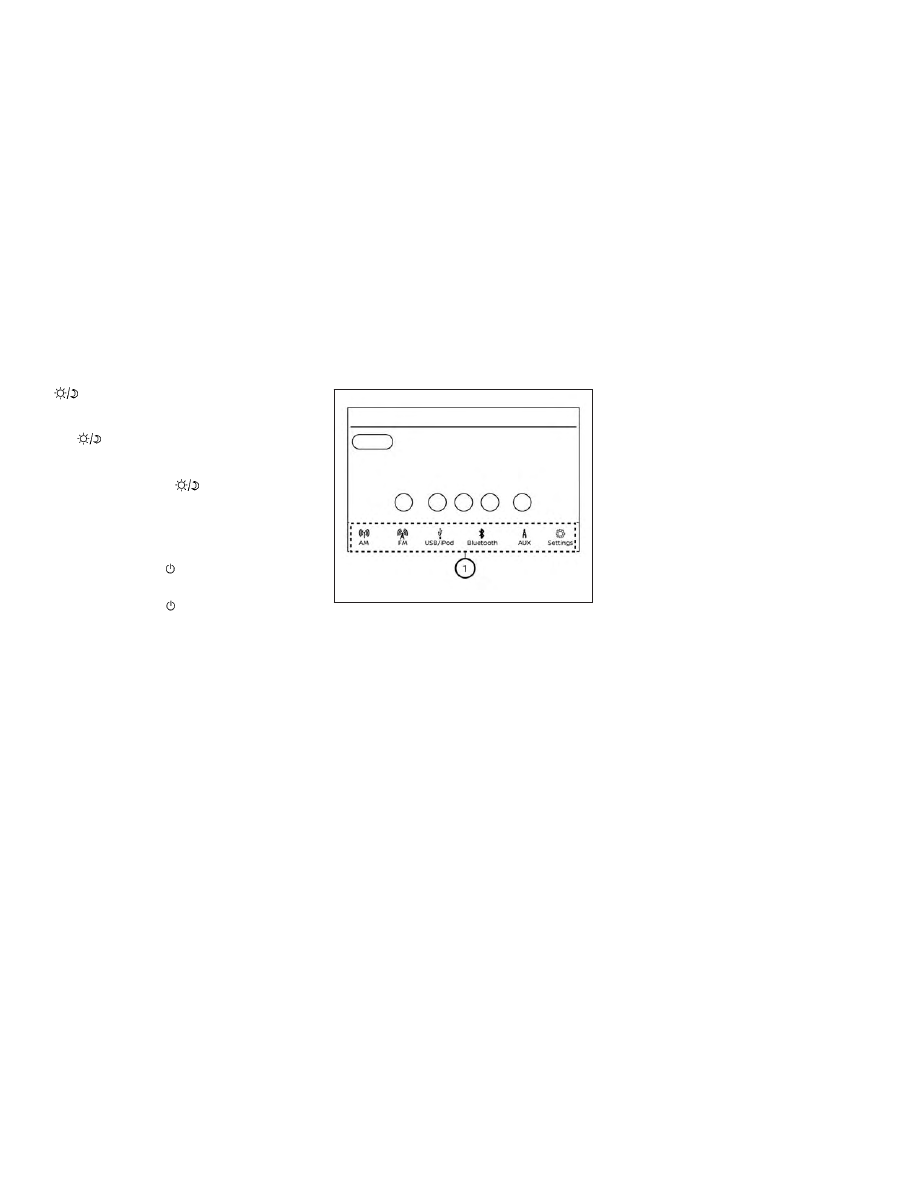

The following menu items are available on
the Launch Bar:

∙ AM

∙ FM

∙ USB/iPod

∙ Bluetooth

∙ AUX

∙ Settings

LHA4707

Monitor, climate, audio, phone and voice recognition systems

4-7

LHA4798

REARVIEW MONITOR (if so
equipped)

4-8

Monitor, climate, audio, phone and voice recognition systems

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

∙ RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.

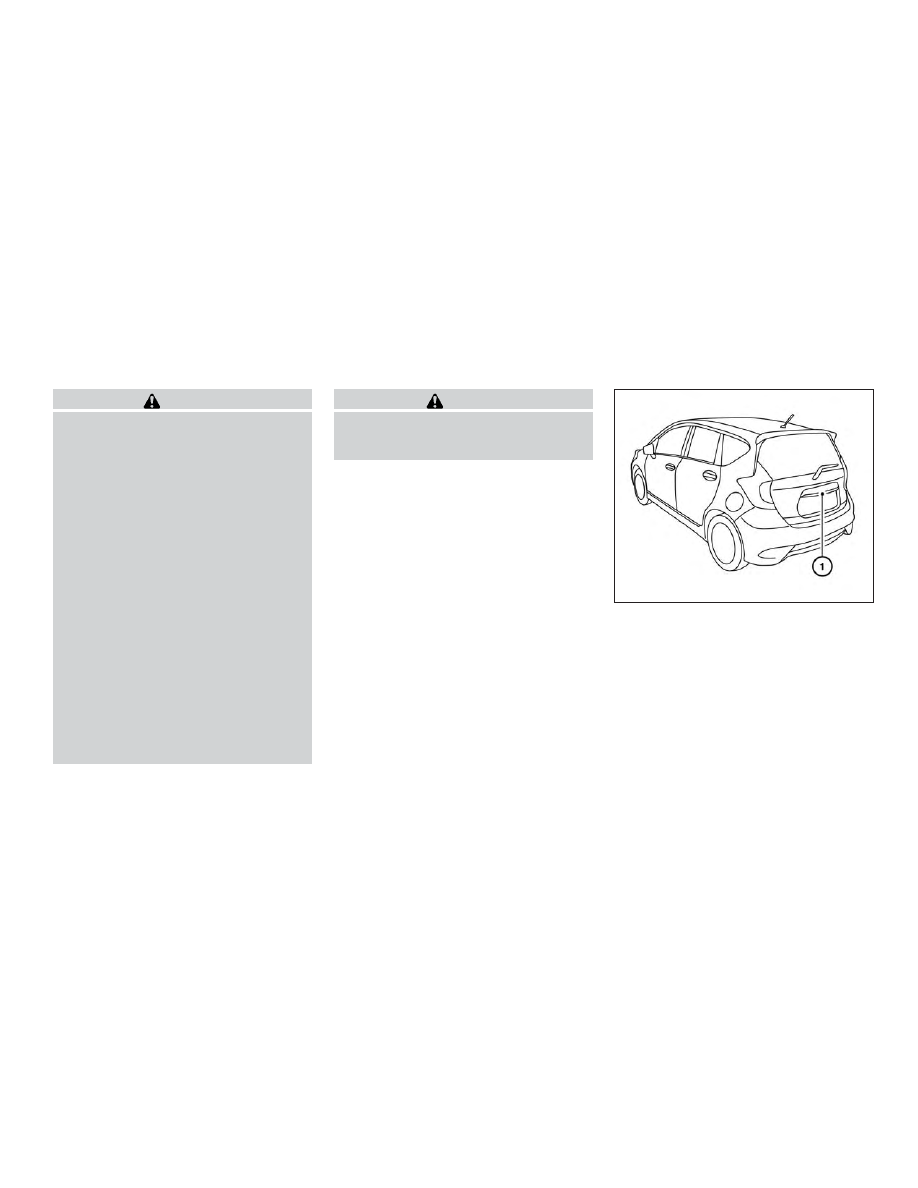

To display the rear view, the RearView Moni-
tor system uses a camera located next to
the trunk handle

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

LHA3824

Monitor, climate, audio, phone and voice recognition systems

4-9

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

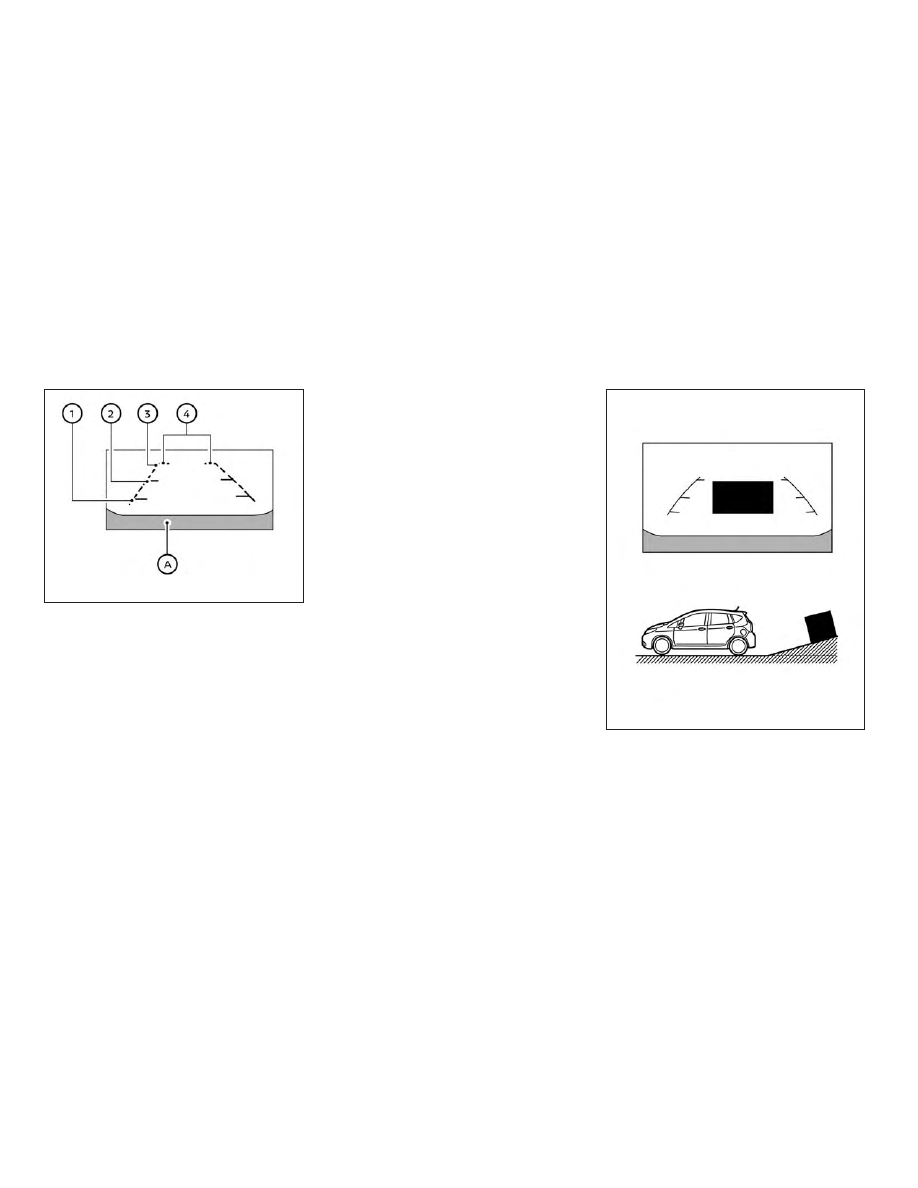

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approx. 3 ft (1 m)

∙ Green line

䊊

: approx. 7 ft (2 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

LHA4754

LHA4764

4-10

Monitor, climate, audio, phone and voice recognition systems

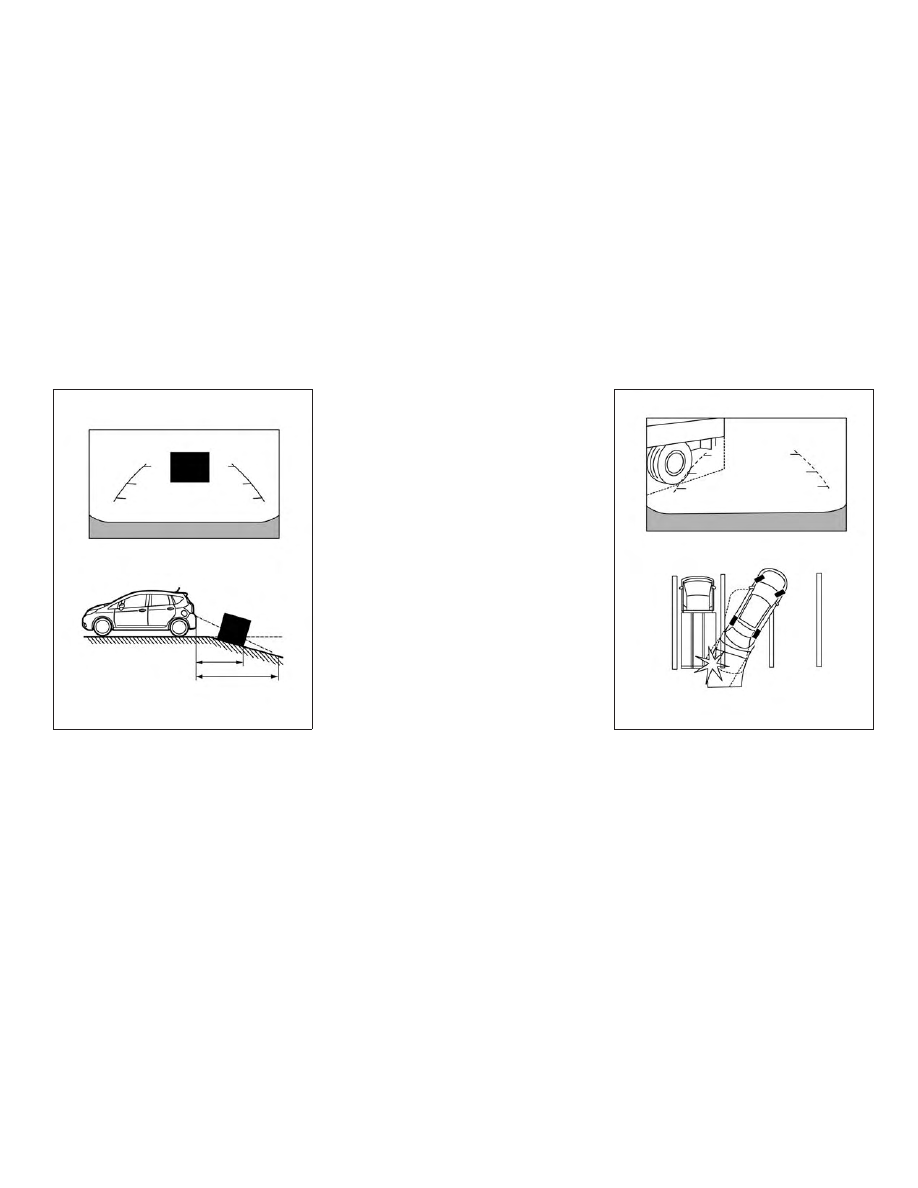

Backing up on a steep downhill

When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any object

on the hill is closer than it appears on the
monitor.

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

LHA4765

LHA4757

Monitor, climate, audio, phone and voice recognition systems

4-11

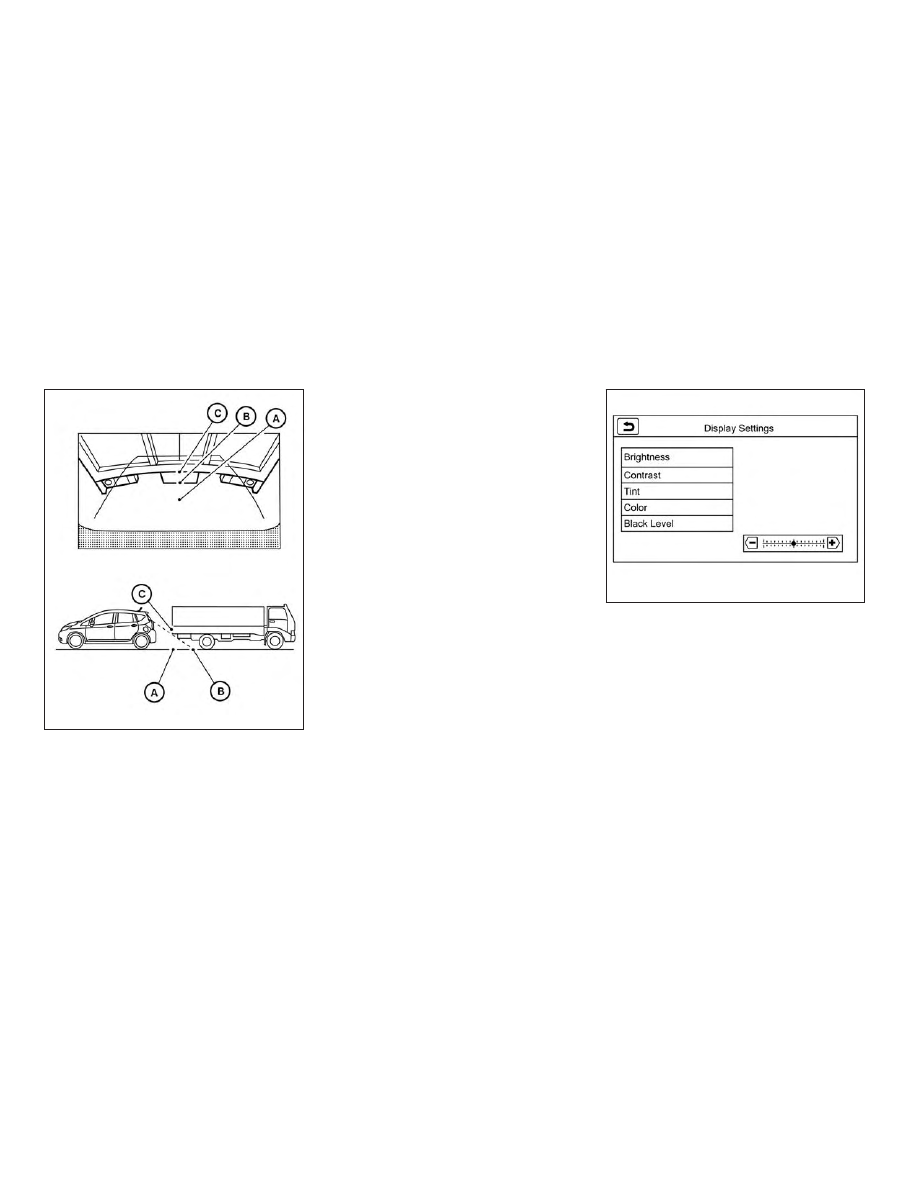

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

ADJUSTING THE SCREEN

The procedure for adjusting the display
settings of the screen differs depending on
the type of screen present on the vehicle.

1. While on the main menu screen, touch

the “Settings” key.

2. Touch the “Camera” key.

3. Touch the “Brightness”, “Contrast”, “Tint”

“Color”, or “Black Level” key.

4. Adjust the item by touching the “+” or “-”

key on the touch-screen display.

LHA4315

LHA3522

4-12

Monitor, climate, audio, phone and voice recognition systems

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the rear hatch is se-

curely closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, RearView Monitor may not dis-
play objects clearly. Clean the camera.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

Monitor, climate, audio, phone and voice recognition systems

4-13

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the

monitor screen may be adversely
affected.

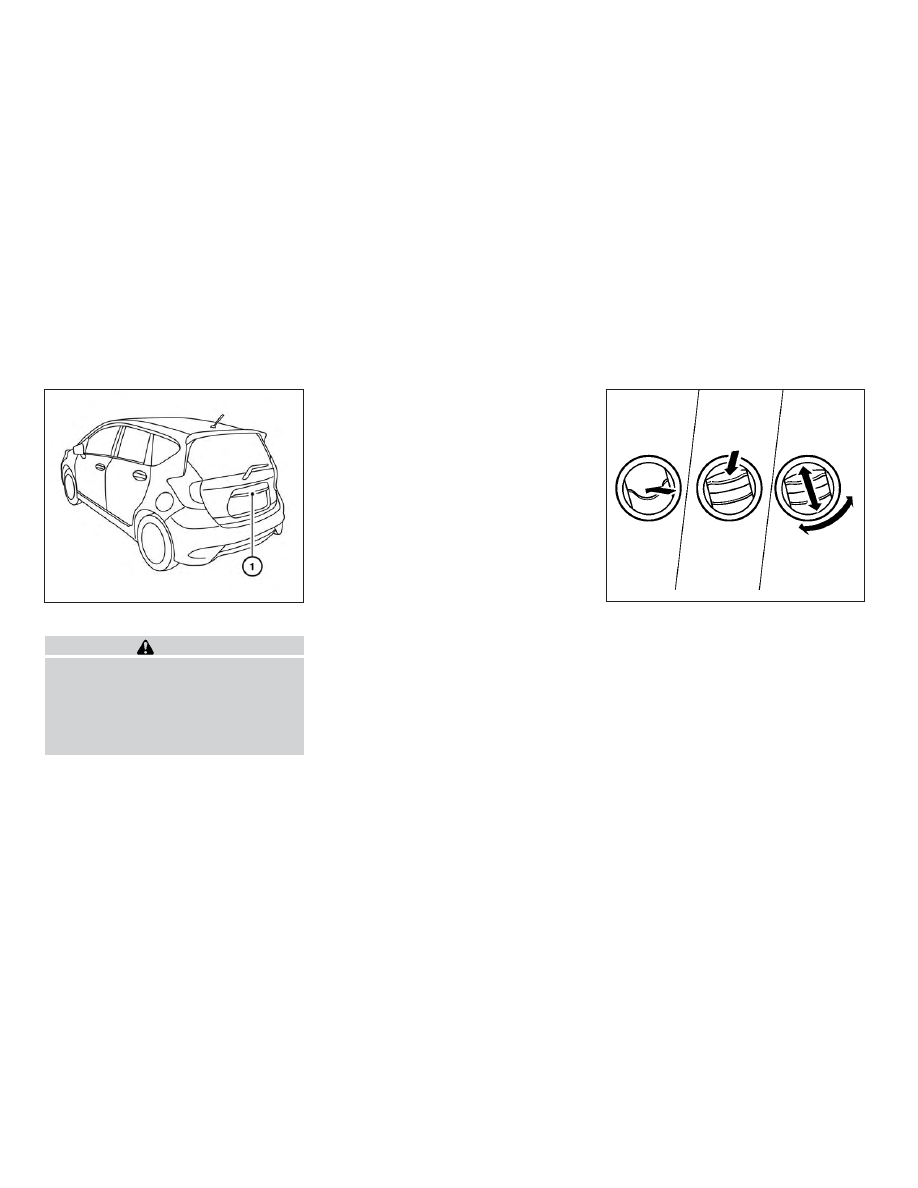

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

Adjust the air flow direction of the vents by
opening, closing or rotating.

LHA3824

Side vents

SAA3126

VENTS

4-14

Monitor, climate, audio, phone and voice recognition systems

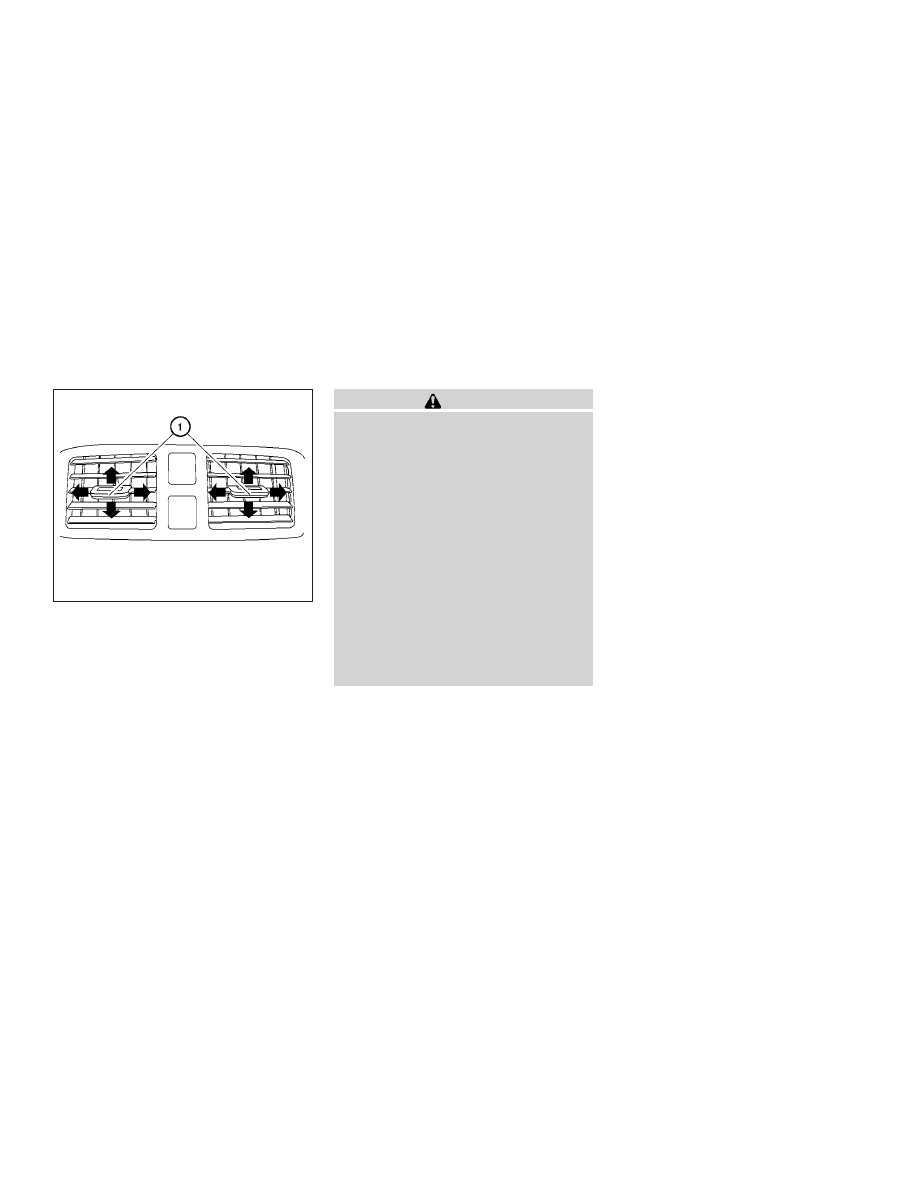

Adjust the air flow direction of the vents by
moving the slide as indicated

䊊

WARNING

∙ The air conditioner cooling function

operates only when the engine is
running.

∙ Do not leave children or adults who

would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be left alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

∙ Do not use the recirculation mode for

long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.

NOTE:

∙ Odors from inside and outside the ve-

hicle can build up in the air condi-
tioner unit. Odor can enter the pas-
senger compartment through the
vents.

∙ When parking, set the heater and air

conditioner controls to turn off air re-
circulation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

Center vents

LHA2085

HEATER AND AIR CONDITIONER
(manual)

Monitor, climate, audio, phone and voice recognition systems

4-15

Rear window and outside mir-

ror (if so equipped) defroster
switch

Fan speed control dial

A/C (air conditioner) button

Temperature control dial

Air intake lever (

air recircula-

tion and

fresh air)

Air flow control dial

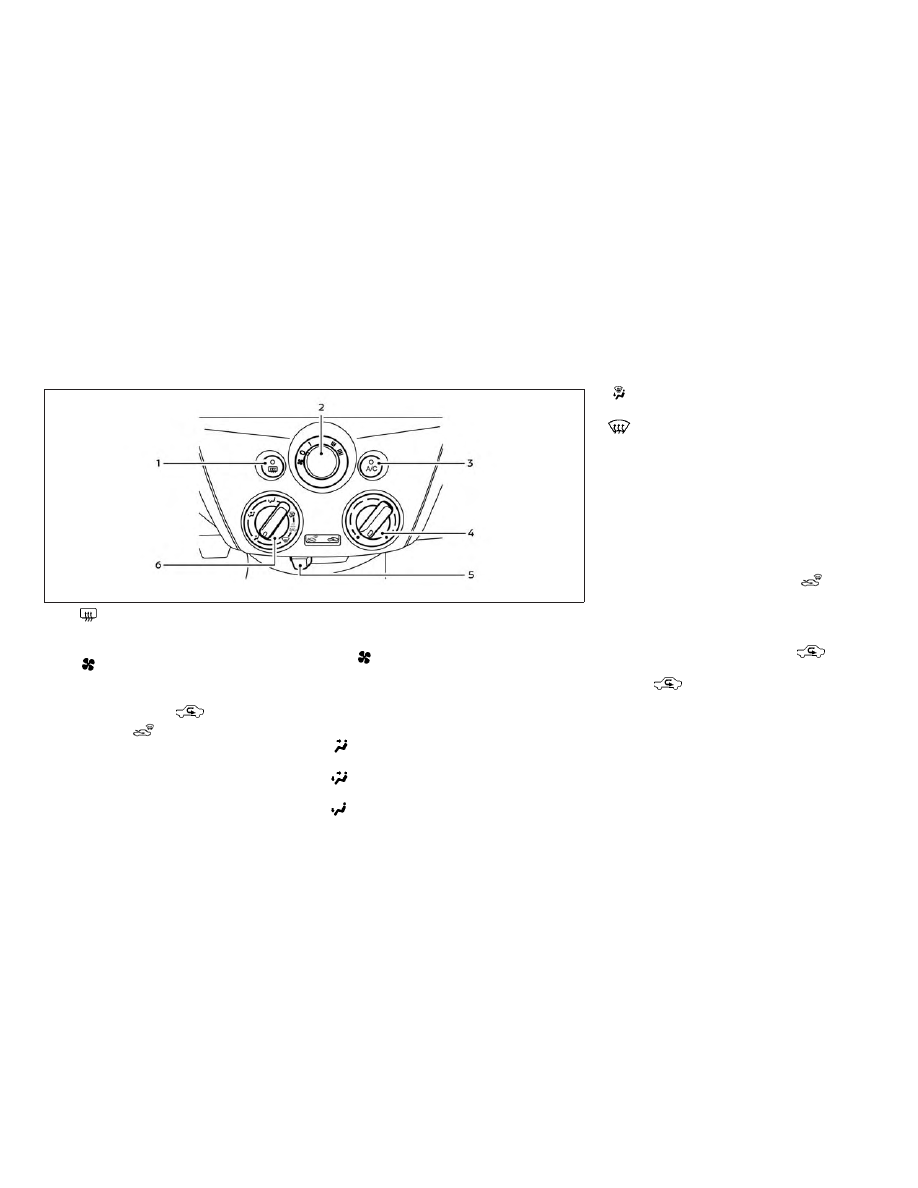

CONTROLS

Fan speed control dial

The

fan speed control dial turns the

fan on and off, and controls fan speed.

Air flow control dial

The air flow control dial allows you to select
the air flow outlets.

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot

outlets.

— Air flows from defroster outlets

and foot outlets.

— Air flows mainly from defroster

outlets.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right.

Fresh air

Move the air intake lever to the

posi-

tion. The air flow is drawn from outside the
vehicle.

Air recirculation

Move the air intake lever to the

posi-

tion to recirculate air inside the vehicle.

Use the

selection:

∙ when driving on a dusty road.

∙ to prevent traffic fumes from entering

passenger compartment.

∙ for maximum cooling when using the

air conditioner.

LHA5759

4-16

Monitor, climate, audio, phone and voice recognition systems

A/C (air conditioner) button

Start the engine, turn the fan speed control
dial to the desired position and press
the

button to turn on the air condi-

tioner. The indicator light comes on when
the air conditioner is operating. To turn off
the air conditioner, press the

button

again.
The air conditioner cooling function op-
erates only when the engine is running.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

HEATER OPERATION

Heating

This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.

1. Move the air intake lever to the

position for normal heating.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

Ventilation

This mode directs outside air to the side
and center vents.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position.

Defrosting or defogging

This mode directs the air to the defrost
outlets to defrost/defog the windows.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

∙ To quickly remove ice or fog from the

windows, turn the fan control dial to the
maximum position and the tempera-
ture control dial to the full hot position.

∙ For additional information on how to

optimize defogging performance, refer
to the advice label on the sun visor.

When the

position is se-

lected, press the

button to turn on

the air conditioner for better performance.
This will dehumidify the air and help defog
the windows.

Bi-level heating

This mode directs cooler air from the side
and center vents and warmer air from the
floor outlets. When the temperature con-
trol dial is moved to the full hot or full cool
position, the air between the vents and the
floor outlets is the same temperature.

1. Move the air intake lever to the

position.

Monitor, climate, audio, phone and voice recognition systems

4-17

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position.

Heating and defogging

This mode heats the interior and defogs
the windshield.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position between the
middle and the hot position.

∙ When

are selected, the air

conditioner turns on (the

indica-

tor light may not illuminate). This will
dehumidify the air and help defog the
windows.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.

AIR CONDITIONER OPERATION

Start the engine, turn the

fan speed

control dial to the desired position, and
press the

button to activate the air

conditioner. When the air conditioner is on,
cooling and dehumidifying functions are
added to the heater operation.
The air conditioner cooling function op-
erates only when the engine is running.

Cooling

This mode is used to cool and dehumidify
the air.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Press the

button. The indicator

light comes on.

5. Turn the temperature control dial to

the desired position.

∙ For quick cooling when the outside

temperature is high, move the air intake
lever to the

position. Be sure to

return to the

position for normal

cooling.

Dehumidified heating

This mode is used to heat and dehumidify
the air.

1. Move the air intake lever to the

position.

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Press the

button. The indicator

light comes on.

5. Turn the temperature control dial to

the desired position.

Dehumidified defogging

This mode is used to defog the windows
and dehumidify the air.

1. Move the air intake lever to the

position.

4-18

Monitor, climate, audio, phone and voice recognition systems

2. Turn

the

air

flow

control

dial

the

position.

3. Turn the

fan speed control dial to

the desired position.

4. Turn the temperature control dial to

the desired position.

Operating tips

∙ Keep the windows closed while the air

conditioner is in operation.

∙ After parking in the sun, drive for 2 or

3 minutes with the windows open to
vent hot air from the passenger com-
partment. Then, close the windows.
This allows the air conditioner to cool
the interior more quickly.

∙ The air conditioning system should

operated

for

approximately

10 minutes at least once a month.
This helps prevent damage to the
system due to lack of lubrication.

∙ A visible mist may be seen coming from

the ventilators in hot, humid conditions
as the air is cooled rapidly. This does not
indicate a malfunction.

∙ If the engine coolant temperature

gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. For additional
information, refer to “If your vehicle
overheats” in the “In case of emer-
gency” section of this manual.

AIR FLOW CHARTS

The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating, cooling or defrosting. The air in-
take lever should always be in the
position for heating and defrosting.

Monitor, climate, audio, phone and voice recognition systems

4-19

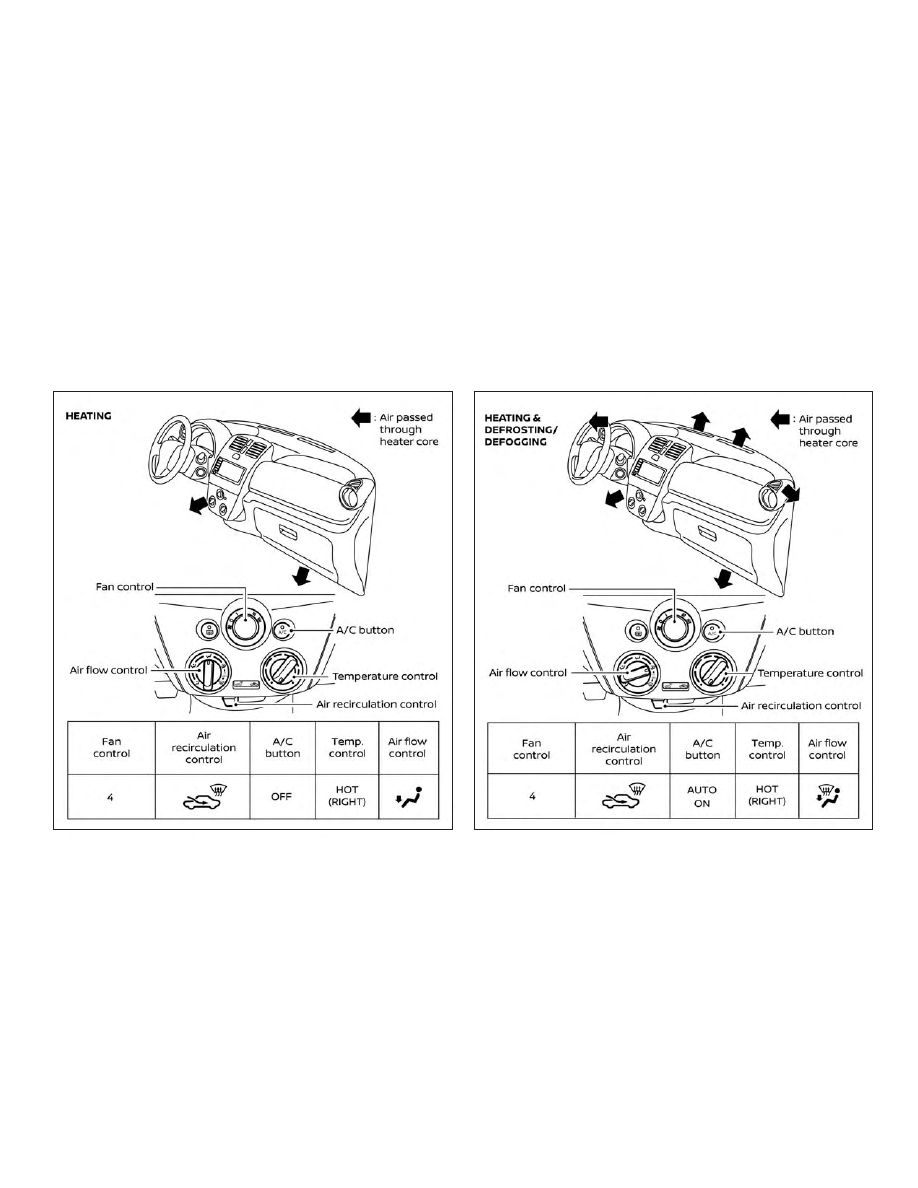

LHA4968

LHA4969

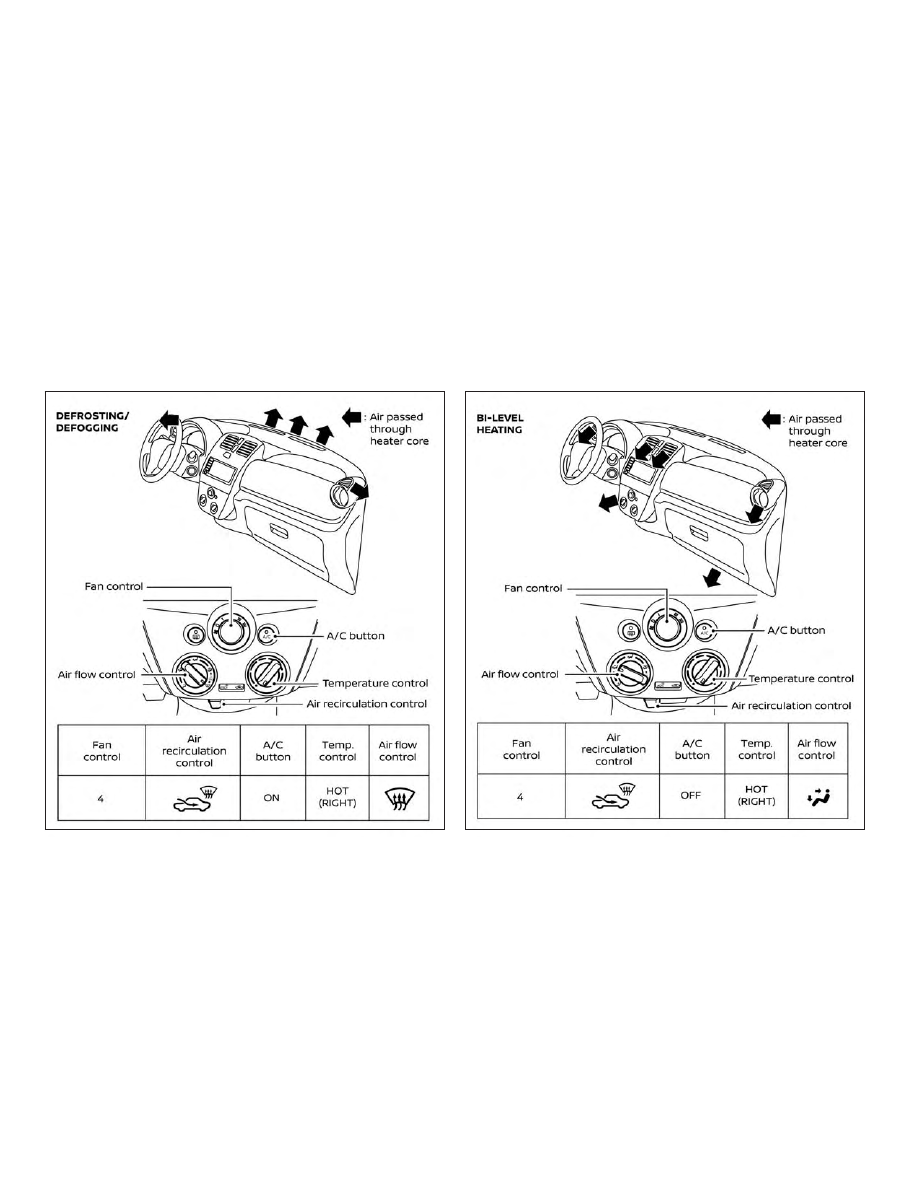

4-20

Monitor, climate, audio, phone and voice recognition systems

LHA4970

LHA4971

Monitor, climate, audio, phone and voice recognition systems

4-21

Content .. 9 10 11 12 ..
