Nissan Versa Hatchback (2012 year). Instruction

MUTE button

DISP/TEXT button

FM-AM button

CD button

CD insert slot

iPod button

AUX button

CLOCK button

CD eject button

10. TUNE/FF-REW/FOLDER button

11. SCAN/RPT button
12. AUDIO button
13. AUX IN jack
14. Station select (1 - 6) buttons
15. VOLUME control knob
16. PWR button
17. iPod MENU button
18. BACK button
19. ENTER button
20. SEEK/TRACK button

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
A) (if so equipped)

For all operation precautions, see

⬙Audio opera-

tion precautions

⬙ in this section.

No satellite radio reception is available when the
AUX button is pressed to access satellite radio
stations unless an optional satellite receiver and
antenna are installed and an XM

姞 satellite radio

service subscription is active. Satellite radio is
not available in Alaska, Hawaii and Guam.

Type A

LHA1225

4-30

Display screen, heater, air conditioner, audio and phone systems

Audio main operation

POWER/VOLUME control:

Place the ignition switch in the ACC or ON
position. Press the PWR button while the system
is off to call up the mode (radio, CD or AUX) that
was playing immediately before the system was
turned off. While the system is on, pressing the
PWR button turns the system off.

Turn the VOL control knob to adjust the volume.

MUTE button:

Press the

button to mute the audio sound.

Press the

button again to resume playing

the audio at its previous volume.

AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep):

Press the AUDIO button to change the mode as
follows:

Bass

→ Treble → Fade → Balance → Speed

Sensitive Volume (SSV)

→ Beep ON/OFF →

Normal mode

To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE

or SEEK

button to ad-

just the selected mode to the desired level. Fade
adjusts the sound level between the front and
rear speakers and Balance adjusts the sound
between the right and left speakers.

To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode
is displayed. This will enable or disable the beep
sound heard during menu selection.

To change the Speed Sensitive Volume (SSV)
mode to OFF, LOW, MID or HIGH, press the

TUNE button

until the desired

setting is displayed.

Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.

Clock set

If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/FF-REW/FOLDER button to en-
able CLK-ON mode.

1. Press and hold the CLOCK button until the

clock display starts to flash.

2. Press

the

SEEK/TRACK

button

to adjust the hours.

3. Press

the

TUNE/FF-REW/FOLDER

button

to adjust the minutes.

4. Press the CLOCK button again to exit the

clock set mode.

If no action is taken, the display will return to the
regular clock display after 10 seconds.

DISP (display) button

This button works during FM, CD and iPod

姞

operation. See the detailed function for this but-
ton in the section for each mode.

iPOD

姞 MENU, ENTER and BACK buttons

These buttons can only be used for iPod

姞 opera-

tions. See “iPod

姞 Player Operation without Navi-

gation System” later in this section for details
about the functions of these buttons.

FM/AM/SAT radio operation

FM·AM button:

Press the FM·AM button to change the band as
follows:

→ FM1 → FM2 → AM

If another audio source is playing when the
FM·AM button is pressed, the audio source play-

Display screen, heater, air conditioner, audio and phone systems

4-31

ing will automatically be turned off and the last
radio station played will begin playing.

The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.

SAT band select:

Pressing the AUX button will change the band as
follows:

AUX

→ SAT1* → SAT2* → AUX (satellite, if so

equipped)

When the AUX button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.

The last station played will also come on when
the PWR button is pressed to turn the radio on.

*When the AUX button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM

姞 satellite radio service subscription is active.

Satellite radio is not available in Alaska, Hawaii
and Guam.

If a compact disc is playing when the AUX button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

TUNE button (Tuning):

Press

the

TUNE/FF-REW/FOLDER

button

for manual tuning.

SEEK tuning:

Press the SEEK/TRACK button

to tune from low to high or high to low frequen-
cies and to stop at the next broadcasting station.

SCAN tuning:

Press the SCAN/RPT button to stop at each
broadcasting station for 5 seconds. Pressing the
button again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN/RPT button is not
pressed within 5 seconds, SCAN tuning moves
to the next station.

1 to 6 Station memory operations:

Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band.

1. Choose the radio band AM, FM1 or FM2

using the AM·FM select button.

2. Tune to the desired station using manual,

SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

DISP/TEXT button:

When the DISP/TEXT button is pressed while in
FM radio mode, the radio display will change as
follows:

Frequency

→ PTY → PS → Frequency

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button:

When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play.

4-32

Display screen, heater, air conditioner, audio and phone systems

DISP/TEXT button:

When the DISP/TEXT button is pressed while a
CD is playing, the display will change as follows:

CD:

Track number

→ Disc title → Song title → Track

number

CD with MP3 or WMA:

Track number

→ Folder title → Album title →

Artist

→ Song title → Track number

TUNE/FF-REW/FOLDER

(Reverse or Fast Forward)

button:

CD:

When

the

TUNE/FF-REW/FOLDER

button

(fast forward) or

(reverse) is

pressed while the compact disc is playing, the
compact disc plays at an increased speed while
reversing or fast forwarding. When the button is
released, the compact disc returns to normal play
speed.

CD with MP3 or WMA:

When

the

TUNE/FF-REW/FOLDER

button

(fast forward) or

(reverse) is

pressed for less than 1.5 seconds while the
compact disc is playing, the folders in the CD will
change.

When

the

TUNE/FF-REW/FOLDER

button

(fast forward) or

(reverse) is

pressed for more than 1.5 seconds while the
compact disc is playing, the compact disc plays
at an increased speed while reversing or fast
forwarding. When the button is released, the
compact disc returns to normal play speed.

SEEK/TRACK button:

When

the

SEEK/TRACK

button

pressed while the compact disc is playing, the
next track following the present one starts to play
from the beginning. Press the SEEK/TRACK
button

several times to skip several tracks.

Each time the button is pressed, the CD ad-
vances one additional track. The track number
appears in the display window. (When the last
track on the compact disc is skipped, the first
track is played.)

When

the

SEEK/TRACK

button

pressed, the track being played returns to the
beginning.

Press

the

SEEK/TRACK

button

several times to skip back several

tracks. Each time the button is pressed the CD
moves back one track.

SCAN/RPT button:

When the SCAN/RPT button is pressed while a
compact disc is playing, the play pattern can be
changed as follows:

CD:

REPEAT TRACK

→ RANDOM TRACK → RE-

PEAT DISC

CD with MP3 or WMA:

REPEAT FOLDER

→ REPEAT TRACK → RAN-

DOM TRACK

→ RANDOM FOLDER → REPEAT

DISC

REPEAT TRACK: the current track will be re-
peated.

RANDOM TRACK: all tracks on the disc will be
played randomly.

REPEAT DISC: play pattern returns to normal.

REPEAT FOLDER: the current folder will be re-
peated.

RANDOM FOLDER: all tracks in the current
folder will be played randomly.

Display screen, heater, air conditioner, audio and phone systems

4-33

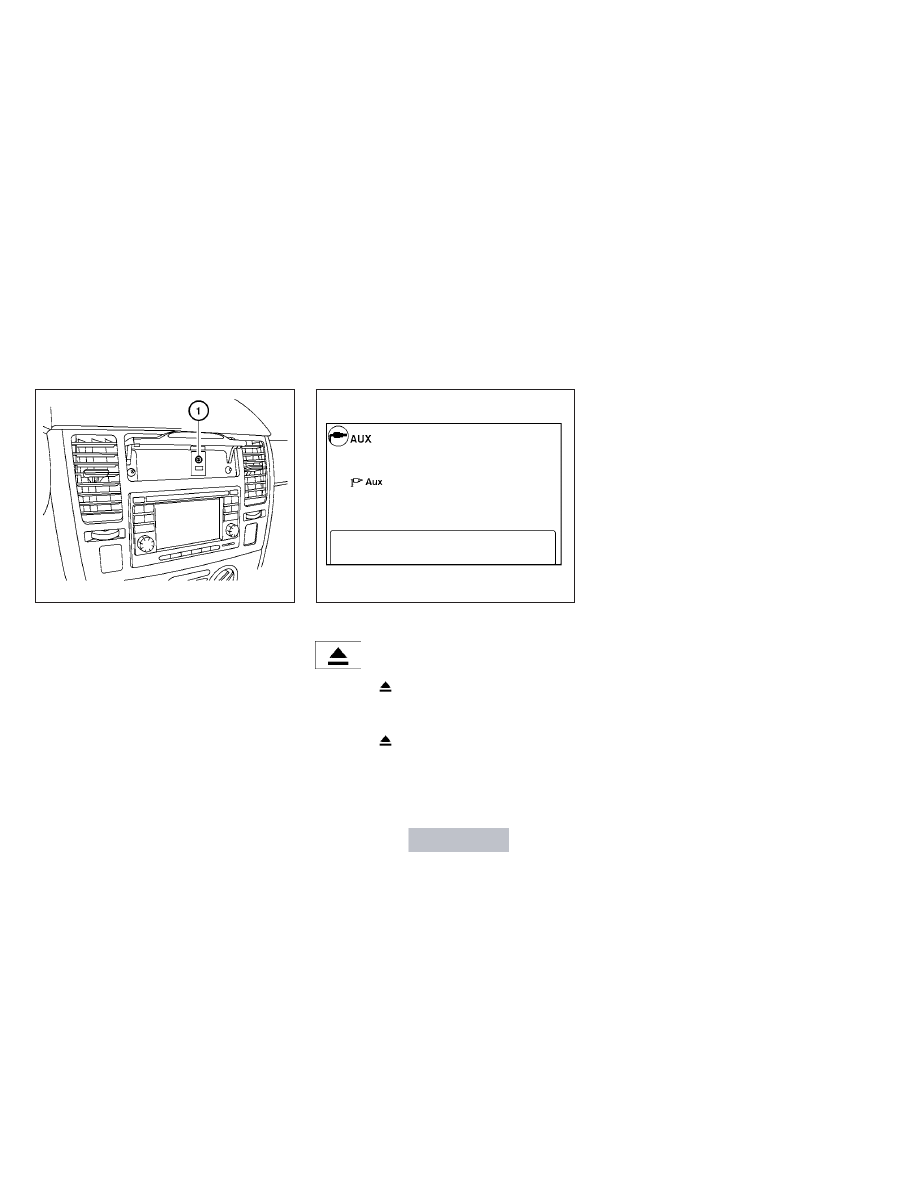

AUX (Auxiliary) button:

The AUX IN jack is located on the front of the
radio. The AUX IN audio input jack accepts any
standard analog audio input such as from a por-
table cassette tape/CD player, MP3 player or a
laptop computer.

Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.

EJECT button:

When the

button is pressed with a com-

pact disc loaded, the compact disc will eject and
the last source will be played.

When the

button is pressed twice with a

compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 15 seconds, the disc will
reload.

Additional features

For more information about the iPod

姞 player

available with this system, see “iPod

姞 player op-

eration without Navigation System” in this sec-
tion.

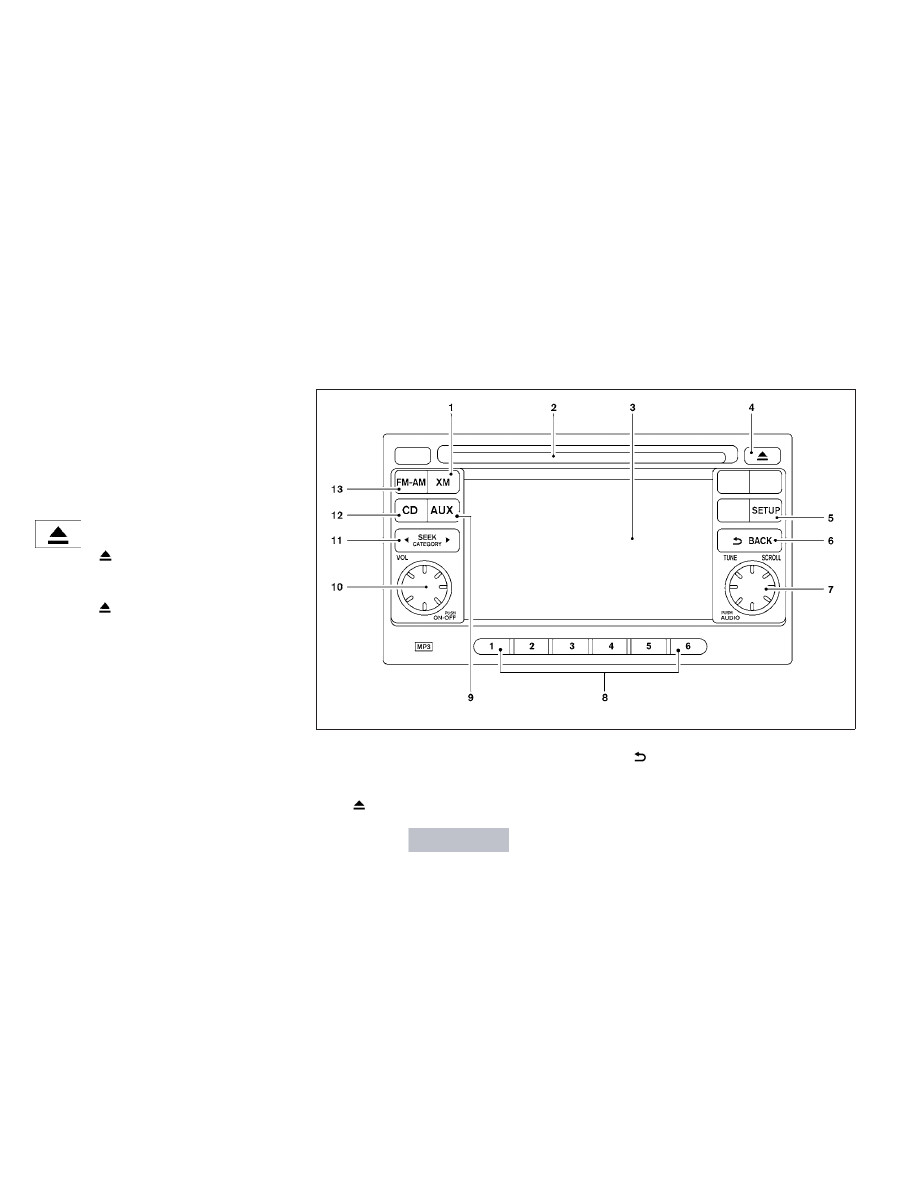

XM button

CD insert slot

Display screen

CD eject button

SETUP button

BACK button

TUNE/SCROLL knob, AUDIO button

Station select (1 - 6) buttons

AUX button

10. VOL/ON-OFF control knob

Type B

LHA1473

4-34

Display screen, heater, air conditioner, audio and phone systems

11. SEEK/CATEGORY button
12. CD button
13. FM-AM button

*No satellite radio reception is available
when the XM button is pressed to ac-
cess satellite radio stations unless op-
tional satellite receiver and antenna are
installed and an XM

姞 satellite radio ser-

vice subscription is active. Satellite ra-
dio is not available in Alaska, Hawaii
and Guam.

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
B) (if so equipped)

For all operation precautions, see “Audio opera-
tion precautions” in this section.

Audio main operation

VOL/ON·OFF control:

Place the ignition switch in the ACC or ON
position and push the VOL/ON·OFF control knob
while the system is off to call up the mode (radio,
CD, AUX, USB or iPod

姞) that was playing imme-

diately before the system was turned off.

To turn the system off, press the VOL/ON·OFF
control knob.

Turn the VOL/ON·OFF control knob to adjust the
volume.

This vehicle may be equipped with Speed Vol-
ume for audio. When this feature is active, the
audio volume changes as the driving speed
changes.

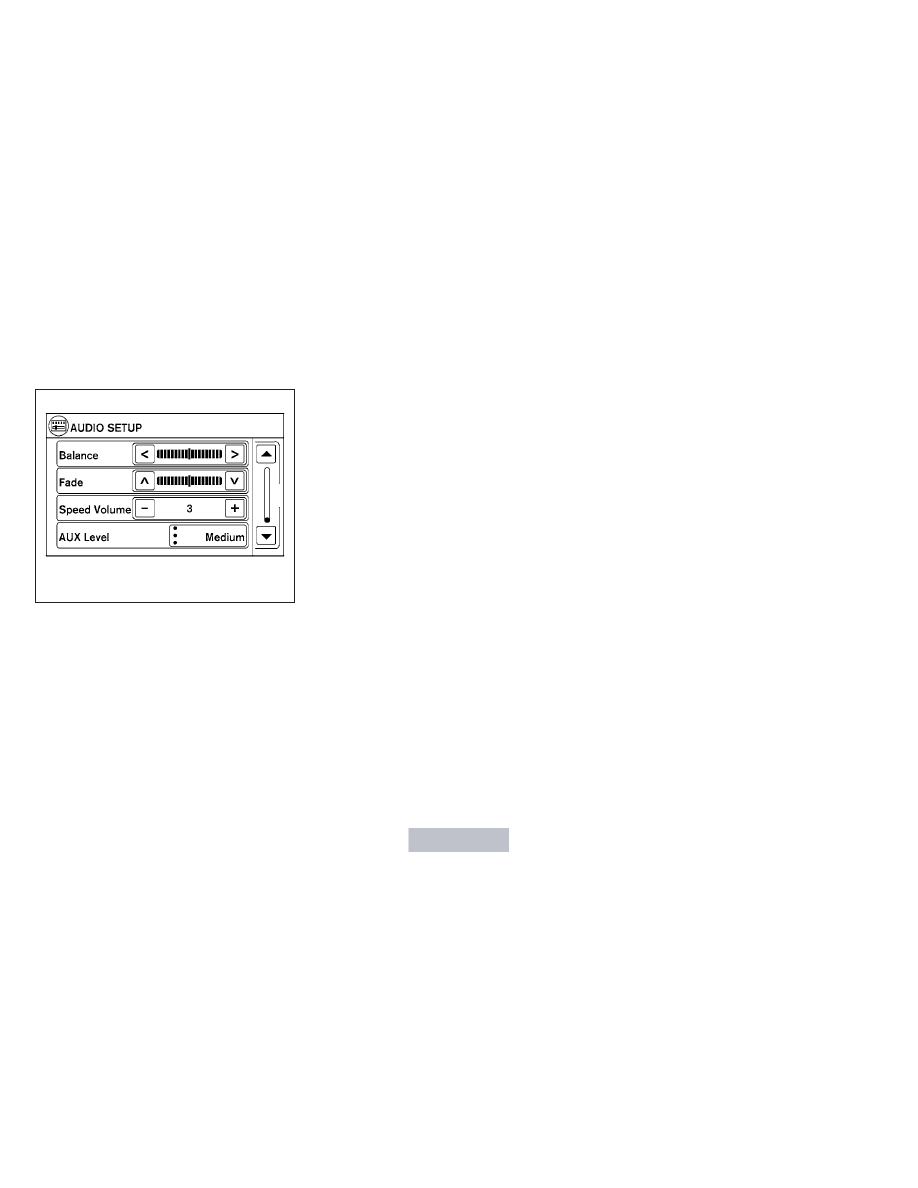

Audio settings:

Press the SETUP button to display the audio
settings on the screen. These settings can also
be displayed by pressing the AUDIO button
(TUNE/SCROLL knob). Use the touchscreen to
adjust the following items to the desired setting:

Bass, Treble, Balance and Fade:
Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.

LHA1486

Display screen, heater, air conditioner, audio and phone systems

4-35

Speed Volume:
Controls the level to which the volume is adjusted
as the vehicle’s driving speed changes. Choose a
setting between 1 and 5 or choose 0 to disable
the feature entirely.

AUX Level:
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium and
Loud.

FM/AM/SAT radio operation

FM·AM button:

Press the FM·AM button to change the band as
follows:

→ FM1 → FM2 → AM

If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.

The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.

XM band select:

Pressing the XM button will change the band as
follows:

XM1*

→ XM2* → XM3* → XM1* (satellite, if so

equipped)

When the XM button is pressed while the ignition
switch is in the ACC or ON position, the radio will
come on at the last station played.

The last station played will also come on when
the VOL/ON-OFF control knob is pressed to turn
the radio on.

*When the XM button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM

姞 satellite radio service subscription is active.

Satellite radio is not available in Alaska, Hawaii
and Guam.

If a compact disc is playing when the XM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

LHA1487

4-36

Display screen, heater, air conditioner, audio and phone systems

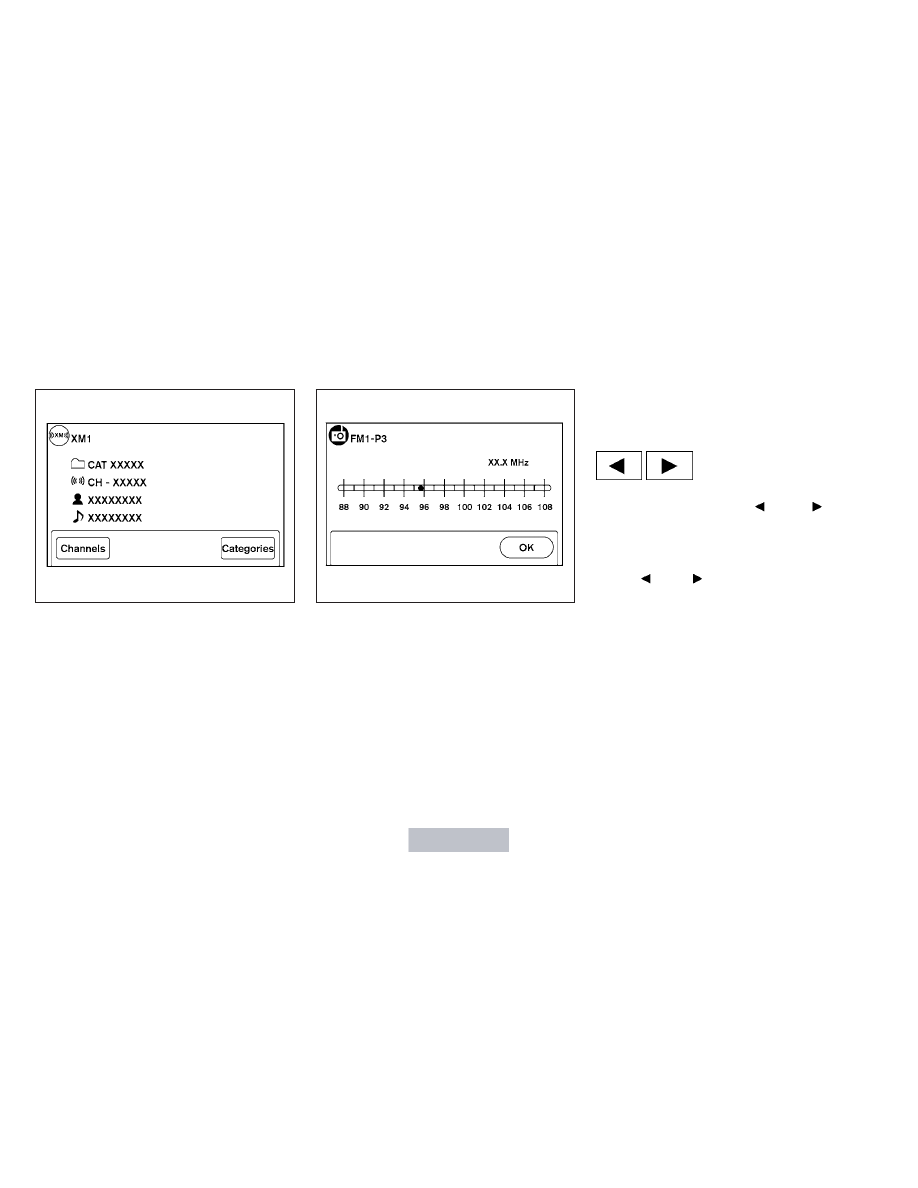

While the radio is in XM mode, the operation can
be controlled through the touchscreen. Touch
the “Channels” key to display a list of channels.
Touch a channel displayed on the list to change
to that channel. Touch the “Categories” key to
display a list of categories. Touch a category
displayed on the list to display options within that
category.

Tuning with the touchscreen:

When in AM or FM mode, the radio can be tuned
using the touchscreen. To bring up the visual
tuner, touch the “Tune” key on the lower right
corner of the screen. A screen appears with a bar
running from low frequencies on the left to high
frequencies on the right. Touch the screen at the
location of the frequency you wish to tune and the
station will change to that frequency. To return to
the regular radio display screen, touch the “OK”
key.

Tuning with the TUNE/SCROLL knob:

The radio can also be manually tuned using the
TUNE/SCROLL knob. When in FM or AM mode,

turn the TUNE/SCROLL knob to the left for lower
frequencies or to the right for higher frequencies.
When in XM mode, turn the TUNE/SCROLL
knob to change the channel.

SEEK tuning:

When

mode,

press

the

SEEK/CATEGORY button

tune from low to high or high to low frequencies
and to stop at the next broadcasting station.

When in XM mode, press the SEEK/CATEGORY

button

to change the category.

1 to 6 Station memory operations:

Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. Eighteen stations can be set for the
XM band (6 for XM1, 6 for XM2, 6 for XM3).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or choose
the radio band XM1, XM2 or XM3 using the
XM button.

2. Tune to the desired station using manual or

seek tuning. Press and hold any of the de-
sired station memory buttons (1 – 6) until a
beep sound is heard.

LHA1492

LHA1489

Display screen, heater, air conditioner, audio and phone systems

4-37

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button:

When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play.

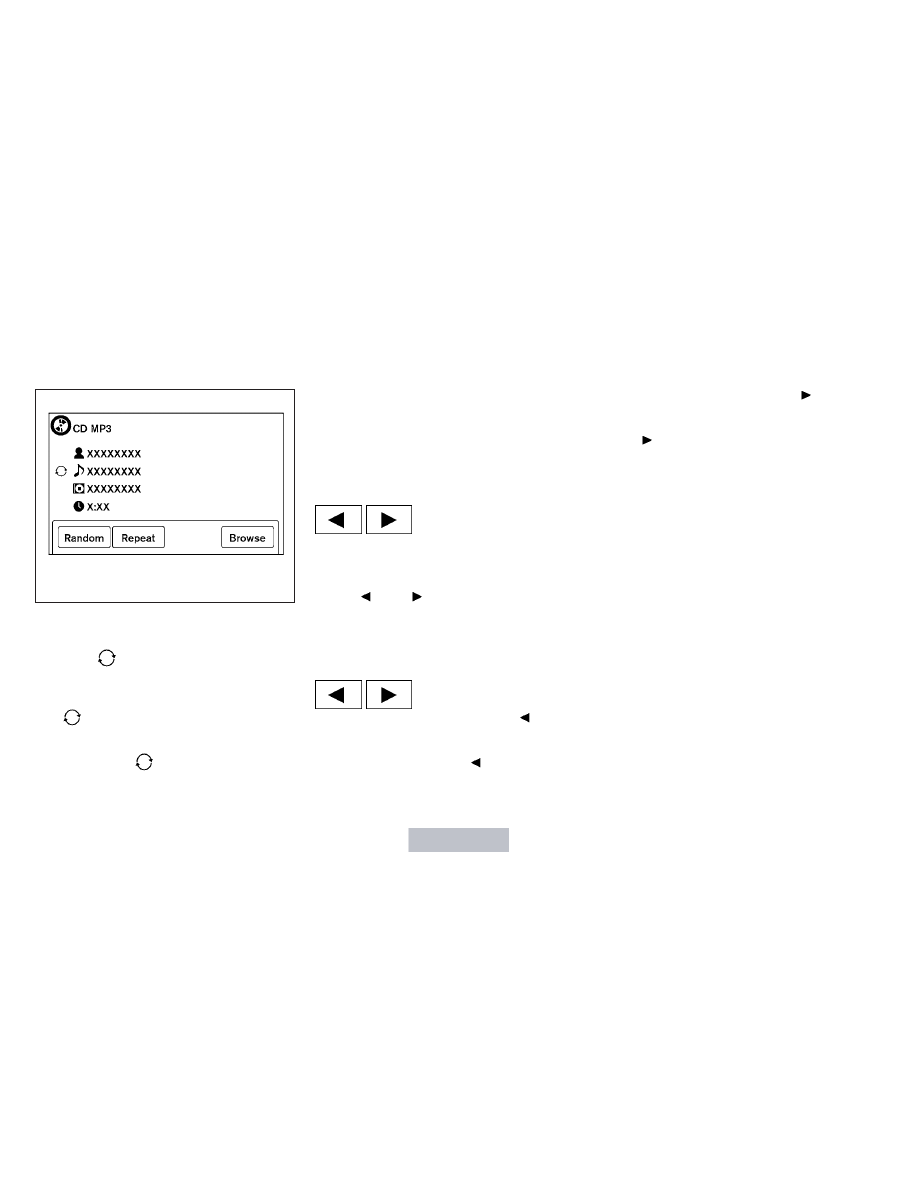

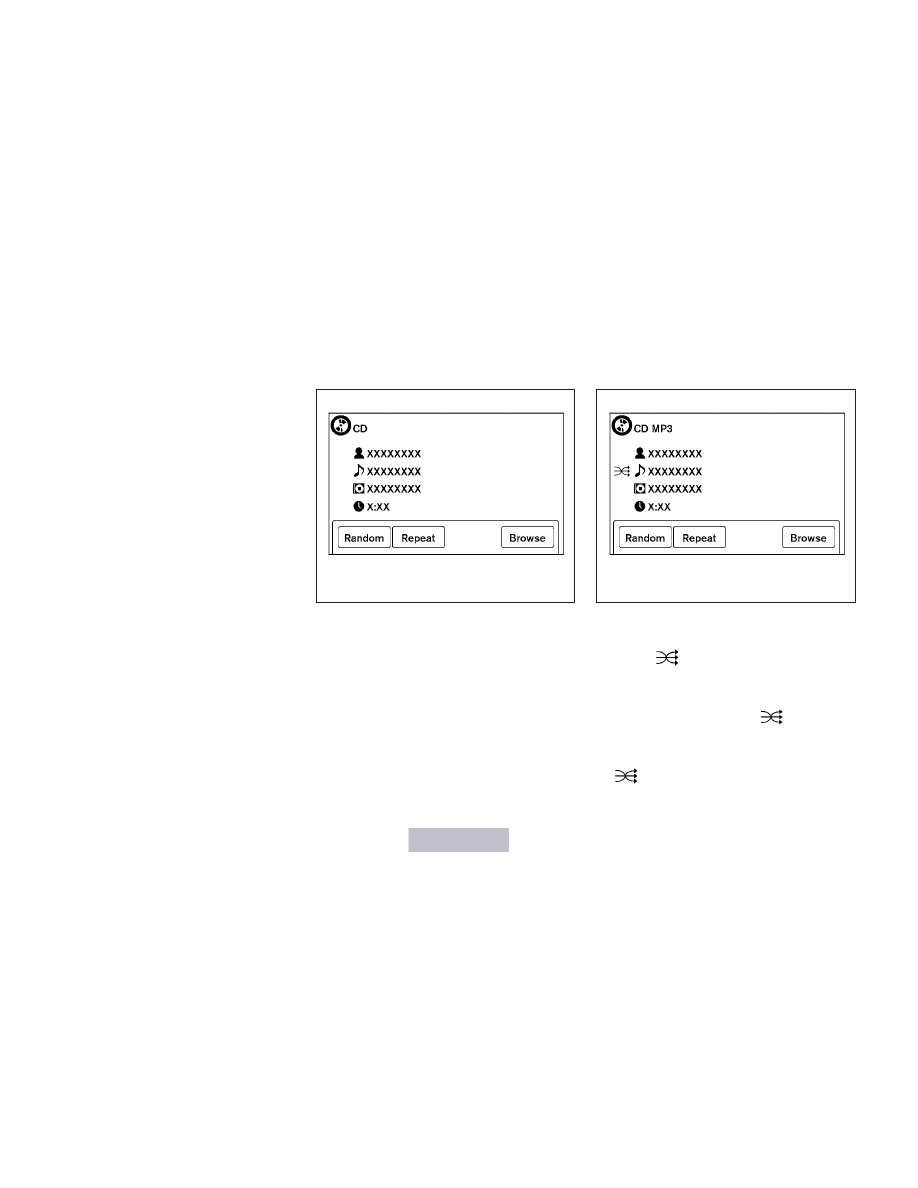

CD/MP3 display mode

While listening to a CD or an MP3/WMA CD,
certain text may be displayed (when a CD en-
coded with text is being used). Depending on
how the CD or MP3/WMA CD is encoded, the
text is displayed listing the artist, album and song
title.

There are other keys displayed on the screen
when a CD is playing:

Random:
Touch the “Random” key to apply a random play
pattern to the CD. When the random mode is
active, the

icon will be displayed to the left

of the song title. If an MP3 CD is playing, touch-
ing “Random” alternates between randomly play-
ing songs within the current folder and songs
from the CD as a whole. The

icon is dis-

played to the left of the song title or folder name
to denote which pattern is applied. To cancel
Random mode, touch the “Random” key until
no

icon is displayed.

LHA1488

LHA1490

4-38

Display screen, heater, air conditioner, audio and phone systems

Repeat:
Touch the “Repeat” key to apply a repeat play
pattern to the CD. When the repeat mode is
active, the

icon will be displayed to the left

of the song title. If an MP3 CD is playing, touch-
ing “Repeat” alternates between repeating the
current song and repeating the current folder.
The

icon is displayed to the left of the song

title or folder name to denote which pattern is
applied. To cancel Repeat mode, touch the “Re-
peat” key until no

icon is displayed.

Browse:
Touch the “Browse” key to display the titles on
the CD in list format. Touch the title of a song in
the list to begin playing that song. If an MP3 CD is
playing, touching the “Browse” key will also list
the folders on the disc. Follow the procedure for
selecting a song with the touchscreen to choose
a folder.

SEEK/CATEGORY

(Reverse or Fast

Forward) button:

Press

and

hold

the

SEEK/CATEGORY

button

for 1.5 seconds while the

compact disc is playing to reverse or fast forward
the track being played. The compact disc plays at
an increased speed while reversing or fast for-
warding. When the button is released, the com-
pact disc returns to normal play speed.

SEEK/CATEGORY button:

Press the SEEK/CATEGORY button

while

a CD or MP3/WMA CD is playing to return to the
beginning of the current track. Press the
SEEK/CATEGORY button

several times

to skip backward several tracks.

Press the SEEK/CATEGORY button

while

a CD or MP3/WMA CD is playing to advance
one

track.

Press

the

SEEK/CATEGORY

button

several times to skip forward sev-

eral tracks. If the last track on a CD is skipped, the
first track on the disc is played. If the last track in
a folder of an MP3/WMA CD is skipped, the first
track of the next folder is played.

LHA1491

Display screen, heater, air conditioner, audio and phone systems

4-39

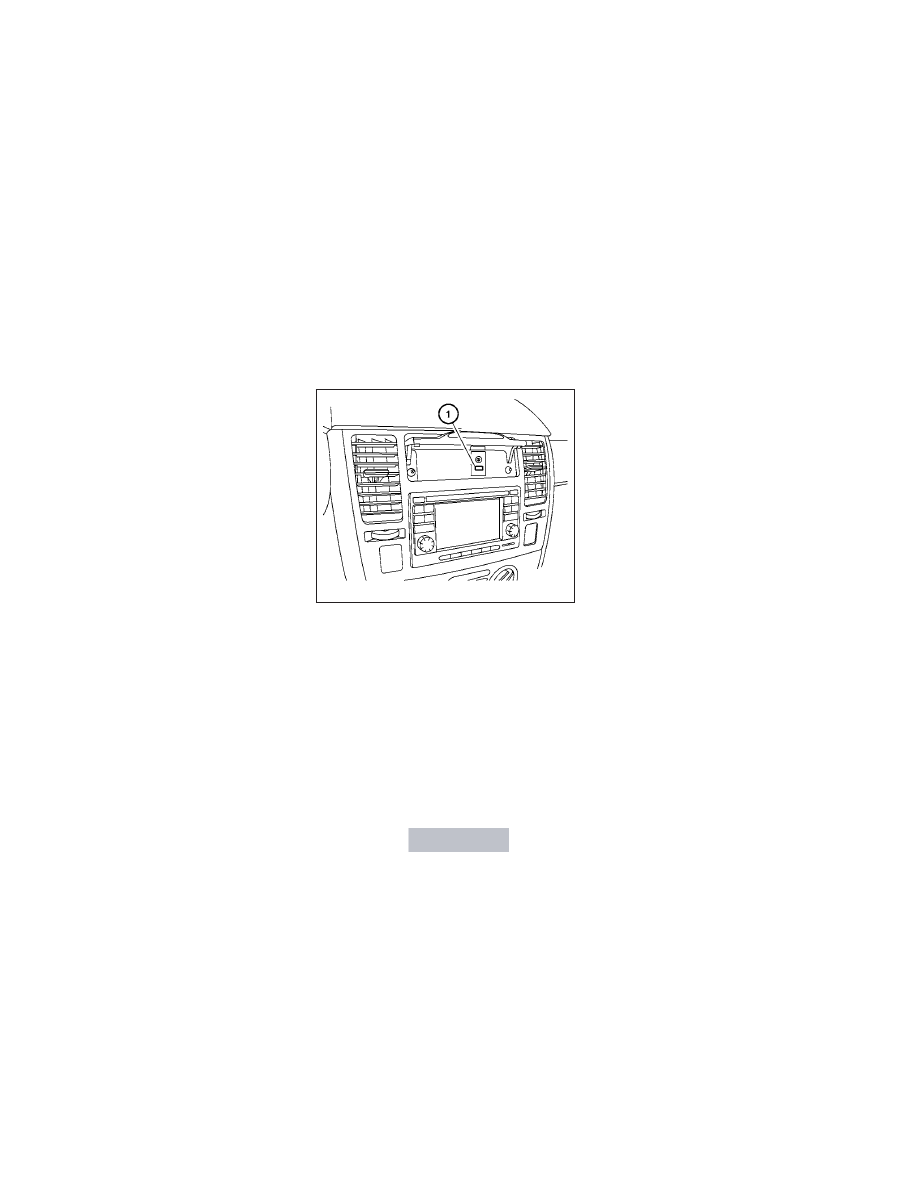

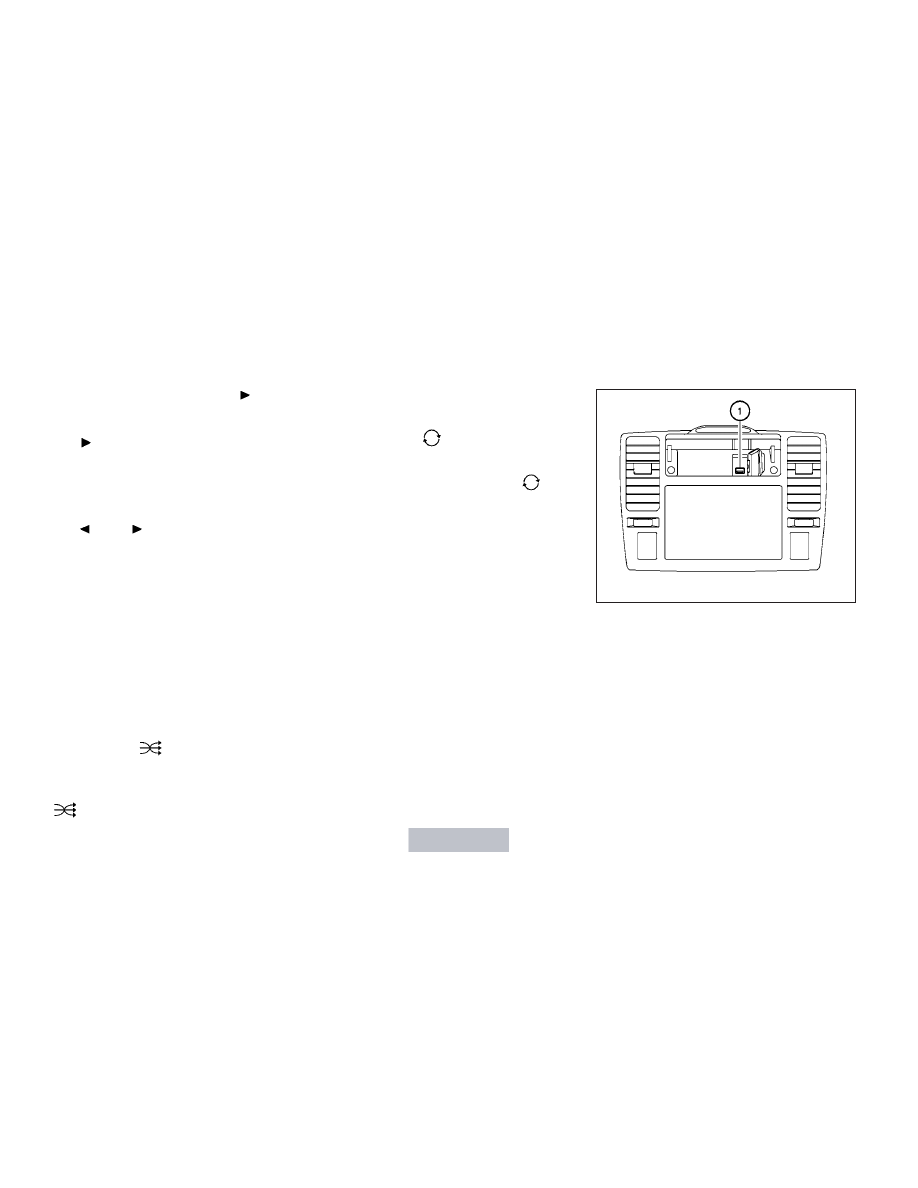

AUX button:

The AUX IN jack is located in the storage area
above the audio system

䊊

. The AUX IN audio

input jack accepts any standard analog audio
input such as from a portable cassette tape/CD
player, MP3 player or a laptop computer.

Press the AUX button to play a compatible device
plugged into the AUX IN jack. The AUX button is
also used to switch the audio system to a source
plugged into the USB input jack below the AUX
IN jack. When a device is plugged into the AUX
IN jack while another device is plugged into the
USB input jack, the AUX button is used to toggle
between the two functions.

For more information about the USB input jack,
see “USB interface” in this section.

EJECT button:

When the

button is pressed with a com-

pact disc loaded, the compact disc will eject and
the last source will be played.

When the

button is pressed twice with a

compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 10 seconds, the disc will
reload.

Additional features

For more information about the iPod

姞 player

available with this system, see “iPod

姞 player op-

eration with Navigation System” in this section.

For more information about the USB interface
available with this system, see “USB interface” in
this section.

LHA1497

LHA1493

4-40

Display screen, heater, air conditioner, audio and phone systems

USB INTERFACE (if so equipped)

Connecting a device to the USB input
jack

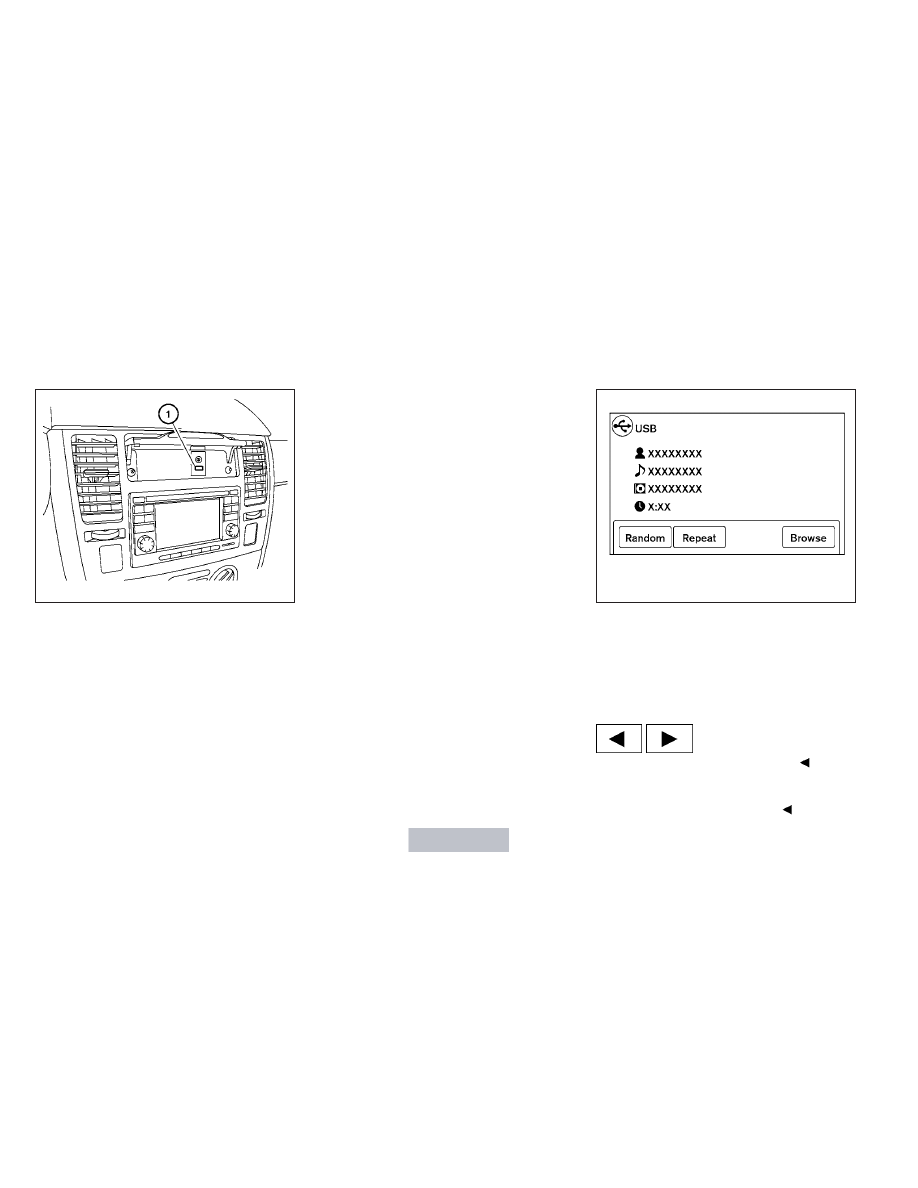

The USB input jack is located in the storage bin
above the radio

䊊

. Insert the USB device into

the jack.

When a compatible storage device is plugged
into the jack, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.

Audio file operation

AUX button:

Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button repeatedly until the center
display changes to the USB memory mode.

If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.

Play information:

Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of folders and files on the USB device. Touch the
name of a song on the screen to begin playing
that song.

SEEK/CATEGORY button:

Press the SEEK/CATEGORY button

while

an audio file on the USB device is playing to
return to the beginning of the current track. Press
the SEEK/CATEGORY button

several

times to skip backward several tracks.

LHA1498

LHA1496

Display screen, heater, air conditioner, audio and phone systems

4-41

Press the SEEK/CATEGORY button

while

an audio file on the USB device is playing to
advance one track. Press the SEEK/CATEGORY
button

several times to skip forward sev-

eral tracks. If the last track in a folder on the USB
device is skipped, the first track of the next folder
is played.

Press

and

hold

the

SEEK/CATEGORY

button

for 1.5 seconds while an

audio file on the USB device is playing to reverse
or fast forward the track being played. The track
plays at an increased speed while reversing or
fast forwarding. When the button is released, the
audio file returns to normal play speed.

Random and repeat play mode:

While files on a USB device are playing, the play
pattern can be altered so that songs are repeated
or played randomly.

Random:
Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which random pattern is applied. To cancel Ran-
dom mode, touch the “Random” key until
no

icon is displayed.

Repeat:
Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which repeat pattern is applied. To cancel Repeat
mode, touch the “Repeat” key until no

icon

is displayed.

iPod

姞* PLAYER OPERATION

WITHOUT NAVIGATION SYSTEM (if
so equipped)

Connecting iPod

姞

The iPod

姞 outlet connector is located in the

covered storage bin above the radio. To connect
the iPod

姞, first open the lid on the covered stor-

age bin. Next, connect one end of the iPod

姞

cable to the iPod

姞 and the other end of the cable

to the iPod

姞-specific port on the vehicle

䊊

. If

compatible, the battery of your iPod

姞 is charged

during the connection to the vehicle.

LHA1392

4-42

Display screen, heater, air conditioner, audio and phone systems

While connected to the vehicle, the iPod

姞 can

only be operated by the vehicle audio controls.

* iPod

姞 is a trademark of Apple Inc., registered in

the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod姞 Classic - 1st through 6th generation
● iPod姞 Mini - 1st and 2nd generation
● iPod姞 Nano - 1st through 3rd generation
● iPod姞 Touch - 1st generation
● iPhone姞 - 1st generation

Make sure that your iPod

姞 firmware is updated to

the version indicated above.

Audio main operation

iPod

姞 button:

Place the ignition switch in the ACC or ON
position and press the iPod

姞 button to switch to

the iPod

姞 mode.

If another audio source is playing and the iPod

姞 is

connected, press the iPod

姞 button to switch to

the iPod

姞 mode.

If the system is turned off while the iPod

姞 is

playing, the iPod

姞 will start when the PWR button

is pressed.

Top menu item selecting:

Press the iPod

姞 MENU button while the iPod姞 is

connected to show the interface for iPod

姞 opera-

tion on the audio display. The items can be cho-
sen from the menu list screen by pressing the

SEEK button

while the iPod

姞 is

operational. The display pattern can be changed
as follows:

Playlists

→ Artists → Albums → Songs → Pod-

casts

→ Genres → Composers → Audiobooks

For more information about each item, see the
iPod

姞 owner’s manual.

ENTER and BACK buttons:

Press the ENTER button while the top menu is
displayed to show program details on the audio

display. Use the SEEK buttons

scroll through the choices and press the ENTER
button to make a selection. Press the BACK
button to return to the previous display.

iPod

姞 play information:

Press the DISP TEXT button for less than 1.5
seconds while a program is playing to change the
displayed program information as follows:

Excluding Podcast:

Album Title

→ Artist Name → Song Title →

Normal Mode

Podcast:

Album Title

→ Song Title → Normal Mode

For more information about Podcasts, see the
iPod

姞 owner’s manual.

TUNE/FF-REW/FOLDER button:

When the TUNE/FF-REW/FOLDER button is

pressed

for more than 1.5 sec-

onds while the iPod

姞 is playing, the iPod姞 will

play while fast forwarding or reversing. When the
button is released, the iPod

姞 will return to the

normal play speed.

When the TUNE/FF-REW/FOLDER button is

pressed

for less than 1.5 sec-

onds while the iPod

姞 is playing, the next track or

the beginning of the current track on the iPod

姞

will be played.

Display screen, heater, air conditioner, audio and phone systems

4-43

SCAN/RPT button:

Press the SCAN/RPT button while a track is
playing to change the play pattern as follows:

Excluding Podcast and Audiobook:

ALL RPT

→ TRK RPT → ALL RDM → ALBUM

RDM

Podcast:

ALL RPT

←→ TRK RPT

For more information about Podcasts, see the
iPod

姞 owner’s manual.

Audiobook:

NORMAL

→ FAST → SLOW

iPod

姞* PLAYER OPERATION WITH

NAVIGATION SYSTEM (if so
equipped)

Connecting iPod

姞

To connect an iPod

姞 to the vehicle so that the

iPod

姞 can be controlled with the audio system

controls and display screen, use the USB jack
located in the center console. Open the protec-
tive cover on the USB jack in the center console
and then connect the iPod

姞-specific end of the

cable to the iPod

姞 and the USB end of the cable

to the USB jack on the vehicle

䊊

. If your iPod

姞

supports charging via a USB connection, its bat-

tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.

While connected to the vehicle, the iPod

姞 can

only be operated by the vehicle audio controls.

To disconnect the iPod

姞 from the vehicle, remove

the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod

姞.

* iPod

姞 is a trademark of Apple Inc., registered in

the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod姞 Classic - 5th generation
● iPod姞 Nano - 1st through 2nd generation

Make sure that your iPod

姞 firmware is updated to

the version indicated above.

LHA1498

4-44

Display screen, heater, air conditioner, audio and phone systems

Audio main operation

AUX button:

Place the ignition switch in the ACC or ON
position and press the AUX button repeatedly
until the iPod

姞 mode is displayed on the screen.

If another audio source is playing and the iPod

姞 is

connected, press the AUX button repeatedly to
switch to the iPod

姞 mode.

If the vehicle audio system is turned off while the
iPod

姞 is playing, the iPod姞 will start when the

VOL/ON-OFF control knob is pressed.

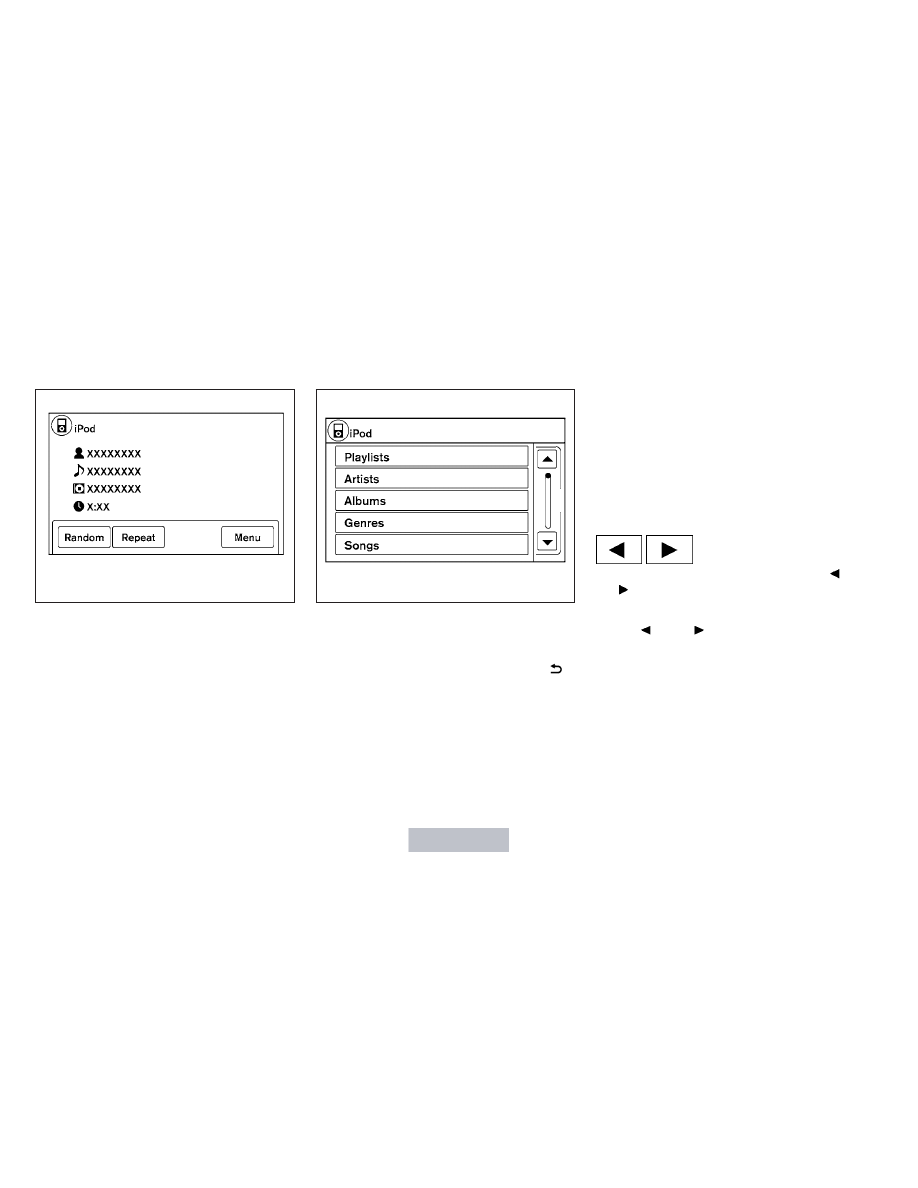

Interface:

The interface for iPod

姞 operation shown on the

vehicle’s audio system display screen is similar to
the iPod

姞 interface. Use the touchscreen,

BACK button or the TUNE/SCROLL knob to
navigate the menus on the screen.

When the iPod

姞 is playing, touch the “Menu” key

to bring up the iPod

姞 interface.

Depending on the iPod

姞 model, the following

items may be available on the menu list screen.
For further information about each item, see the
iPod

姞 Owner’s Manual.

● Playlists

● Artists
● Albums
● Genres
● Songs
● Composers
● Audiobooks
● Podcasts

SEEK/CATEGORY button:

Press

the

SEEK/CATEGORY

button

to skip backward or forward one track.

Press

and

hold

the

SEEK/CATEGORY

button

for 1.5 seconds while a

track is playing to reverse or fast forward the track
being played. The track plays at an increased
speed while reversing or fast forwarding. When
the button is released, the track returns to normal
play speed.

Random and repeat play mode:

While the iPod

姞 is playing, the play pattern can

be altered so that songs are repeated or played
randomly.

LHA1494

LHA1495

Display screen, heater, air conditioner, audio and phone systems

4-45

Nissan Versa Hatchback (2012 year). Instruction - part 11
