TILT OPERATION

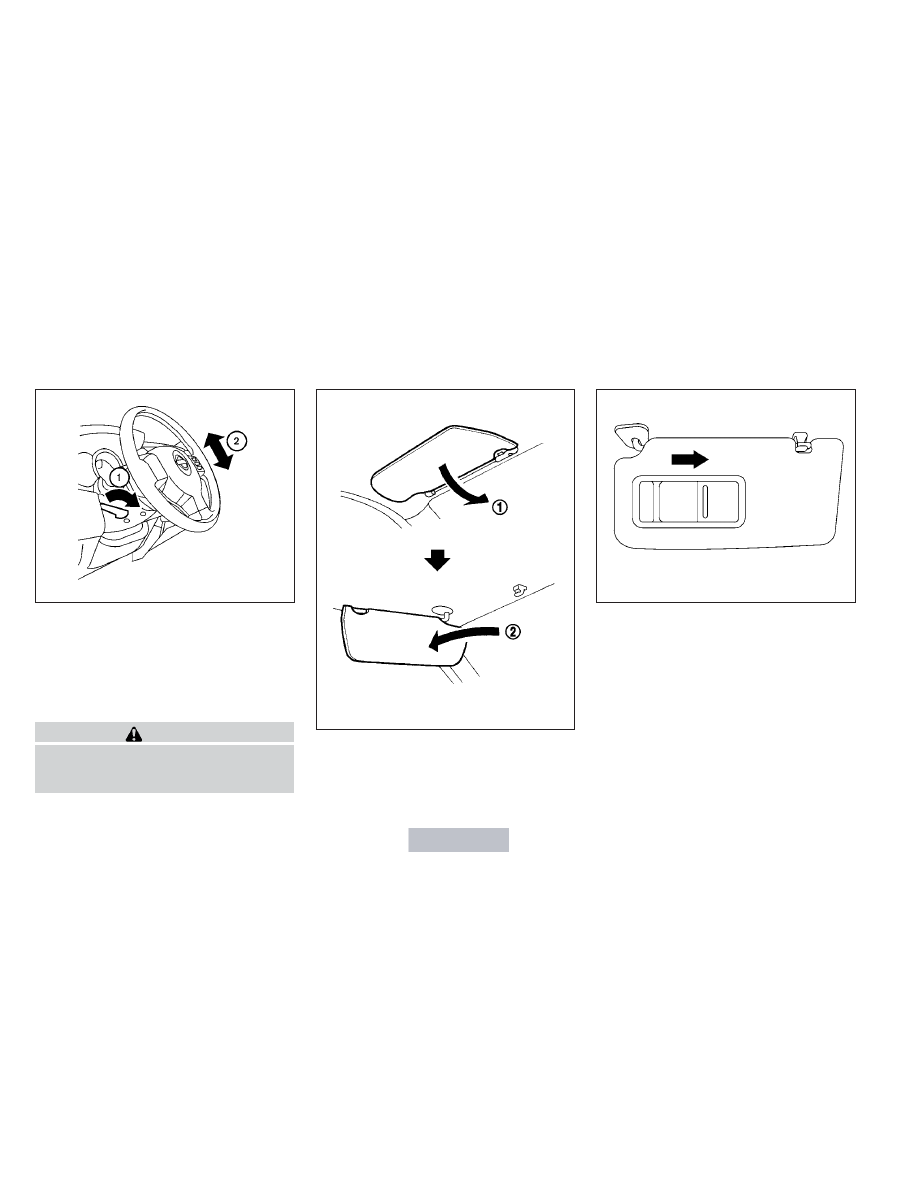

Push the lock lever

䊊

down and adjust the

steering wheel up or down

䊊

to the desired

position.

Pull the lock lever up to lock the steering wheel in
place.

WARNING

Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.

To block out glare from the front, swing down the
sun visor

䊊

To block glare from the side, disconnect the sun
visor from the center mount and swing it to the
side

䊊

VANITY MIRRORS (if so equipped)

To access the vanity mirror, pull the sun visor
down and slide the mirror cover open. Some
vanity mirrors are illuminated and turn on when
the mirror cover is open.

LPD0355

SIC2872

LPD0356

STEERING WHEEL

SUN VISORS

3-28

Pre-driving checks and adjustments

REARVIEW MIRROR (if so equipped)

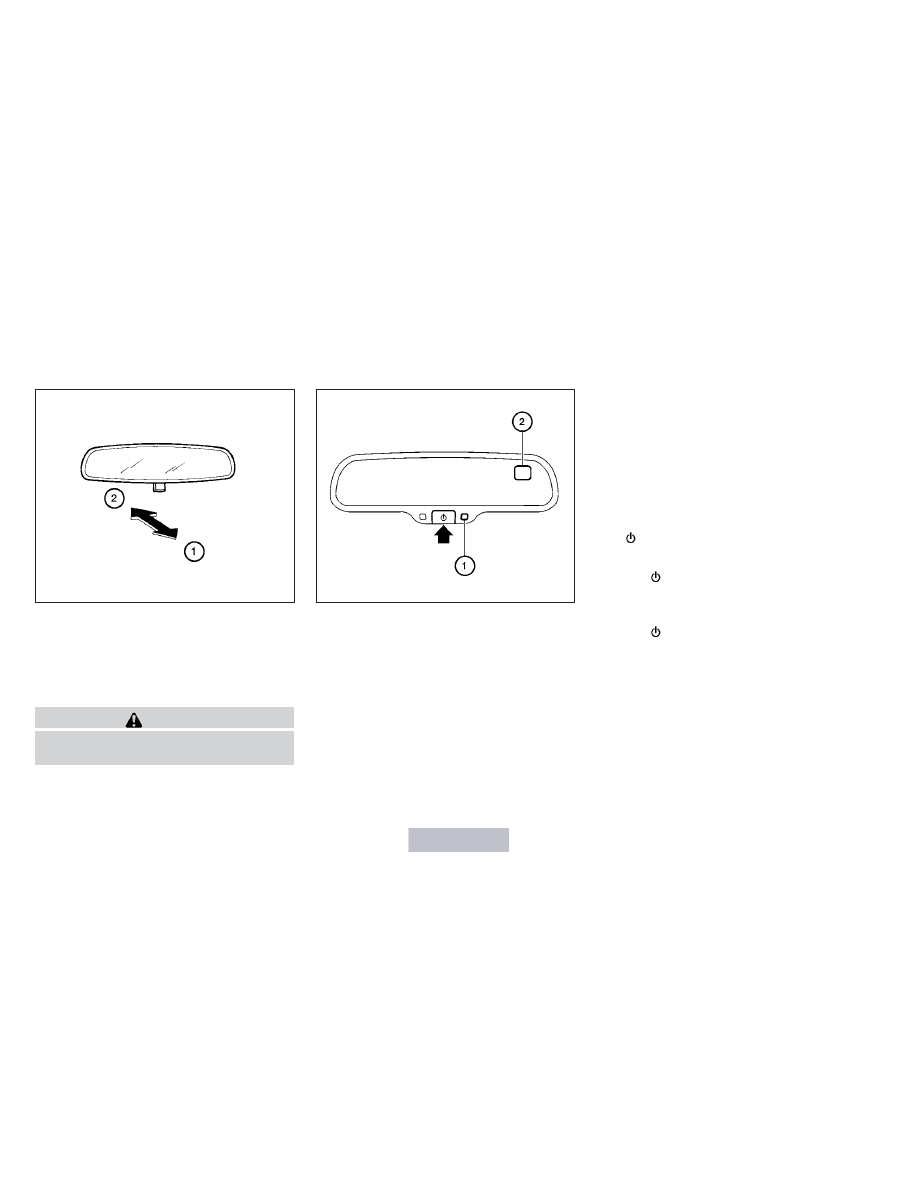

The night position

䊊

reduces glare from the

headlights of vehicles behind you at night.

Use the day position

䊊

when driving in daylight

hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view clarity.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature is activated when the ignition
switch is in the ON position.

NOTE:

Do not hang any objects over the sensors

䊊

or apply glass cleaner to the sensors.

Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.

The indicator light will illuminate when the auto-
matic anti-glare feature is operating.

With the ignition switch in the ON position, press
the

button as described:

● To turn off the anti-glare feature, press

the

button. The indicator light will turn

off.

● To turn on the anti-glare feature, press

the

button again. The indicator light

will turn on.

For more information about the compass

䊊

and

compass features (if so equipped), refer to
“Compass display” in the “Instruments and con-
trols” section of this manual.

WPD0126

LPD0446

MIRRORS

Pre-driving checks and adjustments

3-29

OUTSIDE MIRRORS

WARNING

● Objects viewed in the outside mirror on

the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

Electric control type

The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.

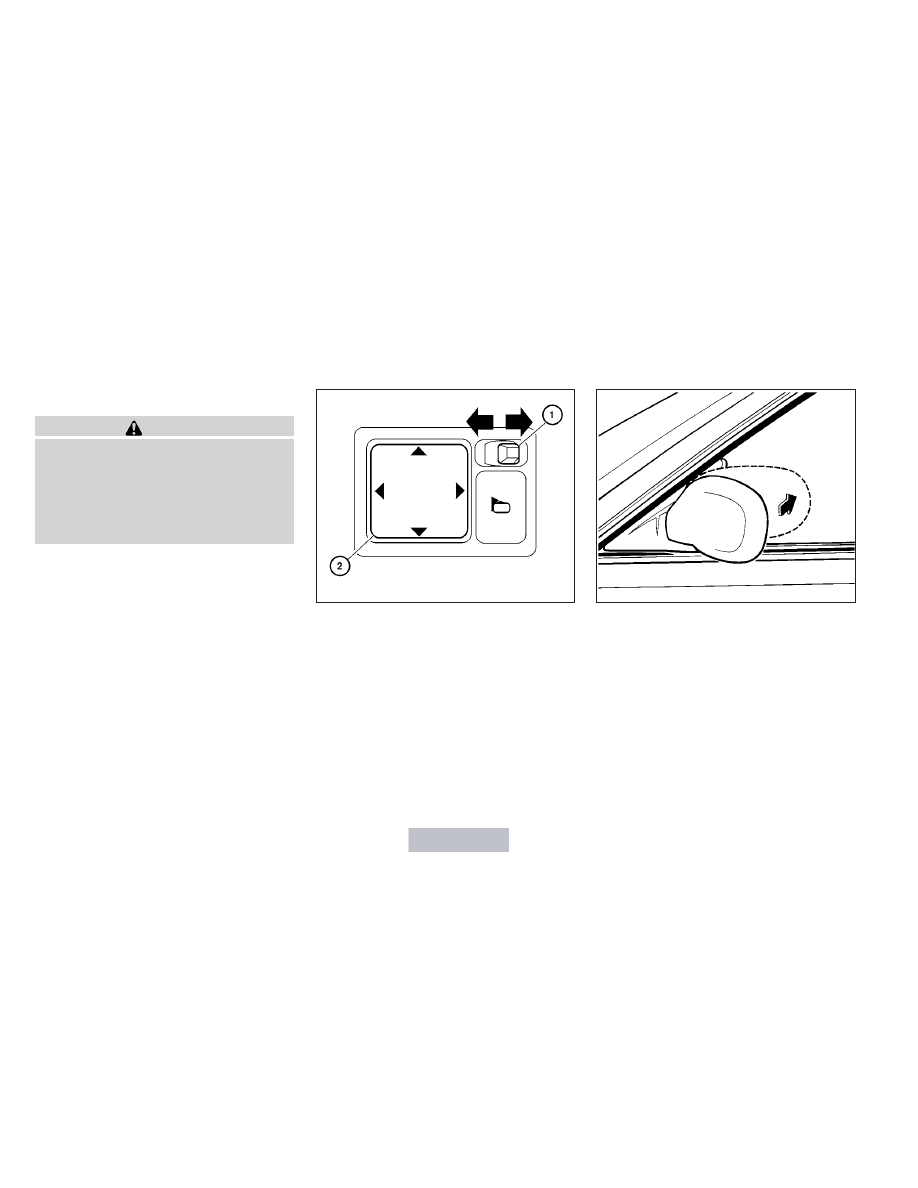

Move the small switch

䊊

to select the right or left

mirror. Adjust each mirror to the desired position
using the large switch

䊊

Manual folding outside mirrors

Pull the outside mirror toward the door to fold it.

Heated mirrors (Canada only) (if so
equipped)

Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. Push the
rear window defroster switch to activate the heat-
ing function. Push the switch again to deactivate,
or the heating function will automatically turn off
after approximately 15 minutes.

LPD0237

MPA0008

3-30

Pre-driving checks and adjustments

WARNING

● Do not disassemble or modify this sys-

tem. If you do, it may result in accidents,
fire, or electrical shock.

● In case you notice any foreign object in

the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and

contact

your

nearest

NISSAN

dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.

CAUTION

Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or electric
shock.

(brightness control) button

2. Display screen

3. MAP button*

4. NAV button*

5. TRAF button*

6. SETUP button (P. 4-5)

BACK button

8. TUNE/SCROLL knob

9. Power button/Volume control knob

LHA1474

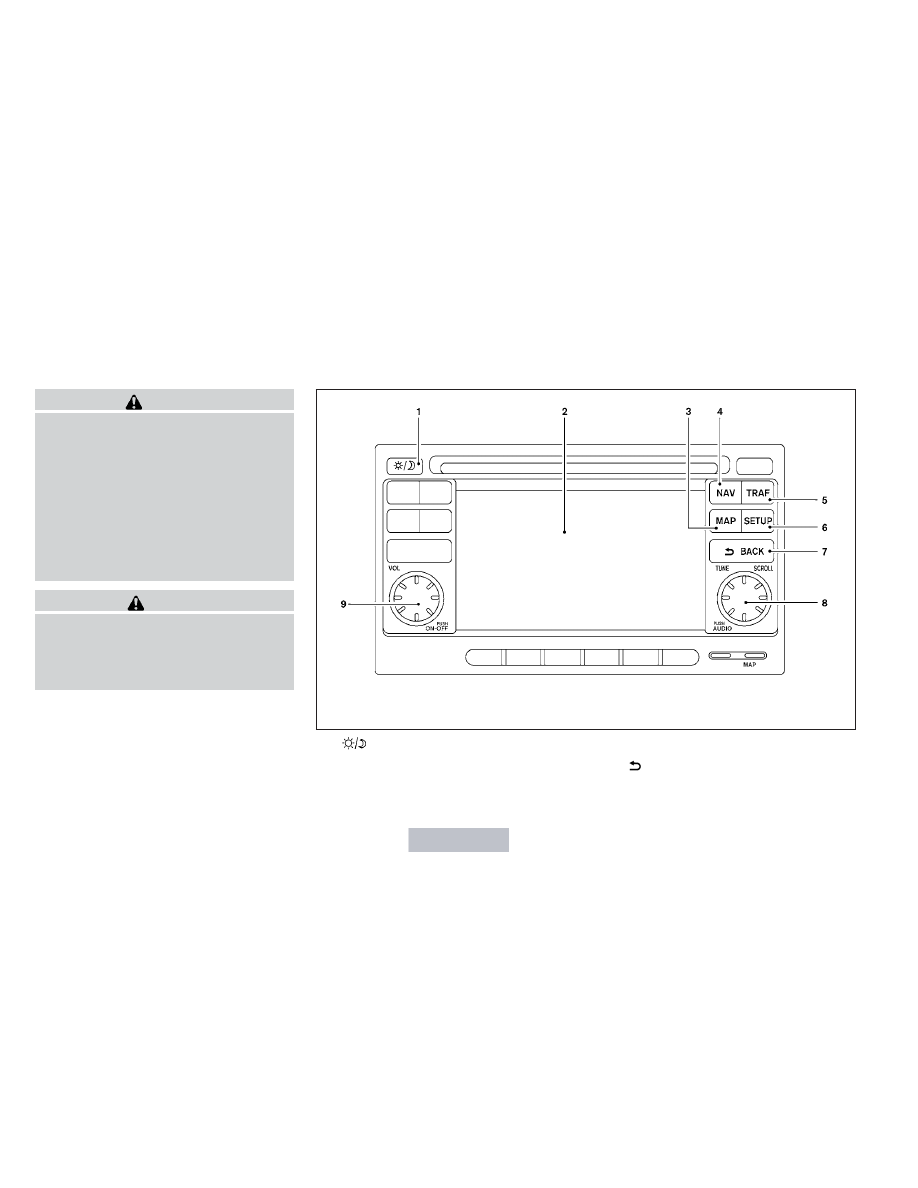

CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

4-2

Display screen, heater, air conditioner, audio and phone systems

*For Navigation system control buttons, refer to
the

separate

Navigation

System

Owner’s

Manual.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.

HOW TO USE THE TOUCH
SCREEN

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To help ensure safe driving, some functions can-
not be operated while driving.

The on-screen functions that are not available
while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then oper-
ate the navigation system.

WARNING

● ALWAYS give your full attention to

driving.

● Avoid using vehicle features that could

distract you. If distracted, you could
lose control of your vehicle and cause
an accident.

Touch screen operation

Selecting the item:

Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key

䊊

on the

screen.

LHA1476

Display screen, heater, air conditioner, audio and phone systems

4-3

Adjusting the item:

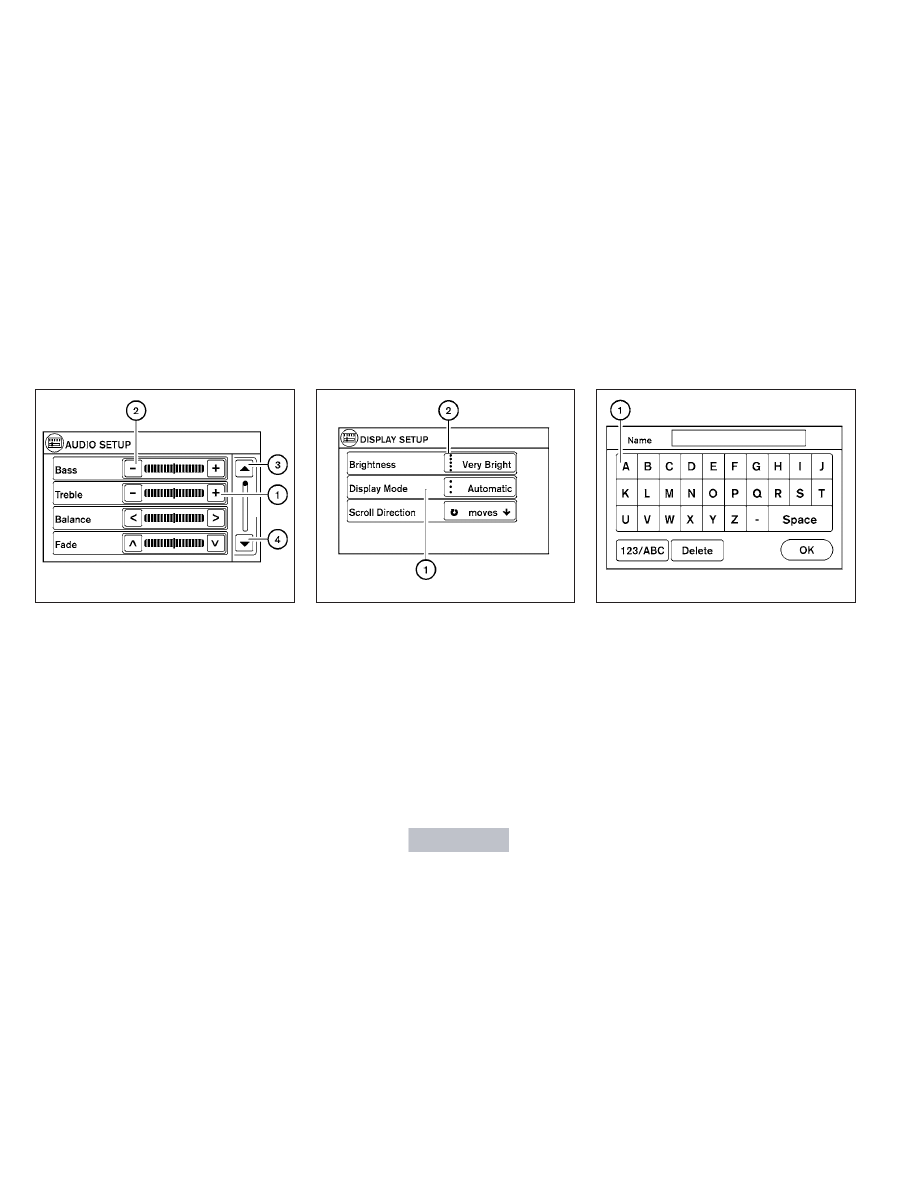

For screens where an item can be adjusted incre-
mentally, such as when adjusting the bass and
treble for the audio system, touch the “+” key

䊊

or the “

⫺” key

䊊

to adjust the settings of an item.

When there are more items than can be dis-
played on one screen, touch the up arrow

䊊

scroll up the page or touch the down arrow

䊊

scroll down the page.

Other items are adjusted by selecting one of a set
number of conditions. For example, the Display
Mode can be set to “Automatic”, “Day” or “Night”.
To adjust this type of item, touch the item

䊊

. The

item will cycle through the available settings and
the red indicator lights to the left of the setting
condition

䊊

will come on or turn off accordingly.

Inputting characters:

Touch the letter key

䊊

There are some options available when inputting
characters.

● 123 / ABC:

Changes the available character set to num-
bers.

● Space:

Inserts a space.

● Delete:

Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.

LHA1477

LHA1478

LHA1479

4-4

Display screen, heater, air conditioner, audio and phone systems

● OK:

Completes the character input.

Touch screen maintenance

If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first and then wipe the
screen.

HOW TO USE THE BACK BUTTON

Press the

BACK button to return to the

previous screen.

HOW TO USE THE SETUP BUTTON

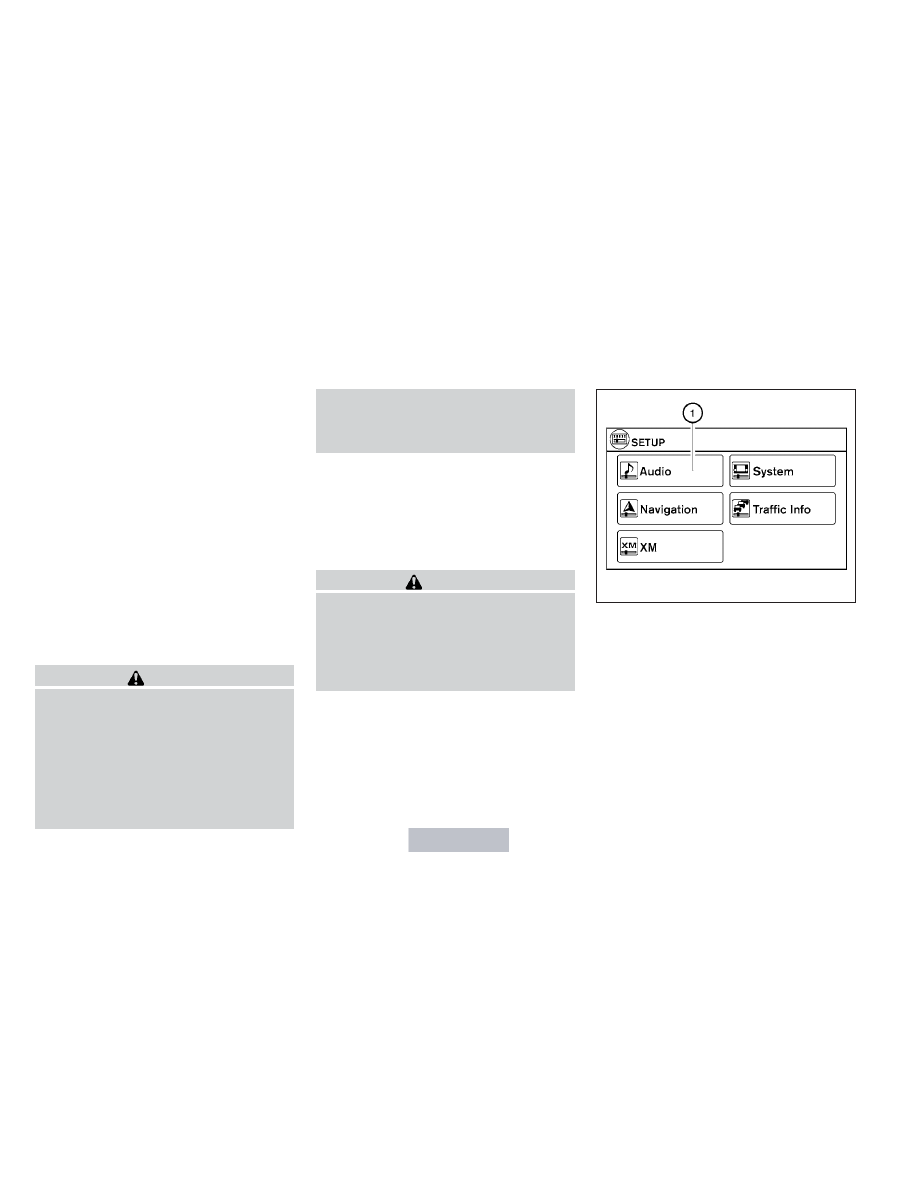

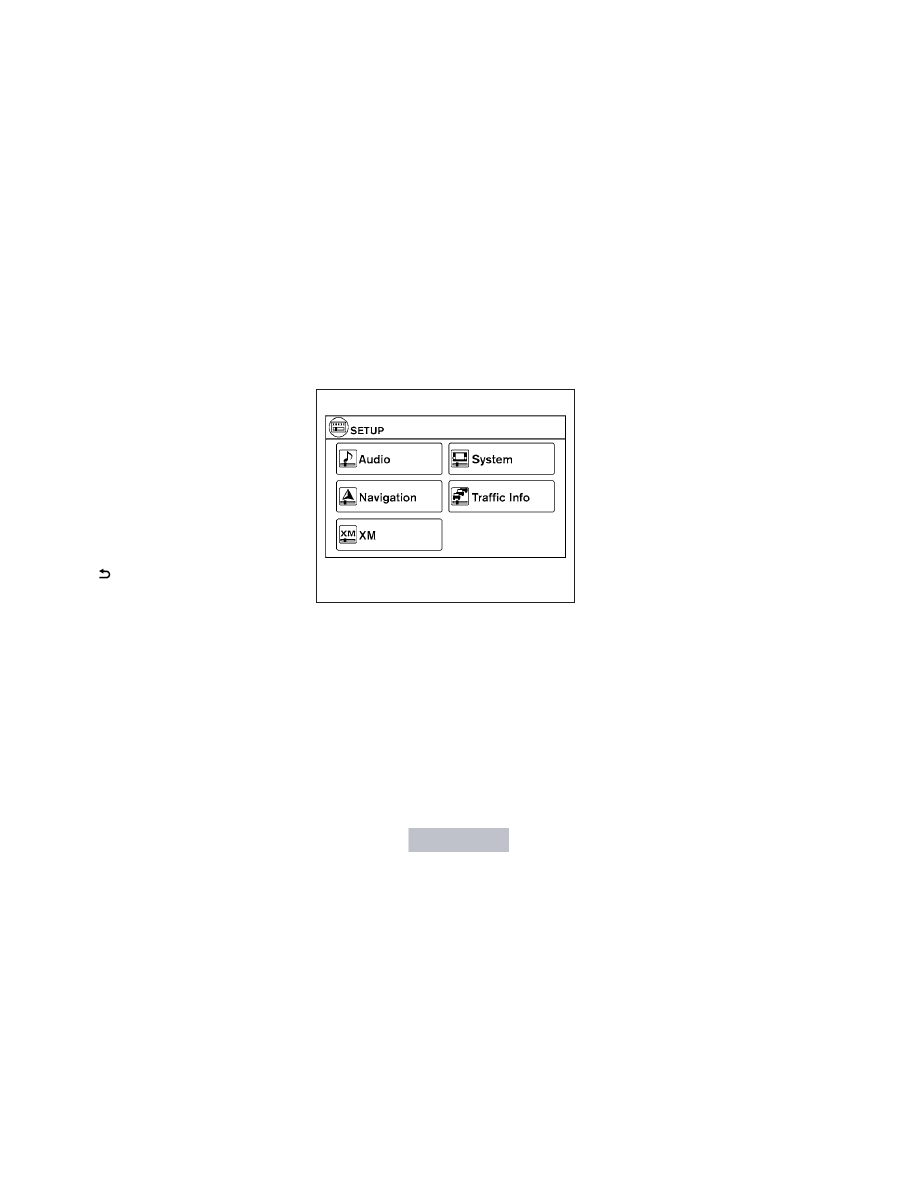

When the SETUP button is pressed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.

Audio setup

For audio setup, refer to “Audio system” in this
section.

Navigation setup

Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.

XM setup

For XM setup, refer to “Audio system” in this
section.

LHA1480

Display screen, heater, air conditioner, audio and phone systems

4-5

System setup

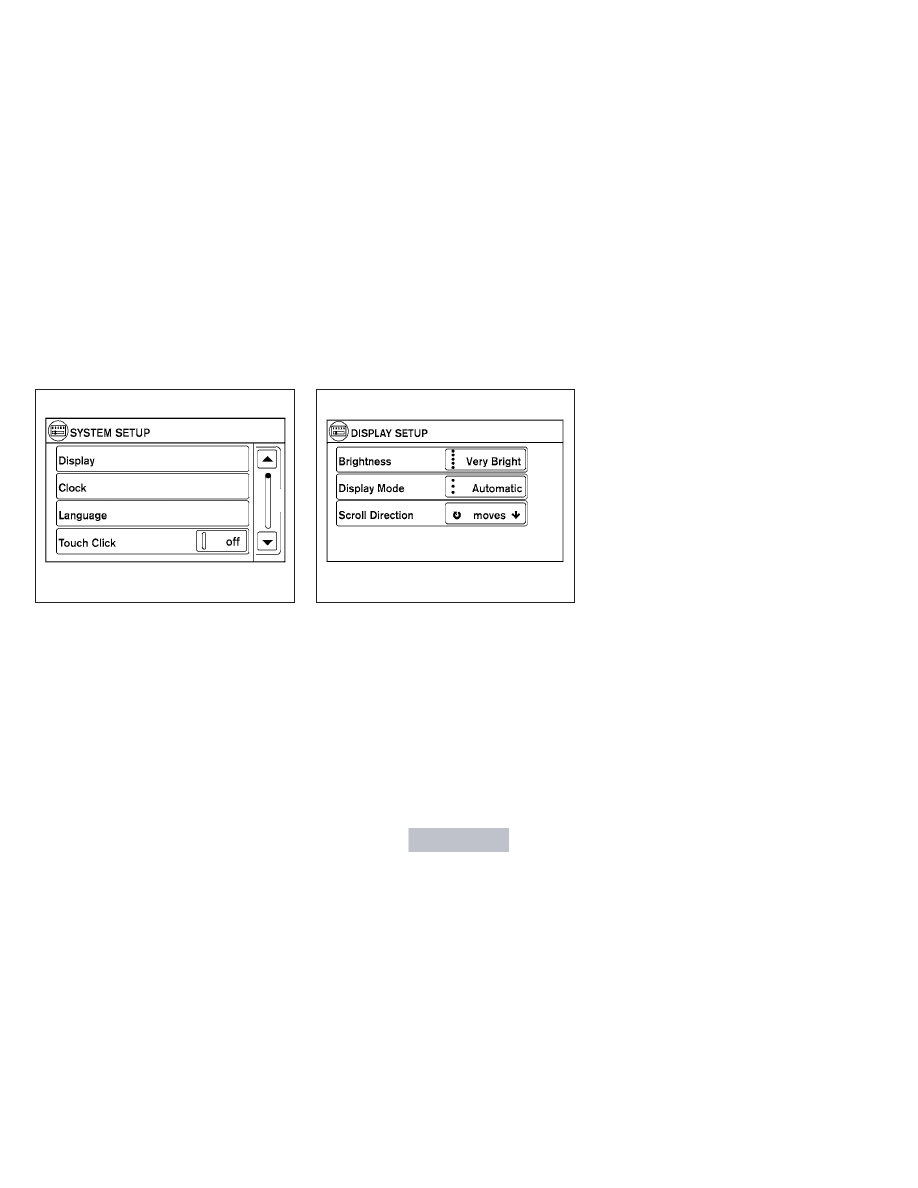

Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.

Display:

Select the “Display” key to adjust the appearance
of the display. The following settings can be
adjusted:

Brightness
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the options.

Display Mode
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective times
of day, while “Automatic” controls the display
automatically.

Scroll Direction
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.

LHA1481

LHA1482

4-6

Display screen, heater, air conditioner, audio and phone systems

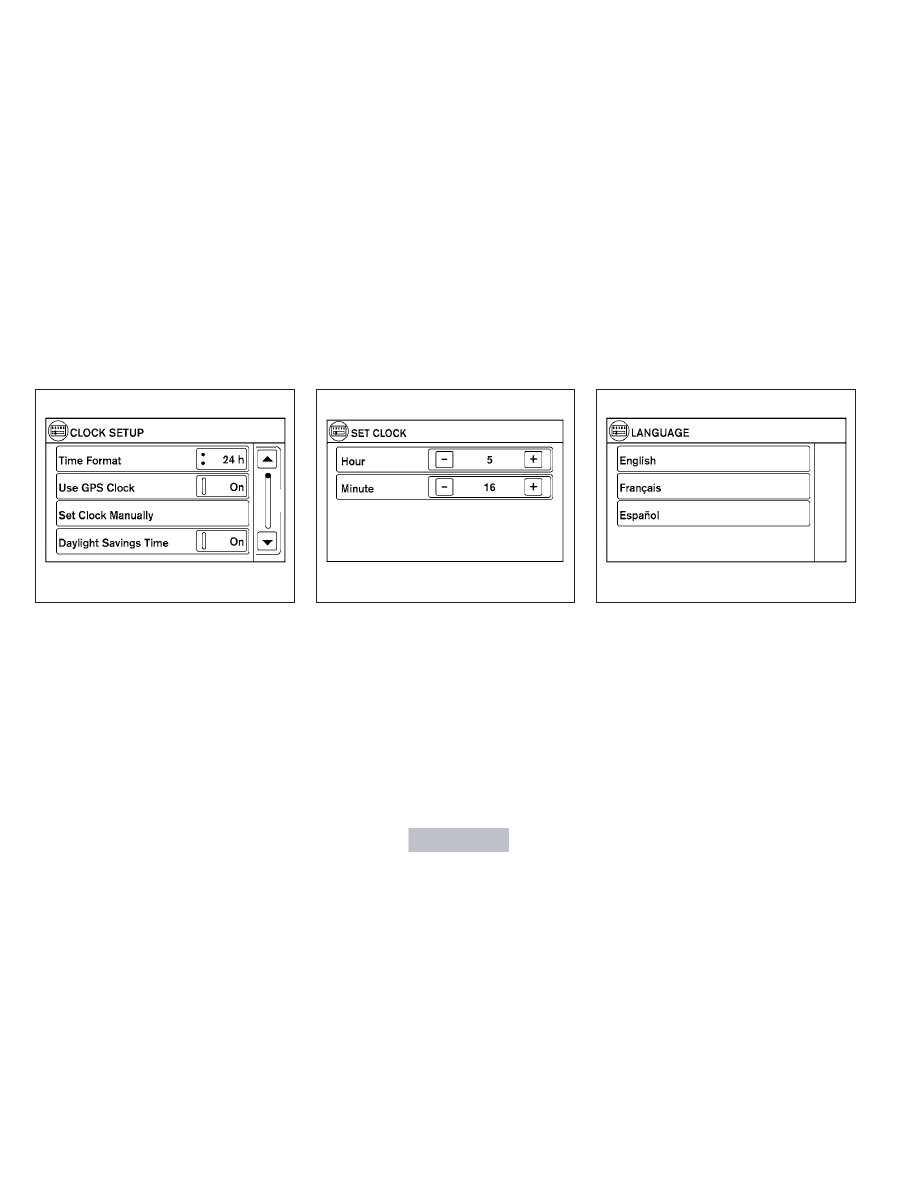

Clock:

Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The fol-
lowing settings can be adjusted:

Time Format
The clock can be set to 12 hours or 24 hours.

Use GPS Clock
When this setting is activated, the clock is set
and continually updated via the GPS used by the
Navigation System.

Set Clock Manually
When this setting is activated, the clock can be
set manually. Touch the “+” or “-” key to adjust the
hours and minutes up or down.

Daylight Savings Time
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time” key
to toggle the setting on or off.

Time Zone
Choose the applicable time zone from the list.

Language:

Select the “Language” key to adjust the language
used by the system. The language can be set to
English, Français or Español.

Touch click:

Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.

LHA1483

LHA1484

LHA1485

Display screen, heater, air conditioner, audio and phone systems

4-7

Beep tones:

Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit
(such as the

button) is pressed and held

for two seconds.

Reset all settings/memory:

Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.

Traffic setup

Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.

BUTTON

change

the

display

brightness,

press

the

button. Pressing the button again will

change the display to the day or the night display.

If no operation is performed within 5 seconds, the
display will return to the previous display.

Press and hold the

button for more than

two seconds to turn the display off. Press the
button again to turn the display on.

Center

SAA1176

Center upper

SAA1177

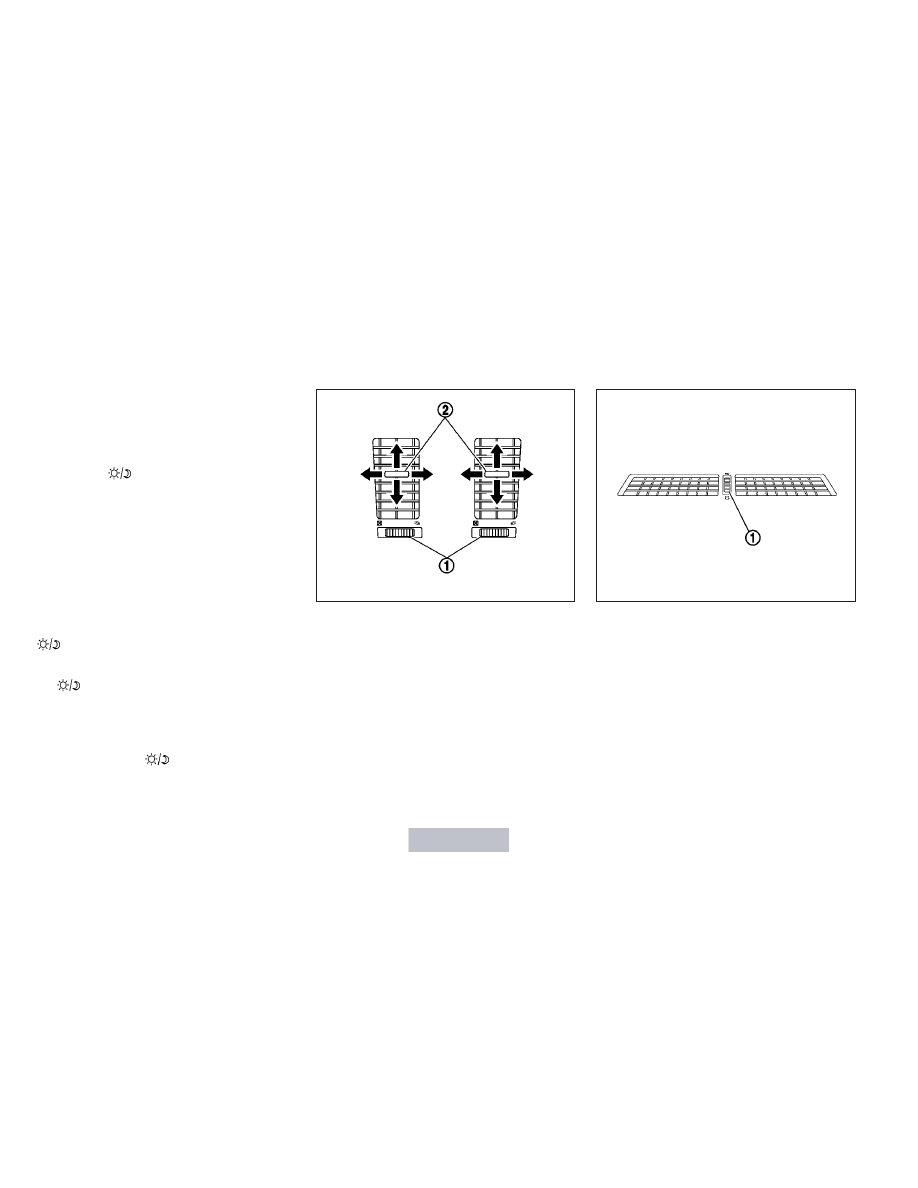

VENTS

4-8

Display screen, heater, air conditioner, audio and phone systems

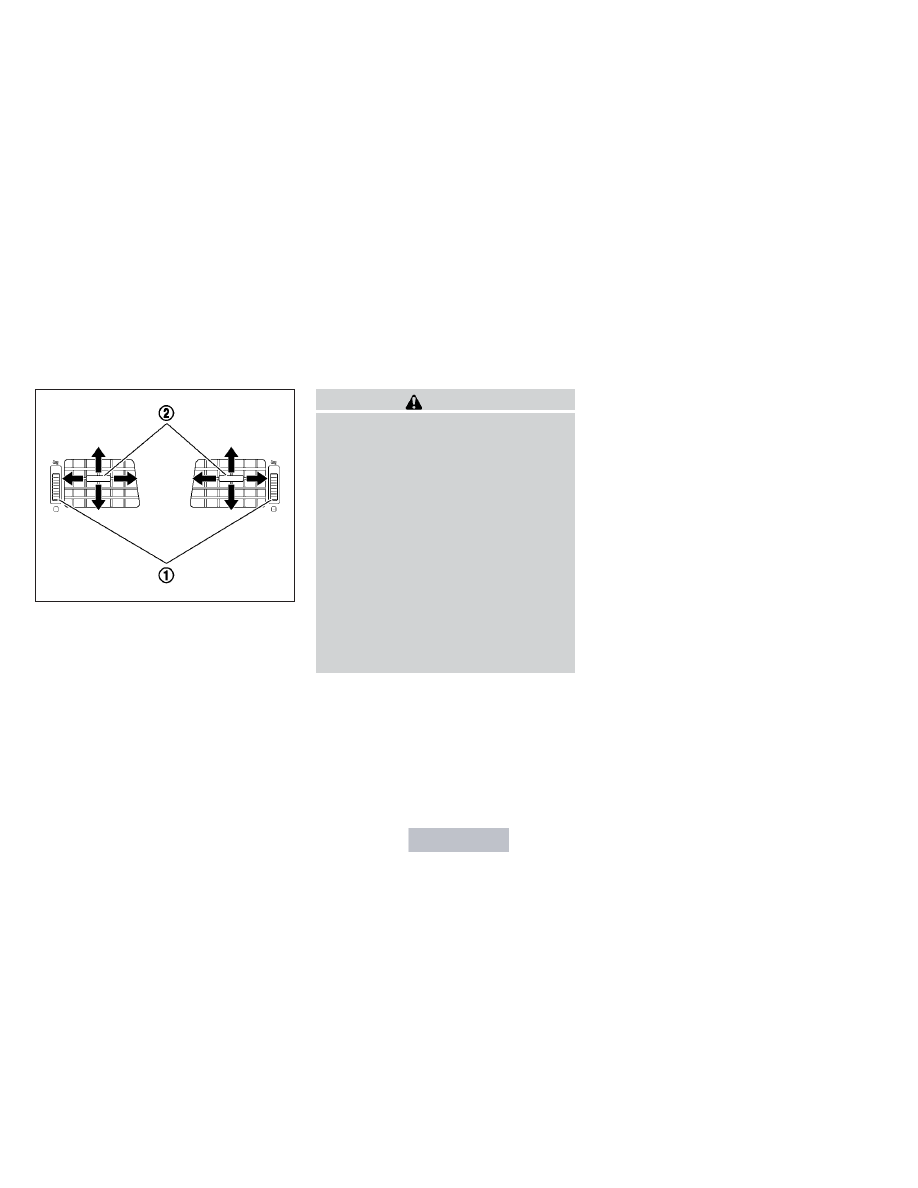

Adjust air flow open/close

䊊

Adjust air flow direction

䊊

WARNING

● The air conditioner cooling function op-

erates only when the engine is running.

● Do not leave children or adults who

would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

● Do not use the recirculation mode for

long periods as it may cause the interior
air to become stale and the windows to
fog up.

Sides

SAA1178

HEATER AND AIR CONDITIONER
(manual)

Display screen, heater, air conditioner, audio and phone systems

4-9

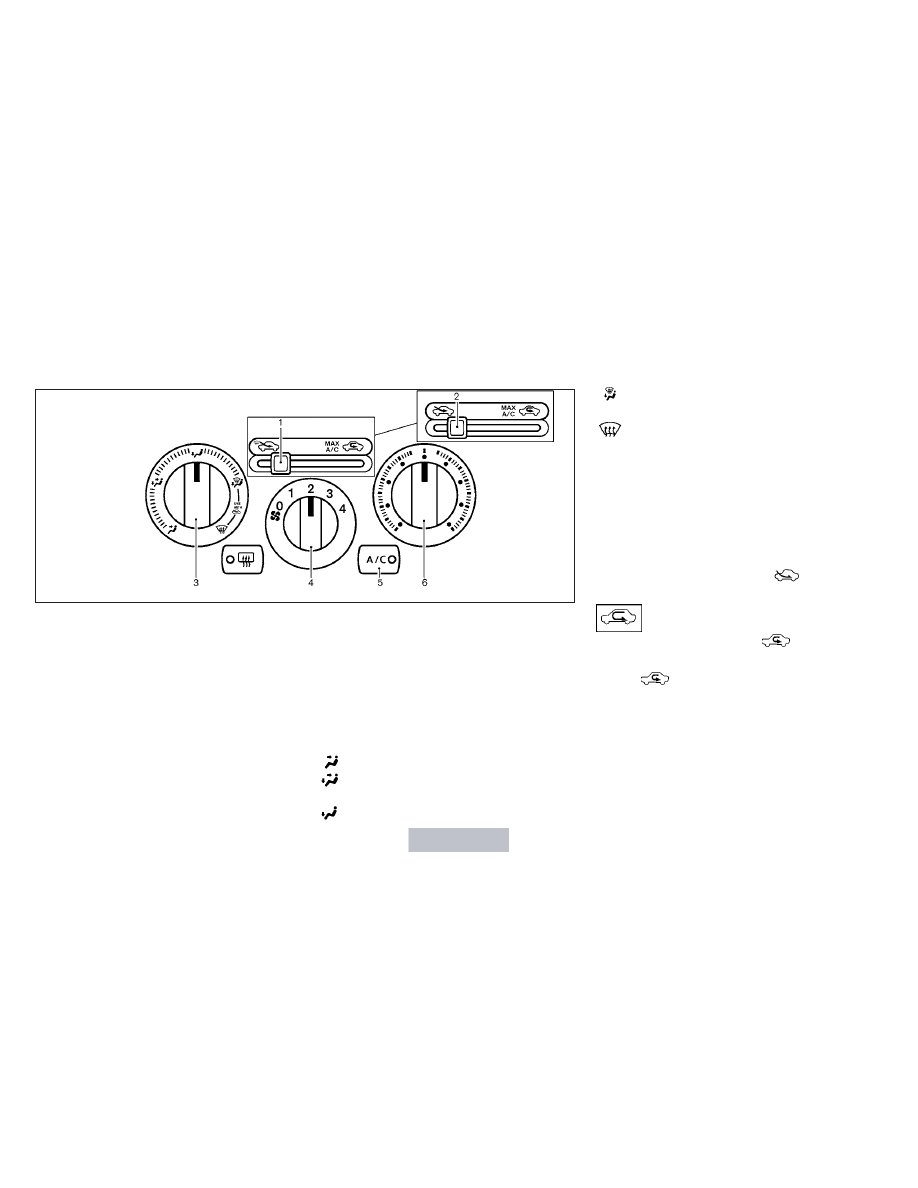

Air intake lever (Outside air circulation/
Air recirculation) (Type A)

Air intake lever (Outside air circulation/
Air recirculation) (Type B, MAX A/C if
so equipped)

Air flow control dial

Fan control dial

Air conditioner button (if so equipped)

Temperature control dial

CONTROLS

Fan control dial

The fan control dial turns the fan on and off, and
controls fan speed.

Air flow control dial

The air flow control dial allows you to select the
air flow outlets.

— Air flows from center and side vents.
— Air flows from center and side vents

and foot outlets.

— Air flows mainly from foot outlets.

— Air flows from defroster outlets and

foot outlets.

— Air flows mainly from defroster

outlets.

Temperature control dial

The temperature control dial allows you to adjust
the temperature of the outlet air. To lower the
temperature, turn the dial to the left. To increase
the temperature, turn the dial to the right.

Fresh air

Move the air intake lever to the

position.

The air flow is drawn from outside the vehicle.

Air recirculation

Move the air intake lever to the

position to

recirculate air inside the vehicle.

Use the

selection:

● when driving on a dusty road.
● to prevent traffic fumes from entering pas-

senger compartment.

● for maximum cooling when using the air con-

ditioner.

WHA1184

4-10

Display screen, heater, air conditioner, audio and phone systems

Air conditioner button (if so
equipped)

Start the engine, turn the fan control dial to the
desired position and push the

button to

turn on the air conditioner. The indicator light
comes on when the air conditioner is operating.
To turn off the air conditioner, push the
button again.

The air conditioner cooling function oper-
ates only when the engine is running.

Rear window defroster switch

For more information about the rear window de-
froster switch, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.

HEATER OPERATION

Heating

This mode is used to direct heated air to the foot
outlets. Some air also flows from the defrost
outlets.

1. Move the air intake lever to the

posi-

tion for normal heating.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

Ventilation

This mode directs outside air to the side and
center vents.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position.

Defrosting or defogging

This mode directs the air to the defrost outlets to
defrost/defog the windows.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

● To quickly remove ice or fog from the win-

dows, turn the fan control dial to the maxi-
mum position and the temperature control
dial to the full hot position.

When the

position is selected,

the air conditioner automatically turns on (how-
ever, the indicator light will not illuminate). In this
position, the air conditioner cannot be turned off.
When the air flow control is turned to any position

other than

, the air conditioner

light will illuminate (the air conditioner will con-
tinue operating). and can be turned off using the
air conditioner button. This dehumidifies the air,
which helps defog the windshield.

Bi-level heating

This mode directs cooler air from the side and
center vents and warmer air from the floor outlets.
When the temperature control dial is moved to
the full hot or full cool position, the air between
the vents and the floor outlets is the same tem-
perature.

1. Move the air intake lever to

position.

Display screen, heater, air conditioner, audio and phone systems

4-11

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position.

Heating and defogging

This mode heats the interior and defogs the wind-
shield.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Turn the temperature control dial to the de-

sired position between the middle and the
hot position.

When the

position is selected,

other than

, the air conditioner

light will illuminate (the air conditioner will con-

tinue operating) and can be turned off using the
air conditioner button. This dehumidifies the air,
which helps defog the windshield.

Operating tips

Clear snow and ice from the wiper blades
and air inlet in front of the windshield. This
improves heater operation.

AIR CONDITIONER OPERATION (if
so equipped)

Start the engine, turn the fan control dial to the
desired position, and push the

button to

activate the air conditioner. When the air condi-
tioner is on, cooling and dehumidifying functions
are added to the heater operation.

The air conditioner cooling function oper-
ates only when the engine is running.

Cooling

This mode is used to cool and dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Push the

button. The indicator light

comes on.

5. Turn the temperature control dial to the de-

sired position.

● For quick cooling when the outside tem-

perature is high, move the air intake lever to
the

position. Be sure to return to

the

position for normal cooling.

Dehumidified heating

This mode is used to heat and dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion.

4. Push the

button. The indicator light

comes on.

5. Turn the temperature control dial to the de-

sired position.

4-12

Display screen, heater, air conditioner, audio and phone systems

Dehumidified defogging

This mode is used to defog the windows and
dehumidify the air.

1. Move the air intake lever to the

posi-

tion.

2. Turn the air flow control dial to the

position.

3. Turn the fan control dial to the desired posi-

tion. When the

position is

selected, the air conditioner automatically
turns on (however, the indicator light will not
illuminate). In this position, the air condi-
tioner cannot be turned off. When the air
flow control is turned to any position other

than

, the air conditioner light

will illuminate (the air conditioner will con-
tinue operating). and can be turned off using
the air conditioner button. This dehumidifies
the air, which helps defog the windshield.

4. Turn the temperature control dial to the de-

sired position.

Operating tips

● Keep the windows and moonroof closed

while the air conditioner is in operation.

● After parking in the sun, drive for 2 or 3

minutes with the windows open to vent hot
air from the passenger compartment before
closing the windows. This allows the air con-
ditioner to cool the interior more quickly.

● The air conditioning system should be

operated for approximately 10 minutes
at least once a month. This helps pre-
vent damage to the system due to lack
of lubrication.

● A visible mist may be seen coming from the

ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.

● If the high temperature warning

light

illuminates in red indicating

engine coolant temperature is over the
normal range, turn the air conditioner
off. See “If your vehicle overheats” in
the “In case of emergency” section of
this manual.

AIR FLOW CHARTS

The following charts show the button and dial
positions for MAXIMUM AND QUICK heating,
cooling or defrosting. The air intake lever
should always be in the

position for

heating and defrosting.

Display screen, heater, air conditioner, audio and phone systems

4-13

Nissan Versa Hatchback (2012 year). Instruction - part 9
