Nissan Rogue Select (2015 year). Instruction - part 14





The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving con-
ditions, the VDC system helps to perform the
following functions.
. Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.

. Controls brake pressure and engine output

to reduce drive wheel slip based on vehicle
speed (traction control function).

. Controls brake pressure at individual wheels

and engine output to help the driver maintain
control of the vehicle in the following
conditions:
— understeer (vehicle tends to not follow

the steered path despite increased
steering input)

— oversteer (vehicle tends to spin due to

certain road or driving conditions).

The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss
of vehicle control in all driving situations.

When the VDC system operates, the VDC
warning light

in the instrument panel flashes

so note the following:
. The road may be slippery or the system may

determine some action is required to help

keep the vehicle on the steered path.

. You may feel a pulsation in the brake pedal

and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.

. Adjust your speed and driving to the road

conditions.

See “Vehicle Dynamic Control (VDC) warning
light” (P.2-14).

If a malfunction occurs in the system, the VDC
warning light

illuminates in the instrument

panel. The VDC system automatically turns off.

The VDC OFF switch is used to turn off the VDC
system. The VDC off indicator light

illumi-

nates to indicate the VDC system is off. When
the VDC switch is used to turn off the system,
the VDC system still operates to prevent one
drive wheel from slipping by transferring power
to a non slipping drive wheel. The VDC warning
light

flashes if this occurs. All other VDC

functions are off, and the VDC warning light
will not flash. The VDC system is automatically
reset to on when the ignition switch is placed in
the off position then back to the on position.

See “Vehicle Dynamic Control (VDC) warning
light” (P.2-14) and “Vehicle Dynamic Control
(VDC) off indicator light” (P.2-16).

The computer has a built-in diagnostic feature
that tests the system each time you start the

engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a “clunk” noise and/or feel
a pulsation in the brake pedal. This is normal and
is not an indication of a malfunction.

WARNING

The VDC system is designed to help

the driver maintain stability but
does not prevent accidents due to
abrupt steering operation at high
speeds or by careless or dangerous
driving techniques. Reduce vehicle
speed and be especially careful
when driving and cornering on slip-
pery surfaces and always drive care-
fully.

Do not modify the vehicle’s suspen-

sion. If suspension parts such as
shock absorbers, struts, springs,
stabilizer bars, bushings and
wheels are not NISSAN recom-
mended for your vehicle or are
extremely deteriorated, the VDC
system may not operate properly.
This could adversely affect vehicle
handling performance, and the VDC
warning light

may illuminate.

Starting and driving

5-27

VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM

5-28

Starting and driving

If brake related parts such as brake

pads, rotors and calipers are not
NISSAN recommended or are extre-
mely deteriorated, the VDC system
may not operate properly and the
VDC warning light

may illumi-

nate.

If engine control related parts are

not NISSAN recommended or are
extremely deteriorated, the VDC
warning light

may illuminate.

When driving on extremely inclined

surfaces such as higher banked
corners, the VDC system may not
operate properly and the VDC warn-
ing light

may illuminate. Do not

drive on these types of roads.

When driving on an unstable sur-

face such as a turntable, ferry,
elevator or ramp, the VDC warning
light

may illuminate. This is not

a malfunction. Restart the engine
after driving onto a stable surface.

If wheels or tires other than the

NISSAN recommended ones are
used, the VDC system may not
operate properly and the VDC warn-
ing light

may illuminate.

The VDC system is not a substitute

for winter tires or tire chains on a
snow covered road.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the remote keyless entry key fob.

ANTI-FREEZE

In the winter when it is anticipated that the
outside temperature will drop below 32

8F (08C),

check the anti-freeze to assure proper winter
protection. For additional information, see “En-
gine cooling system” (P.8-7).

BATTERY

If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see “Battery” (P.8-13).

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “Engine cooling system” (P.8-7).

COLD WEATHER DRIVING

TIRE EQUIPMENT

SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or icy
roads, NISSAN recommends the use of MUD &
SNOW or ALL SEASON tires on all four wheels.
Consult a NISSAN dealer for the tire type, size,
speed rating and availability information.

For additional traction on icy roads, studded
tires may be used. However, some U.S. states
prohibit their use. Check local, state and
provincial laws before installing studded tires.

Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.

Tire chains may be used. For details, see “Tire
chains” (P.8-34) of this manual.

All-Wheel Drive (AWD) model

If you install snow tires, they must also be the
same size, brand, construction and tread pattern
on all four wheels.

SPECIAL WINTER EQUIPMENT

It is recommended that the following items be
carried in the vehicle during winter:
. A scraper and stiff-bristled brush to remove

ice and snow from the windows and wiper
blades.

. A sturdy, flat board to be placed under the

jack to give it firm support.

. A shovel to dig the vehicle out of snow-

drifts.

. Extra window washer fluid to refill the

reservoir tank.

DRIVING ON SNOW OR ICE

WARNING

Wet ice (328F, 08C and freezing rain),

very cold snow or ice can be slick
and very hard to drive on. The
vehicle will have much less traction
or “grip” under these conditions. Try
to avoid driving on wet ice until the
road is salted or sanded.

Whatever the condition, drive with

caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels
will lose even more traction.

Allow more stopping distance under

these conditions. Braking should be
started sooner than on dry pave-
ment.

Allow greater following distances

on slippery roads.

Watch for slippery spots (glare ice).

These may appear on an otherwise
clear road in shaded areas. If a
patch of ice is seen ahead, brake
before reaching it. Try not to brake
while on the ice, and avoid any
sudden steering maneuvers.

Do not use cruise control (if so

equipped) on slippery roads.

Snow can trap dangerous exhaust

gases under your vehicle. Keep
snow clear of the exhaust pipe and
from around your vehicle.

Starting and driving

5-29

5-30

Starting and driving

MEMO

6-2

In case of emergency

SIC2574

Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.

WARNING

If stopping for an emergency, be

sure to move the vehicle well off the
road.

Do not use the hazard warning

flashers while moving on the high-
way unless unusual circumstances
force you to drive so slowly that
your vehicle might become a hazard

to other traffic.

Turn signals do not work when the

hazard warning flasher lights are
on.

The flasher can be actuated with the ignition
switch in any position.

Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)

This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h). For more
details, see “Warning/indicator lights and audi-
ble reminders” (P.2-9) and “Tire Pressure
Monitoring System (TPMS)” (P.5-3).

WARNING

If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire

HAZARD WARNING FLASHER
SWITCH

FLAT TIRE

failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If you have a flat tire, replace it
with a spare tire as soon as possi-
ble.

When a spare tire is mounted or a

wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.

Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

Do not inject any tire liquid or

aerosol tire sealant into the tires,
as this may cause a malfunction of

the tire pressure sensors.

CHANGING A FLAT TIRE

If you have a flat tire, follow the instructions
below.

Stopping the vehicle

1. Safely move the vehicle off the road and

away from traffic.

2. Turn on the hazard warning flashers.

3. Park on a level surface and apply the parking

brake. Move the shift lever to the P (Park)
position.

4. Turn off the engine.

5. Raise the hood to warn other traffic, and to

signal professional road assistance person-
nel that you need assistance.

6. Have all passengers get out of the vehicle

and stand in a safe place, away from traffic
and clear of the vehicle.

WARNING

Make sure the parking brake is

securely applied and the transmis-
sion is shifted into the P (Park)
position.

Never change tires when the vehicle

is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming

traffic is close to your vehicle. Wait
for professional road assistance.

In case of emergency

6-3

6-4

In case of emergency

MCE0001A

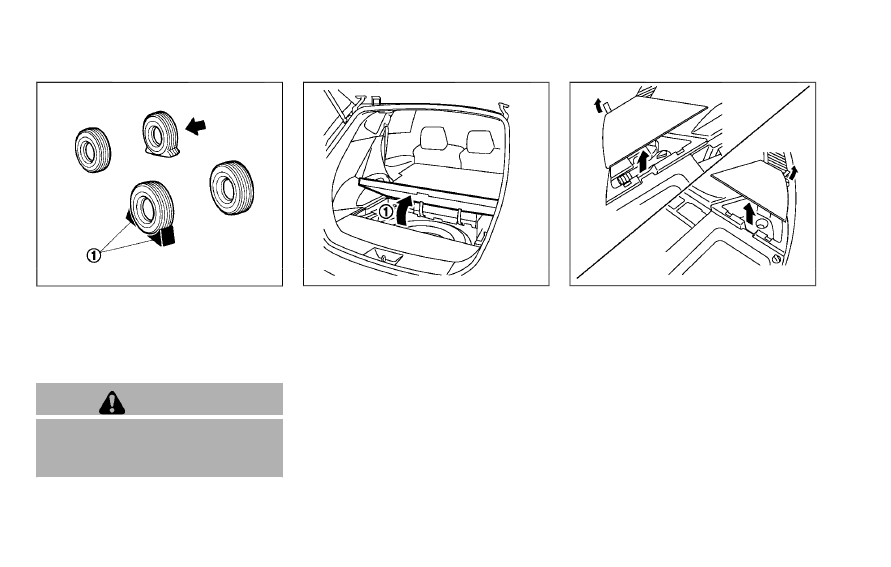

Blocking wheels

Place suitable blocks

*

1

at both the front and

back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it is
jacked up.

WARNING

Be sure to block the wheel as the
vehicle may move and result in personal
injury.

SCE0958

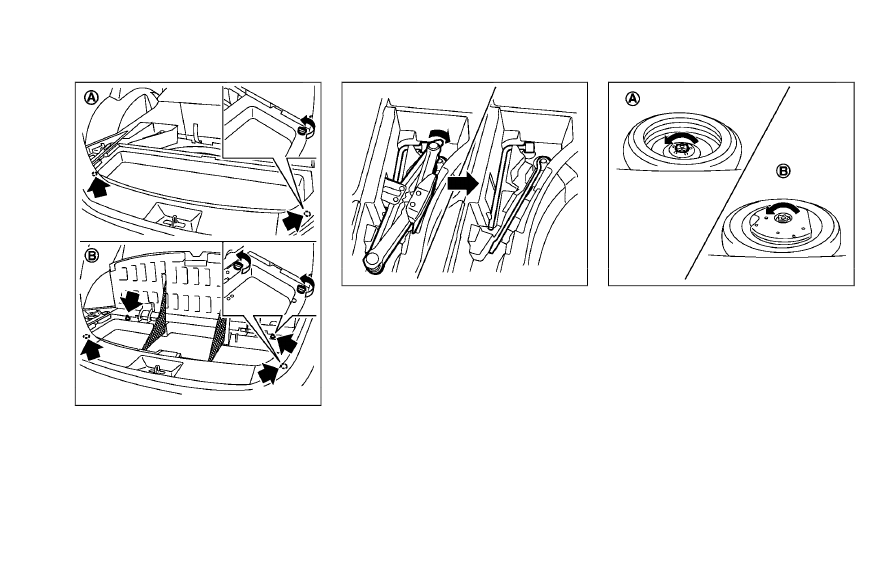

Getting the spare tire and tools

1. Open the lift gate.

2. Remove the cargo cover (if so equipped).

(See “Cargo cover” (P.2-36).)

3. Lift up the luggage floor board

*

1

(foldable

or separate type).

SCE0858

4. Remove the lids of the luggage side boxes.

SCE0859

5. Remove the luggage floor box (Type A or B)

by turning the clips counterclockwise.

SCE0699

Jacking tools

6. Remove the jacking tools and the spare tire.

Jacking tools: Remove the jack by turning it,
then remove the other tools.

JVE0026X

Spare tire

Type A (if so equipped):

Rotate the clamp until it can be removed then
remove the spare tire.

Type B (if so equipped):

Rotate the clamp until it can be removed then
relocate the subwoofer to a side of the cargo
area and remove the spare tire.

In case of emergency

6-5

6-6

In case of emergency

SCE0630

Removing wheel cover (if so equipped)

WARNING

Never use your hands to remove the
wheel cover. This may cause personal
injury.

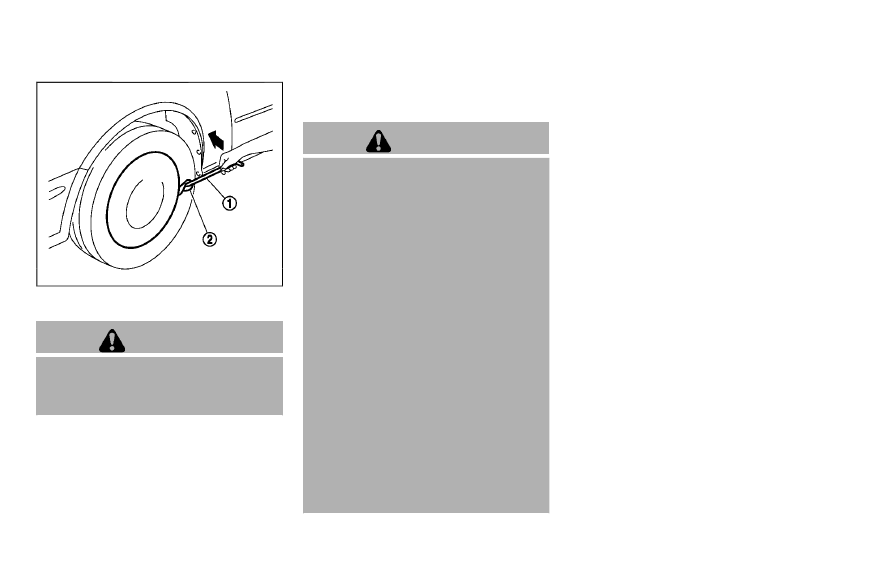

To remove the wheel cover, use the jack rod

*

1

as illustrated.

Apply cloth

*

2

between the wheel and jack rod

to prevent damaging the wheel and wheel cover.

Jacking up the vehicle and removing the
damaged tire

WARNING

Never get under the vehicle while it

is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

Use only the jack provided with your

vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.

Use the correct jack-up points.

Never use any other part of the
vehicle for jack support.

Never jack up the vehicle more than

necessary.

Never use blocks on or under the

jack.

Do not start or run the engine while

vehicle is on the jack, as it may
cause the vehicle to move.

Do not allow passengers to stay in

the vehicle while it is on the jack.

Carefully read the caution label attached
to the jack body and the following instruc-
tions.

SCE0572

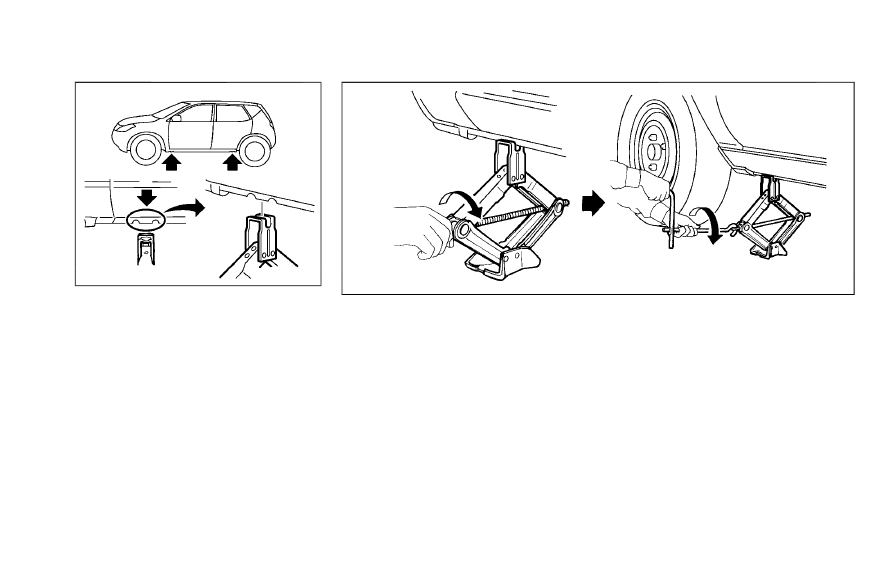

Jack-up point

1. Place the jack directly under the jack-up

point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head between
the notches as shown.

The jack should be used on level firm
ground.

SCE0751

2. Loosen each wheel nut one or two turns by

turning counterclockwise with the wheel nut
wrench. Do not remove the wheel nuts
until the tire is off the ground.

3. To lift the vehicle, securely hold the jack lever

and rod with both hands as shown above.
Carefully raise the vehicle until the tire clears
the ground. Remove the wheel nuts, and
then remove the tire.

In case of emergency

6-7

6-8

In case of emergency

SCE0039

Installing the spare tire

The spare tire is designed for emergency
use. (See specific instructions under the
heading “Wheels and tires” (P.8-29).)

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and tighten

the wheel nuts finger tight. Check that all the
wheel nuts contact the wheel surface
horizontally.

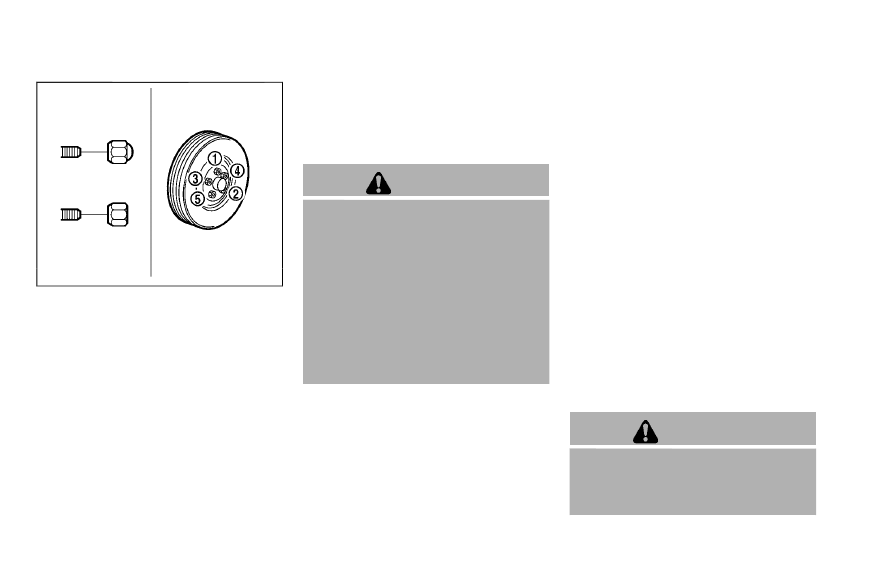

3. With the wheel nut wrench, tighten wheel

nuts alternately and evenly in the sequence
as illustrated (

*

1

,

*

2

,

*

3

,

*

4

,

*

5

), more

than 2 times, until they are tight.

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence as illustrated. Lower the
vehicle completely.

WARNING

Incorrect wheel nuts or improperly

tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

Do not use oil or grease on the

wheel studs or nuts. This could
cause the nuts to become loose.

Retighten the wheel nuts when the

vehicle has been driven for 600
miles (1,000 km) (also in cases of a
flat tire, etc.).

.

As soon as possible, tighten the

wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tightened
to specification at all times. It is
recommended that wheel nuts be tigh-

tened to specifications at each lubrica-
tion interval.

.

Adjust tire pressure to the COLD

pressure.

COLD pressure:

After the vehicle has been parked for
three hours or more or driven less than
1 mile (1.6 km).

COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar.

Stowing the damaged tire and the tools

1. Securely store the damaged tire, jack and

tools in the storage area.

2. Replace the luggage floor box.

3. Replace the lids on the luggage side boxes.

4. Close the luggage floor board.

5. Replace the cargo cover (if so equipped).

6. Close the lift gate.

WARNING

Always make sure that the spare tire

and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an

accident or sudden stop.

The T-type spare tire and small size

spare tire are designed for emer-
gency use. See specific instructions
under the heading “Wheels and
tires” (P.8-29).

To start your engine with a booster battery, the
instructions and precautions below must be
followed.

WARNING

If done incorrectly, jump starting

can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.

Explosive hydrogen gas is always

present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.

Do not allow battery fluid to come

into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulfuric acid solution
which can cause severe burns. If
the fluid should come into contact
with anything, immediately flush the
contacted area with water.

Keep the battery out of the reach of

children.

The booster battery must be rated at

12 volts. Use of an improperly rated
battery can damage your vehicle.

Whenever working on or near a

battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.

Do not attempt to jump start a

frozen battery. It could explode
and cause serious injury.

Your vehicle has an automatic en-

gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.

In case of emergency

6-9

JUMP STARTING

6-10

In case of emergency

SCE0707

WARNING

Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.

1. If the booster battery is in another vehicle

*

B

, position the two vehicles (

*

A

and

*

B

)

to bring their batteries into close proximity to
each other.

Do not allow the two vehicles to touch.

2. Apply the parking brake. Move the shift lever

to the P (Park) position. Switch off all
unnecessary electrical systems (lights, hea-
ter, air conditioner, etc.).

3. Remove vent caps on the battery (if so

equipped). Cover the battery with a firmly
wrung out moist cloth to reduce explosion
hazard.

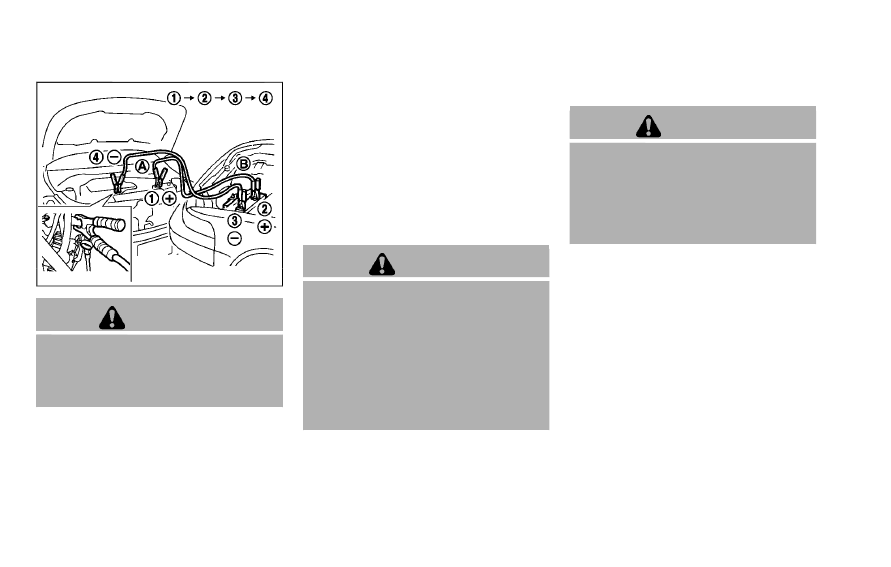

4. Connect jumper cables in the sequence as

illustrated (

*

1

?

*

2

?

*

3

?

*

4

).

CAUTION

Always connect positive (+) to posi-

tive (+) and negative (

í) to body

ground (for example, as illustrated),
not to the battery.

Make sure the jumper cables do not

touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.

5. Start the engine of the booster vehicle

*

B

and let it run for a few minutes.

6. Keep the engine speed of the booster

vehicle

*

B

at about 2,000 rpm, and start

the engine of the vehicle

*

A

being jump

started.

CAUTION

Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, turn the
ignition switch to the OFF position
and wait 10 seconds before trying
again.

7. After starting your engine, carefully discon-

nect the negative cable and then the positive
cable (

*

4

?

*

3

?

*

2

?

*

1

).

8. Replace the vent caps (if so equipped). Be

sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.

Do not attempt to start the engine by pushing.

CAUTION

Continuously Variable Transmission
(CVT) models cannot be push-started
or tow-started. Attempting to do so may
cause transmission damage.

CAUTION

Do not continue to drive if your

vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.

To avoid the danger of being

scalded, never remove the radiator
cap while the engine is still hot.
When the radiator cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.

Do not open the hood if steam is

coming out.

If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:

1. Move the vehicle safely off the road, apply

the parking brake and move the shift lever to
the P (Park) position.

Do not stop the engine.

2. Turn off the air conditioner. Open all the

windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed.

3. Get out of the vehicle. Look and listen for

steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.

4. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent getting
burned.

5. Visually check drive belts for damage or

looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine

In case of emergency

6-11

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

6-12

In case of emergency

cooling fan can start at any time.

6. After the engine cools down, check the

coolant level in the reservoir tank with the
engine running. Add coolant to the reservoir
tank if necessary. Have your vehicle repaired
at a NISSAN dealer.

When towing your vehicle, all State and local
regulations for towing must be followed. Incor-
rect towing equipment could damage your
vehicle. Towing instructions are available from
a NISSAN dealer. Local service operators are
familiar with the applicable laws and procedures
for towing. To assure proper towing and to
prevent accidental damage to your vehicle,
NISSAN recommends that you have a service
operator tow your vehicle. It is advisable to have
the service operator carefully read the following
precautions.

WARNING

Never ride in a vehicle that is being

towed.

Never get under your vehicle after it

has been lifted by a tow truck.

CAUTION

When towing, make sure that the

transmission, axles, steering system
and powertrain are in working con-
dition. If any unit is damaged, dol-
lies must be used.

Always attach safety chains before

towing.

For information about towing your vehicle behind
a recreational vehicle (RV), see “Flat towing”
(P.9-24) of this manual.

TOWING YOUR VEHICLE















Content   ..  12  13  14  15   ..
