. “Mute” — Use the Mute command to mute

your voice so the other party cannot hear it.
Use the mute command again to unmute
your voice.

NOTE:

If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.

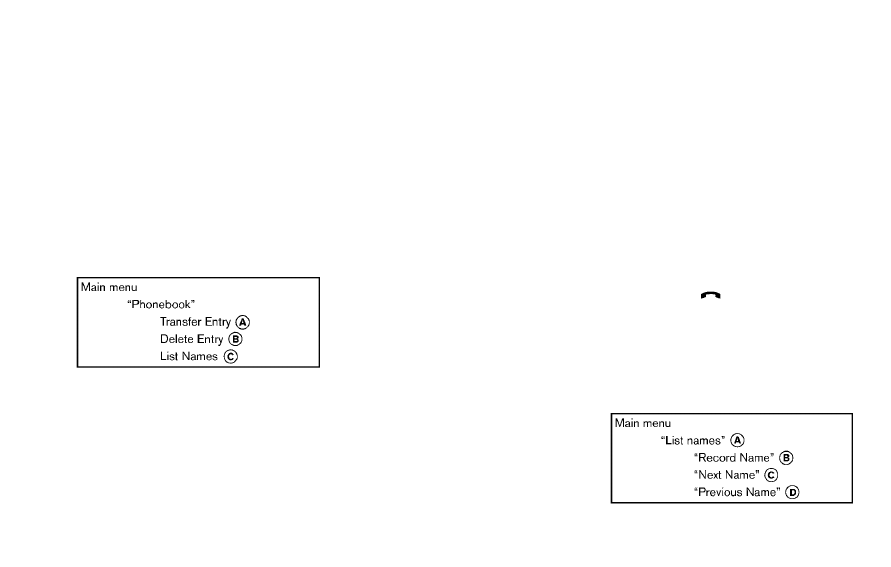

Phonebook (phones without automatic
phonebook download function)

“Transfer Entry”

Use the Transfer Entry command to store a new
name in the system.

When prompted by the system, say the name
you would like to give the new entry.

For example, say: “Mary.”

If the name is too long or too short, the system
tells you, then prompts you for a name again.

Also, if the name sounds too much like a name

already stored, the system tells you, then
prompts you for a name again.

The system will ask you to transfer a phone
number stored in the cellular phone’s memory.

To enter a phone number by voice command:

For example, say: “five five five one two one
two.” See “How to say numbers” earlier in this
section for more information.

To transfer a phone number stored in the cellular
phone’s memory:

Say: “Transfer entry.” The system acknowledges
the command and asks you to initiate the
transfer from the phone handset. The new
contact phone number will be transferred from
the cellular phone via the Bluetooth

commu-

nication link.

The transfer procedure varies according to each
cellular phone. See the cellular phone Owner’s
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
transferring phone numbers from NISSAN re-
commended cellular phones.

The system repeats the number and prompts
you for the next command. When you have
finished entering numbers or transferring an
entry, choose “Store.”

The system confirms the name, location and
number.

“Delete Entry”

Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say “List Names” to choose an entry.

“List Names”

Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.

Playback of the list can be stopped at any time
by pushing the

button on the steering

wheel. The system ends the VR session.

Phonebook (phones with automatic
phonebook download function)

NOTE:

Phonebook commands are not available
when the vehicle is moving.

For phones that support automatic download of

Heater, air conditioner, audio, phone and voice recognition systems

4-47

4-48

Heater, air conditioner, audio, phone and voice recognition systems

the phonebook (PBAP Bluetooth profile), the
“Phonebook” command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.

The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.

When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth

system and call

contacts by name. You can record a custom
voice tag for contact names that the system has
difficulty recognizing. For more information see
“Record Name” in this section.

NOTE:

Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with
Phone B.

“List names”

Use the List Names command to hear all the
names and locations in the phone book.

The system recites the phone book entries but
does not include the actual phone numbers.
When the playback of the list is complete, the

system goes back to the main menu.

You can stop the playback of the list at any time
by pushing the

button on the steering

wheel. The system ends the VR session. See the
“Record Name” command in this section for
information about recording custom voice tags
for list entries that the system has difficulty
pronouncing.

“Record name”

The system allows you to record custom voice
tags for contact names in the phonebook that
the vehicle has difficulty recognizing. This
feature can also be used to record voice tags
to directly dial an entry with multiple numbers.
Up to 40 voice tags can be recorded to the
system.

“Next Name”

Use the Next Name command to move the next
name of list.

“Previous Name”

Use the Previous Name command to move the
previous name of list.

Recent Calls

Use the Recent Calls command to access
outgoing, incoming or missed calls.

“Outgoing”

Use the Outgoing command to list the outgoing
calls made from the vehicle.

“Incoming”

Use the Incoming command to list the incoming
calls made from the vehicle.

“Missed”

Use the Missed command to list the missed
calls made to the vehicle that were not
answered.

“Call Back”

Use the Call Back command to dial the number
of the most recently received call.

Connect Phone

NOTE:

Add Phone command is not available
when the vehicle is moving.

Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth

function on the vehicle.

“Add Phone”

Use the Add Phone command to add a phone to
the vehicle. See “Connecting procedure” (P.4-
44) for more information.

“Select Phone”

Use the Select Phone command to select from a
list of phones connected to the vehicle. The
system will list the names assigned to each
phone and then prompt you for the phone you
wish to select. Only one phone can be active at
a time.

“Delete Phone”

Use the Delete Phone command to delete a
phone that is connected to the vehicle. The
system will list the names assigned to each
phone and then prompt you for the phone you
wish to delete. Deleting a phone from the vehicle
will also delete that phonebook for that phone.

“Bluetooth Off”

Use the Bluetooth Off command to prevent a
wireless connection to your phone.

“Replace phone”

This can be used to reconnect a new phone with
the vehicle you have changed your cellular
phone.

SPEAKER ADAPTATION (SA) MODE

Speaker Adaptation allows up to two out-of
dialect users to train the system to improve
recognition accuracy. By repeating a number of
commands, the users can create a voice model
of their own voice that is stored in the system.
The system is capable of storing a different
speaker adaptation model for each connected
phone.

Training procedure

1. Position the vehicle in a reasonably quiet

outdoor location.

2. Sit in the driver’s seat with the engine

running, the parking brake on, and the
transmission in Park.

3. Push and hold the

button for more than

5 seconds.

4. The system announces: “Push the PHONE

SEND (

) button for the hands-free

phone system to enter the speaker adapta-
tion mode or push the PHONE END (

)

button to select a different language.”

5. Push the

button.

For information on selecting a different
language, see “Choosing a language” (P.4-
44).

6. If the connected phone is already in use, the

system will prompt you to overwrite. Follow
the instructions provided by the system.

7. When preparation is complete and you are

ready to begin, push the

button.

8. The SA mode will be explained. Follow the

instructions provided by the system.

9. When training is finished, the system will tell

you an adequate number of phrases have
been recorded.

Heater, air conditioner, audio, phone and voice recognition systems

4-49

4-50

Heater, air conditioner, audio, phone and voice recognition systems

10. The system will announce that speaker

adaptation has been completed and the
system is ready.

The SA mode will stop if:
. The

button is pushed for more than 5

seconds in SA mode.

. The vehicle is driven during SA mode.
. The ignition switch is placed in the OFF or

LOCK position.

Training phrases

During the SA mode, the system instructs you to
say the following phrases.

(The system will prompt you for each phrase.)
. phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes

. no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. setup main menu
. dial 7 4 0 1 8
. memo pad delete
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1

. go back
. call 5 6 2 8 0
. dial 6 6 4 3 7

TROUBLESHOOTING GUIDE

The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.

Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.

Symptom

Solution

The System fails to interpret the command correctly.

1. Ensure that the command is valid. See “List of voice commands” (P.4-45).

2. Ensure that the command is spoken after the tone.

3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.

4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.

5. If more than one command was said at a time, try saying the commands separately.

6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to
improve the recognition response for the speaker. See “Speaker Adaptation (SA) mode” (P.4-49).

The system consistently selects the wrong entry from
the phonebook.

1. Ensure that the phonebook entry name requested matches what was originally stored. This can be confirmed by
using the “List Names” command. See “Phonebook (phones without automatic phonebook download function)”
(P.4-47).

2. Replace one of the names being confused with a new name.

Heater, air conditioner, audio, phone and voice recognition systems

4-51

5-2

Starting and driving

WARNING

. Do not leave children or adults who

would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent op-
eration of the vehicle. Also, on hot,
sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.

. Properly secure all cargo with ropes

or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.

EXHAUST GAS (carbon monoxide)

WARNING

. Do not breathe exhaust gases; they

contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.

. If you suspect that exhaust fumes

are entering the vehicle, drive with
all windows fully open, and have the
vehicle inspected immediately.

. Do not run the engine in closed

spaces such as a garage.

. Do not park the vehicle with the

engine running for any extended
length of time.

. Keep the lift gate closed while

driving, otherwise exhaust gases
could be drawn into the passenger
compartment. If you must drive with
the lift gate open, follow these
precautions:

1. Open all the windows.

2. Set the

air recirculation to off

and the fan control to high to

circulate the air.

. If electrical wiring or other cable

connections must pass to a trailer
through the seal on the lift gate or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

. If a special body, camper or other

equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the
vehicle. (Some recreational vehicle
appliances such as stoves, refrig-
erators, heaters, etc. may also gen-
erate carbon monoxide.)

. The exhaust system and body

should be inspected by a qualified
mechanic whenever:

— The vehicle is raised for service.

— You suspect that exhaust fumes

are entering into the passenger
compartment.

— You notice a change in the

sound of the exhaust system.

— You have had an accident invol-

ving damage to the exhaust

PRECAUTIONS WHEN STARTING
AND DRIVING

system, underbody, or rear of
the vehicle.

THREE-WAY CATALYST

The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.

WARNING

. The exhaust gas and the exhaust

system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.

. Do not stop or park the vehicle over

flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

CAUTION

. Do not use leaded gasoline. Depos-

its from leaded gasoline will ser-
i o u s l y r e d u c e

t h e t h r e e - w a y

catalyst’s ability to help reduce ex-

haust pollutants.

. Keep your engine tuned up. Mal-

functions in the ignition, fuel injec-
tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating
conditions are detected. Have the
vehicle inspected promptly by a
NISSAN dealer.

. Avoid driving with an extremely low

fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.

. Do not race the engine while warm-

ing it up.

. Do not push or tow your vehicle to

start the engine.

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your

vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper
tire inflation pressure for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires
is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-

Starting and driving

5-3

5-4

Starting and driving

mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.

Additional information

. The TPMS does not monitor the tire

pressure of the spare tire.

. The TPMS will activate only when the

vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving).

. The low tire pressure warning light does not

automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire

pressure warning light. Use a tire pressure
gauge to check the tire pressure.

. The CHECK TIRE PRESSURE warning

appears in the vehicle information display
when the low tire pressure warning light is
illuminated and low tire pressure is detected.
The CHECK TIRE PRESSURE warning
turns off when the low tire pressure warning
light turns off.
The CHECK TIRE PRESSURE warning
appears for a period of time each time the
ignition switch is placed in the ON position
as long as the low tire pressure warning light
remains illuminated.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a TPMS
malfunction.

. Tire pressure rises and falls depending on

the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.

For additional information, see “Low tire pres-

sure warning light” (P.2-12) and “Tire Pressure
Monitoring System (TPMS)” (P.6-2).

WARNING

. If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If you have a flat tire, replace it
with a spare tire as soon as possi-
ble. (See “Flat tire” (P.6-2) for chan-
ging a flat tire.)

. When a spare tire is mounted or a

wheel is replaced, the TPMS will not

function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

. Do not inject any tire liquid or

aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.

CAUTION

. The TPMS may not function properly

when the wheels are equipped with
tire chains or the wheels are buried
in snow.

. Do not place metalized film or any

metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire
pressure sensors, and the TPMS will

not function properly.

Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
. Facilities or electric devices using similar

radio frequencies are near the vehicle.

. If a transmitter set to similar frequencies is

being used in or near the vehicle.

. If a computer (or similar equipment) or a DC/

AC converter is being used in or near the
vehicle.

FCC Notice:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

AVOIDING COLLISION AND ROLL-
OVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.

Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering
maneuvers, because these driving practices
could cause you to lose control of your vehicle.
As with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt as outlined in the “Seat
belts” (P.1-9) of this manual, and also instruct
your passengers to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is

Starting and driving

5-5

5-6

Starting and driving

significantly more likely to be injured or
killed than a person properly wearing a
seat belt.

ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS

Utility vehicles have a significantly higher
rollover rate than other types of vehicles.

They have higher ground clearance than pas-
senger cars to make them capable of performing
in a variety of on-pavement and off-road
applications. This gives them a higher center of
gravity than ordinary cars. An advantage of
higher ground clearance is a better view of the
road, allowing you to anticipate problems.
However, they are not designed for cornering
at the same speeds as conventional passenger
cars any more than low-slung sports cars are
designed to perform satisfactorily under off-road
conditions. If at all possible, avoid sharp turns or
abrupt maneuvers, particularly at high speeds.
As with other vehicles of this type, failure to
operate this vehicle correctly may result in loss
of control or vehicle rollover. Seat belts help
reduce the risk of injury in collisions and
rollovers. In a rollover crash, an unbelted or
improperly belted person is significantly more
likely to be injured or killed than a person
properly wearing a seat belt.

Be sure to read “Driving safety precautions”

(P.5-7).

OFF-ROAD RECOVERY

If the right side or left side wheels leave the road
surface, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

4. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while the vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface until
vehicle speed is reduced.

6. When it is safe to do so, gradually turn the

steering wheel until both tires return to the
road surface. When all tires are on the road
surface, steer the vehicle to stay in the
appropriate driving lane.

If you decide that it is not safe to return

the vehicle to the road surface based on
vehicle, road or traffic conditions, gradu-

ally slow the vehicle to a stop in a safe
place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.

Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.

Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“Wheels and tires” (P.8-29) of this manual.

If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air
pressure. Losing control of the vehicle

may cause a collision and result in
personal injury.

. The vehicle generally moves or pulls

in the direction of the flat tire.

. Do not rapidly apply the brakes.
. Do not rapidly release the accelera-

tor pedal.

. Do not rapidly turn the steering

wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

3. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

4. Gradually steer the vehicle to a safe location

off the road and away from traffic if possible.

5. Lightly apply the brake pedal to gradually

stop the vehicle.

6. Turn on the hazard warning flashers and

either contact a roadside emergency service
to change the tire or see “Changing a flat
tire” (P.6-3) of this Owner’s Manual.

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of
alcohol or drugs. Alcohol in the blood-
stream reduces coordination, delays
reaction time and impairs judgement.
Driving after drinking alcohol increases
the likelihood of being involved in an
accident injuring yourself and others.
Additionally, if you are injured in an
accident, alcohol can increase the se-
verity of the injury.

NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents.
Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of
alcohol.

Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired by

alcohol, drugs, or some other physical condition.

DRIVING SAFETY PRECAUTIONS

Your NISSAN is designed for both normal and
off-road use. However, avoid driving in deep
water or mud as your NISSAN is mainly
designed for leisure use, unlike a conventional
off-road vehicle.

Remember that Two-Wheel Drive (2WD) mod-
els are less capable than All-Wheel Drive
(AWD) models for rough road driving and
extrication when stuck in deep snow, mud, or
the like.

Please observe the following precautions:

WARNING

. Drive carefully when off the road

and avoid dangerous areas. Every
person who drives or rides in this
vehicle should be seated with their
seat belt fastened. This will keep
you and your passengers in position
when driving over rough terrain.

. Do not drive across steep slopes.

Instead drive either straight up or
straight down the slopes. Off-road
vehicles can tip over sideways much
more easily than they can forward or

Starting and driving

5-7

5-8

Starting and driving

backward.

. Many hills are too steep for any

vehicle. If you drive up them, you
may stall. If you drive down them,
you may not be able to control your
speed. If you drive across them, you
may roll over.

. Do not shift ranges while driving on

downhill grades as this could cause
loss of control of the vehicle.

. Stay alert when driving to the top of

a hill. At the top there could be a
drop-off or other hazard that could
cause an accident.

. If your engine stalls or you cannot

make it to the top of a steep hill,
never attempt to turn around. Your
vehicle could tip or roll over. Always
back straight down in R (Reverse)
range. Never back down in N (Neu-
tral), using only the brake, as this
could cause loss of control.

. Heavy braking going down a hill

could cause your brakes to overheat
and fade, resulting in loss of control
and an accident. Apply brakes
lightly and use a low range to
control your speed.

. Unsecured cargo can be thrown

around when driving over rough
terrain. Properly secure all cargo
so it will not be thrown forward
and cause injury to you or your
passengers.

. To avoid raising the center of gravity

excessively, do not exceed the rated
capacity of the roof rack (if so
equipped) and evenly distribute the
load. Secure heavy loads in the
cargo area as far forward and as
low as possible. Do not equip the
vehicle with tires larger than speci-
fied in this manual. This could cause
your vehicle to roll over.

. Do not grip the inside or spokes of

the steering wheel when driving off-
road. The steering wheel could
move suddenly and injure your
hands. Instead drive with your fin-
gers and thumbs on the outside of
the rim.

. Before operating the vehicle, ensure

that the driver and all passengers
have their seat belts fastened.

. Always drive with the floor mats in

place as the floor may became hot.

. Lower your speed when encounter-

ing strong crosswinds. With a higher
center of gravity, your NISSAN is
more affected by strong side winds.
Slower speeds ensure better vehicle
control.

. Do not drive beyond the perfor-

mance capability of the tires, even
with AWD engaged.

. For AWD equipped vehicles, do not

attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with
the engine running. Doing so may
result in drivetrain damage or un-
expected vehicle movement which
could result in serious vehicle da-
mage or personal injury.

. Do not attempt to test an AWD

equipped vehicle on a 2-wheel dy-
namometer (such as the dynam-
ometers used by some states for
emissions testing), or similar equip-
ment even if the other two wheels
are raised off the ground. Make sure
you inform test facility personnel
that your vehicle is equipped with
AWD before it is placed on a
dynamometer. Using the wrong test

equipment may result in drivetrain
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.

. When a wheel is off the ground due

to an unlevel surface, do not spin
the wheel excessively. (AWD mod-
els)

. Accelerating quickly, sharp steering

maneuvers or sudden braking may
cause loss of control.

. If at all possible, avoid sharp turning

maneuvers, particularly at high
speeds. Your vehicle has a higher
center of gravity than a conventional
passenger car. The vehicle is not
designed for cornering at the same
speeds as conventional passenger
cars. Failure to operate this vehicle
correctly could result in loss of
control and/or a rollover accident.

. Always use tires of the same type,

size, brand, construction (bias, bias-
belted or radial), and tread pattern
on all four wheels. Install traction
devices on the front wheels when
driving on slippery roads and drive
carefully.

. Be sure to check the brakes imme-

diately after driving in mud or water.
See “Brake system” (P.5-25) for wet
brakes.

. Avoid parking your vehicle on steep

hills. If you get out of the vehicle
and it rolls forward, backward or
sideways, you could be injured.

. Whenever you drive off-road

through sand, mud or water as deep
as the wheel hub, more frequent
maintenance may be required. See
the maintenance information in the
“NISSAN Service and Maintenance
Guide”.

. Spinning the front wheels on slip-

pery surfaces may cause the AWD
warning light to flash and the AWD
system to automatically switch from
the AWD mode to the 2WD mode.
This could reduce traction. Be espe-
cially careful when towing a trailer.
(AWD models)

SSD0392

CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)

The ignition lock is designed so that the ignition
switch cannot be turned to the LOCK position
until the shift lever is moved to the P (Park)
position.
. When turning the ignition switch to the

LOCK position, make sure that the shift lever
is in the P (Park) position.

. When removing the key from the ignition

switch, make sure that the shift lever is in the
P (Park) position.

Starting and driving

5-9

IGNITION SWITCH

5-10

Starting and driving

When the ignition switch cannot be turned to
the LOCK position:

1. Move the shift lever to the P (Park) position.

2. Turn the ignition switch slightly in the ON

direction.

3. Turn the ignition switch to the LOCK

position.

4. Remove the key.

If the ignition switch is turned to the LOCK
position, the shift lever cannot be moved from
the P (Park) position. The shift lever can be
moved if the ignition switch is in the ON position
with the foot brake pedal depressed.

The OFF position

is between the LOCK and

ACC positions, although it is not marked on the
ignition switch.

KEY POSITIONS

LOCK (0)

The key can only be removed from the ignition
switch at this position.

OFF (1)

The power supply is turned off.

ACC (2)

The electrical accessory power activates without
the engine turned on.

ON (3)

The ignition system and the electrical accessory
power activate without the engine turned on.

START (4)

The engine starter activates and the engine will
start. The ignition switch, when released, will
automatically turn to the ON position.

CAUTION

As soon as the engine has started,
release the ignition switch immediately.

. Make sure the area around the vehicle is

clear.

. Check fluid levels such as engine oil, cool-

ant, brake fluid, and window washer fluid as
frequently as possible, or at least whenever
you refuel.

. Check that all windows and lights are clean.
. Visually inspect tires for their appearance

and condition. Also check tires for proper
inflation.

. Lock all doors.
. Position seat and adjust head restraints/

headrests.

. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to

do likewise.

. Check the operation of warning lights when

the ignition key is turned to the ON position.
(See “Warning/indicator lights and audible
reminders” (P.2-9).)

BEFORE STARTING THE ENGINE

Nissan Rogue Select (2015 year). Instruction - part 12
