Nissan Pathfinder Hybrid (2015 year). Instruction

● Do not push the sunshade arm with

your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.

● Do not put any object into the sunshade

inlet port as this may result in improper
operation or damage the sunshade.

● Do not hang any object on the arm rail

as this may result in improper operation
or damage the sunshade.

● Do not forcefully pull the sunshade. Do-

ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.

Restarting the sunshade switch

If the sunshade does not operate properly, per-
form the following procedure to initialize the sun-
shade operation system.

1. Switch the vehicle ignition to the ACCES-

SORY or RUN mode.

2. Press and hold the sunshade close switch.

3. Sunshade will begin moving towards the

close position only while the switch is con-
tinually pressed. (this disables the obstacle
detection).

4. Sunshade will stop for about 4 seconds.

5. Sunshade drive cable will travel in the open

direction for .394 in. (10 mm) then reverse
direction and stop at the normal close posi-
tion.

6. Release the sunshade close switch. Initial-

ization procedure is complete.

If the moonroof does not operate properly after
performing the procedure above, have your ve-
hicle checked by a NISSAN dealer.

Auto-reverse function (when closing
the sunshade)

The auto-reverse function can be activated when
the sunshade is closed by automatic operation
when the ignition switch is placed in the ON
position or for a period of time after the ignition
switch is placed in the OFF position.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the sunshade
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all of
the passengers have their hands, etc., in-
side

the

vehicle

before

closing

the

sunshade.

2-60

Instruments and controls

When the ON switch

䊊

is pressed, the footwell

lights (if so equipped), step lights (if so
equipped), map lights and rear personal lights
will automatically turn on and stay on for a period
of time when:

● The doors are unlocked by the Intelligent

Key, a key or the request switch (if so
equipped) while all doors are closed and the
ignition switch is in the OFF position.

● When individually pushed.

When the OFF switch

䊊

is pushed, the interior

lights do not illuminate even when pushed.

NOTE:

The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

CONSOLE LIGHT

The console light will turn on whenever the park-
ing lights or headlights are illuminated.

The console light brightness can be adjusted
with the illumination brightness control.

LIC2302

LIC2303

INTERIOR LIGHT

Instruments and controls

2-61

To turn on the personal lights, press and release
the switch

䊊

To turn the personal lights off, press and release
the switch

䊊

Push the button to turn the map lights on. To turn
them off, press the button again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

The cargo light on the overhead trim has a three-
position switch. To operate, push the switch to
the desired position.

䊊

ON: The light is illuminated.

䊊

DOOR: The light illuminates when the lift-
gate is opened. The light turns off when the
liftgate is closed.

䊊

OFF: The light does not illuminate regardless
of liftgate position or lock status.

LIC1413

LIC2304

SIC2063A

PERSONAL LIGHTS

MAP LIGHTS

CARGO LIGHT

2-62

Instruments and controls

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.

HomeLink® Universal Transceiver:

● Will operate most Radio Frequency (RF)

devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.

● Is powered by your vehicle’s battery. No

separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” in this section.

WARNING

● Do not use the HomeLink® Universal

Transceiver

with

any

garage

door

opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came

effective

for

opener

models

manufactured after April 1, 1982). A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener

without

these

features

in-

creases the risk of serious injury or
death.

● During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.

● Your vehicle’s engine should be turned

off while programming the HomeLink®
Universal Transceiver.

HOMELINK® UNIVERSAL
TRANSCEIVER

Instruments and controls

2-63

PROGRAMMING HOMELINK®

If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio-frequency.

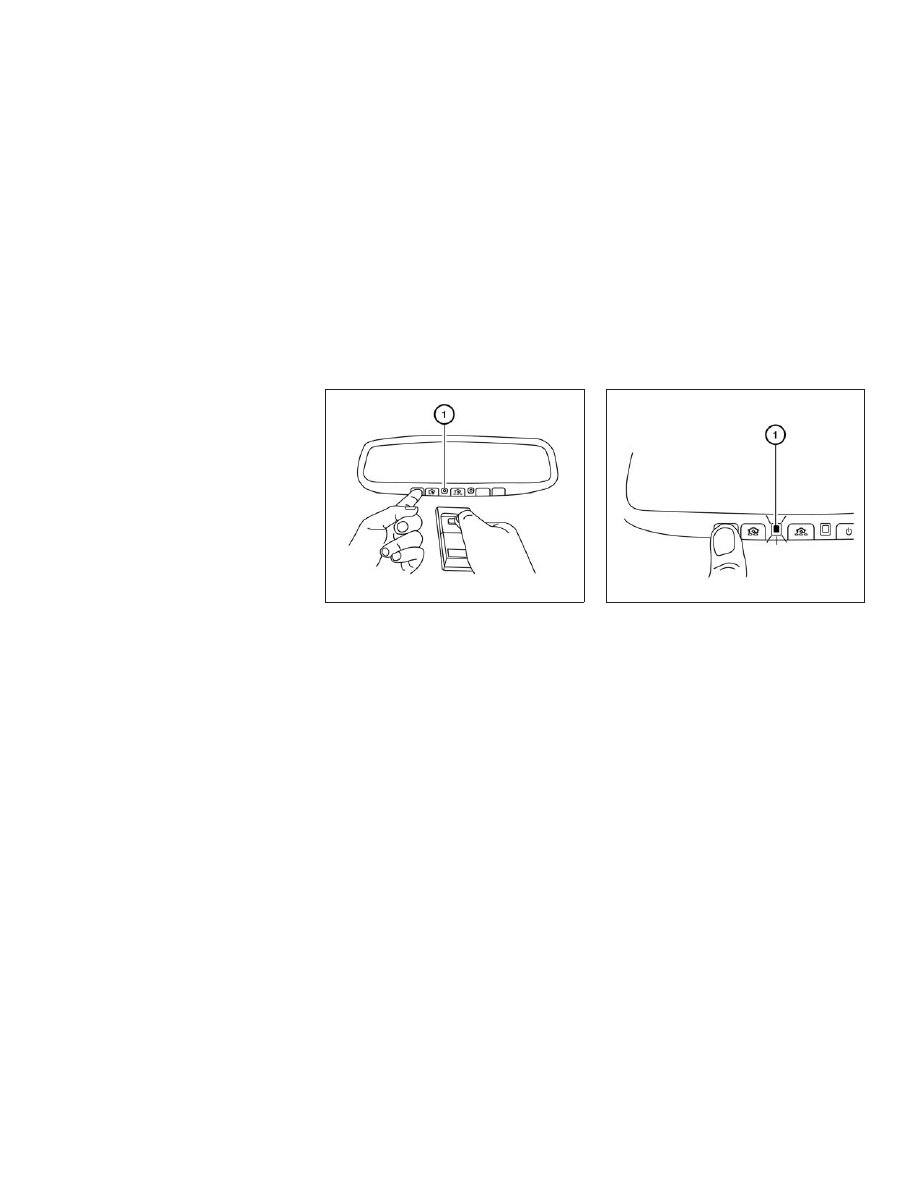

1. Position the end of your hand-held transmit-

ter 1–3 in (2–8 cm) away from the
HomeLink®

surface,

keeping

the

HomeLink® indicator light

䊊

in view.

2. Using both hands, simultaneously press and

hold the desired HomeLink® button and
hand-held transmitter button. DO NOT re-
lease until the HomeLink® indicator light

䊊

flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” in this sec-
tion.

3. Press

and

hold

the

programmed

HomeLink® button and observe the indica-
tor light.

● If

the

indicator

light

䊊

solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink® button is
pressed and released.

● If the indicator light

䊊

blinks rapidly for

2 seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device.

LIC2365

LIC2366

2-64

Instruments and controls

Do not stand on your vehicle to perform
the next steps.

4. At the receiver located on the garage door

opener motor in the garage, locate the
“learn” or “smart” button (the name and color
of the button may vary by manufacturer but it
is usually located near where the hanging
antenna wire is attached to the unit). If there
is difficulty locating the button, reference the
garage door opener’s manual.

5. Press and release the “learn” or “smart” but-

ton.

6. Return to the vehicle and firmly press and

hold the trained HomeLink® button for
2

seconds

and

release.

Repeat

the

“press/hold/release” sequence up to three
times to complete the training process.
HomeLink® should now activate your rolling
code equipped device.

7. If you have any questions or are having diffi-

culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-
3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS

Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having difficulties
training a gate operator or garage door opener
by using the “Training” procedures, replace
“Programming HomeLink®” Step 2 with the fol-
lowing:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

1. Refer to “Programming HomeLink®” step 1

in this section.

2. Using both hands, simultaneously press and

hold the desired HomeLink® button and the
hand-held transmitter button. During train-
ing, your hand-held transmitter may auto-
matically stop transmitting. Continue to

press and hold the desired HomeLink® but-
ton while you press and re-press (“cycle”)
your hand-held transmitter every 2 seconds
until the frequency signal has been learned.
The HomeLink® indicator light will flash
slowly and then rapidly after several seconds
upon successful training. DO NOT release
until the HomeLink® indicator light flashes
slowly and then rapidly. When the indicator
light flashes rapidly, both buttons may be
released. The rapid flashing indicates suc-
cessful training.
Proceed with “Programming HomeLink®”
step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release

the

appropriate

programmed

HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted.

For convenience, the hand-held transmitter of the
device may also be used at any time.

Instruments and controls

2-65

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

● replace the hand-held transmitter batteries

with new batteries.

● position the hand-held transmitter with its

battery

area

facing

away

from

the

HomeLink® surface.

● press and hold both the HomeLink® and

hand-held transmitter buttons without inter-
ruption.

● position the hand-held transmitter 1 - 3 in

(26 - 76 mm) away from the HomeLink®
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink® is not
programmed within that time, try holding the
transmitter in another position – keeping the
indicator light in view at all times.

If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed. For additional informa-
tion,

refer

“Reprogramming

single

HomeLink® button” in this section.

To clear all programming:

1. Press and hold the two outer HomeLink®

buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.

2. Release both buttons.

HomeLink® is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink®” - Step 1.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:

1. Press and hold the desired HomeLink® but-

ton. DO NOT release the button.

2. The indicator light will begin to flash after

seconds.

Without

releasing

the

HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.

For questions or comments, contact HomeLink®
at: www.homelink.com or 1–800–355–3515
(except Mexico).

The HomeLink® Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink®
button that was just programmed. This procedure
will not affect any other programmed HomeLink®
buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink®. Consult the
Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.

2-66

Instruments and controls

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.

Instruments and controls

2-67

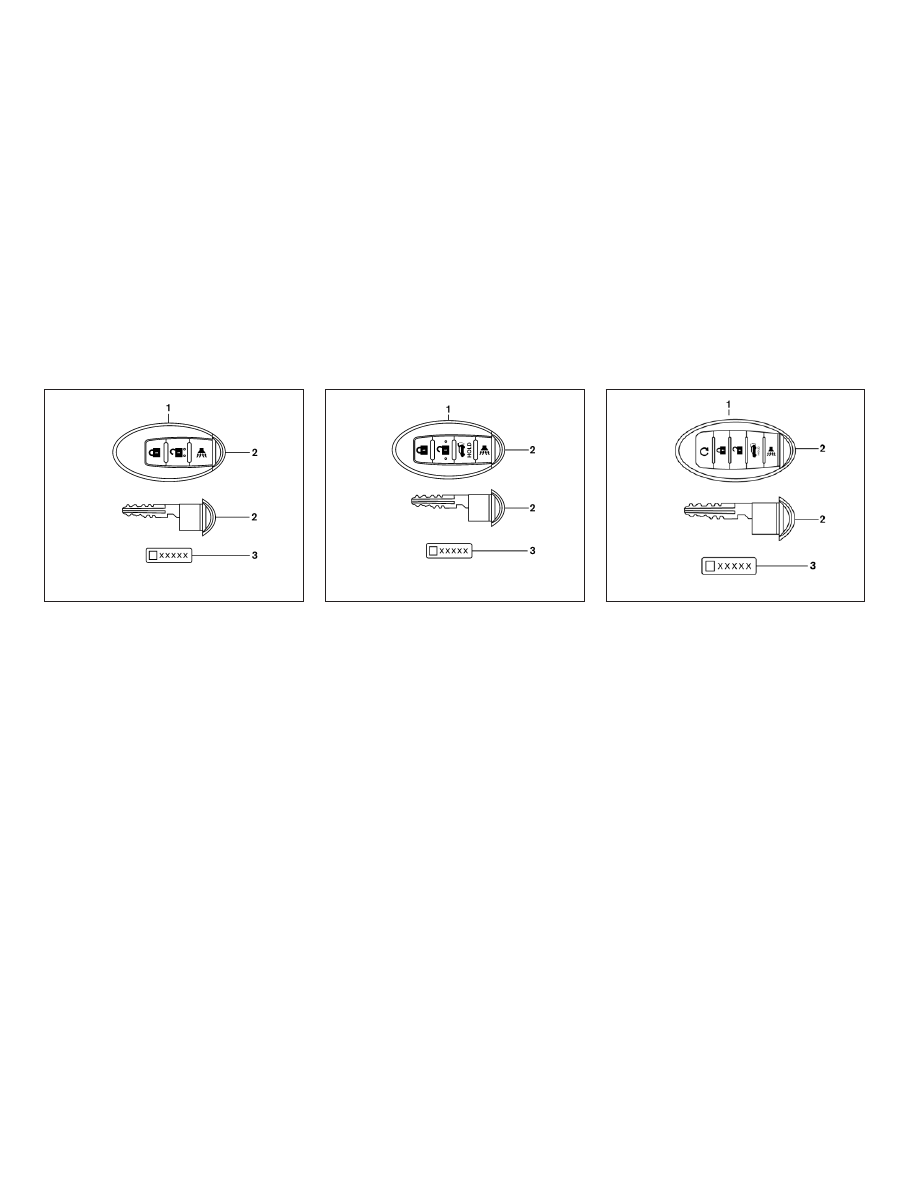

Intelligent Key (2 sets)

Mechanical key

Key number plate (1 plate)

NISSAN INTELLIGENT KEY®

Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key system components and NISSAN Ve-
hicle Immobilizer System components. As many
as 4 Intelligent Keys can be registered and used
with one vehicle. The new keys must be regis-
tered by a NISSAN dealer prior to use with the
Intelligent Key system and NISSAN Vehicle Im-
mobilizer System of your vehicle. Since the reg-
istration process requires erasing all memory in
the Intelligent Key components when registering
new keys, be sure to take all Intelligent Keys that
you have to the NISSAN dealer.

Type A (if so equipped)

LPD0350

Type B (if so equipped)

WPD0427

Type C (if so equipped)

LPD2052

KEYS

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet), not in the vehicle. If you lose
your keys, see a NISSAN dealer for duplicates by
using the key number. NISSAN does not record
key numbers so it is very important to keep track
of your key number plate.

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, your NISSAN dealer
can duplicate it.

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelligent
Key:

● Do not allow the Intelligent Key, which

contains

electrical

components,

come into contact with water or salt
water. This could affect the system
function.

● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply

against another object.

● Do not change or modify the Intelligent

Key.

● Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

● Do not place the Intelligent Key for an

extended period in an area where tem-
peratures exceed 140°F (60°C).

● Do not attach the Intelligent Key with a

key holder that contains a magnet.

● Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID code
of that Intelligent Key from the vehicle.
This may prevent the unauthorized use of
the Intelligent Key to operate the vehicle.
For information regarding the erasing
procedure, contact a NISSAN dealer.

Mechanical key

The Intelligent Key contains the mechanical key.

To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.

Use the mechanical key to lock or unlock the
driver’s door and glove box.

SPA1951

Pre-driving checks and adjustments

3-3

CAUTION

Always carry the mechanical key installed
in the Intelligent Key slot.

For additional information, refer to “Doors” in this
section and “Storage” in the “Instruments and
controls” section of this manual.

Valet hand-off

When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the me-
chanical key with you to protect your belongings.

To prevent the glove box from being opened
during valet hand-off, follow the procedure be-
low.

1. Remove the mechanical key from the Intelli-

gent Key.

2. Lock the glove box with the mechanical key.

3. Hand the Intelligent Key to the valet and

keep the mechanical key with you.

For additional information, refer to “Storage” in
the “Instruments and controls” section of this
manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.

The master key can be used for all the locks.

The valet key cannot be used for the glove box
lock.

To protect your belongings when you leave a key
with someone, give them the valet key only.

Never leave these keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer can dupli-
cate your existing key. As many as 4 NISSAN
Vehicle Immobilizer System keys can be used
with one vehicle. You should bring all NISSAN
Vehicle Immobilizer System keys that you have to
your NISSAN dealer for registration. This is be-
cause the registration process will erase the
memory of all key codes previously registered
into the NISSAN Vehicle Immobilizer System.
After the registration process, these components
will only recognize keys coded into the NISSAN

Vehicle Immobilizer System during registration.
Any key that is not given to your dealer at the time
of registration will no longer be able to start your
vehicle.

CAUTION

Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.

3-4

Pre-driving checks and adjustments

When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.

WARNING

● Always have the doors locked while

driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally open-
ing the doors, and will help keep out
intruders.

● Before opening any door, always look

for and avoid oncoming traffic.

● Do not leave children unattended inside

the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.

LOCKING WITH KEY

The power door lock system allows you to lock or
unlock all doors at the same time.

Turning the key toward the front

䊊

of the vehicle

locks all doors.

Turning the key one time toward the rear

䊊

of the

vehicle unlocks that door. From that position,
returning the key to neutral

䊊

(where the key can

only be removed and inserted) and turning it
toward the rear again

䊊

within 5 seconds un-

locks all doors.

Opening and closing windows

The driver’s door key operation allows you to
open and close windows equipped with auto-
matic operation at the same time.

● To open the windows, turn the driver’s door

key toward the rear of the vehicle for longer
than 1 second after the door is unlocked.

● To close the windows, turn the driver’s door

key toward the front of the vehicle for longer
than 1 second after the door is locked.

Windows stop when the key cylinder is released.

NOTE:

When the window lock button is pressed
the key will not operate the window open or
close function.

Driver’s side

LPD0461

DOORS

Pre-driving checks and adjustments

3-5

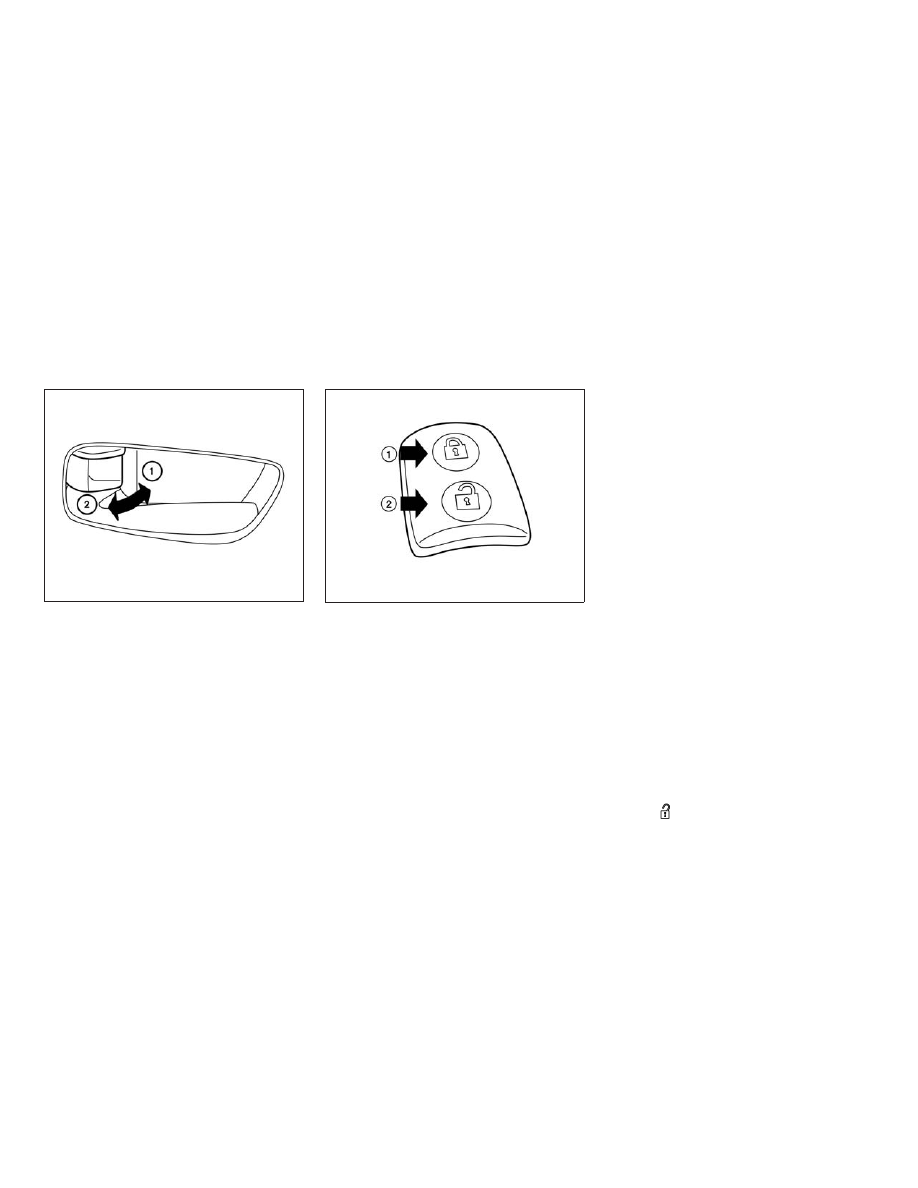

LOCKING WITH INSIDE LOCK
KNOB

To lock the door without the key, move the inside
lock knob to the lock position

䊊

, then close the

door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

LOCKING WITH POWER DOOR
LOCK SWITCH

To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position

䊊

. When locking the door this

way, be certain not to leave the key inside the
vehicle.

To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position

䊊

Lockout protection

When the power door lock switch is moved to the
lock position and any door is open, all doors will
lock and unlock automatically. With the Intelligent
Key left in the vehicle and any door open, all doors
will unlock automatically and a chime will sound
after the door is closed.

These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.

AUTOMATIC DOOR LOCKS

● All doors lock automatically when the vehicle

speed reaches 15 MPH (24 km/h).

● All doors unlock automatically when the ig-

nition is placed in the OFF position.

The automatic unlock function can be de-
activated or activated. To deactivate or acti-
vate the automatic door unlock system, perform
the following procedure:

1. Close all doors.

2. Place the ignition switch in the ON position.

3. Within 20 seconds of performing Step 2,

push and hold the power door lock switch to
the

position (UNLOCK) for more than

5 seconds.

Inside lock

LPD2092

LPD2093

3-6

Pre-driving checks and adjustments

4. When activated, the hazard indicator will

flash twice. When deactivated, the hazard
indicator will flash once.

5. The ignition switch must be placed in the

OFF and ON position again between each
setting change.

When the automatic door unlock system is deac-
tivated, the doors do not unlock when the ignition
switch is placed in the OFF position. To unlock
the door manually, use the inside lock knob or the
power door lock switch (driver’s or front passen-
ger’s side).

NOTE:

The automatic door unlock function can be
changed using the Vehicle Settings in the
vehicle information display. The “Auto
Door Unlock” choices are:

● Off
● IGN OFF
● Shift into P

CHILD SAFETY REAR DOOR LOCK

Child safety locks help prevent the rear doors
from being opened accidentally, especially when
small children are in the vehicle.

The child safety lock levers are located on the
edge of the rear doors.

When the lever is in the LOCK position, the
door can be opened only from the outside.

WARNING

● Radio waves could adversely affect

electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

● The Intelligent Key transmits radio

waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the In-
telligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.

The Intelligent Key system can operate all the
door locks using the remote control function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key system operation.

Be sure to read the following before using the
Intelligent Key system.

LPD2049

NISSAN INTELLIGENT KEY®

Pre-driving checks and adjustments

3-7

Nissan Pathfinder Hybrid (2015 year). Instruction - part 11
