The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display (if so equipped).

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

For vehicles with a vehicle information dis-
play, the “Tire Pressure Low - Add Air” warn-
ing appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.

For additional information, refer to “Vehicle
information display” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” and “In case of emer-
gency” sections of this manual.

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the light does not illuminate with

the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

2-14

Instruments and controls

∙ If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
show on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving after adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire
is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

CAUTION

∙ The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

∙ If the vehicle is being driven at speeds

of less than 16 mph (25 km/h), the
TPMS may not operate correctly.

∙ Be sure to install the specified size of

tires to the four wheels correctly.

Low windshield-washer

fluid warning light (if so
equipped)

This light comes on when the windshield-
washer

fluid

low

level.

Add

windshield-washer fluid as necessary. For
additional information, refer to “Windshield-
washer fluid” in the “Do-it-yourself ” section
of this manual.

Master warning light (if so

equipped)

This light illuminates when various vehicle
information display warnings appear.

∙ No key

∙ I-Key system warning

∙ Low washer fluid

∙ Door open

∙ Parking brake release

For additional information, refer to “Vehicle
information display” in this section.

Instruments and controls

2-15

NISSAN Intelligent Key®

warning light (if so
equipped)

After the ignition switch is placed in the ON
position, this light comes on for about
2 seconds and then turns off. This light illu-
minates or blinks as follows:

∙ The light blinks in yellow when the door

is closed with the Intelligent Key left out-
side the vehicle and the ignition switch
in the ON position. Make sure that the
Intelligent Key is inside the vehicle.

∙ The light blinks in green when the Intel-

ligent Key battery is running out of
power. Replace the battery with a new
one. For additional information, refer to
“Battery” in the “Do-it-yourself ” section
of this manual.

∙ The light illuminates in yellow when it

warns of a malfunction with the electri-
cal steering lock system or the Intelli-
gent Key system.

If the warning light illuminates in yellow
while the engine is stopped, it may be im-
possible to free the steering lock or to start
the engine. If the light comes on while the
engine is running, you can drive the vehicle.
However, in these cases, have the vehicle

checked and repaired as soon as possible.
It is recommended that you visit a NISSAN
dealer for this service.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Power steering warning

light

WARNING

∙ If the engine is not running or is

turned off while driving, the power as-
sist for the steering will not work.
Steering will be harder to operate.

∙ When the power steering warning

light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. After starting the engine, the
power steering warning light turns off. This
indicates the power steering is operational.

If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering is not function-
ing properly and may need servicing. Have
the power steering checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering, but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds.

For additional information, refer to “Power
steering” in the “Starting and driving” sec-
tion of this manual.

Seat belt warning light

The light reminds you to fasten your seat
belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the
driver’s seat belt is fastened.

The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied.

2-16

Instruments and controls

For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

Shift P (Park) warning light

(if so equipped)

This light blinks red and the key reminder
chime sounds if the shift lever is in any
position other than P (Park) and the ignition
switch is in the OFF position. Return the
shift lever to P (Park) with the ignition
switch in the OFF position and the light will
turn off. Place the ignition switch in the
LOCK position and the chime will turn off.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Supplemental air bag

warning light

When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

∙ The supplemental air bag warning light

flashes intermittently.

∙ The supplemental air bag warning light

does not come on at all.

It is recommended that you visit a NISSAN
dealer for these services.

Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information, re-
fer to “Supplemental Restraint System
(SRS)” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

INDICATOR LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

CRUISE indicator light (if so

equipped)

The light comes on when the cruise control
switch is pushed. The light goes out when
the switch is pushed again. When the
cruise indicator light comes on, the cruise
control system is operational. For addi-
tional information, refer to “Cruise control”
in the “Starting and driving” section of this
manual.

Engine start operation

indicator light (if so
equipped)

For vehicles equipped with push-button ig-
nition this indicator illuminates when the
ignition switch is in the LOCK, OFF or ON
position with the shift lever in the P (Park)
position.

This indicator means that the engine will
start by pushing the push-button ignition
switch with the brake pedal depressed.

Instruments and controls

2-17

Front fog light indicator

light (green) (if so
equipped)

The front fog light indicator light illumi-
nates when the front fog lights are on. For
additional information, refer to “Fog light
switch” in this section.

Front passenger air bag

status light

The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.

For additional information, refer to “Front
passenger air bag and status light” in the
“Safety — Seats, seat belts and supplemen-
tal restraint system” section of this manual.

High beam indicator light

(blue)

This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.

The high beam indicator light also comes
on when the passing signal is activated.

Malfunction Indicator Light

(MIL)

If this indicator light comes on steady or
blinks while the engine is running, it may
indicate a potential emission control mal-
function.

The MIL may also come on steady if the
fuel-filler cap is loose or missing, or if the
vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least
3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light

should turn off if no other potential emis-
sion control system malfunction exists.
If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance
test. For additional information, refer to
“Readiness

for

Inspection/Maintenance

(I/M) test” in the “Technical and consumer
information” section of this manual.

Operation

The MIL will come on in one of two ways:

∙ MIL on steady — An emission control

system malfunction has been de-
tected. Check the fuel-filler cap if the
Loose Fuel Cap warning appears in the
vehicle

information

display

(if

equipped) or the trip computer (if so
equipped). If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If the

light does not turn off

after a few driving trips, have the vehicle
inspected. It is recommended that you
visit a NISSAN dealer for this service. You
do not need to have your vehicle towed
to the dealer.

∙ MIL blinking — An engine misfire has

been detected which may damage the
emission control system. To reduce or
avoid emission control system dam-
age:

– do

not

drive

speeds

above

45 mph (72 km/h).

– avoid hard acceleration or decelera-

tion.

– avoid steep uphill grades.

2-18

Instruments and controls

– if possible, reduce the amount of

cargo being hauled or towed.

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Overdrive OFF indicator

light (if so equipped)

The overdrive OFF indicator light illumi-
nates when the overdrive OFF mode is se-
lected.

For additional information, refer to “Driving
the vehicle” in the “Starting and driving” sec-
tion of this manual.

Security indicator light (if

so equipped)

This light blinks when the ignition switch is
placed in the OFF or LOCK position.

The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.

For additional information, refer to “Security
systems” in this section.

SET indicator light (if so

equipped)

This light comes on while the vehicle speed
is controlled by the cruise control system. If
the light blinks while the engine is running,
it may indicate the cruise control system is
not functioning properly. Have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.

Side light and headlight

indicator light (green)

The side light and headlight indicator light
illuminates when the side light or head-
lights are on. If the headlight switch is in the
AUTO position, the side light and headlight
indicator light will illuminate when the
headlights turn on. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.

Slip indicator light

This indicator will blink when the VDC sys-
tem is operating, thus alerting the driver to
the fact that the road surface is slippery
and the vehicle is nearing its traction limits.

You may feel or hear the system working;
this is normal.

The light will blink for a few seconds after
the VDC system stops limiting wheel spin.

The

indicator light also comes on

when you place the ignition switch in the
ON position. The light will turn off after ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

SPORT mode indicator

light (if so equipped)

This light illuminates and then turns off
when the ignition switch is placed in the ON
position, and when the SPORT mode is se-
lected.

Instruments and controls

2-19

For additional information, refer to “Con-
tinuously Variable Transmission (CVT)” in
the “Starting and driving” section of this
manual.

Turn signal/hazard

indicator lights

The appropriate light flashes when the turn
signal switch is activated.

NOTE:

In case of a turn signal light bulb mal-
function, the turn signal will flash at a
higher frequency when the turn signal
switch is activated.

Both lights flash when the hazard switch is
turned on.

For additional information, refer to “Lights”
in the “Do-it-yourself ” section of this
manual.

Vehicle Dynamic Control

(VDC) OFF indicator light

When the ignition switch is in the ON posi-
tion, the VDC OFF indicator light illuminates
and the turns off.

The VDC OFF indicator light illuminates
when the VDC OFF switch is pushed to the
OFF position.

When the VDC OFF switch is pushed to the
OFF position, the VDC system is turned off.

For additional information, refer to “Vehicle
Dynamic Control (VDC) system” in the
“Starting

and

driving”

section

this

manual.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard. It
is recommended that you visit a NISSAN
dealer for this service.

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off or to
AUTO before leaving the vehicle.

NISSAN Intelligent Key® Lock-in
Prevention (if so equipped)

The Intelligent Key buzzer sounds if the In-
telligent Key is left inside the vehicle when
the doors are closed and locked. When the
buzzer sounds, be sure to take the Intelli-
gent Key with you when leaving the vehicle.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Parking brake reminder chime

A chime sounds if the parking brake is set
and the vehicle is driven. The chime will
stop if the parking brake is released or the
vehicle speed returns to zero.

2-20

Instruments and controls

The vehicle information display is located
to the left of the speedometer. It displays
such items as:

∙ Audio Information

∙ Navigation Information

∙ Drive Computer Information

∙ Fuel Economy Information

∙ Indicators and Warnings

∙ Vehicle and Meter Display Settings

∙ Odometer/twin trip odometer

∙ Gear Position Indicator (P, R, N, D, L)

∙ Distance To Empty and Fuel Indicator

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be

changed using the
,

, and OK buttons located on the

steering wheel.

䊊

- Use these

buttons to navigate the vehicle infor-
mation display.

䊊

OK - Change or select an item in the
vehicle information display.

LIC3565

LIC3566

VEHICLE INFORMATION DISPLAY (if
so equipped)

Instruments and controls

2-21

䊊

— Returns to the previous menu.

The OK,

and

buttons also

control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display.
Dots on the left side of the vehicle informa-
tion display will appear if there is more than
one page of menu items. The OK button
changes

the

audio

source

and

the

buttons also control voice

recognition manual mode. For additional
information,

refer

the

separate

NissanConnect® Owner’s Manual.

STARTUP DISPLAY

When the vehicle in placed in the ON posi-
tion the screens that display in the vehicle
information display include:

∙ Gauges

∙ Audio

∙ Navigation

∙ Fuel Economy

∙ Drive Computer

∙ Warning Review

∙ Settings

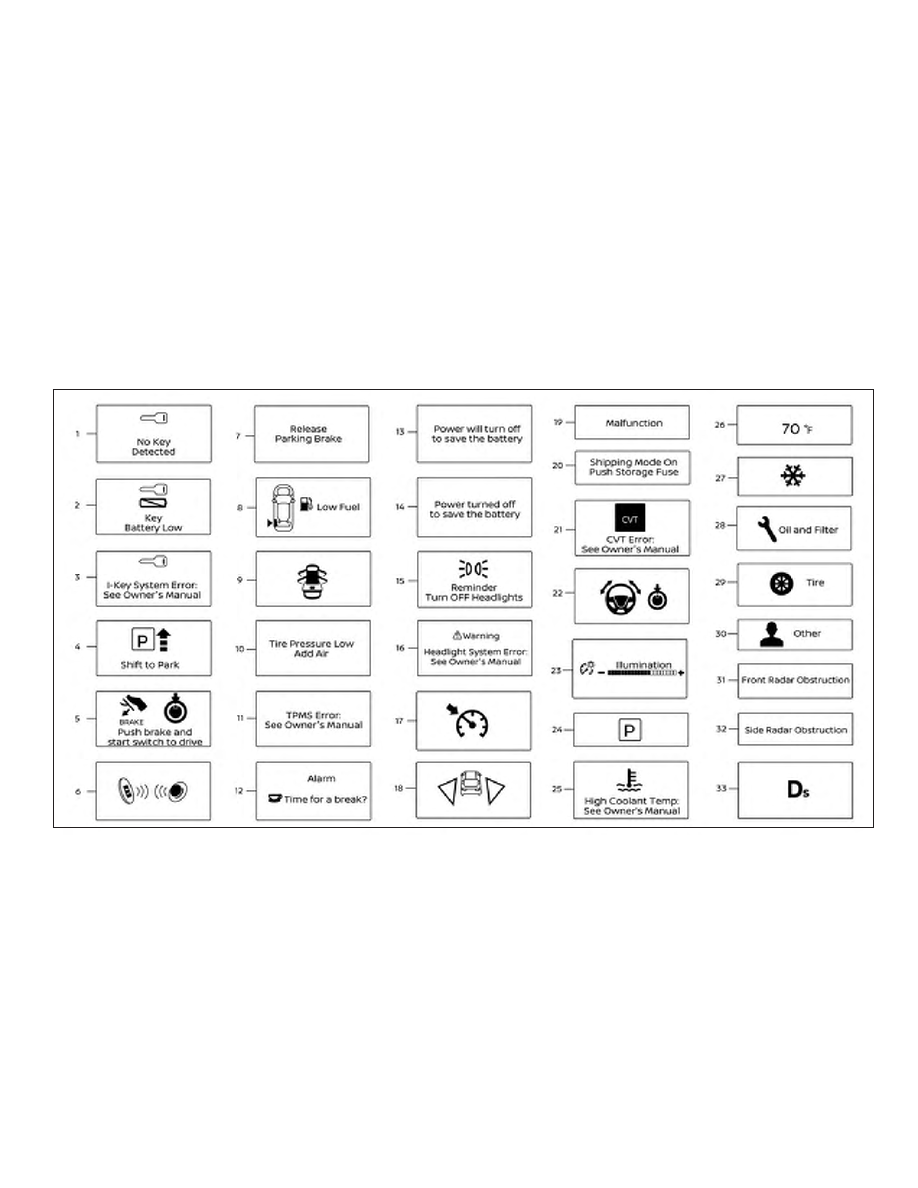

For additional information on warnings
and indicators, refer to “Vehicle information
display warnings and indicators” in this
section.

To control what items display in the vehicle
information display, refer to “Customize
display” in this section.

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle infor-
mation display as well as the model for
several vehicle functions:

∙ Driver Assistance

∙ Customize Display

∙ Vehicle Settings

∙ TPMS Settings

∙ Maintenance

∙ Clock

∙ Unit/Language

∙ Factory Reset

2-22

Instruments and controls

Driver Assistance

The driver assistance menu allows the user
to change the various driving aids and as-
sistance options.

Menu item

Result

Blind Spot (if so equipped)

Displays the available Blind Spot options.

Blind Spot Warning

Allows user to turn the emergency brake on or off. For additional information, refer to “Automatic Emergency
Braking (AEB)” in the “Starting and driving” section of this manual.

Emergency Brake

Displays the available emergency brake options.

System

Allows user to turn the emergency brake on or off. For additional information, refer to “Automatic Emergency
Braking (AEB)” in the “Starting and driving” section of this manual.

Parking Aids (if so equipped)

Displays the available parking aids options.

Moving Object (if so equipped)

Allows user to turn moving object detection on or off. For additional information, refer to “Moving Object Detection
(MOD)” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.

Rear Cross Traffic Alert (if so
equipped)

Allows user to turn rear cross traffic alert on or off. For additional information, refer to “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section of this manual.

Timer Alert

Allows user to set or reset an alert at a specific time interval.

Low Temperature Alert

Allows user to turn the low temperature alert on or off.

Chassis Control (if so equipped)

Displays the available chassis control options.

Active Trace Control

Allows the user to turn the Intelligent Trace Control (I-TC) feature on or off. For additional information, refer to
“Chassis Control” in the “Starting and driving” section of this manual.

Active Engine Brake

Allows the user to turn the Intelligent Engine Brake (I-EB) feature on or off. For additional information, refer to
“Chassis Control” in the “Starting and driving” section of this manual.

Instruments and controls

2-23

Customize Display

The customize display menu allows the
user to customize the information that ap-
pears in the vehicle information display.

Menu item

Result

Main Menu Selection

Displays available screens that can be shown in the vehicle information display.

Status

Allows user to turn the status screen on or off in the vehicle information display.

Drive Computer

Allows user to turn the drive computer screen on or off in the vehicle information display.

Driving Aids

Allows user to turn the driving aids screen on or off in the vehicle information display.

Tire Pressures

Allows user to turn the tire pressures screen on or off in the vehicle information display.

Coolant Temp.

Allows user to turn the coolant temp. screen on or off in the vehicle information display.

Chassis Control (if so equipped)

Allows user to turn the chassis control screen on or off in the vehicle information display.

ECO Info Settings

Displays the available ECO info settings.

ECO Drive Report (if so equipped)

Select to display this report when the ignition in switch is placed in the ON position.

View History

Select to view the vehicle’s history.

Navigation Settings (if so equipped)

Displays the available navigation settings.

Alerts

Allows user to set available navigation alerts.

Welcome Effect (if so equipped)

Displays the available welcome effect settings.

2-24

Instruments and controls

Vehicle Settings

The vehicle settings allow the user to
change the settings for lights, wipers, lock-
ing, keys, and other vehicle settings.

Menu item

Result

Lighting

Displays the available lighting settings.

Welcome Headlight

Displays the available welcome headlight options.

Welcome & Farewell

Allows user to set the headlights to turn on when they approach and leave the vehicle.

Welcome

Allows user to set the headlights to turn on when they approach the vehicle.

Farewell

Allows user to set the headlights to turn on when they leave the vehicle.

OFF

Allows user to set the headlights to turn off when not driving.

Auto Room Lamp

Allows user to turn the auto room lamp on or off.

Light Sensitivity

Allows user to change when the lights illuminate based on the brightness outside the vehicle.

Auto Light (if so equipped)

Allows user to turn the auto light feature on or off.

Light Off Delay

Allows user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on af-
ter the vehicle is shut off.

Turn Indicator

Displays the available turn indicator settings.

3 Flash Pass

Allows user to turn the 3 flash pass feature on or off. For additional information, refer to “Headlight and turn
signal switch” in this section.

Locking

Displays the available locking settings.

Ext. Door Switch

Allows user to turn the exterior door switch on or off. When turned on, the request switch on the door is
activated.

Selective Unlock

Allows user to turn the selective unlock feature on or off. When turned on, only the driver’s door is unlocked
after the door unlock operation. When the door handle request switch on the driver’s or front passenger’s
side door is pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be un-
locked if the door unlock operation is performed again within 30 seconds. When this item is turned off, all the
doors will be unlocked after the door unlock operation is performed once.

Instruments and controls

2-25

Menu item

Result

Auto Door Unlock

Displays the available auto door unlock options.

Shift to P

Doors will unlock when the vehicle is shifted into P (Park).

IGN OFF

Doors will unlock when the ignition is turned off.

OFF

Doors will have to be manually unlocked.

Answer Back Horn

Allows user to turn the answer back horn feature on or off. When turned on, the horn will chirp and the haz-
ard indicators will flash twice when locking the vehicle with the Intelligent Key.

Wipers

Displays the available wipers settings.

Reverse Link

Allows user to turn the reverse link feature on or off.

Speed Dependent (if so equipped)

Allows user to turn the wiper with speed feature on or off.

Wiper with Speed (if so equipped)

Allows user to turn the wiper with speed feature on or off.

Remote Engine Start (if so equipped)

Allows user to turn the Remote Engine Start feature on or off. When turned off, the vehicle cannot be started
remotely.

TPMS Settings

The TPMS settings menu allows the user to
change the tire pressure units displayed in
the vehicle information display.

Menu item

Result

TPMS Settings

Displays available TPMS Settings.

Tire Pressure Unit

Allows user to select the tire pressure units that will display in the vehicle information display.

2-26

Instruments and controls

Maintenance

The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Do-it-yourself ”
section of this manual. Many factors in-
cluding tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be re-
placed. Setting the tire replacement in-
dicator for a certain driving distance

does not mean your tires will last that
long. Use the tire replacement indicator
as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pres-
sure checks could result in tire failure.
Serious vehicle damage could occur
and may lead to a collision, which could
result in serious personal injury or
death.

Menu item

Result

Oil and Filter

Allows user to set a reminder at a specific interval or reset the current one.

Tire

Allows user to set a reminder at a specific interval or reset the current one.

Other

Allows user to set a reminder at a specific interval or reset the current one.

Clock

Menu item

Result

Clock

Allows user to adjust the clock settings and time within the vehicle information display. Adjustments that
can be made include manually setting the time, and 12H/24H format.
If these options do not appear, the clock must be set within the center display. For additional information,
refer to the separate NissanConnect® Owner’s Manual (if so equipped).

Instruments and controls

2-27

Unit/Language

The unit/language menu allows the user to
change the units shown in the vehicle in-
formation display.

Menu item

Result

Mileage/Fuel

Displays the available mileage/fuel display units and allows user to select preferred unit for display.

Tire Pressures

Allows user to select the tire pressure display units.

Temperature

Allows user to select the temperature display units.

Language

Displays the available language options and allows user to select preferred language for display.

Factory Reset

The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.

Menu item

Result

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected,
the user can confirm or cancel the reset.

2-28

Instruments and controls

Nissan Kicks (2018 year). Instruction - part 7
