WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag,
knee air bag and/or pretensioner sys-
tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked as soon as
possible. It is recommended that you
visit a NISSAN dealer for this service.

Repair and replacement
procedure

The front air bags, side air bags, curtain air
bags, knee air bag and pretensioner(s) are
designed to inflate on a one-time-only ba-
sis. As a reminder, unless it is damaged, the
supplemental air bag warning light re-
mains illuminated after inflation has oc-
curred. These systems should be repaired
and/or replaced as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, knee air bag, pretension-
er(s) and related parts should be pointed
out to the person performing the mainte-
nance. The ignition switch should always

be in the LOCK position when working un-
der the hood or inside the vehicle.

WARNING

∙ Once a front air bag, side air bag, cur-

tain air bag, or knee air bag has in-
flated, the air bag module will not
function again and must be replaced.
Additionally, the activated preten-
sioner(s) must also be replaced. The
air bag module and pretensioner(s)
should be replaced. It is recom-
mended that you visit a NISSAN dealer
for this service. However, the air bag
module and pretensioner(s) cannot
be repaired.

∙ The front air bag, side air bag, curtain

air bag, knee air bag systems and the
pretensioner system should be in-
spected if there is any damage to the
front end or side portion of the ve-
hicle. It is recommended that you visit
a NISSAN dealer for this service.

∙ If you need to dispose of a supple-

mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.

∙ If there is an impact to your vehicle

from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verify it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verify proper OCS
function may result in an improper air
bag deployment resulting in injury or
death.

1-64

Safety—Seats, seat belts and supplemental restraint system

MEMO

Safety—Seats, seat belts and supplemental restraint system

1-65

2 Instruments and controls

Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Meters and gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Speedometer and odometer . . . . . . . . . . . . . . . . . 2-5
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Trip computer (if so equipped) . . . . . . . . . . . . . . . . 2-9

Warning lights, indicator lights and audible
reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Checking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Vehicle information display (if so equipped) . . . . . 2-21

How to use the vehicle information
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Startup display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Vehicle information display warnings
and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Security systems (if so equipped) . . . . . . . . . . . . . . . 2-34

Vehicle security system . . . . . . . . . . . . . . . . . . . . . 2-34
NISSAN Anti-Theft System (NATS)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35

NISSAN Vehicle Immobilizer System
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36

Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . 2-37

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-37
Rear switch operation . . . . . . . . . . . . . . . . . . . . . . . 2-39

Rear window and/or outside mirror defroster
switch (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . 2-40
Headlight and turn signal switch . . . . . . . . . . . . . . . 2-41

Headlight control switch. . . . . . . . . . . . . . . . . . . . . 2-41
Daytime Running Lights (DRL) system
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
Instrument brightness control. . . . . . . . . . . . . . . 2-44
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-44
Fog light switch (if so equipped) . . . . . . . . . . . . . 2-45

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
Heated seat switches (if so equipped) . . . . . . . . . . 2-45
Automatic Emergency Braking (AEB) switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-46
Vehicle Dynamic Control (VDC) OFF switch. . . . . . 2-47
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47

12v outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47

Extended storage switch . . . . . . . . . . . . . . . . . . . . . . . 2-48
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49

Roof rack (if so equipped) . . . . . . . . . . . . . . . . . . . . 2-54

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-61

Map lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-62
Personal Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-62
Luggage compartment light . . . . . . . . . . . . . . . . 2-63

Vents (P. 4-30)

Headlight/fog light (if so
equipped)/turn signal switch
(P. 2-41)

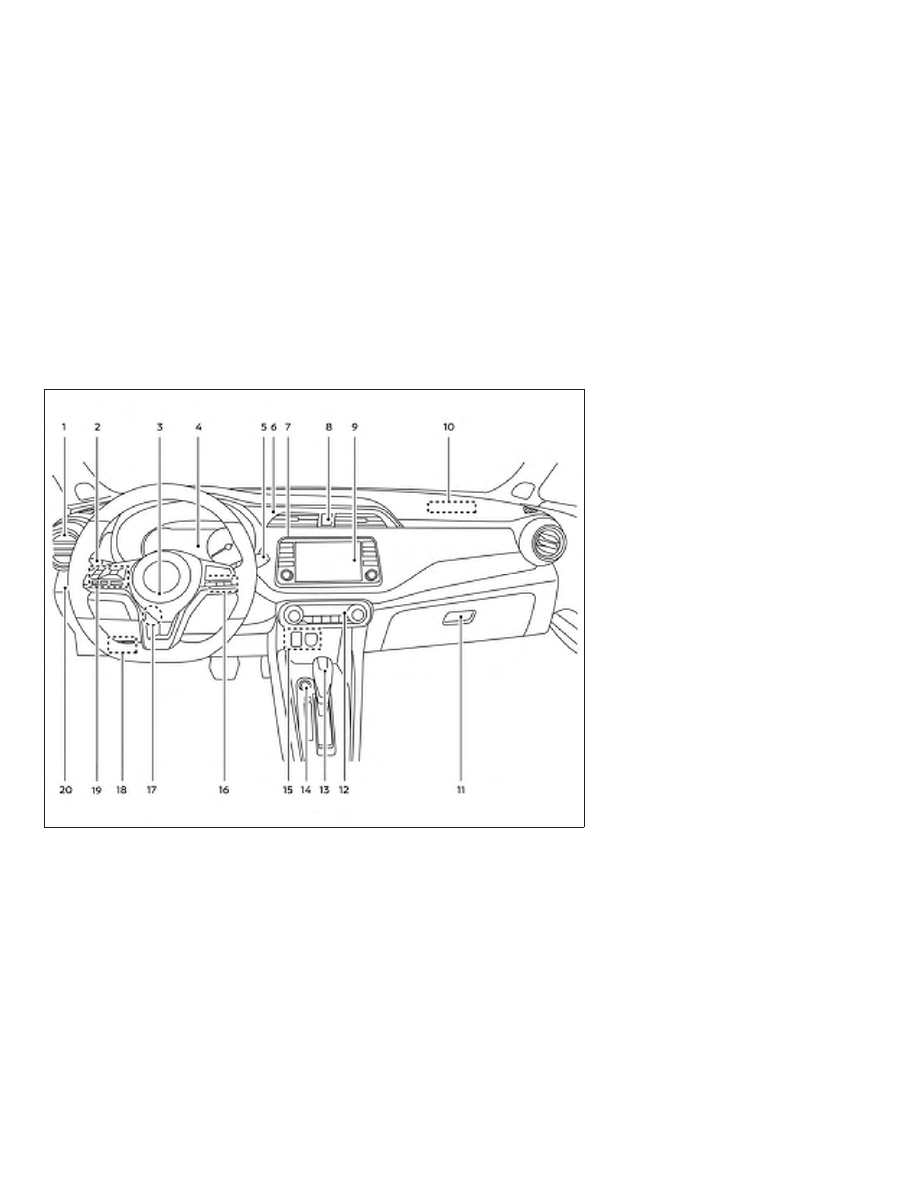

Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-45)

Meters and gauges (P. 2-4)
Warning and indicator lights
(P. 2-10)
Trip computer (if so equipped)
(P. 2-9)
Vehicle information display
(if so equipped) (P. 2-21)

Wiper and washer switch (P. 2-37)

Front passenger airbag status
light (P. 1-42)

Center display controls (if so
equipped) (P. 4-2, 4-3, 4-42)
Audio controls (P. 4-2, 4-3, 4-42)

Hazard warning flasher switch
(P. 6-2)

Center display (P. 4-2, 4-3, 4-42)

10.

Passenger’s supplemental air bag
(P. 1-42)

11.

Glove box (P. 2-49)

LIC3974

INSTRUMENT PANEL

2-2

Instruments and controls

12.

Climate controls (P. 4-31, 4-39)
Heated seat switches (if so
equipped) (P. 2-45)

13.

Shift lever (P. 5-15)

14.

Push-button ignition switch (P. 5-9)

15.

Power outlet (P. 2-47)
USB connection port (P. 4-2, 4-42)
AUX jack (P. 4-2, 4-42)

16.

Bluetooth® Hands-Free Phone
System (P. 4-2, 4-68)
Cruise control switches (P. 5-39)

17.

Tilt and telescopic steering wheel
lock lever (P. 3-26)

18.

Hood release (P. 3-21)
Fuel-filler door release (P. 3-24)
Automatic Emergency Braking
(AEB) switch (if so equipped)
(P 2-46)

19.

Steering wheel switches for audio
control (P. 4-2, 4-63)
Control panel and vehicle informa-
tion display switches
(if so equipped) (P. 2-21)

20.

Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Enter/select switch for trip com-
puter (if so equipped) (P. 2-9)

* Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).

Refer to the page number indicated in
parentheses for operating details.

Instruments and controls

2-3

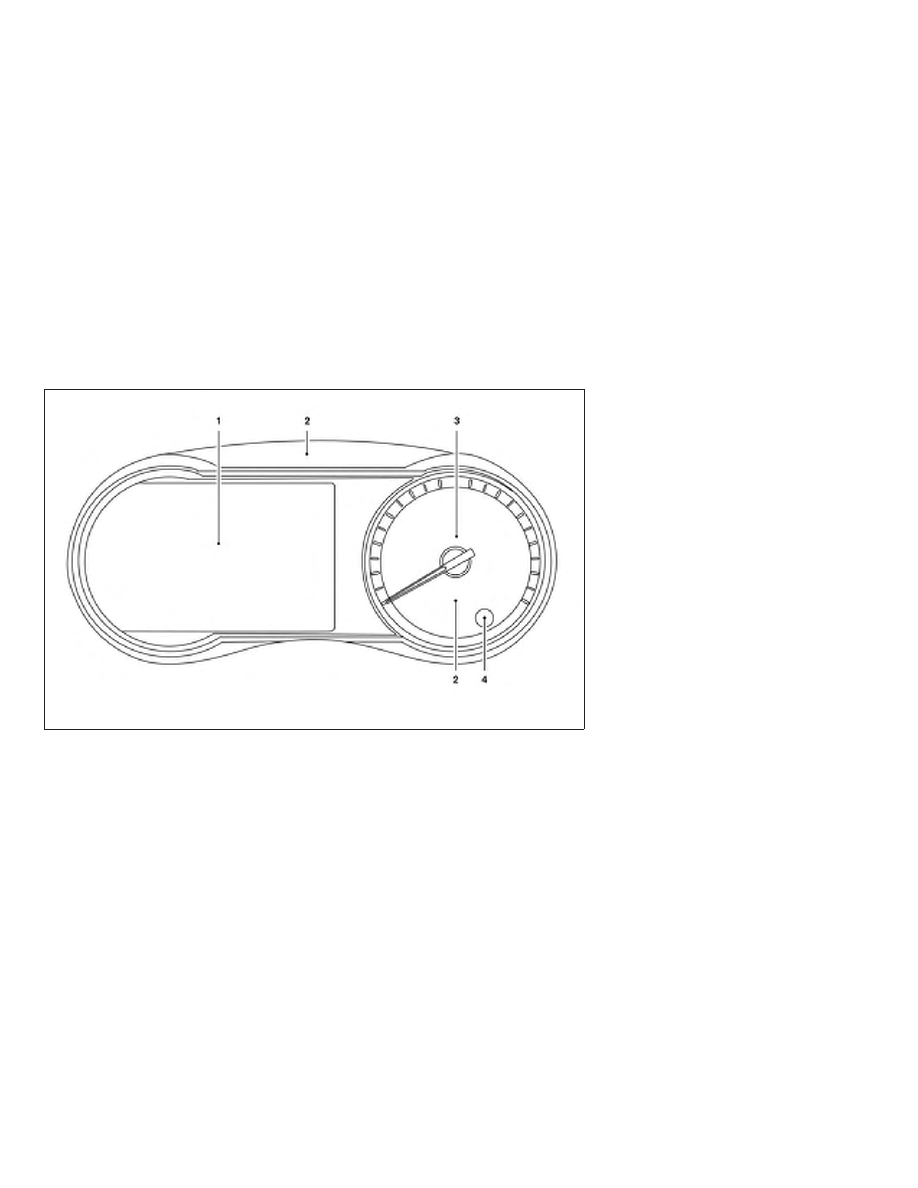

Tachometer

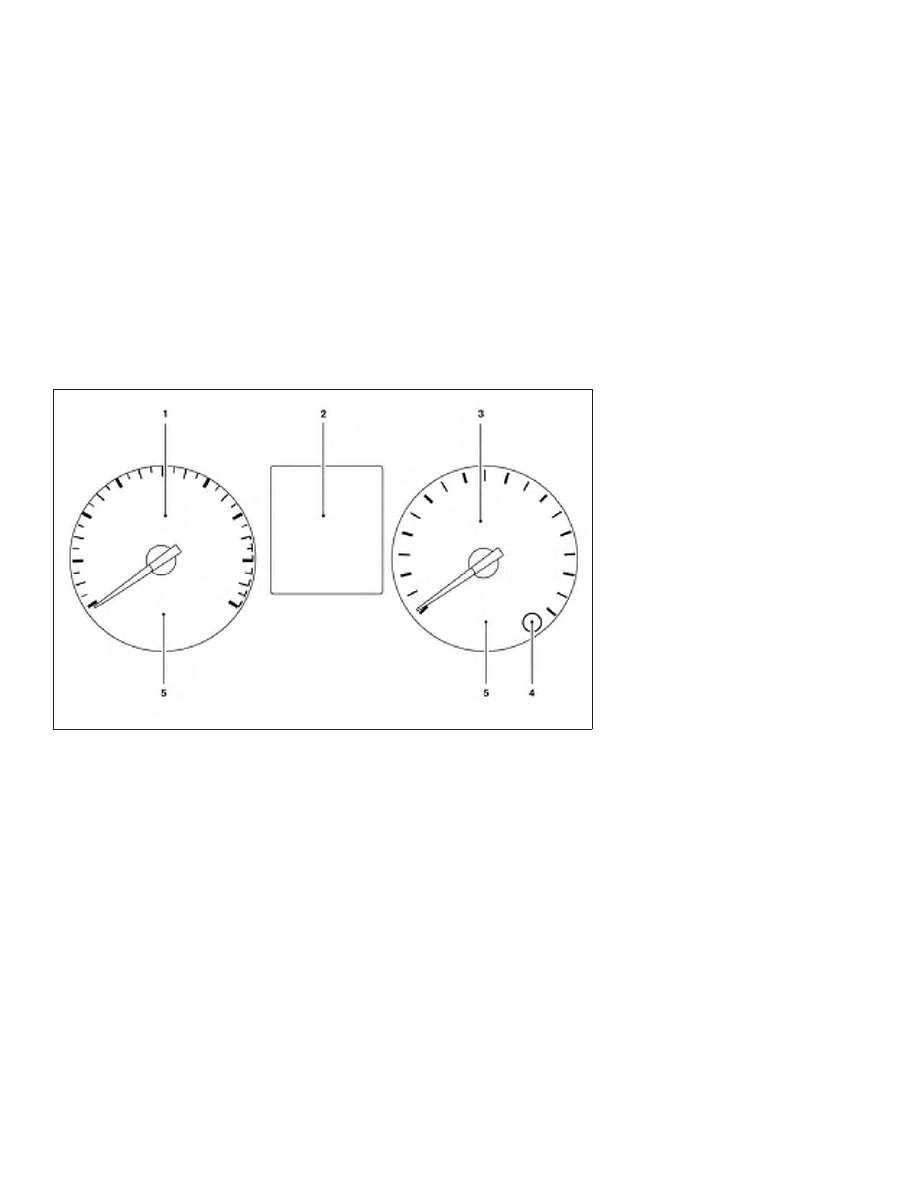

Vehicle information display
Odometer
Twin trip odometer
Fuel gauge
Engine coolant temperature gauge

Warning and indicator lights

Speedometer

Trip reset switch
Instrument brightness control
knob

Type A (if so equipped)

LIC3561

METERS AND GAUGES

2-4

Instruments and controls

Tachometer

Trip computer
Odometer
Twin trip odometer

Speedometer

Trip reset switch
Instrument brightness control
knob

Warning and indicator lights

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side the meter cluster.
The odometer is located within the vehicle
information display (Type A — if so
equipped) or the trip computer (Type B —
if so equipped) to the left of the speedom-
eter.

Type B (if so equipped)

LIC3592

Instruments and controls

2-5

Speedometer

The speedometer indicates vehicle speed.

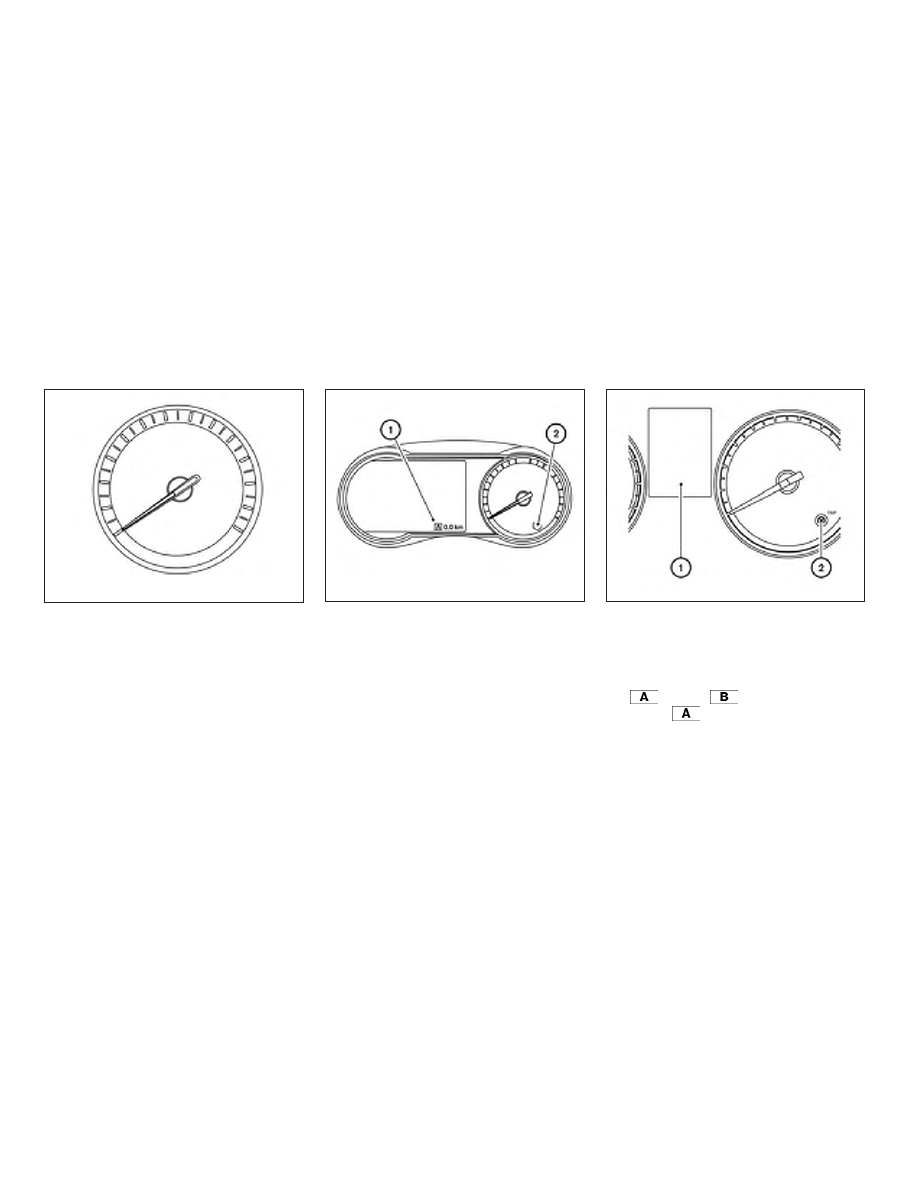

Odometer/Twin trip odometer

The odometer and the twin trip odometer

䊊

are displayed in the vehicle information

display (Type A) (if so equipped) or the trip
computer (Type B) (if so equipped) when
the ignition switch is placed in the ON po-
sition.

The odometer records the total distance
the vehicle has been driven.

The twin trip odometer records the dis-
tance of individual trips.

Changing the display
Push the TRIP RESET switch

䊊

on the right

side of the instrument panel to change the
display as follows:

Trip

→ Trip

→ Odometer Mile-

age

→ Trip

LIC2255

Type A (if so equipped)

LIC3584

Type B (if so equipped)

LIC3595

2-6

Instruments and controls

Resetting the trip odometer
Pushing the TRIP RESET switch

䊊

for more

than 1 second resets the currently dis-
played trip odometer to zero.

Average fuel economy information is also
available. For additional information, refer
to “Trip computer” in this section.

TACHOMETER

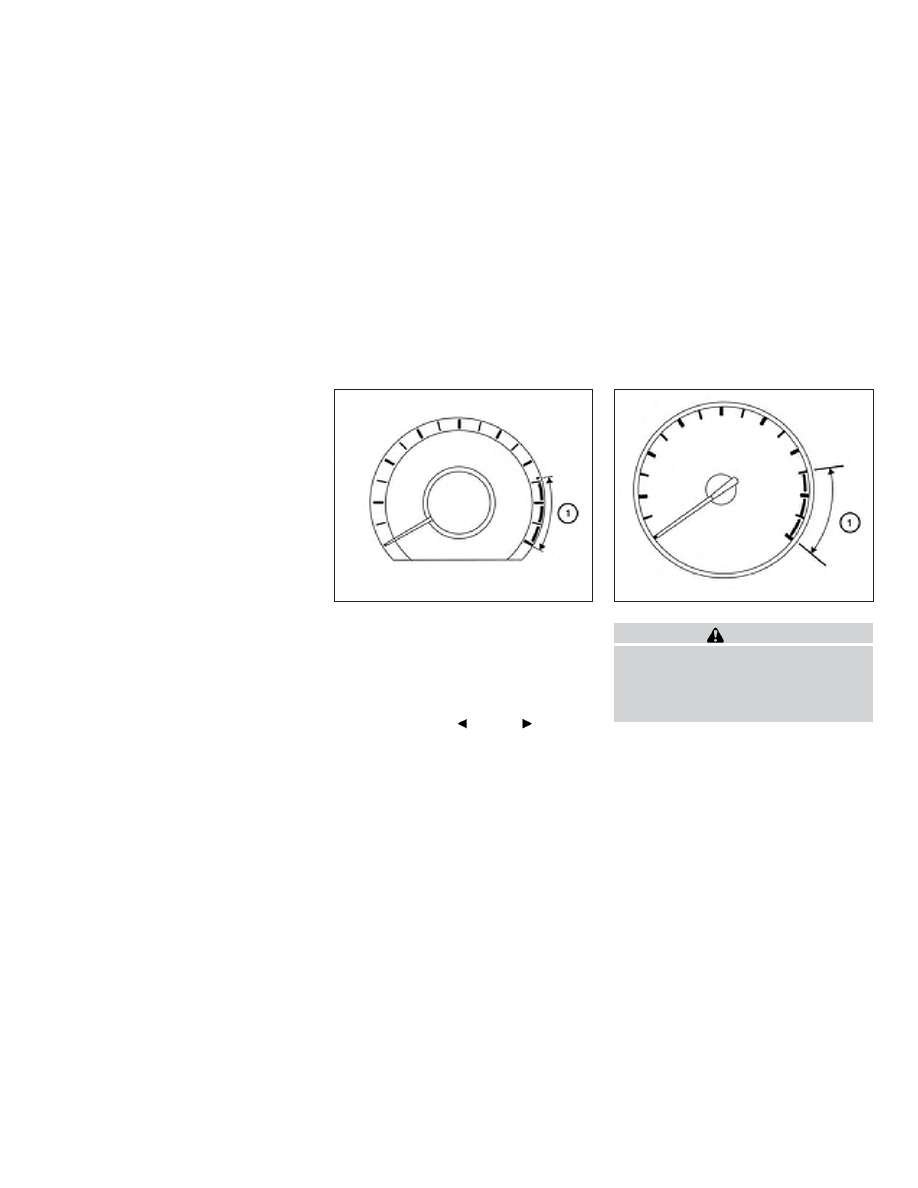

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone

䊊

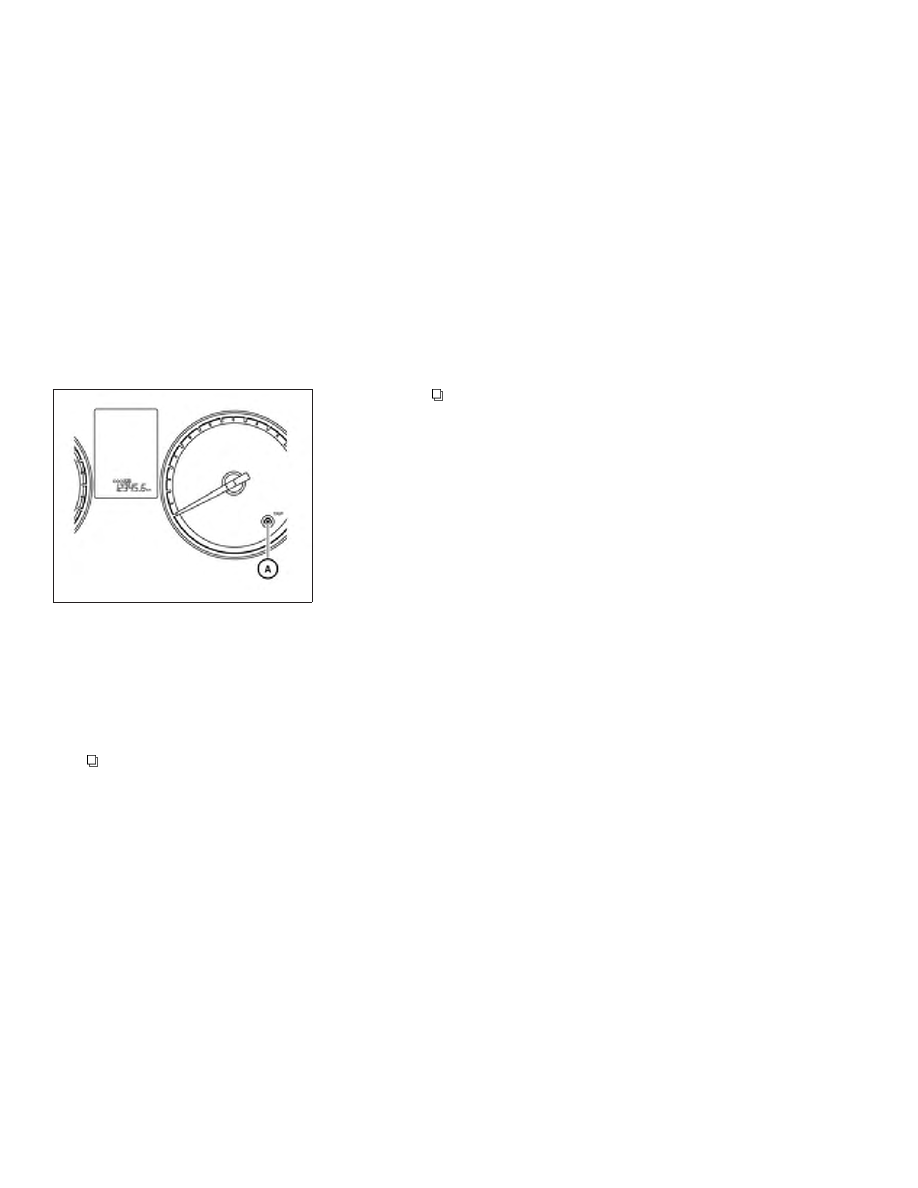

Type A (if so equipped): To access the ta-

chometer, use the

and

on the

steering wheel to navigate to the “Gauges”
display. For additional information, refer to
“How to use the vehicle information dis-
play” in this section.
Type B (if so equipped): The tachometer is
located on the left side of the meter cluster.

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

Type A (if so equipped)

LIC3562

Type B (if so equipped)

LIC3536

Instruments and controls

2-7

FUEL GAUGE

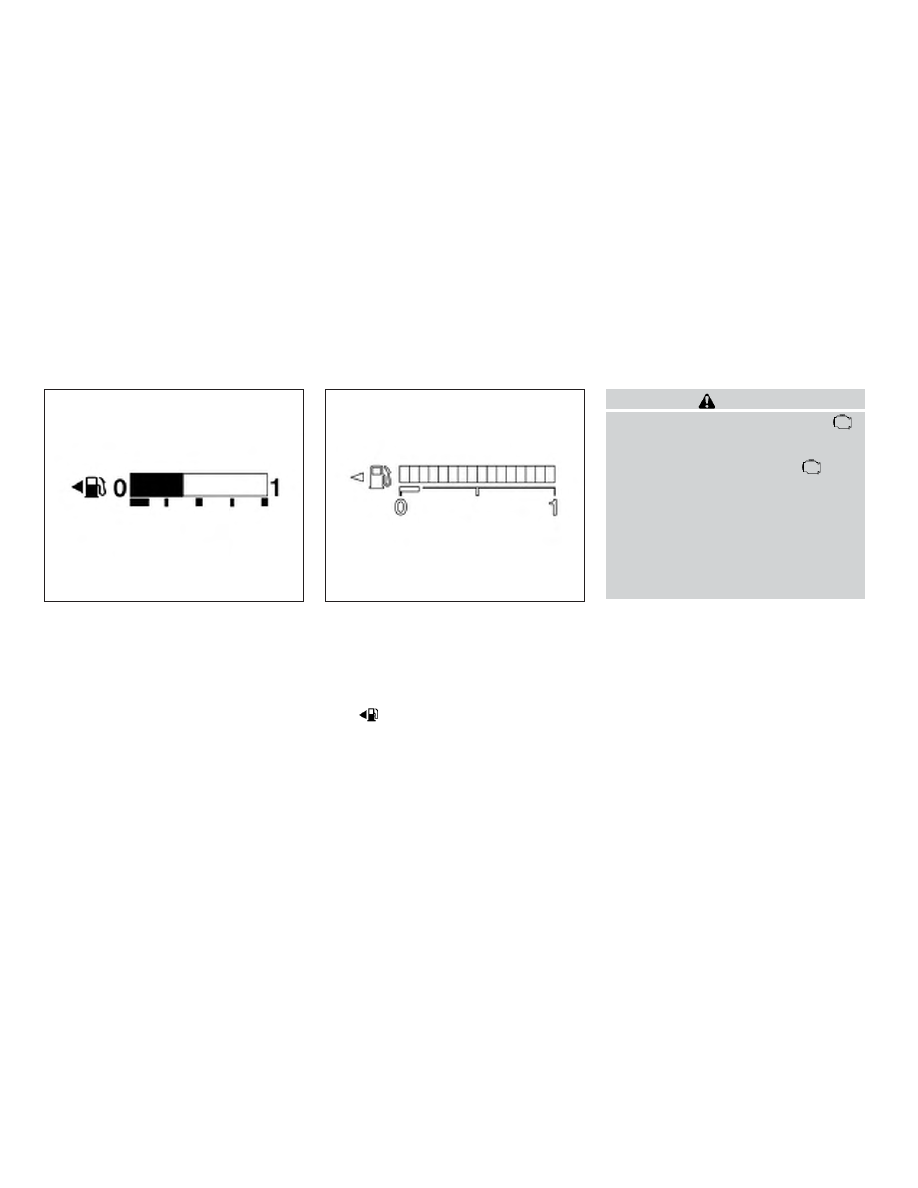

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

Type A (if so equipped): The low fuel warn-
ing message shows in the vehicle informa-
tion display when the amount of fuel in the
tank is getting low.

Type B (if so equipped): The low fuel warn-
ing light illuminates when the amount of
fuel in the tank is getting low.
Refill the fuel tank before the gauge reg-
isters 0 (Empty).

The

indicates that the fuel-filler

door is located on the driver’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the

light

should turn off. If the light remains on
after a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

Type A (if so equipped)

LIC3564

Type B (if so equipped)

LIC3593

2-8

Instruments and controls

TRIP COMPUTER (if so equipped)

When the ignition switch is placed in the ON
position, modes of the trip computer can
be selected by pushing the TRIP RESET
switch

䊊

Each time the TRIP RESET switch is pushed,
the display changes as follows:

Trip A

→ Trip B → Odometer

The

switch for the trip computer is

located on the lower left side of the instru-
ment panel.

Each time the

switch is pushed, the

display will change as follows:
Average fuel economy

→ Average speed →

Trip time

→ Trip Distance

Average fuel economy (mpg or
km/l)

The average fuel economy mode shows
the average fuel economy since the last
reset. Resetting is done by pressing the
change/reset switch for more than ap-
proximately 1 second. The display is up-
dated every 30 seconds. At about the first
1/3 mi (500 m) after a reset, the display
shows (----).

Average speed (mph or km/h)

The average speed mode shows the aver-
age vehicle speed since last reset. Reset-
ting is done by pressing the change/reset
switch for more than approximately 1 sec-
ond. The display is updated every 30 sec-
onds. The first 30 seconds after a reset, the
display shows (----).

Trip time

The trip time mode shows the time since
the last reset. The displayed time can be
reset by pressing the change/trip switch
for more than approximately 1 second.

Trip distance

The trip distance mode shows the distance
traveled since the last reset. The trip dis-
tance can be reset by pressing the
change/trip switch for more than approxi-
mately 1 second.

Shipping mode

This message may appear if the extended
storage switch is not pushed in. When this
message appears, push in the extended
storage switch to turn off the warning. For
additional information, refer to “Extended
storage switch” in this section.

LIC3594

Instruments and controls

2-9

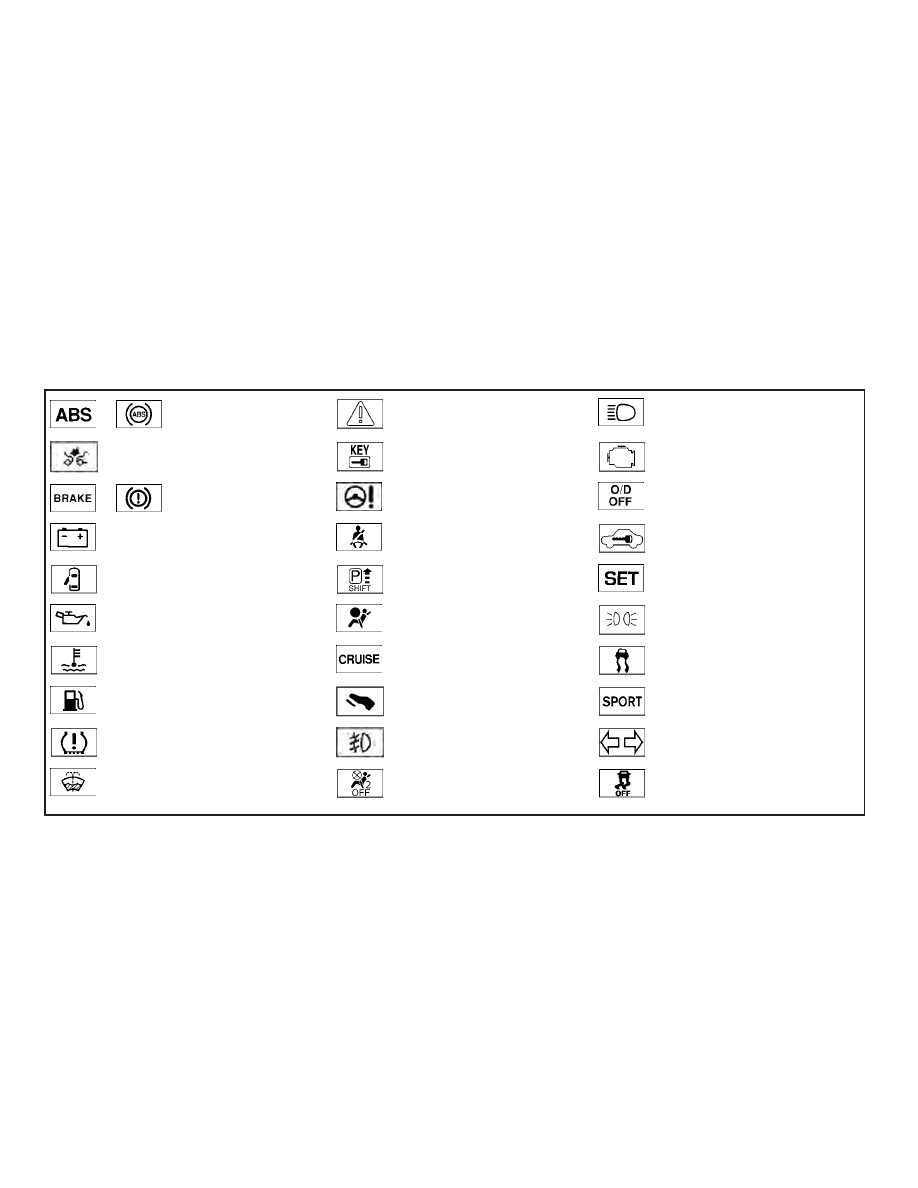

Anti-lock Braking System (ABS)
warning light

Master warning light (if so equipped)

High beam indicator light (blue)

Automatic Emergency Braking (AEB) system
warning light (if so equipped)

NISSAN Intelligent Key® warning light (if
so equipped)

Malfunction Indicator Light (MIL)

Brake warning light

Power steering warning light

Overdrive OFF indicator light (if so
equipped)

Charge warning light

Seat belt warning light

Security indicator light (if so equipped)

Door open warning light (if so equipped)

Shift P (Park) warning light (if so
equipped)

SET indicator light (if so equipped)

Engine oil pressure warning light

Supplemental air bag warning light

Side light and headlight indicator light
(green)

High temperature warning light (red) (if so
equipped)

CRUISE indicator light (if so equipped)

Slip indicator light

Low fuel warning light (if so equipped)

Engine start operation indicator light (if
so equipped)

SPORT mode indicator light (if so
equipped)

Low tire pressure warning light

Front fog light indicator light (green) (if
so equipped)

Turn signal/hazard indicator lights

Low windshield-washer fluid warning light (if
so equipped)

Front passenger air bag status light

Vehicle Dynamic Control (VDC) OFF indi-
cator light

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-10

Instruments and controls

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:

The following lights (if so equipped) will
come on briefly and then go off:

If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

WARNING LIGHTS

For additional information on warnings
and indicators, refer to “Vehicle information
display” in this section.

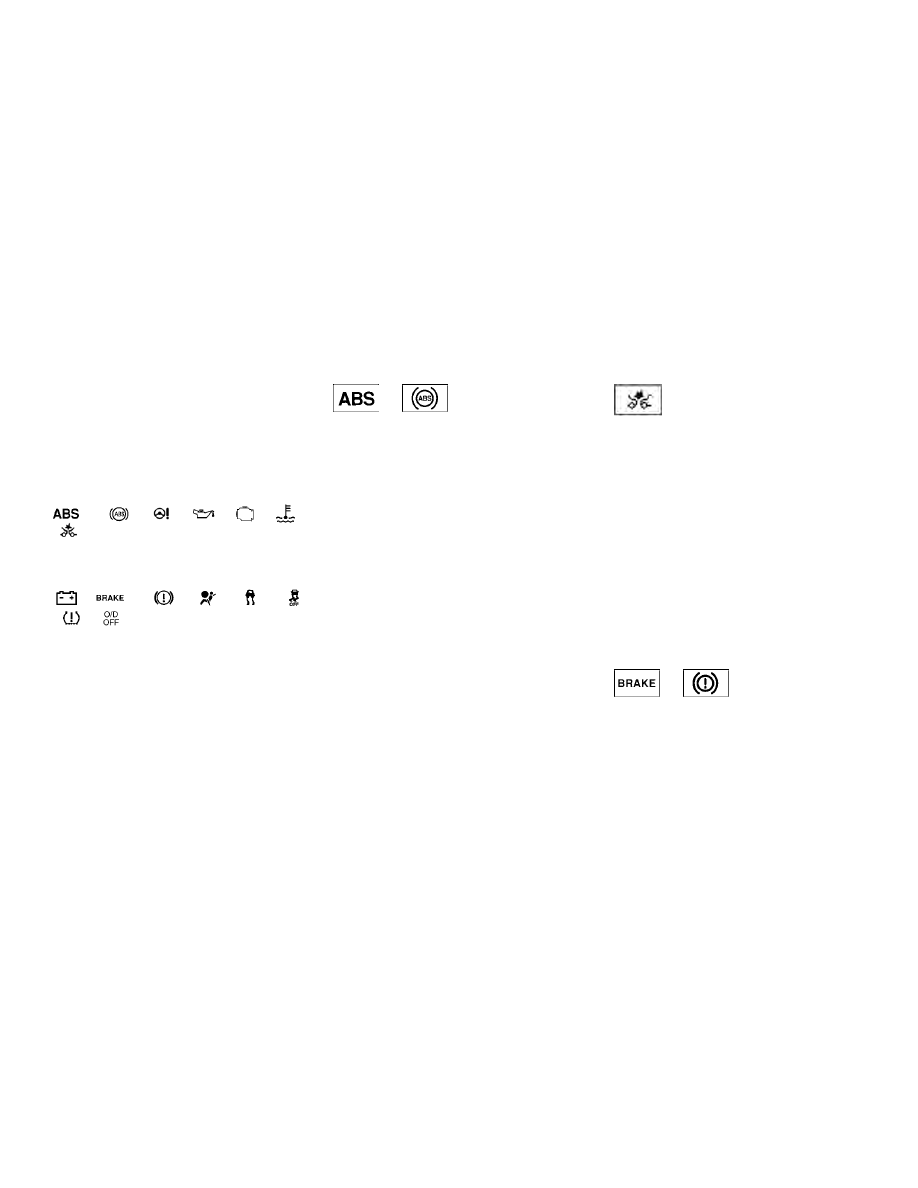

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Automatic Emergency

Braking (AEB) system
warning light (if so
equipped)

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

This light illuminates when the AEB system
is set to OFF on the vehicle information
display.

If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Automatic Emergency Braking (AEB)”
in the “Starting and driving” section of this
manual.

Brake warning

light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, this light comes on when the
parking brake is applied.

Instruments and controls

2-11

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.

2. If the brake fluid level is correct, have

the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.

WARNING

∙ Your brake system may not be work-

ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for repairs.
Otherwise, have your vehicle towed
because

driving

could

dangerous.

∙ Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

∙ If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the
brake warning light and the ABS warning
light illuminate, it may indicate the ABS is
not functioning properly. Have the brake
system checked and, if necessary, repaired.
It is recommended that you visit a NISSAN
dealer for this service. For additional infor-
mation, refer to “Anti-lock Braking System
(ABS) warning light” in this section.

Charge warning light

If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the generator belt. If
the belt is loose, broken, missing, or if the
light remains on, have the system checked.
It is recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ Do not ground electrical accessories

directly to the battery terminal. Doing
so will bypass the variable voltage
control system and the vehicle bat-
tery may not charge completely. For
additional information, refer to “Vari-
able voltage control system” in the
“Do-it-yourself ”

section

this

manual.

∙ Do not continue driving if the genera-

tor belt is loose, broken or missing.

2-12

Instruments and controls

Door open warning light (if

so equipped)

This light comes on when any of the doors
are not closed securely while the ignition
switch is in the ON position.

Engine oil pressure

warning light

This light warns of low engine oil pressure. If
the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine immediately and call a
NISSAN dealer or other authorized repair
shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. For
additional information, refer to “Engine oil”
in the “Do-it-yourself ” section of this
manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by the NISSAN New Vehicle Limited
Warranty. Turn off the engine as soon as
it is safe to do so.

High temperature warning

light (red) (if so equipped)

When the ignition switch is placed in the ON
position, the high temperature warning
light illuminates and then turns off. This in-
dicates that the high temperature sensor
in the engine coolant system is opera-
tional.

When driving, the high temperature warn-
ing light may turn off. This indicates that the
engine coolant temperature is within the
normal range.

CAUTION

If the high temperature warning light
illuminates while the engine is running,
it may indicate the engine temperature
is extremely high. Stop the vehicle
safely as soon as possible. If the vehicle
is overheated, continuing vehicle op-
eration may seriously damage the en-
gine. For additional information, refer
to “If your vehicle overheats” in the “In
case of emergency” section of this
manual.

Low fuel warning light (if so

equipped)

This light comes on when the fuel level in
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
fuel gauge reaches 0 (Empty). There will be
a small reserve of fuel in the tank when
the fuel gauge reaches 0 (Empty).

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

Instruments and controls

2-13

Content .. 4 5 6 7 ..
