CLEANING

If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild detergent.
Then rinse the blade with clear water. If your
windshield is still not clear after cleaning the
blades and using the wiper, replace the blades.

CAUTION

Worn windshield wiper blades can
damage the windshield and impair
driver vision.

SDI1803

REPLACING

Replace the wiper blades if they are worn.

Before replacing the wiper blades, the wiper
should be in the fully up position to avoid
scratching the engine hood or damaging the
wiper arm. To pull up the wiper arm, see “Wiper
and washer switch” (P.2-36).

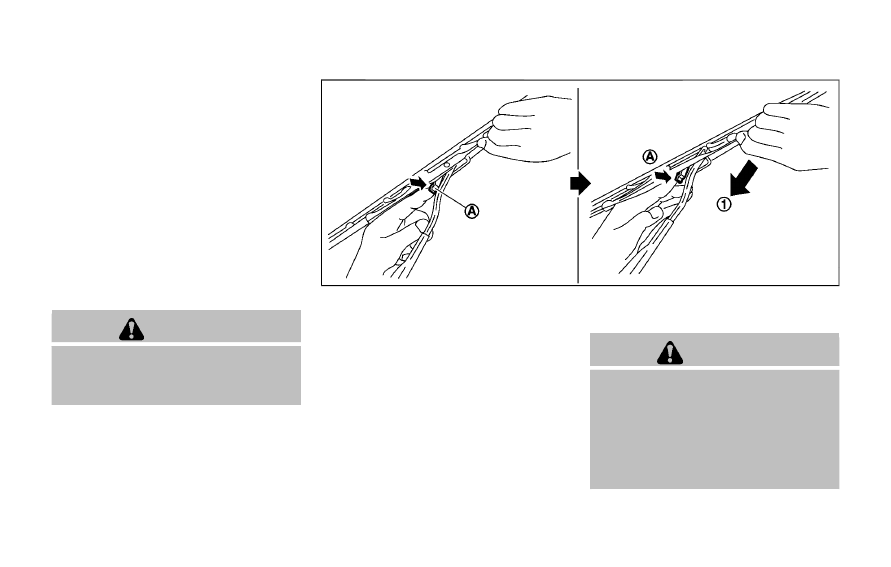

1. Lift the wiper arm away from the windshield.

2. Push and hold the release tab

*

A

, and

move the wiper blade down the wiper arm

*

1

.

3. Insert the new wiper blade onto the wiper

arm until a click sounds.

4. Rotate the wiper blade so that the dimple is

in the groove.

CAUTION

After wiper blade replacement, re-

turn the wiper arm to its original
position; otherwise it may be da-
maged when the hood is opened.

Make sure the wiper blades contact

the glass; otherwise the arm may be
damaged from wind pressure.

Do-it-yourself

8-15

WINDSHIELD WIPER BLADES

8-16

Do-it-yourself

SDI2693

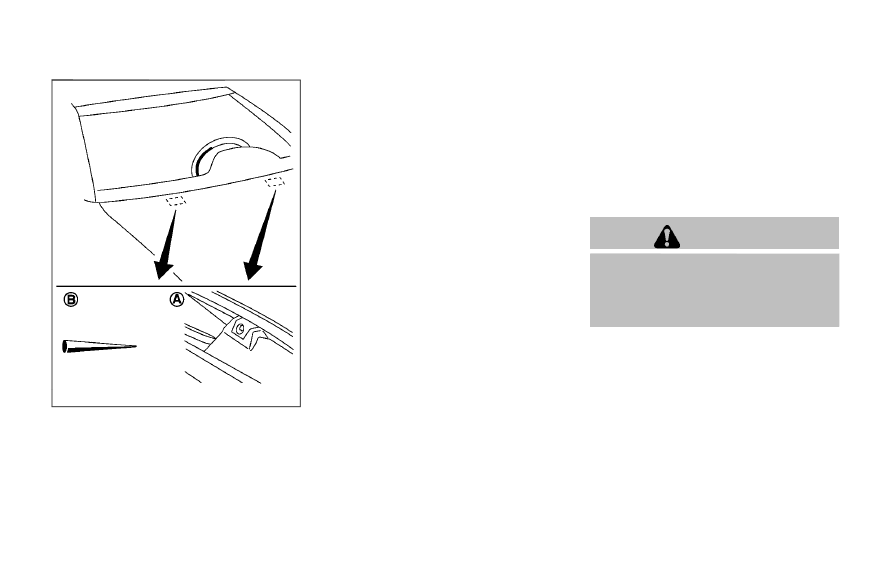

Be careful not to clog the washer nozzle

*

A

.

This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin

*

B

. Be

careful not to damage the nozzle.

It is recommended you contact a NISSAN dealer
if checking or replacement is required.

If the brakes do not operate properly, it is
recommended you have the brakes checked by
a NISSAN dealer.

SELF-ADJUSTING BRAKES

Your vehicle is equipped with self-adjusting
brakes.

The disc-type brakes self-adjust every time the
brake pedal is applied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended you visit a
NISSAN dealer for this service.

BRAKE PAD WEAR WARNING

The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.

REAR WINDOW WIPER BLADE

BRAKES

Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does not
affect the function or performance of the brake
system.

Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance schedule shown in the “9. Main-
tenance and schedules” section.

JVM0620X

ENGINE COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are turned off.

2. Open the engine hood.

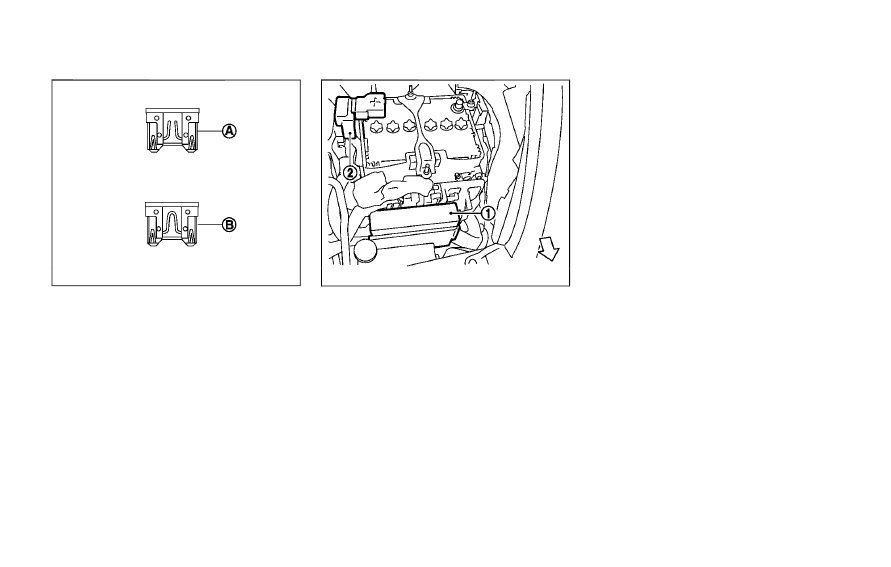

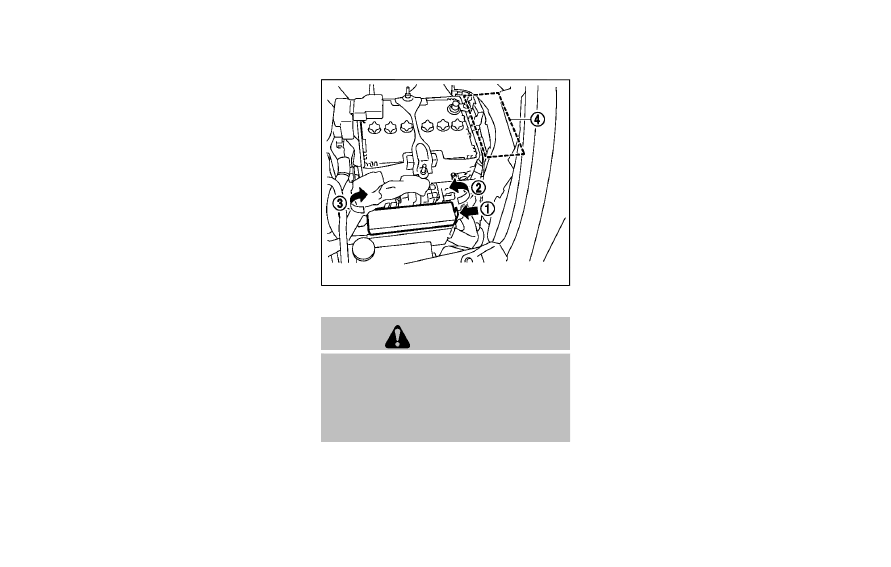

3. Remove the fuse/fusible link holder cover by

pushing the tab

*

1

and lifting the cover

from the right side

*

2

, then the left side

*

3

.

4. Locate the fuse that needs to be replaced.

5. Remove the fuse using the fuse puller

located in the passenger compartment fuse
box.

Do-it-yourself

8-17

FUSES

8-18

Do-it-yourself

SDI1754

6. If the fuse is open

*

A

, replace it with a new

fuse

*

B

.

7. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

The holder

*

4

also contains the fuses. It is

recommended you visit a NISSAN dealer for
checking and/or replacing.

JVM0621X

Fusible links

If any electrical equipment does not operate and
the fuses are in good condition, check the
fusible links in the holders

*

1

and

*

2

. If any of

these fusible links are melted, replace only with
genuine NISSAN parts.

For checking and replacing the fusible links in
the holders

*

2

, it is recommended you visit a

NISSAN dealer.

JVM0622X

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are turned off.

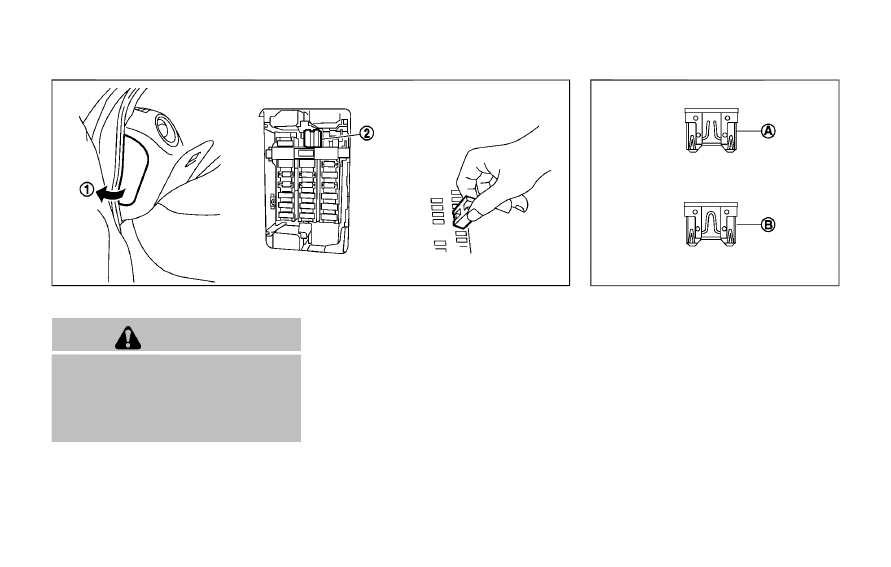

2. Remove the fuse box cover

*

1

.

3. Remove the fuse with the fuse puller

*

2

.

SDI1754

4. If the fuse is open

*

A

, replace it with a new

fuse

*

B

.

5. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

Do-it-yourself

8-19

8-20

Do-it-yourself

SDI2705

Extended storage fuse switch (if so
equipped)

To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.

If the extended storage fuse switch is not
pushed in (switched on), the meter may display
a warning message. See “Extended storage fuse
warning message” (P.2-9).

If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.

NOTE:

If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.

How to remove the extended storage fuse
switch:

1. To remove the extended storage fuse switch,

be sure the ignition switch is in the OFF or
LOCK position.

2. Be sure the headlight switch is in the OFF

position.

3. Remove the fuse box cover.

4. Pinch the storage fuse switch and pull it in

the direction illustrated.

CAUTION

Be careful not to allow children to
swallow the battery and removed parts.

INTELLIGENT KEY BATTERY
REPLACEMENT

SDI2451

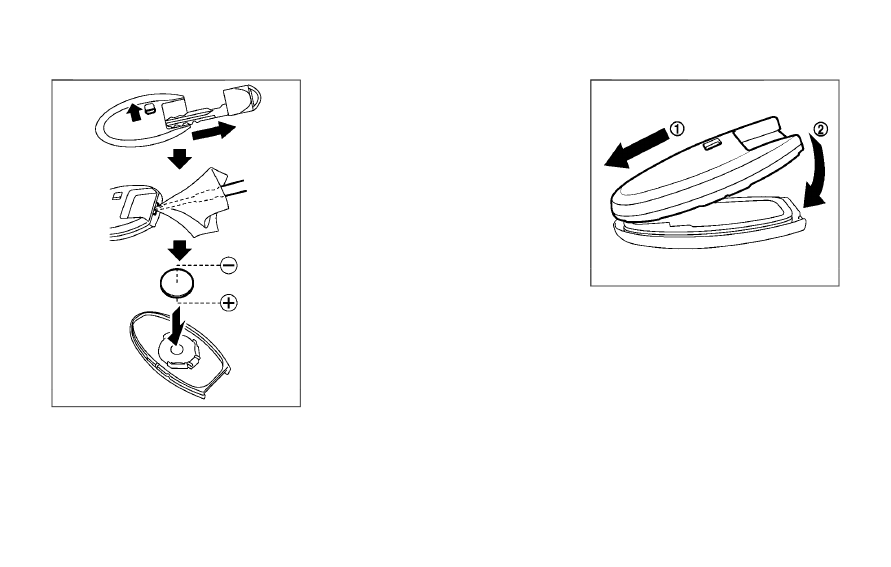

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the In-

telligent Key.

2. Insert a small screwdriver into the slit of the

corner and twist it to separate the upper part
from the lower part. Use a cloth to protect

the casing.

3. Replace the battery with a new one.

Recommended battery:

CR2025 or equivalent

.

Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

.

Hold the battery by the edges. Holding

the battery across the contact points will
seriously deplete the storage capacity.

.

Make sure that the

+ side faces the

bottom of the case.

SDI2452

4. Align the tips of the upper and lower parts

*

1

, and then push them together

*

2

until it

is securely closed.

5. Operate the buttons to check its operation.

If you need any assistance for replacement, it is
recommended you visit a NISSAN dealer for this
service.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-

Do-it-yourself

8-21

8-22

Do-it-yourself

ence received, including interference that
may cause undesired operation.

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.

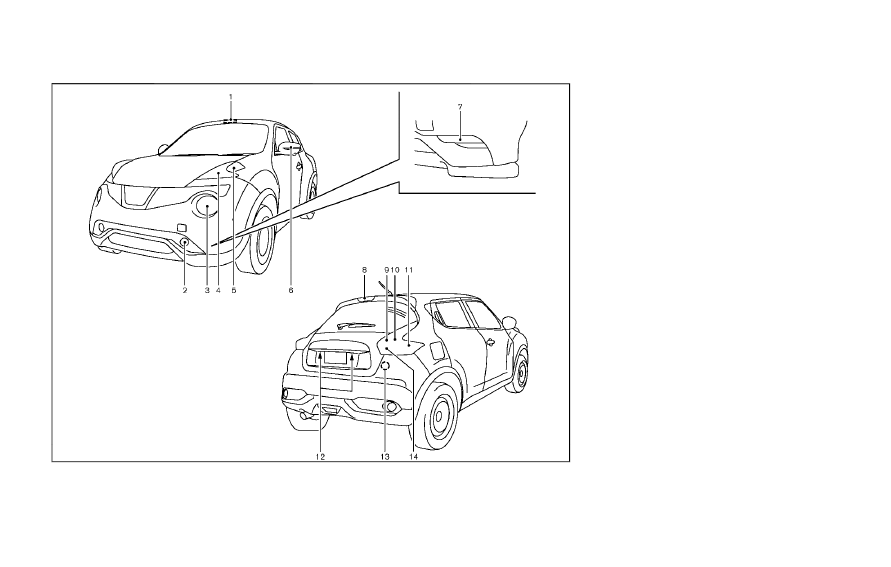

JVM0505X

1.

Map light

2.

Front fog light (if so equipped)

3.

Headlight (high-beam/low-beam)

4.

Front parking light

5.

Front turn signal light/Front side marker light

6.

Side turn signal light

7.

Daytime running light (NISMO models)

8.

High-mounted stop light

9.

Reverse light

10.

Rear turn signal light

11.

Stop/tail light

12.

License plate light

13.

Cargo light

14.

Tail light (LED)

HEADLIGHTS

Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, it is recommended you visit a
NISSAN dealer for servicing.

Do-it-yourself

8-23

LIGHTS

8-24

Do-it-yourself

Replacing

Xenon headlight model:

If replacement is required, it is recommended
you visit a NISSAN dealer for this service.

WARNING

HIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. It is recommended to
have your xenon headlights replaced at
a NISSAN dealer. For additional infor-
mation, see
Headlight and turn signal
switch
” (P.2-39).

Halogen headlight model:

The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.

CAUTION

Do not leave the bulb out of the

headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may

affect bulb performance.

High pressure halogen gas is sealed

inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

Only touch the base when handling

the bulb. Never touch the glass
envelope. Touching the glass envel-
ope could significantly affect bulb
life and/or headlight performance.

Aiming is not necessary after repla-

cing the bulb. When aiming adjust-
m e n t

i s

n e c e s s a r y ,

i t

i s

recommended you visit a NISSAN
dealer for this service.

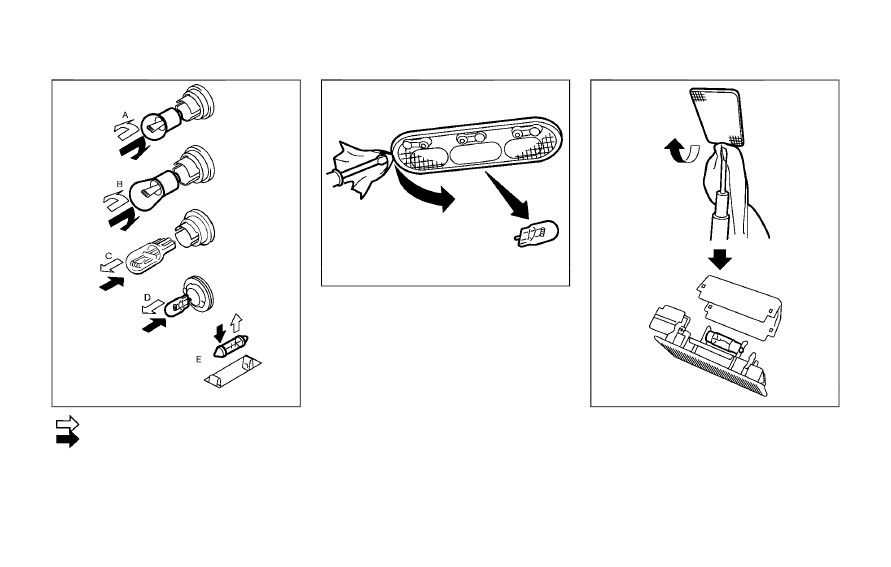

Use the same number and wattage as originally
installed as shown in the chart.

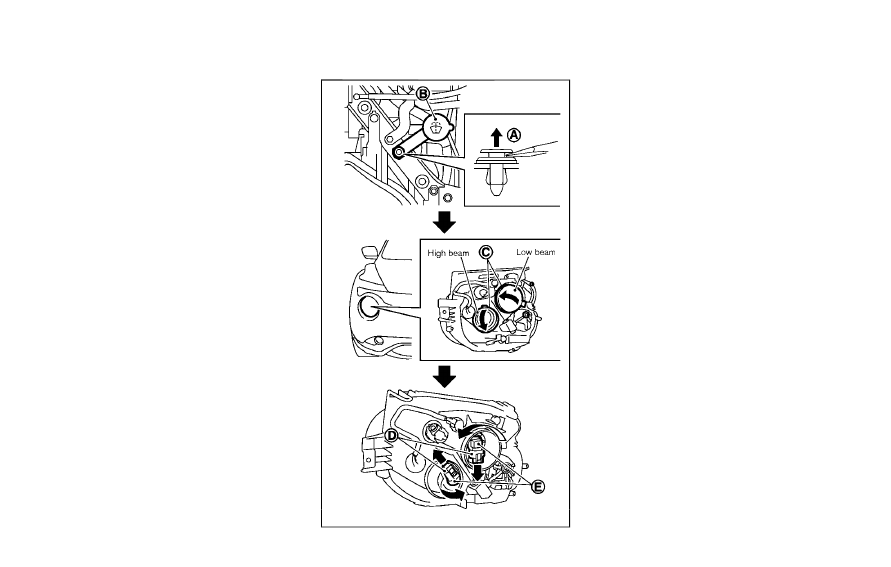

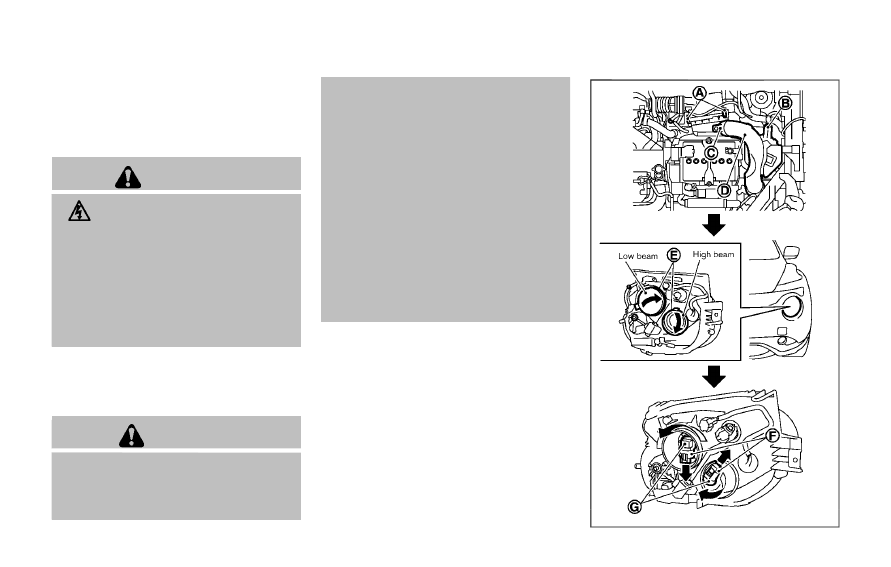

JVM0488X

Left side of the vehicle

Disconnect the battery negative cable before
replacing bulbs.

1. Remove clip

*

A

.

2. Pull up part

*

B

of the air duct, and then

move part

*

C

sideways.

3. Remove the air duct

*

D

.

4. Remove back cover

*

E

.

5. Disconnect connector

*

F

.

6. Turn and pull out socket

*

G

, and then

remove the bulb.

JVM0489X

Right side of the vehicle

Disconnect the battery negative cable before
replacing bulbs.

1. Remove clip

*

A

.

2. Remove washer inlet

*

B

.

3. Remove back cover

*

C

.

4. Disconnect connector

*

D

.

5. Turn and pull out socket

*

E

, and then

remove the bulb.

Do-it-yourself

8-25

8-26

Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight high/low beams (Xenon)*

60/35

HB3/D2S

Headlight high/low beams (Halogen)

60/55

HB3/H11

Front turn signal light*

21

WY21W

Front parking light*

LED

-

Front side marker light*

5

W5W

Front fog light (if so equipped)*

55

H11

Side turn signal light*

LED

-

Daytime running light (for NISMO models)*

LED

-

Rear combination light*

turn signal light

21

WY21W

stop/tail light

21/5

W21/5W

tail light (LED)

LED

back-up

16

W16W

License plate light*

5

W5W

Map light

5

High-mounted stop light*

LED

Cargo light

5

Glove box light*

1.4

*:

It is recommended you visit a NISSAN dealer for replacement.

NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.

SDI2306

:

REMOVE

:

INSTALL

Replacement procedures

All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.

SDI2391

Map light

SDI2653

Cargo light

Do-it-yourself

8-27

8-28

Do-it-yourself

If you have a flat tire, see “Flat tire” (P.6-3).

TIRE PRESSURE

Tire Pressure Monitoring System (TPMS)

This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
CHECK TIRE PRES (pressure) warning mes-
sage is displayed in the vehicle information
display, one or more of your tires is significantly
under-inflated.

The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving).

For more details, see “Low tire pressure warning
light” (P.2-18), “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-3) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3).

Tire inflation pressure
Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under

the “Cold Tire Pressure” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked reg-
ularly because:

.

Most tires naturally lose air over time.

.

Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds.

Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.

WARNING

.

Improperly inflated tires can
fail suddenly and cause an
accident.

.

The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight
capacity is indicated on the
Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Over-
loading your vehicle may re-
sult in reduced tire life, unsafe
operating conditions due to
premature tire failure, or un-
favorable handling character-
istics and could also lead to a
serious accident. Loading be-
yond the specified capacity
may also result in failure of
other vehicle components.

.

Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pres-
sure gauge to ensure that the
tire pressures are at the spe-
cified level.

WHEELS AND TIRES

.

For additional information re-
garding tires, refer to
Impor-
tant Tire Safety Information

(US) or Tire Safety Informa-
tion
” (Canada) in the Warranty
Information Booklet.

Do-it-yourself

8-29

8-30

Do-it-yourself

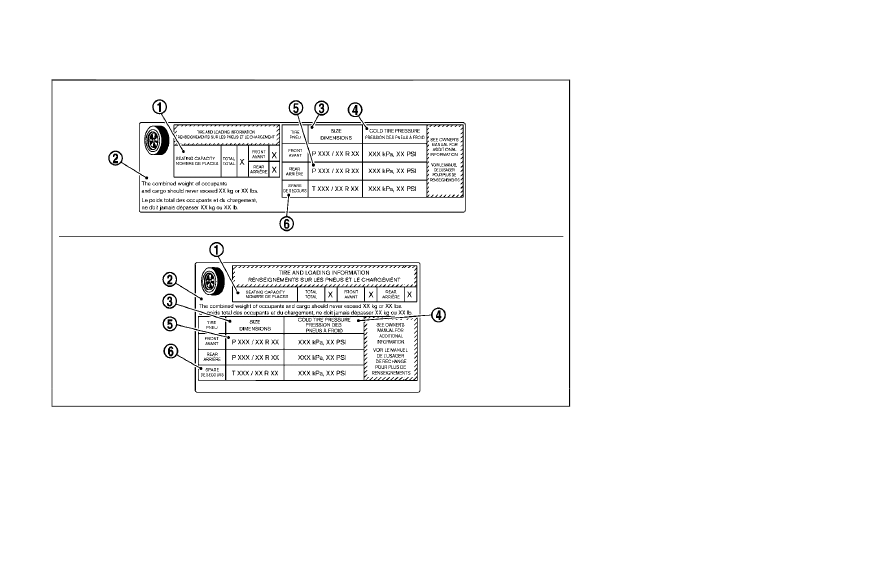

SDI2503

Tire and Loading Information label

*

1

Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.

*

2

Vehicle load limit: See “Vehicle
loading information” (P.10-15).

*

3

Original size: The size of the tires
originally installed on the vehicle at
the factory.

*

4

Cold tire pressure: Inflate the tires to
this pressure when the tires are
cold. Tires are considered COLD

after the vehicle has been parked for
3 or more hours, or driven less than
1 mile (1.6 km) at moderate speeds.
The recommended cold tire inflation
is set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.

*

5

Tire size — see “Tire labeling” (P.8-
34).

*

6

Spare tire size or compact spare tire
size (if so equipped)















Content   ..  20  21  22  23   ..
