Nissan 370Z Roadster (2017 year). Instruction

(290,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-2

Starting and driving

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent op-
eration of the vehicle. Also, on hot,
sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.

Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury (Coupe mod-
els).

Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked with the trunk closed when
not in use, and prevent children’s

access to car keys (Roadster mod-
els).

If the engine oil temperature is high, the
engine protection mode, which helps re-
duce the chance of engine damage, could
activate and automatically decrease en-
gine power. Driving while the engine oil
temperature is high may result in engine
damage.

EXHAUST GAS (carbon monoxide)

WARNING

Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.

If you suspect that exhaust fumes
are entering the vehicle, drive with
all windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the
engine running for any extended
length of time.

Keep the rear hatch/trunk lid closed
while driving, otherwise exhaust
gases could be drawn into the
passenger compartment. If you
must drive with the rear hatch/trunk
lid open, follow these precautions:

1) Open all the windows.

2) Set the

air recirculation to

off and the fan control to high to
circulate the air.

The exhaust system and body
should be inspected by a qualified
mechanic whenever:

— The vehicle is raised for service.

— You suspect that exhaust fumes

are entering into the passenger
compartment.

— You notice a change in the

sound of the exhaust system.

— You have had an accident invol-

ving damage to the exhaust
system, underbody, or rear of
the vehicle.

PRECAUTIONS WHEN STARTING
AND DRIVING

Condition:

(291,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

THREE-WAY CATALYST

The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.

WARNING

The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

CAUTION

Do not use leaded gasoline. Depos-
its from leaded gasoline seriously
reduce the three-way catalyst’s abil-
ity to help reduce exhaust pollu-
tants.

Keep your engine tuned up. Mal-
functions in the ignition, fuel injec-

tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating
conditions are detected. Have the
vehicle inspected. It is recom-
mended you visit a NISSAN dealer
for this service.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper

tire inflation pressure for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires
is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.

Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the

Starting and driving

5-3

Condition:

(292,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-4

Starting and driving

malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.

Additional information

Since the spare tire is not equipped with the
TPMS, the TPMS does not monitor the tire
pressure of the spare tire.

The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving).

The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

The CHECK TIRE PRESSURE warning also
appears on the vehicle information display
when the low tire pressure warning light is
illuminated and low tire pressure is detected.
The CHECK TIRE PRESSURE warning
turns off when the low tire pressure warning
light turns off.

The CHECK TIRE PRESSURE warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.

The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a TPMS
malfunction.

Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Do not reduce
the tire pressure after driving because the
tire pressure rises after driving. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.

For additional information, see “Low tire pres-
sure warning light” (P.2-13) and “Tire Pressure

Monitoring System (TPMS)” (P.6-3).

WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat or the
TPMS may be malfunctioning. If you
have a flat tire, replace it with a
spare tire (if so equipped) or repair
it with the tire puncture repair kit (if
so equipped) as soon as possible. If

Condition:

(293,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

no tire is flat and all tires are
properly inflated, it is recommended
you consult a NISSAN dealer.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or
TPMS system reset as soon as
possible. It is recommended you
visit a NISSAN dealer for these
services.

Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.

NISSAN recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit a NISSAN dealer
as soon as possible after using tire
repair sealant (for models equipped
with the emergency tire puncture

repair kit).

CAUTION

The TPMS may not function properly
when the wheels are equipped with
tire chains or the wheels are buried
in snow.

Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire
pressure sensors, and the TPMS will
not function properly.

Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:

Facilities or electric devices using similar
radio frequencies are near the vehicle.

If a transmitter set to similar frequencies is
being used in or near the vehicle.

If a computer (or similar equipment) or a DC/
AC converter is being used in or near the
vehicle.

Low tire pressure warning light may illuminate in

the following cases.

If the vehicle is equipped with a wheel and
tire without TPMS.

If the TPMS has been replaced and the ID
has not been registered.

If the wheel is not originally specified by
NISSAN.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-

Starting and driving

5-5

Condition:

(294,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-6

Starting and driving

ence that may cause undesired operation
of the device.

AVOIDING COLLISION AND ROLL-
OVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.

Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering
maneuvers, because these driving practices
could cause you to lose control of your vehicle.
As with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt as outlined in the “Seat
belts” (P.1-10) of this manual, and also instruct
your passengers to do so.

Seat belts help reduce the risk of injury in

collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side wheels
may unintentionally leave the road surface. If this
occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

4. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while the vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface until
vehicle speed is reduced.

6. When it is safe to do so, gradually turn the

steering wheel until both tires return to the
road surface. When all tires are on the road

surface, steer the vehicle to stay in the
appropriate driving lane.

If you decide that it is not safe to return

the vehicle to the road surface based on
vehicle, road or traffic conditions, gradu-
ally slow the vehicle to a stop in a safe
place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.

Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.

Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“Wheels and tires” (P.8-26) of this manual.

If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.

Condition:

(295,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air
pressure. Losing control of the vehicle
may cause a collision and result in
personal injury.

The vehicle generally moves or pulls
in the direction of the flat tire.

Do not rapidly apply the brakes.

Do not rapidly release the accelera-
tor pedal.

Do not rapidly turn the steering
wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

3. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

4. Gradually steer the vehicle to a safe location

off the road and away from traffic if possible.

5. Lightly apply the brake pedal to gradually

stop the vehicle.

6. Turn on the hazard warning flashers and

either contact a roadside emergency service
to change the tire or see “Changing a flat
tire (for models with spare tire)” (P.6-4) of
this Owner’s Manual.

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of
alcohol or drugs. Alcohol in the blood-
stream reduces coordination, delays
reaction time and impairs judgement.
Driving after drinking alcohol increases
the likelihood of being involved in an
accident injuring yourself and others.
Additionally, if you are injured in an
accident, alcohol can increase the se-
verity of the injury.

NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents.
Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of

alcohol.

Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.

Starting and driving

5-7

Condition:

(296,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-8

Starting and driving

WARNING

Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will stop
when the ignition switch is pushed 3
consecutive times or the ignition switch
is pushed and held for more than 2
seconds.) If the engine stops while the
vehicle is being driven, this could lead
to a crash and serious injury.

Before operating the push-button ignition
switch, be sure to move the shift lever to the P
(Park) position (for automatic transmission
model) or the shift lever to the N (Neutral)
position (for manual transmission model).

SSD0825

OPERATING RANGE FOR ENGINE
START FUNCTION

The Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range

When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent Key
system’s operating range becomes narrower
and may not function properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine.

The cargo/trunk room area is not included in
the operating range but the Intelligent Key
may function.

If the Intelligent Key is placed on the
instrument panel, rear parcel shelf, inside
the glove box or door pocket, the Intelligent
Key may not function.

If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.

PUSH-BUTTON IGNITION SWITCH

Condition:

(297,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SSD1021

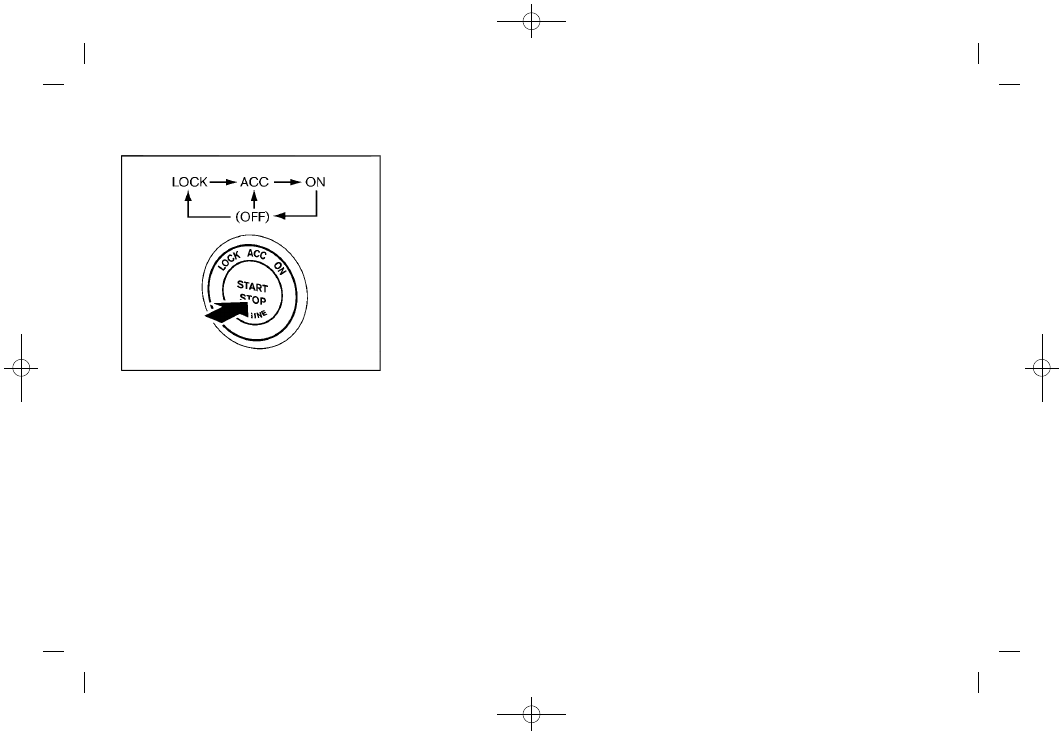

PUSH-BUTTON IGNITION SWITCH
OPERATION

When the ignition switch is pushed without
depressing the brake pedal (automatic transmis-
sion model) or the clutch pedal (manual
transmission model), the ignition switch position
will change as follows:

Push center once to change to ACC.

Push center two times to change to ON.

Push center three times to change to OFF.
(No position illuminates.)

Push center four times to return to ACC.

Open or close any door to return to LOCK
during the OFF position.

If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
turned from the LOCK position.

Some indicators and warnings for operation are
displayed on the vehicle information display.
(See “Vehicle information display” (P.2-18).)

Automatic transmission models

The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the shift lever is moved to the P (Park)
position.

When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:

1. Move the shift lever into the P (Park)

position.

2. Push the ignition switch to the OFF position.

The ignition switch position indicator will not
illuminate.

3. Open the door. The ignition switch will

change to the LOCK position.

The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

PUSH-BUTTON IGNITION SWITCH
POSITIONS

LOCK (Normal parking position)

The ignition switch can only be locked in this
position.

The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.

ACC (Accessories)

This position activates electrical accessories
such as the radio, when the engine is not
running.

ON (Normal operating position)

This position turns on the ignition system and
electrical accessories.

OFF

The engine can be turned off in this position.

Automatic transmission models: The ignition
lock is designed so that the ignition switch
cannot be switched to the LOCK position until
the shift lever is moved to the P (Park) position.

Starting and driving

5-9

Condition:

(298,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-10

Starting and driving

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency situation
while driving perform the following procedure:

Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or

Push and hold the push-button ignition
switch for more than 2 seconds.

CAUTION

Do not leave the vehicle with the push-
button ignition switch in ACC or ON
positions when the engine is not run-
ning for an extended period. This can
discharge the battery.

SSD0826

INTELLIGENT KEY BATTERY DIS-
CHARGE

If the battery of the Intelligent Key is almost
discharged, the guide light

of the Intelligent

Key port

blinks and the indicator appears on

the vehicle information display. (See “Vehicle
information display” (P.2-18).)

In this case, inserting the Intelligent Key into the
port

allows you to start the engine. Make

sure that the key ring side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.

To remove the Intelligent Key from the port, push
the ignition switch to the OFF position and pull
the Intelligent Key out of the port.

NOTE:

The Intelligent Key port does not charge
the Intelligent Key battery. If you see the
low battery indicator in the vehicle infor-
mation display, replace the battery as soon
as possible. (See “Intelligent Key battery
replacement” (P.8-20).)

CAUTION

Never place anything except the
Intelligent Key in the Intelligent
Key port. Doing so may cause da-
mage to the equipment.

Make sure the Intelligent Key is in
the correct direction when inserting
it to the Intelligent Key port. The
engine may not start if it is in the
incorrect direction.

Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF posi-
tion.

Condition:

(299,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Make sure the area around the vehicle is
clear.

Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.

Check that all windows and lights are clean.

Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.

Lock all doors.

Position seat and adjust head restraints.

Adjust inside and outside mirrors.

Fasten seat belts and ask all passengers to
do likewise.

Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “Warning lights, indicator
lights and audible reminders” (P.2-10).)

1. Apply the parking brake.

2. Automatic Transmission (AT) model:

Move the shift lever to the P (Park) or N
(Neutral) position. (P is recommended.)

The starter is designed not to operate unless
the shift lever is in either of the above
positions.

Manual Transmission (MT) model:

Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.

The starter is designed not to operate unless
the clutch pedal is fully depressed.

The Intelligent Key must be carried
when operating the ignition switch.

3. Push the ignition switch to the ON position.

Depress the brake pedal (AT model) or the
clutch pedal (MT model) and push the
ignition switch to start the engine.

To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal with the
ignition switch in any position.

If the engine is very hard to start in

extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the

accelerator pedal when the engine starts.

If the engine is very hard to start because

it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.

CAUTION

Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.

4. Warm-up

Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at

Starting and driving

5-11

BEFORE STARTING THE ENGINE

STARTING THE ENGINE

Condition:

(300,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-12

Starting and driving

moderate speed for a short distance first,
especially in cold weather. In cold weather,
keep the engine running for a minimum of 2 -
3 minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.

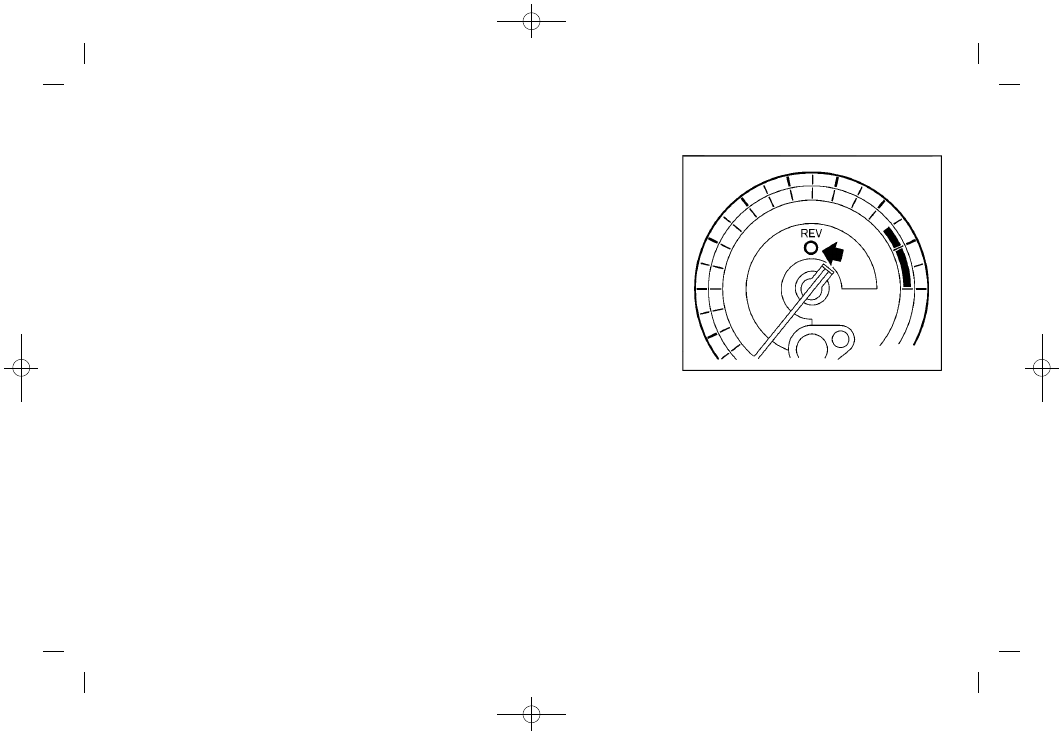

When racing the engine up to 4,500 rpm or
more under no load condition, the engine
will enter the fuel cut mode.

5. To stop the engine, shift the shift lever to the

P (Park) position (AT model) or move the
shift lever to the N (Neutral) position (MT
model), and push the ignition switch to the
OFF position.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-

nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

AUTOMATIC TRANSMISSION

7 speed automatic transmission

The automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.

Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum
vehicle performance and driving enjoyment.

Starting the vehicle

After starting the engine, fully depress the foot
brake pedal and push the shift lever button
before shifting the shift lever to the R (Reverse),
N (Neutral), D (Drive) or Manual shift mode
position. Be sure the vehicle is fully stopped
before attempting to shift the shift lever.

This automatic transmission model is de-
signed so that the foot brake pedal must
be depressed before shifting from P (Park)
to any drive position while the ignition
switch position is ON.

The shift lever cannot be moved out of the
P (Park) position and into any of the other
gear positions if the ignition switch is
pushed to the LOCK, OFF or ACC position.

1. Keep the foot brake pedal depressed and

push the shift lever button to shift into a
driving gear.

2. Release the parking brake and foot brake,

then gradually start the vehicle in motion.

WARNING

Do not depress the accelerator
pedal while shifting from P (Park)
or N (Neutral) to R (Reverse) D
(Drive), or manual shift mode. Al-
ways depress the brake pedal until
shifting is completed. Failure to do
so could cause you to lose control
and have an accident.

Cold engine idle speed is high, so
use caution when shifting into a
forward or reverse gear before the
engine has warmed up.

Never shift to either the P (Park) or
R (Reverse) position while the vehi-
cle is moving forward and P (Park)
or D (Drive) position while the
vehicle is reversing. This could
cause an accident or damage the
transmission.

DRIVING THE VEHICLE

Condition:

(301,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.

CAUTION

Except in an emergency, do not shift
to the N (Neutral) position while
driving. Coasting with the transmis-
sion in the N (Neutral) position may
cause serious damage to the trans-
mission.

To avoid possible damage to your
vehicle; when stopping the vehicle
on an uphill grade, do not hold the
vehicle by depressing the accelera-
tor pedal. The foot brake should be
used for this purpose.

SSD0827

Shift lever

To move the shift lever,

Push the button while depressing the
brake pedal.

Push the button.

Just move the shift lever.

Shifting

After starting the engine, fully depress the brake
pedal and shift the shift lever from P (Park) to R
(Reverse), N (Neutral), D (Drive) or Manual shift
mode position.

Push the button to shift into P (Park) or R
(Reverse). All other positions can be selected
without pushing the button.

WARNING

Apply the parking brake if the shift lever
is in any position while the engine is
not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious
personal injury or property damage.

CAUTION

Make sure the vehicle is completely
stopped and the transmission is in the
P (Park) position.

P (Park) position:

Use this position when the vehicle is parked or
when starting the engine. Make sure the vehicle
is completely stopped. The brake pedal must
be depressed and the shift lever button
pushed in to move the shift lever from the
N (Neutral) position or any drive position to
the P (Park) position. Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the shift lever to the P (Park)
position.

Starting and driving

5-13

Condition:

(302,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-14

Starting and driving

CAUTION

Use this position only when the vehicle
is completely stopped.

R (Reverse):

Use this position to back up. Always be sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal
must be depressed and the shift lever
button pushed in to move the shift lever
from the P (Park) position, the N (Neutral)
position or any drive position to the R
(Reverse) position.

N (Neutral):

Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to the N (Neutral) position and restart a
stalled engine while the vehicle is moving.

D (Drive):

Use this position for all normal forward driving.

SSD0828

Paddle shifter (if so equipped)

Manual shift mode

When the shift lever is in the manual shift gate,
the transmission is ready for the manual shift
mode. Shift ranges can be selected manually by
moving the shift lever up or down, or pulling the
right-side or left-side paddle shifter (if so
equipped).

When shifting up, move the shift lever to the +
(up) side or pull the right-side paddle shifter (if
so equipped) (+)

. The transmission shifts to

the higher range.

When shifting down, move the shift lever to the
− (down) side or pull the left-side paddle shifter
(if so equipped) (

−)

. The transmission shifts

to the lower range.

When canceling the manual shift mode, return
the shift lever to the D (Drive) position. The
transmission returns to the normal driving mode.

When you pull the paddle shifter (if so
equipped) while in the D (Drive) position, the
transmission will shift to the upper or lower
range temporarily. The transmission will auto-
matically return to the D (Drive) position after a
short period of time. If you want to return to the
D (Drive) position manually, pull and hold the
paddle shifter (if so equipped) for about 1.5
seconds.

In the manual shift mode, the shift range is
displayed on the transmission position indicator
in the meter.

Shift ranges up or down one by one as follows:

?
/

(7th):

Use this position for all normal forward driving at
highway speeds.

(6th) and 5

(5th):

Use these positions when driving up long
slopes, or for engine braking when driving down
long slopes.

Condition:

(303,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

(4th), 3

(3rd) and 2

(2nd):

Use these positions for hill climbing or engine
braking on downhill grades.

(1st):

Use this position when climbing steep hills
slowly or driving slowly through deep snow, or
for maximum engine braking on steep downhill
grades.

Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.

Moving the shift lever rapidly to the same
side twice will shift the ranges in succes-
sion.

In the manual shift mode, the transmis-
sion may not shift to the selected gear
or may automatically shift to the other
gear. This helps maintain driving per-
formance and reduces the chance of
vehicle damage or loss of control.

When the transmission does not shift
to the selected gear, the Automatic
Transmission (AT) position indicator
light (on the instrument panel) will
blink and the buzzer will sound.

In the manual shift mode, the transmis-
sion automatically shifts down to 1st
gear before the vehicle comes to a
stop. When accelerating again, it is

necessary to shift up to the desired
range.

SSD0832

Upshift indicator:

The up-shift indicator is located in the tach-
ometer and shows the driver the timing to shift
into a higher gear by illuminating. The use of the
up-shift indicator will help you to upshift at a
constant engine speed from any gear.

The up-shift indicator will start flashing when the
engine speed reaches about 500 rpm before the
set figure while driving, and then illuminate after
the engine speed reaches the set figure.

The engine speed for upshifting can be set on
the vehicle information display. See “Trip com-
puter” (P.2-23).

There may be a slight difference between

Starting and driving

5-15

Condition:

(304,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

5-16

Starting and driving

the timing of the up-shift indicator illumi-
nation and the tachometer indication.

Accelerator downshift — In D (Drive)
position —

For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-
ing on the vehicle speed.

Fail-safe

When the fail-safe operation occurs, note that
the transmission will be locked in any of the
forward gears according to the condition.

If the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. This will
occur even if all electrical circuits are
functioning properly. In this case, push
the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition
switch back to the ON position. The vehicle
should return to its normal operating
condition. If it does not return to its normal
operating condition, have the transmission
checked and repaired, if necessary. It is
recommended you visit a NISSAN dealer
for this service.

SSD0829

Shift lock release

If the battery charge is low or discharged, the
shift lever may not be moved from the P (Park)
position even with the brake pedal depressed
and the shift lever button pushed.

To move the shift lever, perform the following
procedure:

1. Push the ignition switch to the OFF or LOCK

position.

2. Apply the parking brake.

3. Remove the shift lock cover

using a

suitable tool.

4. Push down the shift lock

using a

suitable tool as illustrated.

5. Push the shift lever button

and move the

shift lever to the N (Neutral) position

while holding down the shift lock.

Now the vehicle may be moved to the desired
location.

If the lever cannot be moved out of P (Park),
have the automatic transmission system
checked as soon as possible. It is recom-
mended you visit a NISSAN dealer for this
service.

MANUAL TRANSMISSION

WARNING

Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.

Do not over-rev the engine when
shifting to a lower gear. This may
cause a loss of control or engine
damage.

Condition:

(305,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

CAUTION

Do not rest your foot on the clutch
pedal while driving. This may da-
mage the clutch.

Fully depress the clutch pedal be-
fore shifting to help prevent trans-
mission damage.

Stop your vehicle completely before
shifting into R (Reverse).

When the vehicle is stopped with
the engine running (for example, at
a stop light), shift to N (Neutral) and
release the clutch pedal with the
foot brake applied.

SSD0536

Shifting

To change gears, or when upshifting or down-
shifting, fully depress the clutch pedal, shift into
an appropriate gear, and then slowly and
smoothly release the clutch pedal.

This vehicle is equipped with a short throw
shifter manual transmission. To ensure smooth
gear changes, be sure to fully depress the clutch
pedal before operating the shift lever. If the
clutch pedal is not fully depressed before the
transmission is shifted, a gear noise may be
heard. Transmission damage could occur.

Start the vehicle in 1st gear and upshift to 2nd,
3rd, 4th, 5th and 6th gear in sequence accord-

ing to the vehicle speed.

To back up, depress the shift knob and then
move the shift lever to the R (Reverse) position
after stopping the vehicle completely.

The shift knob returns to its original position
when the shift lever is moved to the N (Neutral)
position.

If it is difficult to move the shift lever into R
(Reverse) or 1st (Low gear), shift to N (Neutral),
then release the clutch pedal. Fully depress the
clutch pedal again and shift into R or 1st.

SynchroRev Match mode (S-MODE) (if
so equipped for Manual Transmission
models)

The SynchroRev Match mode (S-MODE) auto-
matically adjusts the engine speed to match the
selecting gear ratio while changing gears.

Precautions:

Shift lever and clutch pedal operations are
not different than a conventional manual
transmission.

Fully depress the clutch pedal. Insufficient
pedal depression may cause slow response
of this system.

When the clutch pedal is depressed with
the gear still engaged, the engine speed is
kept at the proper level for the engaged

Starting and driving

5-17

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 19
