Nissan 370Z Roadster (2017 year). Instruction - part 18

(274,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-110

Center display, heater, air conditioner, audio, phone and voice recognition systems

display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.

Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See “Speaker adaptation function (for Alternate
Command Mode)” (P.4-120).) Otherwise it is
recommended that Alternate Command Mode
be turned OFF and Standard Mode be used for
the best recognition performance.

SAA2529

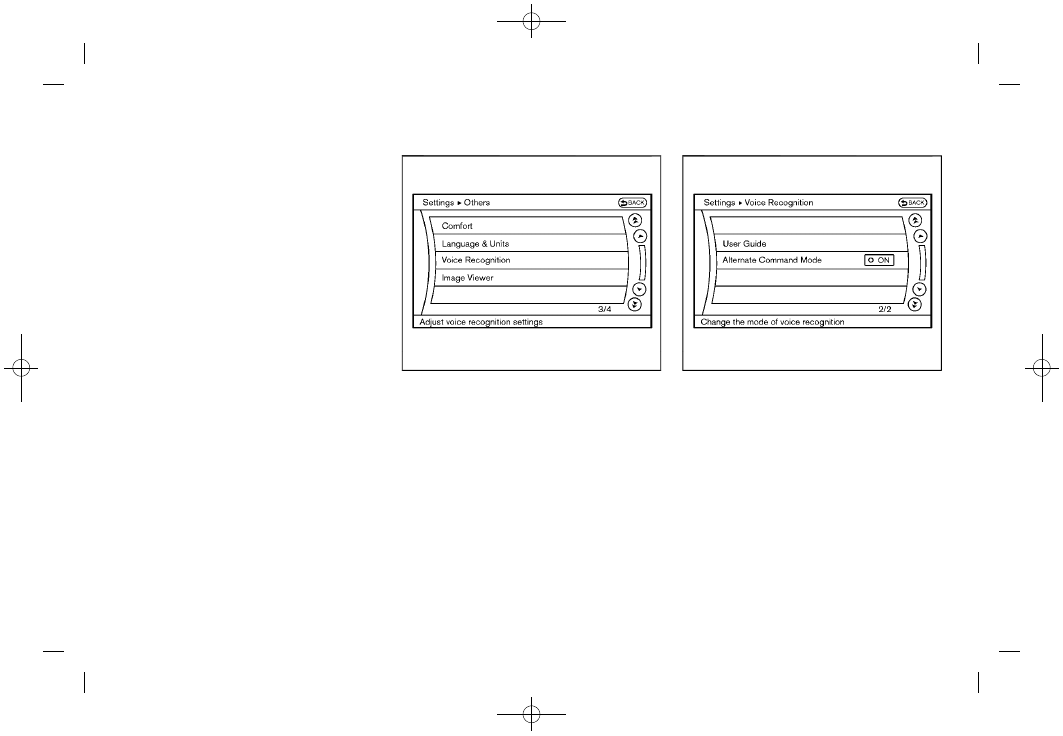

Activating Alternate Command Mode

When the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.

1. Push the SETTING button on the instrument

panel.

2. Highlight the “Others” key.

3. Highlight the “Voice Recognition” key.

SAA2543

4. Highlight the “Alternate Command Mode”

key.

5. The confirmation message is displayed on

the screen. Push the “OK” key to activate
the Alternate Command Mode.

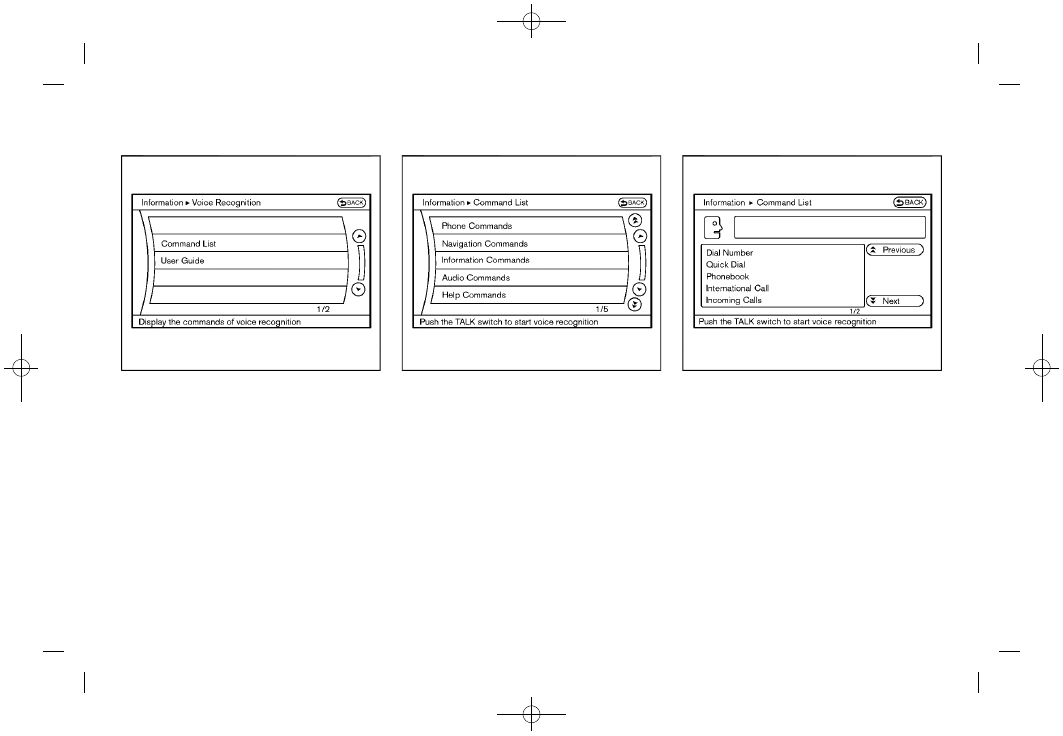

Displaying command list

If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode).

Condition:

(275,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2544

1. Push the INFO button on the instrument

panel.

2. Select the “Others” key.

3. Select the “Voice Recognition” key.

4. Select the “Command List” key.

SAA2545

5. Select a category from the list.

JVH0483X

6. Select an item.

7. If necessary, scroll the screen using the

multi-function controller to view the entire
list.

8. Push the BACK button to return to the

previous screen.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-111

Condition:

(276,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-112

Center display, heater, air conditioner, audio, phone and voice recognition systems

Commands List

Phone Commands:

Command

Action

Dial Number

Makes a call to a spoken phone number.

Quick Dial

Makes a call to a contact that is stored in the Quick Dial.

Phonebook

Makes a call to a contact that is stored in the mobile phone.

Call History

Incoming Calls

Makes a call to the incoming call number.

Outgoing Calls

Makes a call to the dialed number.

Missed Calls

Makes a call to the Missed calls number.

International Call

Makes an international call by allowing more than 10 digits to be spoken.

Call <name>

Makes a call to a contact that is stored in either Quick Dial or Phonebook. Please say “Call” followed by a stored
name.

Change Number

Corrects the recognized phone number (available during phone number entry).

Condition:

(277,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Navigation Commands:

Command

Action

Destination Home

Sets a route to your home that is stored in the Address Book.

Address

Searches for a location by the street address specified, and sets a route to the location.

Places

Sets a route to a facility near the current vehicle location.

Address Book

Searches for stored information in the Address Book.

Previous Destinations

Sets a route to a previous destination.

Previous Start Point

Sets a route to a previous starting point.

Delete Destination

Deletes a destination.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-113

Condition:

(278,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-114

Center display, heater, air conditioner, audio, phone and voice recognition systems

Information Commands:

Command

Action

Fuel Economy

Displays fuel economy information.

Maintenance

Displays maintenance information.

Where am I?

Displays your current location.

Traffic Information

Turns the traffic information system ON and OFF.

Weather Information

Displays weather information.

Weather Map

Displays a weather map.

Condition:

(279,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Audio Commands:

Command

Action

Starts to play a CD.

Turns to the FM band, selecting the station last played.

Turns to the AM band, selecting the station last played.

Turns to the SiriusXM Satellite Radio band, selecting the channel last played.

USB

Turns on the USB memory.

Bluetooth Audio

Turns on the Bluetooth

audio player.

AUX

Turns on the AUX.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-115

Condition:

(280,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-116

Center display, heater, air conditioner, audio, phone and voice recognition systems

Help Commands:

Command

Action

Command List

Navigation Commands

Displays the navigation command list.

Phone Commands

Displays the phone command list.

Audio Commands

Displays the audio command list.

Information Commands

Displays the information command list.

Help Commands

Displays the help command list.

User Guide

Displays the User Guide.

Speaker Adaptation

The system can memorize the voices of up to three persons.

Condition:

(281,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

General Commands:

Command

Action

Go back

Corrects the last recognition result to return to the previous screen

Exit

Cancels Voice Recognition

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-117

Condition:

(282,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-118

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA2547

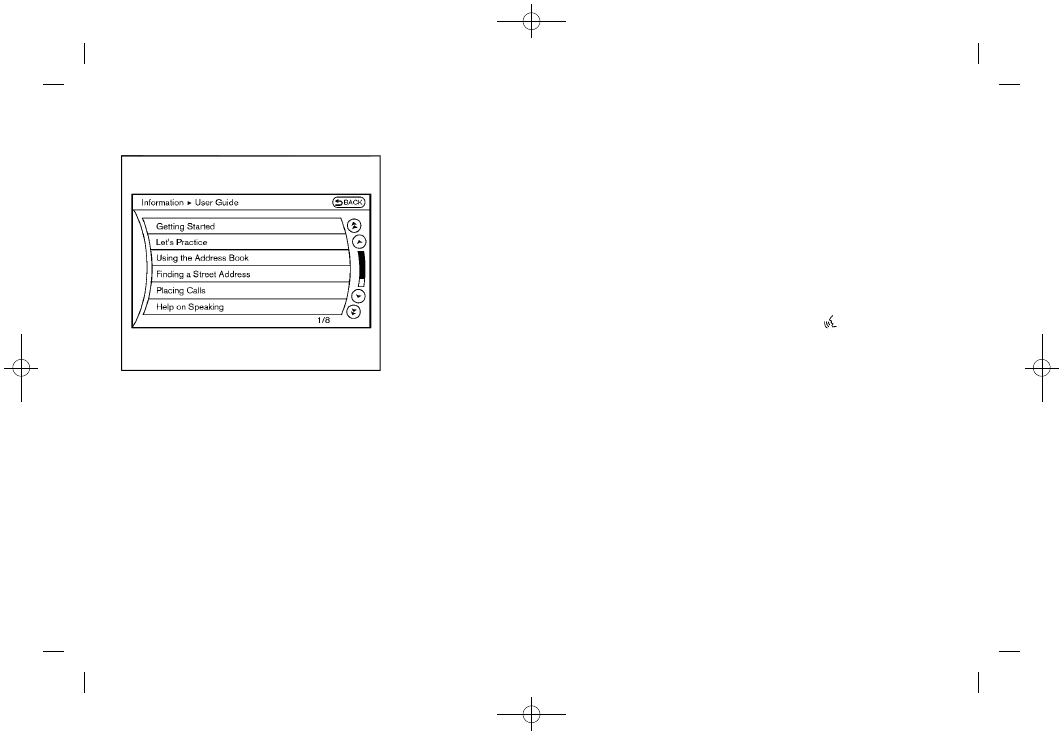

Displaying user guide

You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.

1. Push the INFO button on the instrument

panel.

2. Select the “Others” key using the multi-

function controller and push the ENTER
button.

3. Highlight the “Voice Recognition” key using

the multi-function controller and push the
ENTER button.

4. Highlight the “User Guide” key using the

multi-function controller and push the
ENTER button.

5. Highlight an item using the multi-function

controller and push the ENTER button.

Available items:

Getting Started

Describe the basics of how to operate the
NISSAN Voice Recognition system.

Let’s Practice

Mode that allows practicing by following the
instructions of the system voice.

Using the Address Book

Refer to Navigation System Owner’s Man-
ual.

Finding a Street Address (if so equipped)

Refer to Navigation System Owner’s Man-
ual.

Placing Calls

Tutorial for making a phone call by voice
command operation.

Help on Speaking

Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.

Voice Recognition Settings

Describes the available voice recognition

settings.

Adapting the System to Your Voice

Tutorial adapting the system to your voice.

USING THE SYSTEM

Initialization

When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK

switch is pushed

before the initialization completes the display will
show the message: “System not ready.” or a
beep sounds.

Before starting

To get the best performance from NISSAN
Voice Recognition, observe the following.

Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.

When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.

Wait until a tone sounds before speaking a
command.

Condition:

(283,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Speak in a natural voice without pausing
between words.

SAA2167

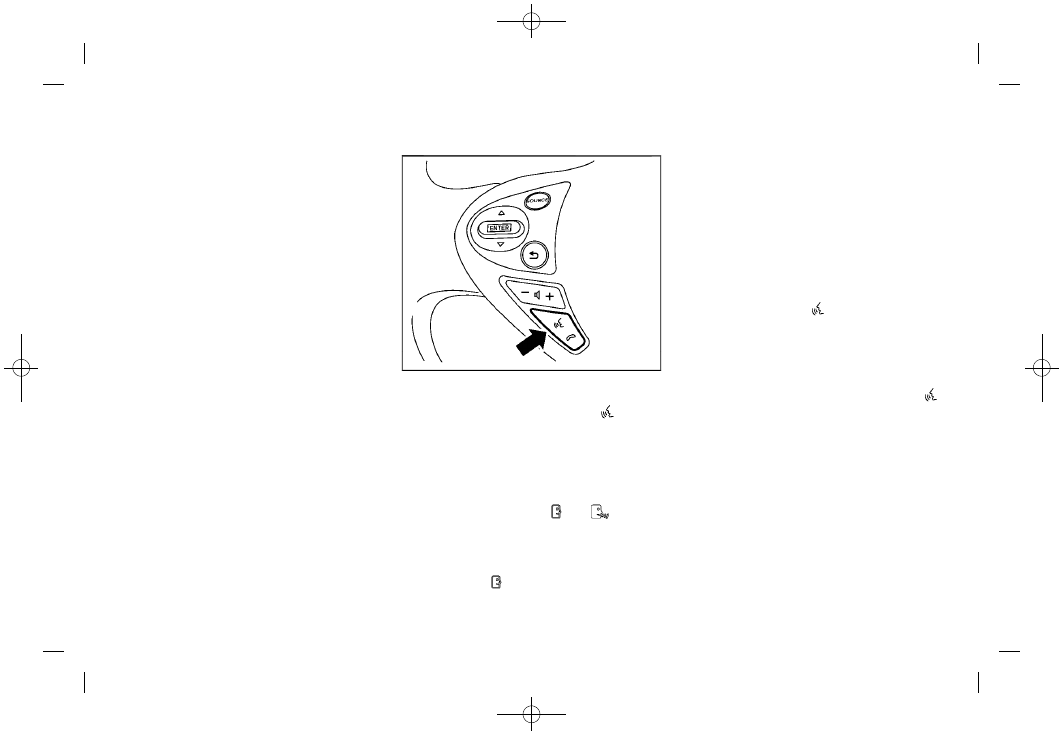

Giving voice command

1. Push and release the TALK

switch

located on the steering wheel.

2. A list of commands appears on the screen,

and the system announces, “Please say a
command”.

3. After the tone sounds and the icon on the

screen changes from

, speak a

command.

Operating tips:

Voice commands cannot be accepted when
the icon is

The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.

If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.

Push the BACK button once to return to the
previous screen.

If you want to cancel the command, push
and hold the TALK

switch for 1 second.

The message “Voice canceled” will be
announced.

Voice Prompt Interrupt:

To skip the voice guidance function and give the
command immediately, push the TALK
switch to interrupt the system. Remember to
speak after the tone.

How to speak numbers:

NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.

General rule

Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.

Phone numbers

Speak phone numbers according to the follow-

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-119

Condition:

(284,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-120

Center display, heater, air conditioner, audio, phone and voice recognition systems

ing examples:

1-800-662-6200

— “Dial one eight zero zero six six two six

two zero zero.”

Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.

Note 2: You cannot say 555-6000 as “five five
five six thousands”.

Note 3: When speaking a house number, speak
the number “0” as “zero”. If the letter “o (oh)” is
included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
“zero” for the number “0 (zero)”, “oh” for the
letter “o (oh)”.

Send digits using dial tone:

Push the TALK

switch during a phone

call.

The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".

After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.

If you push the ENTER button on the
steering wheel or on the multi-function
controller, the selected digits will be sent.

SAA2549

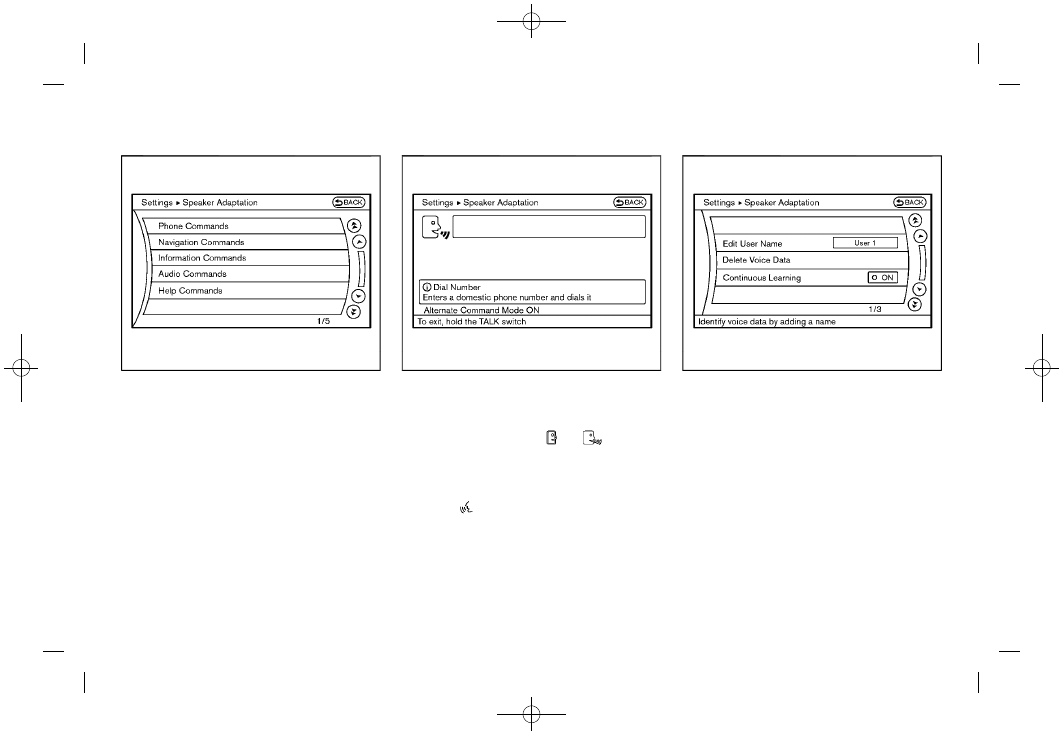

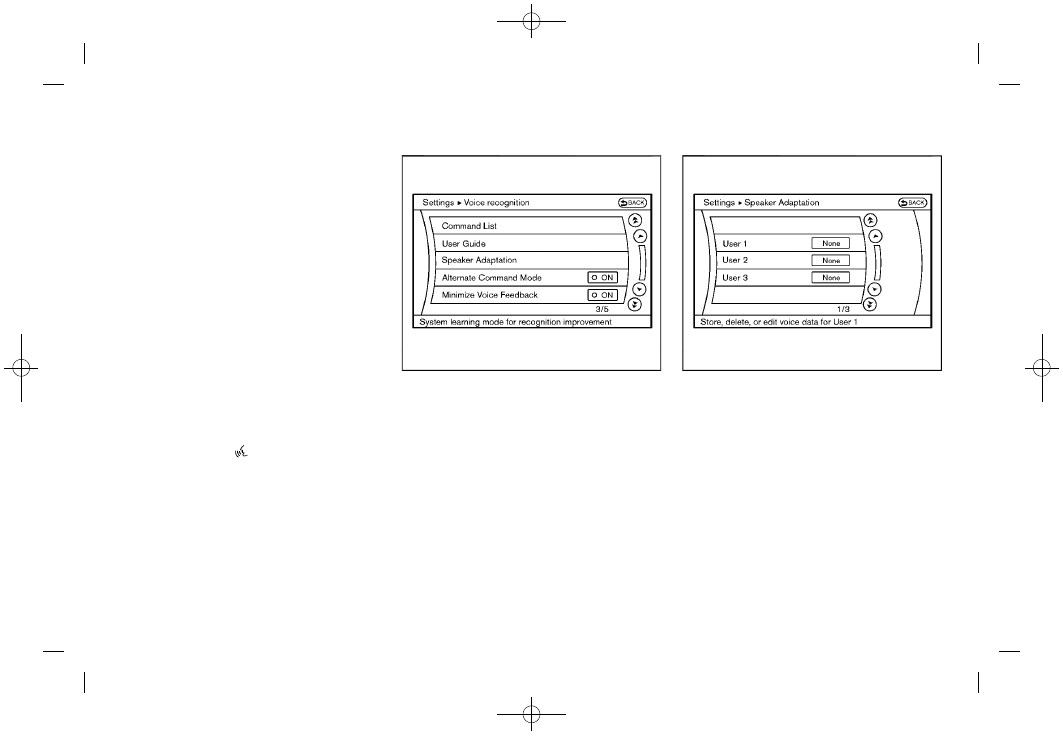

Speaker adaptation function (for Alter-
nate Command Mode)

The voice recognition system has a function to
learn the user’s voice for better voice recognition
performance. The system can memorize the
voices of up to three persons.

Having the system learn the user’s voice:

1. Push the SETTING button on the instrument

panel and select the “Others” key.

2. Select the “Voice Recognition” key.

3. Select the “Speaker Adaptation” key.

SAA2550

4. Select the user whose voice is memorized

by the system.

5. Select the “Start Speaker Adaptation Learn-

ing” key.

Condition:

(285,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2551

6. Select a category to be learned by the

system from the following list.

Phone Commands

Navigation Commands

Information Commands

Audio Commands

Help Commands

The voice commands in the category are
displayed.

7. Select a voice command and then push the

ENTER button.

The voice recognition system starts.

SAA2552

8. The system requests that you repeat a

command after a tone.

9. After the tone sounds and the icon on the

screen changes from

, speak the

command that the system requested.

10. When the system has recognized the voice

command, the voice of the user is learned.

Push the

switch or BACK button to return

to the previous screen.

If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from “None” to
“Stored”.

SAA2553

Speaker Adaptation function settings:

Edit User Name

Edit the user name using the keypad displayed
on the screen.

Delete Voice Data

Resets the user’s voice that the voice recogni-
tion system has learned.

Continuous Learning

When this item is turned to ON, you can have
the system learn the voice commands in
succession, without selecting commands one
by one.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-121

Condition:

(286,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-122

Center display, heater, air conditioner, audio, phone and voice recognition systems

Minimize voice feedback (for Alternate
Command Mode)

To minimize the voice feedback from the system,
perform the following steps.

1. Push the SETTING button on the instrument

panel.

2. Select the “Others” key.

3. Select the “Voice Recognition” key.

4. Select the “Minimize Voice Feedback” key.

5. The setting is turned to ON and the voice

guidance will now be reduced when using
the Voice Recognition system.

Condition:

(287,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

TROUBLESHOOTING GUIDE

The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for the
appropriate error.

Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.

Symptom/error message

Solution

The system fails to interpret the command correctly.

1. Ensure that the command format is valid, see “Command List” (P.4-104).

2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.

4. If optional words of the command have been omitted, then the command should be tried with these in place.

The system consistently selects the wrong voicetag in
the phonebook.

1. Ensure that the voicetag requested matches what was originally stored. (See “Bluetooth

hands-free phone

system (models with navigation system)” (P.4-76).)

2. Replace one of the voicetags being confused with a different voicetag.

The system cannot be operated.

1. Make sure that the soft top (for Roadster models) is usable. If the soft top is not working, it is recommended to
contact a NISSAN dealer.

2. Close the soft top (for Roadster models).

3. Open and close the soft top (for Roadster models) before operating the system.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-123
