Nissan 370Z Roadster (2017 year). Instruction

(226,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-62

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA2503

Movie file operation

Park the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.

PLAY:

When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.

If another audio source is playing with an USB
memory inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode.

Operation keys:

To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.

Pause

Select the “

” key to pause the movie file. To

resume playing the movie file, select the “

”

key.

Play

Select the “

” key to start playing a movie file,

for example, after pausing a movie file.

STOP

Select the “

” key to stop playing a movie file.

Skip (Next chapter)

Select the “

” key to skip the chapter(s) of

the disc forward. The chapters will advance the
number of times the ENTER button is pushed.

Skip (Previous chapter)

Select the “

” key to skip the chapter(s) of

the disc backward. The chapters will go back
the number of times the “

” key is selected.

List:

Select the “List” key on the movie file operation
screen to display the file list.

Condition:

(227,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2504

Example

Settings:

Select the “Settings” key to adjust the following
settings.

Audio File Playback

Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.

Play Mode

Select the “Normal” or “1 Track Repeat” play
mode.

10 Key Search

Select the “10 Key Search” key to open the
number entry screen.

Input the number to be searched and select

the “OK” key.

The specified folder/file will be played.

Display

To adjust the image quality of the screen,
select the preferred adjustment items.

DRC

DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.

Audio

Select the preferred language for audio.

Subtitle

Select the preferred language for subtitle.

Display Mode

Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.

Bluetooth

STREAMING AUDIO (mod-

els with navigation system)

Your NISSAN is equipped with Bluetooth

Streaming Audio. If you have a compatible
Bluetooth

device with streaming audio (A2DP

profile), you can set up the wireless connection
between your Bluetooth

device and the in-

vehicle audio system. This connection allows
you to listen to the audio from the Bluetooth

device using your vehicle speakers. It also may
allow basic control of the device for playing and

skipping audio files using the AVRCP Blue-
tooth

profile. All Bluetooth

Devices do not

have the same level of controls for AVRCP.
Please consult the manual for your Bluetooth

Device for more details.

Once your Bluetooth

device is connected to

the in-vehicle audio system, it will automatically
reconnect whenever the device is present in the
vehicle and you select Bluetooth

Audio from

your audio system. You do not need to manually
reconnect for each usage.

Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band (2.4
GHz). Using the Bluetooth

and the wireless

LAN functions at the same time may slow down
or disconnect the communication and cause
undesired noise. It is recommended that you
turn off the wireless LAN (Wi-Fi) when using the
Bluetooth

functions.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-63

Condition:

(228,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-64

Center display, heater, air conditioner, audio, phone and voice recognition systems

Regulatory information

FCC Regulatory information:

CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.

Operation is subject to the following two
conditions:

1) This device may not cause interference

and

2) This device must accept any interfer-

ence, including interference that may
cause undesired operation of the device

IC Regulatory information:

Operation is subject to the following two
conditions:

1) This device may not cause interference,

and

2) This device must accept any interfer-

ence, including interference that may
cause undesired operation of the device.

This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.

Bluetooth trademark:

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Clarion Co., Ltd.

SAA2505

Connecting procedure

1. Push the SETTING button and select the

“Bluetooth” key.

Condition:

(229,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2506

2. Select the “Connect Bluetooth” key.

SAA2507

3. A confirmation screen will be displayed.

Select “No”.

Note: Selecting “Yes” will only connect the
hands free phone portion of a Bluetooth

device.

SAA3005

4. Choose a PIN code to use with the

compatible Bluetooth audio device using
the number input screen. The PIN code will
need to be entered into the Bluetooth

audio device after step 5. Select the “OK”
key.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-65

Condition:

(230,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-66

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA3006

5. The standby message screen will appear.

Operate the compatible Bluetooth

audio

device. For the connecting procedure of the
audio device, see the Bluetooth

audio

instructions.

When the connecting is completed, the
screen will return to the Bluetooth

setup

display.

SAA2510

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the Bluetooth

audio

mode. If the system has been turned off while
the Bluetooth

audio device was playing, push-

ing the ON·OFF/VOL control knob will start the
Bluetooth

audio device.

The ability to pause, change tracks, fast forward,
rewind, randomize and repeat music may be
different between devices. Some or all of these
functions may not be supported on each device.

DISC·AUX button:

When the DISC·AUX button is pushed with the
system off and the Bluetooth

audio device

connected, the system will turn on. If another
audio source is playing and the Bluetooth

audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth

audio mode.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for more

than 1.5 seconds while a Bluetooth

audio file is

being played, the Bluetooth

audio device will

play while forwarding or rewinding. When the
button is released, the Bluetooth

audio device

will return to normal play speed.

When the

button is pushed for less

than 1.5 seconds while a Bluetooth

audio file is

being played, the next track or the beginning of
the current track on the Bluetooth

audio device

will be played.

When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played. Push the button several times to skip
through the tracks.

The multi-function controller can also be used to

Condition:

(231,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

select tracks when the Bluetooth

audio play

mode screen is shown on the display. (“Blue-
tooth audio” will be indicated on the header of
the screen.)

REPEAT (RPT), RANDOM (RDM):

To change the play mode, push the

button

repeatedly and the mode changes as follows.

Normal ? Shuffle All Tracks ? Shuffle Group
? Repeat 1 Track ? Repeat All Tracks ?
Repeat Group ? Normal

Operation keys:

To operate a Bluetooth

audio device, select a

key displayed on the operation screen using the
multi-function controller.

Play

Select the “

” key to start playing when

pausing. Select this key again to pause the
audio play.

Pause

Select the “

” key to pause the Bluetooth

audio device. Select this key again to resume
playing.

Play Mode:

The play mode setting display will appear when
the “Menu” key is selected.

Choose the preferred play mode from the
following items.

Shuffle

Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.

Repeat

Choose from “Repeat OFF”, “Repeat 1
Track”, “Repeat All Tracks” and “Repeat
Group”.

SAA2511

Bluetooth

settings

To set up the Bluetooth

device system to the

preferred settings, push the SETTING button
and select the “Bluetooth” key.

Bluetooth:

If this setting is turned off, the connection
between the Bluetooth

devices and the in-

vehicle Bluetooth

module will be canceled.

Connect Bluetooth:

Connects to the Bluetooth

device. See “Con-

necting procedure” (P.4-64). Up to 5 devices
can be registered.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-67

Condition:

(232,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-68

Center display, heater, air conditioner, audio, phone and voice recognition systems

Connected Devices:

Registered devices are shown on the list. Select
a Bluetooth

device from the list, the following

options will be available.

Select

Select “Select” to connect the selected
device to the vehicle. If there is a different
device currently connected, the selected
device will replace the current device.

Edit

Rename the selected Bluetooth

device

using the keypad displayed on the screen.
(See “How to use touch screen” (P.4-5).)

Delete

Delete the selected Bluetooth

device.

Edit Bluetooth Info:

Change the name broadcasted by this system
over Bluetooth

. Change the PIN code that is

entered when connecting a hands free device to
this system.

Replace Connected Phone:

Replace the Bluetooth

connection with a

connected Bluetooth

cellular phone. For de-

tails about Hands-Free Phone System, see
“Bluetooth

hands-free phone system (models

with navigation system)” (P.4-76).

iPod

PLAYER OPERATION (models

with navigation system)

Connecting iPod

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may

damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Condition:

(233,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2512

Open the console lid and connect the iPod

cable to the USB connector. If compatible, the
battery of the iPod

is charged while the

connection to the vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows a NISSAN or

Accessory Attached screen when the connec-
tion is completed. When the iPod

is connected

to the vehicle, the iPod

music library can only

be operated by the vehicle audio controls.

* iPod

is a trademark of Apple Inc., registered in

the U.S. and other countries.

Compatibility

The following models are available:

Fifth generation iPod

(version 1.2.3 or

later)

iPod Classic

(version 1.1.1 or later)

First generation iPod touch

(version 2.0.0

or later)

Second generation iPod touch

(version

1.2.3 or later)

First generation iPod nano

(version 1.3.1 or

later)

Second generation iPod nano

(version

1.1.3 or later)

Third generation iPod nano

(version 1.1 or

later)

Fourth generation iPod nano

(version 1.0.2

or later)

Make sure that the iPod

version is updated.

Audio main operation

Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button
repeatedly to switch to the iPod

mode.

If the system has been turned off while the iPod

was playing, pushing the ON·OFF button will
start the iPod

DISC·AUX button:

When the DISC·AUX button is pushed with the
system off and the iPod

connected, the system

will turn on. If another audio source is playing
and the iPod

is connected, push the DISC·AUX

button repeatedly until the center display
changes to the iPod

mode.

Interface:

The interface for iPod

operation shown on the

vehicle center display is similar to the iPod

interface. Use the multi-function controller and
the ENTER or BACK button to play the iPod

with your favorite settings.

The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod

Owner’s Manual.

Now Playing

Playlists

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-69

Condition:

(234,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-70

Center display, heater, air conditioner, audio, phone and voice recognition systems

Artists

Albums

Songs

Podcasts

Genres

Composers

Audiobooks

Shuffle Songs

Play mode

The following touch-panel buttons shown on the
screen are also available:

: returns to the previous screen.

: plays/pauses the music selected.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for more

than 1.5 seconds while the iPod

is playing, the

iPod

will play while fast forwarding or rewind-

ing. When the button is released, the iPod

will

return to the normal play speed.

When the

button is pushed for less

than 1.5 seconds while the iPod

is playing, the

next track or the beginning of the current track
on the iPod

will be played.

When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be

played.

The multi-function controller can also be used to
select tracks when the iPod

is playing.

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:

SAA2282

AUXILIARY INPUT JACKS (models with
navigation system)

The auxiliary input jacks are located in the center
console. NTSC/PAL compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.

The auxiliary jacks are color coded for identifica-
tion purposes.

Yellow - video input

White - left channel audio input

Condition:

(235,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Red - right channel audio input

Before connecting a device to a jack, turn off the
power of the portable device.

With a compatible device connected to the
jacks, push the DISC·AUX button repeatedly
until the display switches to the AUX mode. The
output from the device will be played through
the monitor and audio system.

SAA2496

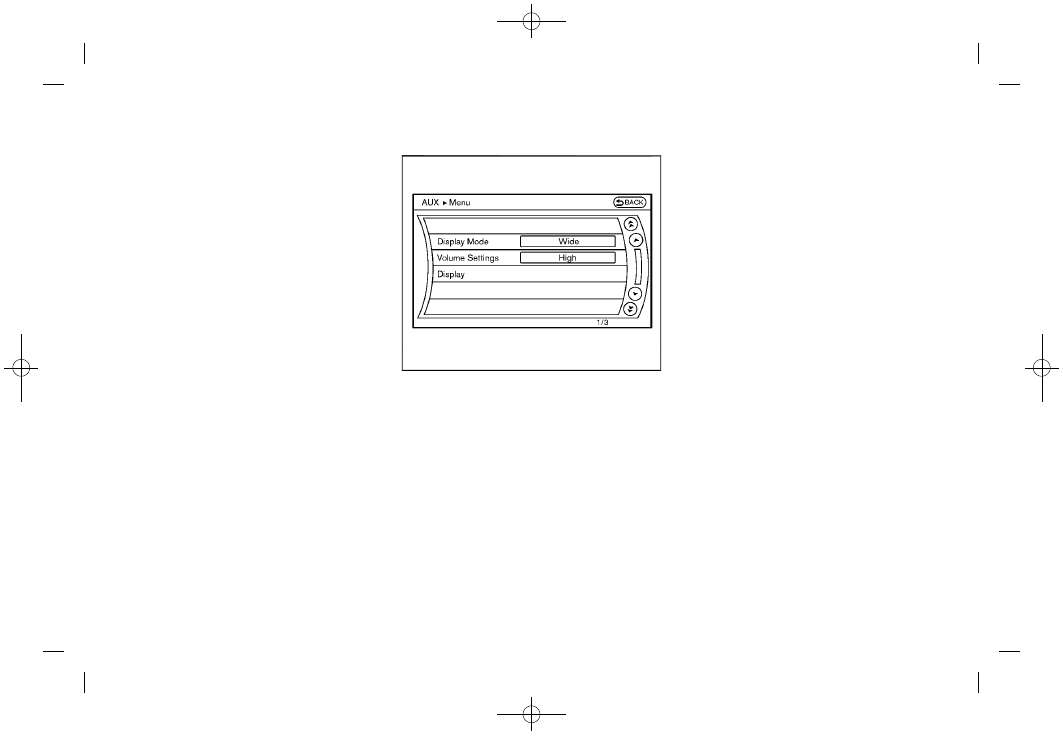

AUX Menu

When the “Menu” key on the display is selected
while in the AUX mode, the menu screen will be
displayed.

Display Mode:

Choose the display mode from the following
items.

Normal

Wide

Cinema

Volume Settings:

Choose the volume setting from the following
items.

Low

Medium

High

Display:

Adjust the image quality of the screen, select the
preferred adjustment items.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-71

Condition:

(236,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-72

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA0451

CD/DVD/USB MEMORY CARE AND
CLEANING

CD/DVD

Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.

Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.

USB memory

Do not touch the terminal portion of the USB
memory.

Do not place heavy objects on the USB
memory.

Do not store the USB memory in highly
humid locations.

Do not expose the USB memory to direct
sunlight.

Do not spill any liquids on the USB memory.

Refer to the USB memory Owner’s Manual for
the details.

SAA2555

With navigation system

SAA2556

Without navigation system

Condition:

(237,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO

Audio source switch

Menu control switch (models with navigation
system) or audio tuning switch (models without
navigation system)

Back switch

Volume control switch

Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)

While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.

AM and FM radio:

Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
station.

Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.

Pushing the menu control switch will show
the list of preset stations.

SiriusXM Satellite Radio (if so equipped):

Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
channel.

Tilting up/down for more than 1.5 seconds
will go to the next or previous category.

Pushing the menu control switch will show
the XM Menu.

iPod

(models with navigation system):

Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.

Pushing the menu control switch will show
the iPod Menu.

CD:

Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.

Tilting up/down for more than 1.5 seconds
will scroll up or down through the folder
number (if playing compressed audio files).

Pushing the menu control switch will show
the CD Menu.

DVD (models with navigation system):

Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.

Tilting up/down for more than 1.5 seconds
will scroll up or down through the title
number.

Pushing the menu control switch will select
an item from the DVD display.

When the transparent operation menu ap-
pears, the switch will control the menu.

USB (models with navigation system):

Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.

Tilting up/down for more than 1.5 seconds
will scroll up or down through the folder
number

Pushing the menu control switch will show
the USB Menu.

Bluetooth

Audio (models with navigation

system):

Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.

AUX:

Pushing the menu control switch will show
the AUX Menu.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-73

Condition:

(238,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-74

Center display, heater, air conditioner, audio, phone and voice recognition systems

BACK switch (models with navi-

gation system)

Push this switch to go back to the previous
screen or cancel the selection if it is not
completed.

Volume control switches

Push the upper (+) or lower (

−) side switch to

increase or decrease the volume.

Audio source switch

Push the audio source switch to change the
mode to available audio source.

ANTENNA

Window antenna (for Coupe models)

The antenna pattern is printed inside the rear
window.

CAUTION

Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause
poor reception or noise.

When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with
a dampened soft cloth.

SAA2374

Trunk mounted antenna (for Roadster
models)

Removing the antenna:

You can remove the antenna if necessary.

Hold the bottom of the antenna and remove by
turning counterclockwise.

To install the antenna, turn the antenna clock-
wise and tighten.

CAUTION

To avoid damaging or deforming the
antenna, be sure to remove the

Condition:

(239,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

antenna under the following condi-
tions.

— The vehicle enters an automatic

car wash.

— The vehicle enters a garage with

a low ceiling.

— The vehicle is covered with a car

cover.

Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.

When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.

WARNING

A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.

If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.

CAUTION

Keep the antenna as far away as
possible from the electronic control
modules.

Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.

Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.

Connect the ground wire from the
CB radio chassis to the body.

For details, it is recommended you
visit a NISSAN dealer.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-75

CAR PHONE OR CB RADIO

Condition:

(240,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-76

Center display, heater, air conditioner, audio, phone and voice recognition systems

WARNING

Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.

If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.

CAUTION

To avoid draining the vehicle battery,
use a phone after starting the engine.

Your vehicle is equipped with Bluetooth

Hands-Free Phone System. If you are an owner
of a compatible Bluetooth

enabled cellular

phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth

wireless tech-

nology, you can make or receive a telephone call
with your cellular phone in your pocket.

Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.

You can register up to 5 different Bluetooth

cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.

The NISSAN Voice Recognition system sup-
ports the phone commands, so dialing a phone
number using your voice is possible. For more
details, see “NISSAN Voice Recognition System
(models with navigation system)” (P.4-99).

Before using the Bluetooth

Hands-Free Phone

System, refer to the following notes.

Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band
(2.4 GHz). Using the Bluetooth

and the

wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth

functions.

Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth

Hands-Free Phone System.

Some Bluetooth

enabled cellular phones

may not be recognized by the in-vehicle
phone module. Please visit

www.nissanusa.com/bluetooth for a recom-
mended phone list.

You will not be able to use a hands-free
phone under the following conditions:

— Your vehicle is outside of the telephone

service area.

— Your vehicle is in an area where it is

difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, behind a tall building or in a
mountainous area.

— Your cellular phone is locked in order not

to be dialed.

When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.

Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time.

Bluetooth

HANDS-FREE PHONE

SYSTEM (models with navigation
system)

Condition:

(241,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.

While a cellular phone is connected through
the Bluetooth

wireless connection, the

battery power of the cellular phone may
discharge quicker than usual.

If the Bluetooth

Hands-Free Phone System

seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.

Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.

Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.

The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.

Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.

If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.

REGULATORY INFORMATION

FCC Regulatory information

Operation is subject to the following two
conditions:

1. this device may not cause interference and

2. this device must accept any interference,

including interference that may cause un-
desired operation of the device

IC Regulatory information

Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.

This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.

Bluetooth

trademark

Bluetooth

is a trademark owned

Bluetooth

SIG,

Inc.,

and

licensed to Clarion Co., Ltd.

VOICE COMMANDS

You can use voice commands to operate various
Bluetooth

Hands-Free Phone System features

using the NISSAN Voice Recognition system.

For more details, see “NISSAN Voice Recogni-
tion System (models with navigation system)”
(P.4-99).

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-77

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 15
