4-46

Center display, heater, air conditioner, audio, phone and voice recognition systems

that station.

If the SCAN button is not pushed within 5
seconds, SCAN tuning moves to the next
station.

CD player operation

The audio system operates when the ignition
switch is in the “ACC” or “ON” position.

Loading:

Insert a CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and will start playing. After loading
the CD, the number of tracks and the playtime
will appear on the display.

CAUTION

Do not force the CD into the slot. This
could damage the player.

NOTE:
.

The CD player accepts normal audio
CDs or CDs containing MP3/WMA files.

The audio unit will automatically detect
if a CD containing MP3/WMA files is
inserted, and “MP3CD” will be indi-
cated.

An error notification message will be
displayed when inserting an incompa-
tible disc type (e.g. DVD), or if the
player cannot read the CD. Eject the
disc and insert another disc.

List view:

While the track is being played, push either the
ENTER button or the back button to display the
available tracks in a listed view mode. To select a
track from the list, or a track to start listening to,
turn the TUNE/MENU knob then push the
ENTER button.

Quick search:

In the list view mode, a quick search can be
performed to find a track from the list. Push the
A-Z button, turn the TUNE/MENU knob to the
first alphabetic letter of the song title and then
push the ENTER button. When found, a list of
the available songs will be displayed. Select,
and push the ENTER button to play the
preferred track.

CD button:

When the CD button is pushed while the audio
system is off and a CD is loaded, the audio
system will turn on and a CD will start playing
automatically. If another audio source is already
playing, it will automatically turn off and the CD
will start playing.

Fast Forward/Rewind buttons:

Push and hold the

button to fast

forward or rewind through the track. When the
button is released, the track will play at normal
playing speed.

Track up/down:

Pushing the

button once, the track

will skip forward to the next track or backward to
the beginning of the current track. Push the
or

button more than once to skip through

the tracks.

Folder browsing:

If the recorded media contains folders with
music files, pushing the

button will

play in sequence the tracks of each folder.

To select a preferred folder:

1. Push the ENTER button or the back button

and a list of tracks in the current folder is
displayed.

2. Push the back button.

3. Turn the TUNE/MENU knob for the preferred

folder.

4. Push the ENTER button to access the

folder. Push the ENTER button again to
start playing the first track or turn the TUNE/
MENU knob, and push the ENTER button to
select another track.

Condition:

(211,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

If the current selected folder contains sub
folders, push the ENTER button, a new screen
with a list of sub folders will be displayed. Turn
the TUNE/MENU knob for the sub folder then
push the ENTER button to select. Select the
root folder item when songs are recorded
additionally in the root folder.

To return to the previous folder screen, push
back button.

RPT button:

Push the RPT button and the current track will
be played continuously.

RDM button:

Push the RDM button and all the tracks will be
played in a random order.

DISP button:

While a CD with recorded music information
tags (CD-text/ID3-text tags) is being played, the
title of the played track is displayed. If the title
information is not provided then “Track” is
displayed.

When the DISP button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:

CD:

Track time ? Album ? Artist ? Track time

CD with MP3/WMA:

Track time ? Album ? Artist ? Folder name ?
Track time

Track details:

Pushing and holding the DISP button will turn
the display into a detailed overview and after a
few seconds it returns to the main display.

button:

When the SCAN button is pushed while a CD is
being played, the first 10 seconds of all the
tracks will be played.

When the SCAN button is pushed again, the
CD will return to normal play from the track
which is playing.

CD eject button:

When the CD eject button is pushed while a CD
is loaded, the CD will be ejected.

When the CD eject button is pushed twice, the
CD will be ejected further, and the CD can be
removed with ease.

When the ignition switch is in the “OFF” or
“LOCK” position it is possible to eject the CD
currently being played. However the audio unit
will not be activated.

If a CD is ejected by pushing the CD eject
button, and it is not taken out from the loading
slot within 8 seconds, the CD will automatically
be reloaded to the slot to protect the CD.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-47

Condition:

(212,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-48

Center display, heater, air conditioner, audio, phone and voice recognition systems

JVH0920X

USB (Universal Serial Bus) connection
port

Connecting USB device:

The USB port is located in the center console.
Open the console box lid and connect a USB
memory device into the connector. The system
switches to the USB mode automatically.

If the system has been turned off while the USB
memory device was playing, pushing the power
button will start playback of the USB memory
device.

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port. (Some
USB devices come with a
mark as a guide. Make sure that
the mark is facing the correct direc-
tion before inserting the device.)

Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

USB button:

When the USB button is pushed with the
system off and the USB memory device is
inserted, the system will turn on.

USB device main operation:

The following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see “CD player operation”
(P.4-46).

List view

Quick search

RDM (Random play)

RPT (Repeat track)

SCAN

Folder browsing

DISP button:

While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.

Condition:

(213,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

When the DISP button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:

Track time ? Artist ? Album ? Folder name ?
Track time

Track details:

Pushing and holding the DISP button will turn
the display into a detailed overview and after a
few seconds it returns to the main display, or
push the DISP button briefly.

JVH0921X

iPod

player operation

Connecting iPod

The USB port is located in the center console.
Open the console box lid and connect the iPod

cable to the USB port. The battery of the iPod

is charged while the connection to the vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows a NISSAN or

Accessory Attached screen when the connec-
tion is completed. When the iPod

is connected

to the vehicle, the iPod

music library can only

be operated by the vehicle audio controls.

* iPod

and iPhone

are a trademark of Apple

Inc., registered in the U.S. and other countries.

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-49

Condition:

(214,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-50

Center display, heater, air conditioner, audio, phone and voice recognition systems

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Compatibility:

The following models are supported:

Third generation iPhone

(Firmware version

IOS4/4.0)

Fourth generation iPhone

(Firmware ver-

sion IOS4/4.0)

Fifth generation iPod

(Firmware version

1.3)

First generation iPod Classic

(Firmware

version 1.1.1 or 1.1.2PC)

Second generation iPod Classic

(Firmware

version 2.0.1)

First generation iPod touch

(Firmware

version 1.1.5 or 2.2.1)

Second and third generation iPod touch

(Firmware version 2.2.1 or IOS4/4.0.0)

First generation iPod nano

(Firmware ver-

sion 1.3.1)

Second generation iPod nano

(Firmware

version 1.1.3)

Third generation iPod nano

(Firmware

version 1.1.2PC or 1.1.3PC)

Fourth generation iPod nano

(Firmware

version 1.0.2 or 1.0.4)

Fifth generation iPod nano

(Firmware ver-

sion 1.0.1 or 1.0.2)

The iPod touch

may not response quickly with

the system in some cases.

Make sure that the iPod

firmware is updated.

Operating tips:

iPod Shuffle

and iPod mini

are not

supported.

Some iPod

operations may not be available

with this system.

USB button:

When the USB button is pushed with the
system off and the iPod

is connected to the

vehicle, the system will turn on.

iPod

main operation:

Interface:

The interface for iPod

operation shown on the

audio system display is similar to the iPod

interface. Use the TUNE/MENU knob to play a
track on the iPod

The following items can be chosen from the
menu list screen.

Playlists

Artists

Albums

Tracks

Genres

For further information about each item, see the
iPod

owner’s manual.

The following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see “CD player operation”
(P.4-46).

List view

Quick search

RDM (Random play)

RPT (Repeat track)

Folder browsing

DISP button:

While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.

When the DISP button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:

Track time ? Album ? Artist ? Genre ? Track
time

Condition:

(216,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-52

Center display, heater, air conditioner, audio, phone and voice recognition systems

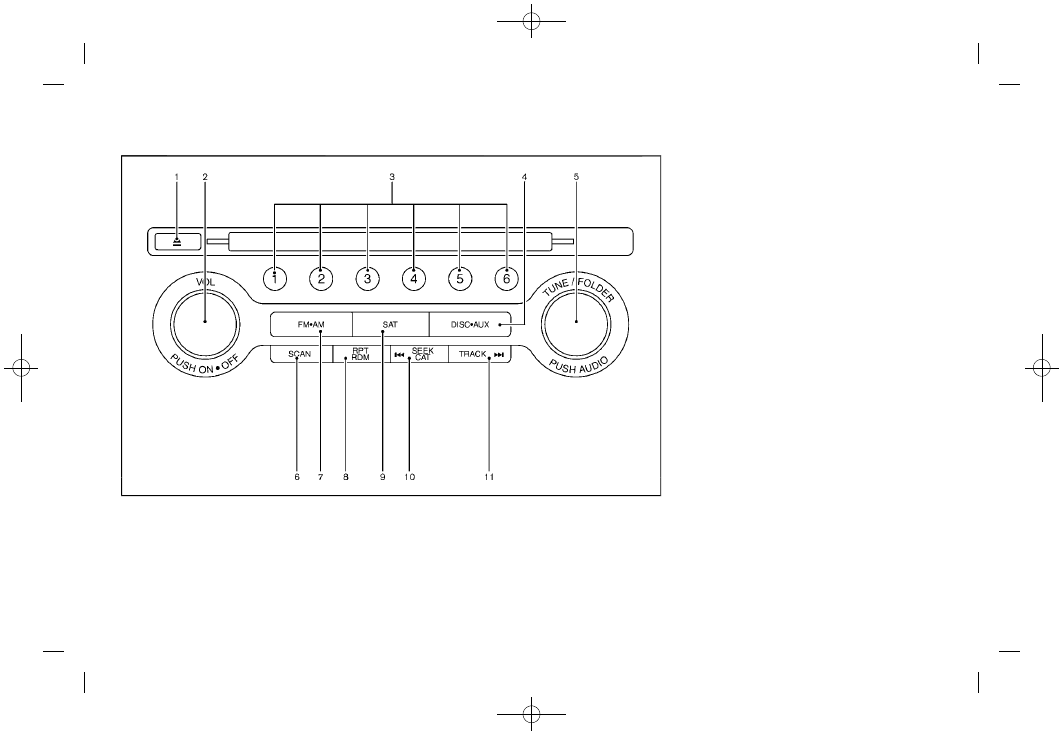

SAA2495

DVD·CD EJECT button

ON·OFF button/VOL (volume) control knob

Radio station preset select buttons

DISC·AUX (auxiliary) button

Radio TUNE (tuning) folder selector/AUDIO
control knob

Radio SCAN tuning button

FM·AM band select button

RPT (repeat)/RDM (random) play button

SAT (satellite) button

10.

Radio CAT (category)/REW (rewind) button for
SEEK/TRACK

11.

FF (fast forward) button for SEEK/TRACK

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER

For all operation precautions, see “Audio opera-
tion precautions” (P.4-30).

The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.

It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Push the ignition switch
from LOCK to ACC to update the channel list.

Audio main operation

Head unit:

The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.

ON·OFF/Volume control:

Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON·OFF button turns the system
off.

Condition:

(217,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Turn the VOL control knob to adjust the volume.

Adjusting tone quality and speaker bal-
ance:

To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade), rotate the Audio control
knob to set the desired setting. For the other
setting methods, see “How to use SETTING
button” (P.4-11).

This vehicle has some sound effect functions as
follows:

Speed Sensitive Vol.

For more details, see “How to use SETTING
button” (P.4-11).

Switching the display:

Pushing the DISC·AUX button will switch the
displays as follows:

iPod

/USB ? CD/DVD ? Bluetooth

Audio ?

AUX ? iPod

/USB

FM-AM-SAT radio operation

radio (FM/AM) band select:

Pushing the radio band select button will
change the band as follows:

AM ? FM1 ? FM2 ? AM

radio (SAT) band select:

Pushing the radio band select button will
change the band as follows:

XM1 ? XM2 ? XM3 ? XM1

When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.

The last channel played will also come on when
the ON·OFF button is pushed to ON.

The satellite radio is not available in Alaska,
Hawaii and Guam.

If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.

When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.

TUNE (Tuning):

For AM and FM radio

Turn the radio TUNE knob for manual tuning.

For SiriusXM Satellite Radio

Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.

SEEK tuning/CATEGORY

(CAT):

For AM and FM radio

Push the SEEK button

to tune

from low to high or high to low frequencies
and to stop at the next broadcasting station.

For SiriusXM Satellite Radio

Push the SEEK button

to tune

to the first channel of the next or previous
category.

During satellite radio reception, the following
notices will be displayed under certain condi-
tions.

NO SIGNAL (No signal is received while the
SAT tuner is connected.)

OFF AIR (Broadcasting signed off)

CHECK ANTENNA (Antenna connection
error)

LOADING (When the initial setting is
performed)

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-53

Condition:

(218,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-54

Center display, heater, air conditioner, audio, phone and voice recognition systems

UPDATING (When the satellite radio sub-
scription is not active)

SCAN tuning:

Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station/channel for 5 seconds. Pushing
the button again during this 5 seconds period
will stop SCAN tuning and the radio will remain
tuned to that station/channel.

If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station/channel.

Station memory operations:

12 stations/channels can be set for the FM band
(6 each for FM1 and FM2), 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.

1. Choose the radio band using the radio band

select button.

2. Tune to the desired station/channel using

the SEEK/TRACK, SCAN button or the
radio TUNE knob.

3. Push and hold the desired station preset

button

until the radio mutes.

4. The station indicator will then come on and

the sound will resume. Memorizing is now
complete.

5. Other buttons can be set in the same

manner.

If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.

List (AM and FM radio):

When the “List” key on the display is selected
while the FM or AM radio is being played, the
preset station list will be displayed.

If 1 of the 6 preset stations listed is touched and
held, the current station will be stored as the
new preset.

Menu (SiriusXM Satellite Radio):

When the “Menu” key on the display is selected
while the SiriusXM Satellite Radio is being
played, the menu list will be displayed.

The following items are available.

Preset List

Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held,
the current station will be stored as the new
preset.

Customize Channel List

Selects specific channels to skip while using
the TUNE, SEEK/CATEGORY or Menu-
Categories feature.

Favorite Artists & Songs

Stores the current artist or song that is being
played. Touch the “Alert” key to be reminded
when the stored artist or song is playing on a
station while listening to SiriusXM Satellite
Radio.

Categories

Selecting a category will go to the first
channel in that category as defined by
SiriusXM Satellite Radio.

Direct Tune

Inputs the channel number by using a
keypad.

Compact Disc (CD) player operation

Push the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.

After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.

If the radio is already operating, it will auto-
matically turn off and the CD will play.

If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.

Do not use 3.1 in (8 cm) discs.

Condition:

(219,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

PLAY:

When the DISC·AUX (CD play) button is
pushed with the system off and the CD loaded,
the system will turn on and the CD will start to
play.

When the DISC·AUX button is pushed with the
CD loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.

Menu:

When the “Menu” key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.

Folder List (for CD with compressed audio
files)

Displays the folder list.

Track List

Displays the track list.

Play Mode

Select a play mode from the following items.

— Normal

— 1 Folder Repeat (for CD with com-

pressed audio files)

— 1 Track Repeat

— 1 Disc Random

— 1 Folder Random (for CD with com-

pressed audio files)

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed for more

than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.

When the

button is pushed for less

than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.

When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played. Push the button several times to skip
through the tracks.

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:

(CD)

(CD with compressed audio files)

CD EJECT:

When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.

DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)

Precautions

Start the engine when using the DVD entertain-
ment system.

Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the shift lever to the P (Park) position and
apply the parking brake.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-55

Condition:

(220,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-56

Center display, heater, air conditioner, audio, phone and voice recognition systems

WARNING

The driver must not attempt to
operate the DVD system or wear
the headphones while the vehicle is
in motion so that full attention may
be given to vehicle operation.

Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and
serious personal injury or death.

CAUTION

Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.

Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction.

While playing VIDEO-CD media, this
DVD player does not guarantee

complete functionality of all VI-
DEO-CD formats.

Display settings

To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key.

To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.

Then you can adjust each item using the multi-
function controller. After changes have been
made push the BACK button to save the setting.

SAA2497

Playing a DVD

DISC·AUX button:

Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.

Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.

When a DVD is loaded, it will be replayed
automatically.

The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX

Condition:

(221,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

button again.

DVD operation keys:

When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the multifunction controller to
select an item from the displayed video. When
the operation screen is being shown, use the
multifunction controller or touch screen to select
an item from the displayed menus.

PAUSE:

Select the “

” key to pause the DVD. To

resume playing the DVD, use the “PLAY” key.

PLAY:

Select the “

” key to start playing the DVD,

for example, after pausing the DVD.

STOP:

Select the “

” key to stop playing the DVD.

Next/Previous Chapter:

Select the “

” or “

” key to skip the

chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.

Commercial Skip:

This function is only for DVD-VIDEO, DVD-VR.
Select the “

” or “

” key to skip forward or

backwards by the set amount as defined in the
DVD Settings menu.

Top Menu:

When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.

SAA2498

Example

DVD settings

Select the “Settings” key to adjust the following
settings.

Key (DVD-VIDEO):

Keys for the DVD menu operation are displayed.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-57

Condition:

(222,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-58

Center display, heater, air conditioner, audio, phone and voice recognition systems

: Move the cursor to select a DVD menu.

Enter:

Enter the selected menu.

Move:

Change the display location by moving the
operation key.

Back:

Return to the previous screen.

Hide:

Hide the operation key.

Title Menu (DVD-VIDEO):

Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.

Title Search (DVD-VIDEO, DVD-VR):

The scene with the specified title will be
displayed each time the “+” side or “

−” side is

selected.

Group Search (VIDEO CD):

A scene in the specified group will be displayed
each time the “+” side or “

−” side is selected.

10 Key Search (DVD-VIDEO, VIDEO-CD,
CD-DA, DVD-VR):

Select the “10 Key Search” key to open the
number entry screen. Input the number to be
searched and select the “OK” key. The specified
Title/Chapter or Group/Track will be played.

Select No. (VIDEO-CD):

Select the “Select No.” key to open the number
entry screen. Input the number to be searched
and select the “OK” key. The specified scene

will be played.

Angle (DVD-VIDEO):

If the DVD contains different angles (such as
moving images), the current image angle can be
switched to another one. Select the “Angle” key.
The angle will change each time the “+” side or
“

−” side is selected.

Angle Mark (DVD-VIDEO):

When this item is turned on, an angle mark will
be shown on the bottom of the screen if the
scene can be seen from a different angle.

Menu Skip (DVD-VIDEO):

DVD menus are automatically configured and
the contents will be played directly when the
“Menu Skip” key is turned on. Note that some
discs may not be played directly even if this item
is turned on.

CM Skip (DVD-VIDEO):

Select the “CM Skip” key. Choose the setting
time from 15, 30 or 60 seconds by selecting the
“+” side or “

−” side.

DRC (DVD-VIDEO, DVD-VR):

DRC (Dynamic Range Compression) automati-
cally adjusts the soundtrack volume level to
maintain a more even sound to the speakers.

DVD Language (DVD-VIDEO, VIDEO-CD):

Select the “DVD Language” key to open the
number entry screen. Input the number corre-
sponding to the preferred language and select
the “OK” key. The DVD top menu language will
be changed to the one specified.

Display:

To adjust the image quality of the screen, select
the preferred adjustment items.

Audio:

Select the preferred language for audio.

Subtitle (DVD-VIDEO, DVD-VR):

Select the preferred language for subtitles.

Display Mode (DVD-VIDEO, VIDEO-CD,
DVD-VR):

Select from the “Full”, “Wide”, “Normal” or
“Cinema” modes.

Title List (DVD-VR):

Select the preferred title from the list.

Play Mode:

Select the preferred play mode.

PG/PL Mode (DVD-VR):

Select the “PG” or “PL” mode.

Condition:

(223,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

USB (Universal Serial Bus) CONNEC-
TION PORT (models with navigation
system)

Audio main operation

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

SAA2499

Open the console lid and connect a USB
memory as illustrated. Then, push the DISC·AUX
button repeatedly to switch to the USB memory
mode.

If the system has been turned off while the USB
memory was playing, pushing the ON·OFF/VOL
control knob will start the USB memory.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-59

Condition:

(224,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-60

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA2500

File selection

When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred contents to play.

When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.

If a video file restricts the number of playbacks, a
pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.

SAA2501

Audio file operation

PLAY:

When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.

If another audio source is playing with an USB
memory inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode.

Next/Previous File and Fast

Forward/Rewind:

When the

button is pushed for more

than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.

When the

button is pushed for less

than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.

The multi-function controller can also be used to
select tracks when the USB memory is being
played.

Folder selection:

To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the multi-function
controller.

REPEAT (RPT), RANDOM (RDM):

When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.

Condition:

(225,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

To change the play mode, push the RPT button
repeatedly and the mode will change as follows.

Normal ? 1 Folder Repeat ? 1 Track Repeat ?
All Random ? 1 Folder Random ? Normal

SAA2502

Menu:

There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.

Movie Playback

Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.

Folder List/Track List

Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen, and enables switching to the movie
playback mode.

Play Mode

Select the preferred play mode.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-61

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 14
