Clock settings

The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.

The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.

On-screen Clock:

When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.

This clock will indicate the time almost exactly
because it is always adjusted by the GPS

system.

Clock Format (24h):

When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.

Offset (hour)/(min):

Adjust the time by increasing or decreasing per
hour or per minute.

Daylight Saving Time:

Turn this item to ON for daylight saving time
application.

Time Zone:

Choose the time zone from the following

Pacific

Mountain

Central

Eastern

Atlantic

Newfoundland

Hawaii

Alaska

JVH0308M

Others settings

The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.

The following items are available:

Comfort

Language & Units

Voice Recognition

Camera

Image Viewer

Condition:

(179,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2488

Example

Comfort settings

The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.

Auto Interior Illumination:

When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.

Light Sensitivity:

Adjust the sensitivity of the automatic headlights
higher (right) or lower (left).

Light Off Delay:

Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.

Speed Sensing Wiper Interval:

When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.

Selective Door Unlock:

When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
unlocked if the door unlock operation is per-
formed again within 60 seconds.

When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.

Intelligent Key Lock/Unlock:

When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.

Return All Settings to Default:

Select this item and then select “YES” to return
all settings to the default.

SAA2490

Language & Units settings

The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Others” key, and then selecting
the “Language & Units” key.

Select Language:

Select the “Select Language” key. Choose
“English”, “Franc¸ais” or “Espan˜ol” for your
favorite display appearance.

If you select the “Franc¸ais” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “Owner’s Manual/Service
Manual order information” (P.10-25).

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-15

Condition:

(180,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-16

Center display, heater, air conditioner, audio, phone and voice recognition systems

Select Units:

Select the “Select Units” key. Choose “US”
(Mile, 8F, MPG) or “Metric” (km, 8C, L/100 km)
for your favorite display appearance.

Voice Recognition settings

For details about the “Voice Recognition”
settings, see “NISSAN Voice Recognition Sys-
tem (models with navigation system)” (P.4-99).

Camera settings

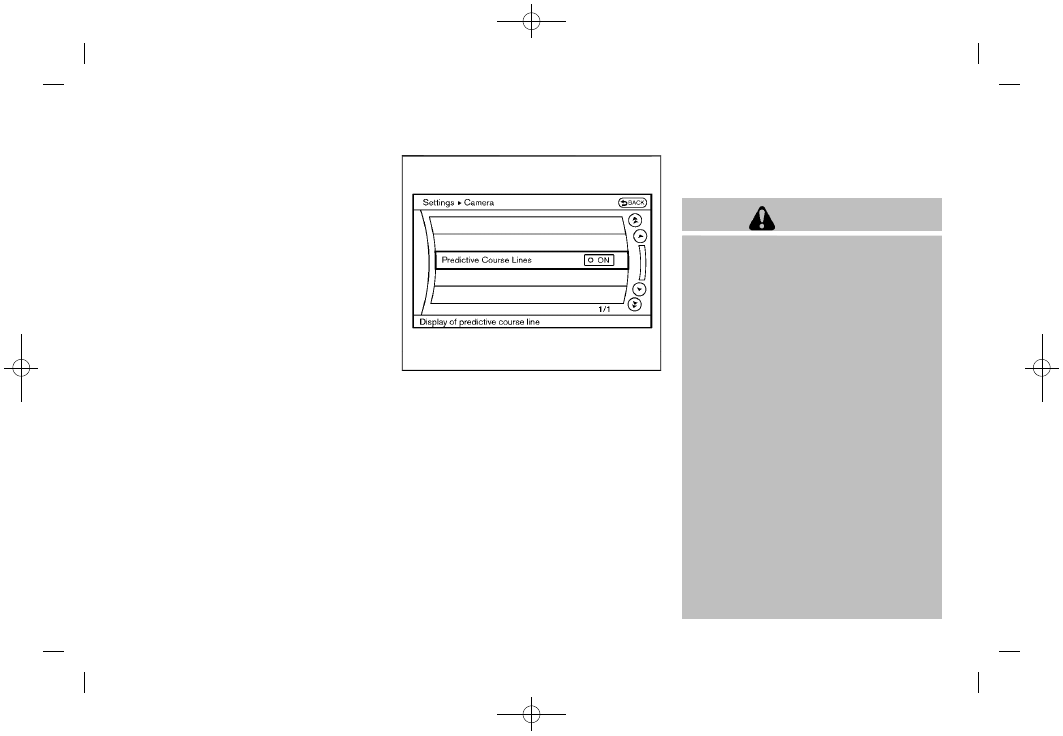

The “Camera” screen will appear when selecting
the “Camera” key.

For details about the camera system operation,
see “RearView Monitor (models with navigation
system)” (P.4-18).

SAA2491

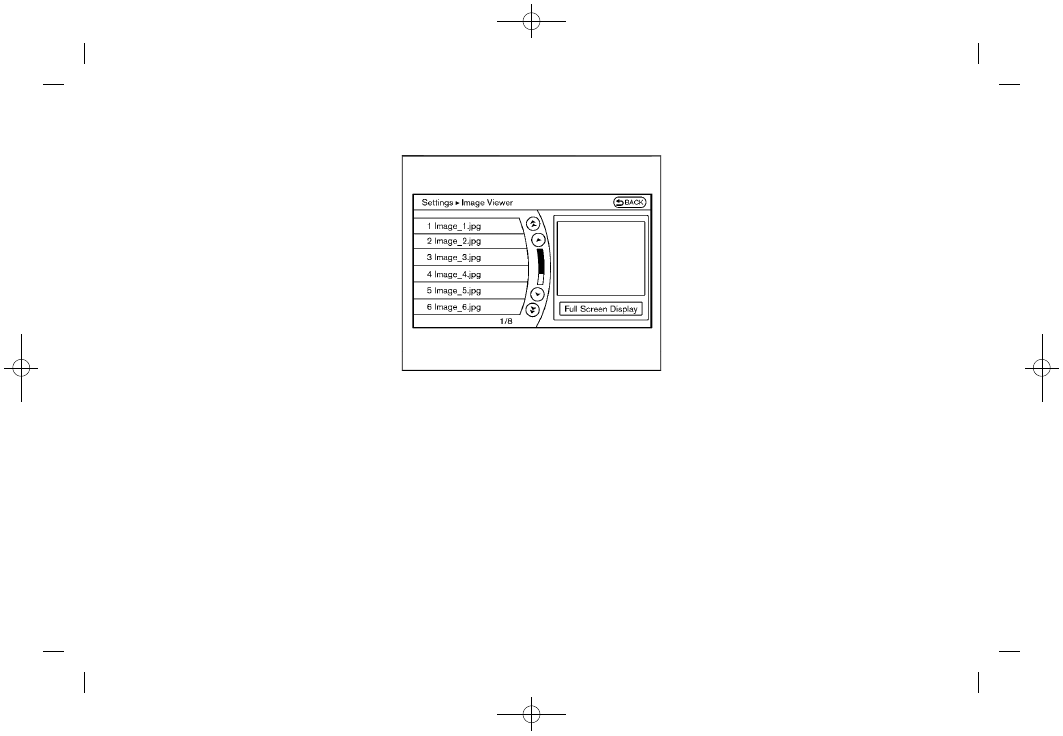

Image Viewer

The image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image of
the selected file is displayed on the right side of
the screen.

When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.

Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking

brake.

Condition:

(181,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA2492

Full Screen Display:

The full screen display will appear when select-
ing the “Full Screen Display” key.

To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.

(Start)

Select the “

” key to start playing the

slideshow.

(Stop)

Select the “

” key to stop the slideshow.

(Next)

Select the “

” key to display the next file.

(Previous)

Select the “

” key to display the previous

file.

Setting the Image Viewer:

The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are
available for the full screen display.

Slideshow Speed

Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.

Slideshow Order

Select the “Slideshow Order” key. From the
following display, select “Random” or “Order
List”. For “Order List”, the image order is the
order of the files as stored on the USB
memory.

Operating tips:

Only files that meet the following conditions
will be displayed.

— Image type: JPEG

— File Extensions: *.jpg, *jpeg

— Maximum Resolution: 2048 6 1536

pixels

— Maximum Size: 2-MB

— Colors: 32768 (15-bit)

— Maximum File Name lengths: 253-Bytes

— Maximum Folders: 500

— Maximum Images per Folder: 1024

If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.

If the file name is too long, some file names
may not be entirely displayed.

When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-17

Condition:

(182,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-18

Center display, heater, air conditioner, audio, phone and voice recognition systems

WARNING

Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.

The system is designed as an aid to
the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.

The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the “R” (Reverse) position.

The radio can still be heard while the RearView
Monitor is active.

JVH1353X

To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s license plate

REARVIEW MONITOR SYSTEM OP-
ERATION

With the ignition switch in the “ON” position,
move the shift lever to the “R” (Reverse) position
to operate the RearView Monitor.

REARVIEW MONITOR (models with
navigation system)

Condition:

(183,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SAA1896

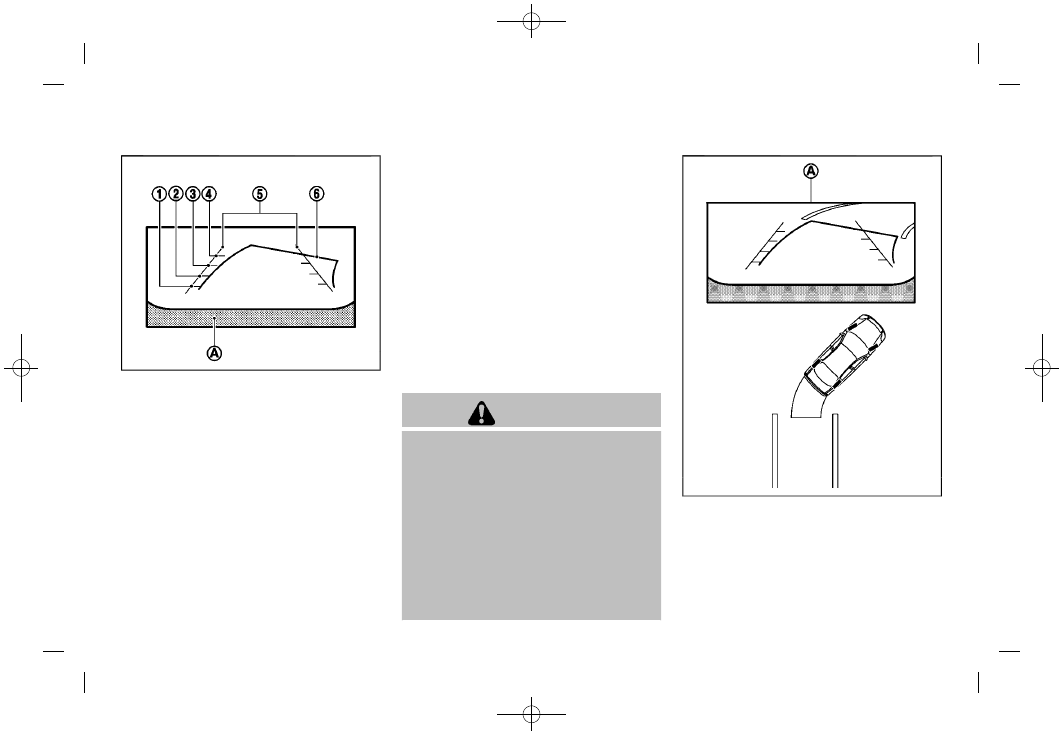

HOW TO READ DISPLAYED LINES

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line

are displayed on the monitor.

Distance guide lines:

Indicate distances from the bumper.

Red line

: approx. 1.5 ft (0.5 m)

Yellow line

: approx. 3 ft (1 m)

Green line

: approx. 7 ft (2 m)

Green line

: approx. 10 ft (3 m)

Vehicle width guide lines

Indicate the vehicle width when backing up.

Predictive course lines

Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the “R”
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.

The vehicle width guide lines and the width of
the predictive course lines are wider than the
actual width and course.

HOW TO PARK WITH PREDICTIVE
COURSE LINES

WARNING

If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.

On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.

The displayed lines will appear
slightly off to the right because the
rearview camera is not installed in
the rear center of the vehicle.

SAA1897

1. Visually check that the parking space is safe

before parking your vehicle.

2. The rear view of the vehicle is displayed on

the screen

when the shift lever is moved

to the “R” (Reverse) position.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-19

Condition:

(184,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-20

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA1898

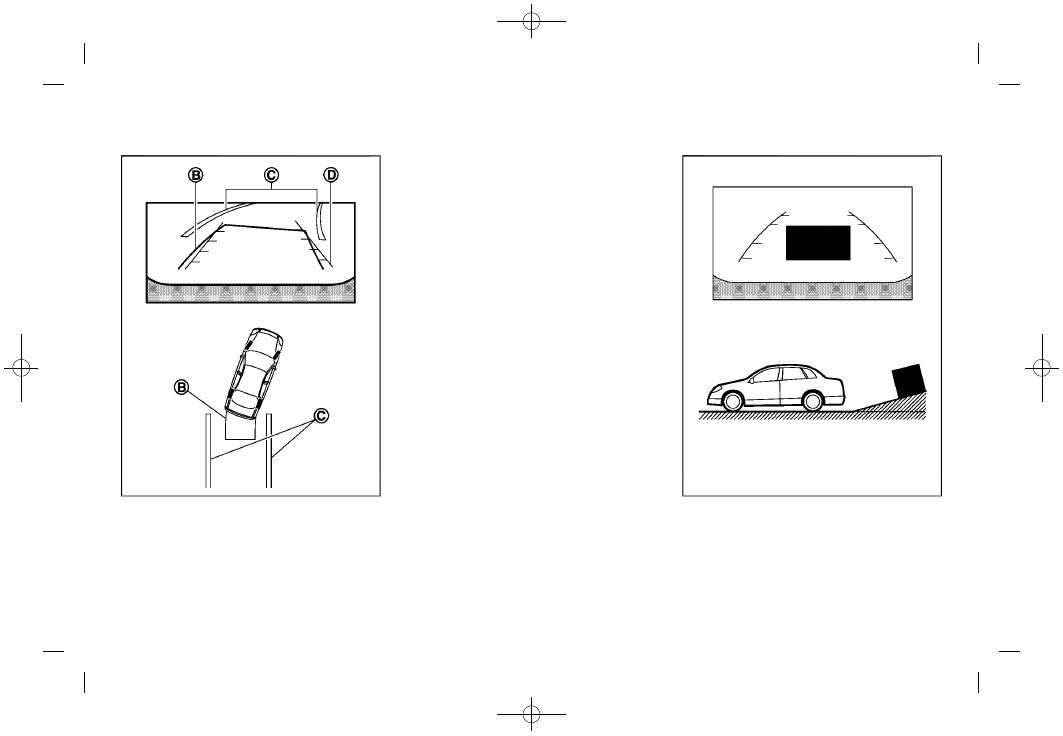

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive course
lines

enter the parking space

4. Maneuver the steering wheel to make the

vehicle width guide lines

parallel to the

parking space

while referring to the

predictive course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position (Automatic Transmission
models) or in an appropriate gear (Manual
Transmission models) and apply the parking
brake.

Difference between predictive and actual
distances

The displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.

JVH1355X

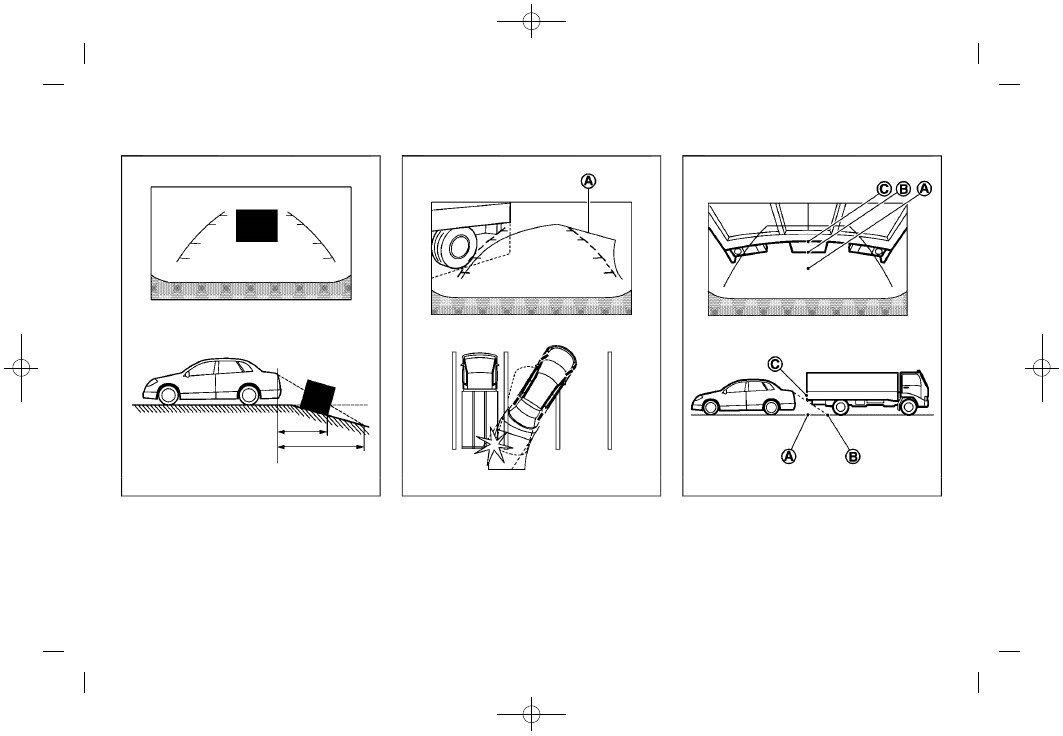

Backing up on a steep uphill:

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.

Condition:

(185,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

JVH1356X

Backing up on a steep downhill:

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.

SAA1923

Backing up near a projecting object:

The predictive course lines

do not touch the

object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.

SAA1924

Backing up behind a projecting object:

The position

is shown further than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

the object projects over the actual backing up

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-21

Condition:

(186,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-22

Center display, heater, air conditioner, audio, phone and voice recognition systems

course.

ADJUSTING THE SCREEN

To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, push the SETTING button with the
RearView Monitor on, select the “Display” key
on the screen and select the item key and adjust
the level using the multifunction controller.

Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the Rear View
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.

NOTE:

Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.

SAA2404

PREDICTIVE COURSE LINE SETTINGS

To toggle on and off the predictive course lines:

1. Push the SETTING button.

2. Select “Others” key and push the ENTER

button.

3. Select “Camera” key and push the ENTER

button.

Predictive Course Lines:

When this item is turned on, the predictive
course lines will be displayed on the monitor
when the shift lever is in the “R” (Reverse)
position.

REARVIEW MONITOR SYSTEM LIM-
ITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.

The system cannot completely elim-
inate blind spots and may not show
every object.

Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.

Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.

Objects in the RearView Monitor
will appear visually opposite com-
pared to when viewed in the rear
view and outside mirrors.

Condition:

(187,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tions and road grade.

Make sure that the trunk lid or rear
hatch is securely closed when back-
ing up.

Do not put anything on the rearview
camera. The rearview camera is
installed above the license plate.

When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.

Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.

The following are operating limitations and do
not represent a system malfunction:

When the temperature is extremely high or
low, the screen may not clearly display

objects.

When strong light is directly coming on the
camera, objects may not be displayed
clearly.

Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper.

The screen may flicker under fluorescent
light.

The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects.

Objects on the monitor may not be clear in a
dark environment.

If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display objects clearly. Clean the camera.

Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.

JVH1353X

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.

Do not damage the camera as the
monitor screen may be adversely
affected.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-23

Condition:

(188,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-24

Center display, heater, air conditioner, audio, phone and voice recognition systems

If dirt, rain or snow accumulates on the camera

, RearView Monitor may not display objects

clearly. Clean the camera by wiping it with a
cloth dampened with a diluted mild cleaning
agent and then wiping it with a dry cloth.

SAA2275

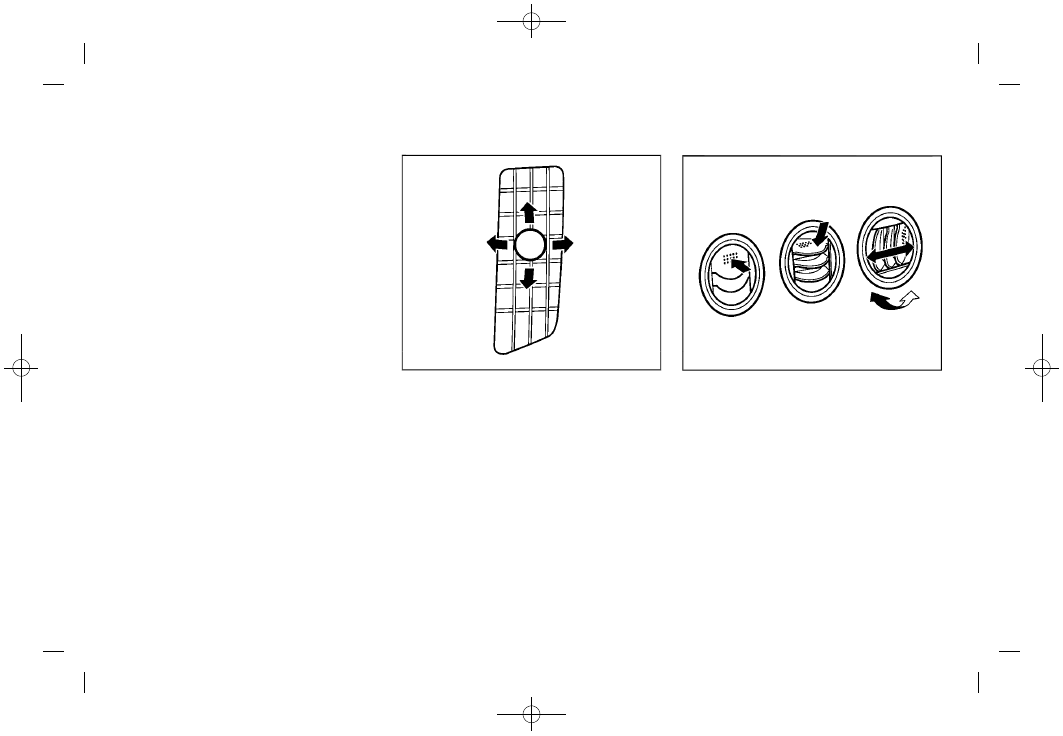

CENTER VENTILATORS

Open or close, and adjust the air flow direction
of ventilators.

SAA2288

SIDE VENTILATORS

Open or close, and adjust the air flow direction
of ventilators as illustrated.

VENTILATORS

Condition:

(189,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

WARNING

The air conditioner cooling function
operates only when the engine is
running.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.

Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.

Start the engine and operate the heater and air
conditioner system.

NOTE:
.

Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.

When parking, set the heater and air
conditioner controls to turn off air

recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

SAA2493

For the models with navigation system, push the
“STATUS” button to display the heater and air
conditioner status screen. (See “How to use
STATUS button” (P.4-8).)

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-25

HEATER AND AIR CONDITIONER

Condition:

(190,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-26

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA2277

“

” fan speed control dial

Temperature control dial*

* The display of degrees:

“60-75-90” is used for 8F (US).

“18-25-32” is used for 8C (Canada).

Air flow control dial

“A/C” air conditioner button

Intake air control button (“

” outside air and

“

” air recirculation)

“

” rear window defroster button (See “Rear

window defroster switch” (P.2-32).)

AUTOMATIC AIR CONDITIONER (Type
A) (if so equipped)

Automatic operation

Cooling and/or dehumidified heating
(AUTO):

This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.

1. Turn the “

” fan speed control dial and air

flow control dial to the “AUTO” position. The
air conditioner will automatically turn on.

2. Turn the temperature control dial to set the

desired temperature.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.

A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.

Dehumidified defrosting or defogging:

1. Turn the “

” fan speed control dial to the

desired position.

2. Turn the air flow control dial to the “

”

position.

3. Turn the temperature control dial to set the

desired temperature.

To quickly remove ice from the outside of

the windows, turn the “

” fan speed

control dial to the maximum position.

As soon as possible after the windshield

is clean, turn the air flow control dial to
the “AUTO” position to return to the auto
mode.

When the air flow control dial is turned to

the “

” or “

” position, the air

conditioner will automatically be turned
on at outside temperatures above 238F
(

−58C) to defog the windshield, and the

air recirculation mode will automatically
be turned off.

Condition:

(191,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Outside air is drawn into the passenger
compartment to improve the defogging
performance.

Manual operation

Fan speed control:

Turn the “

” fan speed control dial clockwise

(+) or counterclockwise (

−) to manually control

the fan speed.

Turn the dial to the “AUTO” position to return to
automatic control of the fan speed.

Temperature control:

Turn the temperature control dial to set the
desired temperature.

The temperature can be set within the
following range.

— For U.S.: 60 to 908F (16 to 328C)

— For Canada: 64 to 908F (18 to 328C)

Air intake control:

Push the “

” air intake control button

to recirculate interior air inside the vehicle.
The indicator light on the “

” side will

illuminate.

The air recirculation mode cannot be acti-
vated when the air conditioner is in the front
defrosting mode “

”.

Push the “

” air intake control button

to draw outside air into the passenger

compartment. The indicator light on the
“

” side will illuminate.

To switch to the automatic control mode,
push the “

” air intake control button

for approximately 2 seconds. The indicator
lights (both air recirculation and outside air
circulation sides) will flash twice, and then
the air intake will be controlled automatically.

Air flow control:

Turning the air flow control dial selects the air
outlet to:

Air flows from center and side ventilators.

Air flows from center and side ventilators
and foot outlets.

Air flows mainly from foot outlets.

Air flows from defroster and foot outlets.

Air flows mainly from defroster outlets.

To turn the system off

Turn the “

” fan speed control dial to the

“OFF” position.

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-27

Condition:

(192,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

4-28

Center display, heater, air conditioner, audio, phone and voice recognition systems

SAA2876

“A/C” air conditioner ON/OFF button/“

” fan

speed control dial

“

” front defroster button

“

” intake air control button

“AUTO” automatic air conditioner ON button/
Temperature control dial

“

” rear window defroster button (See “Rear

window defroster switch” (P.2-32).)

“MODE” manual air flow control button

“OFF” button

AUTOMATIC AIR CONDITIONER (Type
B) (if so equipped)

Automatic operation

Cooling and/or dehumidified heating
(AUTO):

This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.

1. Push the “AUTO” button on. (The indicator

on the button will illuminate and AUTO will
be displayed.)

2. Turn the temperature control dial to set the

desired temperature.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed will also be
controlled automatically.

A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.

Dehumidified defrosting or defogging:

1. Push the “

” front defroster button. (The

indicator light on the button will come on.)

2. Turn the temperature control dial to set the

desired temperature.

To quickly remove ice from the outside of the
windows, turn the “

” fan speed control

dial and set it to the maximum position.

As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.

When the “

” front defroster button is

pushed, the air conditioner will automatically
be turned on at outside temperatures above
238F (

−58C) to defog the windshield, and

the air recirculate mode will automatically be
turned off.

Outside air is drawn into the passenger
compartment to improve the defogging
performance.

Condition:

(193,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Manual operation

Fan speed control:

Turn the “

” fan speed control dial to

manually control the fan speed.

Push the “AUTO” button to return to automatic
control of the fan speed.

Temperature control:

Turn the temperature control dial to set the
desired temperature.

The temperature can be set within the
following range.

— For U.S.: 60 to 908F (16 to 328C)

— For Canada: 64 to 908F (18 to 328C)

Air intake control:

Push the “

” air intake control button to

recirculate interior air inside the vehicle. The
indicator light “

” will come on.

The air recirculation mode cannot be acti-
vated when the air conditioner is in the front
defrosting mode “

”.

Push the “

” air intake control button to

switch to the outside air intake mode. The
indicator light “

” will turn off.

To switch to the automatic control mode,
push the “

” air intake control button for

approximately 2 seconds. The indicator light
will flash, and then the air intake will be

controlled automatically.

Air flow control:

Pushing the “MODE” manual air flow control
button selects the air outlet to:

Air flows from center and side ventilators.

Air flows from center and side ventilators
and foot outlets.

Air flows mainly from foot outlets.

Air flows from defroster and foot outlets.

To turn the system off

Push the “OFF” button.

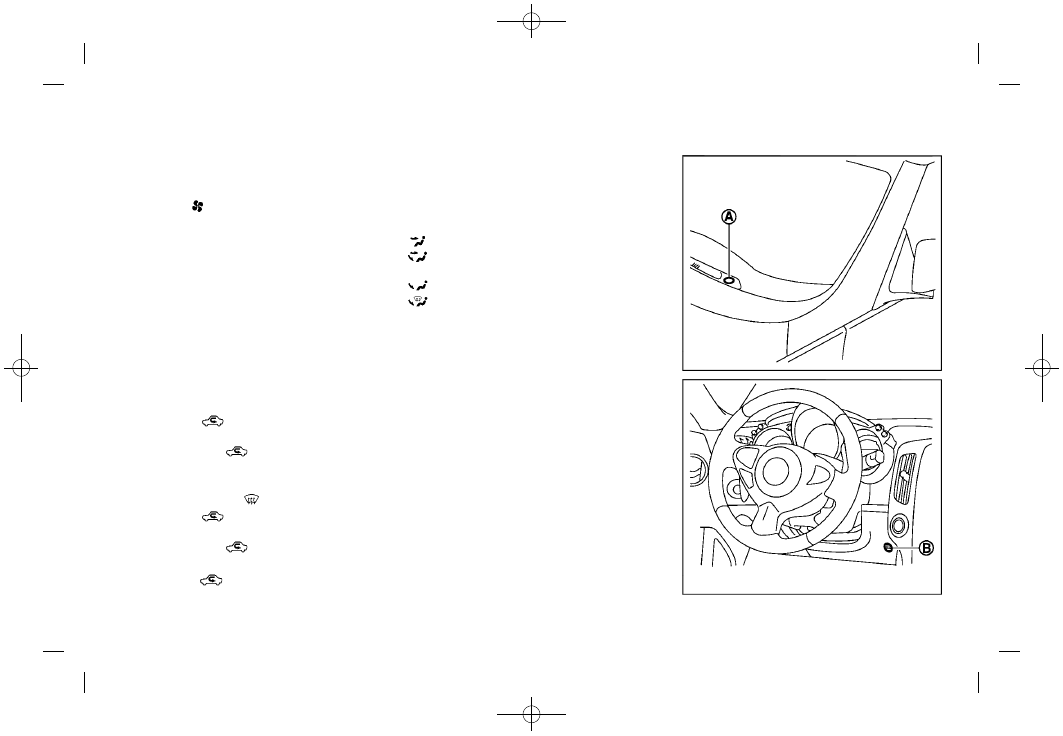

SAA2324

SAA2315

Center display, heater, air conditioner, audio, phone and voice recognition systems

4-29

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 12
