3-22

Pre-driving checks and adjustments

operate when the ignition switch is in
the ON position, but run the engine to
prevent a discharged battery.

Be sure to follow the operating instructions, and
all the warnings and cautions in this section.
Improper operation of the top could cause
a system malfunction, damage, or dete-
rioration of the top material and related
parts.

WARNING

Park the vehicle in a safe and level
place and apply the parking brake.

Make sure the area is clear of
obstacles and there is enough clear-
ance over the top (for example, in a
garage or a covered area). More
than approximately 6.6 ft (2 m) from
the ground is required to open or
close the top safely. Otherwise, the
top may damage any objects above
it while moving. The top operating
system could also be damaged.

Do not operate the top in a strong
wind. It could be blown by the wind,
striking someone or damage the

top.

Do not allow anyone to stand up or
extend any portion of their body out
of the opening while the vehicle is in
motion or while the top is being
operated.

In an accident you could be thrown
from the vehicle with an open top.
Always use seat belts and proper
child restraints.

CAUTION

Do not operate the top when the
temperature is below 328F (08C).
This may result in damage to the
top material or operating system.

Remove water drops, snow, ice or
sand from the top, and dry the
surface of the top completely before
opening it.

Do not open the top when it is wet
or damp. This may cause interior
water damage, stains or mildew on
the top material.

Be sure to turn off the rear window
defroster switch. Never turn it on

while the top is being operated or
fully opened. The heat may damage
the top material.

Condition:

(147,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

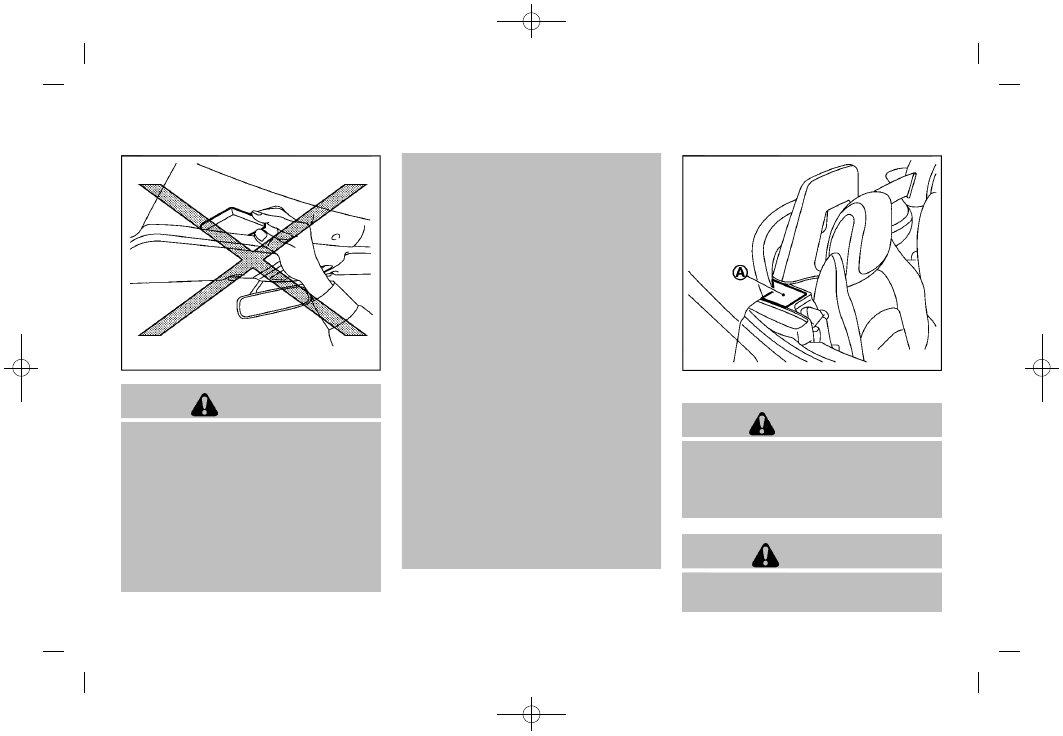

SPA2691

CAUTION

Do not place any objects between
the top cloth and the structure.
Doing so could interfere with top
operation and cause damage to the
top operating system or the objects.

Do not place anything on the top
and the storage lid. Even small
items may interfere with the top
operation and could cause damage
to the top or the vehicle body.

Do not place anything in the top
storage area. The top will not fit
there properly, and this could da-
mage the top and/or the vehicle
body.

Do not sit or place excessive weight
on the top and the storage lid,
especially when the top is being
operated. The top may be damaged.

Do not drive the vehicle with the top
partially opened. Always make sure
the top is either fully opened or
closed before driving.

Secure items so that they cannot be
blown from the vehicle while driving
with the top open.

Do not operate the top manually
except for emergency cases. Manual
operation may damage the top.

Be sure to fully open or fully close
the top. Do not release the switch
half way through the roof opening
or closing process. If the top is only
partially opened, significant da-
mage to the top could occur.

Make sure the trunk lid is securely closed before
operating the top.

SPA2706

WHEN OPERATING THE TOP

WARNING

Keep hands and other parts of the body
away from moving parts such as the
top, storage lid, side flap

and power

windows.

CAUTION

Keep all parts of the top linkage clear of
obstructions, or the top latch may not

Pre-driving checks and adjustments

3-23

Condition:

(148,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-24

Pre-driving checks and adjustments

be securely locked.

NOTE:
.

In case of low battery or low tempera-
ture, the top may temporarily stop
moving during the operation. This func-
tions to protect the top control me-
chanism, and it is not a malfunction.

If the top is opened and closed repeat-
edly in a short period of time or the top
operation is stopped while opening or
closing, the top operation may be
automatically stopped to protect the
system. Wait for approximately 5 min-
utes before operating the top again.

SPA1691

Soft top indicator light

The soft top indicator light in the instrument
panel shows the conditions of top operation.
The light illuminates when the soft top is being
operated or if it is stopped before reaching the
fully opened or closed position. When the top is
fully opened or closed, the light will turn off.

The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:

When the vehicle is driven.

When the shift lever is in the R (Reverse)
position.

Be sure to fully open or close the soft top when

driving the vehicle.

When the soft top is operating, and any of the
following conditions occur, the top will stop
operating.

When the shift lever is in the R (Reverse)
position.

When the vehicle moves at a speed of 3
MPH (5 km/h) or more.

When the battery voltage is extremely low.

When the temperature of the soft top
system becomes extremely high.

Release the soft top operating switch, and push
the switch again to move the top to the fully
opened or closed position. The soft top indicator
light will turn off when the top operation is
completely finished.

If the soft top indicator light illuminates with the
ignition switch ON (whether the top is operated
or not, and when the top is engaged), it may
indicate the top operating system is not
functioning properly. Have your vehicle checked
as soon as possible. It is recommended you visit
a NISSAN dealer for this service.

Condition:

(149,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Automatic window lowering

When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the top operation is com-
pleted. Use the power window switches to raise
them.

SPA2632

OPENING THE TOP

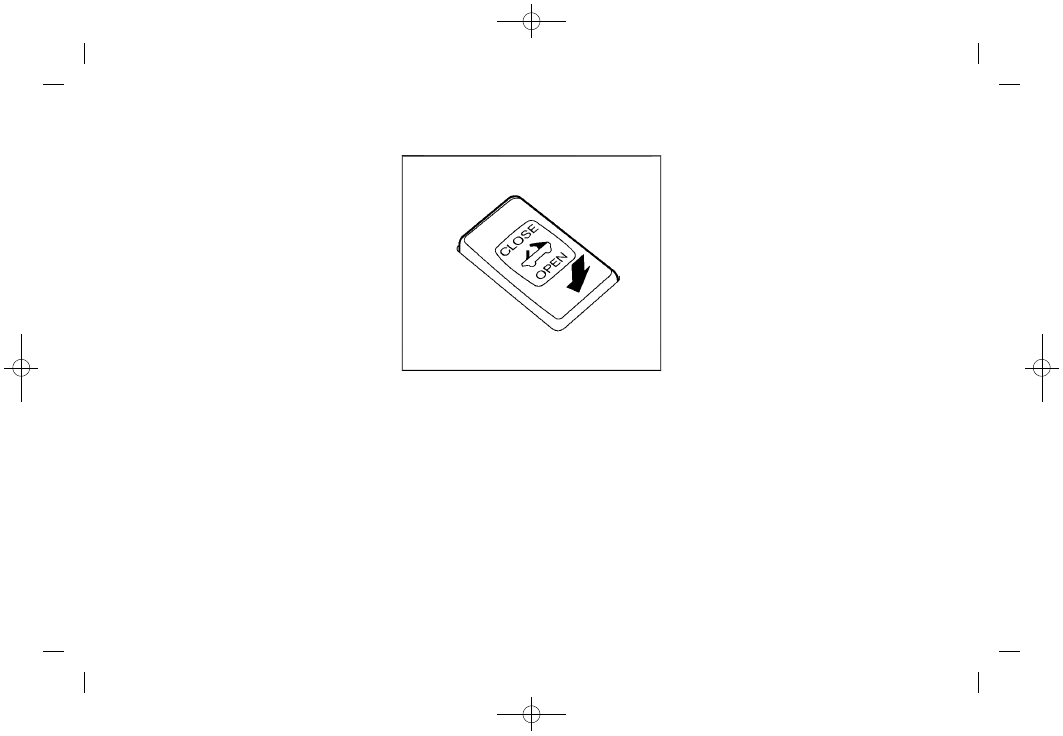

1. Start the engine.

2. Push OPEN on the soft top operating switch

and hold it until the top is fully opened.

The soft top indicator light will illuminate

while the top is in motion. (In about 20
seconds, the opening movement will
finish and the indicator light turns off.)

Windows will automatically be fully

opened.

3. Release the switch when the top is fully

opened. (The indicator light turns off.)

NOTE:

If you release the switch and press it again
while the top is being opened, the top will
slightly move to the closing direction, then
start moving to the opening direction
again. The top is designed to move in this
way. It is not a malfunction.

Pre-driving checks and adjustments

3-25

Condition:

(150,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-26

Pre-driving checks and adjustments

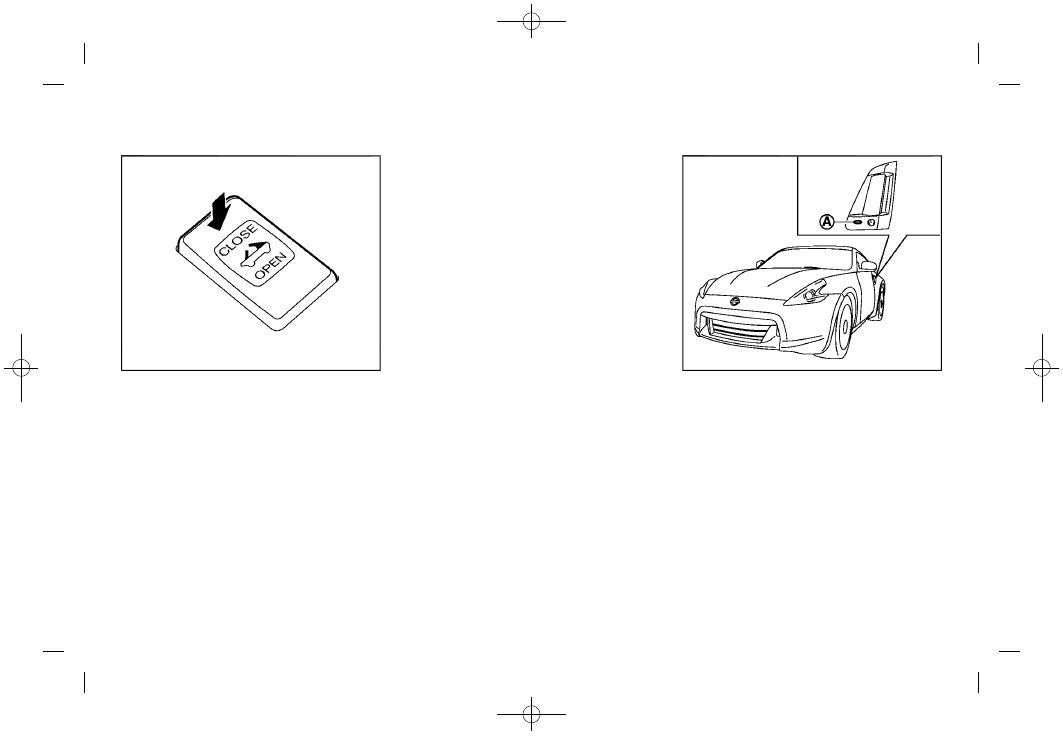

SPA2633

CLOSING THE TOP

1. Start the engine.

2. Push CLOSE on the soft top operating

switch and hold it until the top is fully closed.

The soft top indicator light will illuminate

while the top is in motion. (In about 20
seconds, the closing movement will
finish.)

Windows will automatically be fully

opened.

3. Release the switch when the top is fully

closed. (The indicator light will turn off.)

OPENING THE TOP USING THE IN-
TELLIGENT KEY

The soft top can be opened using the request
switch.

SPA2570

Opening the soft top

Push the ignition switch to the OFF position and
make sure to carry the Intelligent Key with you.
Push the door handle request switch (driver’s or
passenger’s)

and hold it until the soft top is

fully open.

Condition:

(151,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

TROUBLESHOOTING GUIDE

If the soft top stops halfway during operation or does not operate normally, follow the procedures shown in the following table. If the procedures in the
following table do not solve the symptom, have your vehicle inspected immediately. It is recommended to visit a NISSAN dealer for this service.

Symptom

Beep

Possible cause

Possible solution

The OPEN side of the soft top operating
switch is pushed, but the soft top does not
operate.

Sounds twice

The OPEN side of the soft top operating switch is
pushed while the soft top is fully open, or the
CLOSE side of the soft top operating switch is
pushed while the soft top is fully closed.

Push the CLOSE side of the soft top operating
switch when the soft top is fully open. Push the
OPEN side of the soft top operating switch when the
soft top is fully closed.

Sounds twice

The shift lever is in the R (Reverse) position.

Shift the shift lever to the P (Park) or N (Neutral)
position (automatic transmission models only), or shift
the shift lever to the N (Neutral) position (manual
transmission models only), and then operate the soft
top.

Sounds twice

The trunk lid is opened.

Fully close the trunk lid.

Does not sound

The battery voltage is low.

Start the engine again and operate the soft top.

Does not sound

The operation stops to protect the system.

Wait for approximately 5 minutes.

The soft top stops halfway during opera-
tion.

Sounds twice

Objects are trapped in the moving structure of the
soft top.

Check that an object is not trapped inside the rear
parcel shelf, side flap and soft top. After the check,
place the ignition switch in the OFF position, start the
engine again and then operate the soft top.

Sounds twice

The battery voltage is low.

Start the engine again and operate the soft top.

When the vehicle is being driven, the beep
sounds.

Sounds continu-

ously

The soft top is partially opened.

Immediately park the vehicle in a safe location and
fully open or fully close the soft top.

Pre-driving checks and adjustments

3-27

Condition:

(152,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-28

Pre-driving checks and adjustments

IF THE TOP DOES NOT OPEN OR
CLOSE ELECTRICALLY

If you cannot operate the soft top with the
operating switch, first check whether all the
following operating conditions are met.

vehicle is stopped

ignition switch is ON (Run the engine when
operating the top.)

the trunk is closed

the shift lever is in a position other than the R
(Reverse) position

If the top still does not move under the above
conditions or has any system malfunction, it is
recommended you visit a NISSAN dealer as
soon as possible. When you must close the top
by yourself, in the event of emergency or when
an immediate dealer service is not available,
close the top manually according to the proce-
dures shown in this section.

When closing the soft top manually:

Move the vehicle to a safe place, away from
traffic.

Two people should perform this procedure,
as some of the top parts are extremely
heavy.

The top cannot be opened manually.

WARNING

Do not drive with the top partially
opened.

If the top cannot be operated prop-
erly, have your vehicle checked as
soon as possible. It is recom-
mended you visit a NISSAN dealer
for this service.

CAUTION

The storage lid is extremely heavy. The
storage lid should be manually opened
or closed by two people.

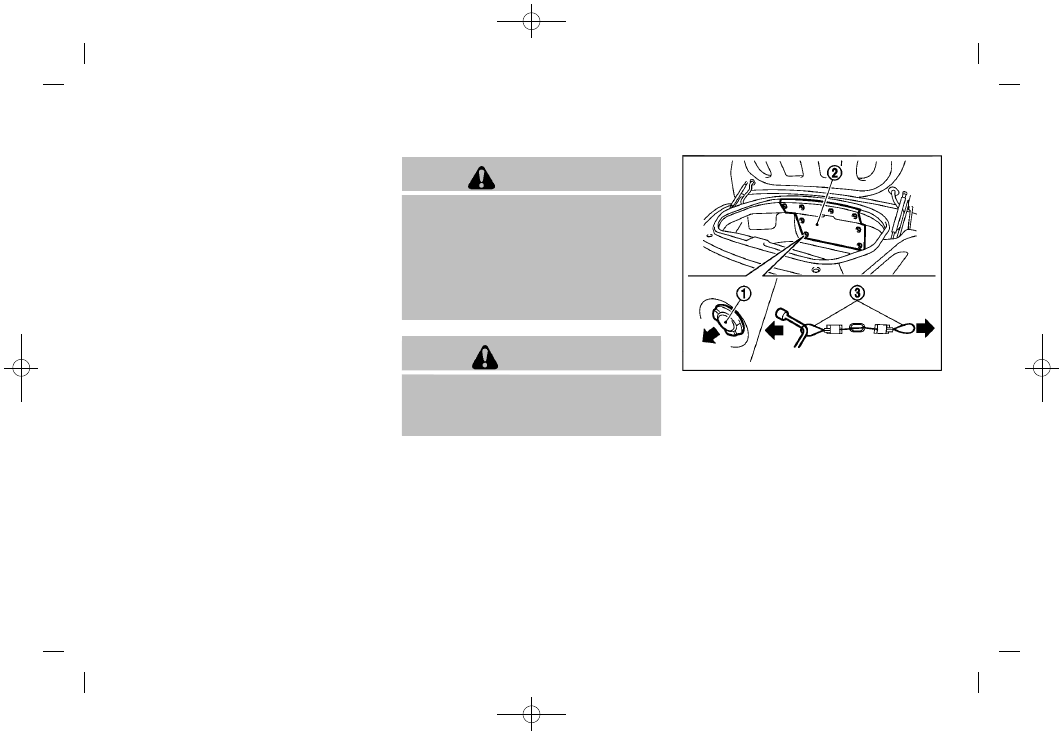

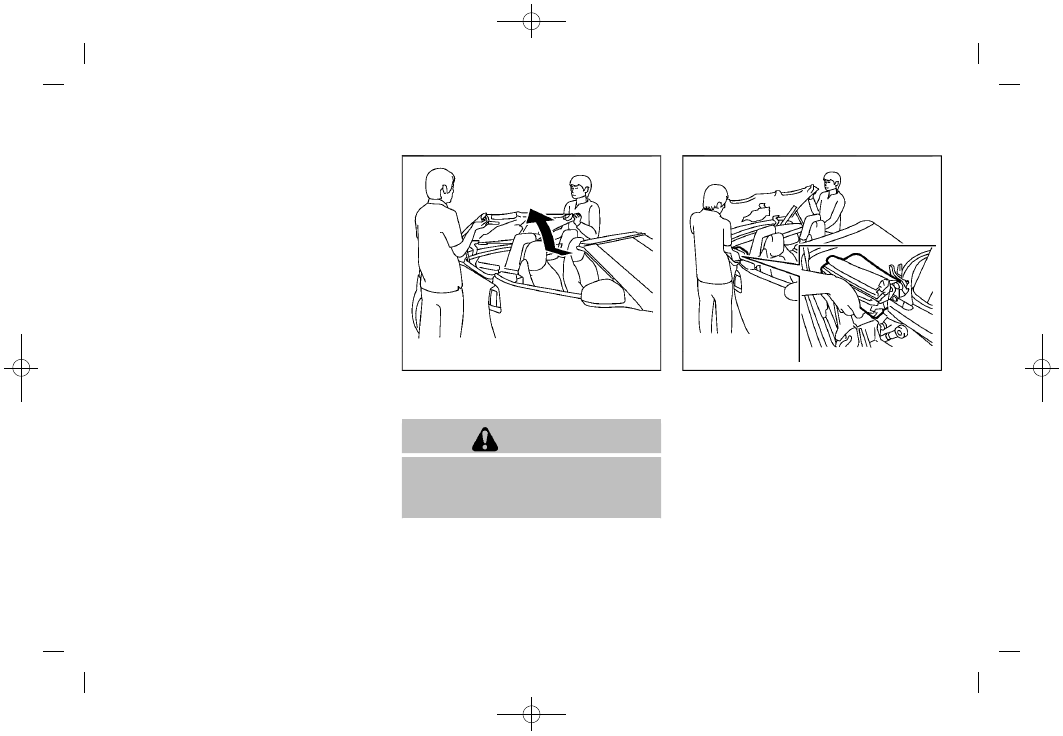

SPA2715

1. Open the trunk lid. In the event of a

discharged battery, the secondary trunk
release mechanism should be operated.
(See “Secondary trunk lid release” (P.3-
21).)

2. Open the top storage lid

a. Remove the board

inside of the trunk

by removing the clips

b. Pull the lock release cables (right and

left)

as illustrated, then close the

trunk lid.

NOTE:
Use a cloth or other tool to protect your
hands when pulling on the lock release

Condition:

(153,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

cables

SPA2686

c. Pull up the storage lid from the left and

right side of the vehicle by hand.

CAUTION

Make sure to close the trunk lid before
opening the storage lid. The storage lid
may contact the trunk lid and damage it.

SPA2703

3. Close the soft top.

a. Pull up the top simultaneously from the

right and left side of the vehicle while
holding the storage lid.

Pre-driving checks and adjustments

3-29

Condition:

(154,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-30

Pre-driving checks and adjustments

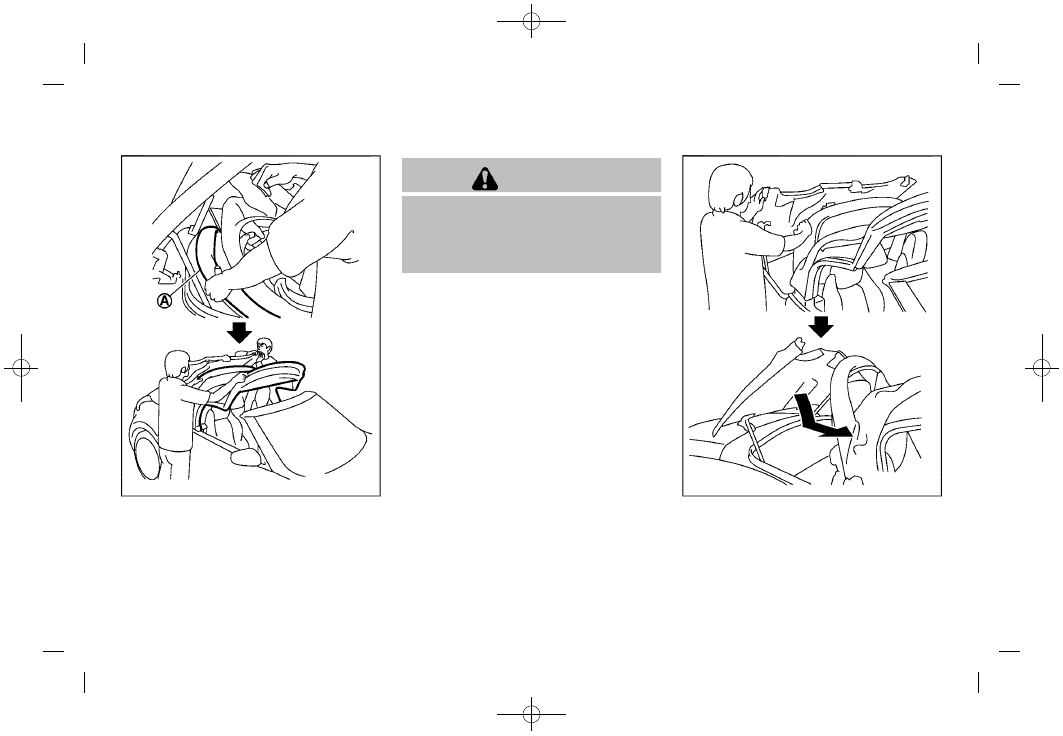

SPA2704

b. When the rear top

is pulled up from

the storage area, one person must hold
the storage lid and another person must
pull up the soft top.

c. Pull up the top using both hands, holding

the rear top

as illustrated.

CAUTION

Make sure to hold the rear top

avoid the front and rear parts separat-
ing. Otherwise the top may be da-
maged.

SPA2705

d. Pull down and slide the storage lid to

close while holding the rear soft top from
the right and left side of the vehicle.

Condition:

(155,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

CAUTION

Make sure to close the storage lid
completely. The storage lid may contact
the soft top and damage it.

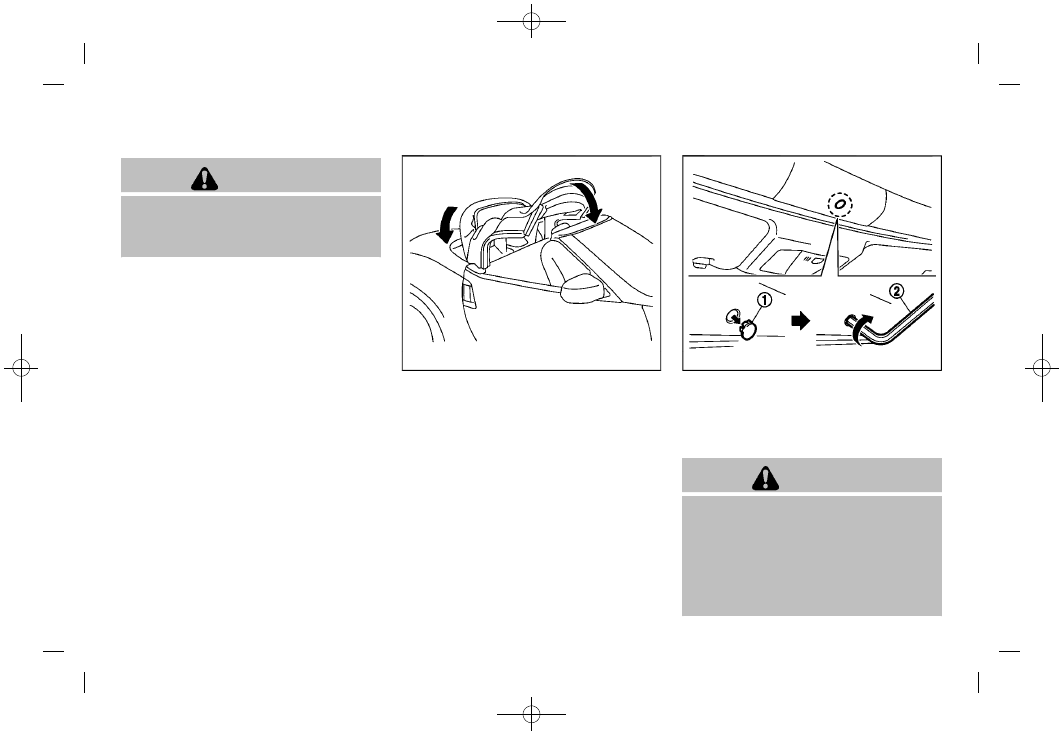

SPA2688

e. Close the front and rear parts of the soft

top at the same time as illustrated.

SPA2689

4. Lock the front part of the soft top.

a. Remove the cap

as illustrated.

b. Insert a suitable tool

(located in the

trunk) into the hole and turn clockwise.

CAUTION

After closing the top manually, have
the system checked and/or repaired
as soon as possible. It is recom-
mended you visit a NISSAN dealer
for this service.

Avoid leaving the vehicle outside for
long periods or driving at high

Pre-driving checks and adjustments

3-31

Condition:

(156,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-32

Pre-driving checks and adjustments

speeds. The rear of the top is not
locked completely, and this may
allow wind and rain to get into your
vehicle.

CARE OF THE SOFT TOP AND THE
VEHICLE BODY

To use your Roadster safely and comfortably,
you need to observe all the warnings and
cautions shown in the previous pages. Also, to
maintain a good appearance of the soft top and
the vehicle body, you need to care for them by
cleaning and/or washing properly.

CAUTION

Do not use an automatic car wash or
a high-pressure car wash to clean
your vehicle. The top may be da-
maged and water may leak into the
inside of the vehicle.

Store the vehicle with the top closed
if it is not to be used for long
periods. Keeping the top stowed
for long periods may cause wrinkles
on the surface of the top.

See “Cleaning exterior” (P.7-2) for detailed
instructions.

A protective clear tape is applied to the top
storage lid painted surface where the soft
top contacts the surface. When the top is
fully closed, the tape may transmit some
light, visible from the inside of the vehicle.
This does not affect the water and air
tightness of the seal.

The inner surface of the trunk and top
storage lids may show a fibrous, or marbled
pattern. This is the normal appearance of the
material used in these parts.

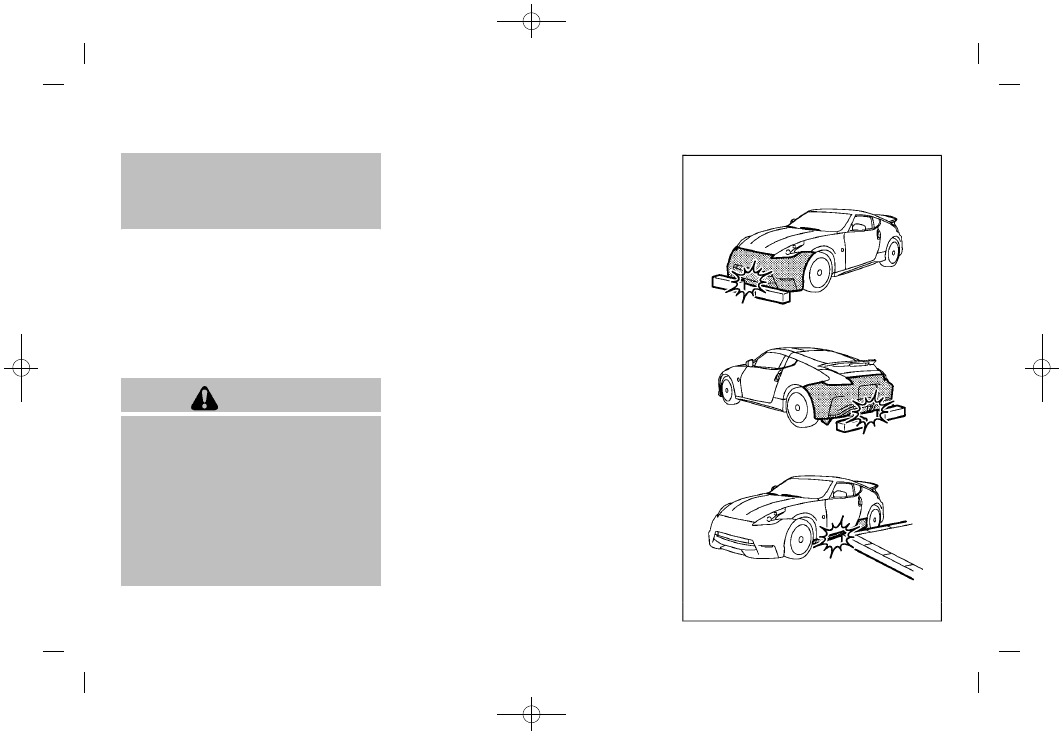

JVP0315X

FRONT, SIDE AND REAR UNIQUE
PARTS (NISMO models)

Condition:

(157,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

The NISMO models have the following unique
parts on the front, side and rear of the vehicle.

Front bumper with an aerodynamic splitter

Side sill extensions

Rear bumper with an aerodynamic diffuser

Large-diameter exhaust pipes

These parts are close to the ground and may be
damaged if they contact objects such as curbs,
parking blocks, etc.

CAUTION

Reduce vehicle speed to decrease the
possibility of damaging these parts
when:

driving on bumpy or rutted roads

entering or exiting parking garages
and driveways

driving over speed bumps

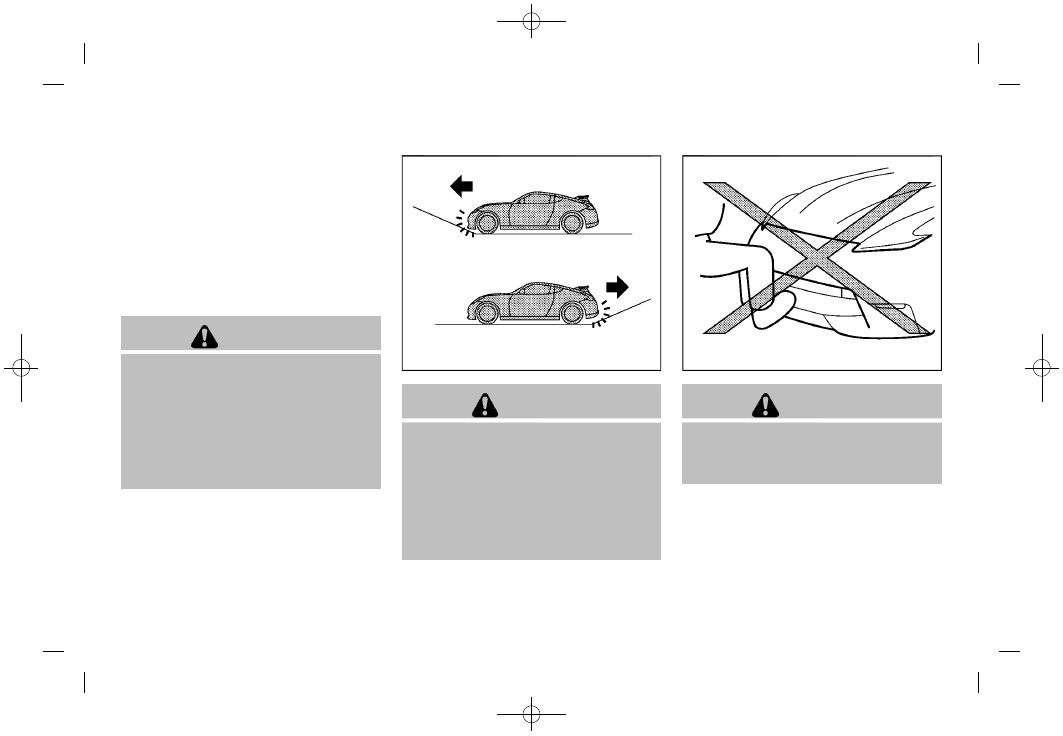

JVP0318X

CAUTION

The approach and departure angles are
small. Reduce vehicle speed when the
vehicle approaches or leaves a steep
hill. Otherwise, the front bumper with
an aerodynamic splitter, rear bumper
with an aerodynamic diffuser and ex-
haust pipes may contact the road sur-
face and be damaged.

JVP0316X

CAUTION

Do not step on the front bumper with an
aerodynamic splitter. Doing so could
damage it.

Pre-driving checks and adjustments

3-33

Condition:

(158,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-34

Pre-driving checks and adjustments

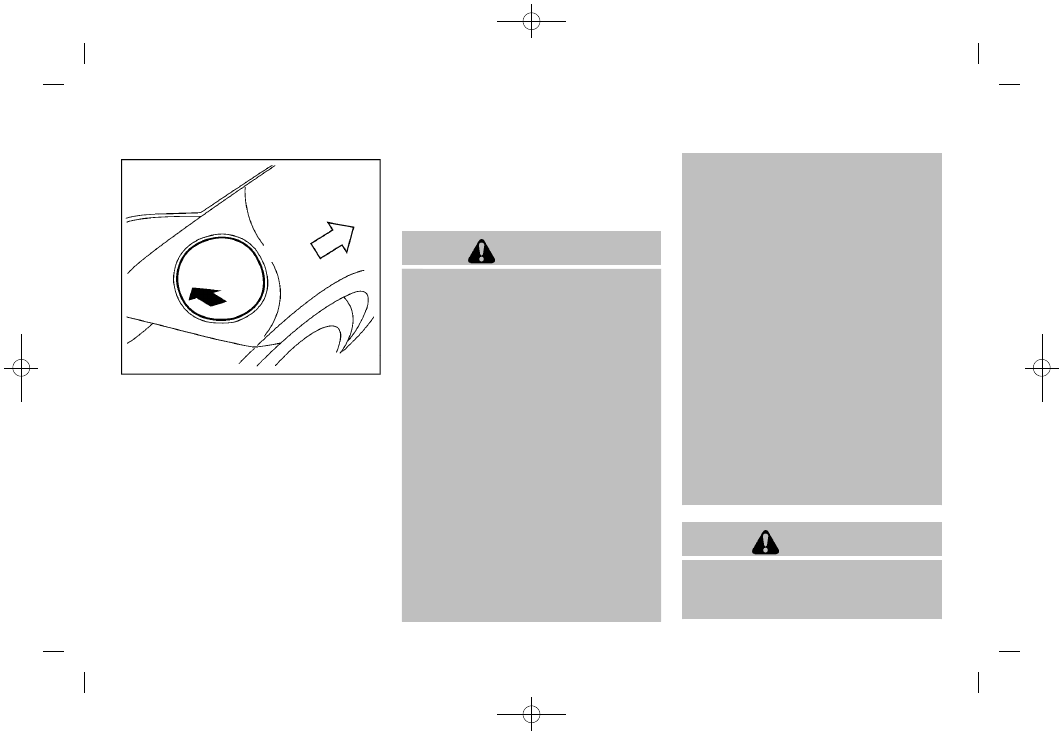

SPA2581

OPENING THE FUEL-FILLER DOOR

To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the left side of the door.

Push the door handle request switch with
the Intelligent Key carried with you.

Push the UNLOCK button on the Intelligent
Key.

Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.

Push the power door lock switch to the
UNLOCK position.

To lock, close the fuel-filler door securely and
lock all doors by operating the door handle

request switch, the LOCK button on the
Intelligent Key, the mechanical key or the power
door lock switch.

FUEL-FILLER CAP

WARNING

Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.

Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.

Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-

function indicator light to come on.

Never pour fuel into the throttle
body to attempt to start your vehi-
cle.

Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:

— Always place the container on

the ground when filling.

— Do not use electronic devices

when filling.

— Keep the pump nozzle in contact

with the container while you are
filling it.

— Use only approved portable fuel

containers for flammable liquid.

CAUTION

If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.

FUEL-FILLER DOOR

Condition:

(159,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the

malfunction indicator

light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The

light

should turn off after a few driving
trips. If the

light does not turn

off after a few driving trips, have the
vehicle inspected. It is recom-
mended you visit a NISSAN dealer
for this service.

The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the

Malfunction

Indicator Light (MIL) to illuminate.

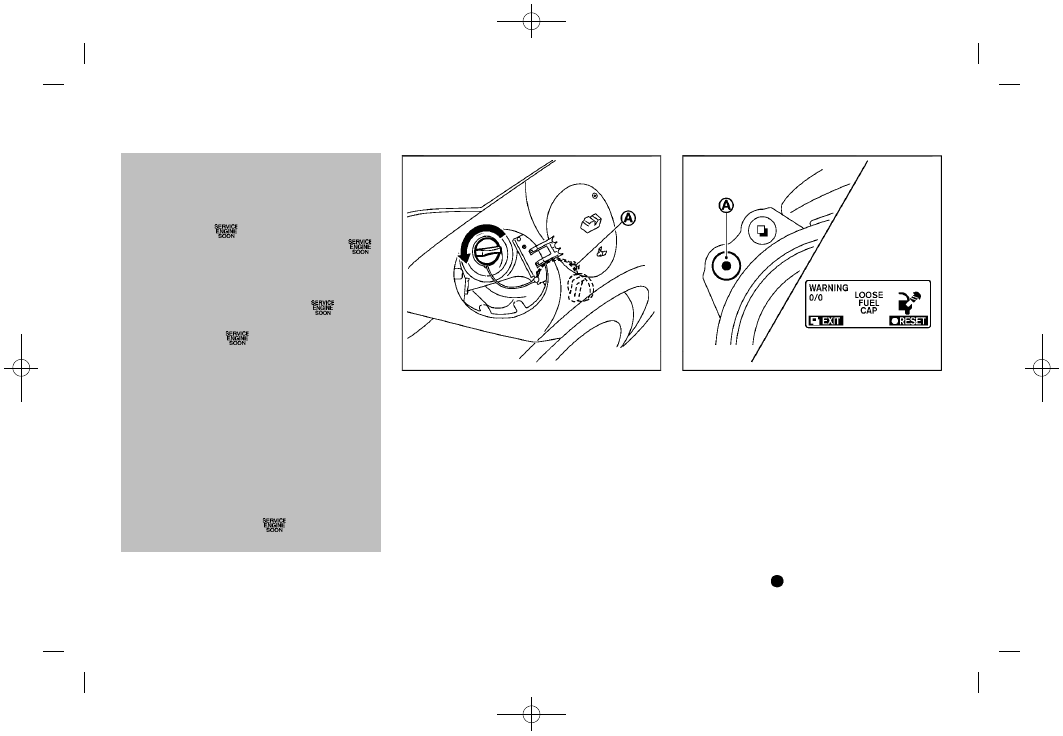

SPA2837

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclockwise to

remove.

2. Put the fuel-filler cap on the cap holder on

the hook

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the fuel-

filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

SPA2810

LOOSE FUEL CAP warning

The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed.

To turn off the warning, perform the following
steps:

1. Remove and install the fuel-filler cap as soon

as possible. (See “Fuel-filler cap” (P.3-34).)

2. Tighten the fuel-filler cap until it clicks.

3. Push the

switch

for about 1

second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.

Pre-driving checks and adjustments

3-35

Condition:

(160,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

3-36

Pre-driving checks and adjustments

WARNING

Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.

Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.

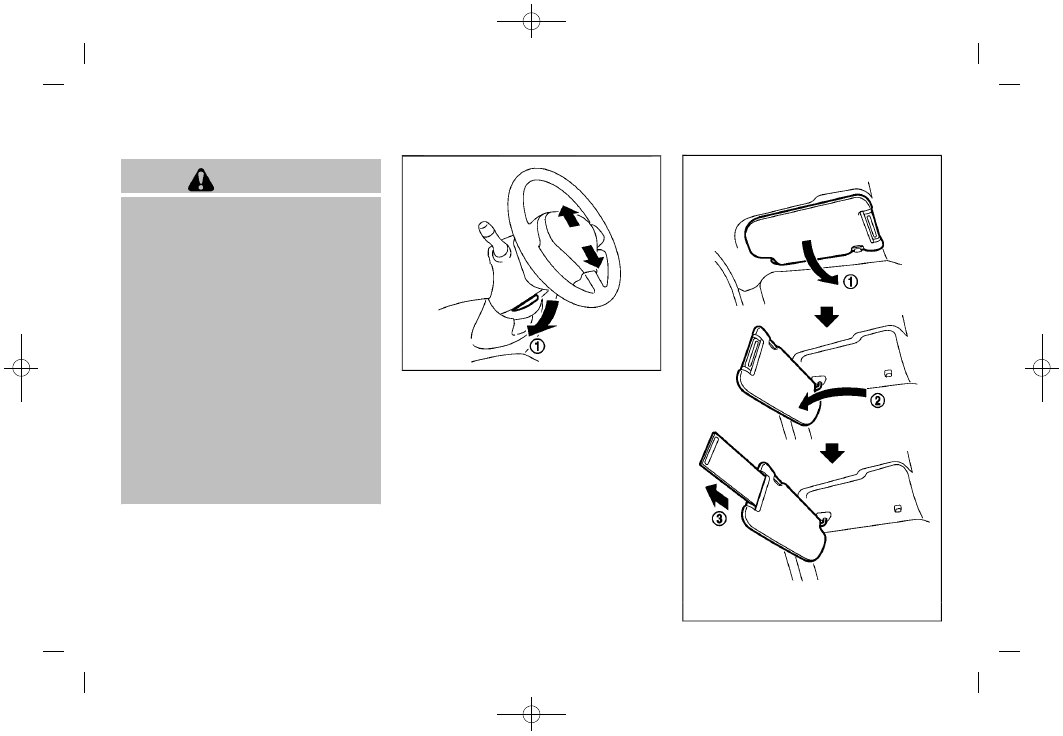

SPA2583

MANUAL OPERATION

Tilt operation

Push the lock lever

down and adjust the

steering wheel up or down to the desired
position.

Pull the lock lever up securely to lock the
steering wheel in place.

SIC3451

TILT STEERING

SUN VISORS

Condition:

(161,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

CAUTION

Do not store the main sun visor
before storing the extension sun
visor.

Do not pull the extension sun visor
forcedly downwards.

1. To block out glare from the front, swing

down the main sun visor

2. To block glare from the side, remove the

main sun visor from the center mount and
swing it to the side

3. Draw out the extension sun visor

(if so

equipped) from the main sun visor to block
further glare.

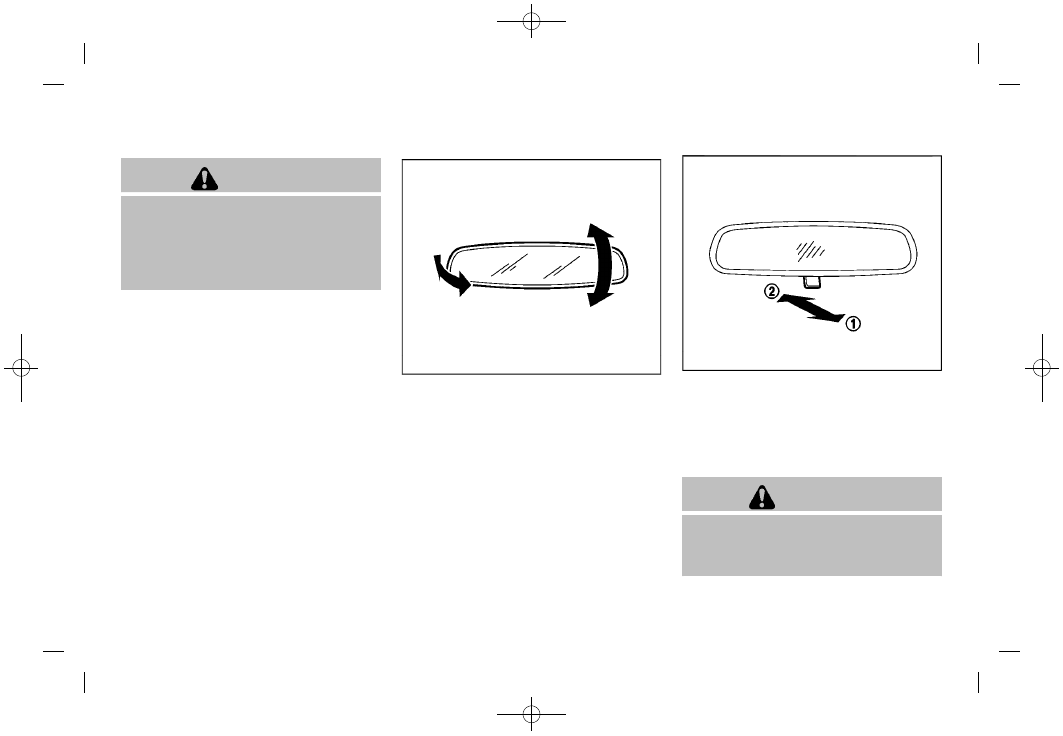

SPA2447

INSIDE MIRROR

Adjust the height and the angle of the inside
mirror to the desired position.

SPA2143

Manual anti-glare type

The night position

will reduce glare from the

headlights of vehicles behind you at night.

Use the day position

when driving in daylight

hours.

WARNING

Use the night position only when ne-
cessary, because it reduces rear view
clarity.

Pre-driving checks and adjustments

3-37

MIRRORS

Condition:

Content .. 8 9 10 11 ..
