Nissan 370Z Roadster (2017 year). Instruction

(82,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-14

Instruments and controls

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after the 1
minute. Have your tires replaced
and/or TPMS system reset as soon
as possible. It is recommended you
visit a NISSAN dealer for these
services.

Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.

CAUTION

The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.

If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h), the TPMS may not operate
correctly.

Be sure to install the specified size
of tires to the four wheels correctly.

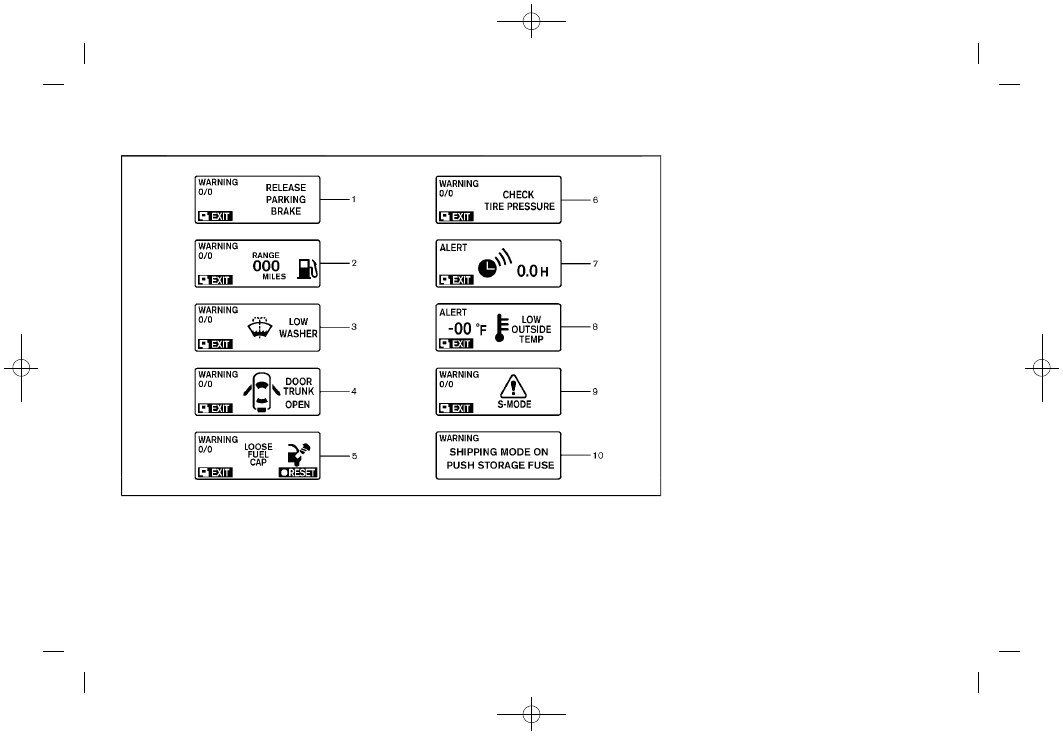

Master warning light

When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle informa-
tion display:

No key warning

Low fuel warning

Low washer fluid warning

Parking brake release warning

Door/rear hatch/trunk open warning

Loose fuel cap warning

Check tire pressure warning

Extended storage fuse warning

See “Vehicle information display” (P.2-18).

Seat belt warning light and chime

The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver’s seat belt
is securely fastened.

The seat belt warning light for the front

passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.

See “Seat belts” (P.1-10) for precautions on
seat belt usage.

Supplemental air bag warning light

After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The air bag warning light will turn
off after about 7 seconds if the front air bag, side
air bag and curtain air bag systems and/or
pretensioner system are operational.

If any of the following conditions occur, the front
air bag, side air bag and curtain air bag systems
and/or pretensioner system need servicing.

The supplemental air bag warning light
remains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.

It is recommended you visit a NISSAN dealer for
these services.

Unless checked and repaired, the Supplemental

Condition:

(83,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Restraint Systems and/or the pretensioner seat
belt may not function properly.

For additional information, see “Supplemental
restraint system” (P.1-30).

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
systems and/or pretensioner system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked. It is recom-
mended you visit a NISSAN dealer for
this service.

Vehicle Dynamic Control (VDC)

warning light

When the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) warning
light illuminates and then turns off.

The light will blink when the VDC system or the
traction control system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.

When the VDC warning light illuminates when

the VDC system is turned on, this light alerts the
driver to the fact that the VDC system’s fail-safe
mode is operating, for example the VDC system
may not be functioning properly. Have the
system checked. It is recommended you visit a
NISSAN dealer for this service. If a malfunction
occurs in the system, the VDC system function
will be canceled but the vehicle is still driveable.
For additional information, see “Vehicle Dynamic
Control (VDC) system” (P.5-29) of this manual.

INDICATOR LIGHTS

Cruise indicator light

Cruise main switch indicator:

This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
“Cruise control” (P.5-21).)

Cruise malfunction:

If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked. It is recommended you visit
a NISSAN dealer for this service. (See “Cruise
control” (P.5-21).)

Exterior light indicator

This indicator illuminates when the headlight
switch is turned to the AUTO,

position and the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.

Front passenger air bag status light

The front passenger air bag status light (

located on the center of the instrument panel,
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.

For front passenger air bag status light opera-
tion, see “NISSAN Advanced Air Bag System
(front seats)” (P.1-35) of this manual.

High beam indicator light

This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.

Instruments and controls

2-15

Condition:

(84,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-16

Instruments and controls

Malfunction Indicator Light (MIL)

If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.

The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light should

turn off if no other potential emission control
system malfunction exists.

If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “Readiness for Inspec-
tion/Maintenance (I/M) test” (P.10-24).)

Operation:

The malfunction indicator light will come on in
one of two ways:

Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap if
the LOOSE FUEL CAP warning appears in
the vehicle information display. If the fuel-

filler cap is loose or missing, tighten or install
the cap and continue to drive the vehicle.
The

light should turn off after a few

driving trips. If the

light does not turn off

after a few driving trips, have the vehicle
inspected. It is recommended you visit a
NISSAN dealer for this service. You do not
need to have your vehicle towed to the
dealer.

Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.

To reduce or avoid emission control system
damage:

1) Do not drive at speeds above 45 MPH

(72 km/h).

2) Avoid hard acceleration or deceleration.

3) Avoid steep uphill grades.

4) If possible, reduce the amount of cargo

being hauled or towed.

The malfunction indicator light may stop
blinking and remain on.

Have the vehicle inspected. It is recom-
mended you visit a NISSAN dealer for this
service. You do not need to have your
vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Rear fog light indicator light (if so

equipped)

The rear fog light indicator light illuminates when
the rear fog light is on. (See “Fog light switch”
(P.2-37).)

Security indicator light

The light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.

If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
“Security systems” (P.2-28).

Condition:

(85,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Soft top indicator light (Roadster

models)

This light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.

The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:

When the vehicle is driven.

When the shift lever is in the R (Reverse)
position.

Be sure to fully open or close the soft top when
driving the vehicle.

The soft top can be moved with the soft top
operating switch only under all of the following
conditions:

When the vehicle is stopped.

When the ignition switch is ON.

When the trunk is closed.

When the shift lever is in a position other
than the R (Reverse) position.

CAUTION

Operate the soft top with the engine
running to prevent a discharged battery.

When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.

When the shift lever is in the R (Reverse)
position.

When the vehicle moves at a speed of 3
MPH (5 km/h) or more.

When the battery voltage is extremely low.

When the temperature of the soft top
system becomes extremely high.

Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.

If the soft top indicator light illuminates with the
ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked as soon as possible.
It is recommended you visit a NISSAN dealer for
this service.

For more details about the electric soft top
operation, see “Soft top (Roadster models)”
(P.3-21).

SynchroRev Match mode (S-

MODE) indicator (if so equipped)

This indicator will illuminate when the
SynchroRev Match mode (S-MODE) is acti-
vated. (See “SynchroRev Match mode (S-
MODE) (if so equipped for Manual Transmission
models)” (P.5-17).)

Transmission position indicator (if

so equipped)

When the ignition switch is pushed to the ON
position, the indicator shows the transmission
position.

For AT models:

In the manual shift mode, when the transmission
does not shift to the selected gear due to the
transmission protection mode, the AT position
indicator light will blink and a buzzer will sound.

(See “Driving the vehicle” (P.5-12).)

Instruments and controls

2-17

Condition:

(86,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-18

Instruments and controls

Turn signal/hazard indicator lights

The light flashes when the turn signal switch
lever or hazard switch is turned on.

Vehicle Dynamic Control (VDC) off

indicator light

When the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.

The light comes on when the VDC off switch is
pushed to OFF. This indicates that the VDC
system and traction control system are not
operating.

AUDIBLE REMINDERS

Key reminder chime

A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.

Light reminder chime

A chime will sound when the driver side door is
opened with the light switch in the

position and the ignition switch in the ACC, OFF
or LOCK position.

Turn the light switch off when you leave the
vehicle.

Parking brake reminder chime

A chime will sound if the vehicle speed is above
4 MPH (7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.

Brake pad wear warning

The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.

SIC3977

The vehicle information display

displays the

warnings and information.

VEHICLE INFORMATION DISPLAY

Condition:

(87,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

JVI0351X

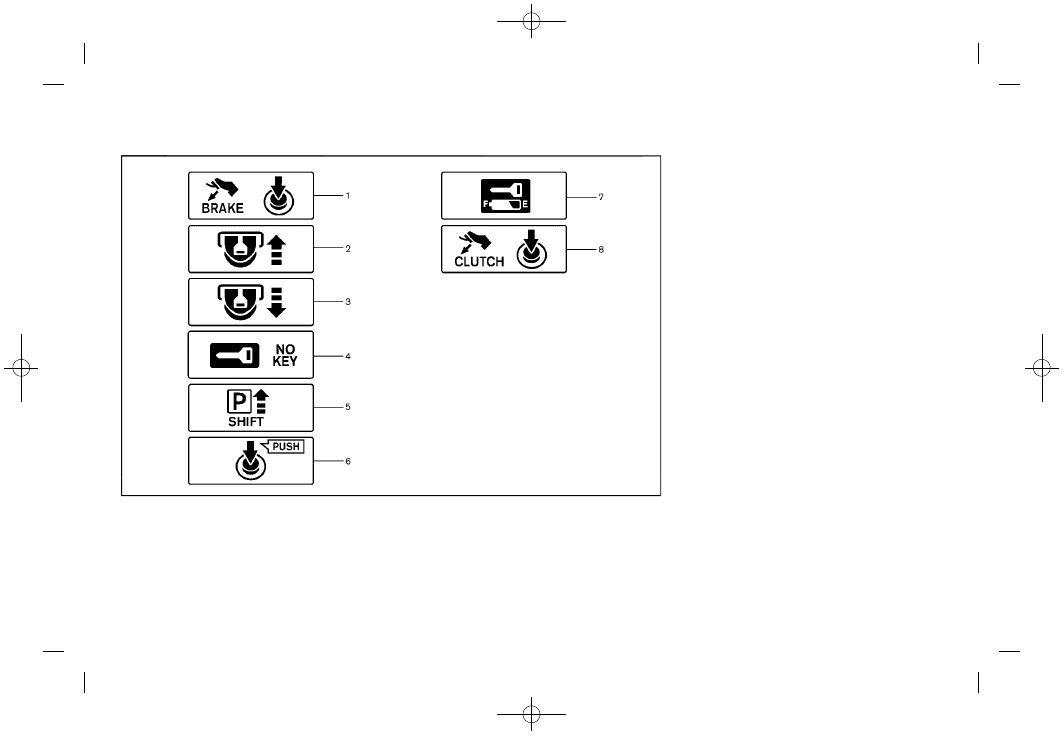

OPERATIONAL INDICATORS

1. Engine start operation indicator
(Automatic transmission models)

This indicator appears when the shift lever is in
the P (Park) position.

This indicator means that the engine will start by

pushing the ignition switch with the brake pedal
depressed.

2. Key insertion indicator

This indicator appears when the key needs to be
inserted into the key port. (For example, the
Intelligent Key battery is discharged.)

If this indicator appears, insert the key into the
key port in the correct direction. (See “Push-
button ignition switch” (P.5-8).)

3. Intelligent Key removal indicator

This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the key port. A key reminder chime also sounds.

If this indicator appears, remove the Intelligent
Key from the key port and take it with you when
leaving the vehicle.

4. NO KEY warning

This warning appears in either of the following
conditions.

No Intelligent Key inside the vehicle:

The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.

Unregistered Intelligent Key:

The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.

Instruments and controls

2-19

Condition:

(88,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-20

Instruments and controls

See “Intelligent Key system” (P.3-6) for more
details.

5. SHIFT “P” warning (Automatic Trans-
mission models)

This warning appears when the ignition switch is
pushed to stop the engine with the shift lever in
any position except the P (Park) position.

If this warning appears, move the shift lever to
the P (Park) position or push the ignition switch
to the ON position.

An inside warning chime will also sound. (See
“Intelligent Key system” (P.3-6).)

6. “PUSH” warning (Automatic Trans-
mission models)

This warning appears when the shift lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.

To push the ignition switch to the OFF position,
perform the following procedure:

SHIFT “P” warning ? (Move the shift lever to
“P”) ? PUSH warning ? (Push the ignition
switch ? ignition switch position is turned to
ON) ? PUSH warning ? (Push the ignition
switch ? ignition switch position is turned to
OFF)

7. Intelligent Key battery discharge in-
dicator

This indicator appears when the Intelligent Key
battery is running out of power.

If this indicator appears, replace the battery with
a new one. (See “Intelligent Key battery replace-
ment” (P.8-20).)

8. Engine start operation indicator
(Manual Transmission models)

This indicator means that the engine will start by
pushing the ignition switch with the clutch pedal
depressed.

Condition:

(89,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

JVI0582X

WARNINGS AND ALERTS

1. Parking brake release warning

This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.

2. Low fuel warning

This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.

There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches

the empty (E) position.

3. Low washer fluid warning

This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” (P.8-10).)

4. Door/rear hatch/trunk open warning
(ignition switch is in the ON position)

This warning appears if any of the doors and/or
the rear hatch/trunk are open or not closed
securely. The vehicle icon indicates which door
is open on the display.

5. Loose fuel cap warning

This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” (P.3-34).)

6. Check tire pressure warning

This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the pressure to the
recommended COLD tire pressure shown on
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Tire Pressure Monitoring System (TPMS)” (P.5-

Instruments and controls

2-21

Condition:

(90,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-22

Instruments and controls

3) and “Tire Pressure Monitoring System
(TPMS)” (P.6-3).

7. “TIMER” indicator

This indicator appears when the set “TIMER”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” (P.2-23).)

8. Low outside temperature warning

This warning appears if the outside temperature
is below 378F (38C). The warning can be set not
to be displayed. (See “Trip computer” (P.2-23).)

9. SynchroRev Match mode (S-MODE)
warning

This warning appears if a system malfunction
occurs. When the warning appears, the S-
MODE function will not operate, but the manual
transmission will operate normally and driving
can be continued. Have the system checked. It
is recommended you visit a NISSAN dealer for
this service.

10. Extended storage fuse warning

This warning may appear if the extended storage
fuse switch is not pushed in (switched on).
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” (P.8-19).

SIC4237

MAINTENANCE INDICATORS

1. Engine oil replacement indicator

This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“Trip computer” (P.2-23).)

2. Oil filter replacement indicator

This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See “Trip
computer” (P.2-23).)

3. Tire replacement indicator

This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “Trip compu-
ter” (P.2-23).)

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” (P.8-33).
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tire

Condition:

(91,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.

4. “OTHER” indicator

This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “Trip computer”
(P.2-23).)

Models with navigation system:

More maintenance reminders are also available
on the center display. (See “How to use INFO
button” (P.4-8).)

SIC3978

TRIP COMPUTER

Switches for the trip computer are located on
the left side of the combination meter panel. To
operate the trip computer, push the switches as
shown above.

ENTER switch

NEXT switch

When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the

switch

Each time the

switch

is pushed, the

display will change as follows:

Current fuel consumption ? Average fuel
consumption and speed ? Elapsed time and

trip odometer ? Distance to empty ? Outside
air temperature ? Clock ? Setting ? Warning
check ? Current fuel consumption

Instruments and controls

2-23

Condition:

(92,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-24

Instruments and controls

SIC3673

Current fuel consumption (MPG or l
(liter)/100 km)

The current fuel consumption mode shows the
current fuel consumption.

SIC3674

Average fuel consumption (MPG or l
(liter)/100 km) and speed (MPH or km/h)

Fuel consumption:

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the

switch

for longer than 1 second. (The average speed is
also reset at the same time.)

The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.

Speed:

The average speed mode shows the average
vehicle speed since the last reset. Resetting is

done by pushing the

switch

for longer

than 1 second. (The average fuel consumption is
also reset at the same time.)

The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.

Condition:

(93,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SIC4226

Elapsed time and trip odometer (MILES
or km)

Elapsed time:

The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the

switch

for longer than 1

second. (The trip odometer is also reset at the
same time.)

Trip odometer:

The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch

for longer than 1 second. (The

elapsed time is also reset at the same time.)

SIC3676

Distance to empty (MILES or km)

The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.

When the fuel level drops even lower, the dte
display will change to “——”.

If the amount of fuel added is small, the
display just before the ignition switch is

pushed to the OFF position may continue to
be displayed.

When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.

Instruments and controls

2-25

Condition:

(94,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-26

Instruments and controls

SIC4037

Outside air temperature (8F or 8C)

The outside air temperature is displayed in 8F or
8C in the range of

−22 to 1318F (−30 to 558C).

The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 378F (38C), the warning
“ICY” is displayed on the screen.

The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.

JVI1447X

Clock

Clock can be adjusted in this mode.

Adjusting the time:

To adjust the time, perform the following
procedure.

1. Push the

switch

for a short time.

The hours display will start to flash.

Keep pushing the

switch

to adjust

the hours.

2. Push the

switch

for a short time.

The minutes display will start to flash.

Keep pushing the

switch

to adjust

the minutes.

3. Push the

switch

for a short time to

complete the clock adjustment.

Resetting the time:

Push the

switch

for more than 1

second to reset the time.

Condition:

(95,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

JVI1452X

Setting

Setting cannot be made while driving. A
message “Setting can only be operated
when stopped” is also displayed on the
vehicle information display.

The

switch

and

switch

are

used in the setting mode to select and decide a
menu.

SKIP:

Push the

switch

to move to the warning

check mode.

Push the

switch

to select other menus.

ALERT:

Alert menu can be set to notify the following
items.

UPSHIFT

Select this submenu to set the engine speed
(RPM) of the upshift indicator. See “Upshift
indicator” (P.5-19) (MT models) or “Manual
shift mode” (P.5-14) (AT models).

TIMER

Select this submenu to specify when the
“TIMER” indicator activates.

ICY

Select this submenu to display the low
outside temperature warning.

To return to the top page of the setting mode,
select “BACK”.

MAINTENANCE:

The maintenance intervals of the following items
can be set or reset for the reminders.

OIL

Select this submenu to set or reset the
distance for changing the engine oil.

FILTER

Select this submenu to set or reset the
distance for replacing the oil filter.

TIRE

Select this submenu to set or reset the

distance for replacing tires.

OTHER

Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.

To return to the top page of the setting mode,
select “BACK”.

OPTIONS:

The 3 option menus can be set to your
preference.

LANGUAGE

Select this submenu to choose English or
French for display.

UNIT

Select this submenu to choose the unit from
US or METRIC.

EFFECTS

Select this menu to set the dial effects
described below to on or off.

— The indicator needles sweep in the

meters when the engine is started.

To return to the top page of the setting mode,
select “BACK”.

Instruments and controls

2-27

Condition:

(96,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-28

Instruments and controls

SIC3993

Warning check

To see if there are any of the following warnings
and corresponding details, select this menu.

No key warning

Low fuel warning

Low washer fluid warning

Parking brake release warning

Door/rear hatch/trunk open warning

Loose fuel cap warning

Check tire pressure warning

SKIP:

Push the

switch

to move to the warning

check mode.

Push the

switch

to select other menus.

DETAIL:

This item is available only when a warning is
displayed.

Select this menu to see the details of warnings.

SIC2132

Your vehicle has two types of security systems,
as follows:

Vehicle security system

NISSAN Vehicle Immobilizer System

The security condition will be shown by the
security indicator light.

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood or rear hatch/trunk when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.

The system helps deter vehicle theft but cannot

SECURITY SYSTEMS

Condition:

(97,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.

Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.

SIC2045

How to arm the vehicle security system

1. Close all windows.

The system can be armed even if the
windows are open.

2. Push the ignition switch to the OFF position.

3. Remove the Intelligent Key from the vehicle.

4. Close all doors, hood and rear hatch/trunk.

Lock all doors and trunk (Roadster models).
The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.

5. Confirm that the security indicator light

comes on. The security indicator light stays
on for about 30 seconds. The vehicle

security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.

Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and rear hatch locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.

Vehicle security system activation

The vehicle security system will give the follow-
ing alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.

The alarm is activated by:

Unlocking the door or opening the rear
hatch without using the button on the

Instruments and controls

2-29

Condition:

Nissan 370Z Roadster (2017 year). Instruction - part 6
