Safety — Seats, seat belts and supplemental restraint system

visit a NISSAN dealer for this ser-
vice. The air bag module and pre-
t e n s i o n e r

s y s t e m

c a n n o t b e

repaired.

The front air bag, side air bag and
curtain air bag systems and the
pretensioner system should be in-
spected if there is any damage to
the front end or side portion of the
vehicle. It is recommended you visit
a NISSAN dealer for this service.

If you need to dispose of the
supplemental air bag or preten-
sioner systems or scrap the vehicle,
it is recommended you visit a
NISSAN dealer. Correct supplemen-
tal air bag and seat belt preten-
sioner system disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.

Condition:

(67,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

MEMO

Safety — Seats, seat belts and supplemental restraint system

1-45

Condition:

(68,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

1-46

Safety — Seats, seat belts and supplemental restraint system

MEMO

Condition:

(69,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2 Instruments and controls

Cockpit ........................................................................................ 2-3
Instrument panel ........................................................................ 2-4
Meters and gauges ................................................................... 2-5

Speedometer and odometer ............................................ 2-6
Tachometer ........................................................................... 2-7
Engine coolant temperature gauge ................................ 2-7
Fuel gauge ............................................................................ 2-8
Triple meter ........................................................................... 2-8

Warning lights, indicator lights and
audible reminders ................................................................... 2-10

Checking lights ................................................................. 2-11
Warning lights ................................................................... 2-11
Indicator lights ................................................................... 2-15
Audible reminders ............................................................ 2-18

Vehicle information display .................................................. 2-18

Operational indicators ..................................................... 2-19
Warnings and alerts ........................................................ 2-21
Maintenance indicators ................................................... 2-22
Trip computer .................................................................... 2-23

Security systems .................................................................... 2-28

Vehicle Security System ................................................. 2-28
NISSAN Vehicle Immobilizer System .......................... 2-30

Wiper and washer switch .................................................... 2-31
Rear window defroster switch ............................................ 2-32
Headlight and turn signal switch ....................................... 2-33

Xenon headlights ............................................................ 2-33
Headlight switch ............................................................ 2-34
Turn signal switch .......................................................... 2-36
Fog light switch (if so equipped) .............................. 2-37

Windows ................................................................................. 2-45

Power windows .............................................................. 2-45

Interior lights ........................................................................... 2-49

Map lights ........................................................................ 2-49
Interior light control switch .......................................... 2-49

Vanity mirror lights ................................................................. 2-50
Cargo area courtesy light (Roadster models) ............... 2-50
Cargo light (Coupe models) .............................................. 2-51

Condition:

(70,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Trunk light (Roadster models) ............................................ 2-51
HomeLink

Universal Transceiver (if so equipped) ....... 2-51

Programming HomeLink

............................................... 2-52

Programming HomeLink

for Canadian customers

and gate openers ............................................................. 2-53
Operating the HomeLink

Universal Transceiver ..... 2-54

Programming troubleshooting ..................................... 2-54
Clearing the programmed information ...................... 2-54
Reprogramming a single HomeLink

button .......... 2-54

If your vehicle is stolen ................................................. 2-55

Condition:

(71,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

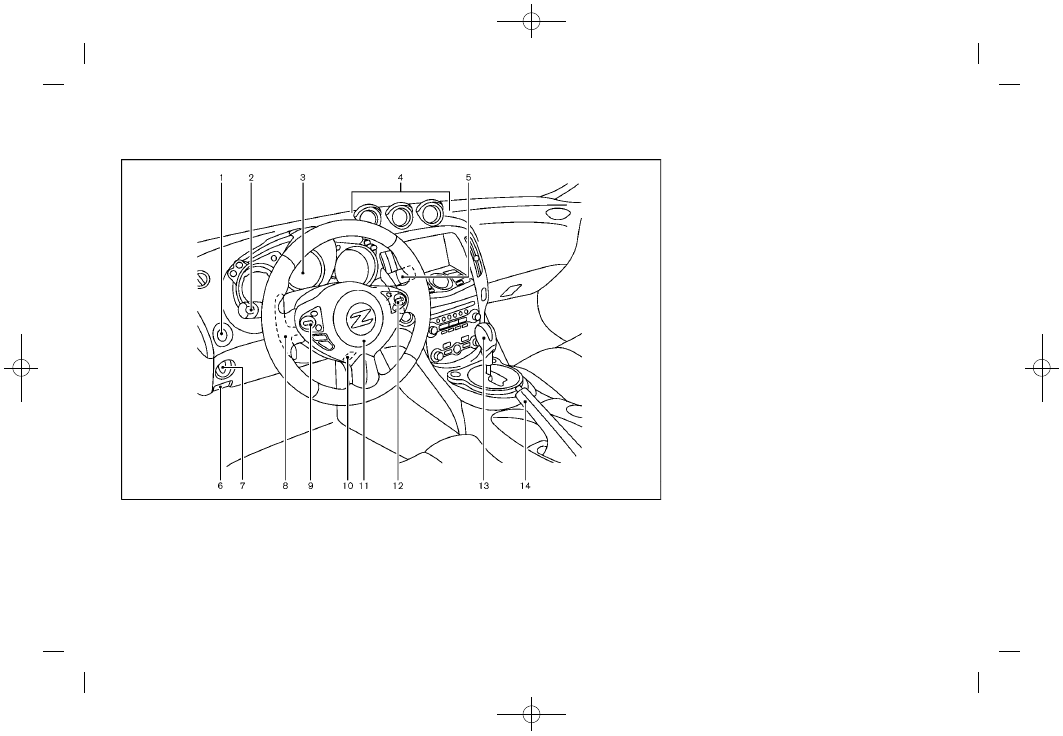

SSI0652

Vehicle Dynamic Control (VDC) OFF switch
(P.5-29)

Headlight, fog light and turn signal switch
(P.2-33)

Meters and Gauges (combimeter) (P.2-5)

Triple meter (P.2-8)

Wiper and washer switch (P.2-31)

Hood release handle (P.3-16)

Intelligent Key port (P.5-10)

Paddle shifter (if so equipped) (P.5-14)

Steering-wheel-mounted controls (left side)

— Menu control switch or tuning switch
(P.4-73)

— BACK switch (P.4-73)

— Phone switch (if so equipped) (P.4-76)

— Volume control switches (P.4-73)

— Source select switch (P.4-73)

10.

Tilt steering lever (P.3-36)

11.

Steering wheel

— Horn (P.2-37)

— Driver supplemental air bag (P.1-30)

12.

Steering-wheel-mounted controls (right side)

— Cruise control switches (P.5-21)

13.

Shift lever

— Automatic Transmission (AT) (P.5-12)

— Manual Transmission (MT) (P.5-16)

14.

Parking brake (P.5-21)

Instruments and controls

2-3

COCKPIT

Condition:

(72,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-4

Instruments and controls

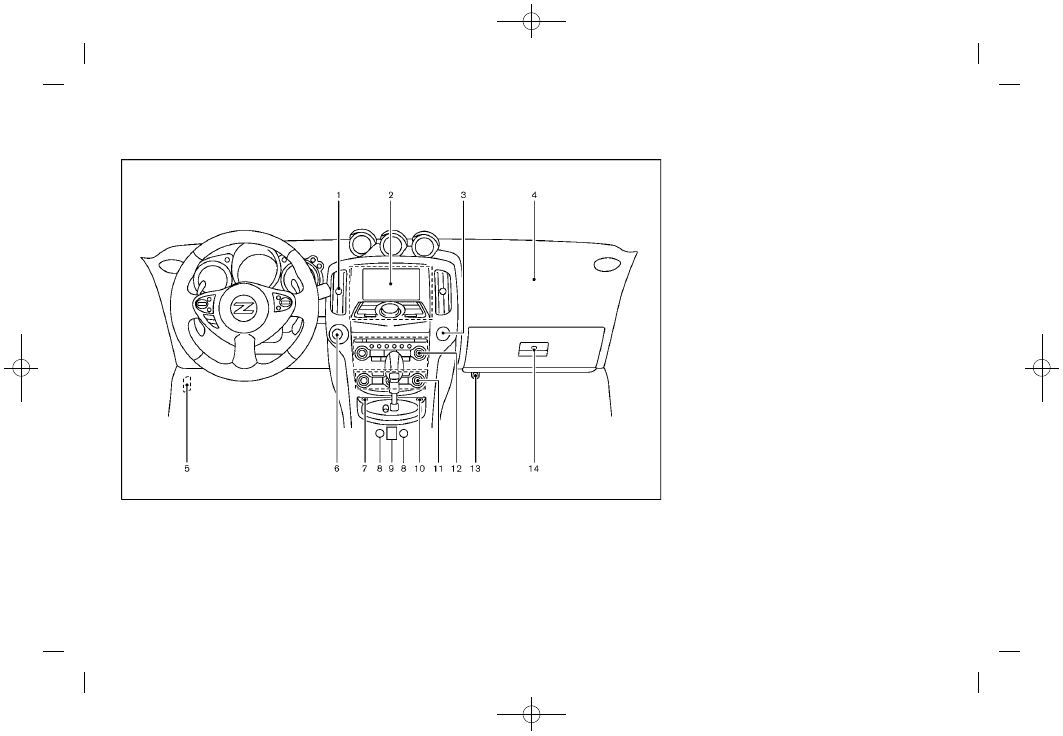

SSI0653

Ventilator (P.4-24)

Center display and multi-function control panel
(if so equipped) (P.4-4) or Instrument pocket (if
so equipped) (P.2-42)

— Navigation system* (if so equipped)

— Vehicle information and setting buttons (if so
equipped) (P.4-8)

— Bluetooth

Hands-Free Phone System (if so

equipped) (P.4-76, P.4-86)

Front passenger air bag status light (P.1-35)

Front passenger supplemental air bag (P.1-30)

Fuse box cover (P.8-18)

Push-button ignition switch (P.5-8)

Hazard warning flasher switch (P.6-2)

Seat heater switch (if so equipped) (P.2-38) or
Climate controlled seat switch (if so equipped)
(P.2-39)

Soft top operating switch (for Roadster models)
(P.3-21)

10.

SynchroRev Match mode (S-MODE) switch (if
so equipped) (P.5-17)

11.

Heater and air conditioner (P.4-25)

— Rear window defroster switch (P.2-32)

12.

Audio system (P.4-30)

13.

Power outlet (P.2-41)

14.

Glove box (P.2-43)

*: Refer to the separate Navigation System
Owner’s Manual.

INSTRUMENT PANEL

Condition:

(73,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

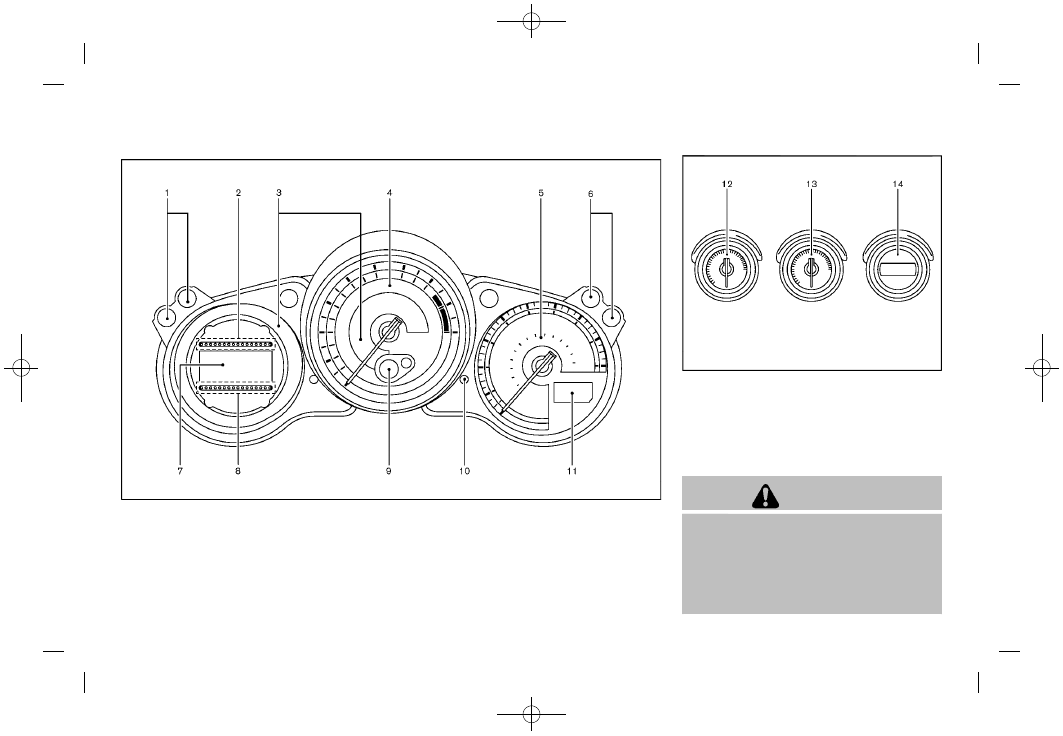

SSI0509

ENTER/NEXT switch (P.2-23)

Fuel gauge (P.2-8)

Warning/Indicator lights (P.2-10)

Tachometer (P.2-7)

Speedometer (P.2-6)

Instrument brightness control switch (P.2-36)

Vehicle information display (P.2-18)

Engine coolant temperature gauge (P.2-7)

Transmission position indicator (if so equipped)
(P.2-17)

— SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)

SSI0521

10.

Odometer/Twin trip odometer control knob
(P.2-6)

11.

Odometer/Twin trip odometer (P.2-6)

12.

Engine oil temperature gauge (P.2-8)

13.

Voltmeter (P.2-9)

14.

Clock (P.2-9, P.2-26)

CAUTION

For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-

Instruments and controls

2-5

METERS AND GAUGES

Condition:

(74,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-6

Instruments and controls

tion to the lens.

Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.

SIC3973

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed when the ignition switch is in the
ON position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the TRIP A/B RESET knob

changes the display as follows:

TRIP A ? TRIP B ? TRIP A

Resetting the trip odometer:

Pushing the TRIP A/B RESET knob

for more

than 1 second resets the trip odometer to zero.

Condition:

(75,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

SIC3974

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC3975

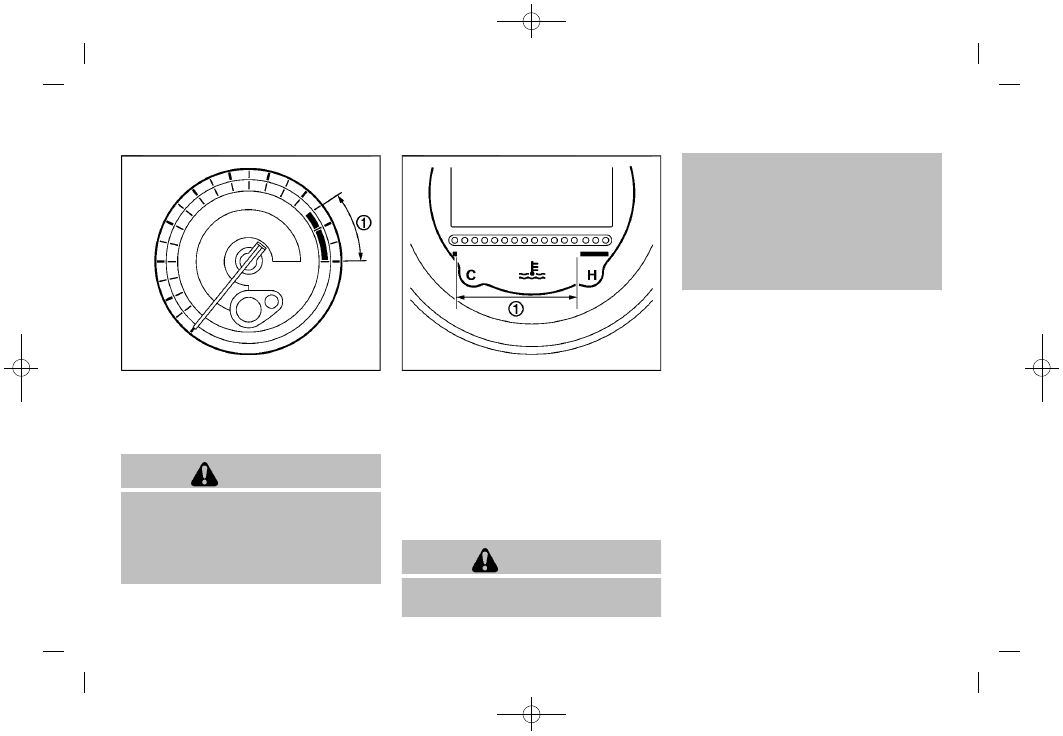

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge indicates the engine coolant tem-
perature.

The engine coolant temperature is within the
normal range when the gauge points within the
zone

shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the

normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See “If your vehicle overheats”
(P.6-17) for immediate action required.

Instruments and controls

2-7

Condition:

(76,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-8

Instruments and controls

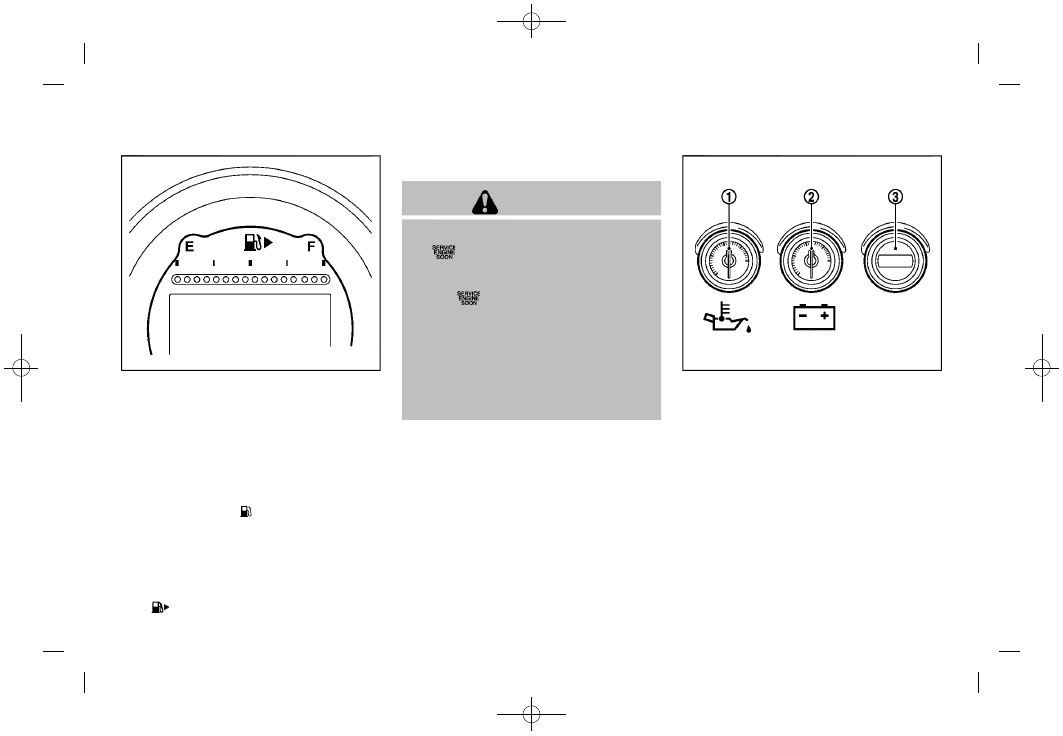

SIC3976

FUEL GAUGE

The gauge indicates the approximate fuel level
in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Refill the fuel tank before the gauge
registers “E” (Empty).

The low fuel warning

appears on the vehicle

information display when the amount of fuel in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reaches
“E”. There will be a small reserve of fuel in the
tank when the fuel gauge reaches “E”.

The

indicates that the fuel-filler door is

located on the passenger’s side of the vehicle.

CAUTION

If the vehicle runs out of fuel, the

malfunction indicator light (MIL)

may come on. Refuel as soon as
possible. After a few driving trips,
the

light should turn off. If the

light remains on after a few driving
trips, have the vehicle inspected. It
is recommended you visit a NISSAN
dealer for this service.

For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-16).

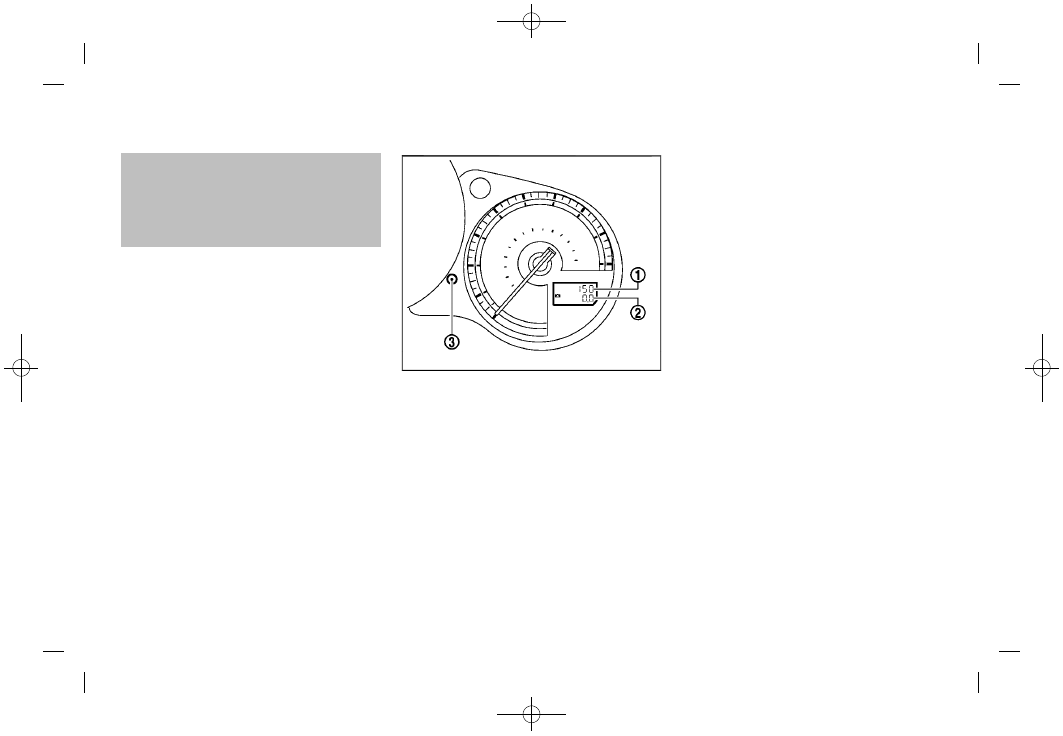

SIC4003

Triple meter

Engine oil temperature gauge

Voltmeter

Clock

TRIPLE METER

Engine oil temperature gauge

Oil temperature, as well as the rate of
temperature change, will vary based on
ambient conditions and driving patterns.
Under normal operating conditions, oil
temperature will remain below 2808F
(1408C).

If the engine oil temperature gauge

indicates more than 2808F (1408C) while
driving, reduce the engine speed (RPM).

Condition:

(77,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

When the engine oil temperature is high,
the engine protection mode, which helps
reduce the chance of engine damage,
could activate and automatically decrease
engine power.

Voltmeter

When the ignition switch is placed in the ON
position, the volt meter

indicates the battery

voltage. When the engine is running, it indicates
the generator voltage.

While cranking the engine, the volts drop below
the normal range. If the needle is not in the
normal range (11 to 15 volts) while the engine is
running, it may indicate that the charging system
is not functioning properly. Have the system
checked. It is recommended you visit a NISSAN
dealer for this service.

Clock

If necessary, adjust the clock

on the vehicle

information display. (See “Clock” (P.2-26).)

If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.

Instruments and controls

2-9

Condition:

(78,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-10

Instruments and controls

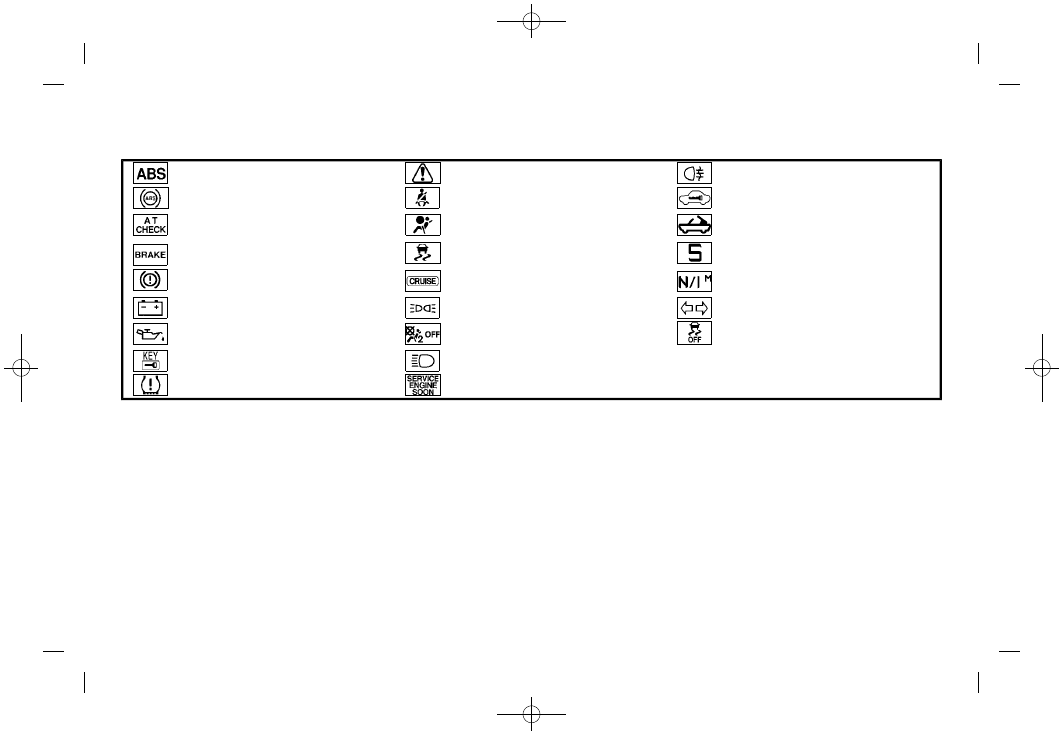

Anti-lock Braking System (ABS) warning
light

Master warning light

Rear fog light indicator light (if so equipped)

Seat belt warning light and chime

Security indicator light

Automatic Transmission check warning light
(if so equipped)

Supplemental air bag warning light

Soft top indicator light (Roadster models)

Brake warning light

Vehicle Dynamic Control (VDC) warning
light

SynchroRev Match mode (S-MODE) indi-
cator (if so equipped)

Cruise indicator light

Transmission position indicator (if so
equipped)

Charge warning light

Exterior light indicator

Turn signal/hazard indicator lights

Engine oil pressure warning light

Front passenger air bag status light

Vehicle Dynamic Control (VDC) off indicator
light

Intelligent Key system warning light

High beam indicator light

Low tire pressure warning light

Malfunction Indicator Light (MIL)

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

Condition:

(79,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

CHECKING LIGHTS

With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:

The following lights (if so equipped) come on
briefly and then go off:

If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a NISSAN dealer.

Some indicators and warnings are also dis-
played on the vehicle information display. (See
“Vehicle information display” (P.2-18).)

WARNING LIGHTS

Anti-lock Braking System

(ABS) warning light

When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.

If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit a NISSAN dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “Brake system” (P.5-27).)

Automatic transmission check

warning light (if so equipped)

When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If the
light comes on at any other time, it may indicate
the transmission is not functioning properly. It is
recommended you visit a NISSAN dealer to
check and repair the transmission.

Brake warning light

This light functions for both the parking brake
and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.

Low brake fluid warning light:

When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:

1. Check the brake fluid level. Add brake fluid

as necessary. (See “Brake and clutch fluid”
(P.8-9).)

2. If the brake fluid level is correct, have the

warning system checked. It is recommended
you have this service performed by a
NISSAN dealer.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the

Instruments and controls

2-11

Condition:

(80,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

2-12

Instruments and controls

brake system checked, and if necessary re-
paired. It is recommended you visit a NISSAN
dealer for this service. (See “Anti-lock Braking
System (ABS) warning light” (P.2-11).)

WARNING

Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It
is recommended you visit a NISSAN
dealer for this service.

Charge warning light

If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, have
your vehicle serviced immediately. It is recom-
mended you visit a NISSAN dealer for this
service.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” (P.8-6).)

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

Intelligent Key system warning light

After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.

This light warns of a malfunction with the
Intelligent Key system.

If the light comes on while the engine is
stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, it is recommended you visit a
NISSAN dealer for repair as soon as possible.

Condition:

(81,1)

[ Edit: 2016/ 2/ 22

Model: 2017MY NISSAN 370Z(Z34) OM17E00Z34U0 ]

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.

A CHECK TIRE PRESSURE warning also
appears in the vehicle information display.

When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

The CHECK TIRE PRESSURE warning appears

each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.

For additional information, see “Vehicle informa-
tion display” (P.2-18), “Tire Pressure Monitoring
System (TPMS)” (P.5-3) and “Tire Pressure
Monitoring System (TPMS)” (P.6-3).

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked. It is recom-
mended you visit a NISSAN dealer for this
service.

The CHECK TIRE PRESSURE warning does
not appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” (P.5-3).

WARNING

If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked as soon as
possible. It is recommended you
visit a NISSAN dealer for this ser-

vice.

If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat or the TPMS may
be malfunctioning. If you have a flat
tire, replace it with a spare tire (if so
equipped) or repair it with the tire
puncture repair kit (if so equipped)
as soon as possible. If no tire is flat
and all tires are properly inflated, it
is recommended you consult a
NISSAN dealer.

Instruments and controls

2-13

Condition:

Content .. 3 4 5 6 ..
