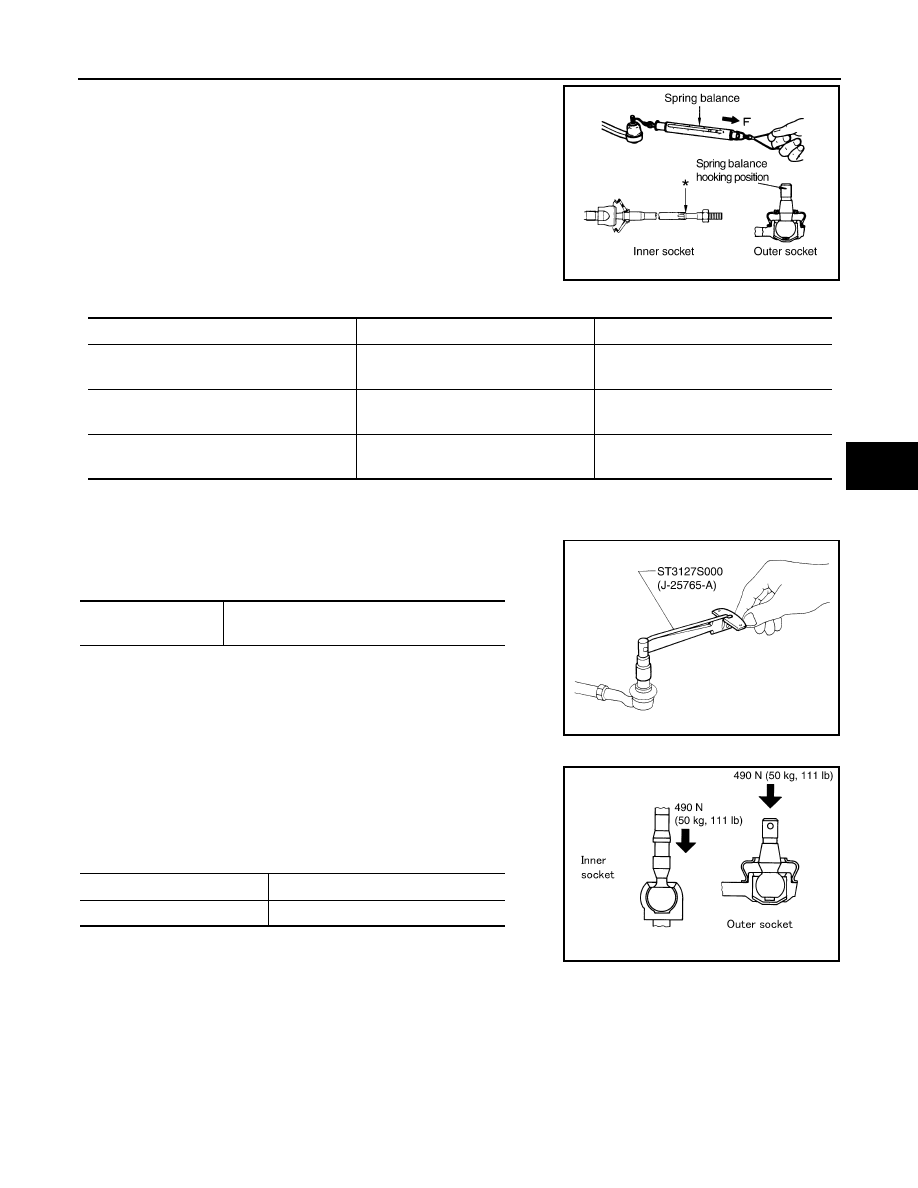

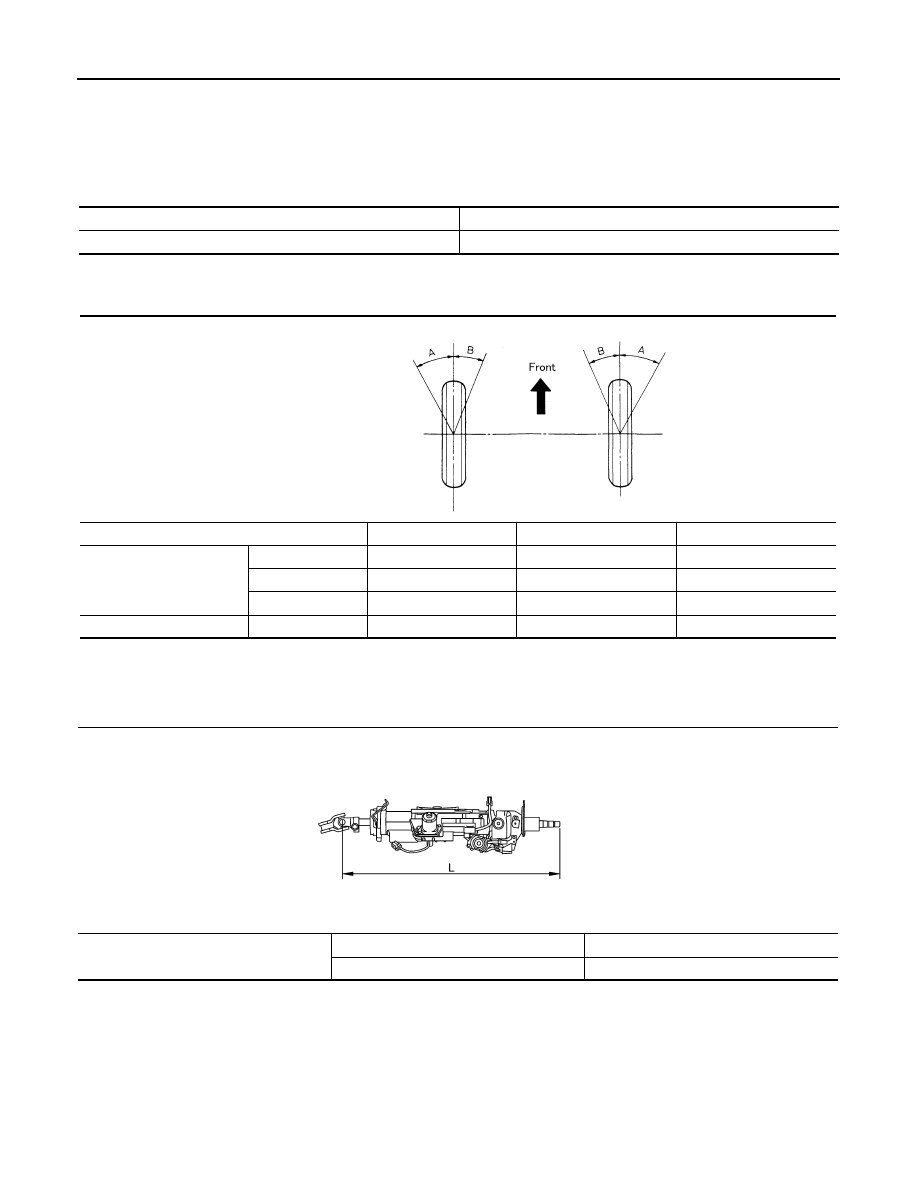

STEERING GEAR AND LINKAGE ST-29 < DISASSEMBLY AND ASSEMBLY > C D E F H I J K L M A B ST N O P • Hook a tool at the point shown in the figure and pull the spring balance. Make sure that the spring balance reads the speci- fied value when ball stud and inner socket start to move. Replace outer socket and steering gear assembly if they are outside the standard. 2. Ball joint rotating torque • Make sure that the reading is within the following specified range using Tool. Replace outer socket if the reading is outside the specified value. 3. Ball joint axial end play • Apply an axial load of 490 N (50 kg-f, 111 lb-f) to ball stud using a dial gauge. Measure amount of stud movement, and then make sure that the value is within the following specified range. Replace outer socket and inner socket if the measured value is outside the standard. Assembly INFOID:0000000004204035 1. Apply Three Bound TB1111 or equivalent to inner socket and turn pinion fully to left with inner socket installed to gear housing assembly. Tool number : — (J-44372) SGIA0896E Items Outer socket Inner socket Measuring point of spring balance Stud cotter pin mounting hole Measuring point at * mark shown in the figure Swinging torque 0.1 - 2.9 N·m (0.01 - 0.29 kg-m, 1.0 - 25 in-lb) 0.1 - 7.8 N·m (0.01 - 0.79 kg-m, 1.0 - 69 in-lb) Spring balance measurement 1.4 - 42.7 N (0.14 - 4.4 kg, 12 - 31 lb) 0.8 - 64 N (0.082 - 6.5 kg, 0.18 - 14.4 lb) Tool number : ST31227S000 (J-25765-A) Outer socket ro- 0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3.0 - 25 in-lb) SGIA0941E Outer socket 0.5 mm (0.020 in) or less Inner socket 0.2 mm (0.008 in) or less SGIA0057E |
