HYDRAULIC LINE

ST-25

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

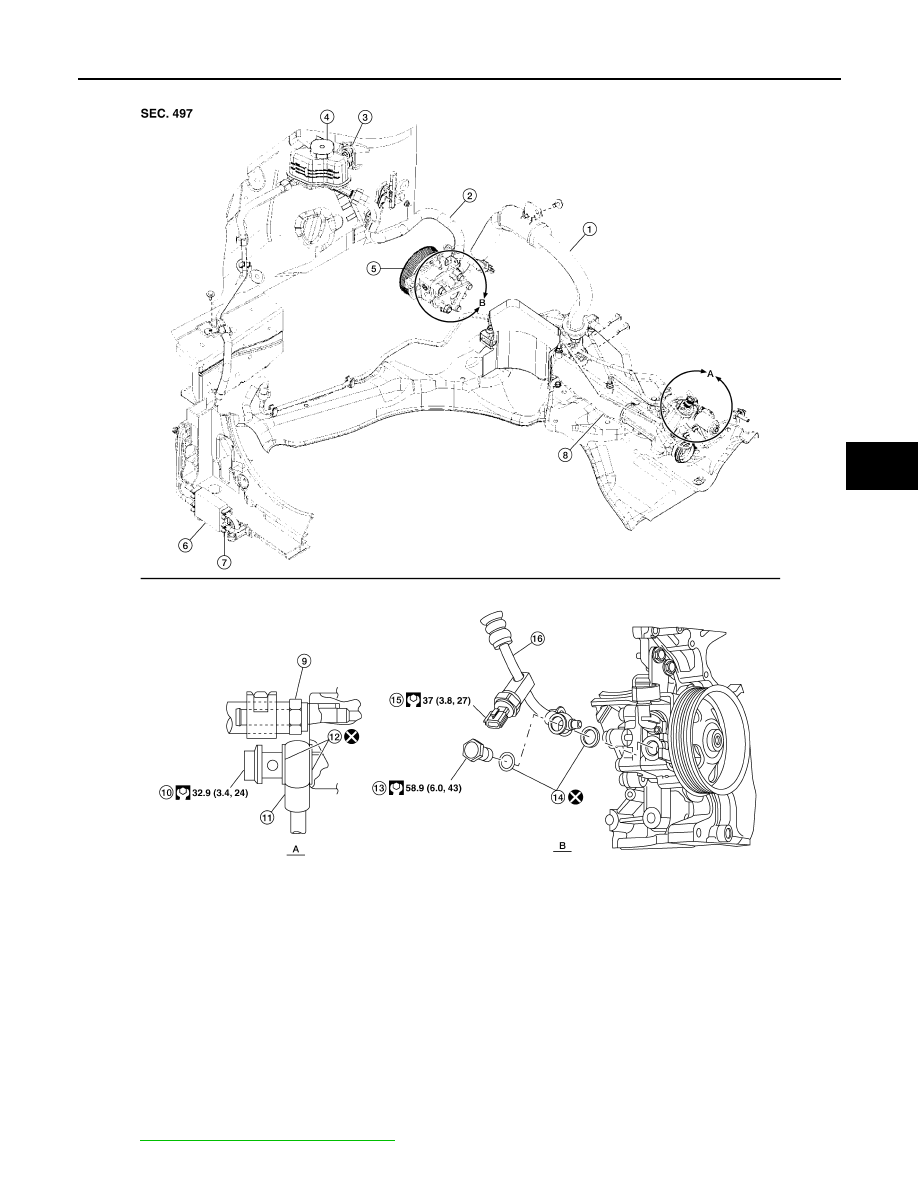

REMOVAL AND INSTALLATION

Removal

Refer to

ST-24, "VQ35DE : With 18 Inch Tire"

 for removal procedure.

1.

High pressure hose

2.

Suction hose

3.

Reservoir tank bracket

4.

Reservoir tank

5.

Oil pump assembly

6.

Power steering fluid cooler

7.

Power steering fluid cooler brackets 8.

Steering gear assembly

9.

Low pressure piping

10. Eye-bolt

11. High pressure piping

12.

Copper washer

13. eye bolt

14. Copper washer

15.

Pressure sensor

16. Eye-joint (assembled to high-pres-

sure side hose)

ALGIA0046GB

ST-26

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

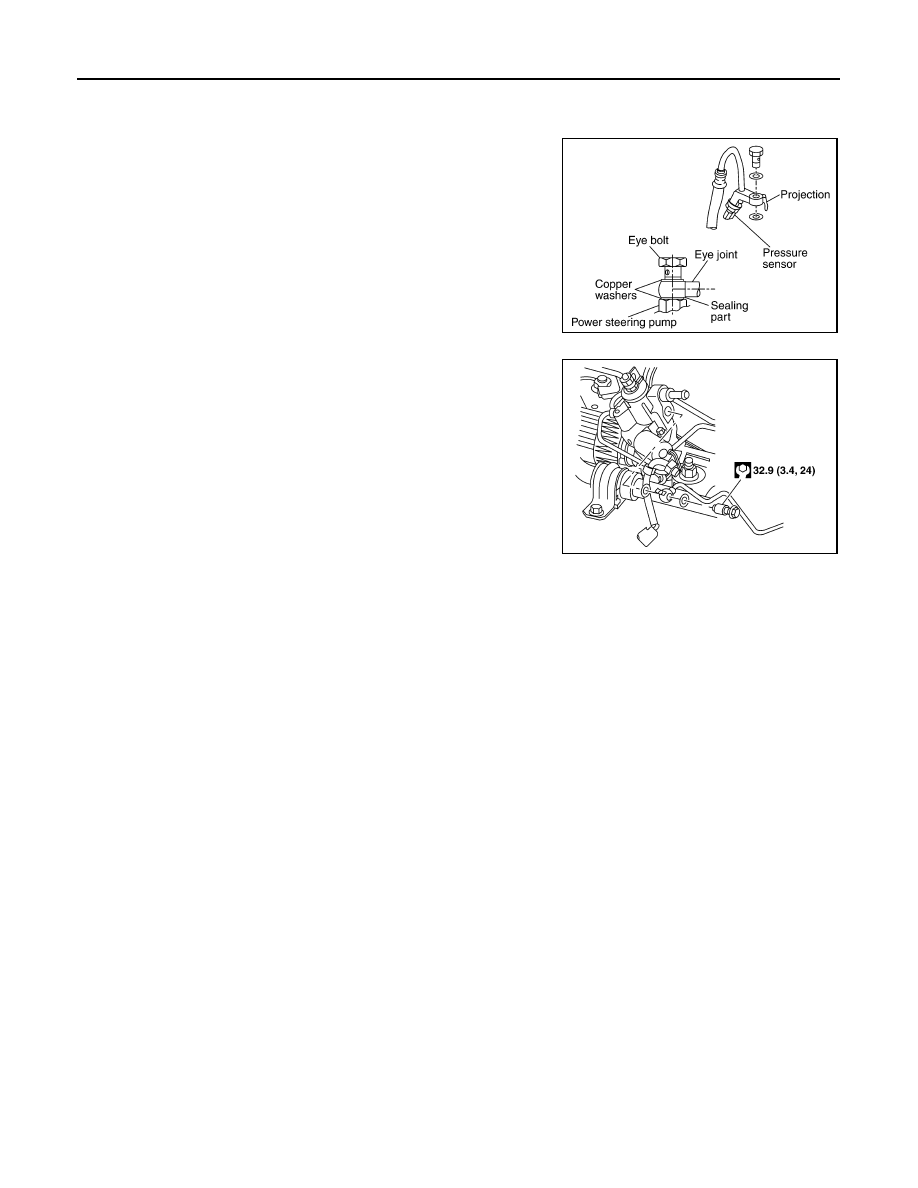

Installation

CAUTION:

Do not apply fluid.

• Install eye-bolt with eye-joint (assembled to high-pressure hose)

protrusion facing with pump side cutout, and then tighten it to the

specified torque after tightening by hand.

• Install check valve with eye-joint (assembled to high pressure

tube) protrusion facing gear side and tighten it to the specified

torque after tightening by hand.

CAUTION:

Do not reuse copper washers.

SGIA0515E

ALGIA0049GB

STEERING COLUMN

ST-27

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

DISASSEMBLY AND ASSEMBLY

STEERING COLUMN

Disassembly and Assembly

INFOID:0000000004204031

CAUTION:

• Any time the ignition switch has been disconnected, removed or installed, the keys must be re-regis-

tered in the BCM. Refer to Consult-III operations IVIS/NVIS.

The steering column assembly is not serviceable and must be replaced as an assembly.

ST-28

< DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

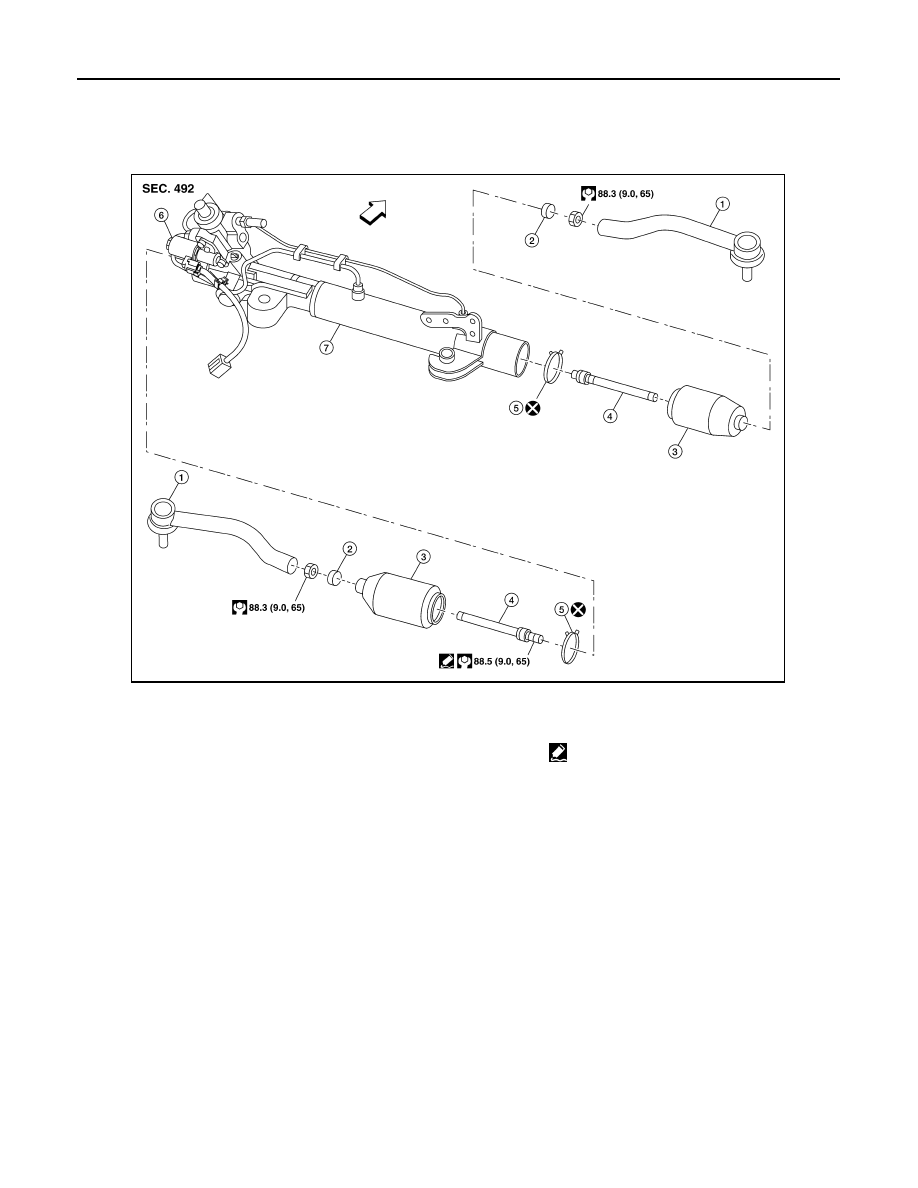

Exploded View

INFOID:0000000004204032

Disassembly

INFOID:0000000004204033

1. Remove outer socket locknut and outer socket
2. Remove boot clamps and boot.
3. Remove inner socket.

Inspection

INFOID:0000000004204034

INSPECTION AFTER DISASSEMBLY

Boot

Check boot for cracks. Replace if there are.

Outer Socket and Inner Socket

1. Ball joint swinging torque

1.

Outer socket

2.

Boot clamp

3.

Boot

4.

Inner socket

5.

Boot clamp

6.

SSPS valve (part of gear assembly)

7.

Gear assembly

Front

Three Bound TB1111 or equivalent

AWGIA0010GB
