HYDRAULIC LINE

QR25DE
QR25DE : Exploded View

INFOID:0000000004204027

CAUTION:

Securely insert harness connector to pressure sensor.

1.

Reservoir tank

2.

Reservoir tank bracket

3.

Suction hose

4.

High-pressure hose

5.

Oil pump assembly

6.

Steering gear assembly

7.

Low pressure piping

8.

High pressure piping

9.

O-ring

AWGIA0007GB

ST-22

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

QR25DE : Removal and Installation

INFOID:0000000004204028

REMOVAL

Refer to

ST-21, "QR25DE : Exploded View"

 for removal procedure.

INSTALLATION

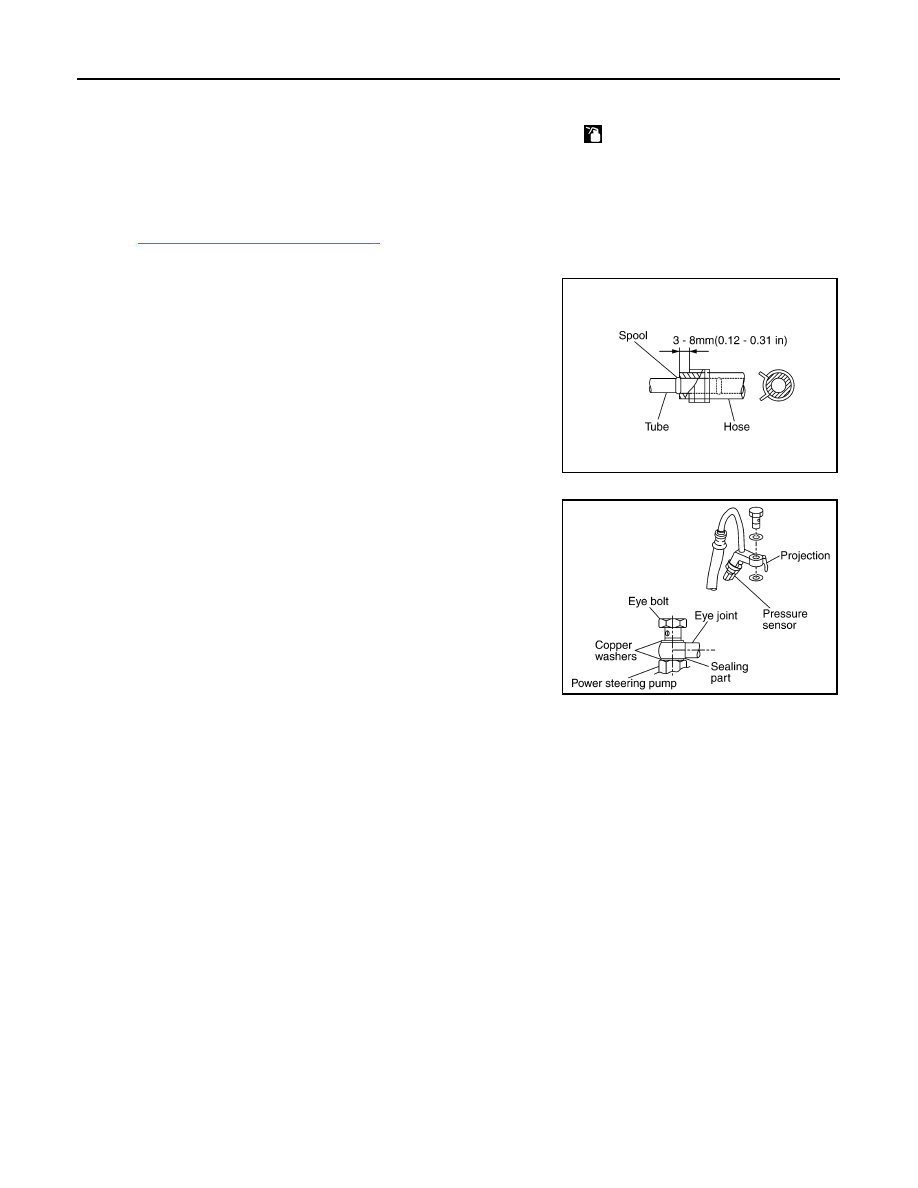

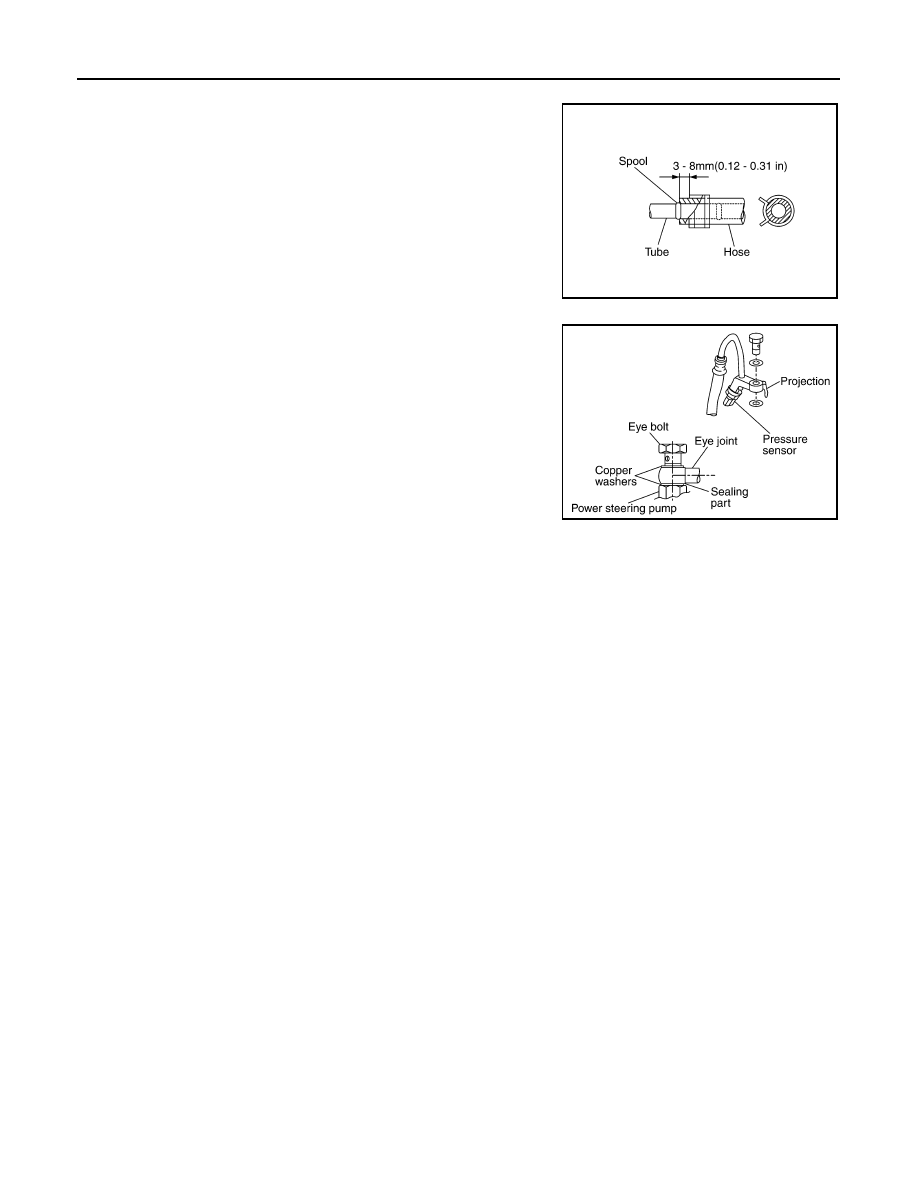

• Insert hose securely until it contacts tube spool.

CAUTION:

Do not apply fluid.

• Install eye-bolt with eye-joint (assembled to high-pressure hose)

protrusion facing with pump side cutout, and then tighten it to the

specified torque after tightening by hand.

VQ35DE
VQ35DE : With 17 Inch Tire

INFOID:0000000004476244

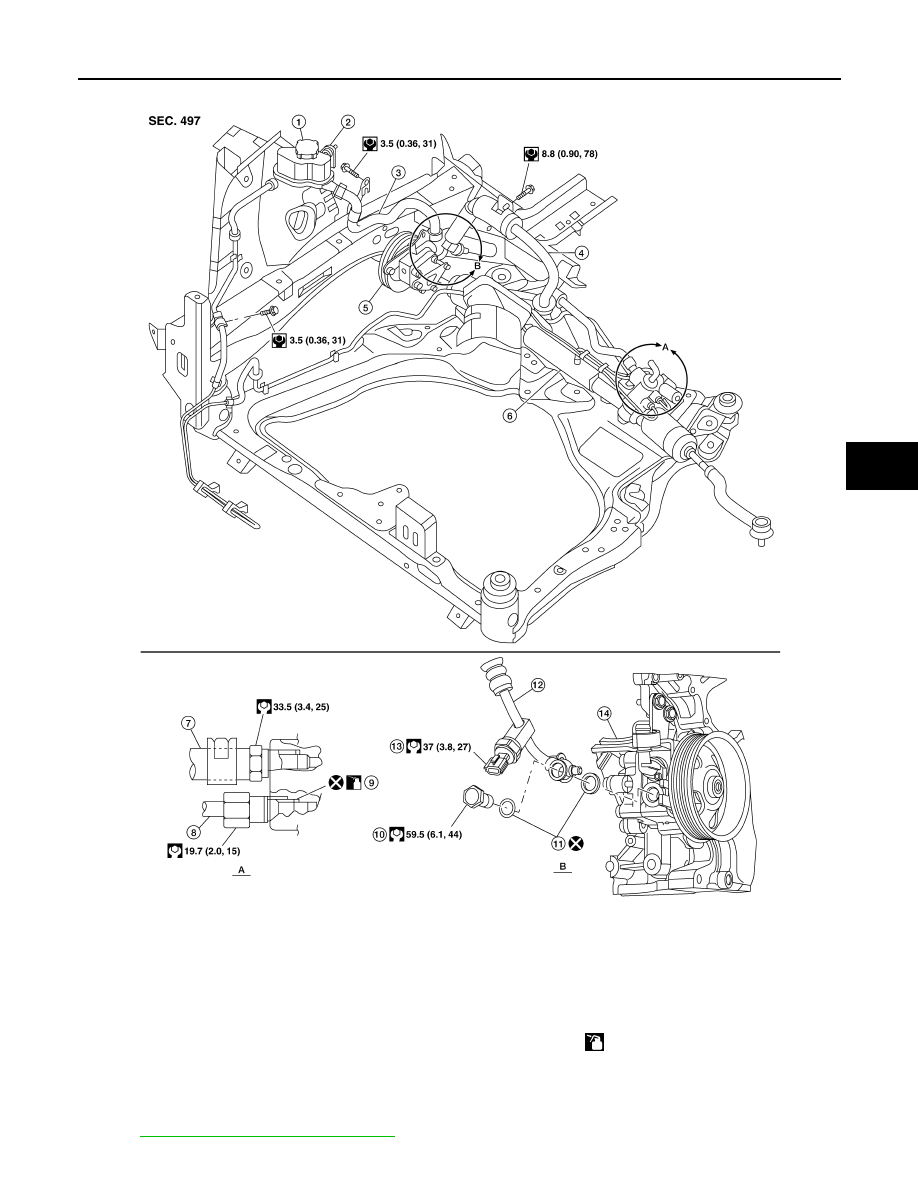

EXPLODED VIEW

CAUTION:

Securely insert harness connector to pressure sensor.

10. Eye-bolt

11. Copper washer

12.

Eye-joint (assembled to high-pres-
sure side hose)

13. Pressure sensor

14. Oil pump bracket to engine block

mounting point

:

Apply Genuine Nissan PSF or
equivalent

SGIA0514E

SGIA0515E

HYDRAULIC LINE

ST-23

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

REMOVAL AND INSTALLATION

Removal

Refer to

ST-22, "VQ35DE : With 17 Inch Tire"

 for removal procedure.

1.

Reservoir tank

2.

Reservoir tank bracket

3.

Suction hose

4.

High pressure hose

5.

Oil pump assembly

6.

Steering gear assembly

7.

Low pressure piping

8.

High pressure piping

9.

O-ring

10. Eye-bolt

11. Copper washer

12.

Eye-joint (assembled to high-pres-
sure side hose)

13. Pressure sensor

14. Oil pump bracket to engine mounting

point

:

Genuine Nissan PSF or equivalent

AWGIA0008GB

ST-24

< ON-VEHICLE REPAIR >

HYDRAULIC LINE

Installation

• Insert hose securely until it contacts tube spool.

CAUTION:

Do not apply fluid.

• Install eye-bolt with eye-joint (assembled to high-pressure hose)

protrusion facing with pump side cutout, and then tighten it to the

specified torque after tightening by hand.

VQ35DE : With 18 Inch Tire

INFOID:0000000004476245

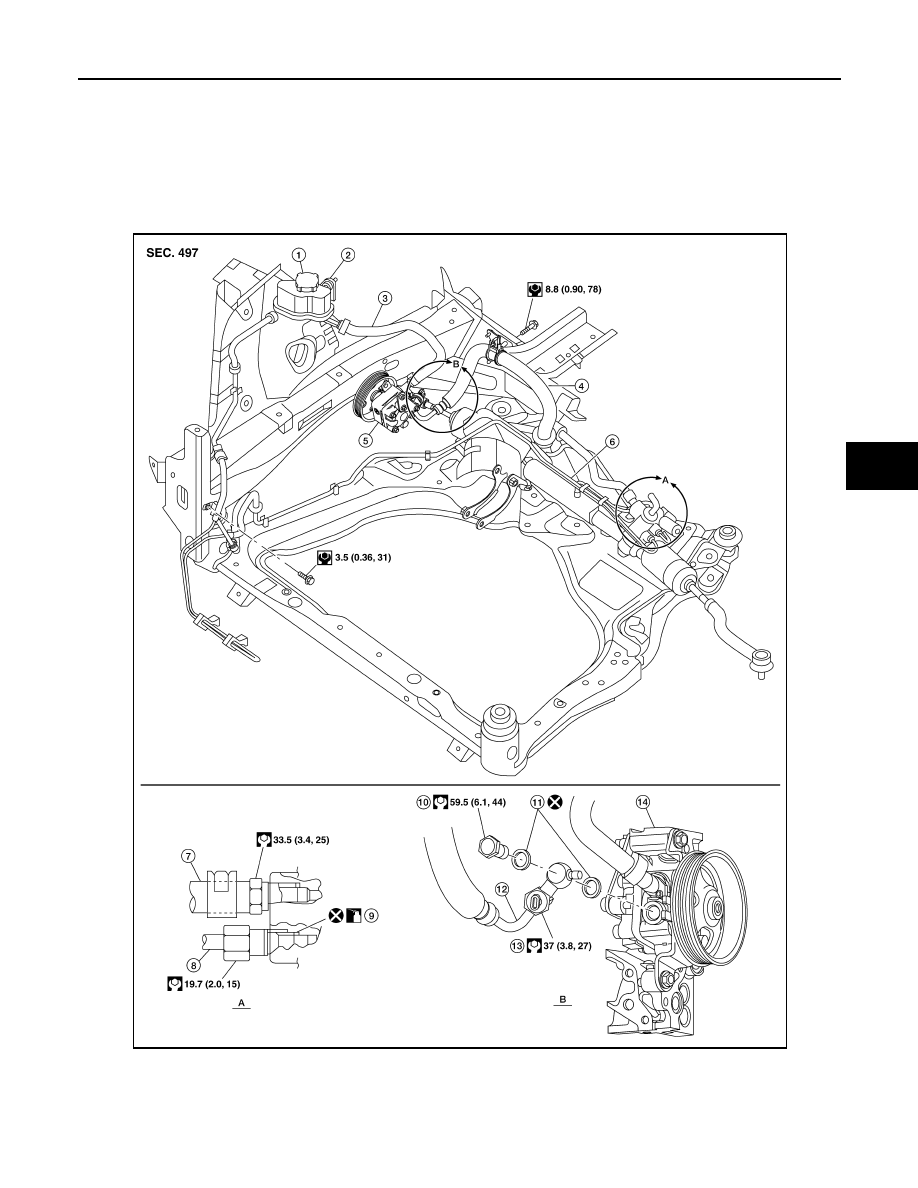

EXPLODED VIEW

CAUTION:

Securely insert harness connector to pressure sensor.

SGIA0514E

SGIA0515E
