FRONT WIPER ARM

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4. Install front wiper arm and front wiper arm nut.

CAUTION:

Tighten front wiper arm nut to specification. Refer to

WW-58, "Exploded View"

.

5. Install front wiper arm cap.
6. Check that wiper blades stop at the specified position. Refer to

WW-59, "Adjustment"

.

Adjustment

INFOID:0000000009606290

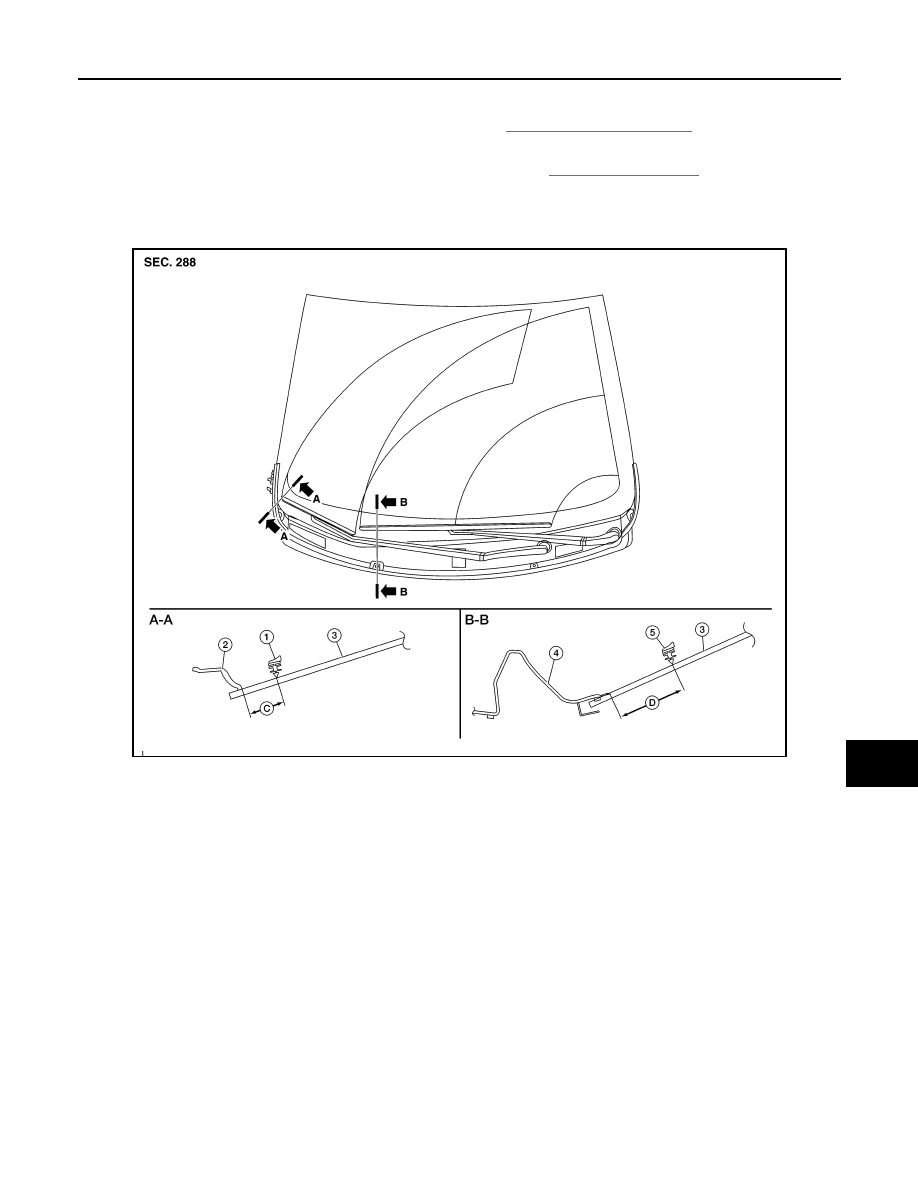

WIPER BLADE POSITION ADJUSTMENT

ALLIA1309ZZ

1.

Wiper blade (RH)

2.

Front fender (RH)

3.

Windshield glass

4.

Cowl top cover

5.

Wiper blade (LH)

C.

28.0

± 7.5 mm (1.10 ± 0.30 in)

D.

60.7

± 7.5 mm (2.39 ± 0.30 in)

WW-60

< REMOVAL AND INSTALLATION >

FRONT WIPER BLADE

FRONT WIPER BLADE

Removal and Installation

INFOID:0000000009606291

REMOVAL

1. Lift up wiper arm and set to the position where wiper arm can be locked back.

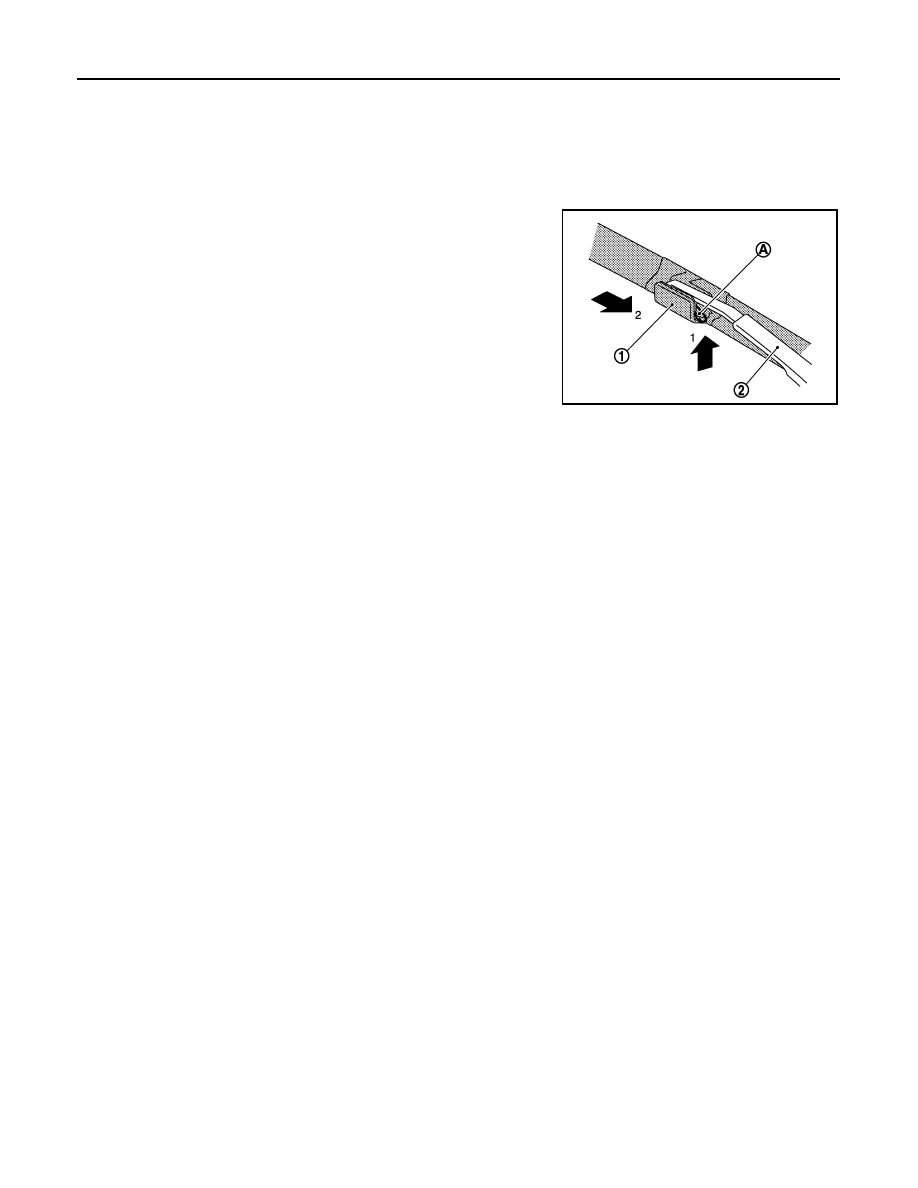

2. Push the release tab (A) of the front wiper blade (1), then move

the front wiper blade down the front wiper arm (2) to remove.

CAUTION:

Be careful not to drop the wiper arm onto the windshield

glass.

INSTALLATION

Insert the front wiper blade onto the front wiper arm until it clicks into place.

JMLIA1044ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

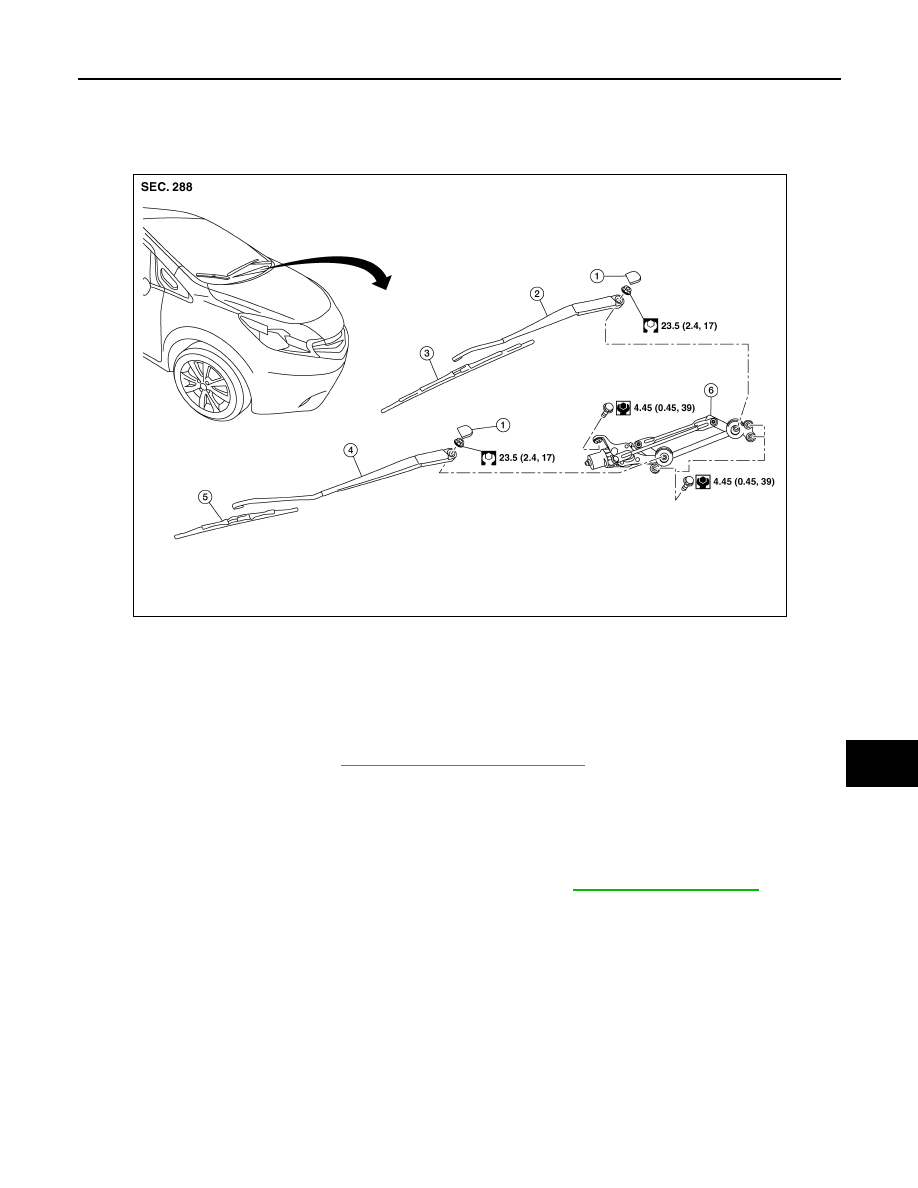

Exploded View

INFOID:0000000009606292

Removal and Installation

INFOID:0000000009606293

REMOVAL

1. Remove cowl top cover. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect the harness connector from front wiper motor.
3. Remove bolts and front wiper drive assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten front wiper drive assembly bolts to specification. Refer to

WW-61, "Exploded View"

.

1.

Wiper arm cap (LH/RH)

2.

Wiper arm (LH)

3.

Wiper blade (LH)

4.

Wiper arm (RH)

5.

Wiper blade (RH)

6.

Front wiper drive assembly

ALLIA1310ZZ

WW-62

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

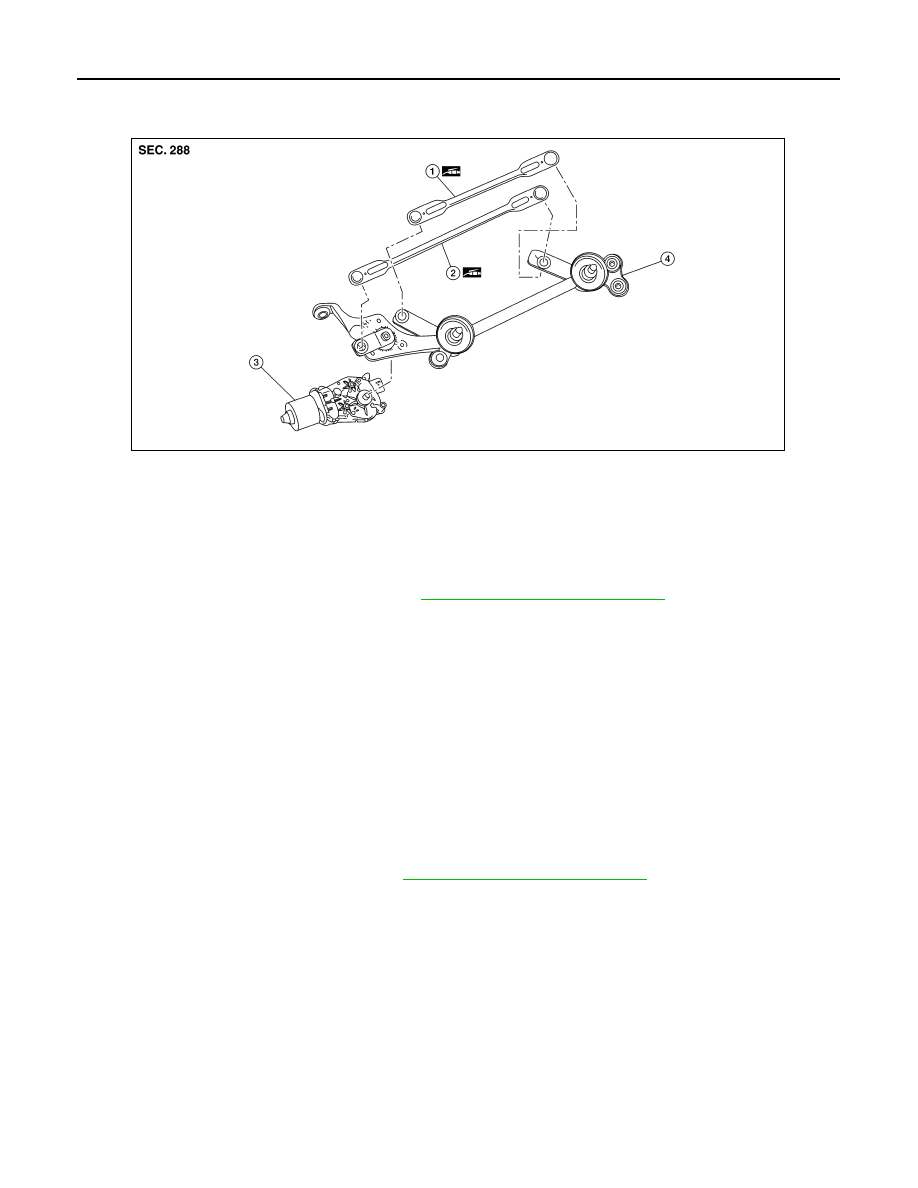

Exploded View

INFOID:0000000009606294

Disassembly and Assembly

INFOID:0000000009606295

DISASSEMBLY

1. Remove front wiper drive assembly. Refer to

WW-61, "Removal and Installation"

.

2. Remove wiper linkage 1 and 2 from the front wiper drive.

CAUTION:

Do not bend the linkage or damage the plastic part of the ball joint when removing the wiper link-

age.

3. Remove screws and wiper motor from front wiper drive.

ASSEMBLY

1. Install wiper motor screws and wiper motor to front wiper drive.
2. Install wiper linkage 2 to the front wiper drive.

CAUTION:

• Do not drop wiper motor or cause it to come into contact with other parts.

• Be careful of the grease condition at the wiper motor and wiper linkage joint (retainer). Apply a

suitable multi

−purpose grease if necessary.

3. Install wiper linkage 1 to the wiper motor and the front wiper drive.
4. Install front wiper drive assembly. Refer to

WW-61, "Removal and Installation"

.

1.

Wiper linkage 2

2.

Wiper linkage 1

3.

Front wiper motor

4.

Front wiper drive

ALLIA1311ZZ
