FRONT WASHER NOZZLE AND TUBE

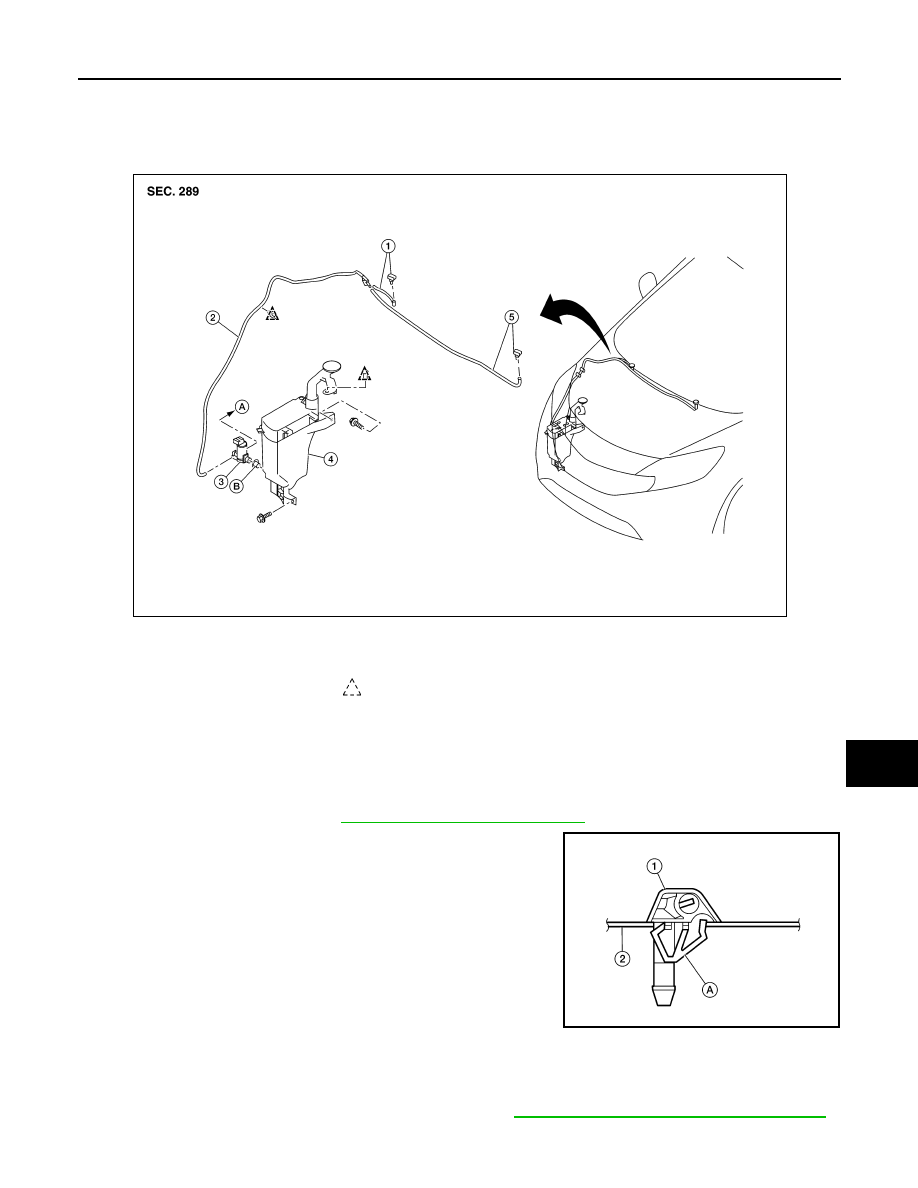

Exploded View

INFOID:0000000009606306

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009606285

REMOVAL

1. Remove cowl top cover. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect front washer tube from front washer nozzle (1).
3. Place cowl top cover (2) up side down and release front washer

nozzle pawl (A) using a suitable tool to remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, adjust the nozzle spray pattern. Refer to

WW-56, "WASHER NOZZLE : Adjustment"

.

1.

Front washer nozzle (RH)

2.

Front washer tube

3.

Front washer motor

4.

Washer tank

5.

Front washer nozzle (LH)

A.

To rear washer

B.

Washer pump seal

Clip

ALLIA1306ZZ

AWLIA2161ZZ

WW-56

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

WASHER NOZZLE : Adjustment

INFOID:0000000009606286

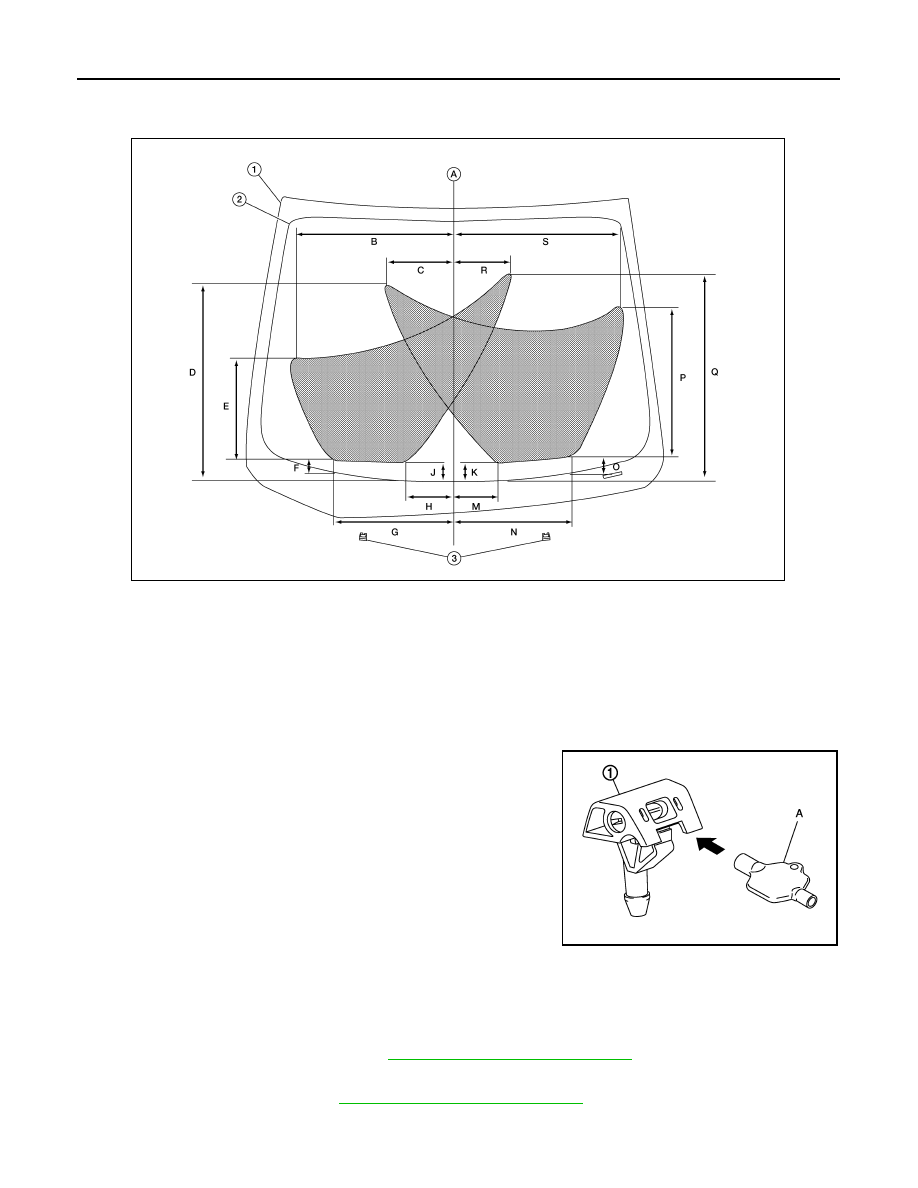

If washer nozzle (1) spray pattern is not within specification, adjust

using a suitable tool (A).

WASHER TUBE
WASHER TUBE : Removal and Installation

INFOID:0000000009606287

REMOVAL

1. Remove fender protector (RH). Refer to

EXT-24, "Removal and Installation"

.

2. Remove front washer tube from washer pump.
3. Remove cowl top cover. Refer to

EXT-23, "Removal and Installation"

.

4. Release the clips that retain the front washer tube to the vehicle body using a suitable tool and remove.

1.

Windshield glass

2.

Black printed area line

3.

Front washer nozzle (LH/RH)

A.

Center line

B.

509.7 mm (20.07 in)

C.

215.7 mm (8.49 in)

D.

614.5 mm (24.19 in)

E.

329.1 mm (12.96 in)

F.

41.0 mm (1.61 in)

G.

379.6 mm (14.94 in)

H.

161.1 mm (6.34 in)

J.

58.6 mm (2.31 in)

K.

58.0 mm (2.28 in)

M.

142.0 mm (5.59 in)

N.

365.9 mm (14.41 in)

O.

54.7 mm (2.15 in)

P.

492.5 mm (19.39 in)

Q.

652.2 mm (25.68 in)

R.

174.3 mm (6.86 in)

S.

520.7 mm (20.50 in)

ALLIA1307ZZ

JMLIA1327ZZ

FRONT WASHER NOZZLE AND TUBE

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

WASHER TUBE : Inspection

INFOID:0000000009606329

INSPECTION

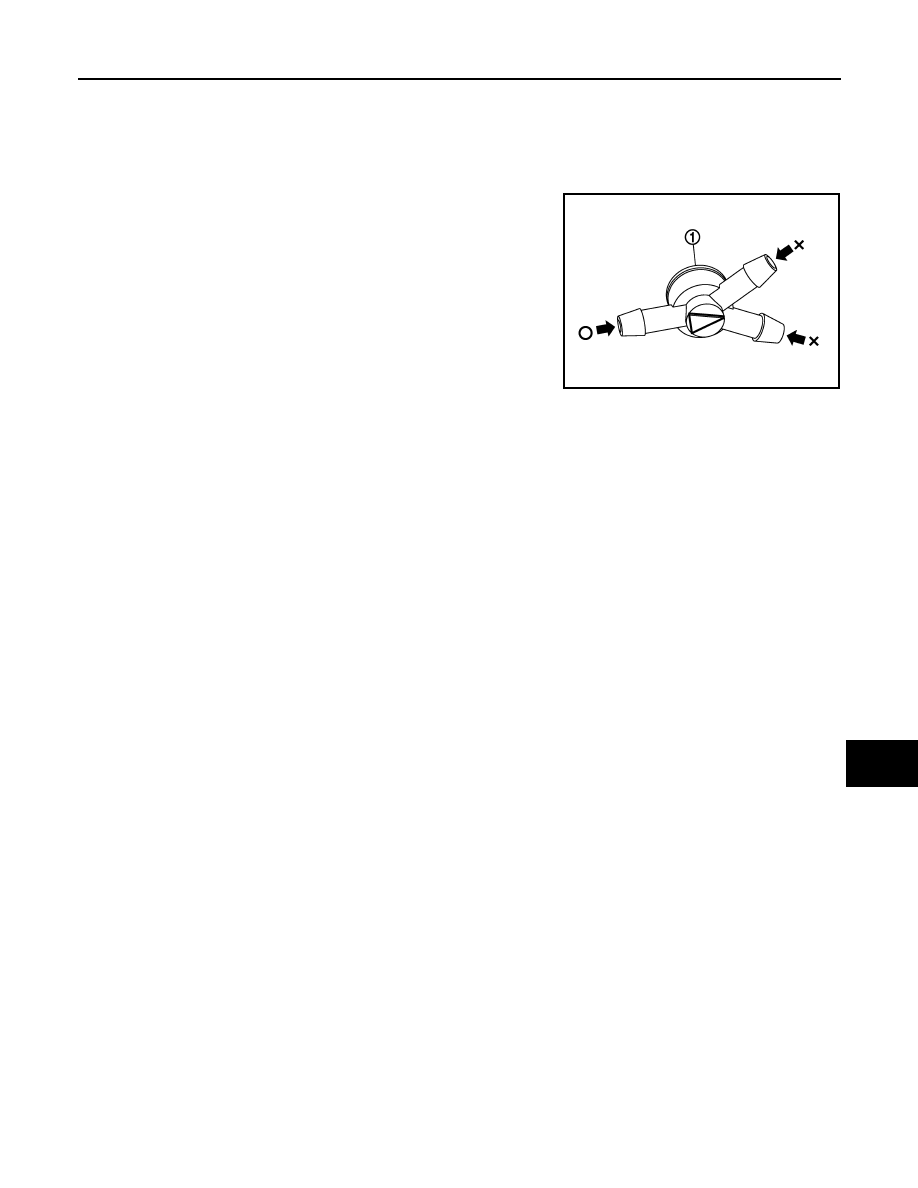

Check that air can pass through the nozzle (1) by blowing into the

nozzle and that air cannot flow in the opposite direction.

O: Air can flow

X: Air cannot flow

JMLIA1326ZZ

WW-58

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

FRONT WIPER ARM

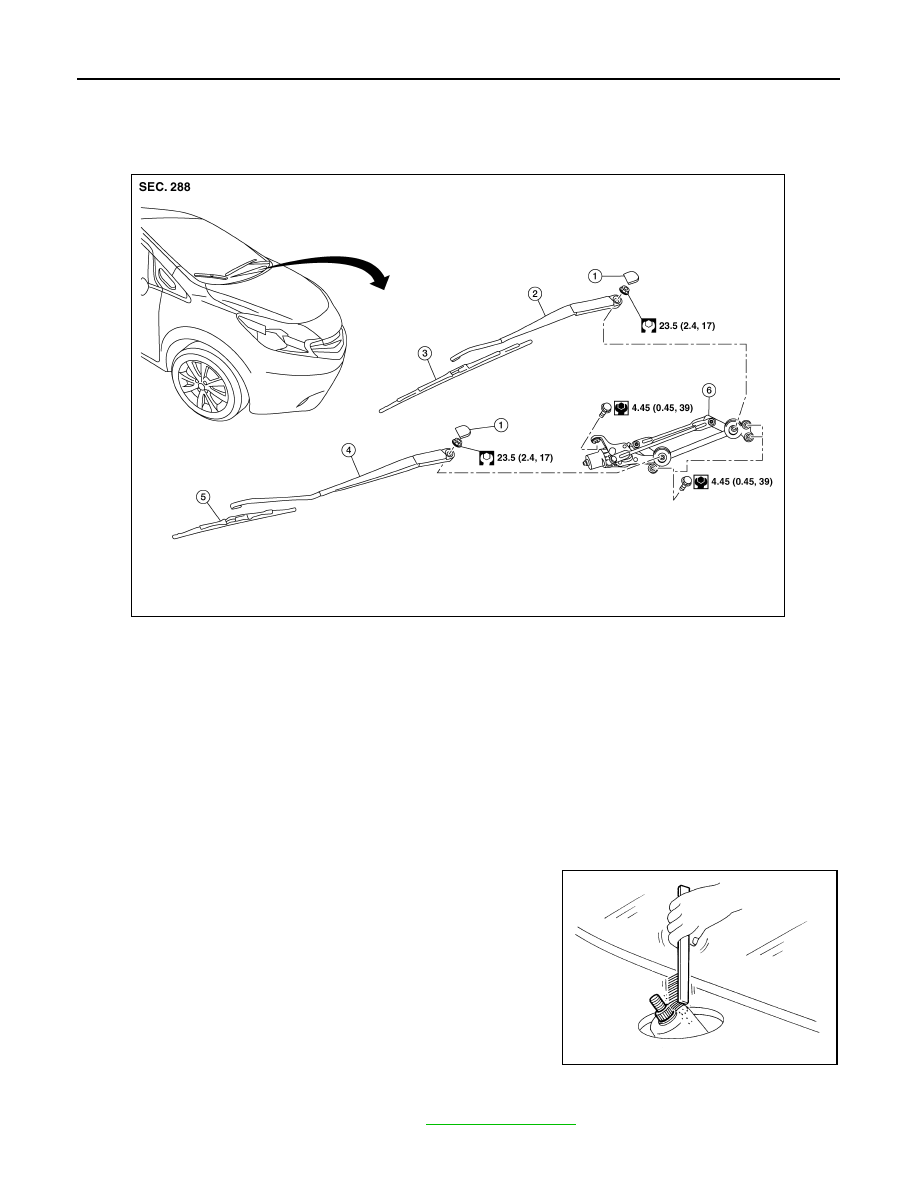

Exploded View

INFOID:0000000009606288

Removal and Installation

INFOID:0000000009606289

REMOVAL

1. Open hood.
2. Operate wiper to move it to the auto stop position.
3. Remove wiper arm cap.
4. Remove wiper arm nut and wiper arm.

INSTALLATION

1. Clean wiper arm mount as shown. This will reduce the possibility

of wiper arm looseness.

2. Operate wiper motor to move the wiper to the auto stop position.
3. Adjust the front wiper blade position. Refer to

WW-59, "Adjustment"

.

1.

Wiper arm cap (LH/RH)

2.

Wiper arm (LH)

3.

Wiper blade (LH)

4.

Wiper arm (RH)

5.

Wiper blade (RH)

6.

Front wiper drive

ALLIA1310ZZ
