NORMAL OPERATING CONDITION

Description

INFOID:0000000009541161

FRONT WIPER PROTECTION FUNCTION

IPDM E/R detects front wiper stop position by a front wiper stop position signal.

When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 seconds activation and 20 seconds stop.

NOTE:

This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item

“WIP PROT” while the wiper is stopped.

REAR WIPER MOTOR PROTECTION FUNCTION

• BCM may stop rear wiper to protect the rear wiper motor when the rear wiper is stopped for 5 seconds or

more due to a snowfall.

• Rear wiper operates normally one minute after the obstacles are removed with rear wiper OFF.

Ignition switch

Front wiper switch

Front wiper stop position signal

ON

OFF

The front wiper stop position signal (stop position) cannot be input for 10 seconds.

ON

The front wiper stop position signal does not change for 10 seconds.

WW-52

< REMOVAL AND INSTALLATION >

WASHER TANK

REMOVAL AND INSTALLATION

WASHER TANK

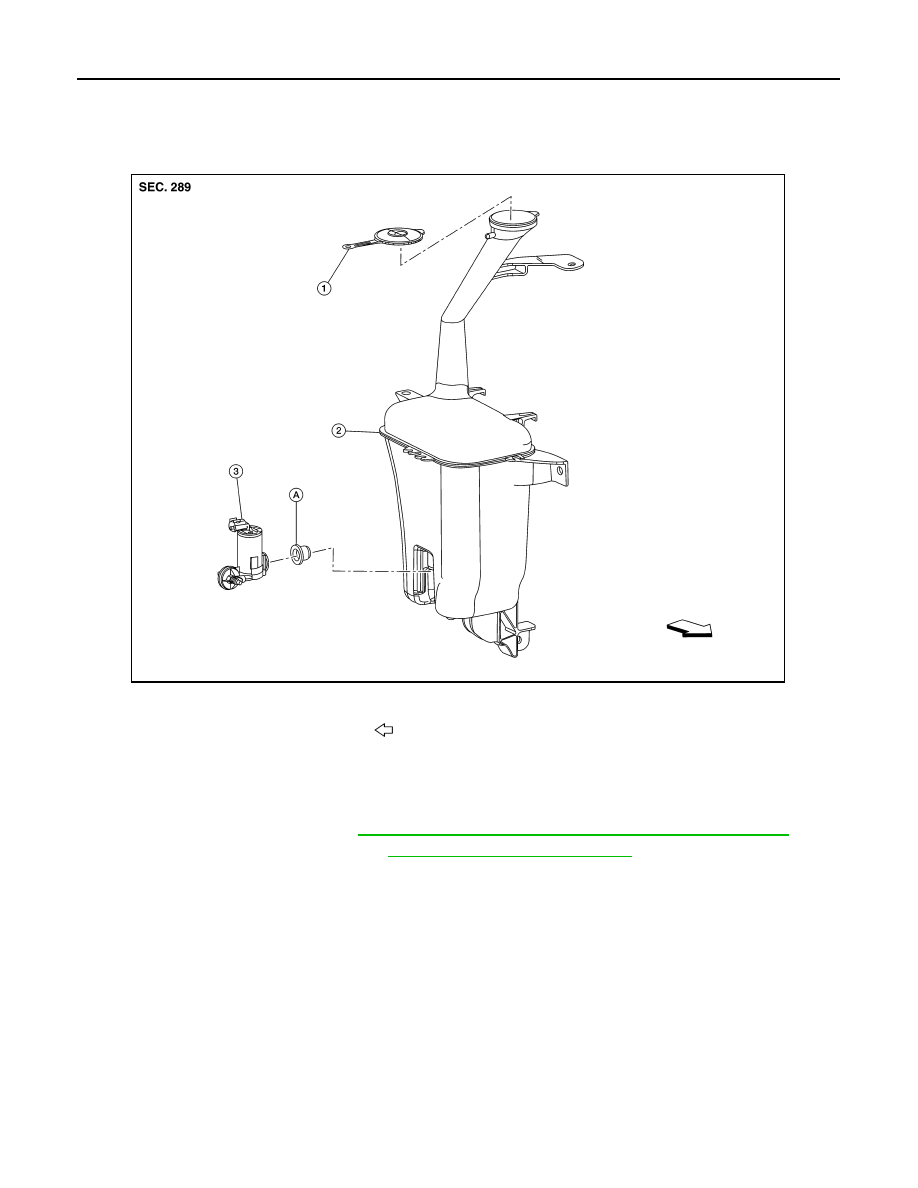

Exploded View

INFOID:0000000009578899

Removal and Installation

INFOID:0000000009578900

REMOVAL

1. Remove front under cover. Refer to

EXT-25, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove fender protector (RH). Refer to

EXT-24, "Removal and Installation"

.

3. Remove washer tank clip (A) using a suitable tool.

1.

Washer tank cap

2.

Washer tank

3.

Front washer motor

A. Front washer motor seal

Front

ALLIA1318ZZ

ALKIA3175ZZ

WASHER TANK

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

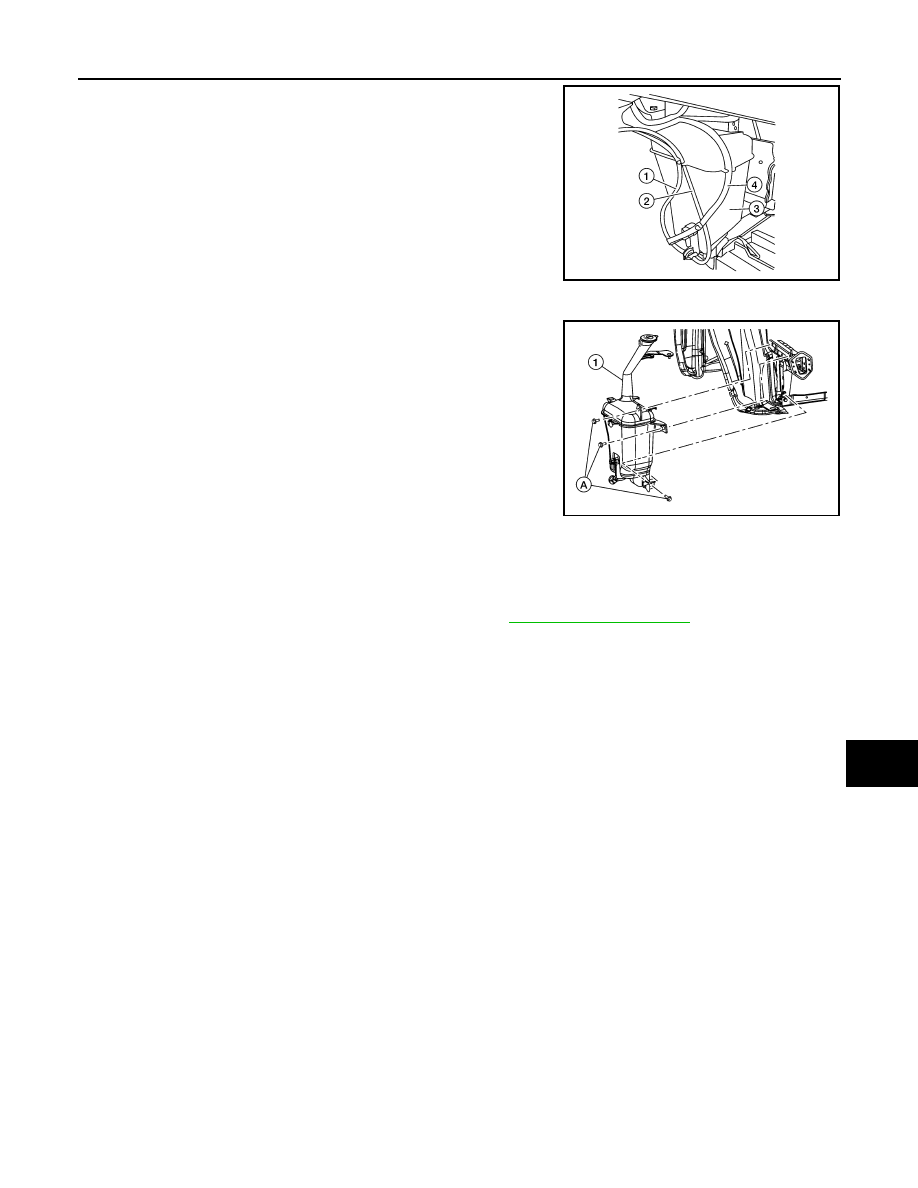

4. Release the front washer tube (2) and rear washer tube (1) from

washer tank (3).

5. Release the harness (4) from the washer tank (3).

6. Disconnect the harness connector from the washer pump.
7. Remove bolts (A) and washer tank (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, add water to the top of the washer tank inlet to check that no leaks exist.

• Fill washer tank with specified amount of fluid. Refer to

WW-71, "Specifications"

.

ALLIA1305ZZ

ALLIA1303ZZ

WW-54

< REMOVAL AND INSTALLATION >

FRONT WASHER MOTOR

FRONT WASHER MOTOR

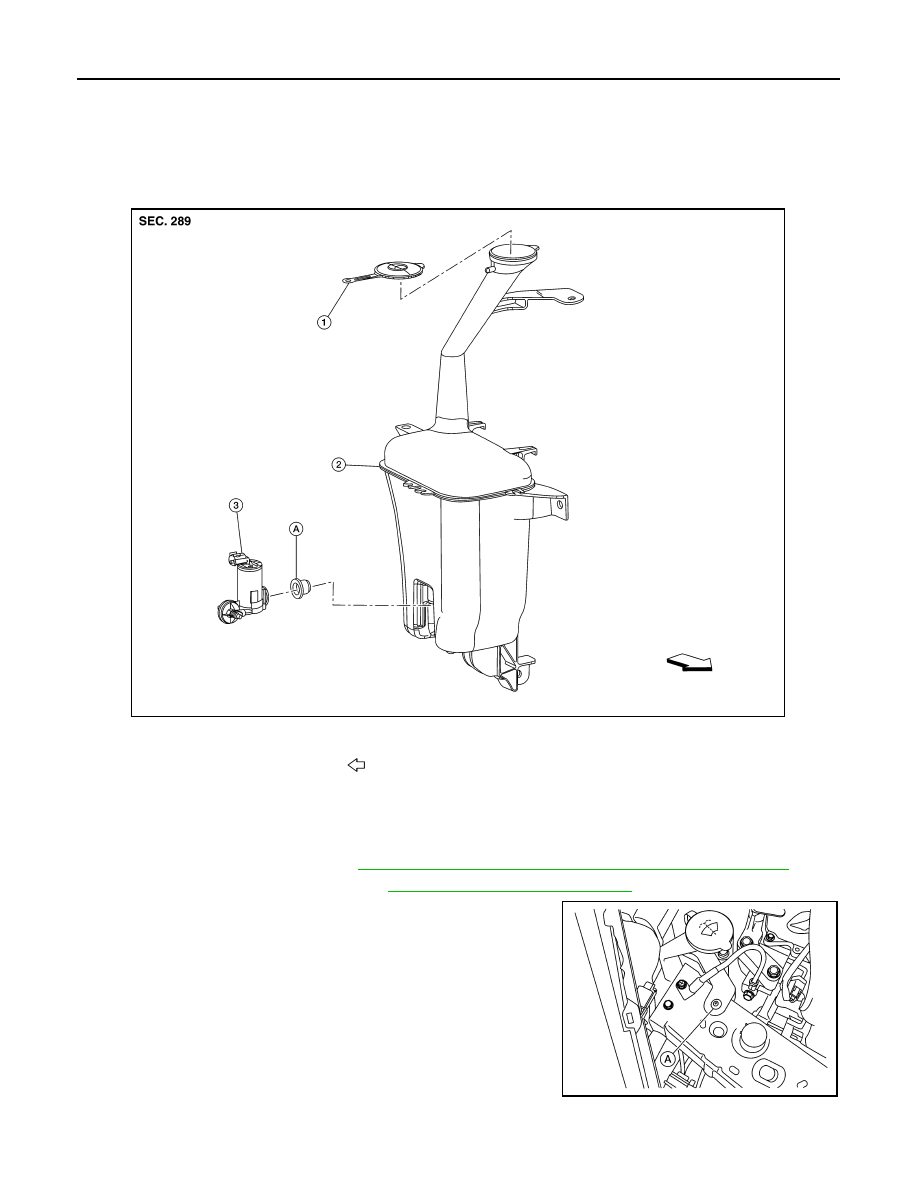

Exploded View

INFOID:0000000009606283

Removal and Installation

INFOID:0000000009606284

REMOVAL

1. Remove front under cover. Refer to

EXT-25, "FRONT UNDER COVER : Removal and Installation"

.

2. Remove fender protector (RH). Refer to

EXT-24, "Removal and Installation"

.

3. Disconnect the harness connector from the front washer motor.
4. Remove front washer tube and rear washer tube from front washer motor.
5. Remove front washer motor from washer tank.
6. Remove front washer motor seal from washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not rotate or damage the front washer motor seal when installing the front washer motor.

1.

Washer tank cap

2.

Washer tank

3.

Front washer motor

A.

Front washer motor seal

Front

ALLIA1318ZZ
