[CVT: RE0F11A]

SYSTEM

INPUT/OUTPUT SIGNAL TABLE

SYSTEM DESCRIPTION

• CVT detects the vehicle driving status from switches, sensors and signals, and controls the vehicle so that

the optimum shift position and shift timing may always be achieved. It also controls the vehicle to reduce

shift and lockup shock, etc.

• Receives input signals from switches and sensors.

• Sends the output signal necessary for operation of solenoid valves, and evaluates the line pressure, shift

timing, lockup operation, engine brake performance, etc.

• If a malfunction occurs on the electric system, activate the fail-safe mode only to drive the vehicle.

LIST OF CONTROL ITEMS AND INPUT/OUTPUT

Sensor (or signal)

⇒

TCM function

⇒

Actuator

• Engine and CVT integrated control

signal

• Engine speed signal
• Accelerator pedal position signal
• Closed throttle position signal
• Stop lamp switch signal
• Secondary pressure sensor
• CVT fluid temperature sensor
• Primary speed sensor
• Secondary speed sensor
• Output speed sensor
• Transmission range switch signal
• Overdrive control switch signal
• Vehicle speed signal (ABS)
• ABS operation signal
• A/C compressor feedback signal
• G sensor
• N idle instruction signal
• Turn indicator signal

• Line pressure control (

TM-81, "LINE

PRESSURE CONTROL : System Descrip-
tion"

)

• Shift control (

TM-82, "SHIFT CONTROL :

System Description"

)

• Select control (

TM-84, "SELECT CON-

TROL : System Description"

)

• Lock-up control (

TM-85, "LOCK-UP CON-

TROL : System Description"

)

• Idle neutral control (

TM-86, "IDLE NEU-

TRAL CONTROL : System Description"

)

• Fail-safe mode (

TM-107, "Fail-safe"

)

• Self-diagnosis function (

TM-92, "CON-

SULT Function"

)

• Communication function with CONSULT

(

TM-92, "CONSULT Function"

)

• CAN communication control (

TM-139,

"Description"

)

• Line pressure solenoid valve
• Primary pressure solenoid valve
• Torque converter clutch solenoid

valve

• High clutch & reverse brake sole-

noid valve

• Low brake solenoid valve
• OD OFF indicator lamp
• Shift position indicator

Control Item

Shift control

Line pressure

control

Select control

Lock-up con-

trol

Fail-safe func-

tion *

Input

Engine torque signal
(CAN communication)

×

×

×

×

×

Engine speed signal
(CAN communication)

×

×

×

×

×

Accelerator pedal position signal
(CAN communication)

×

×

×

×

×

Closed throttle position signal
(CAN communication)

×

×

×

Stop lamp switch signal
(CAN communication)

×

×

×

×

Secondary pressure sensor

×

×

×

×

CVT fluid temperature sensor

×

×

×

×

Primary speed sensor

×

×

×

×

Secondary speed sensor

×

×

×

×

×

Output speed sensor

×

×

×

×

×

Transmission range switch

×

×

×

×

×

Overdrive control switch
(CAN communication)

×

SYSTEM

TM-75

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

·*: If these input/output signals show errors, TCM activates the fail-safe function.

Output

Line pressure solenoid valve

×

×

×

×

Primary pressure solenoid valve

×

×

Torque converter clutch solenoid
valve

×

×

High clutch & reverse brake solenoid
valve

×

×

×

Low brake solenoid valve

×

×

×

Shift position indicator
(CAN communication)

×

OD OFF indicator lamp
(CAN communication)

×

Control Item

Shift control

Line pressure

control

Select control

Lock-up con-

trol

Fail-safe func-

tion *

TM-76

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SYSTEM

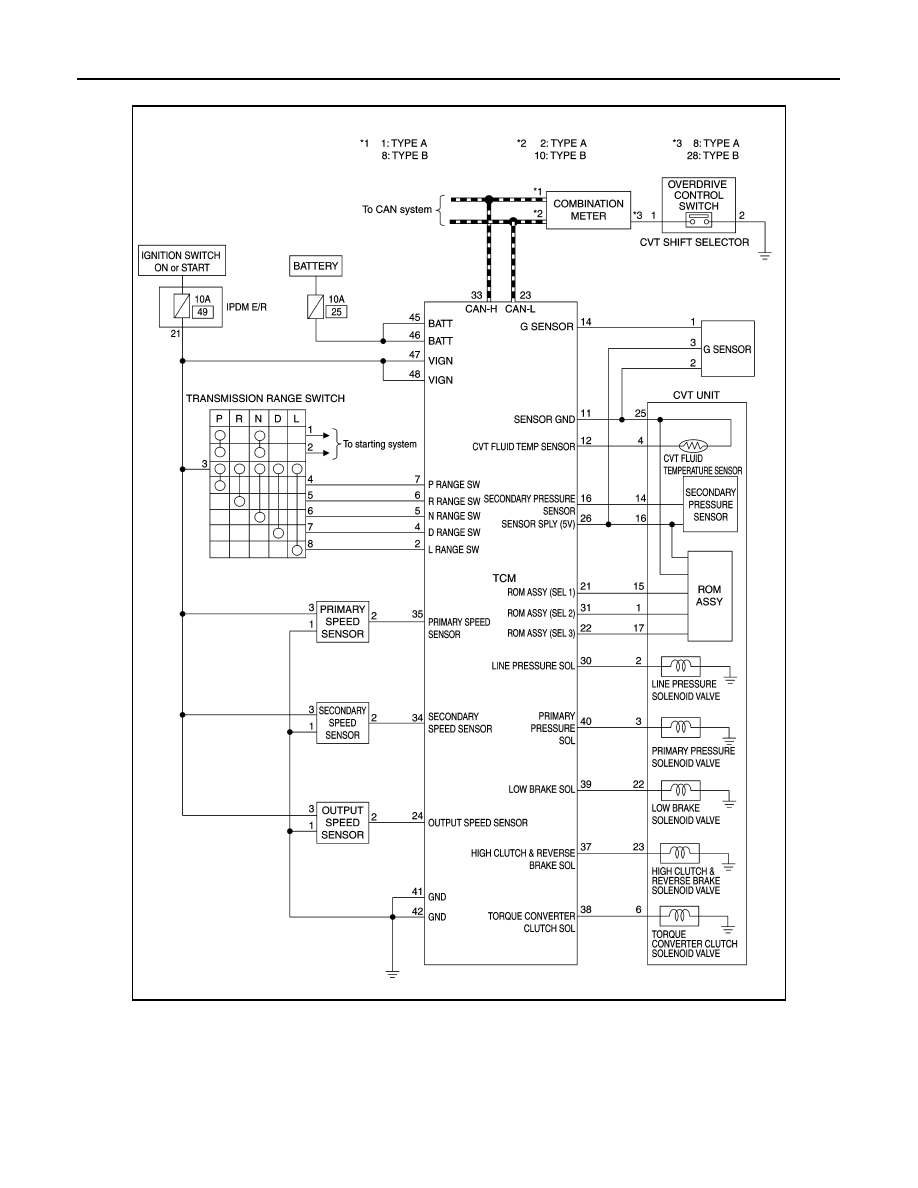

CVT CONTROL SYSTEM : Schematic

INFOID:0000000009019860

JSDIA2911GB

SYSTEM

TM-77

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

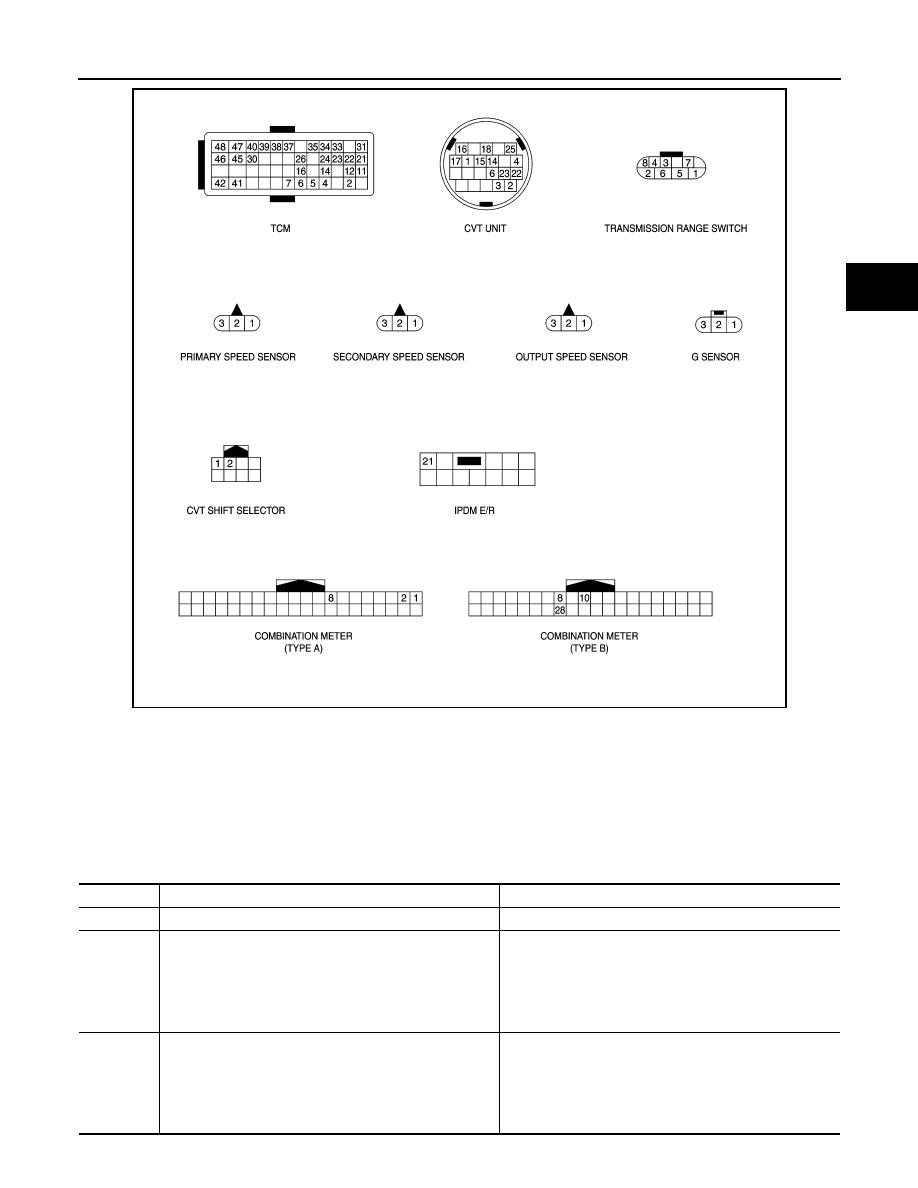

CVT CONTROL SYSTEM : Fail-safe

INFOID:0000000009019861

TCM has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of

the main electronically controlled input/output parts is damaged.

If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system

is detected by TCM and the vehicle may be in a fail-safe mode. At this time, check the DTC code and perform

inspection and repair according to the malfunction diagnosis procedures.

Fail-safe function

JSDIA2912GB

DTC

Vehicle behavior

Conditions of vehicle

P062F

Not changed from normal driving

—

P0705

• Shift position indicator on combination meter is not dis-

played.

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0706

• Shift position indicator on combination meter is not dis-

played.

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—
