TM-66

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

COMPONENT PARTS

CVT CONTROL SYSTEM : Malfunction Indicator Lamp (MIL)

INFOID:0000000009019851

The malfunction indicator lamp (MIL) is located on the combination

meter.

The MIL will illuminate when the ignition switch is turned ON without

the engine running. This is a bulb check.

When the engine is started, the MIL should turn off. If the MIL

remains illuminated, the on board diagnostic system has detected an

engine system malfunction.

For details, refer to

EC-24, "WARNING LAMPS/INDICATOR LAMPS

: Malfunction Indicator Lamp (MIL)"

.

SHIFT LOCK SYSTEM

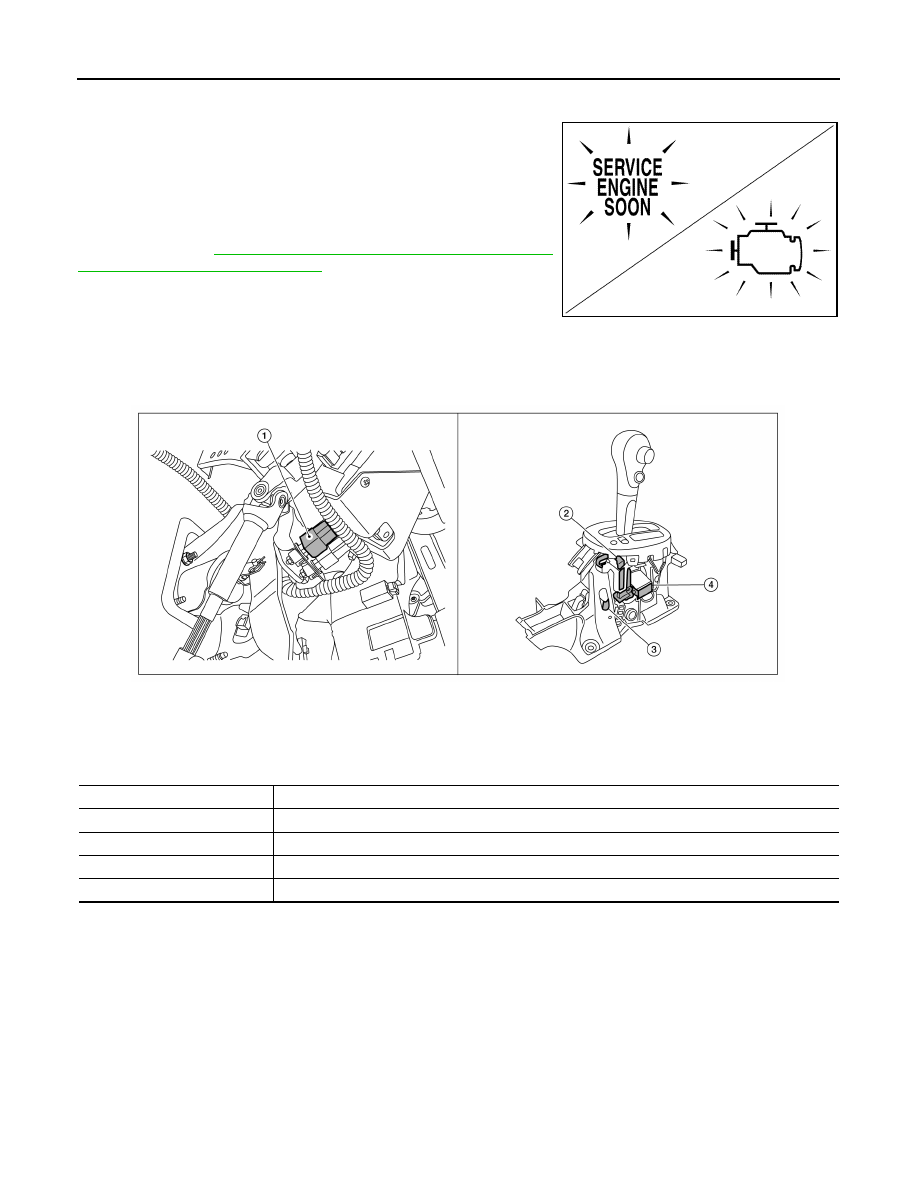

SHIFT LOCK SYSTEM : Component Parts Location

INFOID:0000000009019852

COMPONENT DESCRIPTION

JSBIA1315ZZ

1.

Stop lamp switch

2.

Shift lock release lever

3.

Park position switch

4.

Shift lock solenoid

ALDIA0267ZZ

Component

Function

Stop lamp switch

Stop lamp switch turns ON when brake pedal is depressed.

Shift lock release lever

Manually releases the shift lock.

Park position switch

Detects that the selector lever is in “P” position.

Shift lock solenoid

Operates according to the signal from the stop lamp switch and moves the lock lever.

STRUCTURE AND OPERATION

TM-67

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

STRUCTURE AND OPERATION

TRANSAXLE

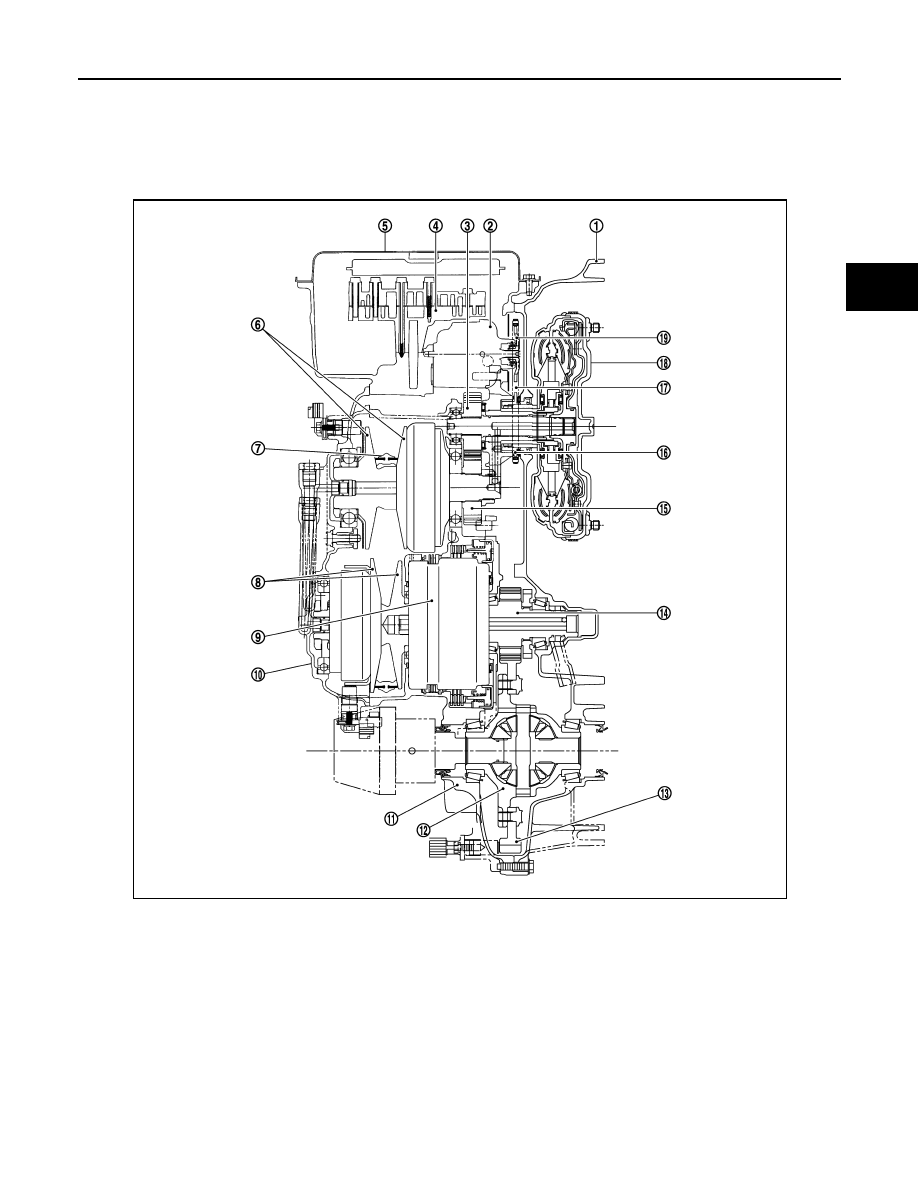

TRANSAXLE : Cross-Sectional View

INFOID:0000000009019853

TRANSAXLE : Transaxle Mechanism

INFOID:0000000009019854

BELT & PULLEY

1.

Converter housing

2.

Oil pump

3.

Counter drive gear

4.

Control valve

5.

Oil pan

6.

Primary pulley

7.

Steel belt

8.

Secondary pulley

9.

Planetary gear (auxiliary gearbox)

10.

Side cover

11.

Transaxle case

12.

Differential case

13.

Final gear

14.

Reduction gear

15.

Counter driven gear

16.

Drive sprocket

17.

Oil pump chain

18.

Torque converter

19.

Driven sprocket

JSDIA1777ZZ

TM-68

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

STRUCTURE AND OPERATION

Mechanism

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the steel belt

(the steel plates are placed continuously and the belt is guided with the multilayer steel rings on both sides).

The groove width changes according to wrapping radius of steel belt and pulley from low status to overdrive

status continuously with non-step. It is controlled with the oil pressures of primary pulley and secondary pulley.

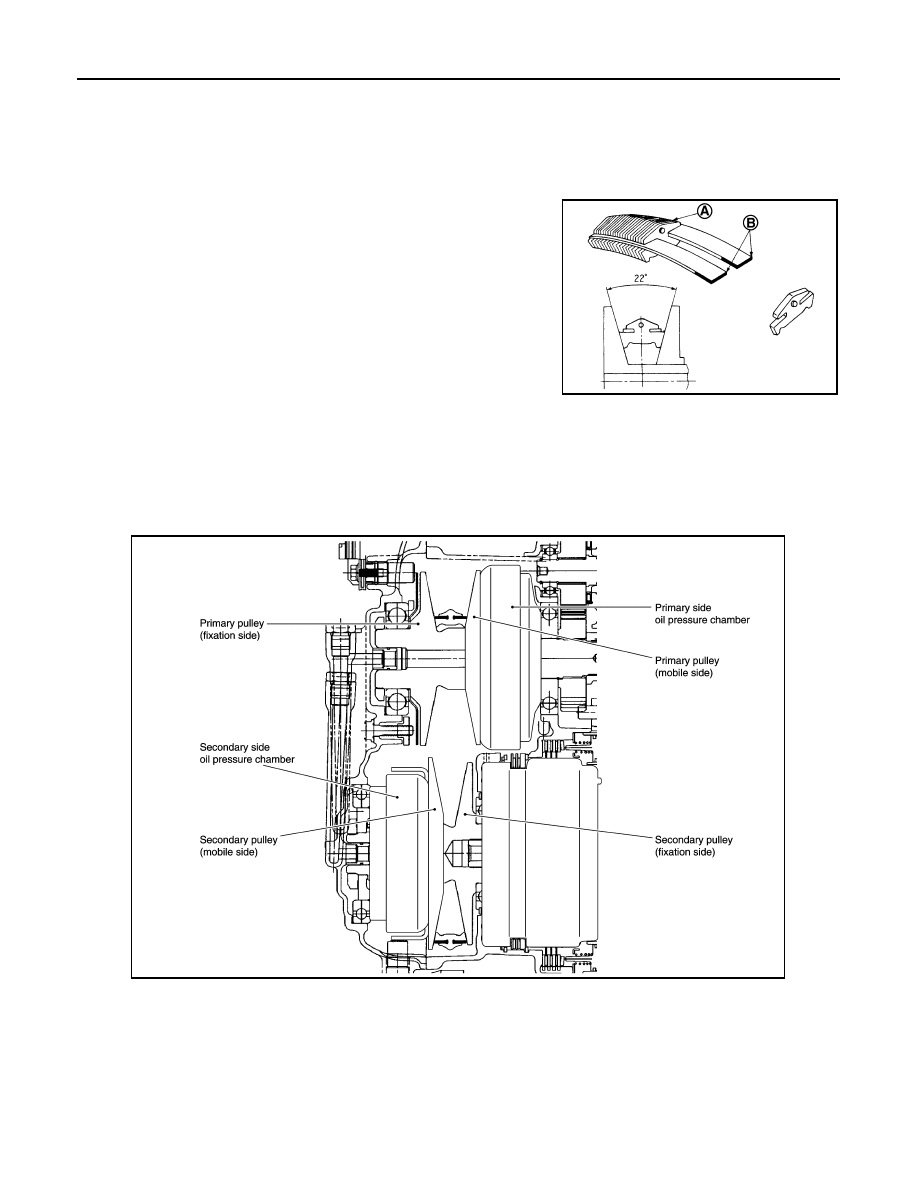

Steel belt

It is composed of multiple steel plates (A) and two steel rings (B)

stacked to a several number. The feature of this steel belt transmits

power with compression of the steel plate in contrast with transmis-

sion of power in pulling with a rubber belt. Friction force is required

with the pulley slope to transmit power from the steel plate. The force

is generated with the following mechanism:

Oil pressure applies to the secondary pulley to nip the plate.

⇒The

plate is pushed and extended outward.

⇒The steel ring shows with-

stands.

⇒Pulling force is generated on the steel ring. ⇒The plate of

the primary pulley is nipped between the pulley.

⇒Friction force is

generated between the steel belt and the pulley.

Therefore, responsibilities are divided by the steel plate that trans-

mits the power with compression and the steel ring that maintains necessary friction force.   In this way, the

tension of the steel ring is distributed on the entire surface and stress variation is limited, resulting in good

durability.

Pulley

The primary pulley (input shaft side) and the secondary pulley (output shaft side) have the shaft with slope

(fixed cone surface), movable sheave (movable cone surface that can move in the axial direction) and oil pres-

sure chamber at the back of the movable sheave.

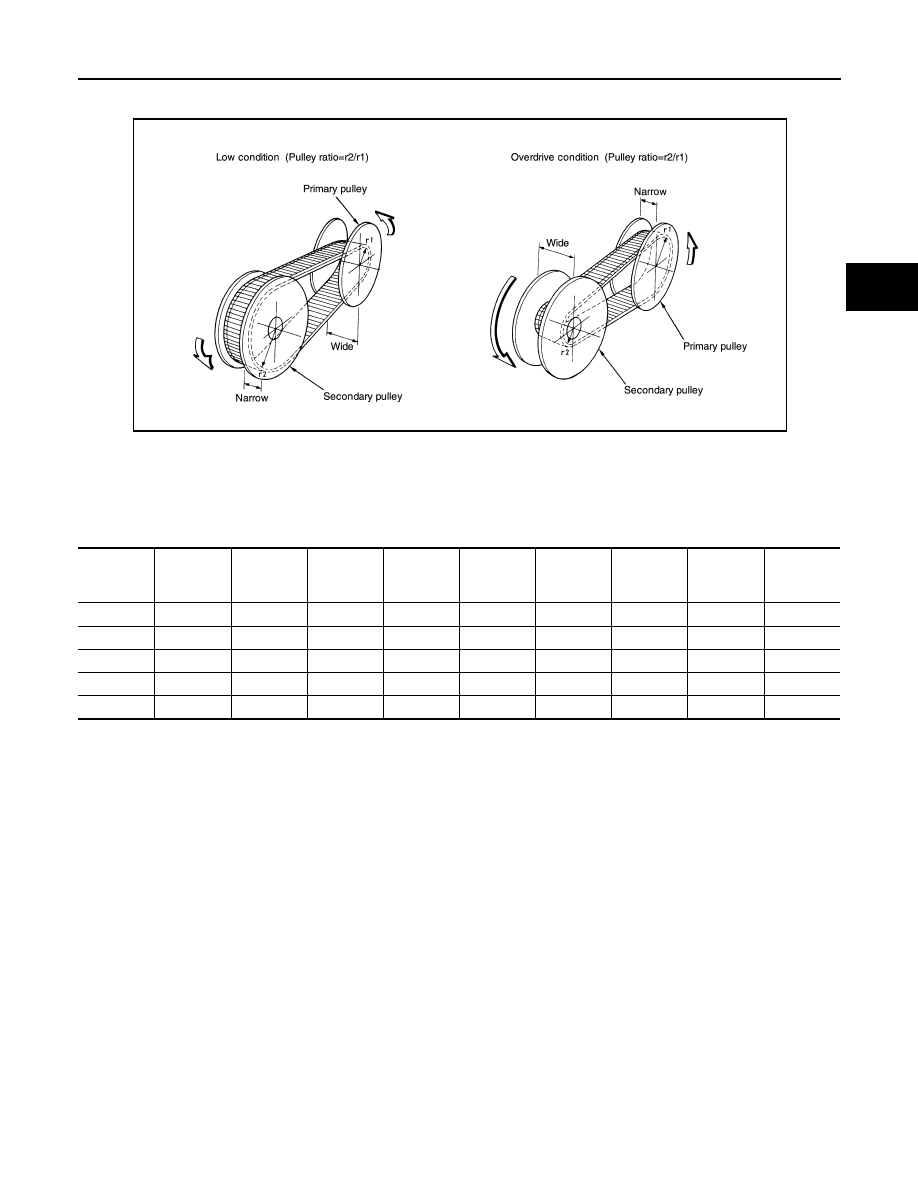

Pulley gear shifting operation

• Pulley gear shifting operation

The movable sheave slides on the shaft to change the groove width of the pulley. Input signals of engine

load (accelerator pedal opening), engine revolution and gear ratio (vehicle speed) change the operation

pressures of the primary pulley and the secondary pulley, and controls the pulley groove width.   Along with

change of the pulley groove width, the belt contact radius is changed. This allows continuous and stepless

JSDIA1966ZZ

JSDIA1779GB

STRUCTURE AND OPERATION

TM-69

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

gear shifting from low to overdrive. “The contact radius ratio of each pulley in contact with the belt x auxiliary

gearbox gear ratio” is the gear ratio.

AUXILIARY GEARBOX MECHANISM

1st, 2nd and reverse gears are changed with the planetary gear mechanism.

TRANSAXLE : Operation Status

INFOID:0000000009019855

×: Engaged or applied.

JSDIA2573GB

Slector le-

ver posi-

tion

Parking
mecha-

nism

Counter
gear set

Low brake  High clutch

Reverse

brake

Primary

pulley

Secondary

pulley

Steel belt

Reduction

gear set

P

×

×

×

×

×

R

×

×

×

×

×

×

N

×

×

×

×

D

×

× (1GR)

× (2GR)

×

×

×

×

L

×

× (1GR)

× (2GR)

×

×

×

×
