Nissan Note E12. Manual - part 625





TM-58

< PREPARATION >

[CVT: RE0F11A]

PREPARATION

PREPARATION

PREPARATION

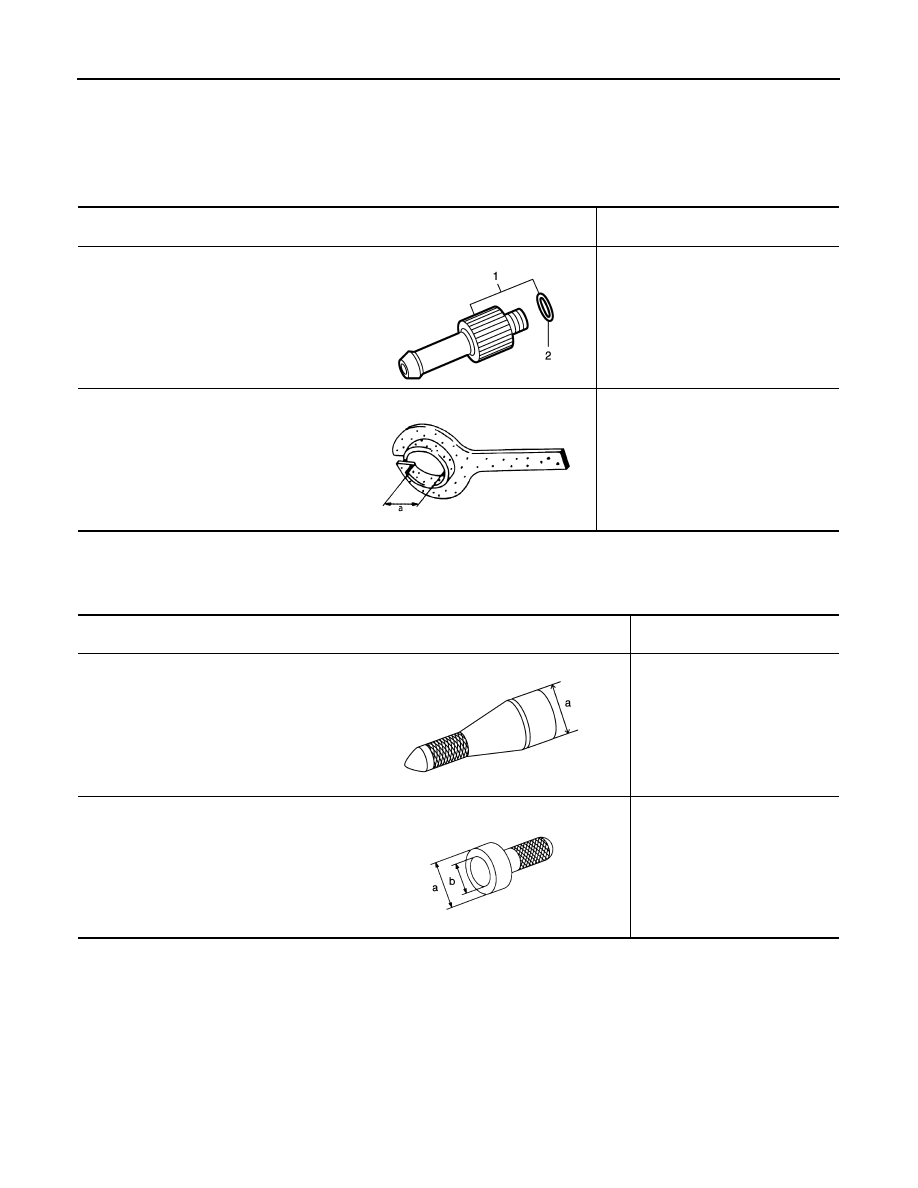

Special Service Tools

INFOID:0000000009019831

*: The O-ring as an unit part is set as a SST.

Commercial Service Tools

INFOID:0000000009019832

Tool number
Tool name

Description

1.

KV311039S0
Charging pipe set

2.

KV31103920*
O-ring

CVT fluid changing and adjustment

KV38107900
Protector
a:

φ 32 mm

Installing drive shaft

JSDIA1844ZZ

PDIA1183J

Tool number
Tool name

Description

31197EU50A
Drive plate location guide
a:

φ 25 mm

Installing transaxle assembly

Drift
a:

φ 56 mm

b:

φ 50 mm

Installing differential side oil seal

JPDIA0676ZZ

NT115

COMPONENT PARTS

TM-59

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM
CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000009019833

COMPONENT DESCRIPTION

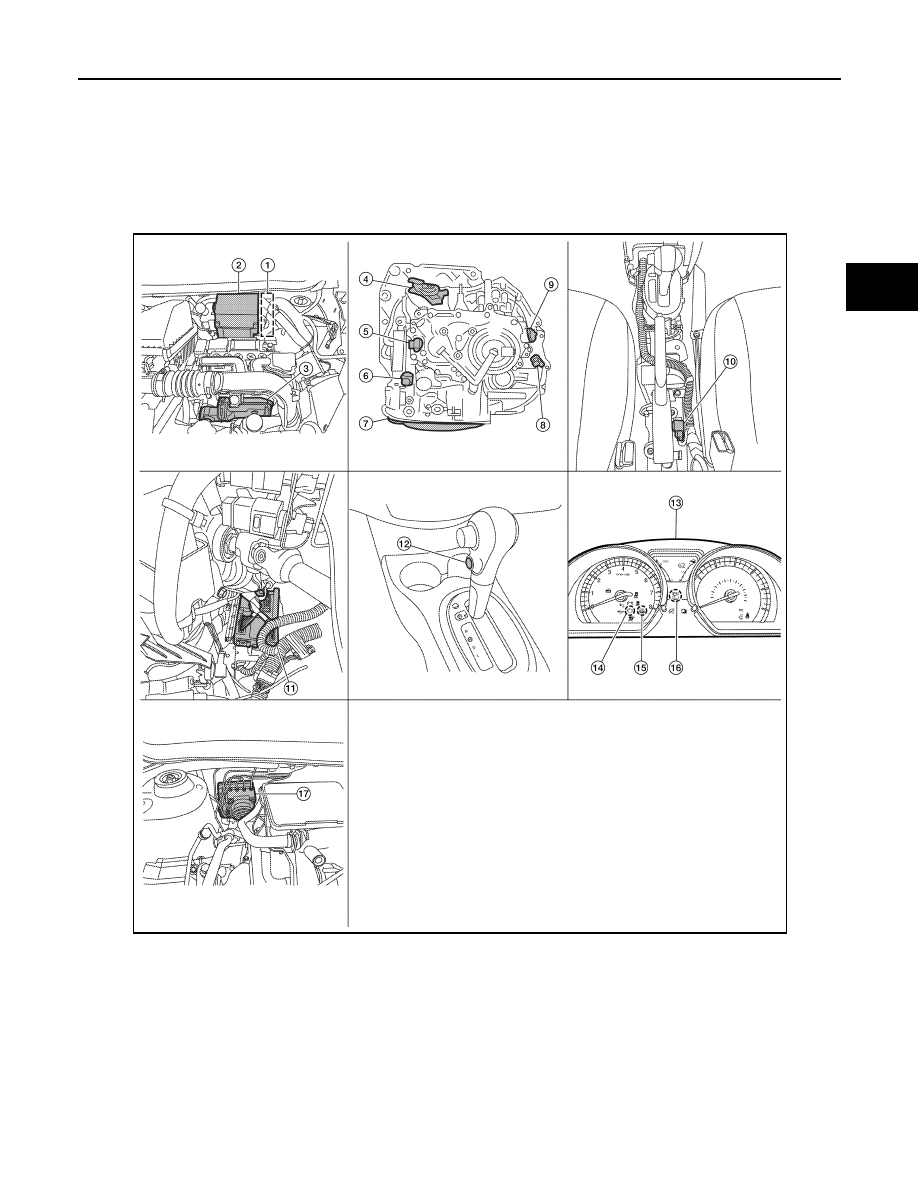

ALDIA0436ZZ

1.

ECM

2.

IPDM E/R

3.

TCM

4.

Transmission range switch

5.

Primary speed sensor

6.

CVT control unit

7.

Control valve

8.

Output speed sensor

9.

Secondary speed sensor

10. G sensor

11. BCM

12. Sport mode switch

13. Combination meter

14. Malfunction indicator lamp (MIL)

15. Sport mode indicator lamp

16. Shift position indicator

17. ABS actuator and electric unit (control

unit)

TM-60

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

COMPONENT PARTS

*: These components are included in control valve assembly.

CVT CONTROL SYSTEM : TCM

INFOID:0000000009019834

• The vehicle driving status is judged based on the signals from the sensors, switches, and other control units,

and the optimal transaxle control is performed.

• For TCM control items, refer to

TM-73, "CVT CONTROL SYSTEM : System Description"

.

CVT CONTROL SYSTEM : ROM Assembly

INFOID:0000000009019835

• The ROM assembly is installed to control valve.

Component

Function

IPDM E/R

The TCM receives the A/C compressor feedback signal via CAN communica-
tions from the IPDM E/R.

TCM

TM-60, "CVT CONTROL SYSTEM : TCM"

Transmission range switch

TM-61, "CVT CONTROL SYSTEM : Transmission Range Switch"

Primary speed sensor

TM-61, "CVT CONTROL SYSTEM : Primary Speed Sensor"

CVT unit

Control
valve

ROM assembly*

TM-60, "CVT CONTROL SYSTEM : ROM Assembly"

CVT fluid temperature sensor*

TM-62, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Secondary pressure sensor*

TM-62, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Primary pressure solenoid valve*

TM-63, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Low brake solenoid valve*

TM-63, "CVT CONTROL SYSTEM : Low Brake Solenoid Valve"

High clutch & reverse brake solenoid
valve*

TM-63, "CVT CONTROL SYSTEM : High Clutch & Reverse Brake Solenoid
Valve"

Torque converter clutch solenoid valve*

TM-63, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid Valve"

Line pressure solenoid valve*

TM-64, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Output speed sensor

TM-62, "CVT CONTROL SYSTEM : Output Speed Sensor"

Secondary speed sensor

TM-61, "CVT CONTROL SYSTEM : Secondary Speed Sensor"

G sensor

TM-64, "CVT CONTROL SYSTEM : G Sensor"

Overdrive control switch

TM-64, "CVT CONTROL SYSTEM : Overdrive Control Switch"

Combination meter

The TCM receives the overdrive cntrol switch signal via CAN communications
from the combination meter.

ABS actuator and electric unit (control unit)

The TCM receives the following signals via CAN communications from the ABS
actuator and electric unit (control unit).
• Vehicle speed signal
• VDC operation signal
• VDC malfunction signal

ECM

• For purposes including improving the feeling when shifting and preventing

drops in engine speed, control signals are exchanged between the ECM and
TCM, and real-time cooperative control is performed according to the vehicle
driving conditions. (Engine and CVT integrated control)

- Engine and CVT integrated control signal
• The TCM receives the following signals via CAN communications from the

ECM.

- Engine speed signal
- Accelerator pedal position signal
- Closed throttle position signal
• TCM sends and receives the following signals with ECM through CAN com-

munication to perform D position N idle control.

- N idle instruction signal

BCM

The TCM receives the following signals via CAN communications from the
BCM.
• Stop lamp switch signal
• Turn indicator signal

COMPONENT PARTS

TM-61

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• The ROM assembly stores the calibration data (characteristic value) of each solenoid valve. TCM enables

accurate hydraulic control by obtaining the calibration data.

CVT CONTROL SYSTEM : Transmission Range Switch

INFOID:0000000009019836

• The transmission range switch is installed to upper part of transaxle case.

• The transmission range switch detects the selector lever position.

CVT CONTROL SYSTEM : Primary Speed Sensor

INFOID:0000000009019837

• The primary speed sensor is installed to side cover of transaxle.

• The primary speed sensor detects primary pulley speed.

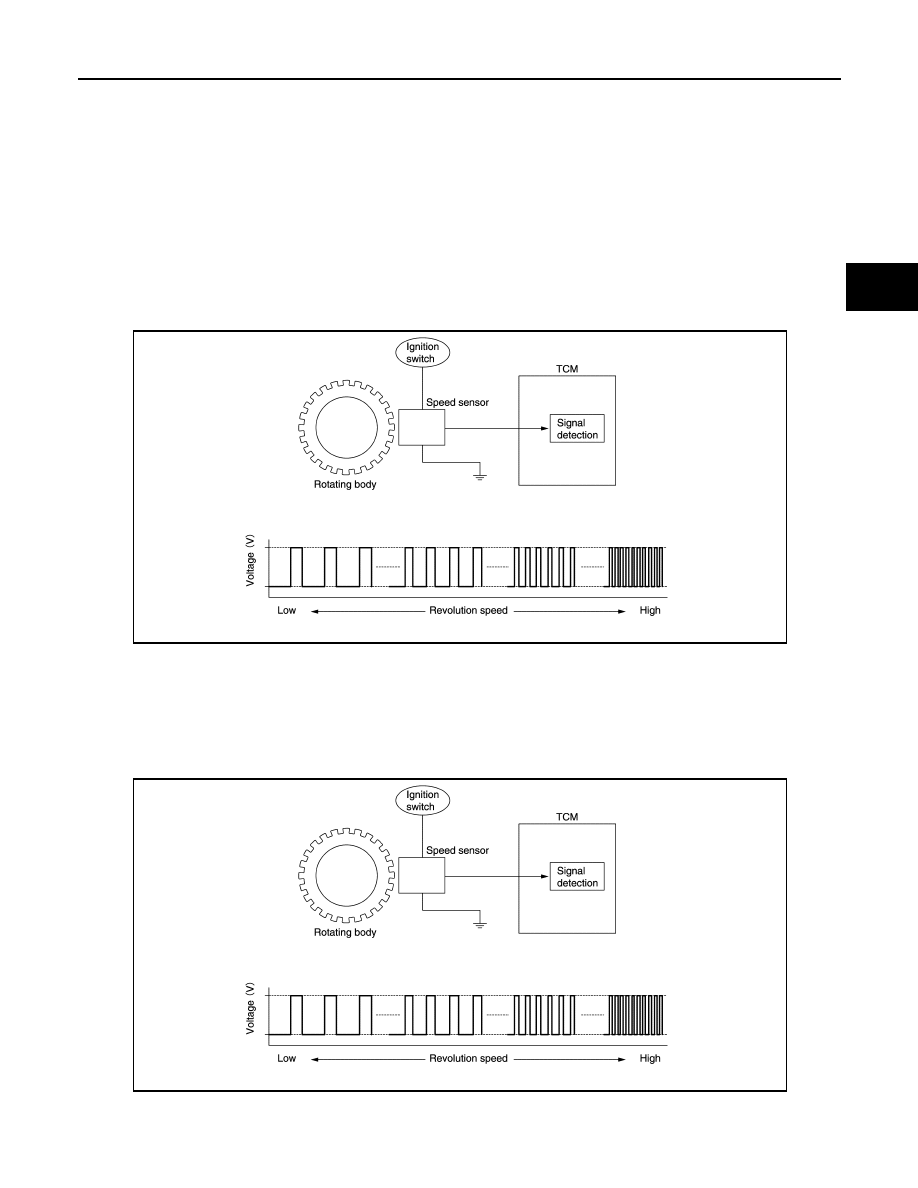

• The primary speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating body

speed which is “The higher the rotating body speed is, the faster the change cycle is”. The TCM judges the

rotating speed from the changing cycle of this pulse signal.

CVT CONTROL SYSTEM : Secondary Speed Sensor

INFOID:0000000009019838

• The secondary speed sensor is installed to side cover of transaxle.

• The secondary speed sensor detects secondary pulley speed.

• The secondary speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating

body speed which is “The higher the rotating body speed is, the faster the change cycle is”. The TCM judges

the rotating speed from the changing cycle of this pulse signal.

JSDIA1824GB

JSDIA1824GB
